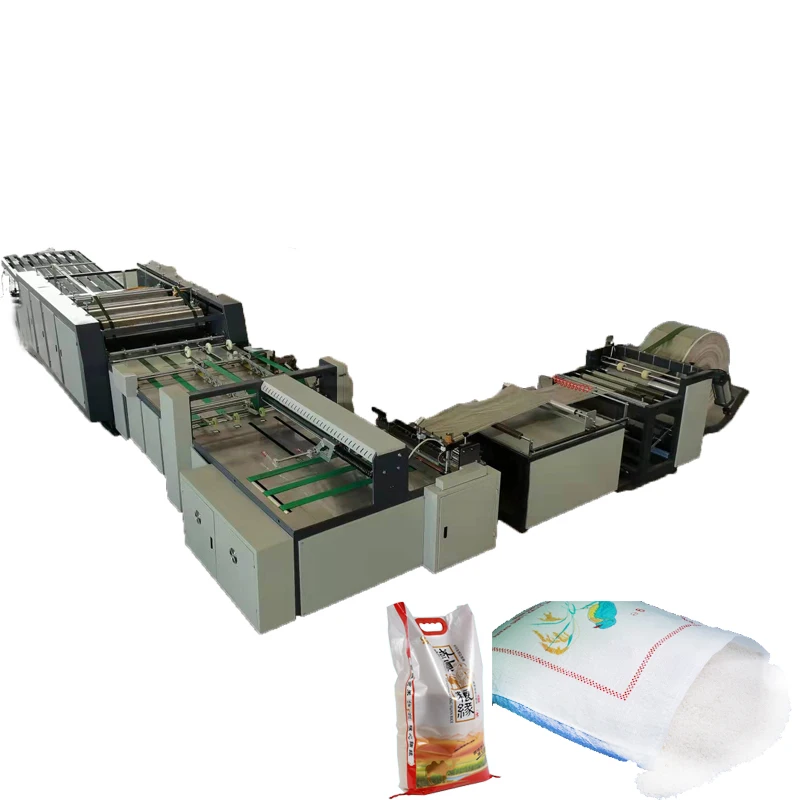

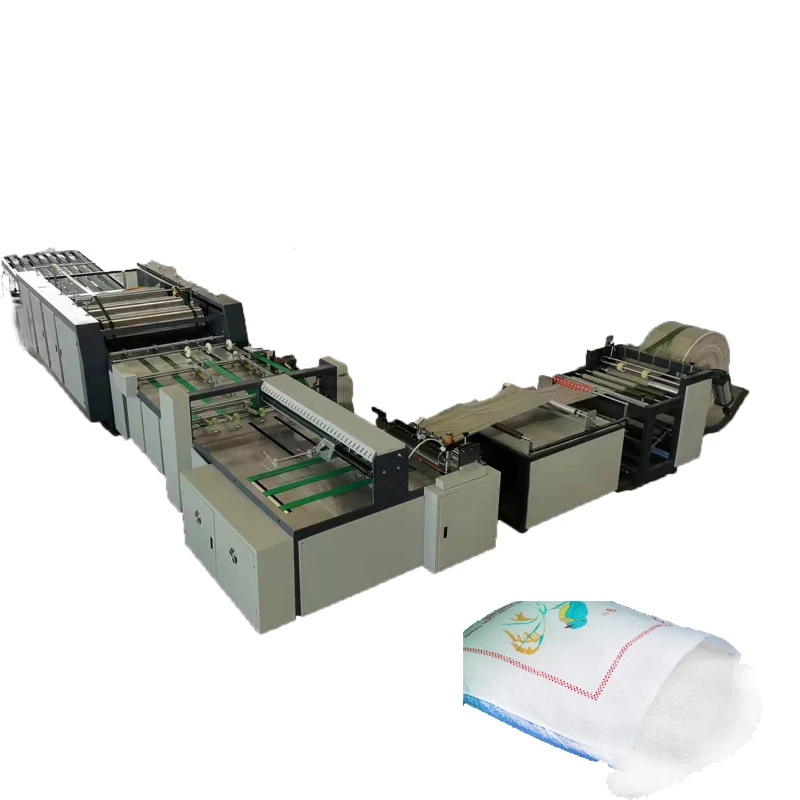

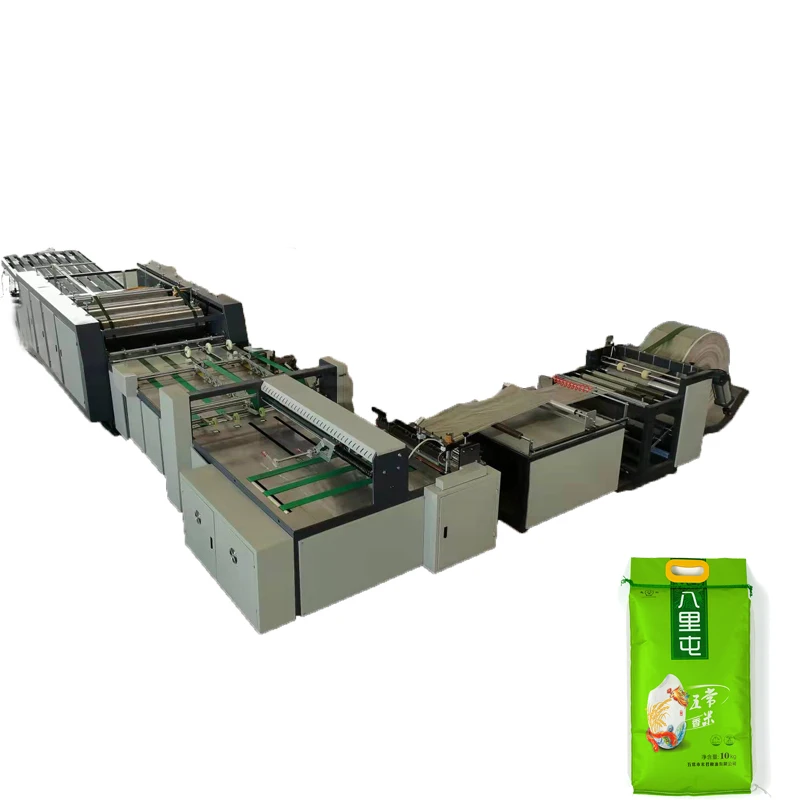

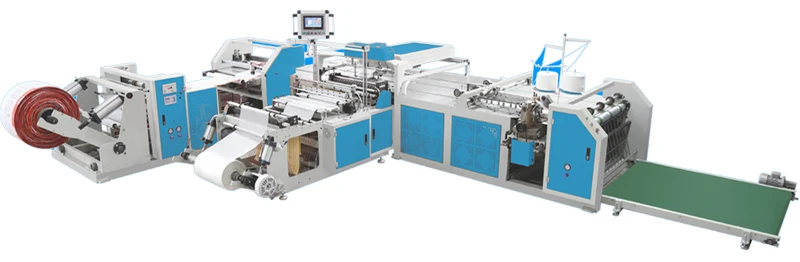

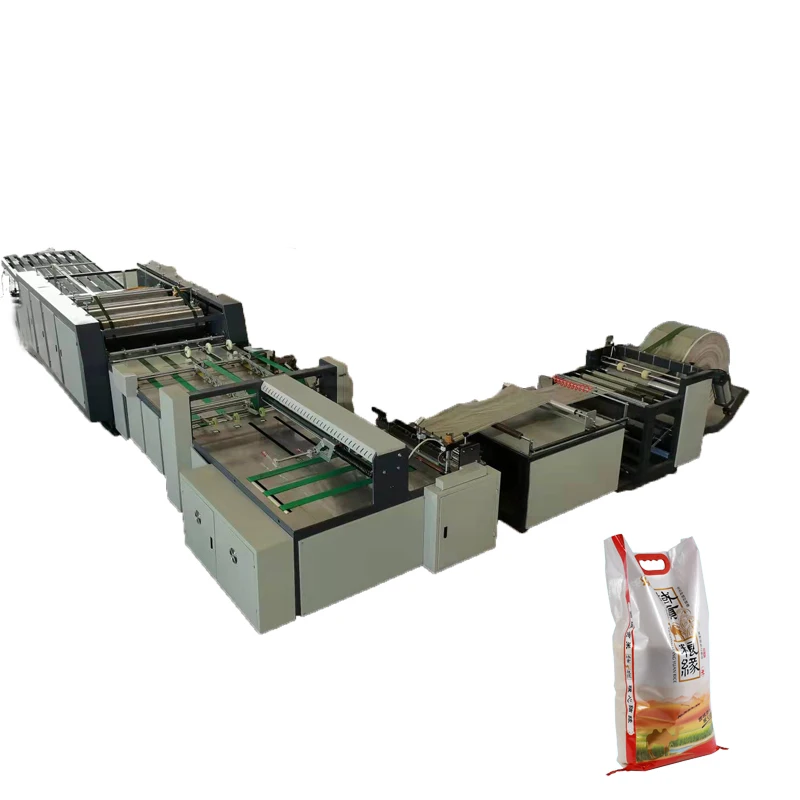

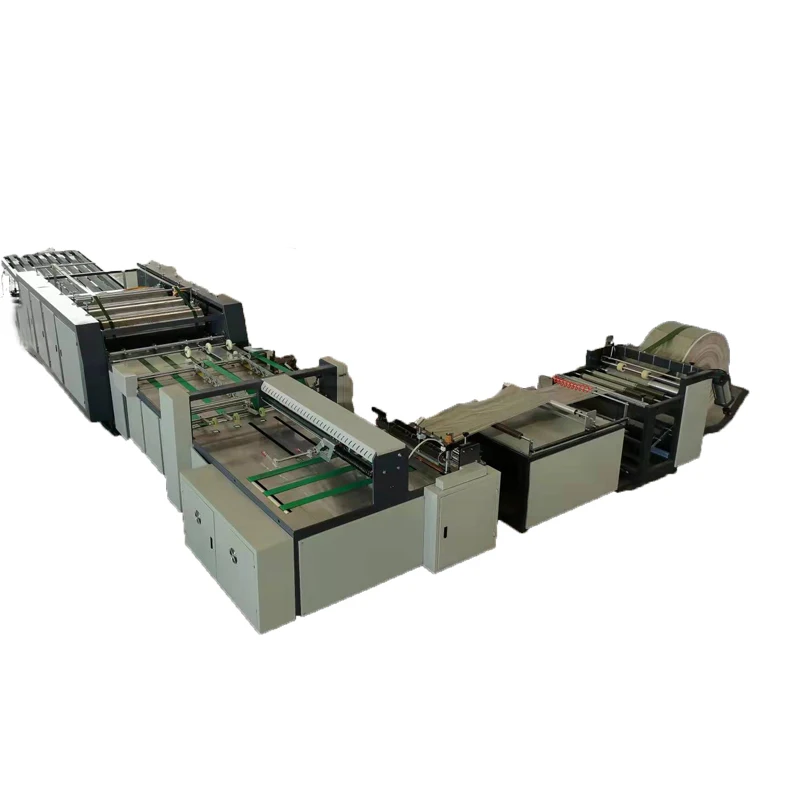

Cold & Hot Cutting Sewing Bagging Printing Machine nylon PP woven bags agricultural product storage bag Making Machine
- Category: >>>
- Supplier: Hebei Haosen Leituo Machinery Technology Co. Ltd.
Share on (1600410026015):
Product Overview
Description
Item | Parameter | Item | Parameter | ||
Cloth roll (outer woven bag width ) | 350-750 mm | Cutting accuracy | ±1.5 mm | ||
PE film (inner bag) is wider than outer bag | +20 mm | Needle distance | 7-12 mm | ||
PE film thickness | ≥0.01 mm | Production speed | 32-38 pcs/min | ||
Outer woven bag cutting length | 600-1250 mm | The total power of the whole machine | ≈10KW | ||
Optional Features | Printing (2-5 color)，（Either cold -cutting-sewing or hot- cutting- sewing machine can be made at lower cost.） | ||||

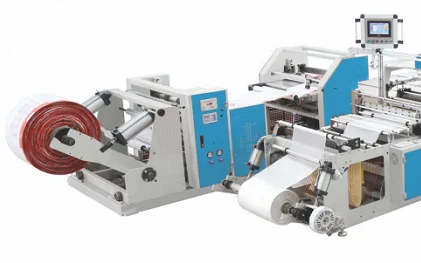

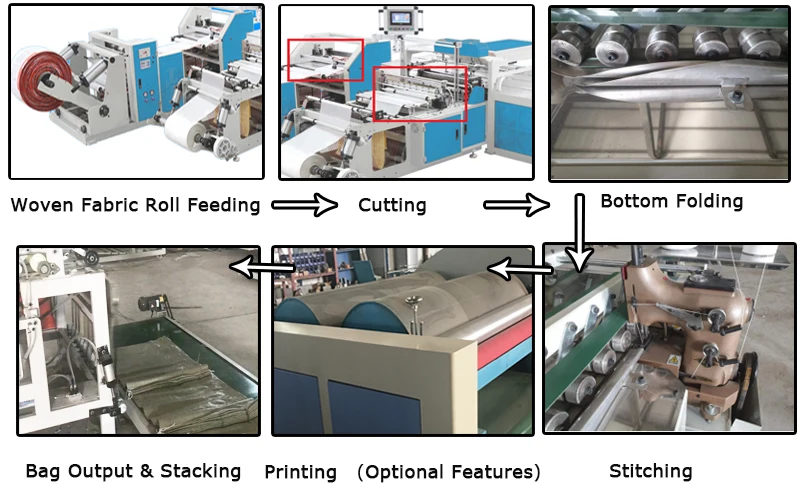

1.FABRIC ROLL FEEDING
PARTS
PARTS
Fully automatic pneumatic feeding, with lifting system, easy to operate fabric rolls up and down.
Air Cylinder Control, photoelectric tracking,edge guiding system,Servo Motor driven, floating roller parts.
Air Cylinder Control, photoelectric tracking,edge guiding system,Servo Motor driven, floating roller parts.
2.HOT AND COID
CUTTING PART
Servo motor drive,hot and cold cutting to make the cut surface more neat,suitable for both PP woven fabric and film coating bag.
Cold cutting parts use Tungsten steel blade ,which import from Germany.
Cold cutting parts use Tungsten steel blade ,which import from Germany.

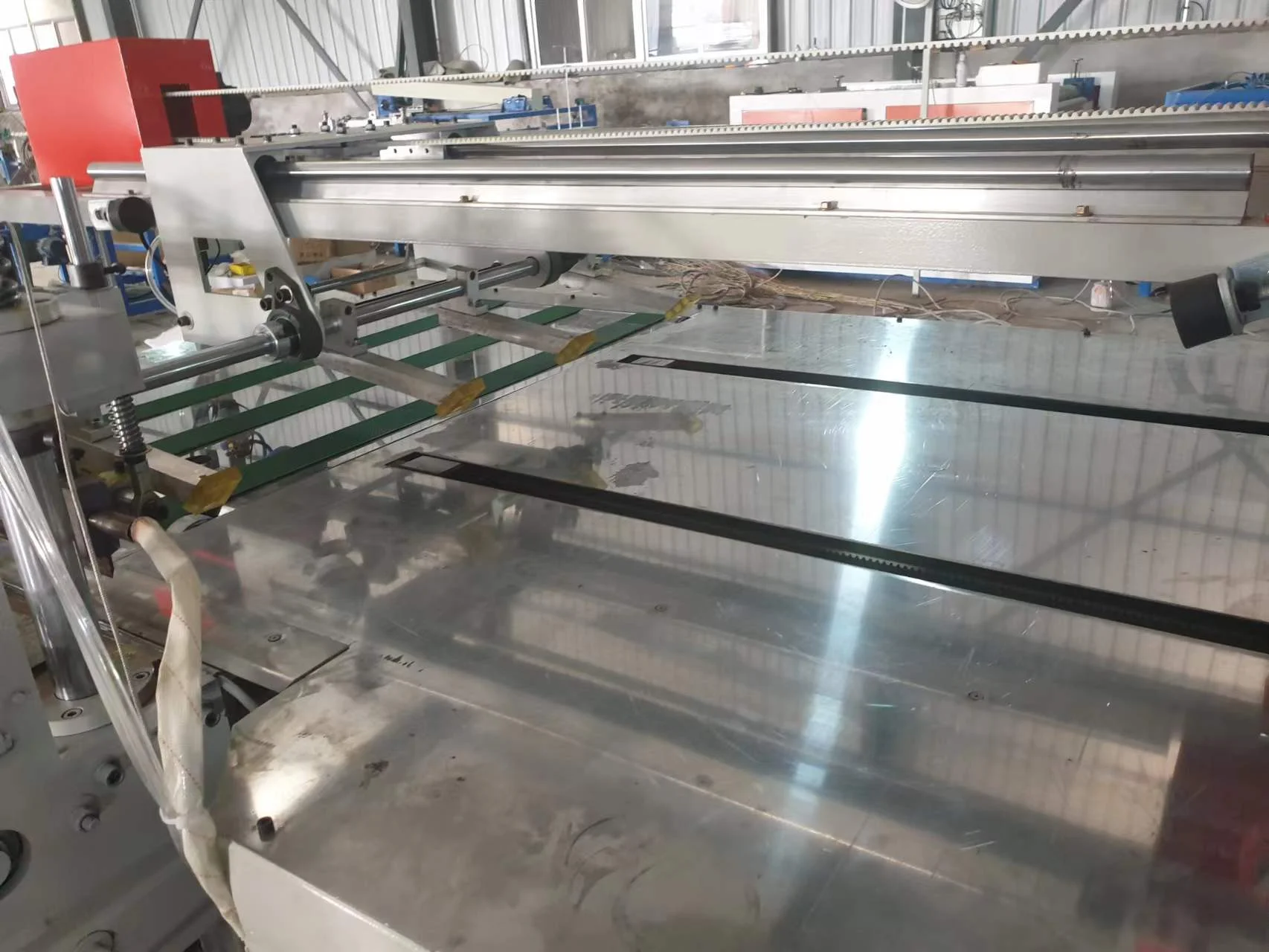

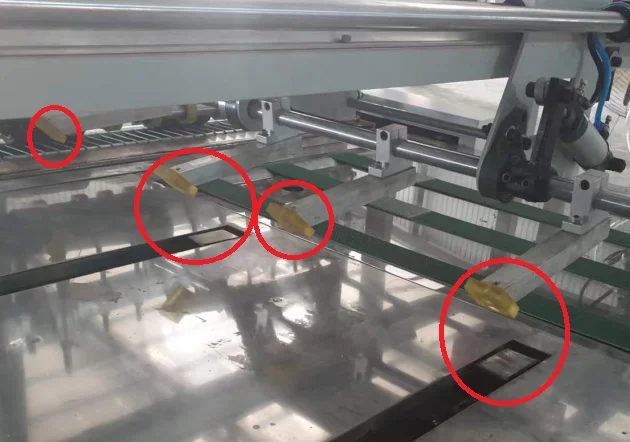

3.MECHANICAL HAND
GRAB BAG PART
Using the double-sided mechanical hand, the positioning and the sewing are more accurate.Servo Motor control ,more stable production guarantee.
4.TRANSPORT PART
High-quality conveyors with high speed, high efficiency and long service life.

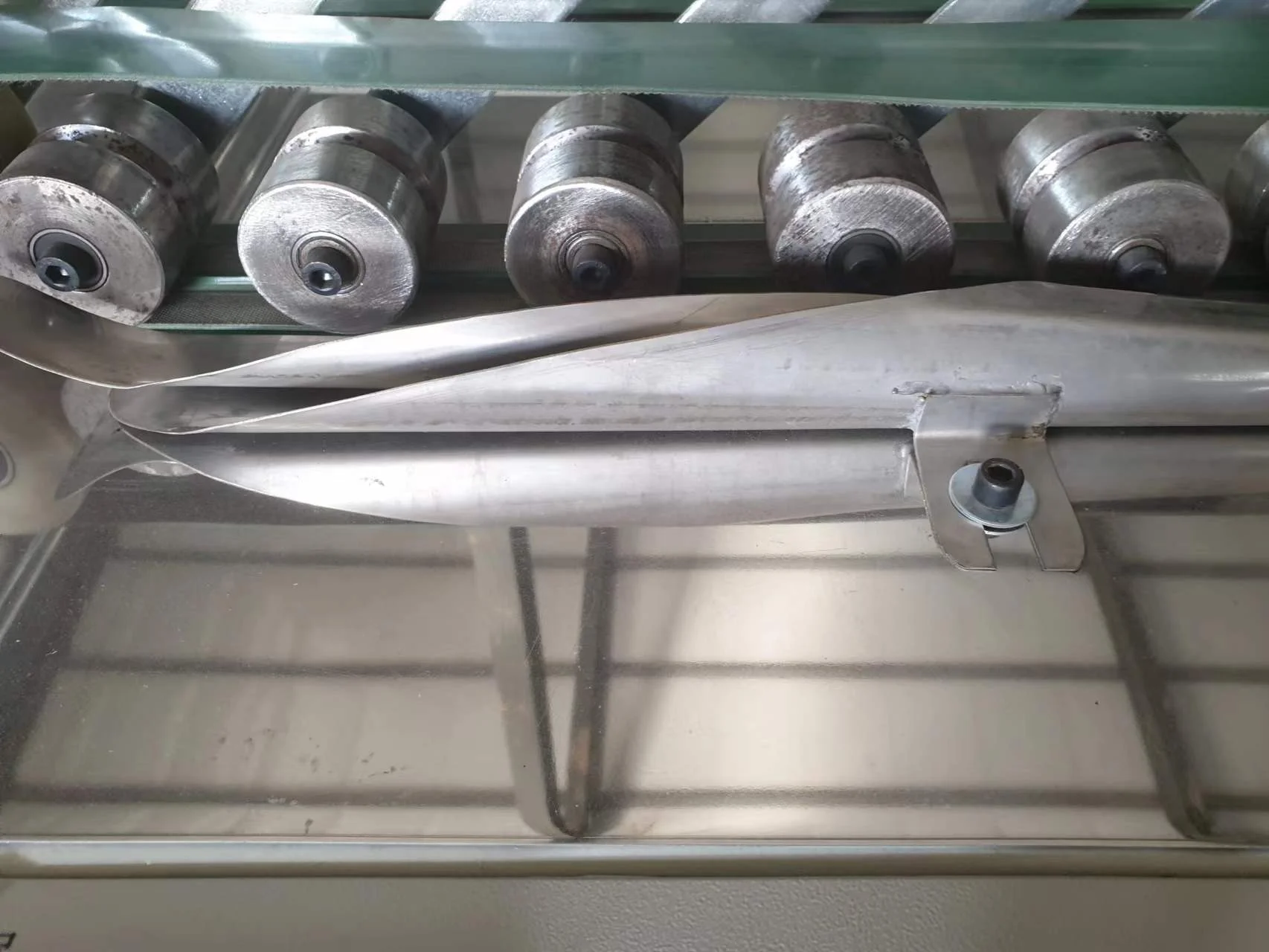

5.EDGE FOLDING
SYSTEM
Both Single and double folding can be done.

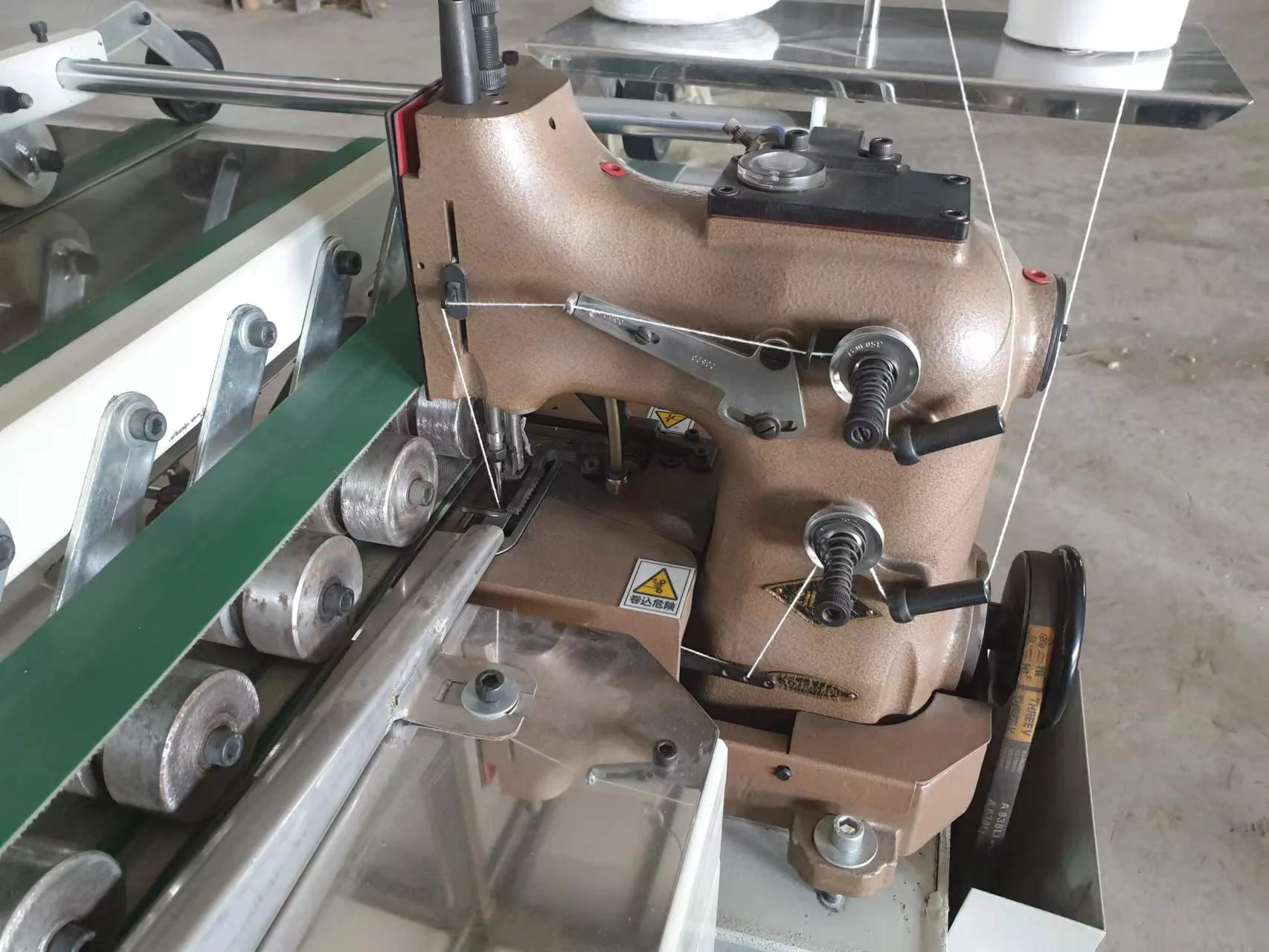

6.AUTOMATIC SEWING
MACHINE
The sewing machine is equipped with a thread break alarm system and an anti-deviation device, which makes sewing more efficient and precise.

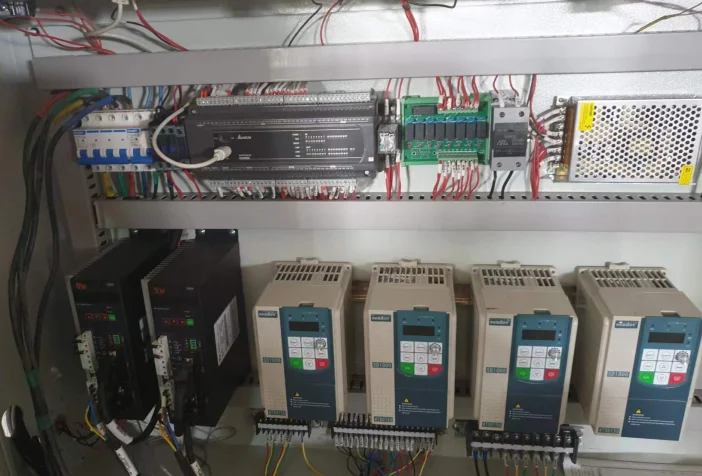

7.ELECTRIC CONTROL
SYSTEM
Use famous brand electrical components.
8.BAG OUTPUT & STACKING
Automatic Counting & Stacking PLC touch screen control, adjustable quantity.
Feature
1.Fully automatic, intelligent combined operation , one person and one machine, and the production efficiency will increased by more than twice.
2.Integrating multiple processing processes into one, one person can complete all processes of feeding, folding (paper wrapping), suturing, disconnecting, cutting and counting of woven bags with close cooperation and non-interference.
3.With the combination of photoelectric detection equipment, the first time in equipment with photoelectric detection equipment, intuitive and accurate detection work process, good safety, little power consumption, simple operation.
4.Adopt digital frequency conversion for speed adjustment, power to lighting, and consume few power.
5.According to customer requirements, special size can be processed and customized.
2.Integrating multiple processing processes into one, one person can complete all processes of feeding, folding (paper wrapping), suturing, disconnecting, cutting and counting of woven bags with close cooperation and non-interference.
3.With the combination of photoelectric detection equipment, the first time in equipment with photoelectric detection equipment, intuitive and accurate detection work process, good safety, little power consumption, simple operation.
4.Adopt digital frequency conversion for speed adjustment, power to lighting, and consume few power.
5.According to customer requirements, special size can be processed and customized.
Certifications
Company Profile
About Company
Haosen was established in 2008. Since its establishment,we focus on the research and development, manufacturing and sales of green ,environment-friendly and smart machinery. We adhere to the tenet of "innovation and development, quality wins the market" to provide customized products for global users, design products according to customer needs,integrated services of production, installation and commissioning, and provide long-term technical support for the machine.
Why choose us?
●14 years focus on pouch making machine!Our experienec is your advantage!
●Direct factory!
●Pouch making machine get European engineer’s praise!
●480 set machine installed!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
●Direct factory!
●Pouch making machine get European engineer’s praise!
●480 set machine installed!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
