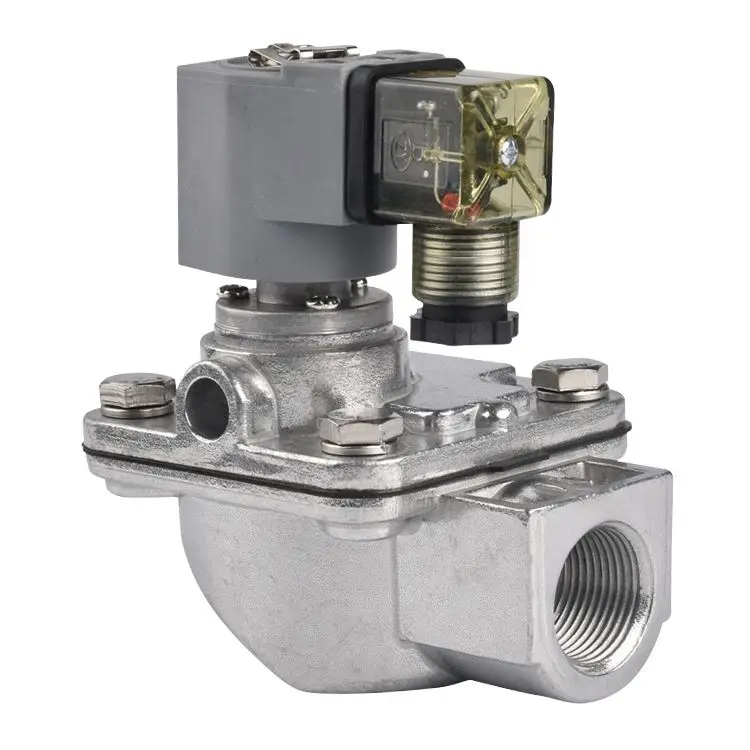

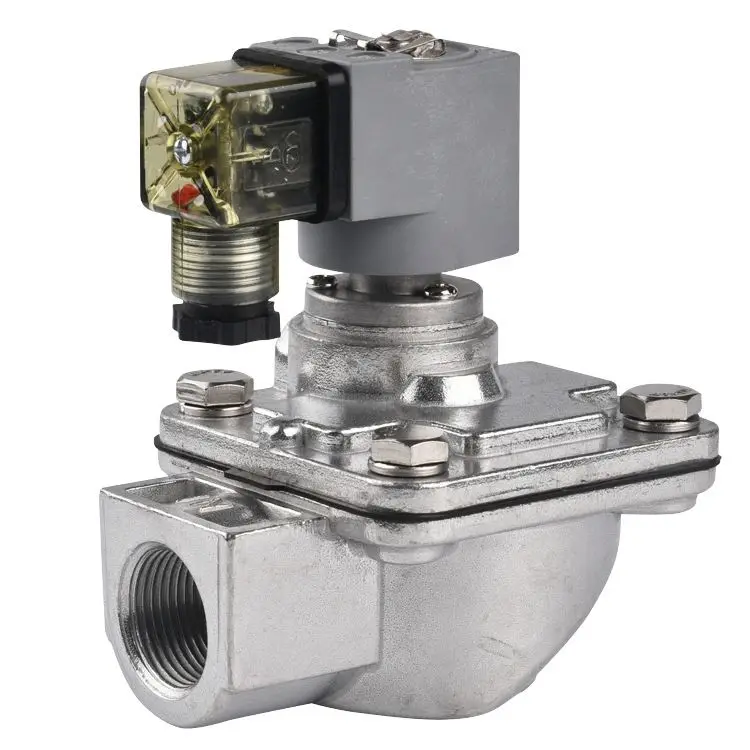

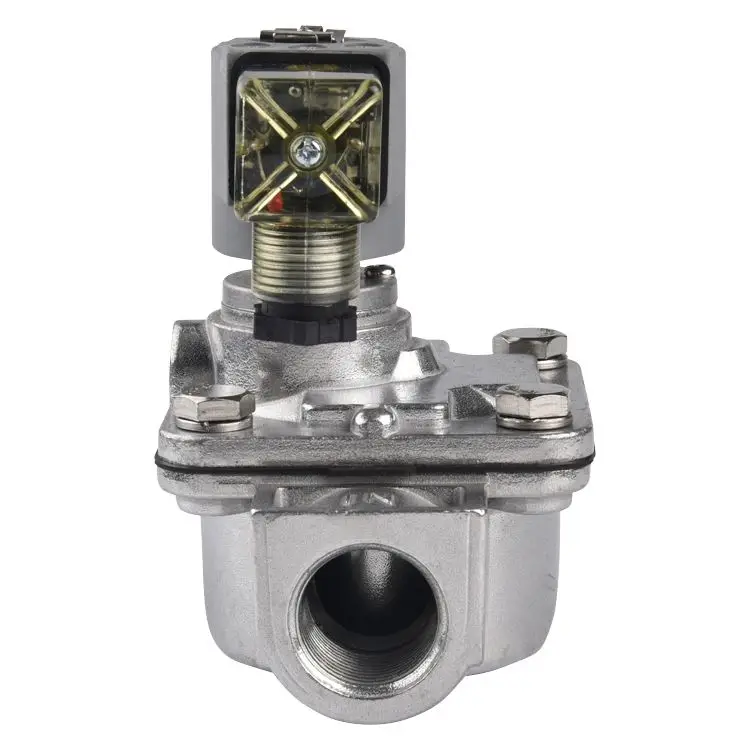

TK 1 inch clean air right angle pulse valve CA20T bag filter jet diaphragm solenoid valve for dust collector

Product Overview

Description

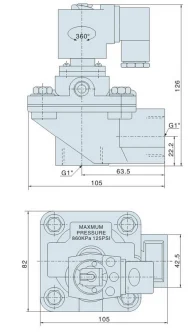

	Overall Dimension
YWG-Z-25



Model	YWG-Z-25	Diaphragm
Orifice size	25mm
Port size	1"
Number of diaphragm	1
kv/cv	12/14
Weight(kg)	0.59
Outside diameter /center distance

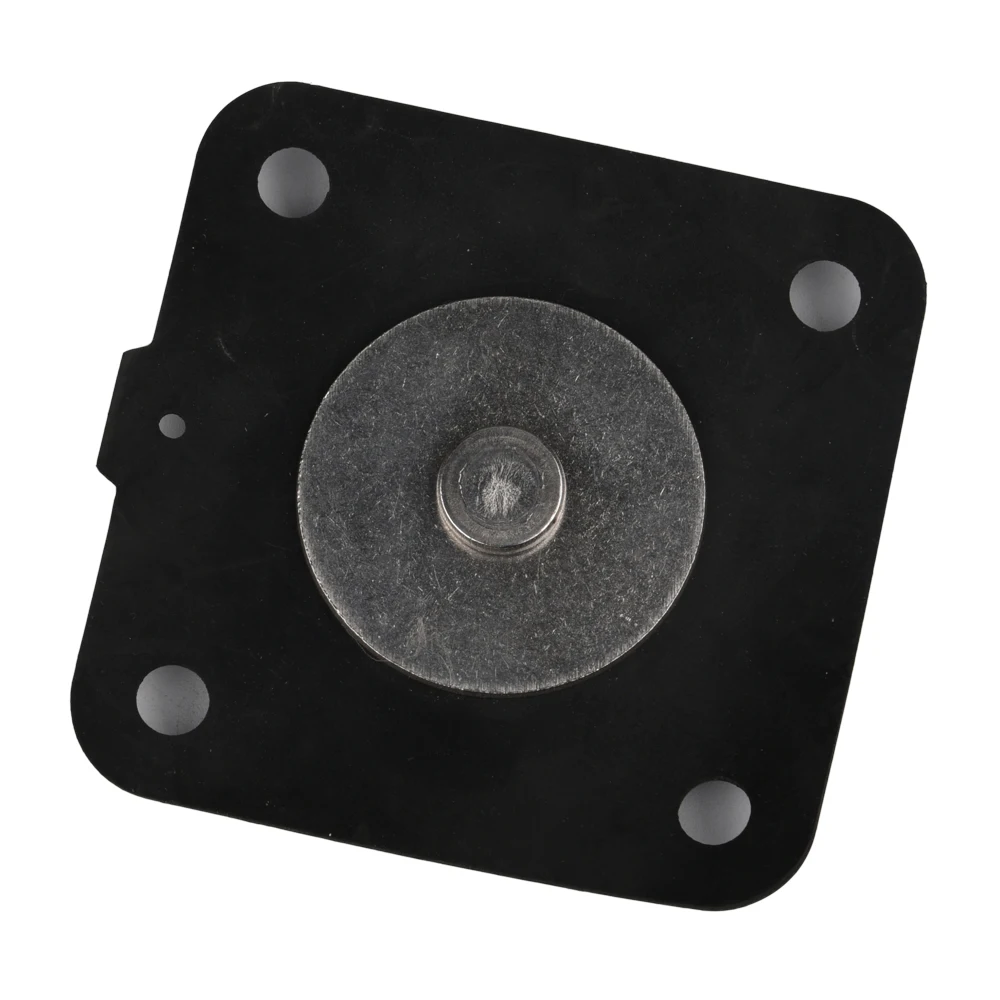

Matching diaphragm	GZ25

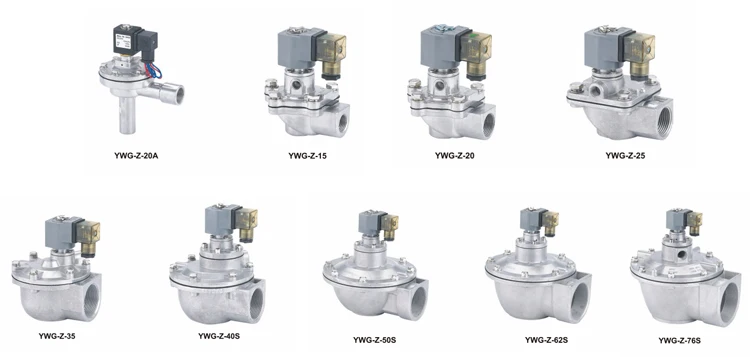

YWG Serie Right Angle Pulse Valve,20A-76S



Product Prarameters

Model	YWG-Z-15	YWG-Z-20	YWG-Z-25	YWG-Z-35	YWG-Z-40S	YWG-Z-50S	YWG-Z-62S	YWG-Z-76S
Work pressure	0.3~0.7Mpa
Envionnment temperature	-15~65°C
Relative humidity	<85%
Use medium	Dry clean compressed air
Electric pressure	AC110V/A220V/DC24V
Diaphragm diameter	Injection of million or more
Nominal diameter	15mm	20mm	25mm	35mm	40mm	50mm	62mm	76mm
Connection threed	G1/2	G3/4	G1	G1-1/4	G1-1/2	G2	G2-1/2	G3
Kv/Cv/The discharge coefficient		17.55/20.48	26.16/30.53	34.11/46.13	45.82/53.47	62.09/72.46	136.58/159.39	165.84/193.54
(m^2)/The injection area		3.5~6	8~10	10~13	12~16	18~28	27~38	37~65

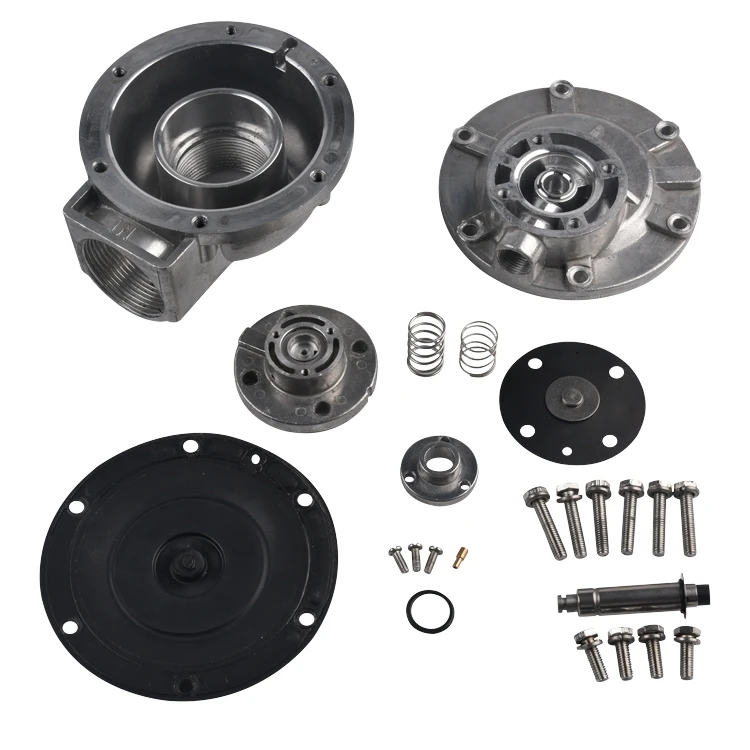

Product Breakdown





Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
