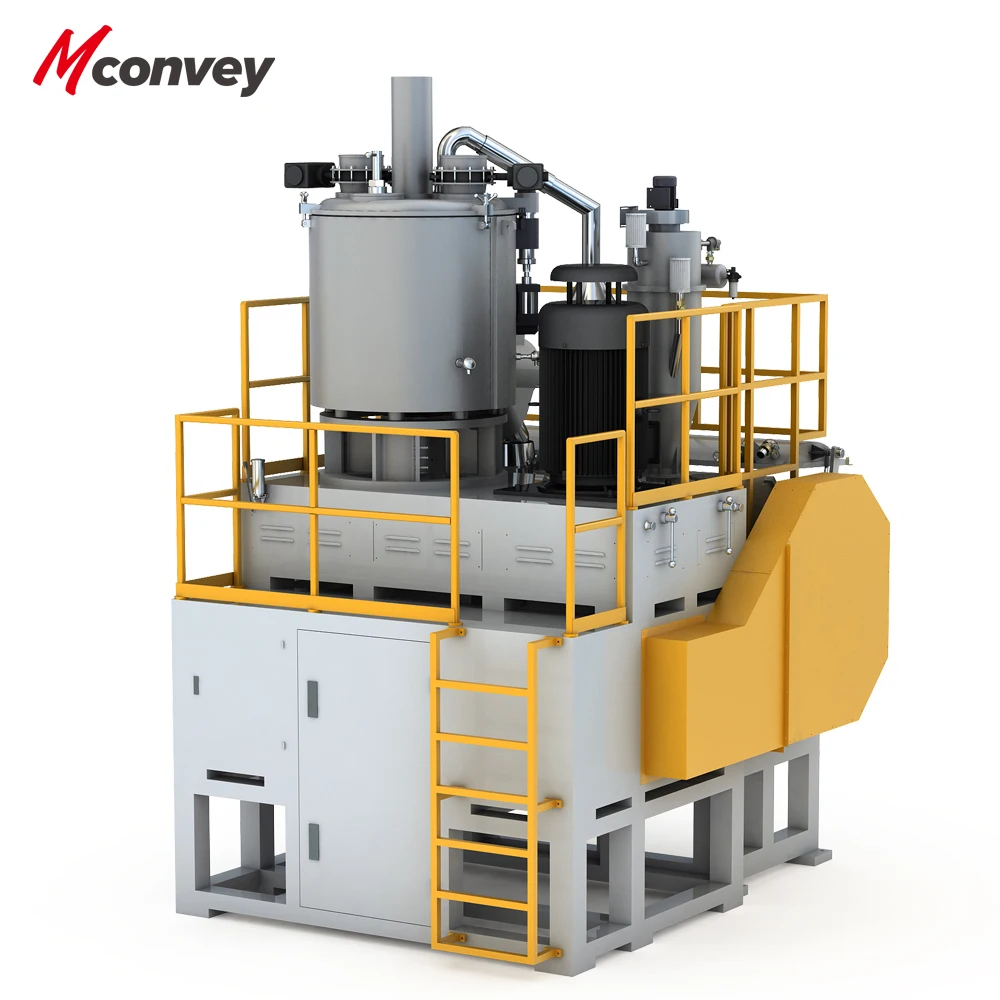

CE standard industry High speed Plastic PVC PE ABS Hot/Cooling compound Mixer

Product Overview

Description







Type selection parameter table



Model	GRH500G(hot)	GRH1000C(hot)	LH1500G(cold)	LH3000C(cold)
Motor type	The unique super high efficiency permanent magnet synchronous motor is adopted to speed up the heating up speed of mmixture		Adopt AC motor
Volume(L)	500	1000	1000	3000
Mixing weight per pot(kg)	200	420	400	840
Motor power(kw)	99	160	22	37
Dust removing mode	The hot mixing and cold mixing are connected through the aie exhaust pipe for exhaust and dust seperator		Adopt pulse dust seperator device
Discharging mode	Double cylinder pushing backward piston type
Cylinder material	Material of contact part: stainless steel
Dimension(H*W*D)	4700*3350*2550mm
Total weight	8.5T	13.5T	8.5T	13.5T
Control and display	Adopt Siemens PLC control with touch screen display



Working principle

The high speed mixer is generally used in a vairety of powder material mixing ,the motor drives the paddle to rotate at high speed, the materials(or granular ,liquid and powder combination materials) in the mixing cylinder under the action of paddle while do circular motion along the cylinder wall, also clambing on the wall to reach a certian height, it will toward the center cylinder body to do the downward motion,in this processm all kinds of raw materials have strong convection mixing with each other. At the same tiem, due to the stirring of the paddle, the velocity difference between materials is gengerated, which strengthens the effect of shear mixing;

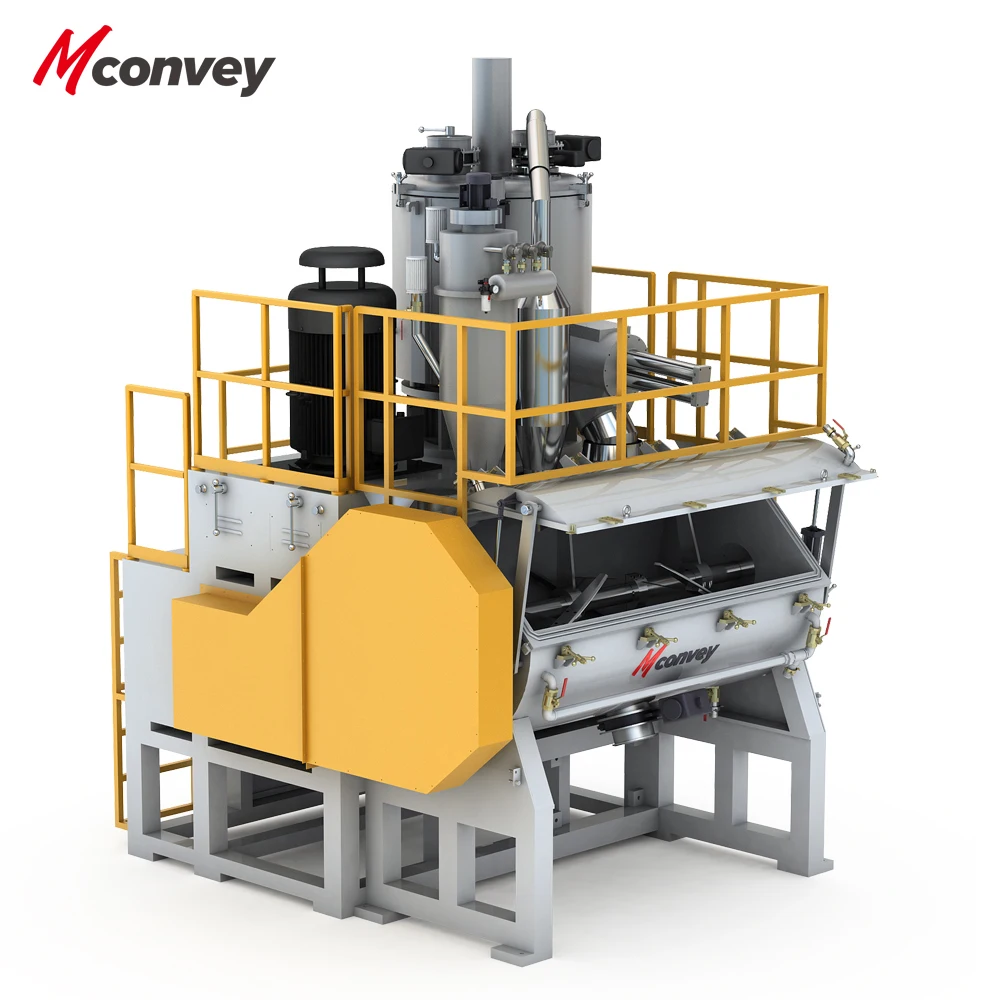

The powder after the high speed hot mixing and due to frictional heating , mixture tempeature reached 100℃ above,when the powder discharging to the cold mixer and through forced cooling, proceed the high efficiency cooling ,Mconvey cold mixer of cylinder block and cylinder cover are set with water ring, and configure the forced cooling water pump to accelerate cooling effectm while the cold mixer works, the high speed hot mixer can carry out the second batch of mixing work, the mixing cycle of the cold mixer is shorter than the hot mixer, to ensure that the second batch of raw materials can be discharged into the cold mixer in time after mixing.
