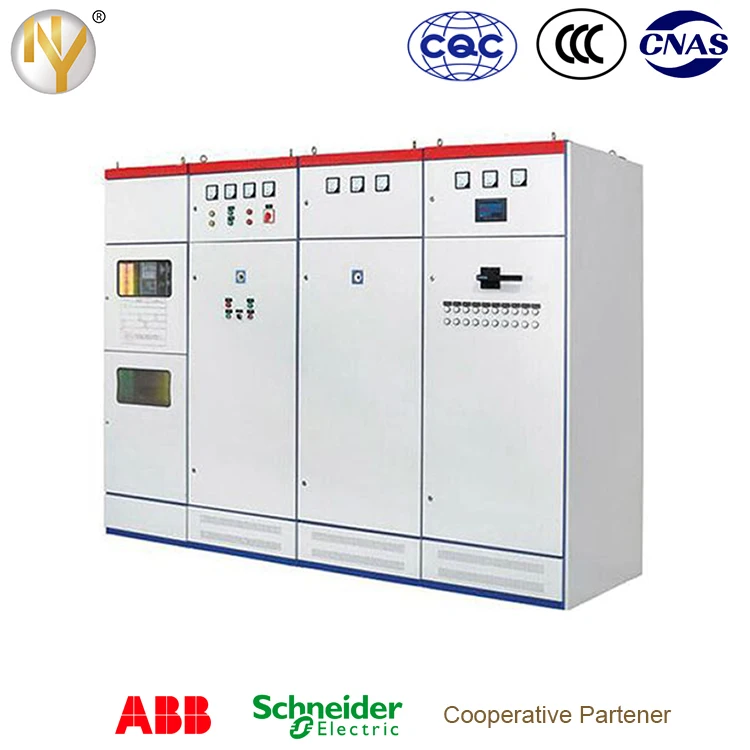

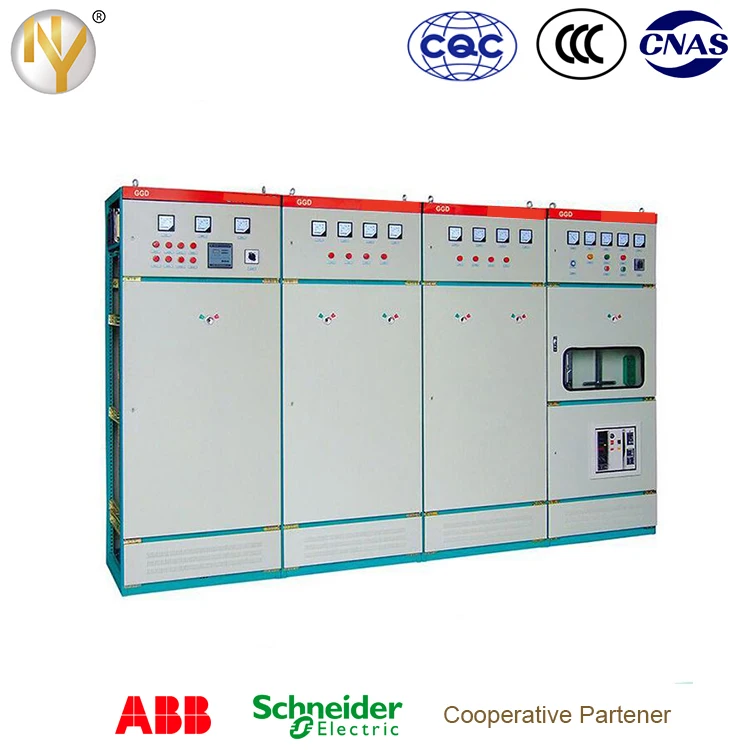

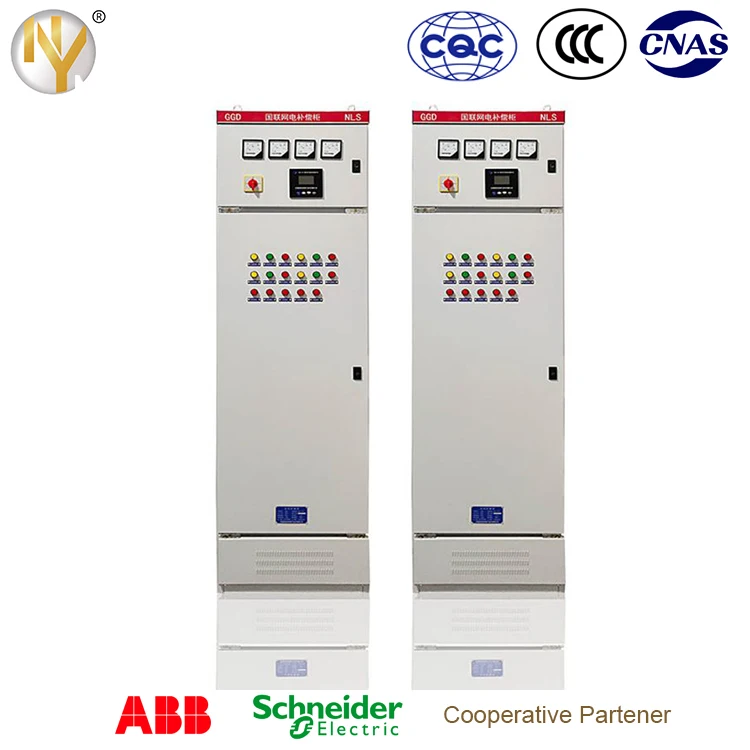

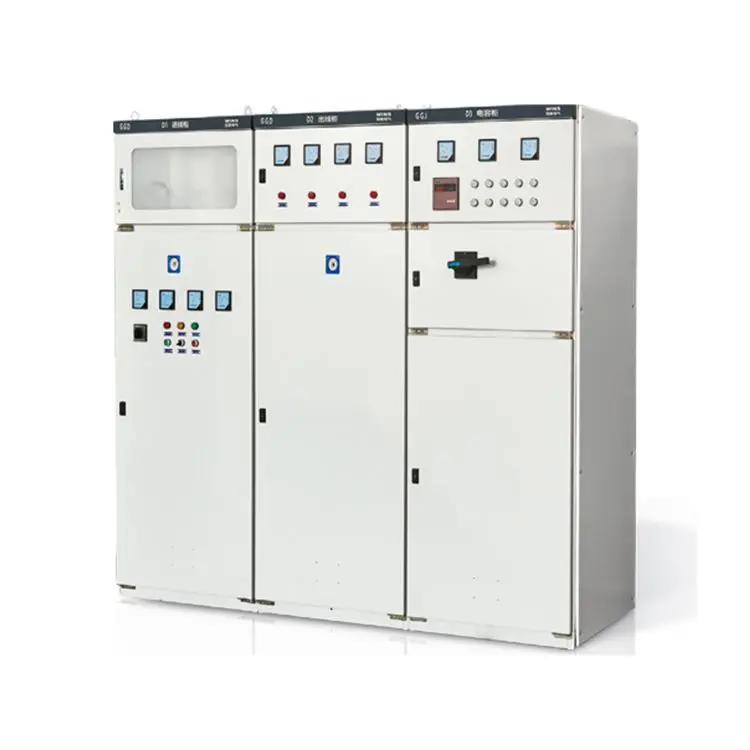

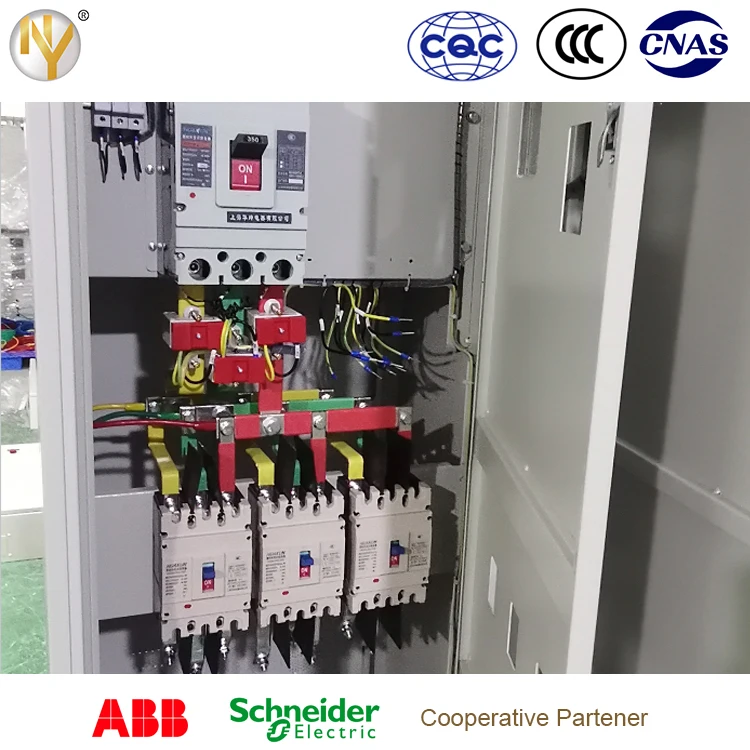

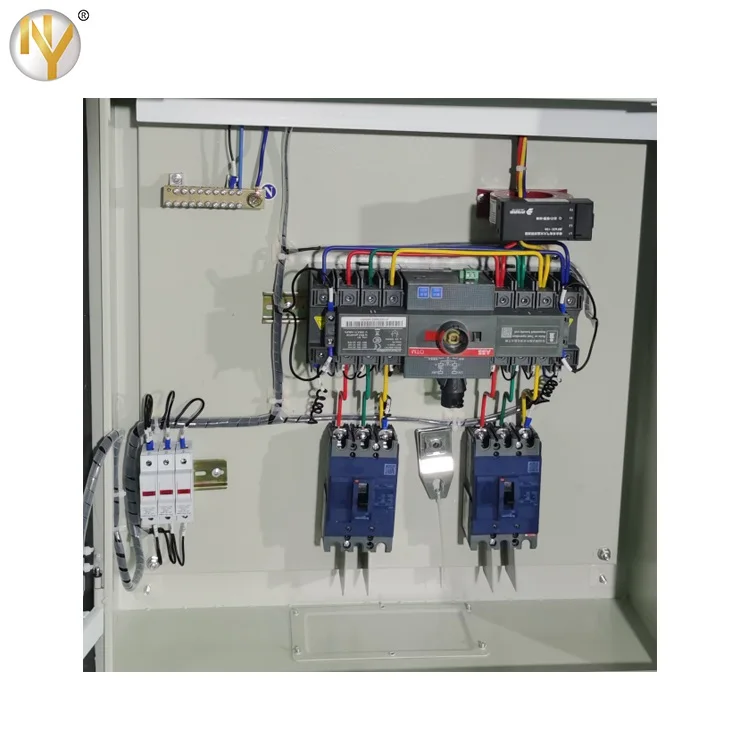

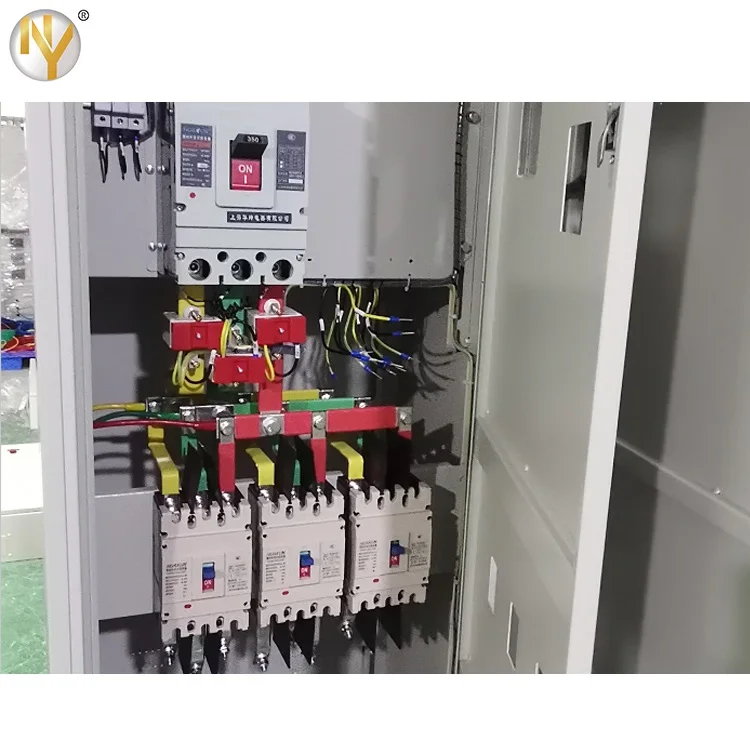

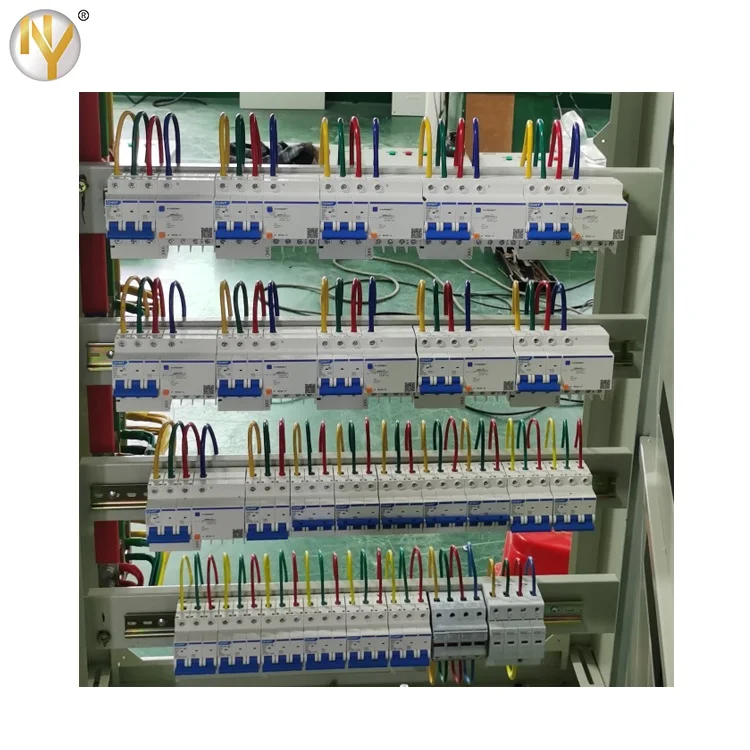

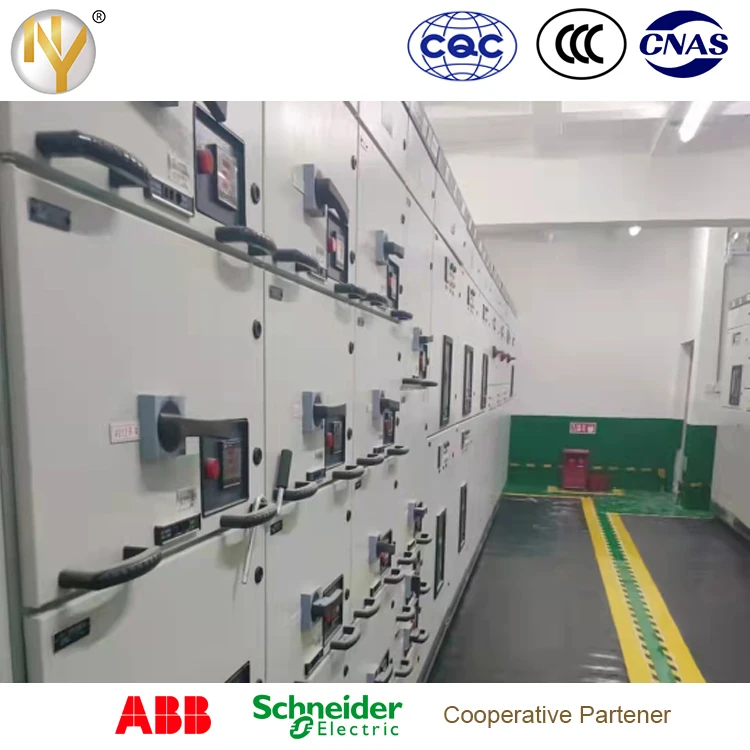

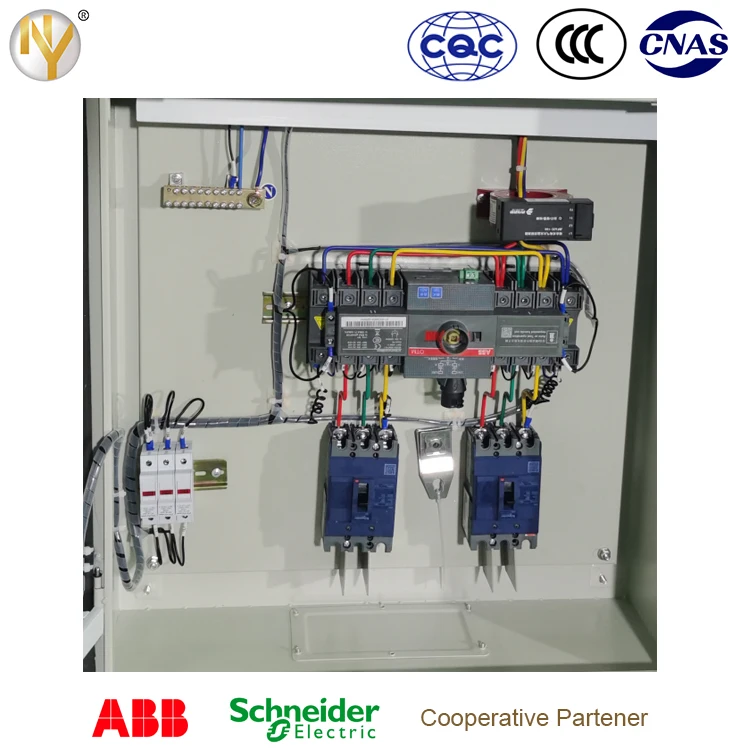

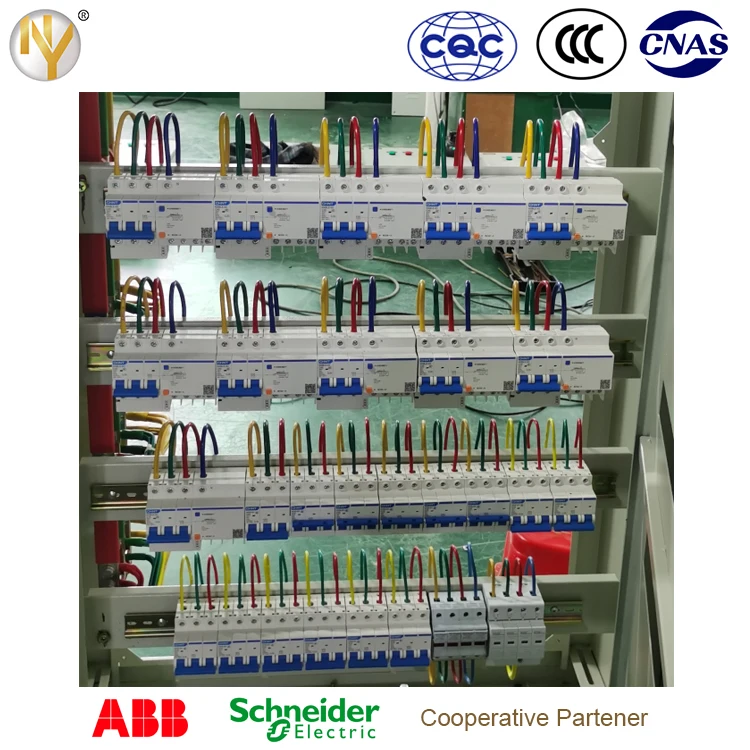

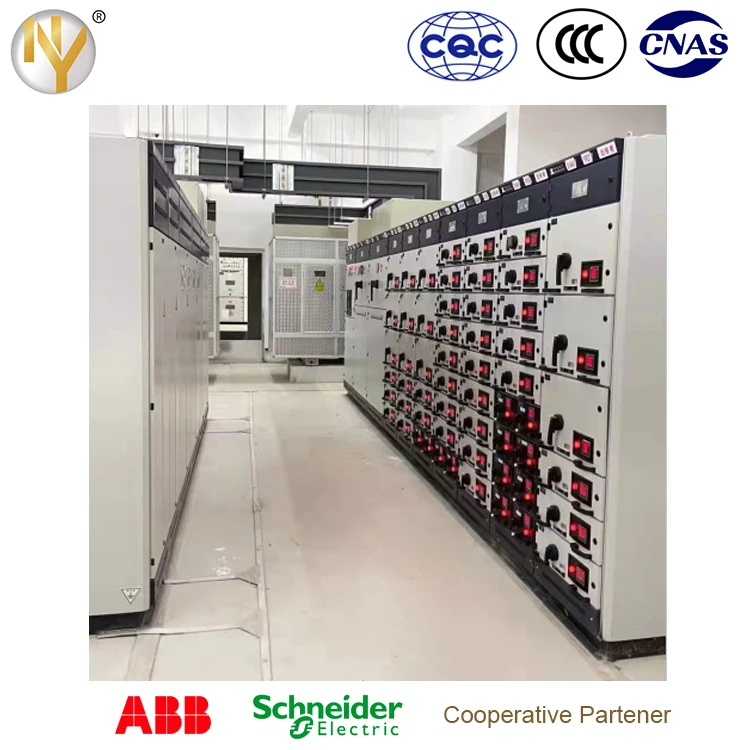

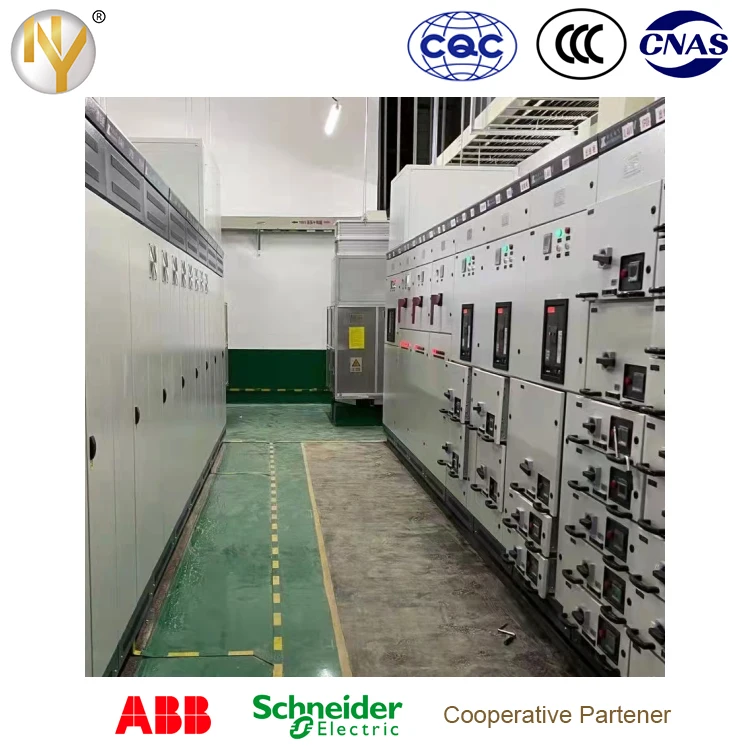

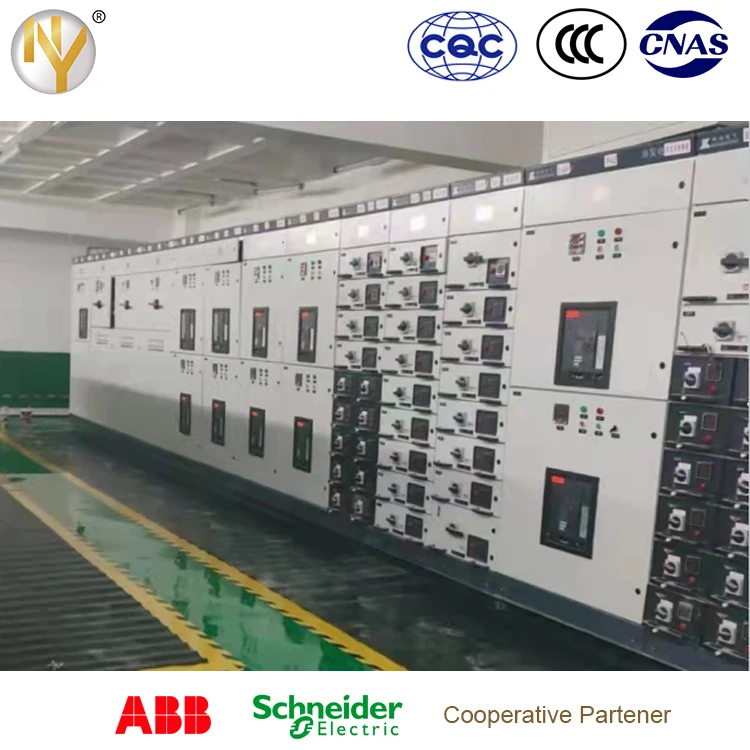

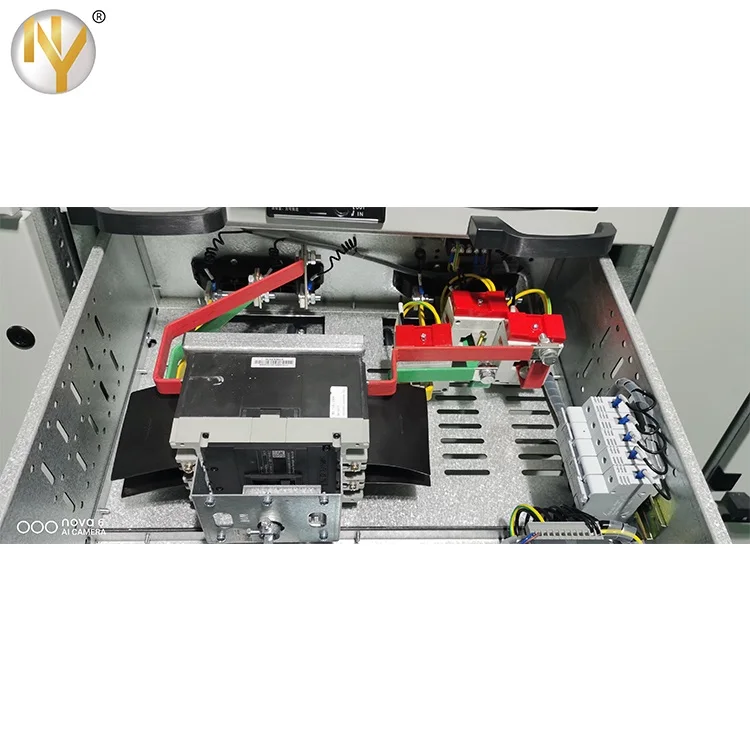

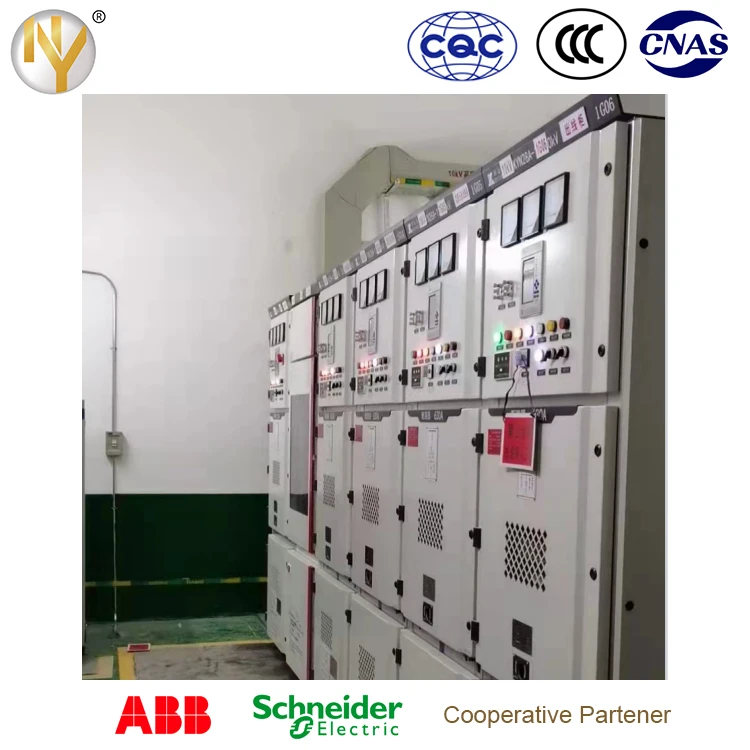

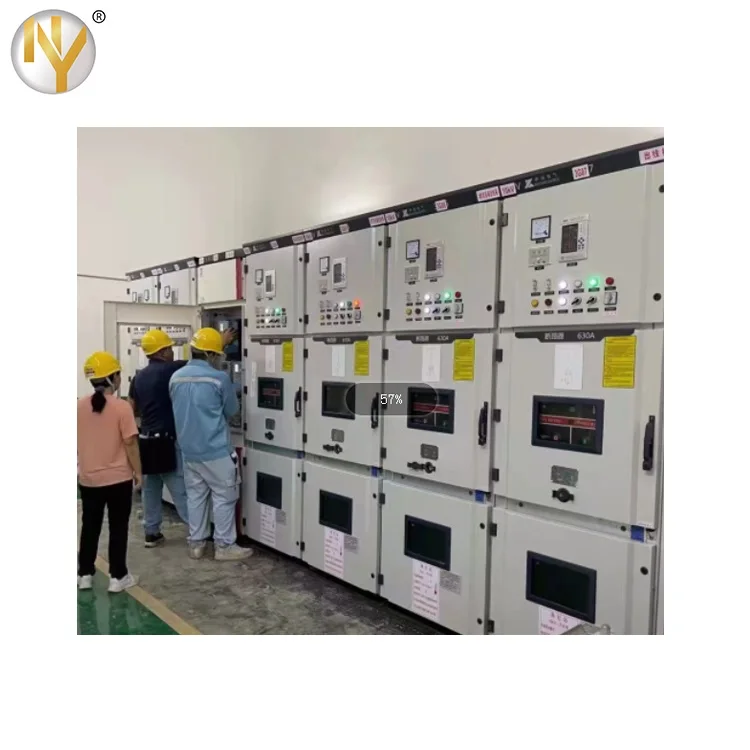

DWDP High Quality GGD LV Metal enclosed Switchgear 400V Electric power distribution

Product Overview

Description

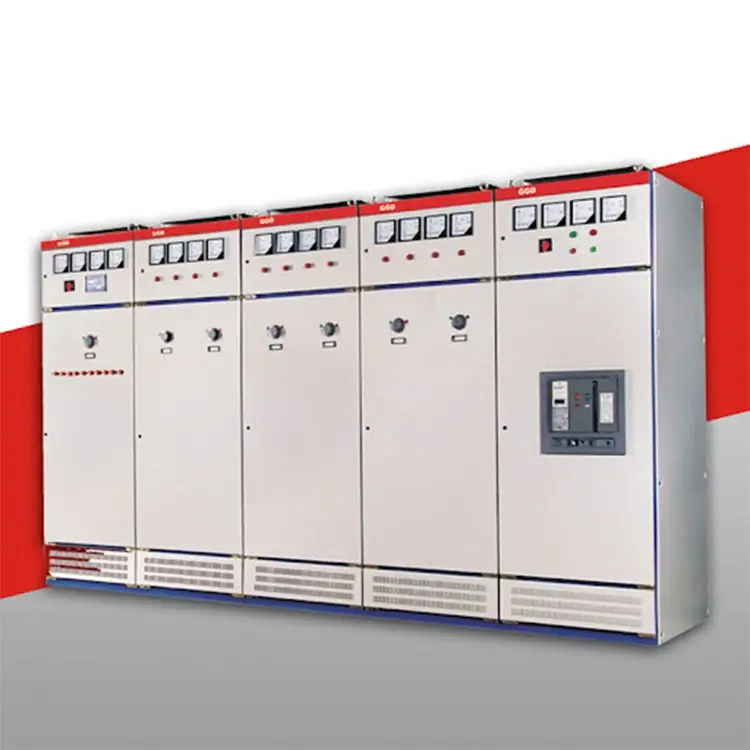

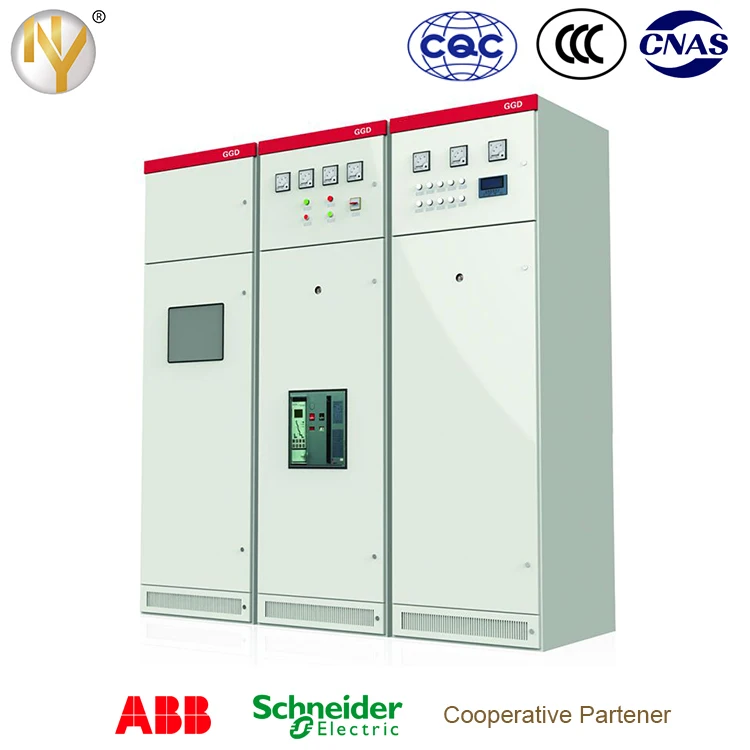

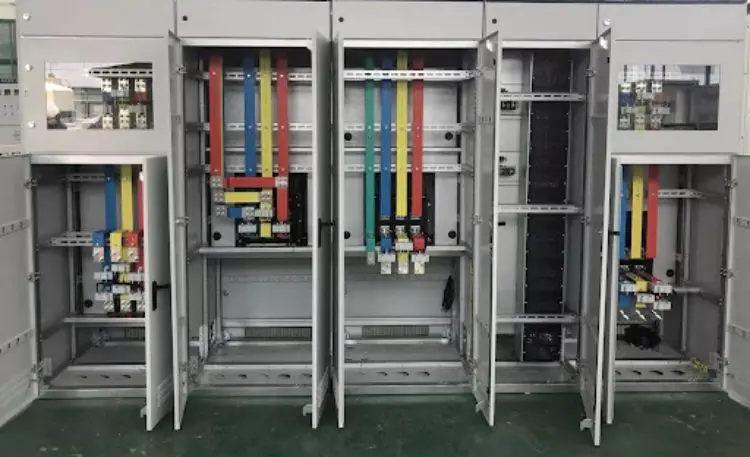

GGD Low Voltage Switchgear



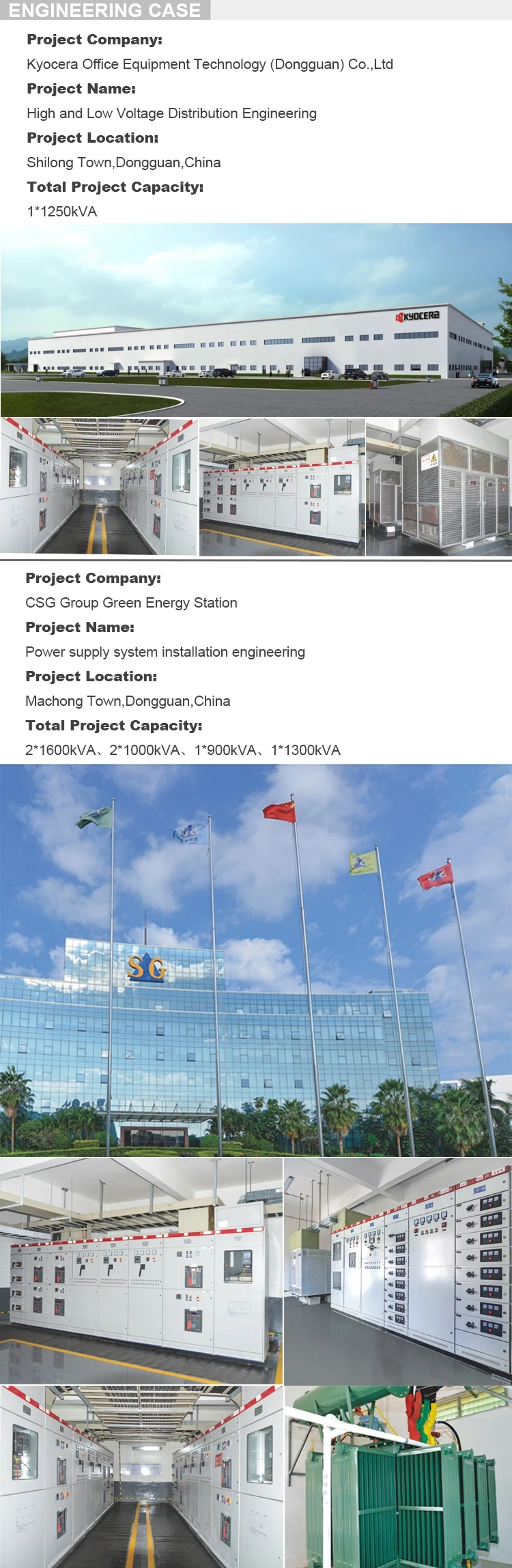

GGD low voltage distribution switchgear is suitable for AC, 50 Hz, 380 V rated voltage and 3150 A rated current power distribution systems for power plants, transformer substations and industrial & mining enterprises. It is used to transfer, distribute and control electrical energy for power, lightning and power distribution equipment. It has many advantages, such as good breaking capacity & dynamic thermal stability, flexible electrical program, convenient assembly, strong applicability, unique structure and high protection degree.

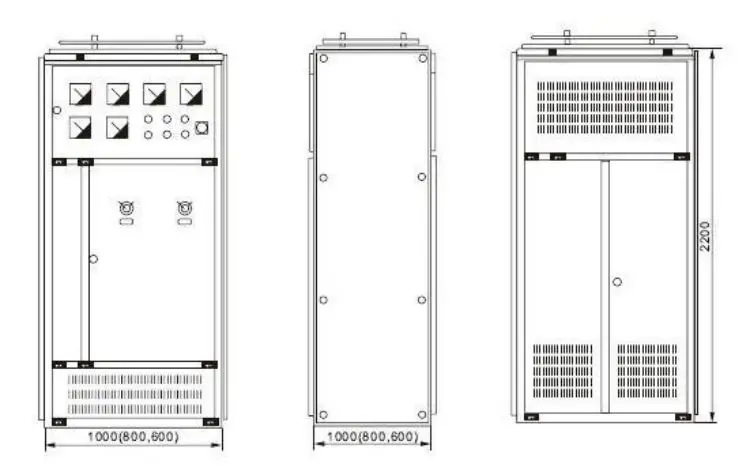

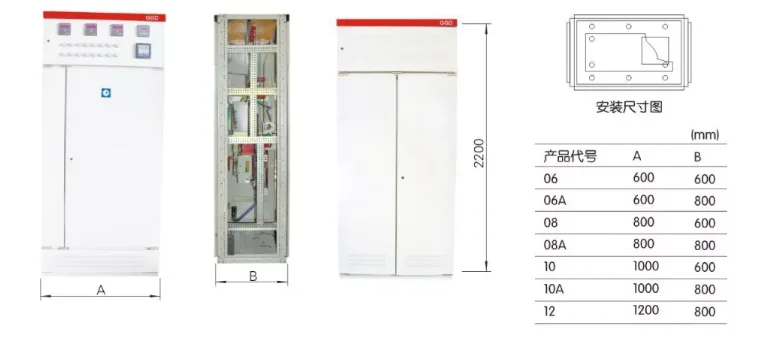

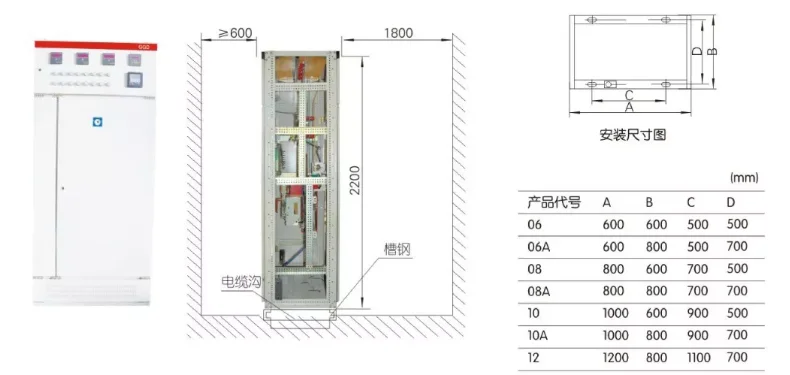

Schematic diagram of structure



Normal Operating Conditions

Altitude: ≤2000m.

Ambient temperature: -5℃~+40℃, daily average temperature ≤+35℃.

Environments without combustible and explosive danger, and corrosive atmosphere, and severe vibration.

Gradient: ≤ 5°, vertical installation.

Transport and storage in the temperature range from -25℃-55℃, can bear maximum +70℃ for a short time.

Relative humidity: ≤50% at the highest temperature +40℃. Higher relative humidity is allowed at low temperature

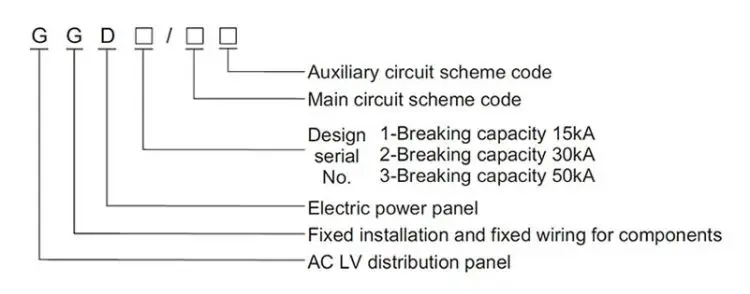

Main Technical Parameters

Model	Rated working voltage(V)	Rated current(A)		Rated Short-circuit breaking current(KA)	Rated short-time withstand current(IS)(KA)	Rated peak current(KA)
GGD1	380	A	1000	15	15	31
		B	630
		C	400
GGD2	380	A	1600	30	30	63
		B	1000
		C	8000
GGD3	380	A	3150	80	80	176
		B	2500
		C	2000

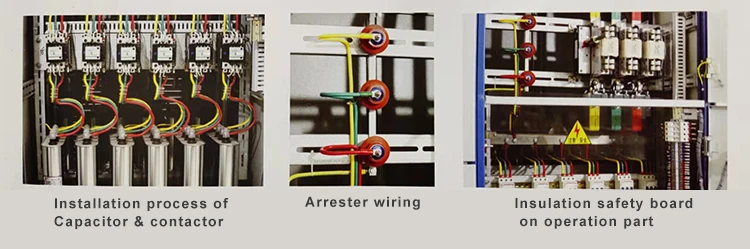

Product Features

1.The frame has sufficient strength and rigidity, Which can withstand the mechanical stress and electrodynamic force generating frominstallation components and short circuit, At the same time it does not affect the performance of the device because of the hoistingand transportation of the device, etc.

2.When the cabinet is designed, the heat dissipation in the operation of the equipment is fully taken into account. There are differentnumber of radiating slots in the upper and lower ends, heat is going up when the electrical components in the cabinet are heating,and is discharged through the top slot, and the cold wind constantly from the bottom slot is supplied into the cabinet, the sealedcabinet body bottom forms a natural ventilation from bottom to top, which achieves the purpose of heat dissipation.

3. The instrument door equipped with the electrical components is connected with the frame with many annealed copper wires. Theinstallation parts in the cabinet are connected to the frame with the knurled screws, and the whole cabinet forms a completegrounding protection circuit.

4.The cabinet cover can be removed if necessary, to facilitate the main bus assembly and adjustment on site. Flying rings areprovided at the four comers of the cabinet top for lifting and shipping.

This product can use standard communication protocols to provide standard communication interfaces as needed to realize the functions of online centralized monitoring and control of power
