57BL236 001AG13 stable performance low noise 40W motor brushless
- Category: >>>
- Supplier: Changzhou Hetai Motor And Electrical Appliance Co. Ltd.
Share on (1600410081469):
Product Overview
Description
Products Description

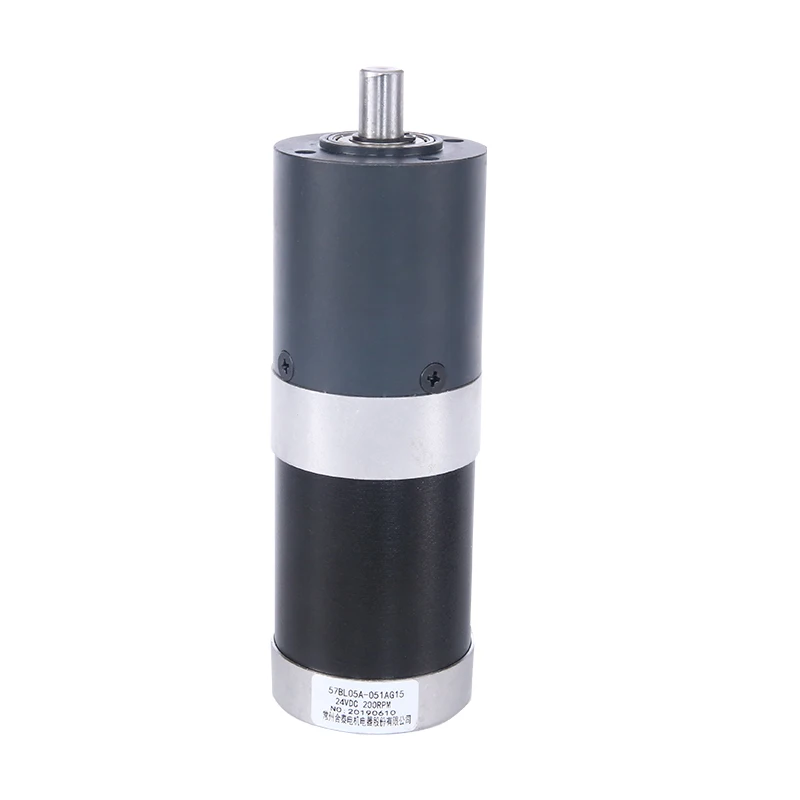

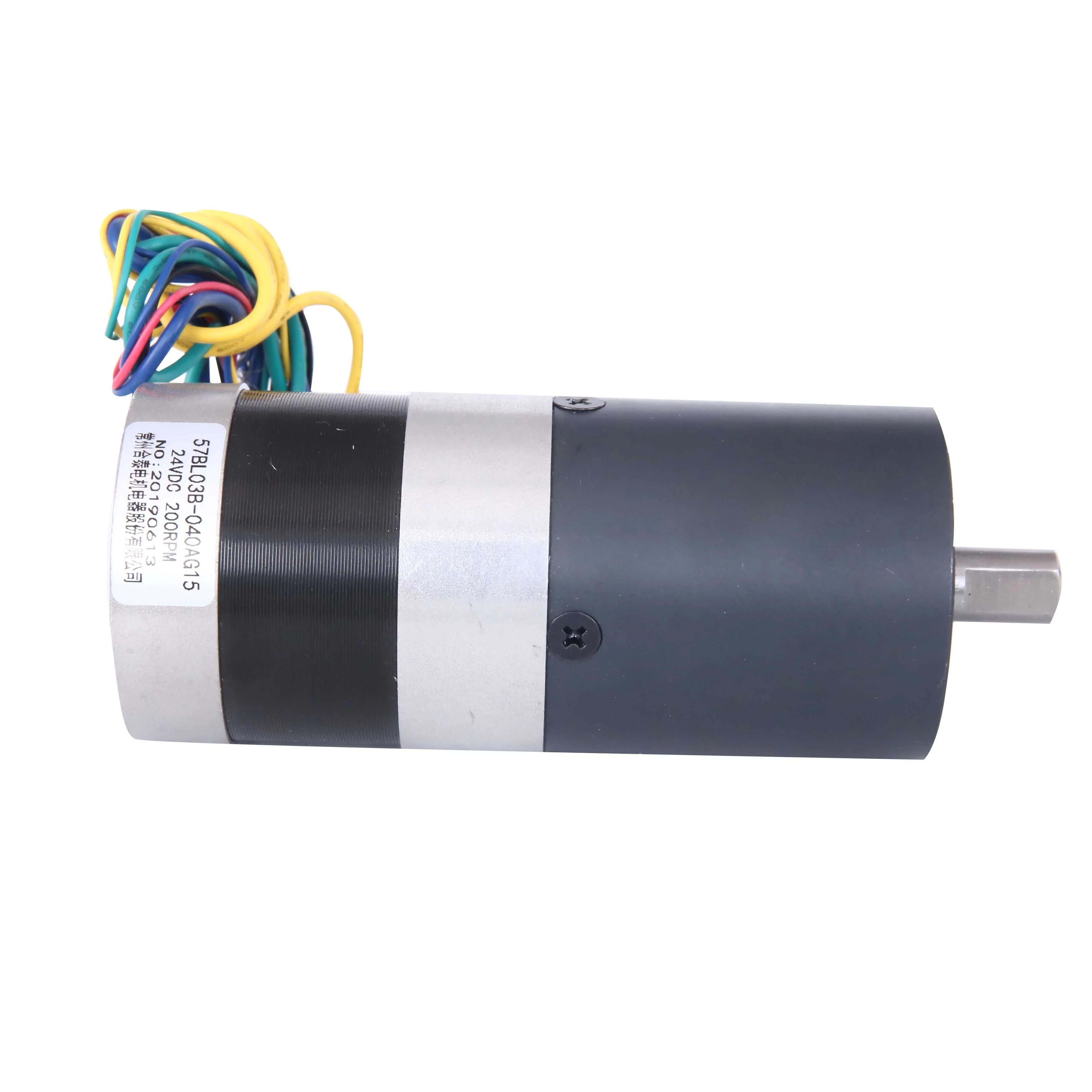

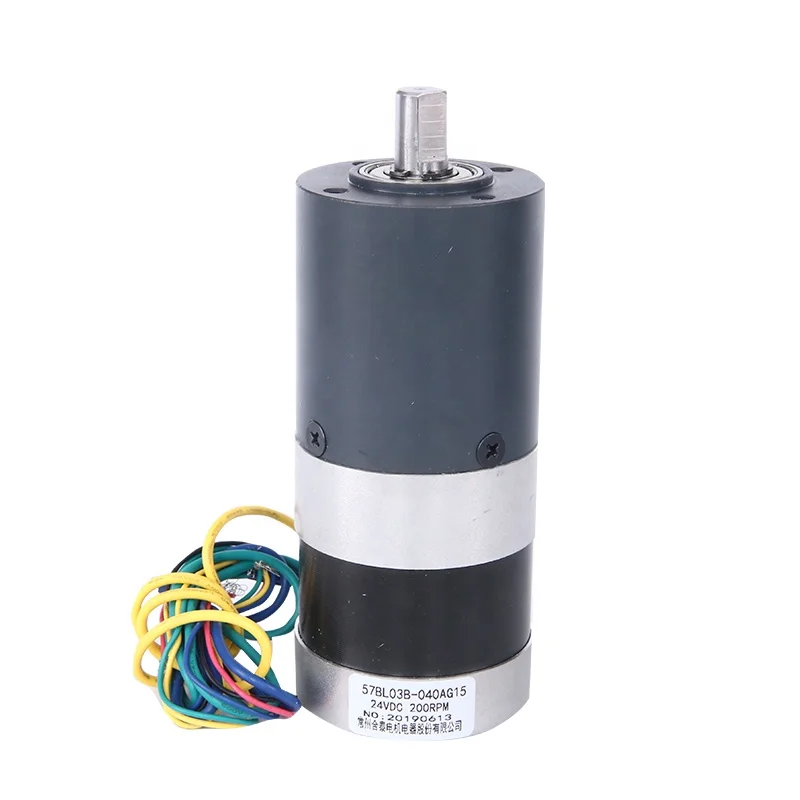

57BL236-001AG13 motor brushless
Powder metallurgy Planetary gearbox
Stable Performance Low Noise
57BL236-001AG13 40W motor brushless

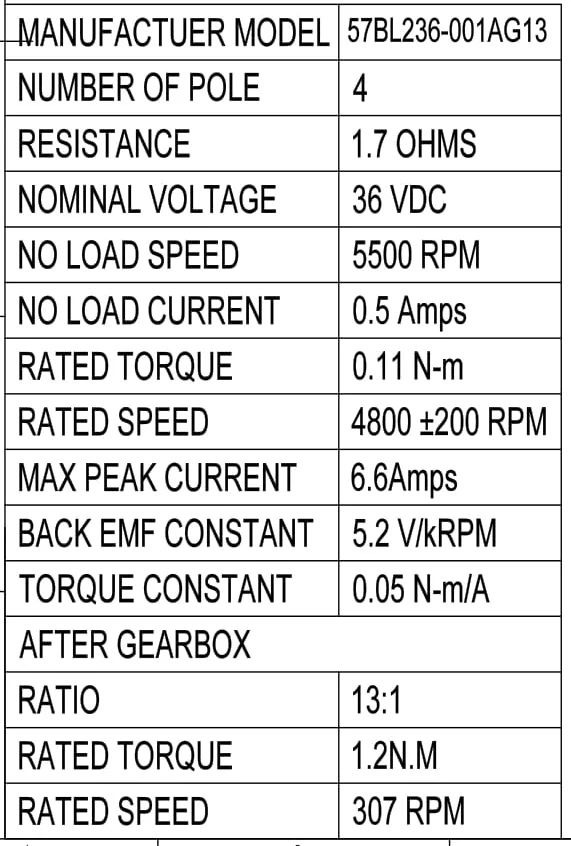

Specification
Number of Poles | 4 |
Number of Phase | 3 |
Rated torque after speed | 307rpm |
Rated torque with gearbox | 1.2n.m |
Nominal Voltage | 36V |
No-load Speed | 5500rpm |
No-load Current | 0.5A |
Insulation Class | B |
Reduction Ratio | 13:1 |
