8MP 4K 8 12 16CH POE NVR Kit Waterproof IP Home Security Surveillance Video Recorder CCTV Camera System
- Category: >>>
- Supplier: Shenzhen Regis Electronic Co. Limited
Share on (1600410189577):
Product Overview
Description
If you would like to place an order, please click:
“Start Order”
“Choose the quantity, Colors”
“Filling your address”(Remeber to put your contact phone number,zip code)
Then the order will direct you to pay. You have 3 options for payment “Credit card, E-checking, and bank transfer”
Order processing: Officially we will process and dispatch your order within 7 days
Tracking: tracking will be upgrading once dispatched. Due to internet lag, the tracking might show up later. Please be patient and let us know if you have any question.
“Choose the quantity, Colors”
“Filling your address”(Remeber to put your contact phone number,zip code)
Then the order will direct you to pay. You have 3 options for payment “Credit card, E-checking, and bank transfer”
Order processing: Officially we will process and dispatch your order within 7 days
Tracking: tracking will be upgrading once dispatched. Due to internet lag, the tracking might show up later. Please be patient and let us know if you have any question.
Delivery time: China Post:5-7days, 7-15days, 10-15days, 15-20days, DHL:3-5days, Fedex:6-9days,UPS:6-9days, Alibaba Platform shipping time more or less.
Taxes and charges: are not included in the item price or shipping charges. Please check with your country‘s customs office to determine what these additional costs will be prior to bidding/buying.
Taxes and charges: are not included in the item price or shipping charges. Please check with your country‘s customs office to determine what these additional costs will be prior to bidding/buying.
Specification
Security Camera | ||
Product Name | 4k camera kit | |
Chipset | 8MP+1/3" Hi3536C | |
Maximum illumination | Color 0.05Lux F1.2; white/Black 0.005Lux F1.2 | |
Signal to noise ratio | ≥50db(AGC OFF) | |
WDR | Digital wide dynamic;>80db | |
Port | Support Audio In, NO Support Audio Out, Support IO,NO Support Card, NO Support WIFI | |
Encode | H.264,H.265 | |
Image Main stream | 3840*2160,1-15 Fps/S;2592*1944,1-25 Fps/S ,2560*1440,2304*1296,1920*1080,1280*720,1-30 Fps/S | |
Image Sub-Stream | 704*576,640*480,640*360,352*288,1-30 Fps/S | |
Bit Rate | 128Kbps-8192bps | |
Alarm data transmission | Browser, management software, IO output | |
Supporting agreement | Standard ONVIF2.6 protocol | |
APP | Support IOS,Android | |
Operating temperature | -20℃ - +60℃ | |
Equipment power | 1.5W | |
Size | 180*70MM | |
POE | Support AF and AT | |
Lens | 3.2MM (110 angle) | |
IR LED | 18 pcs 2835 up to 30M | |
Waterproof level | IP 66 | |
NVR | ||
Main processor | Hi3536E | |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | |
Video input (IP) | 8*4K(Access bandwidth 72Mbps) | |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Audio compression | G.711A | |
Recording mode | Manual>Alarm>Dynamic Detection>Timing | |
Video output | 1ch VGA,1ch HDMI HD output | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ONVIF | Support | |
Power supply | 48V/3A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp | |

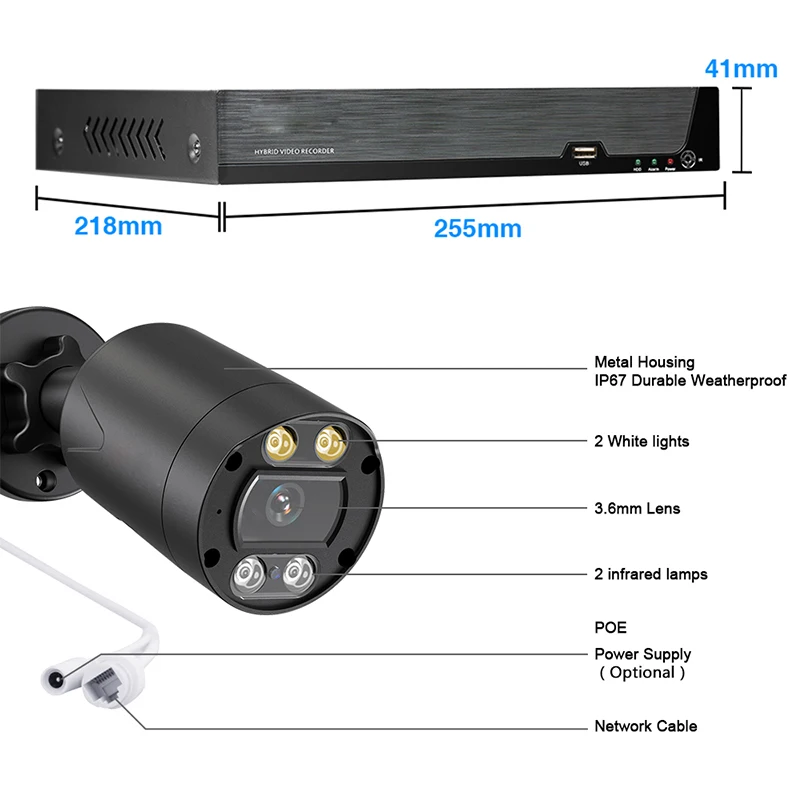

Dimension | L255*W220*H45MM | |
Weight | 1.5KG | |
Product Description
8MP 4K 8 12 16CH POE NVR Kit Waterproof IP Home Security Surveillance Video Recorder CCTV Camera System

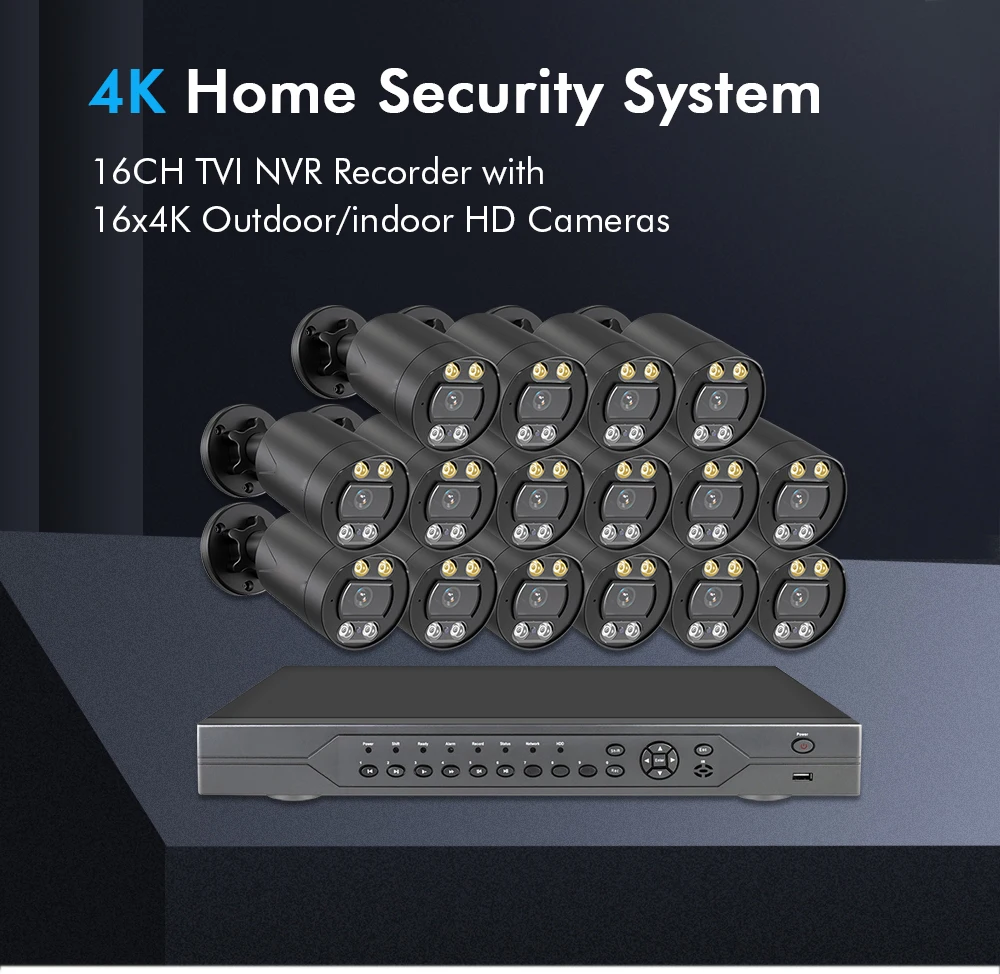

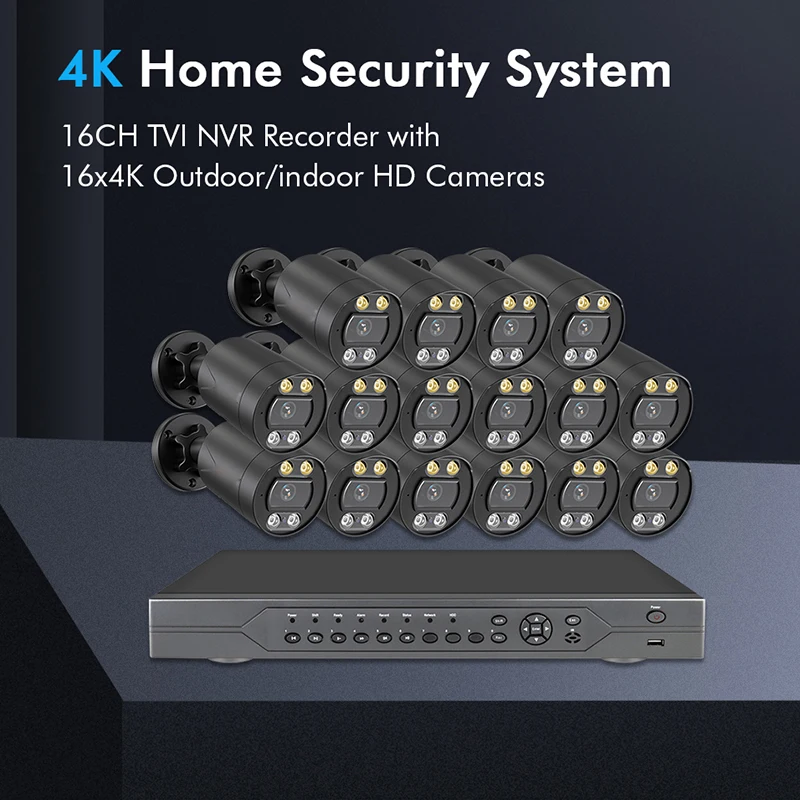

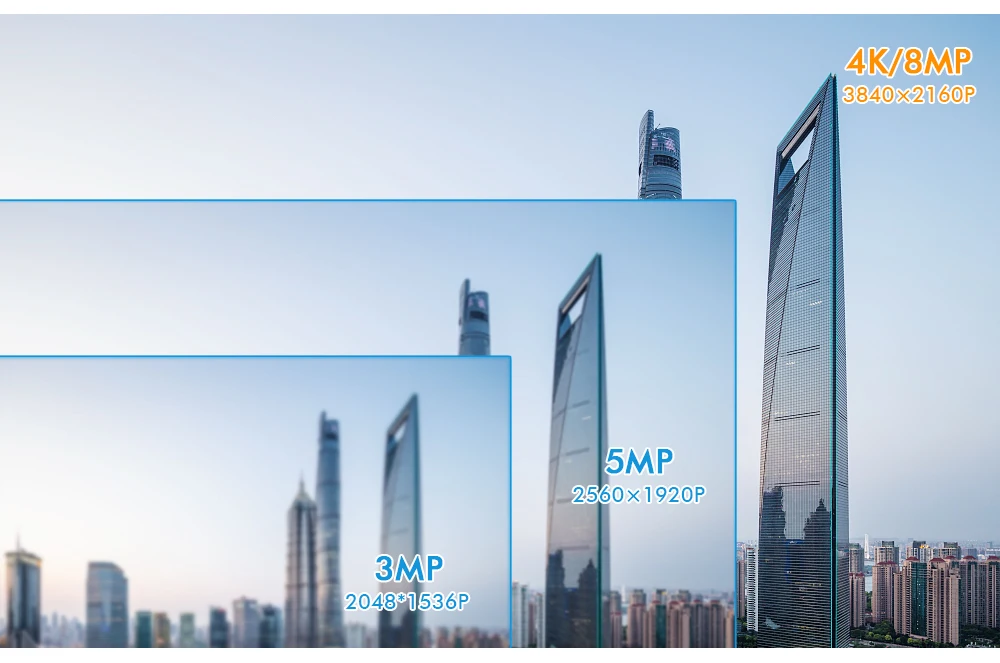

1.This 4K 8MP IP camera boasts the pixel resolution of 3840x2160, 4 times the pixel resolution 1080p,4K 16CH PoE NVR support up to 16CH 4K 8MP IP camera
2.2 White Lights + 2 Infrared Lights dual light design, clearer than other brands only infrared night vision, 3 night modes, full-color and exquisite high-definition night vision effects.
3. Support motion detection, email alarm, video playback, Audio Video recording.
4. Aluminum alloy appearance, IP66 waterproof， Dustproof, Frigid,Heat-Resisting
5. Support P2P remote access/multi-user, you can check the real-time situation of the house at any time through the application of mobile phone/tablet/computer.
6. Plug and Play PoE System – A simple PoE connection makes it easier to set-up and installs your home security camera system. Power, video, and audio run through a single network cable, users can enjoy smooth security coverage of their entire house. This is perfect for both beginner camera users and DIY enthusiasts.
Full Color Night Vision
The camera is equipped with two white lights and two infrared night vision lights. Support color night vision and infrared night vision
The camera is equipped with two white lights and two infrared night vision lights. Support color night vision and infrared night vision
Smart E-mail Alerts
when motion is detected the NVR will save the footage into hard disk without missing any important events.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Note: Only when the app is opened will received the alarm
when motion is detected the NVR will save the footage into hard disk without missing any important events.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Note: Only when the app is opened will received the alarm

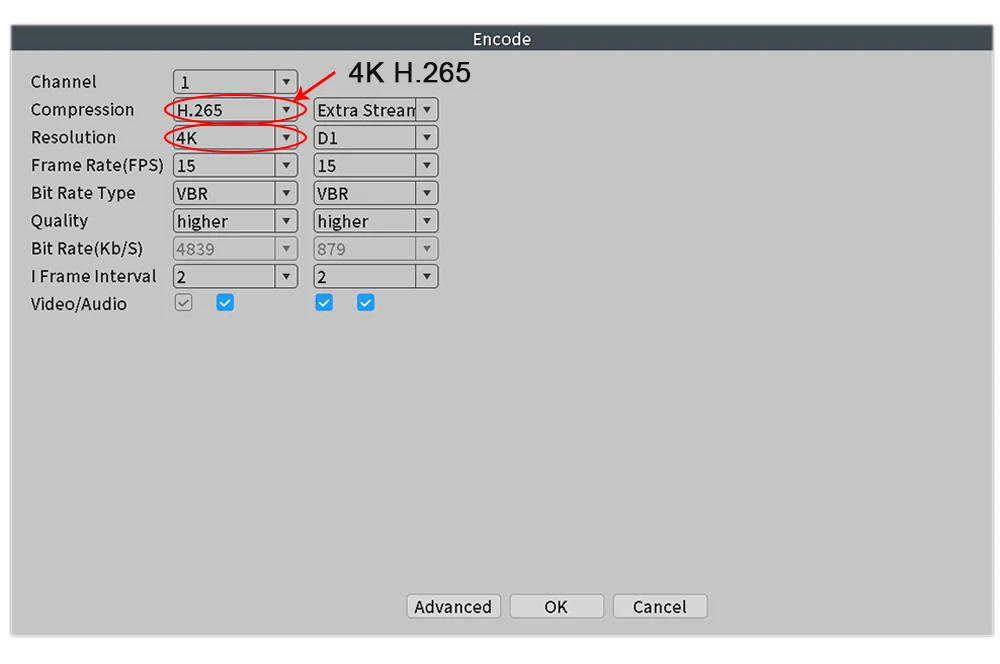

H.265 Coding
H.265 is a High compression HD coding， compare to H.264, it will save 50% of the HDD storeage, transmission faster and reduce bandwidth pressure.
H.265 is a High compression HD coding， compare to H.264, it will save 50% of the HDD storeage, transmission faster and reduce bandwidth pressure.

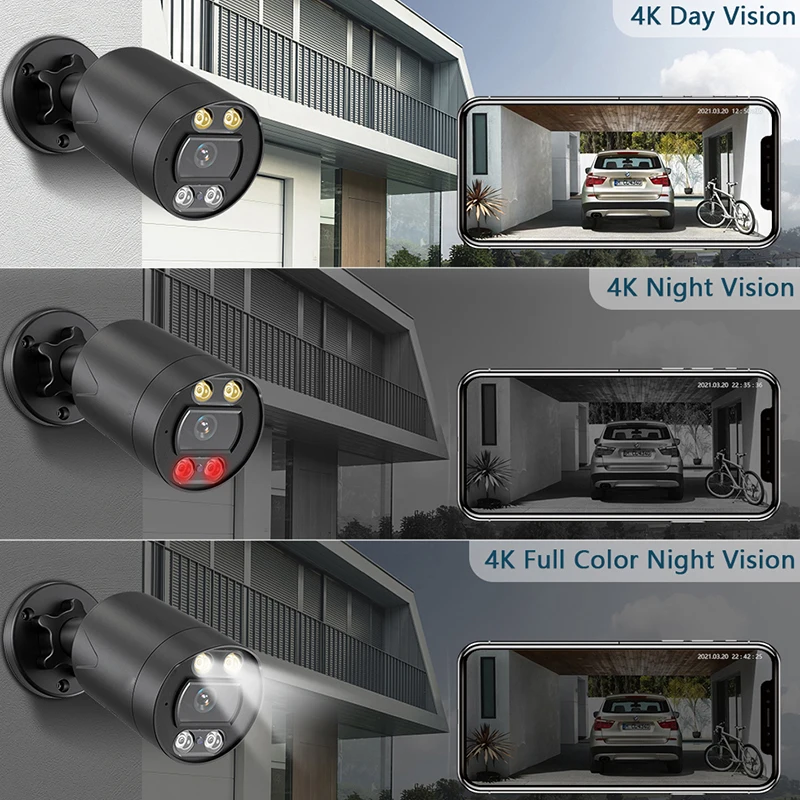

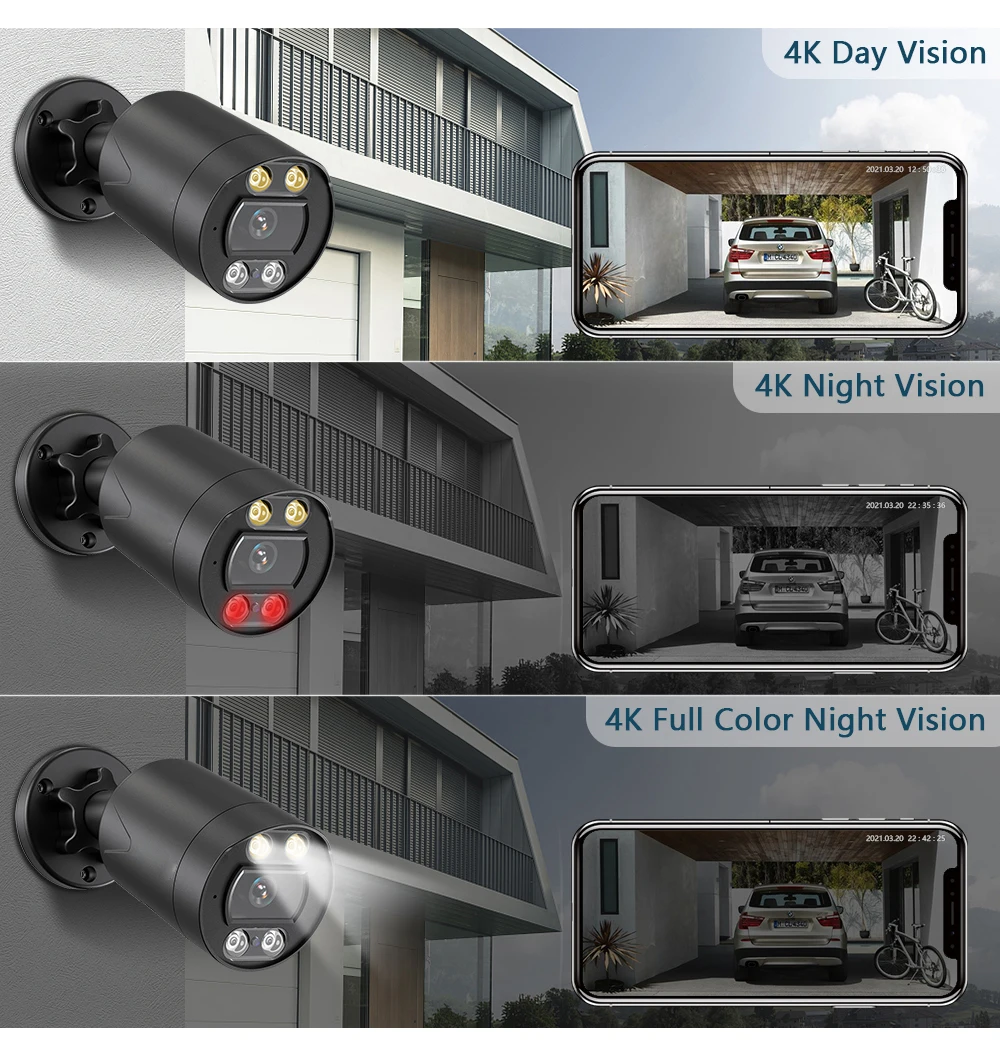

Smart IR-Cut Full Color Night Vision
When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,
There Are Three Night Modes For You To Select.
When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,
There Are Three Night Modes For You To Select.
Listen to what's happening around
This 4K IP camera can pick up audio around and it will give you a clear voice of what's going on at the other side.
This 4K IP camera can pick up audio around and it will give you a clear voice of what's going on at the other side.

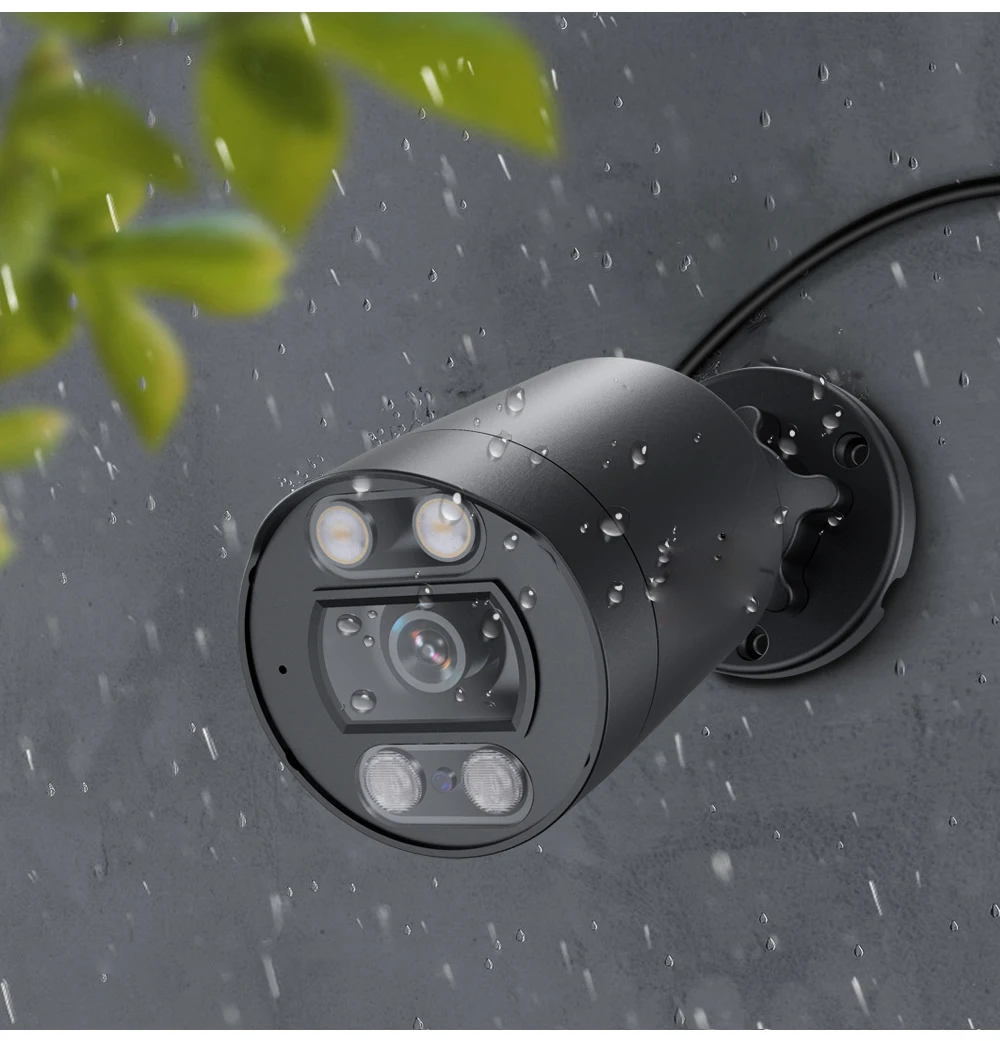

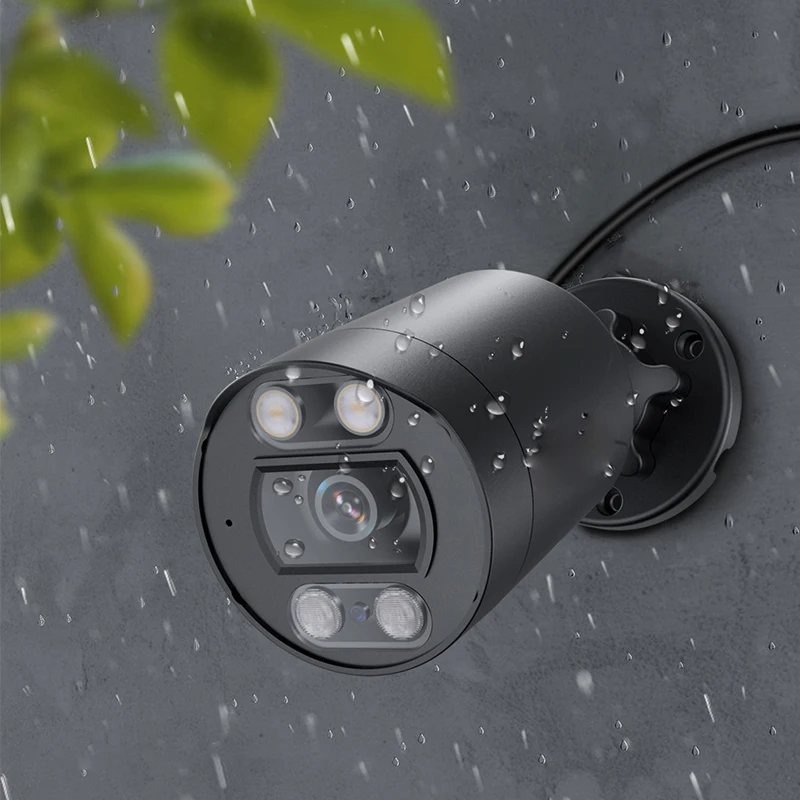

IP66 Waterproof
Support 24*7 and all weather condition.
Support 24*7 and all weather condition.
Plug-and-play installation via PoE
Power over Ethernet means the IP cameras connect to with a single cable that transmits both data and power. No power adapter is required, lower risk of electric leakage and easy to set up.
Power over Ethernet means the IP cameras connect to with a single cable that transmits both data and power. No power adapter is required, lower risk of electric leakage and easy to set up.
FAQ:
1.We are always looking for sincere and mutual cooperation with customers all over the world.
1.We are always looking for sincere and mutual cooperation with customers all over the world.
2.We can be your best supplies with wide range of survillance products;
3.we are capable in providing OEM and ODM services.
4.Thanks for visiting our company website:www.szregis.com to find out your interested products, and please do not hesitate to let us know your further requirements, we are always looking forwarder to hearing from you.
Payment
1. We can accept T/T, L/C, Western Union, Alibaba Trade Assurance and Paypal before production.
2. If you have any doubt about payment, please contact with us freely.
Delivery
Shipping by DHL,FedEX,UPS,TNT,China Post, DDP, Sea
Q: How long is the warranty?
A: We give one year warranty from the date of original purchase.. Warranty does not cover defects caused by buyer, like misuse, fire etc.
Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 1-3 working days, bulk order 3-8 working days.
Q: Why do you choose us?
A: Shenzhen Regis is a qualified Smart Home/ Hunting Camera/ Wifi IP CCTV Camera/Camera Kit manufacturer! We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
3.we are capable in providing OEM and ODM services.
4.Thanks for visiting our company website:www.szregis.com to find out your interested products, and please do not hesitate to let us know your further requirements, we are always looking forwarder to hearing from you.
Payment
1. We can accept T/T, L/C, Western Union, Alibaba Trade Assurance and Paypal before production.
2. If you have any doubt about payment, please contact with us freely.
Delivery
Shipping by DHL,FedEX,UPS,TNT,China Post, DDP, Sea
Q: How long is the warranty?
A: We give one year warranty from the date of original purchase.. Warranty does not cover defects caused by buyer, like misuse, fire etc.
Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 1-3 working days, bulk order 3-8 working days.
Q: Why do you choose us?
A: Shenzhen Regis is a qualified Smart Home/ Hunting Camera/ Wifi IP CCTV Camera/Camera Kit manufacturer! We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
---Reply < 10 hours.
Delivery time > 99%.
Quality Control > 99%
After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
Delivery time > 99%.
Quality Control > 99%
After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
Q:Are you able to air ship door to door directly to an FBA fulfillment center?
A:That is our top advantages
A:That is our top advantages
Q:Is it possible to put our logo on your product or product packaging?
A:I think putting the logo on our packaging is workable.We can also do the free label or logo sticker for you on packaging at free cost
A:I think putting the logo on our packaging is workable.We can also do the free label or logo sticker for you on packaging at free cost
Q: Is this Ready to Ship product link?
A:Yes, you can place order online with Choosing the specification, quantity, shipping way,
the terms of payment to confirm the order, we will ship the cargo accordingly, if you have any requirer remark, please let me know!
Q:About Customs:
A:Import Duties, Taxes and charges are not included in the item price or shipping charges. These charges are the buyers responsiblity. Please check with your country customs office to determine what these costs will be prior to buying.
Q: Feedback:
A: We are committed to your satisfaction. Your positive feedback and 5 stars rating will be highly appreciated. Hours of Operation - We are open Monday through Saturday 9:00am - 6:00pm. If you mail us a question after business hours, we will do our best to answer your question. If not, we will get back to you on the following business day.
Thanks for your visit and welcome to visit us again! `(*∩_∩*)
