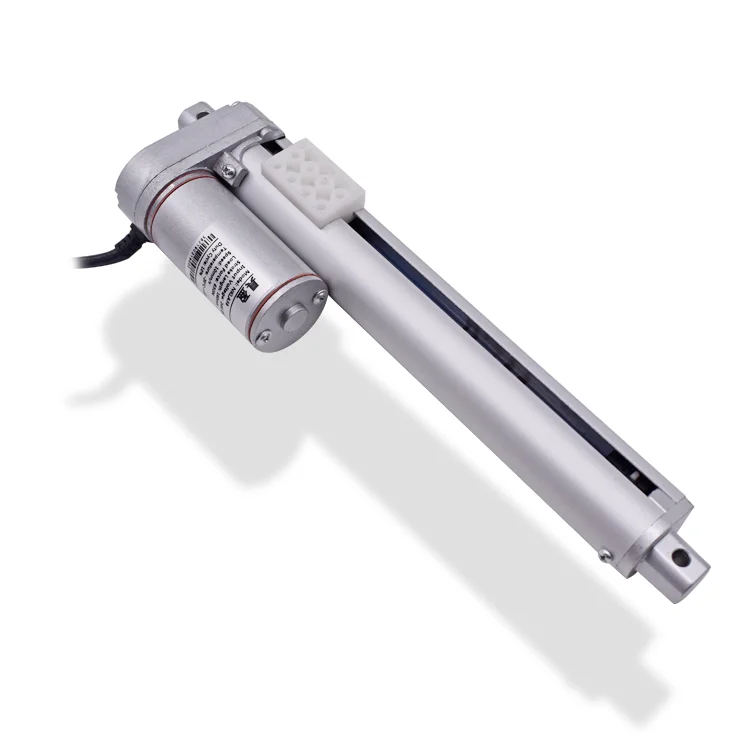

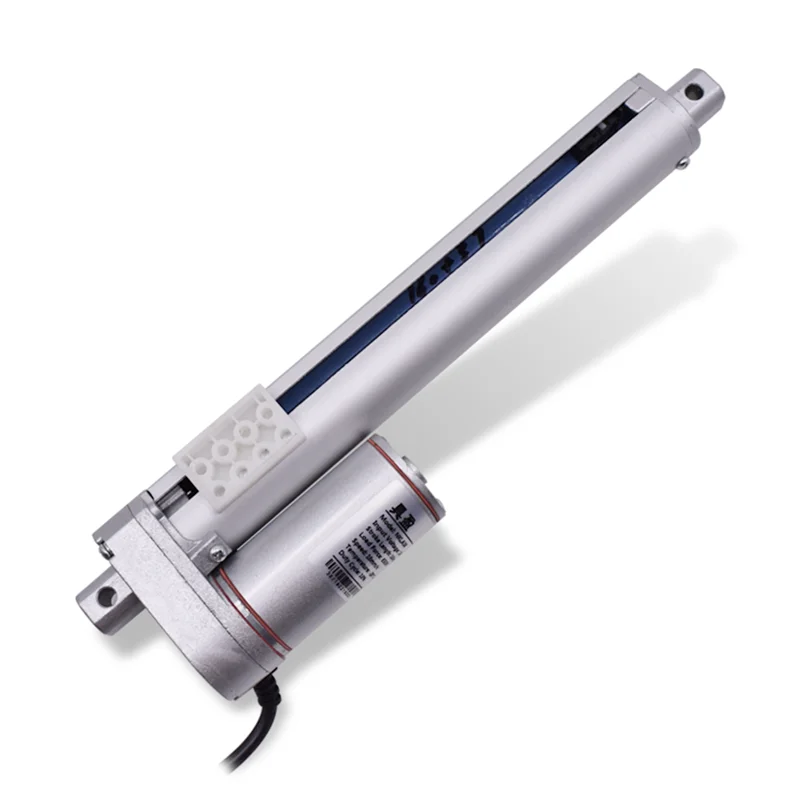

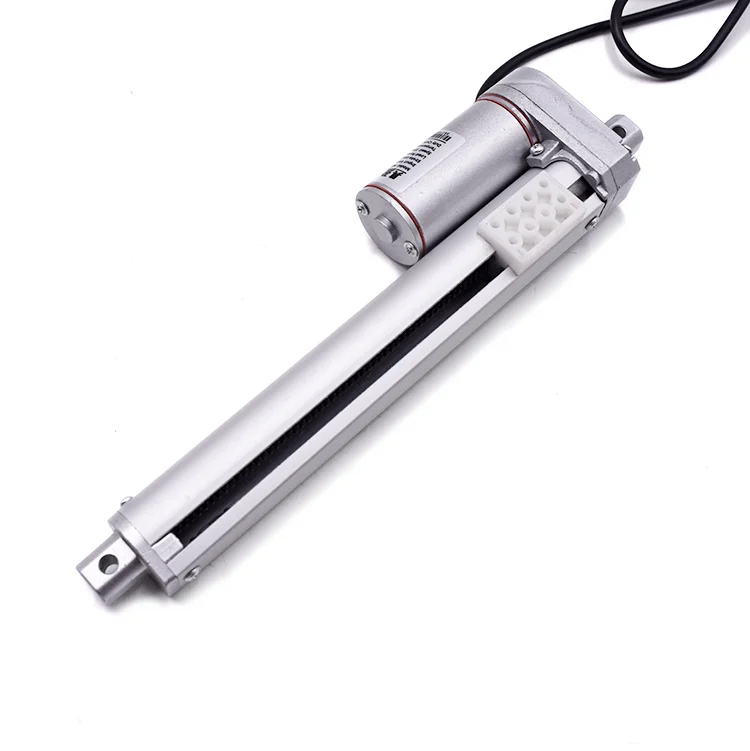

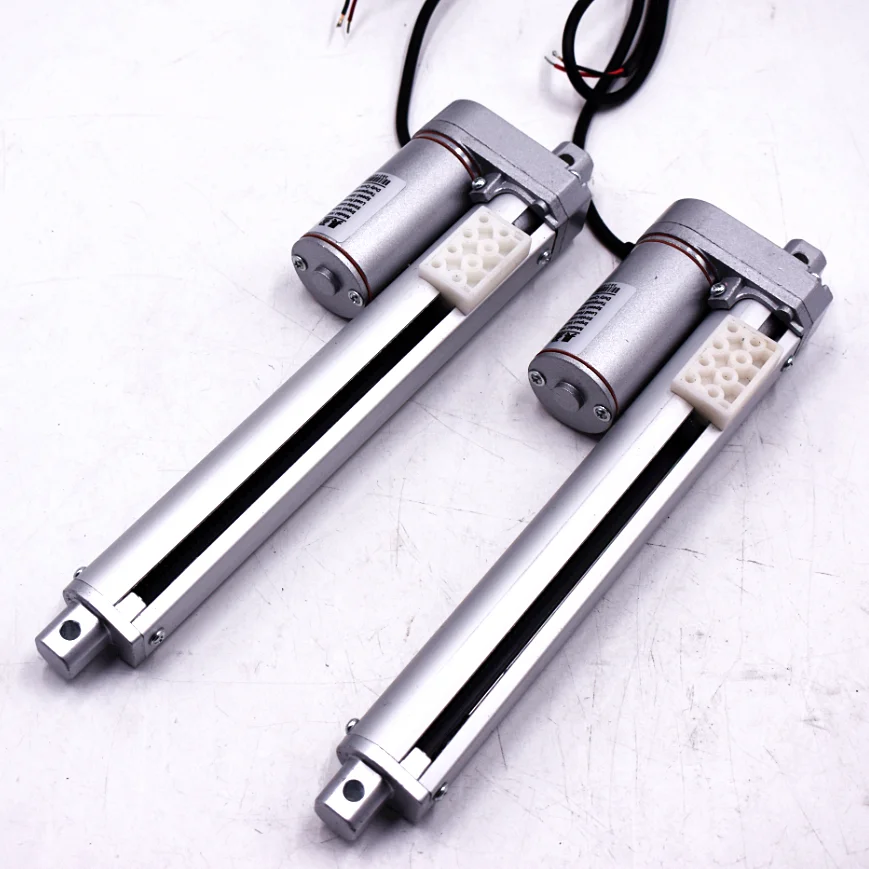

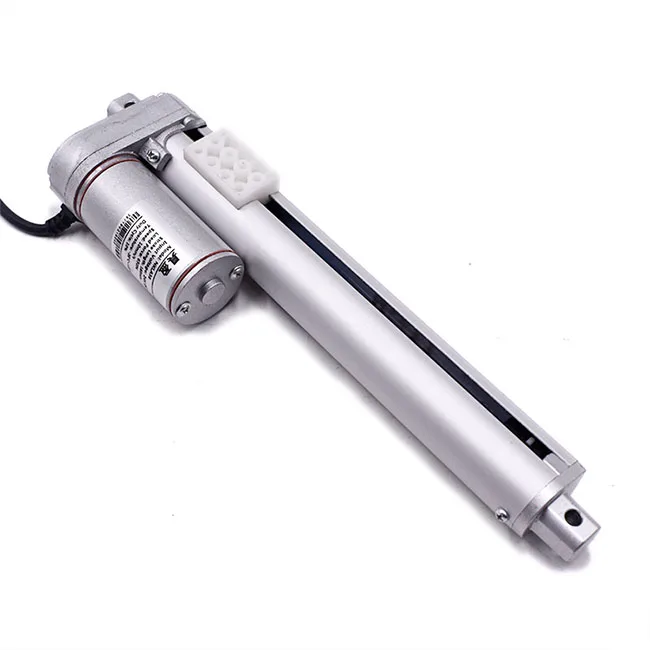

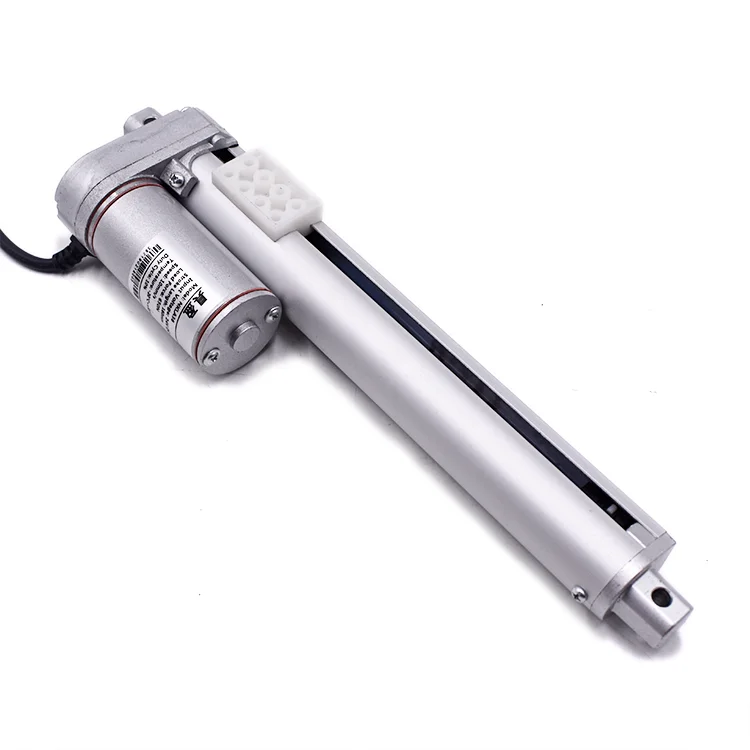

lineaire actuator telescopic NKLA38 waterproof industrial mini micro electric 24v linear actuator 12v
- Category: Motors >>>
- Supplier: Zhejiang Nakin Intelligent Technology Co. Ltd.
Share on (1600410214329):
Product Overview
Description
Specification

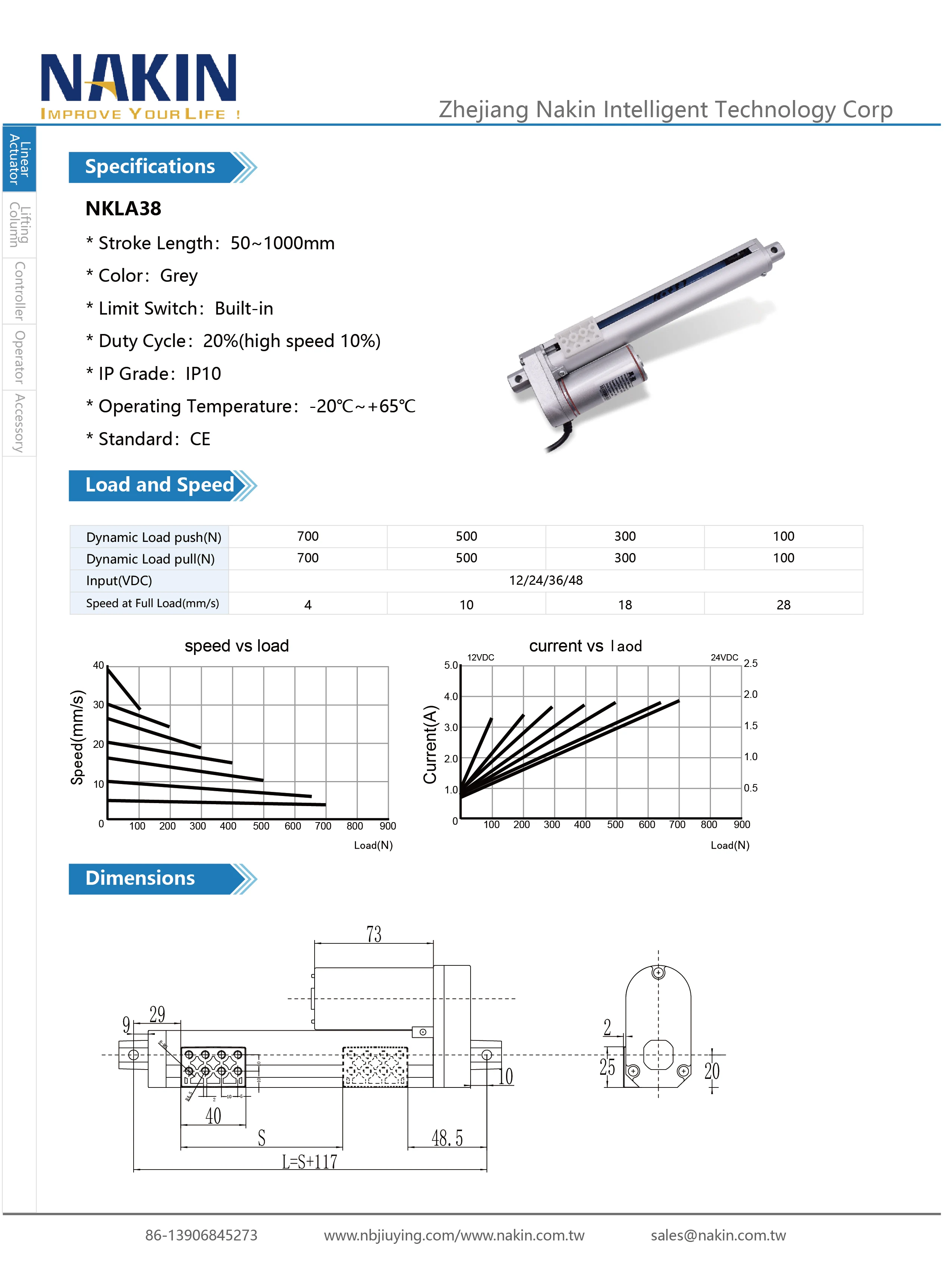

NKLA38
* Stroke Length：50~1000mm
* Color：Grey
* Limit Switch：Built-in
* Duty Cycle：20%(high speed 10%)
* IP Grade：IP10
* Operating Temperature：-20℃~+65℃
* Standard：CE
Product Name | linear actuator |
Max Load Force | 100~700N |
Full Load Speed | 4~28mm/s |
Stroke | 50~1000mm |
Protection class | IP10 |
Duty cycle | 20%(high speed 10%) |
Operating Temperature | -20℃~+65℃ |
Optional Part 1 | Sphericla plain bearing |
Product Description
Product Application
solar tracker system
medical bed
skylight
workbench
industry lift
car trunk opener
Product Process
Certifications
Packing & Delivery
Company Profile
NAKIN specialized in manufacturing linear actuators for 30 years With an experienced and professional team, we have exported our linear actuator , lifting column and height adjustable desk frame to many countries and regions all over the world, especially in Europe and North America .
FAQ
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
A: Of course, we can provide a sample for you.
Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
