GPON OLT SFP Class C UT King Compatible Tx2.5G Rx1.25G SC Connector SFP FTTX GPON Solution

Product Overview

Description

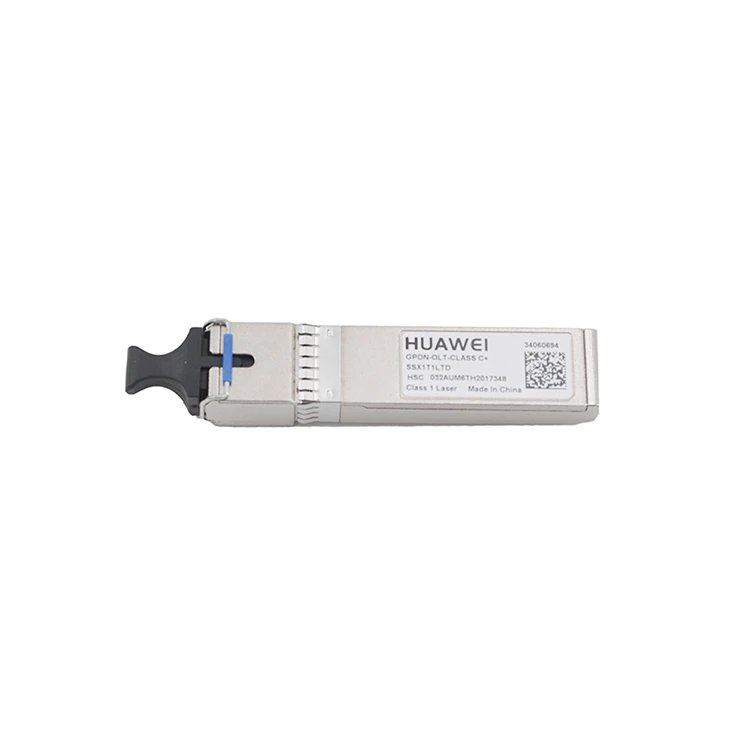

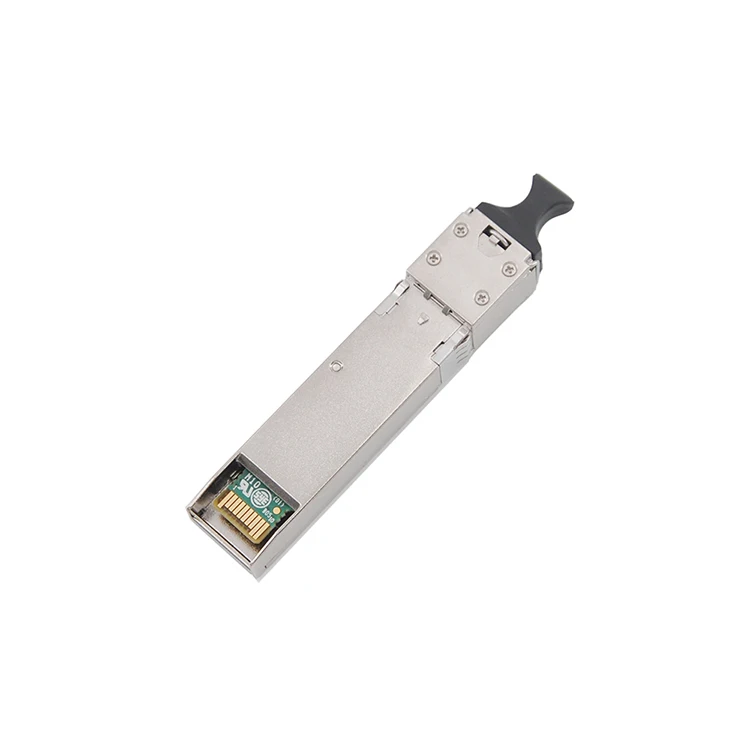

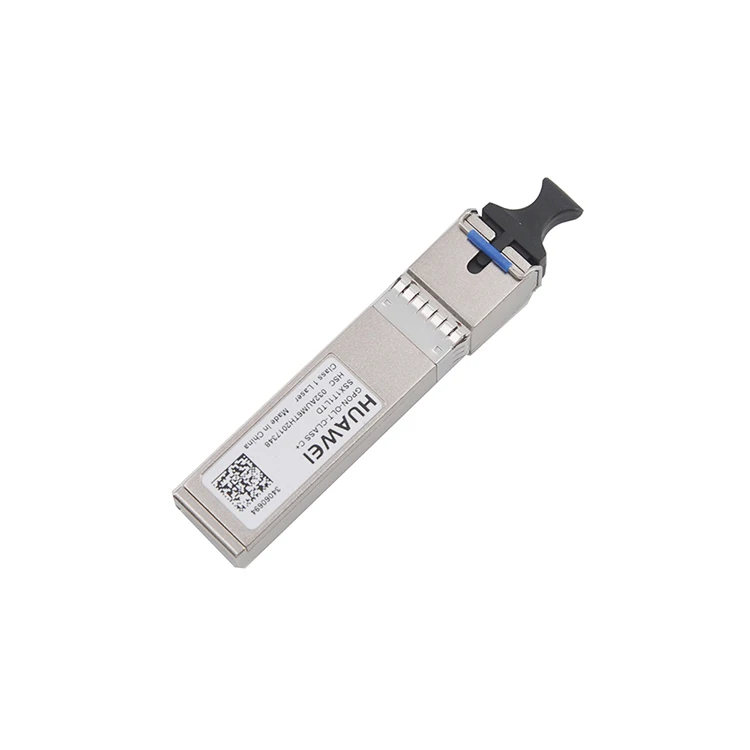

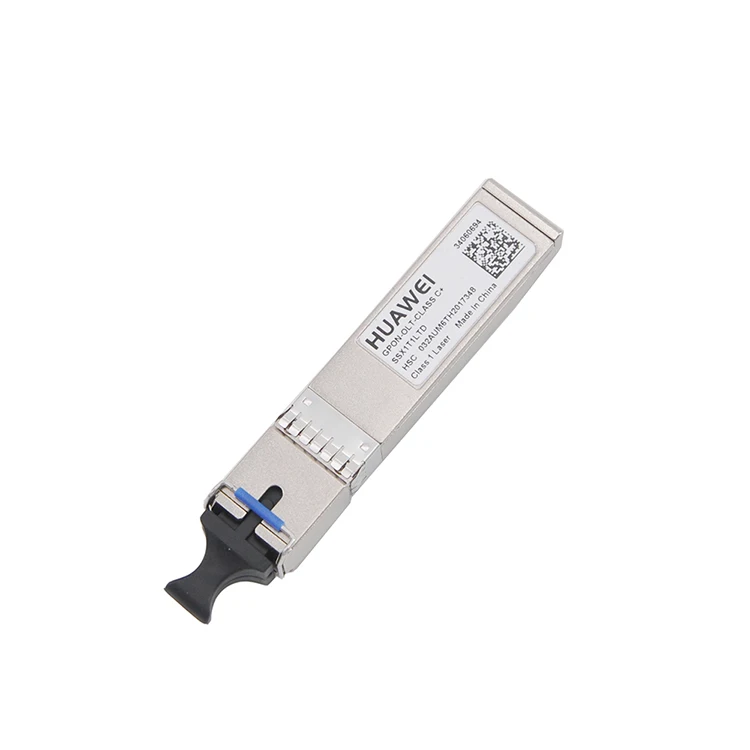

GPON OLT SFP Class C+ Huawei Compatible Tx2.5G Rx1.25G SC Connector SFP FTTX GPON Solution







Huawei GPON OLT C+ SFP is inserted in service board like GPFD GPBD GPBH GPHF etc and provides one or more transceiver module slot. It provides a full range of optical transceivers, such as SFP+ (SFP Plus) transceiver, X2 transceiver, XENPAK transceiver, XFP transceiver, SFP (Mini GBIC) transceiver, GBIC transceiver, CWDM/DWDM transceiver, 40G QSFP+ & CFP, 3G-I video SFP, WDM Bi-Directional transceiver and PON transceiver.









Features

• 1490 nm DFB Tx with isolator


• 1310 nm APD Rx


• Digital diagnostics SFP-8472 Compliant


• 2488 Mbps continuous mode Transmission


• 1244 Mbps Burst mode receiver Data Rate


• RX Fast Burst Mode Detection


• Operation case temperature: 0~70°C


• Class C++ link budget


• Comply with ITU-T G984.2 Amendment 1







Specification:



No.	1	2	3
Tipo	GPON classe B +	GPON classe C +	GPON classe C ++
Comprimento de Onda de operação	Tx: 1490 nm	Tx: 1490 nm	Tx: 1490 nm
	Rx: 1310 nm	Rx: 1310 nm	Rx: 1310 nm
Tipo de encapsulamento	SFP	SFP	SFP
Taxa De porto	Tx: 2.49 gbit/s	Tx: 2.49 gbit/s	Tx: 2.488 gbit/s
	Rx: 1.24 gbit/s	Rx: 1.24 gbit/s	Rx: 1.244 gbit/s
Mínima de Saída de Potência Óptica	1.50 dBm	3.00 dBm	5.00 dBm
Máxima de Saída de Potência Óptica	3.00 dBm	6.00 dBm	8.00 dBm
O máximo de Sensibilidade do Receptor	-28.00 dBm	-32.00 dBm	-35.00 dBm
Tipo de Conector óptico	SC	SC	SC
Tipo De Fibra óptica	Single-mode	Single-mode	Single-mode
Sobrecarga de Potência Óptica	-8.0 dBm	-12.0 dBm	-15.0 dBm
Relação de extinção	10 dB	8.2 dB	8.2 dB





























About Us:



         Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.

         Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What’s more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.

         All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
