Precison 2.92 mm K series
40 GHz
2.92mm connectors are 50ohm precision connector designed to operate up to 40GHz.
Precison 2.4 mm L series
50 GHz
2.4mm connectors are 50ohm precision connector designed to operate up to 50GHz.
Material | Plating | |||||
Center PIN | Brass or | Beryllium Copper | Gold | God | ||
Insulator | PTFE | / | ||||
Body | Stainless steel or | Brass | Passivated | |||
A full series of 2.92 mm K Adapter, 2.4 mm L Adapter, in-series and inter-series, up to 40 GHz/50 GHz
2.4 mm Male connector has a groove for easy identification.
Electrical characteristic
Inpedance: 50 ohm
Frequency ranges: 0-40 GHz
Voltage Rating: >500 Vrms
Insulator Resistance: >5 Gohm
Dielectric Withstanding Voltage: 750 Vrms
Contact Resistance：Center Contact ≤3 mΩ、Outer Contact ≤2 mΩ
Frequency ranges: 0-40 GHz
Voltage Rating: >500 Vrms
Insulator Resistance: >5 Gohm
Dielectric Withstanding Voltage: 750 Vrms
Contact Resistance：Center Contact ≤3 mΩ、Outer Contact ≤2 mΩ
Mechanical characteristic
Mating： 1/4-36 UNS Screw-on Coupling
Recommended Mating Torque：7.1~9.7 lbs
Coupling Nut Retention Force： ≧60.7 lbs
Recommended Mating Torque：7.1~9.7 lbs
Coupling Nut Retention Force： ≧60.7 lbs
Connector and Adapter Configulation
Cable Configulations
Recepticles Configulations
Recepticles that Accept Pins
Recepticles with Extended Body
Recepticles with Tab Contacts
Recepticles with Extended Body
Recepticles with Tab Contacts
End launch Configulations
End launch configulations
50 ohm Microwave cable assemblies for 5G

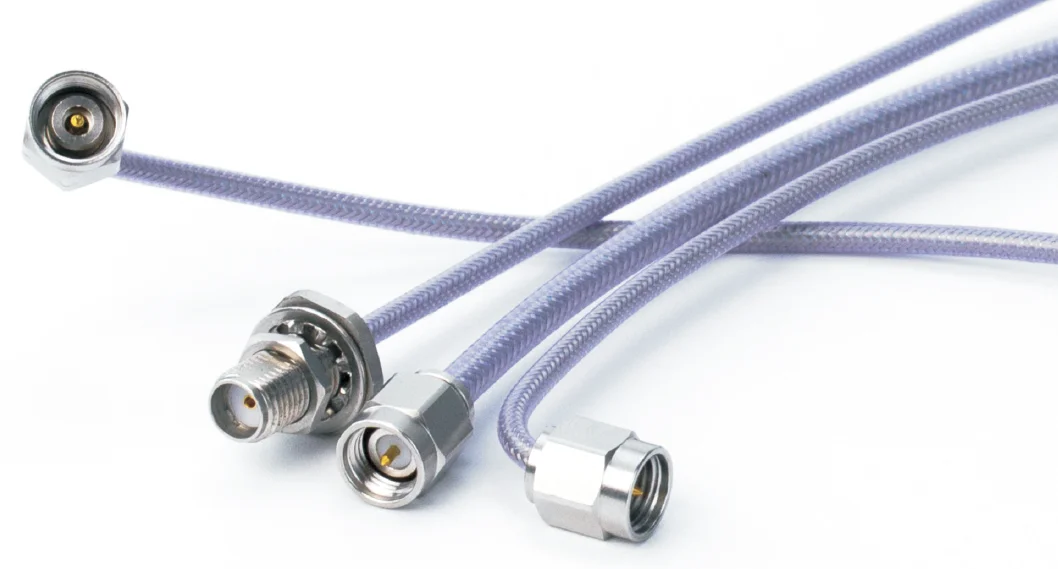

Raynool testing cable assembly, 2.92mm to 2.92mm, 2.92mm to 2.4mm, with standard and custom length, customer can choose bulkhead or standard mount, standard polarity, straight connectors, assemblies are 100% test and phase match cable are also available.
Application
Portable Analyzers
VNA
Scale network Analyzers
High speed digital test
5G test and interconnection
Raynool High performance cable can replace the test cable on the market:
Raynool RNB series cable equivalent to Times microwave HF190, HF290, Huber Suhner Sucoflex 301, Sucoflex 101, Sucoflex 102,
Sucoflex104, Sucoflex 106, Sucoflex 240, Sucoflex 340, Micro Coax UFB142A, UFB205A, UFB311A, GORE 3506, 3507, 3449, 3450. HARBOUR
LLS290, SEMFLEX LA290.
Raynool Raynool RNT series cable equivalent to Times microwave SFT-142, SFT-205, SFT-304, Belfuse HP160S, HP190S, HP305S, Micro
Coax UFA147A, UFA205A, Huber Suhner SF-102, SF-104,
Huber Suhner Astrolab 32022, 32022E, 32055, 32051
Raynool RNX series cable equivalent to Times microwave TFLEX-047, TFLEX-402, TFLEX-405, Huber suhner MULTIFLEX86, MULTIFLEX141,
HABIA MUITIBEND86, MULTIBEND141, HARBOUR SS402, SS405
Raynool Raynool RND series cable equivalent to Times microwave CLL50086, CLL50141, CLL50250, Micro Coax UT-085-LL, UT-120-LL,
UT141-LL.
Sucoflex104, Sucoflex 106, Sucoflex 240, Sucoflex 340, Micro Coax UFB142A, UFB205A, UFB311A, GORE 3506, 3507, 3449, 3450. HARBOUR
LLS290, SEMFLEX LA290.
Raynool Raynool RNT series cable equivalent to Times microwave SFT-142, SFT-205, SFT-304, Belfuse HP160S, HP190S, HP305S, Micro
Coax UFA147A, UFA205A, Huber Suhner SF-102, SF-104,
Huber Suhner Astrolab 32022, 32022E, 32055, 32051
Raynool RNX series cable equivalent to Times microwave TFLEX-047, TFLEX-402, TFLEX-405, Huber suhner MULTIFLEX86, MULTIFLEX141,
HABIA MUITIBEND86, MULTIBEND141, HARBOUR SS402, SS405
Raynool Raynool RND series cable equivalent to Times microwave CLL50086, CLL50141, CLL50250, Micro Coax UT-085-LL, UT-120-LL,
UT141-LL.
About Raynool
Raynool offers a wide range of cable types and connector options to meet the exact performance for your 5G application.
Raynool high frequency testing cables, cable assemblies, connectors & adaptors from 18GHz to 110GHz, widely used for different applications like as Vector Network Analyzers and verious testing application.
Raynool high frequency testing cables, cable assemblies, connectors & adaptors from 18GHz to 110GHz, widely used for different applications like as Vector Network Analyzers and verious testing application.
High Frequency Measurement & Testing Cable Assemblies
1.00mm up to 110 GHz
1.85mm up to 67 GHz
2.4mm up to 50GHz
2.92mm up to 40GHz
N, SMA 3.5mm up to 18GHz
Ultra flexible, Ultra low loss, Cost effective Cable Assemblies
Cost effective for mass requirement for 5G, AI, Automobile 2.0
Interconnect.
Cable Connectors and Adapters
Customized High Frequency Cable Connector
2.92mm K in-series and inter-series AdapterBulkhead mount, Flange mount adapter
Receptable Adapter
