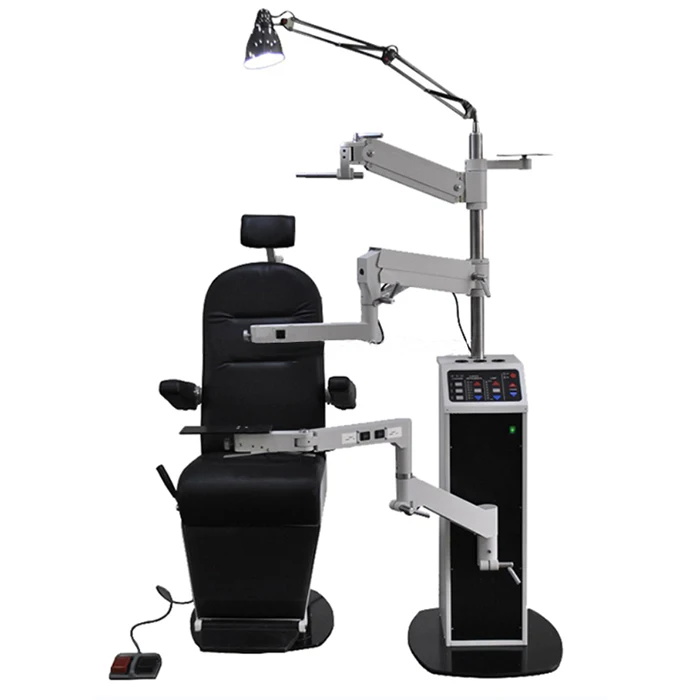

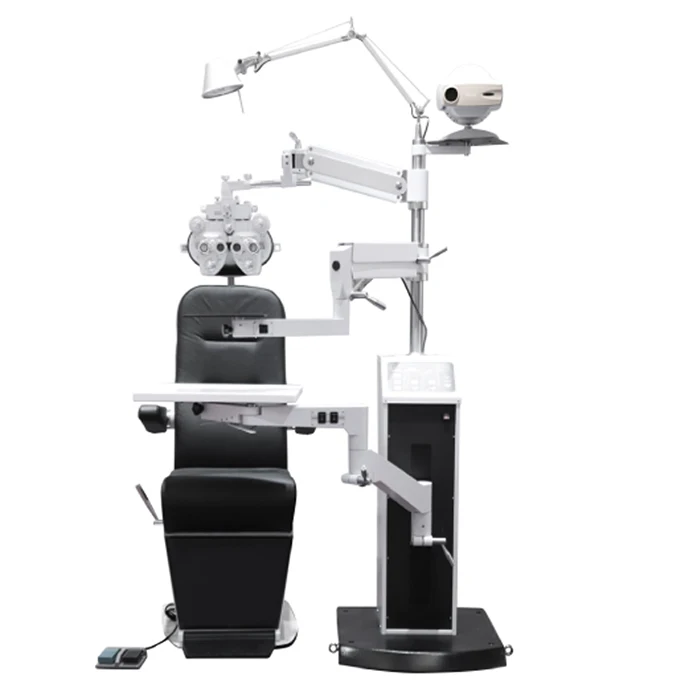

TR 700A China refraction unit ophthalmic chair unit with table and chair

Product Overview

Description

 ophthalmic unit





TR-700A



Features:

1. Recline bar control available to fully tilt the chair to a maximum angel of 90 degrees;

2. Upholstered armrests for comfort;

3. One chair locks allows for max 360 degrees rotation;

4. Fully rotary and counter balanced slit lamp arm;

5. Overhead lamp with 7 levels of adjustable brightness.

6.3 charging ports for multiple devices charging;

7 3 ways to control the elevation of the table

8. multiple head rest positions to ease of comfort ;

9. fixation screws available for the chair and stand base to make it more stable;

10. Foot pedal included as standard configuration.





1.Phoroptor swing arm: Swing angle (up and down)±30°

Rotary arm: rotation angle 0°-300°

Up and down moving range: 900mm(lowest point)+600mm

Max load:30kg



2. The curvature of instrument: Swing angle (up and down)±40°

The first rotary arm rotates at an Angle360°;

The second rotary arm rotates at an Angle0°- 300°

The tray can be 360 °

rotation Up and down moving range:780mm(lowest point)+600mm

Max load:30kg

3.Projection arm: Angle of rotation for rotary arm360°

The tray can be 360 °

rotation Up and down moving range:1030mm(lowest point)+500mm

Max load:10kg



4.Table size: 350mm x 200mm x 25mm
(Can be customized, maximum size is 700mm x 400mm x 40mm)
Max load:50kg

5.Table movement range:within a semicircle with a radius of 824mm;
vertical movement: 716mm (lowest point) + 300±5mm

6.Table rotational angle: The first rotary arm rotates at an Angle0°- 180°;

The second rotary arm rotates at an Angle0°- 360°

The third rotary arm rotates at an Angle0°- 180°;

Table-board rotational angle: 360° .



7. Seat parameter: Lifting range 568mm(lowest position+140+5mm)
Headrest adjusting range 250mm
Seat rotation angle 0-3602
Footrest height from ground: minimum 88mm
Backrest adjusting angle 80-180
Max. load:150kg









Mechanical Parameters	1.Phoroptor swing arm	Swing angle (up and down)	±30°
		Rotary arm: rotation angle	0°-300°
		Up and down moving range	900mm~1500mm
		Max load	30Kgs
	2.Auto keratometer arm	Swing angle (up and down)	±40°
		The first rotary arm rotates at an Angle	360°
		The second rotary arm rotates at an Angle	0°-300°
		The tray can be 360° rotation
		Up and down moving range	780mm~1380mm
		Max load	30Kgs
	3.Projector arm	Angle of rotation for rotary arm	360°
		The tray can be 360° rotation
		Up and down moving range	1030mm~ 1530mm
		Max load	10Kgs
	4.Slit lamp arm	Table size	350mm x 200mm x25mm (Can be customized, maximum size is 700mmx 400mm x 40mm)
		Max load	50Kgs
		Table movement range	within a semicircle with a radius of 824mm
		Height adjustment range	716mm ~1016mm
		Table rotational angle	The first rotary arm rotates at an Angle 0°- 180°;
			The second rotary arm rotates at an Angle 0°- 360°;
			The third rotary arm rotates at an Angle 0°- 180°
		Table-board rotational angle	360°
	5.Seat parameter	Lifting range	568~708mm
		Headrest adjusting range	250mm
		Seat rotation angle	0°-270°
		Footrest height from ground	minimum 88mm
		Backrest adjusting angle	80°-180°
		Max. load	150Kgs
Electrical Parameters		1.In voltage	100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz
		2.Output voltage	100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz;
			2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC
		3.Charging voltage	5V DC
		4.Engine power	28V 1.5A DC
		5.Light	5/16W 24V DC
		6.Fuse	5A 130/250V AC
		7.No load power	1W
		8.Pressure test	2KV
		9.Working mode	S1
		10.Main wire	10A 120V/250V
		11.Working temperature	-10℃~+40℃
		12.Relative humidity	less than 90%
Installation Dimension		Figure size	1884mm*1316mm*1663mm(No contain table top or lighting)
		Weight	295kgs
