NEMA 17 high quality 1.8 degree Integrated Closed Loop Stepper Motor hot sale for Servo motor
- Category: >>>
- Supplier: Shenzhen Bobet Technology Co. Ltd.
Share on (1600410408431):
Product Overview
Description

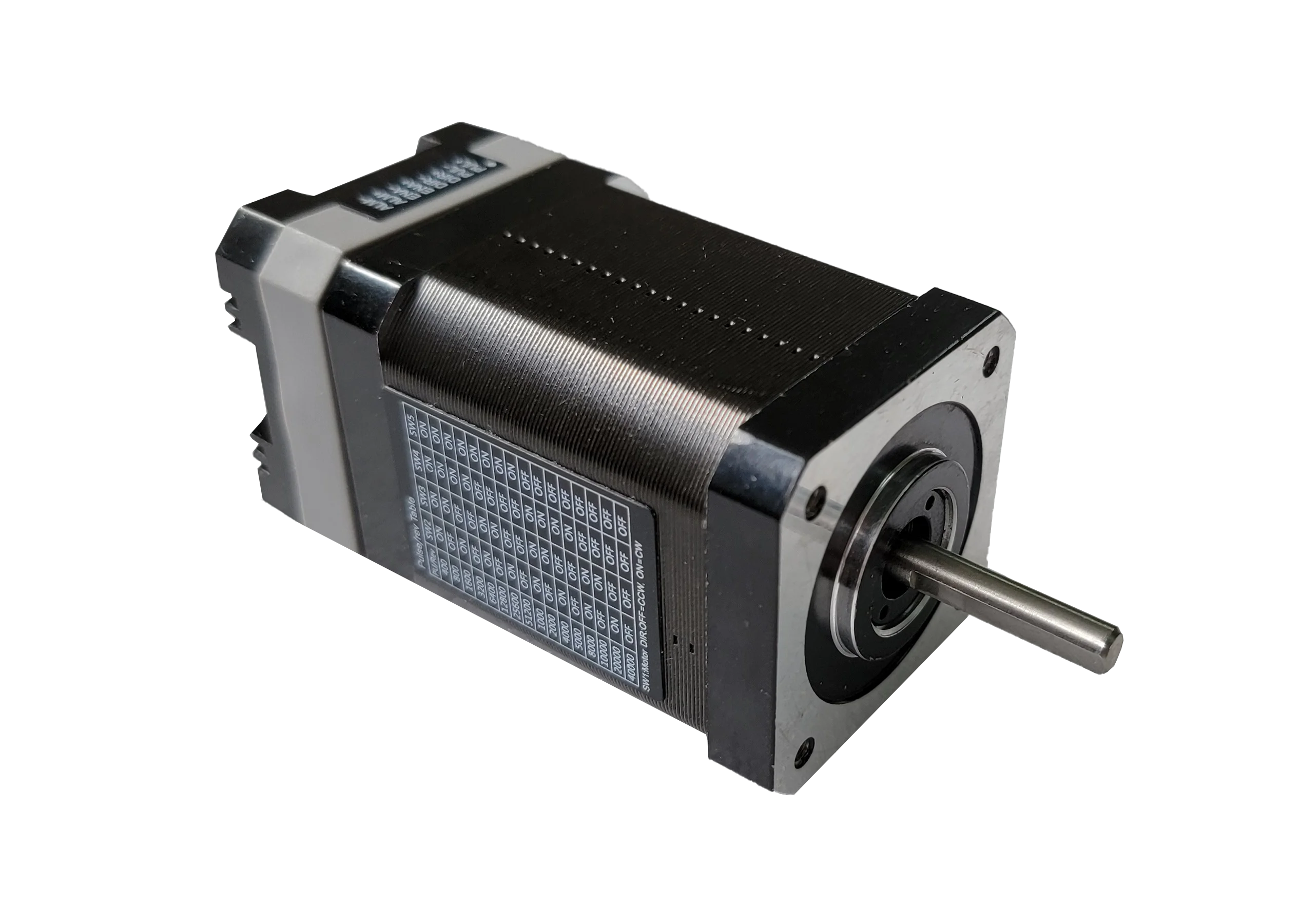

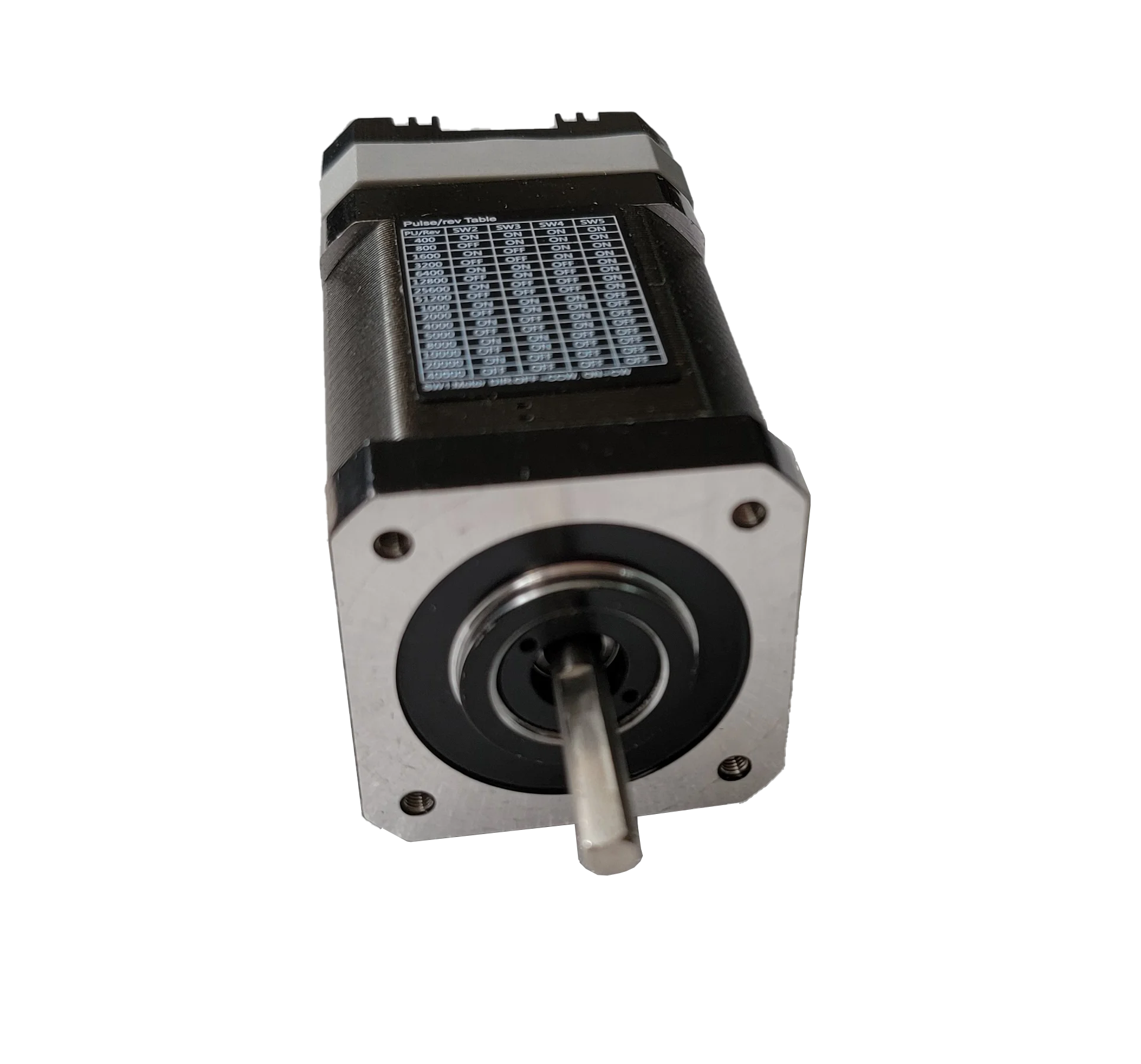

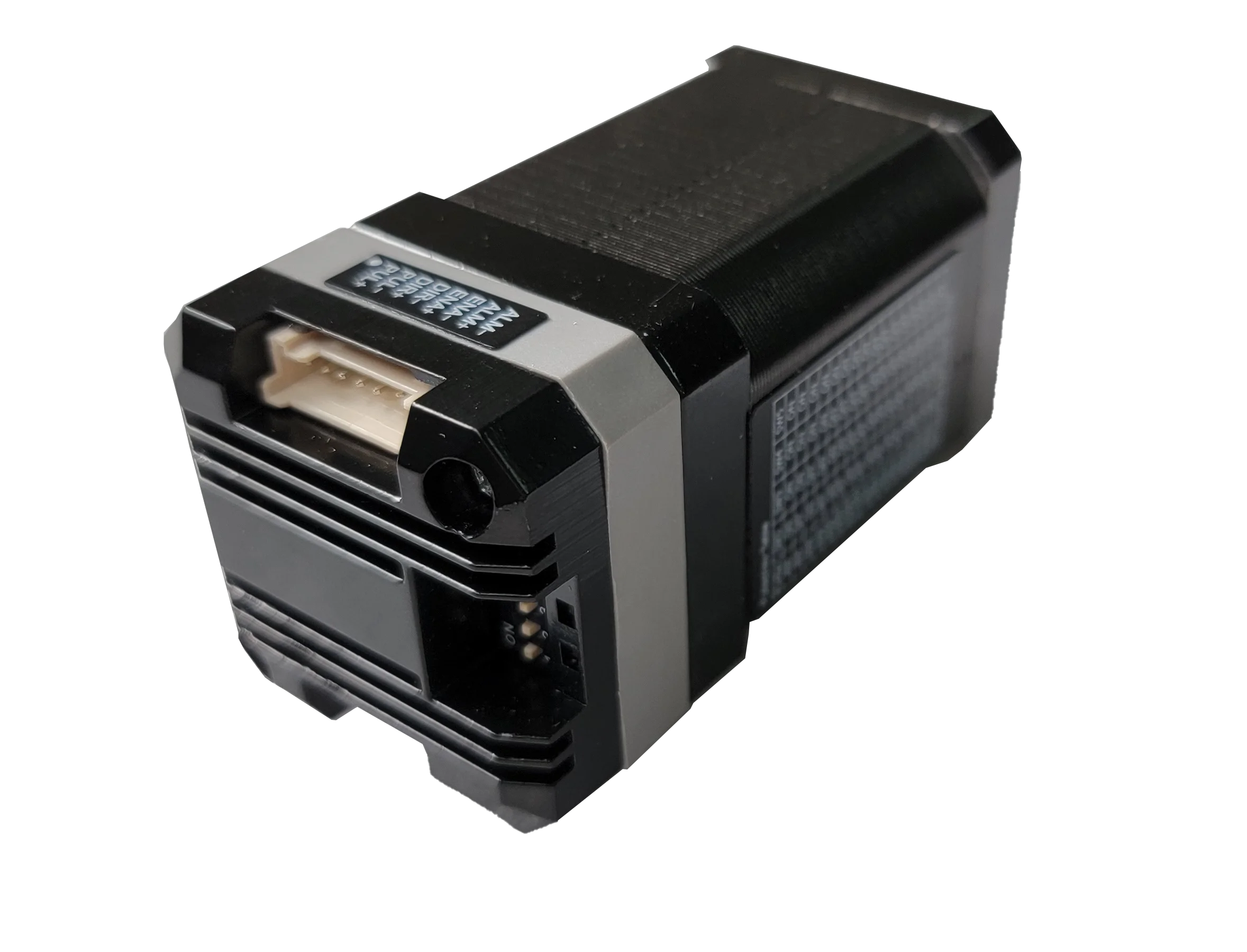

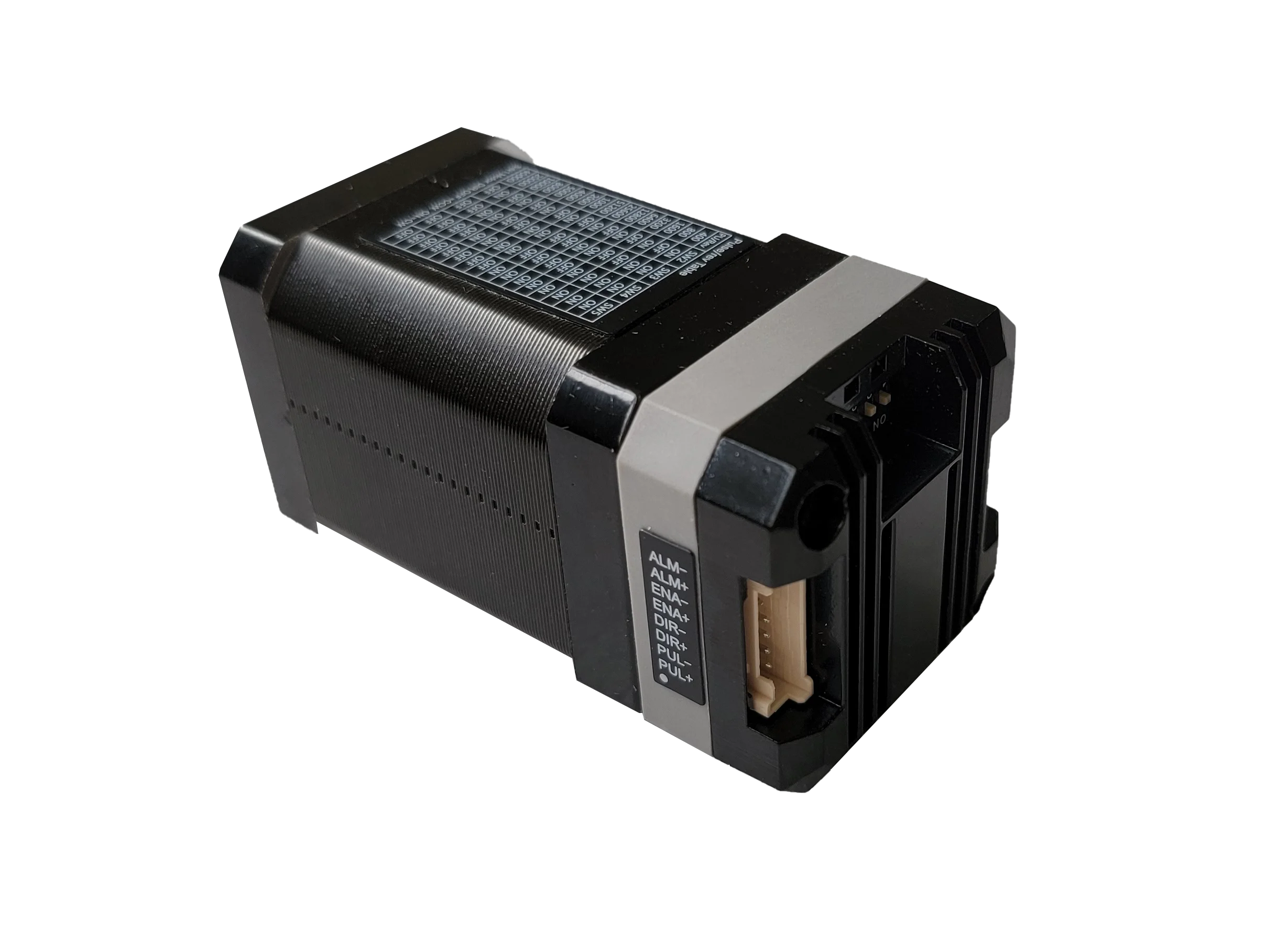

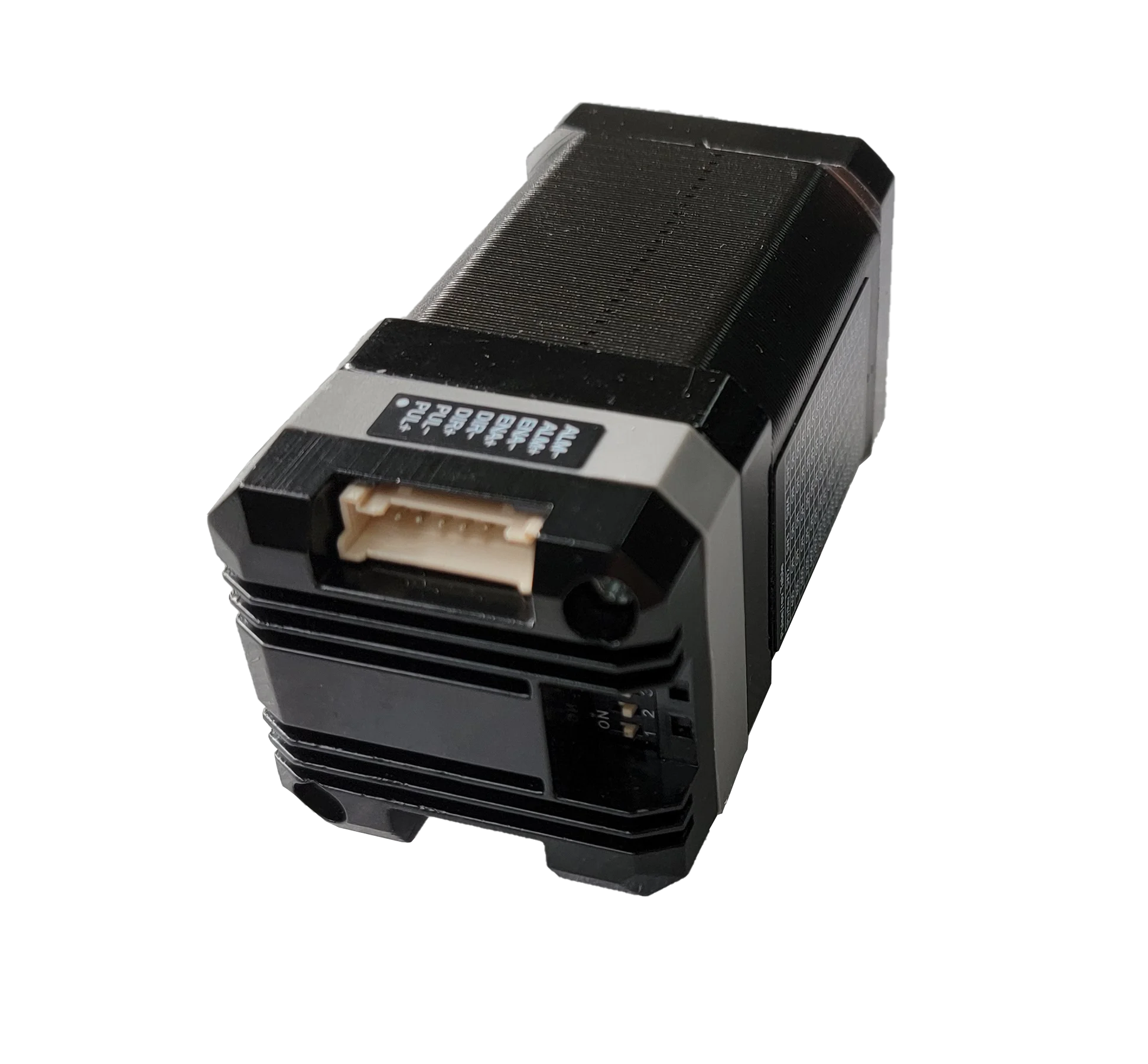

Product Pictures
Product Characteristics:
1. New PID current control technology.
2. The maximum pulse response frequency is up to 200KHZ.
3. The torque decay small at speeds up to 3000rpm.
4. Built-in alarm output, convenient for motoring and control.
5. Intelligent adjustment of current, reduce vibration, noise and heat, and improve efficiency by more than 25%.
6. Pulse/direction (PU/DR) control.
7. High response, fast rectification, rectification time can achieve 1ms.
8. Voltage range: DC 24v-36v.
9. Excellent high speed and rigidity, perfect integration of servo and step advantages in one.
10. With over voltage, low voltage, and other protection functions.
11. Integrated designs of integrated driver motor, superior field anti-interference capability.
12. Convenient installation, small space occupation and simple wiring.
13. With over-current, over-voltage, wrong phase, short-circuit and position super differential protection functions.
It is mainly applied to small and medium-sized automation equipment and instruments. Such as wire stripping machine, marking machine, cutter, plotter, electronic processing equipment, medical equipment and automation equipment and instruments.
1. New PID current control technology.
2. The maximum pulse response frequency is up to 200KHZ.
3. The torque decay small at speeds up to 3000rpm.
4. Built-in alarm output, convenient for motoring and control.
5. Intelligent adjustment of current, reduce vibration, noise and heat, and improve efficiency by more than 25%.
6. Pulse/direction (PU/DR) control.
7. High response, fast rectification, rectification time can achieve 1ms.
8. Voltage range: DC 24v-36v.
9. Excellent high speed and rigidity, perfect integration of servo and step advantages in one.
10. With over voltage, low voltage, and other protection functions.
11. Integrated designs of integrated driver motor, superior field anti-interference capability.
12. Convenient installation, small space occupation and simple wiring.
13. With over-current, over-voltage, wrong phase, short-circuit and position super differential protection functions.
It is mainly applied to small and medium-sized automation equipment and instruments. Such as wire stripping machine, marking machine, cutter, plotter, electronic processing equipment, medical equipment and automation equipment and instruments.

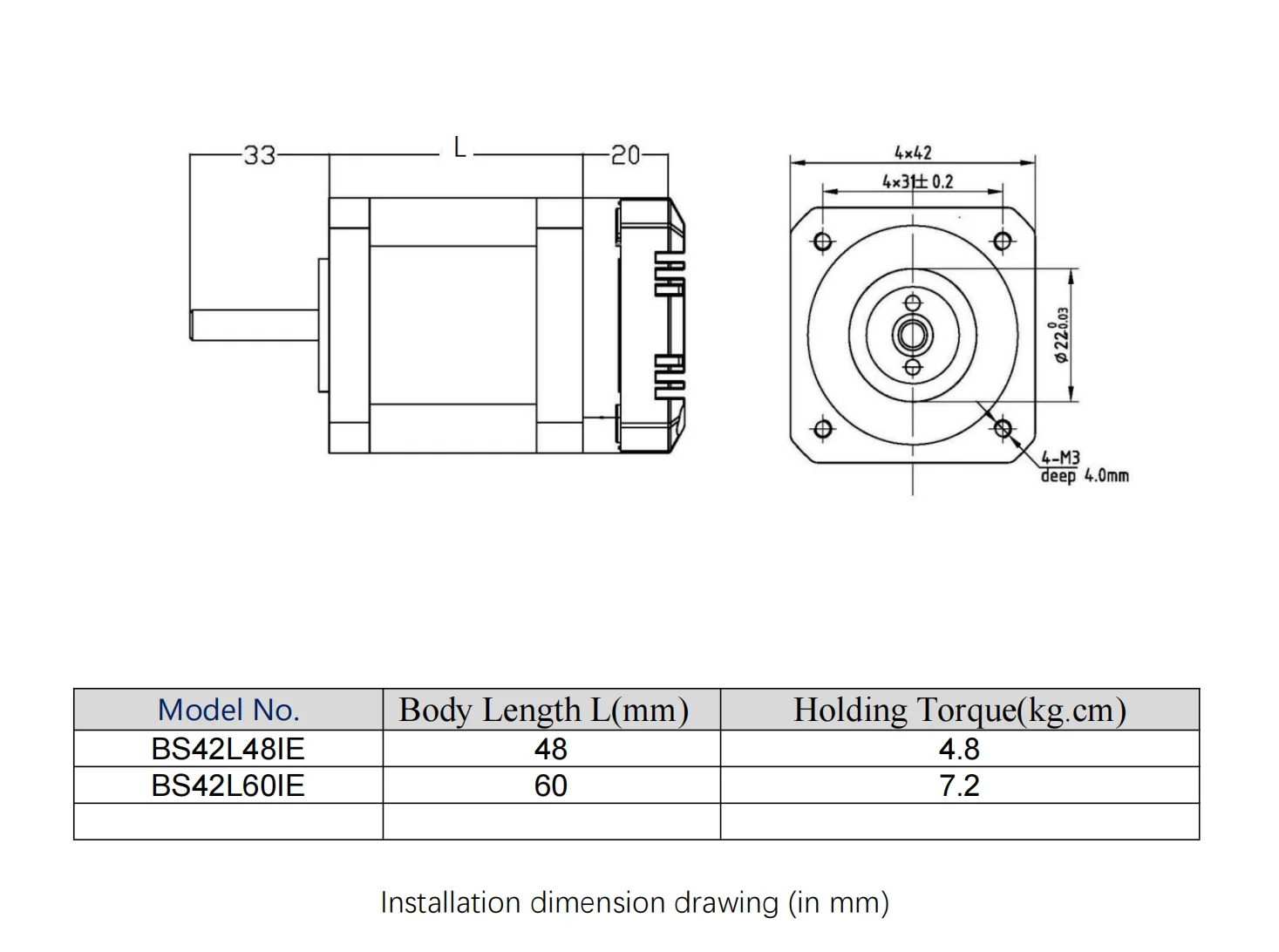

Specification & Drawings
型号 Model No | 步距角Step Angle（°） | 输入电压 Input Voltage（V） | 相数Phase number | 电机长度Motor length(mm) | 静态扭力Holding Torque(N.m) |
BS42L60IE | 1.8 | 24-36V | 2 | 60 | 0.72 |
Advantage-our idea
Packing & Delivery
Package Type:
Standard Export Carton And Pallet
Customized Label and Carton Acceptable
Company Profile
Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity. our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.
Certifications
FAQ
Q1: Do we provide free sample?
A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.
A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.
Q2: How to order?
A2: Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.
we accept online order by alibaba or offline order. we have export business license, and our bank can accept any payment from any countries, our logistics agent and us will ship goods to your hand if you want.
Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
we accept online order by alibaba or offline order. we have export business license, and our bank can accept any payment from any countries, our logistics agent and us will ship goods to your hand if you want.
Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
Q3: How to choose a suitable electric motor for your application?
A3: First check the voltage(V) of power supply for the motor,speed(rpm) and torque(N.m or kg.cm) needed ,they are basic performance need to know, to decide any gearbox is necessary or not.then we also need to consider the size(or mounting space),shape of the motor. then we need to consider the other factors,such as speed control,positioning function, motion accurate are required or not, cost down,Energy saving,gear self-lock, machine noise,structure and other performance...you may contact us to get more help,we are glad to give you a help.
