7 Inch 800*480 High Brightness LCD Screen 8bit 24bit RGB TTL 50PIN tft lcd display
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (1600410461467):
Product Overview
Description
7 Inch 800*480 High Brightness LCD Screen 8bit 24bit RGB TTL 50PIN tft lcd display
Summary
2.RGB 50pin FPC; 400 cd/m2
3.Industrial application standard; Medical equipment application
Product Paramenters
Manufacturer | |
Model Name | W070P50S2RN |
Screen Size | 7.0 inch |
Screen Type | LCM, a-Si TFT-LCD |
Pixel Number | 800(RGB)×480 , SVGA |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 154.08(W)×85.92(H) mm |
Outline(mm) | 164.9(W)×100(H) ×3.5(D) mm |
Bezel Area(mm) | 156.7(W)×89.1(H) mm |
Treatment | Anti-glare |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down |
Response | 25 (Typ.)(Tr/Td) ms |
Good View at | 6 O’CLOCK |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K , 50% NTSC |
Backlight | WLED , 20K hours ,No Driver |
Net Weight | 130.0g (Typ.) |
Used for | Industrial Application |
operating frequency | 60Hz |
Touchscreen | without |
Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins , FPC |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
Package | 530×355×255 mm |

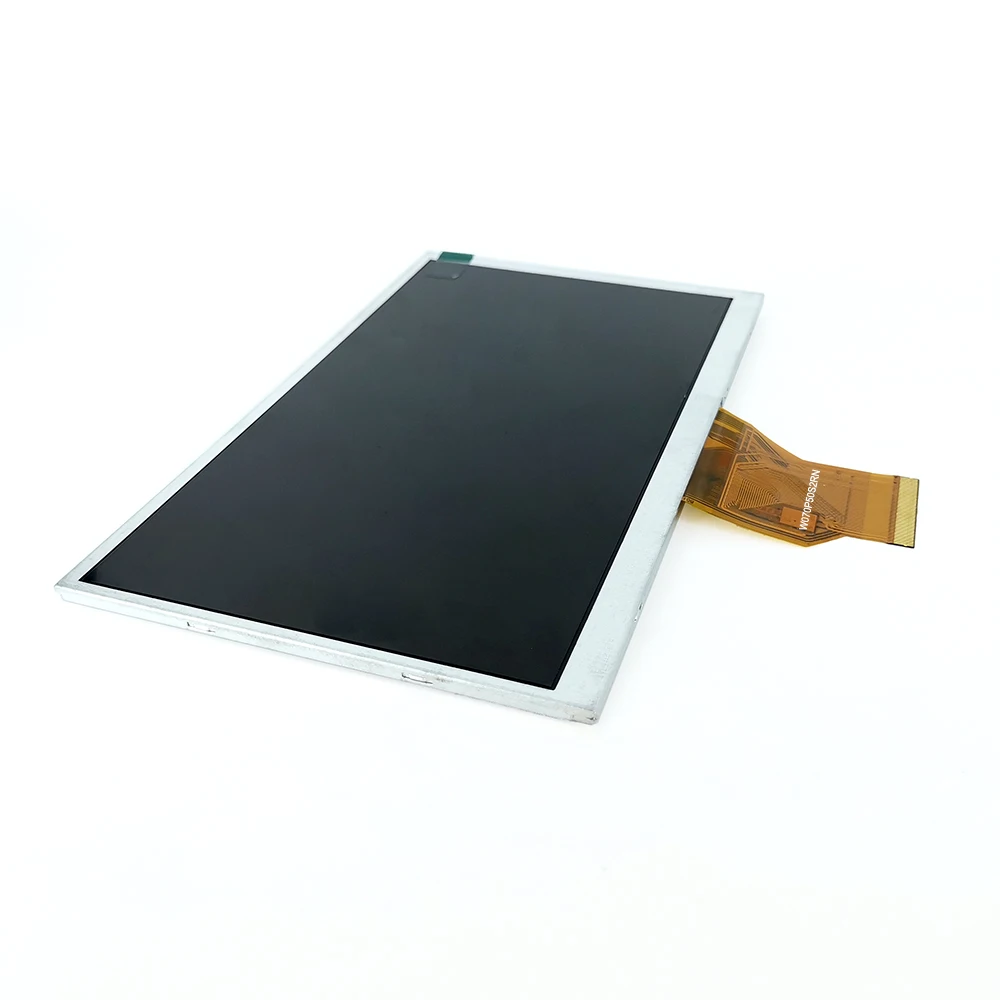

Details Images
7 Inch 800*480 High Brightness LCD Screen 8bit 24bit RGB TTL 50PIN tft lcd display

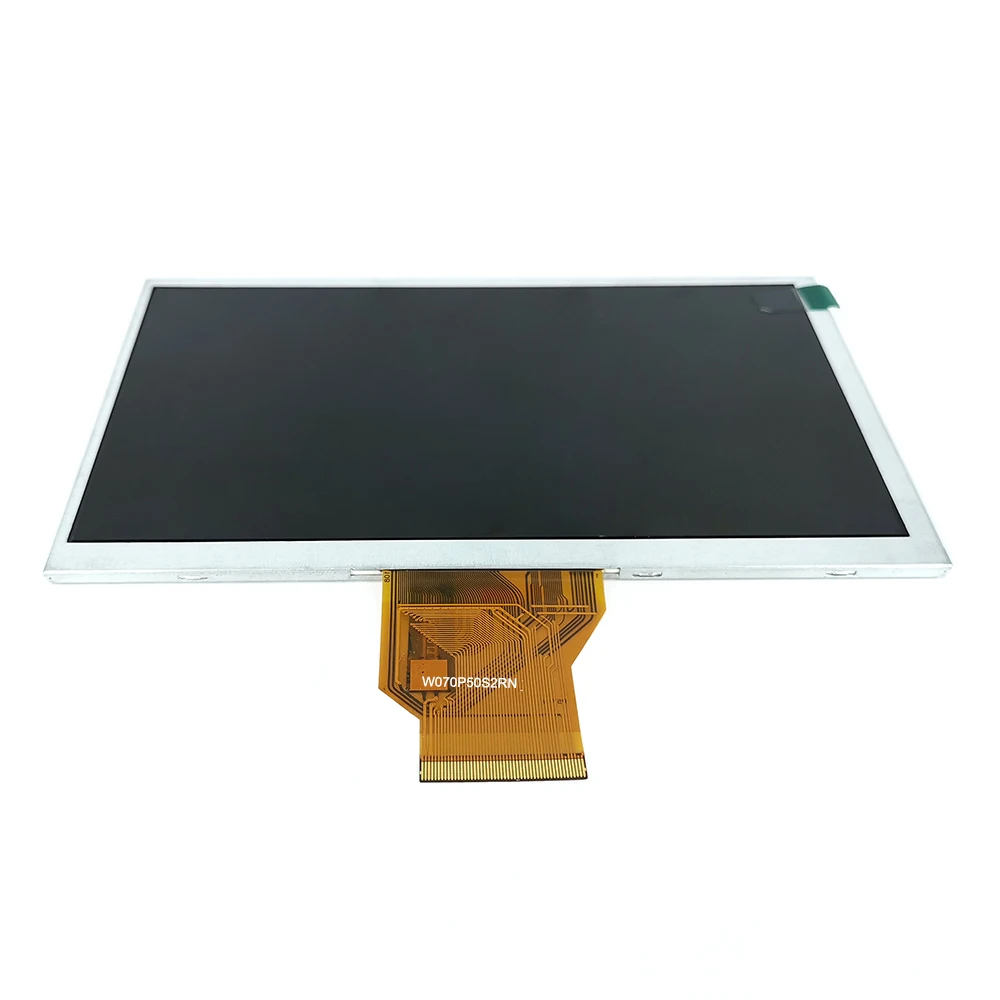

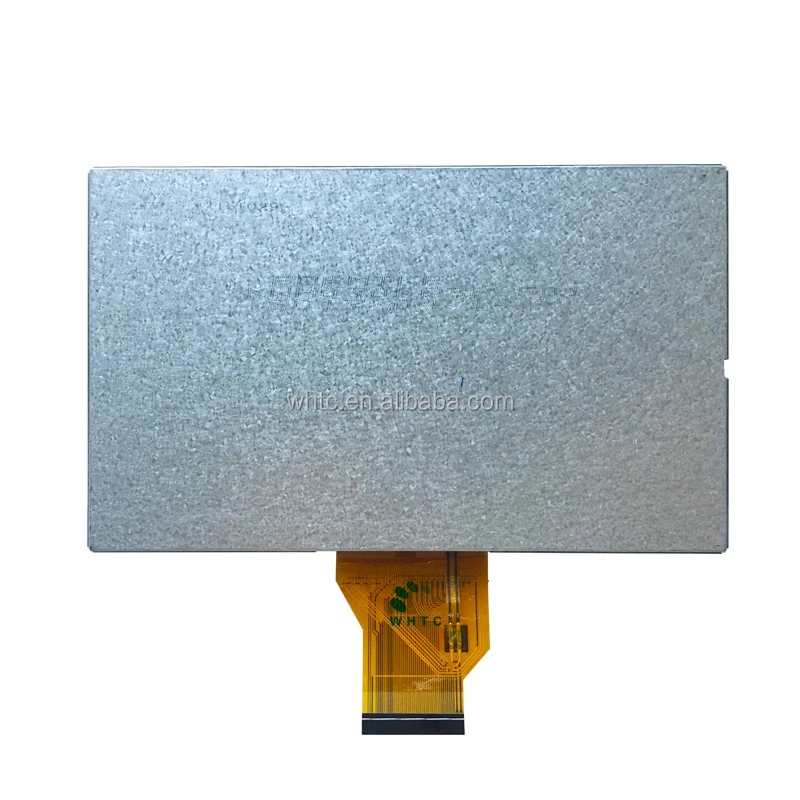

Front and back Images
7 Inch 800*480 High Brightness LCD Screen 8bit 24bit RGB TTL 50PIN tft lcd display
W070P50S2RN

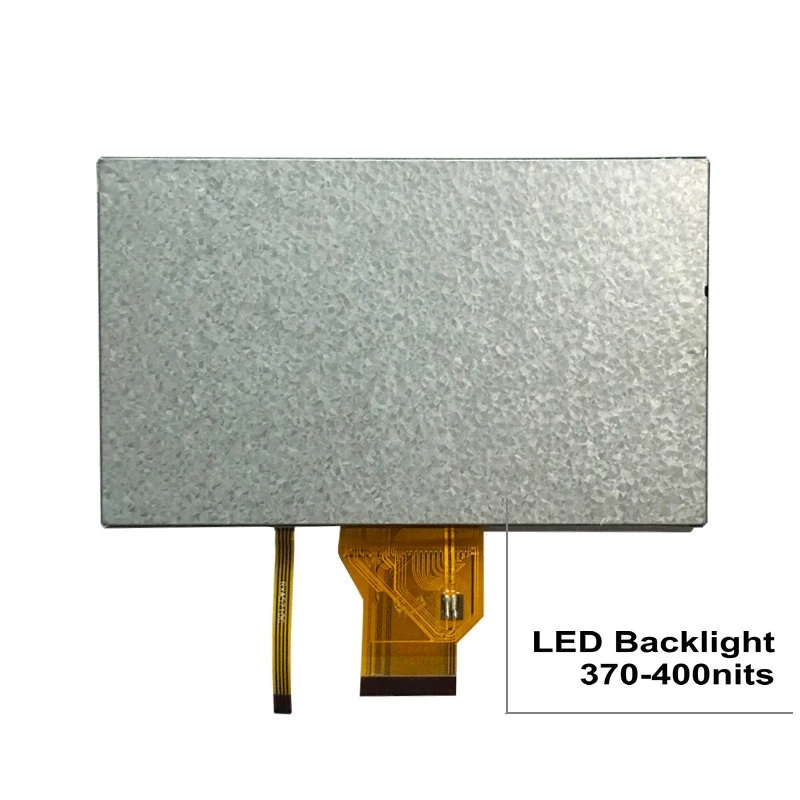

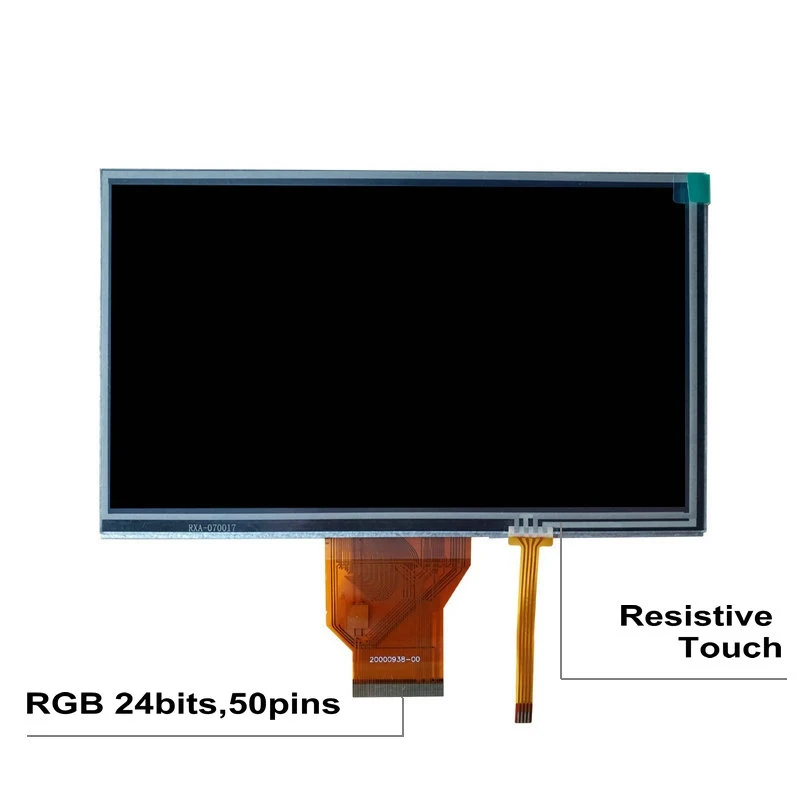

Matching Resistance touch screen
Matching Resistance touch screen

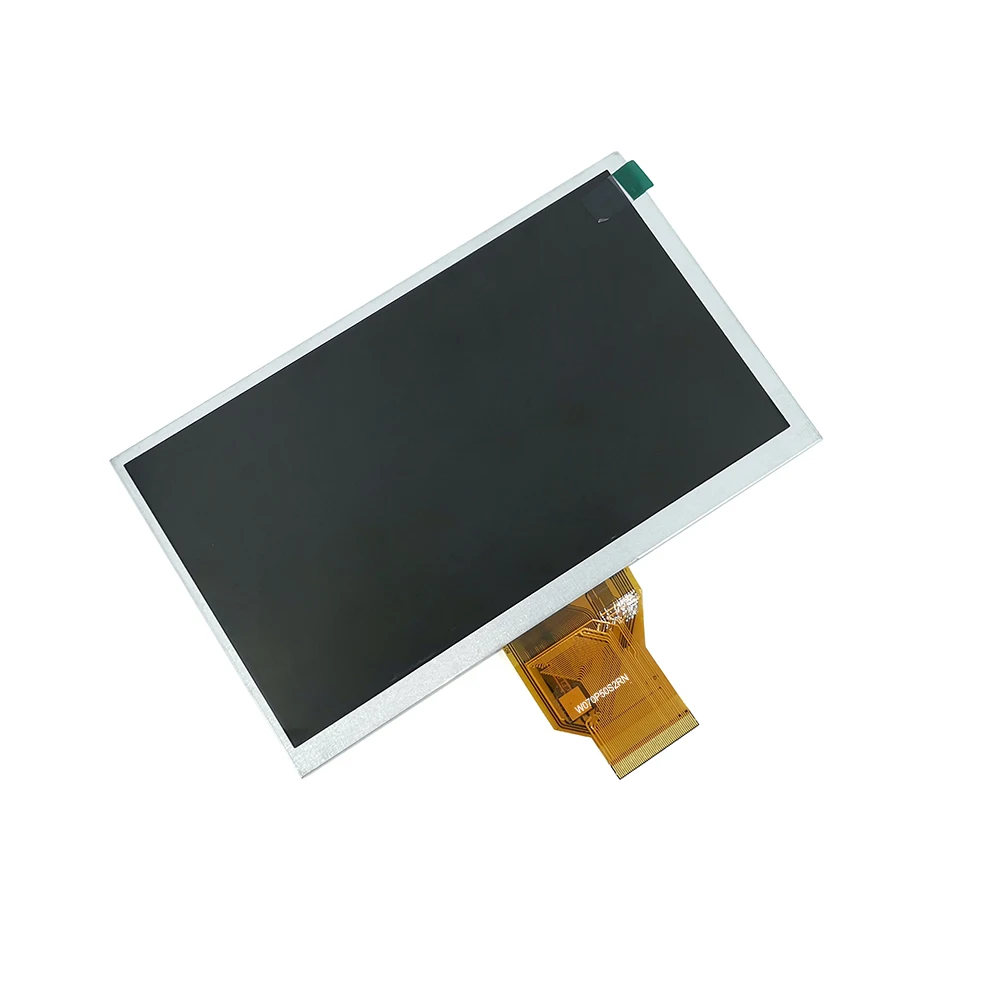

7 Inch 800*480 High Brightness LCD Screen 8bit 24bit RGB TTL 50PIN tft lcd display

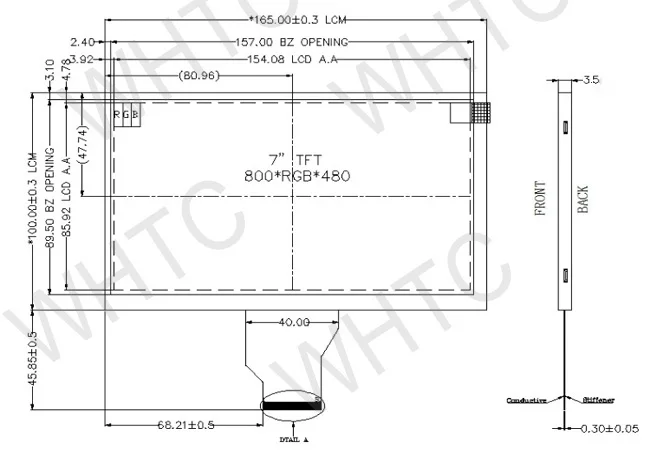

Size

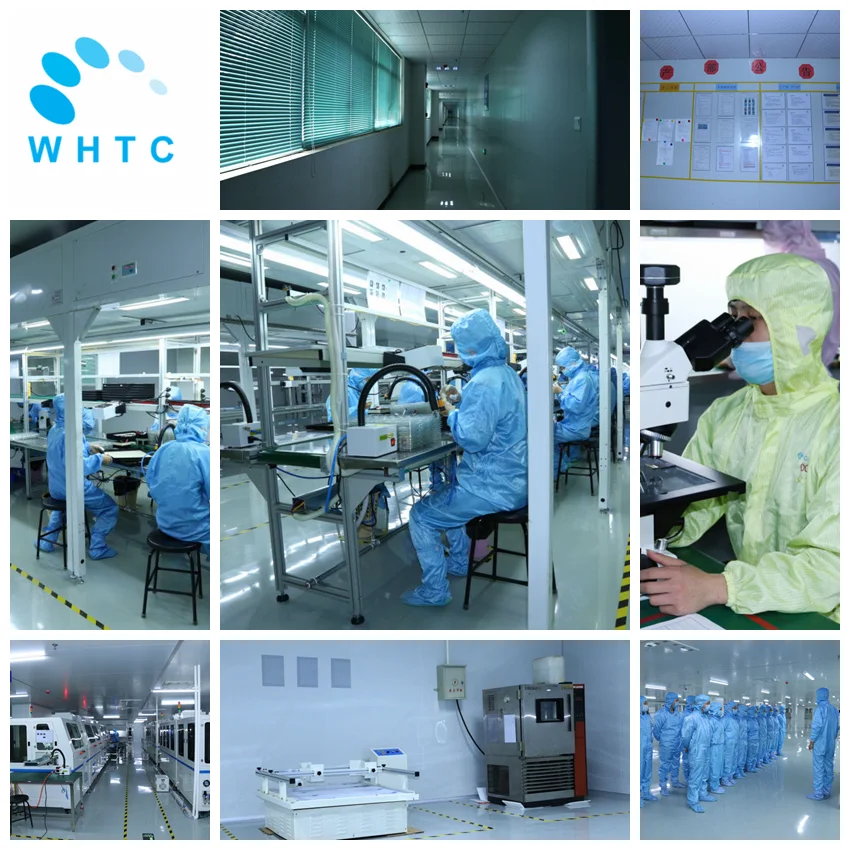

About Us
Application Demo Board
Product packaging
Packing list :
1× 7inch lcd panel
1x LCD Driver Controller Board
1× Keyboard With Cable
1× Remote Control(Battery Not included)
Recommend Products
Our Advantages
Provide professional OEM / ODM
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Tel: + 86-755-25695467
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
