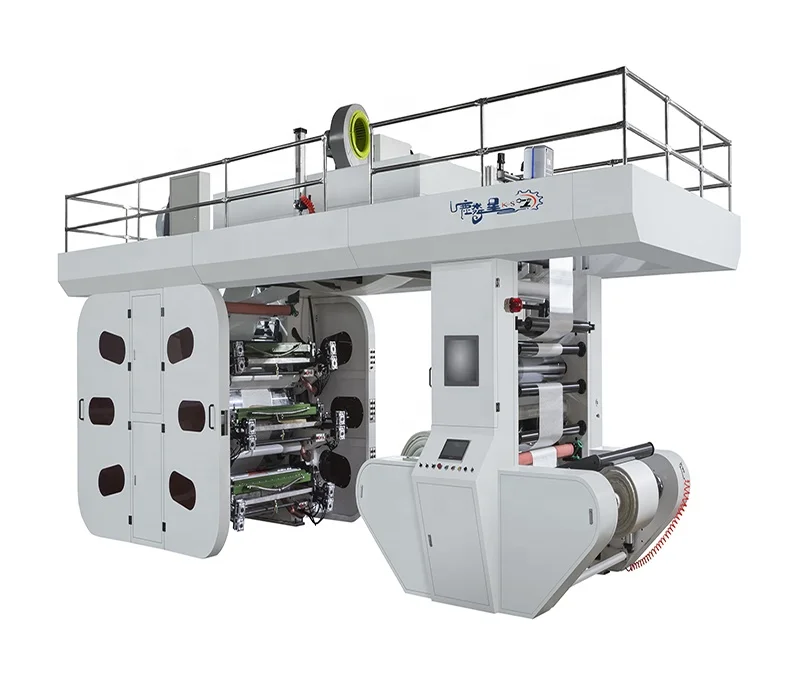

New High Speed Six Color CI Type Plastic T Shirt Bag Flexo/Flexographic Printing Machine
- Category: >>>
- Supplier: Wenzhou K-S Machinery Co. Ltd
Share on (1600410652996):
Product Overview
Description
New High Speed Six Color CI Type Plastic T-Shirt Bag Flexo/Flexographic Printing Machine
FEATURES AT A GLANCE
Application:
BOPP,PVC,PE, PE breathable, non woven fabric, paper roll..soft roll material
Main features:
1. The whole machine adopts PLC and frequency conversion drive control system
2. High precision ceramic roller inking system
3. Enclosed chamber doctor blade for scraping ink
4. Thermostatically controlled pressure printing central drum
5.Hd color video inspection, easy to observe the printing quality
6. High precision tension sensor closed loop constant tension design to ensure accurate and stable printing tension
7. High performance rectifying system ensures the linear stability of the base material and the uniformity of the end face of the finished product
8. Independent hot air electric heating and drying unit, high efficiency and energy saving, can also choose heat conduction oil or steam heating
9. Manual registration and pressure control
9. Manual registration and pressure control
10.Air pump automatic ink pumping system

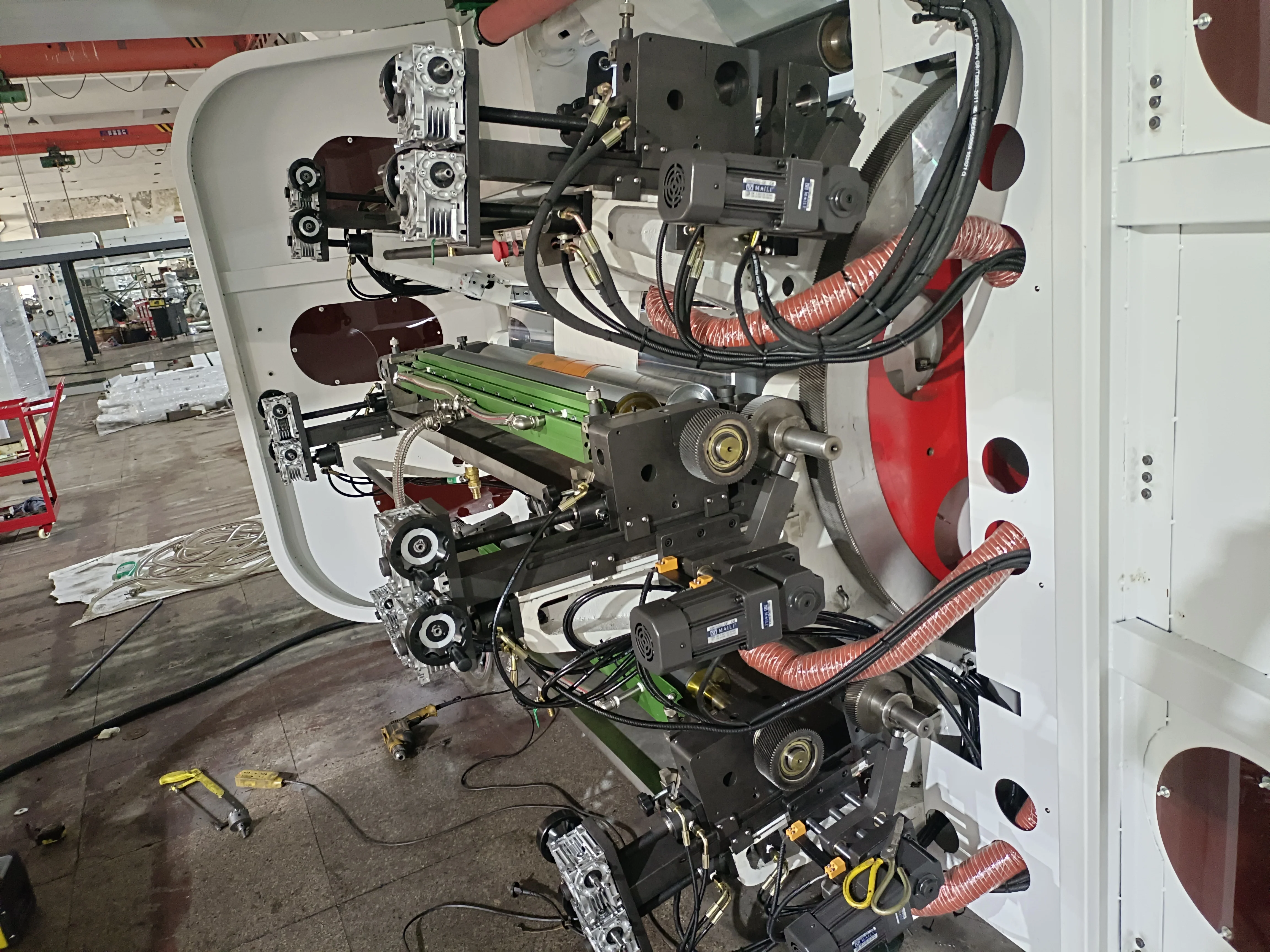

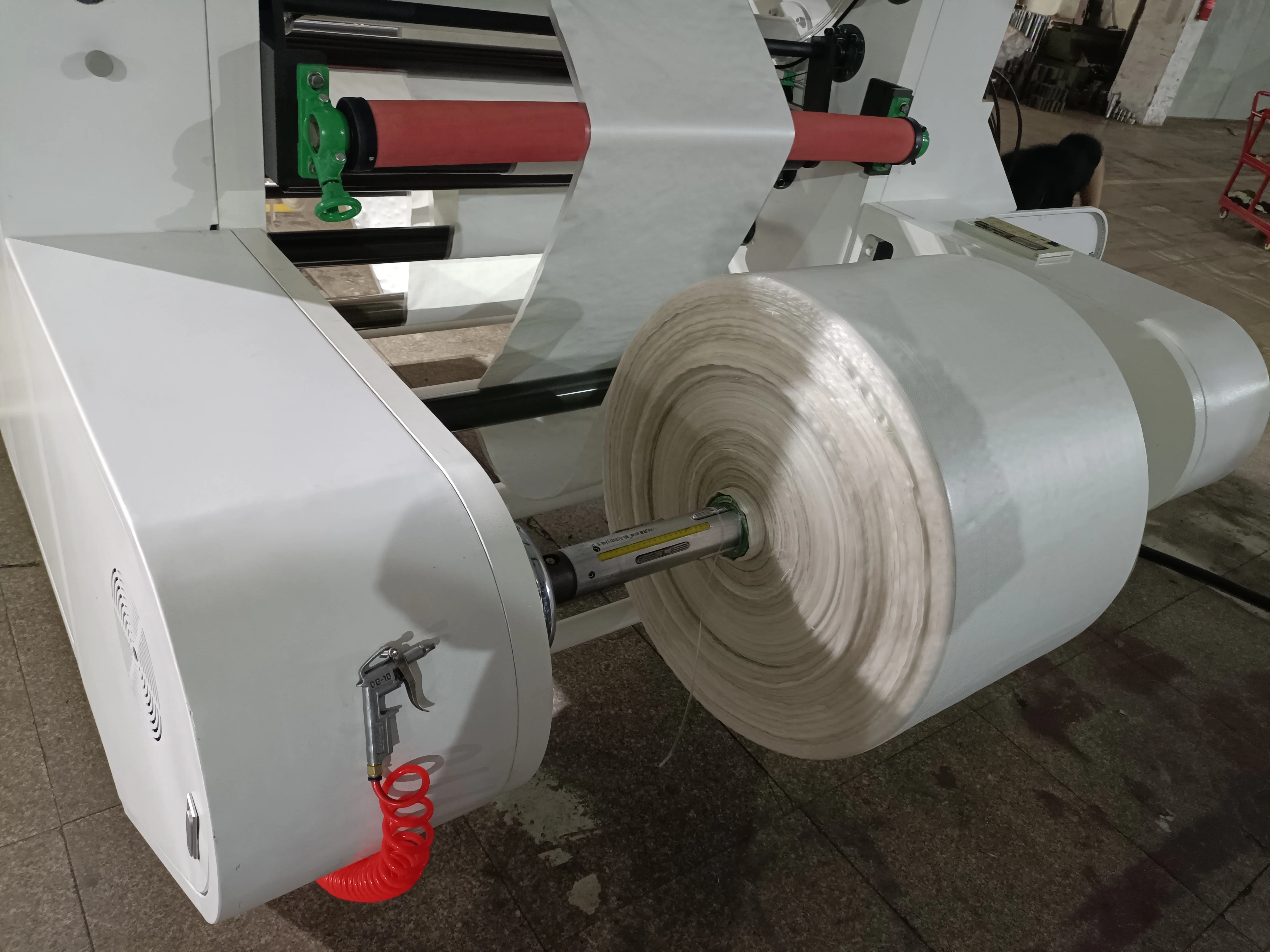

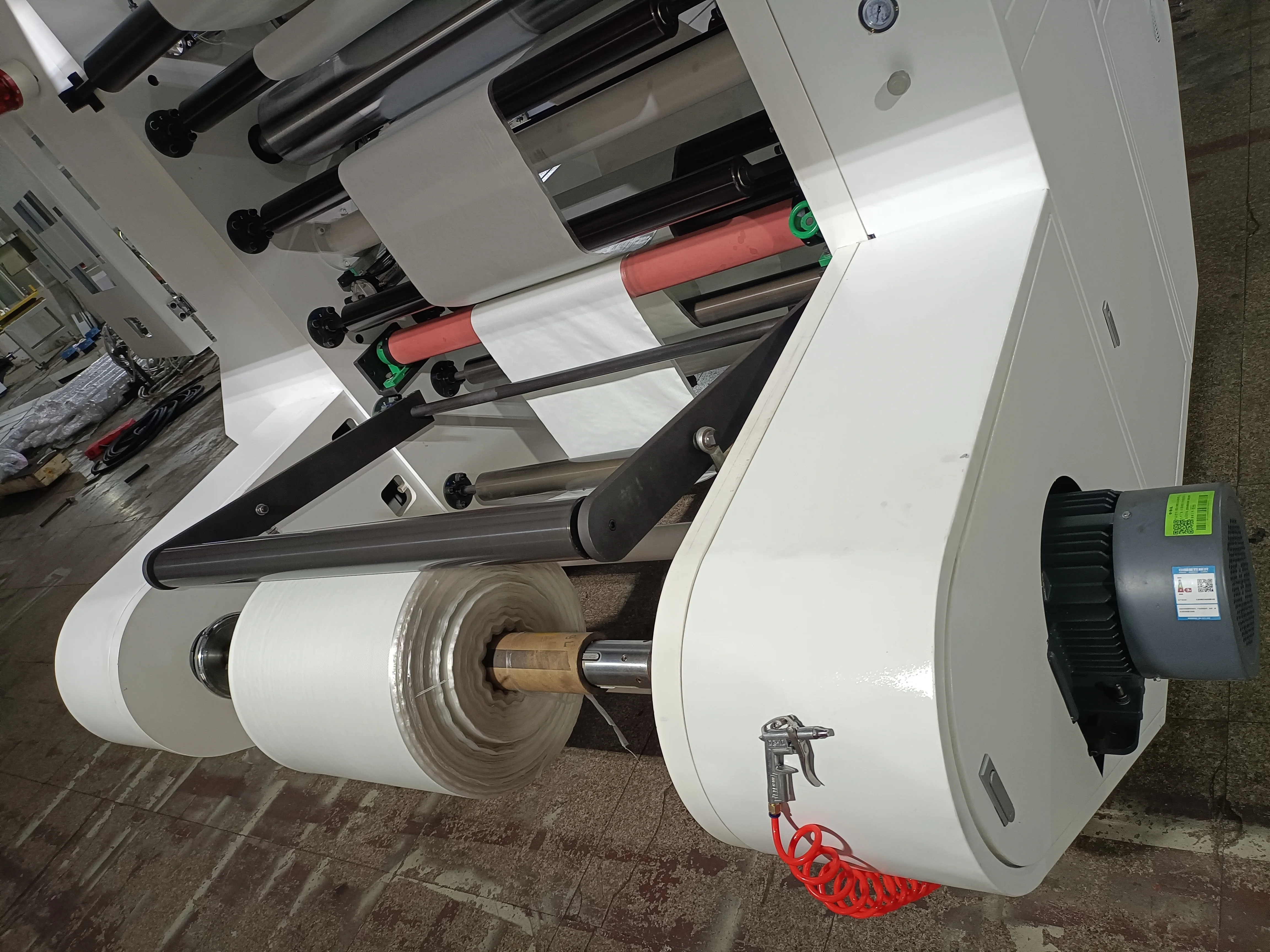

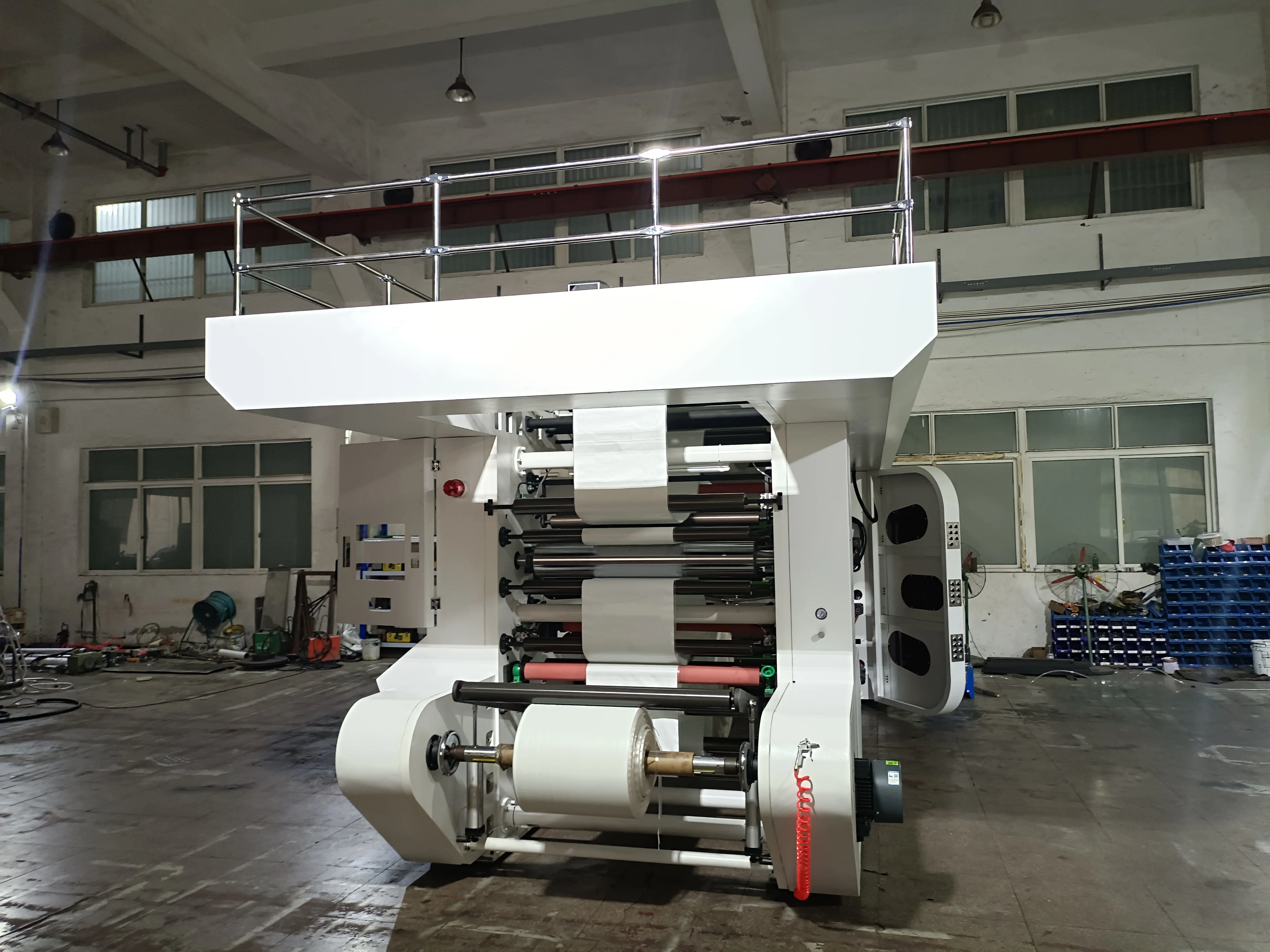

Details Images
PRODUCT CONFIGURATION
Model | KSCI-E600 | KSCI-E1800 | KSCI-E1000 | KSCI-E1200 | |||
Max Material Width | 600mm | 8000mm | 1000mm | 1200mm | |||
Max Printing width | 570mm | 770mm | 970mm | 1170mm | |||
Printing length | 360-940mm | ||||||
Printing color | 2-12 | ||||||
Mechanical speed | 50-220m/min | ||||||
Printing speed | 50-200m/min | ||||||
Printing unit Composition | Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder, Pressure roller | ||||||
Voltage | 3p 380v 50hz | ||||||
Weight | Depends on models | 6500kg | 7000kg | 7500kg | |||
Dimension | Depends on models | 5.6x2x3.2m | 5.6x2.2x3.2m | 5.6x2.4x3.2m | |||
Optional devices | 1.Corona treatment 2.Computer automatic color registration 3.UV device 4.Automatic non -stop unwind&rewind 5.Reverse printing 6.Online device | ||||||
