Bio Organic Fertilizer Making Machine Pan Disc Fertilizer Granulator Plate
- Category: >>>
- Supplier: Henan Tongda Heavy Industry Science And Technology Co. Ltd.
Share on (1600410704797):
Product Overview
Description
Product introduction

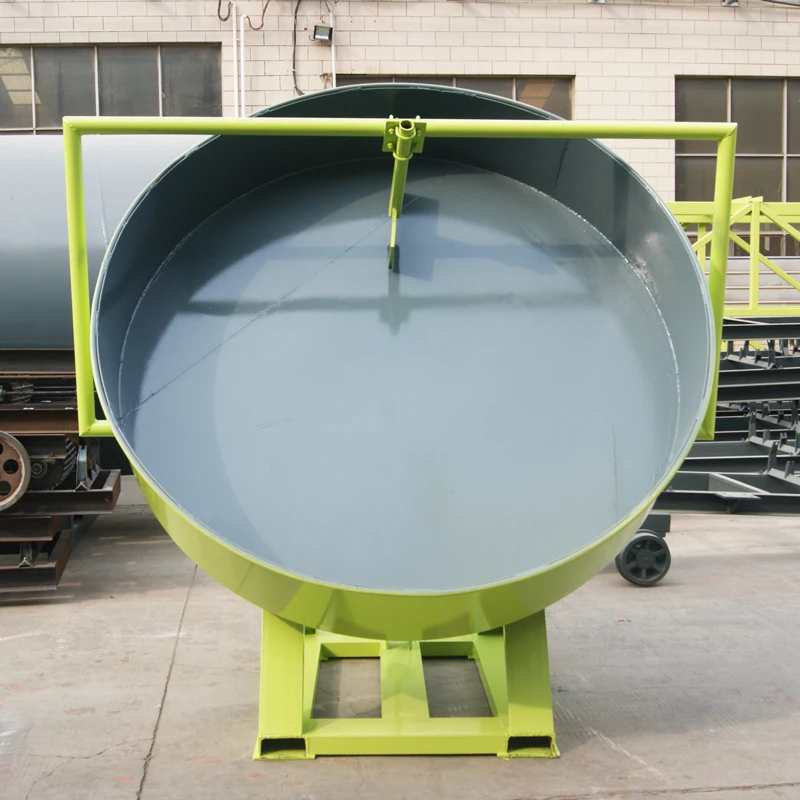

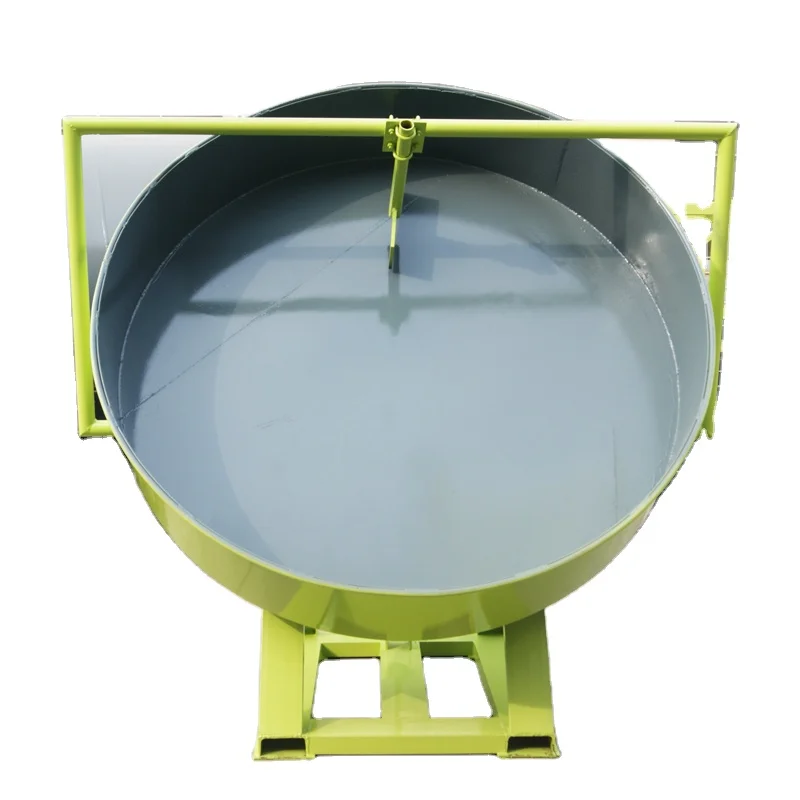

Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.
Performance characteristics
1.High efficiency.The circular granulation machine adopts the whole circular arc structure, the granulation rate can reach more than 93%.
2.Long service life.
3.The bottom of granulation plate is strengthened by a number of radiation steel plates, which are durable and never deformed.
4.Granulator plate lined with high strength glass steel, anti-corrosion and durable.
5.The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
6.Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
Working principle
The raw material powder is evenly stirred by pre-adding water, and input into the dish. As the dish rotates, the material gradually forms into a ball in the body of the dish by rolling, and reaches the predetermined diameter before being out of the dish, and then transported to the next process.
Model | Diameter of Disc(mm) | Edge Height (mm) | Rotary Speed (r/min) | Motor Power (kw) | Capacity (t/h) | Model of Reducer(kw) | Dimensions(mm) |
TDYZ-500 | 500 | 200 | 32 | 0.55 | 0.02-0.05 | BWYO-43-0.55 | 650*600*800 |
TDYZ-600 | 600 | 280 | 33.5 | 0.75 | 0.05-0.1 | BWYO-43-0.55 | 800*700*950 |
TDYZ-800 | 800 | 200 | 21 | 1.5 | 0.1-0.2 | XWD4-71-1.5 | 900*1000*1100 |
TDYZ-1000 | 1000 | 250 | 21 | 1.5 | 0.2-0.3 | XWD4-71-1.5 | 1200*950*1300 |
TDYZ-1200 | 1200 | 250 | 21 | 1.5 | 0.3-0.5 | XWD4-71-1.5 | 1200*1470*1700 |
TDYZ-1500 | 1500 | 300 | 21 | 3 | 0.5-0.8 | XWD5-71-3 | 1760*1500*1950 |
TDYZ-1800 | 1800 | 300 | 21 | 3 | 0.8-1.2 | XWD5-71-3 | 2060*1700*2130 |
TDYZ-2000 | 2000 | 350 | 21 | 4 | 1.2-1.5 | XWD5-71-4 | 2260*1650*2250 |
TDYZ-2500 | 2500 | 450 | 14 | 7.5 | 1.5-2.0 | ZQ350 | 2900*2000*2750 |
Product Description
Company Information
Customer Site
Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Our Advantage
Our Services
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
Packaging & Shipping
Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.
FAQ
1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online brochure is available under request and we warmly welcome you to visit our company.
2.How about price?
We can give you the lowest price than market one, of course, the discount is based on the quantity.
3. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
4. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized accoridng to your specific requirements, putting your logo on is also available and region agents are welcomed.
5.About the aftersale service, how can you solve the problems occurred of your overseas customer in time?
The machine warranty is 12 months, we have engineers available to help you solve your problems during that period.
