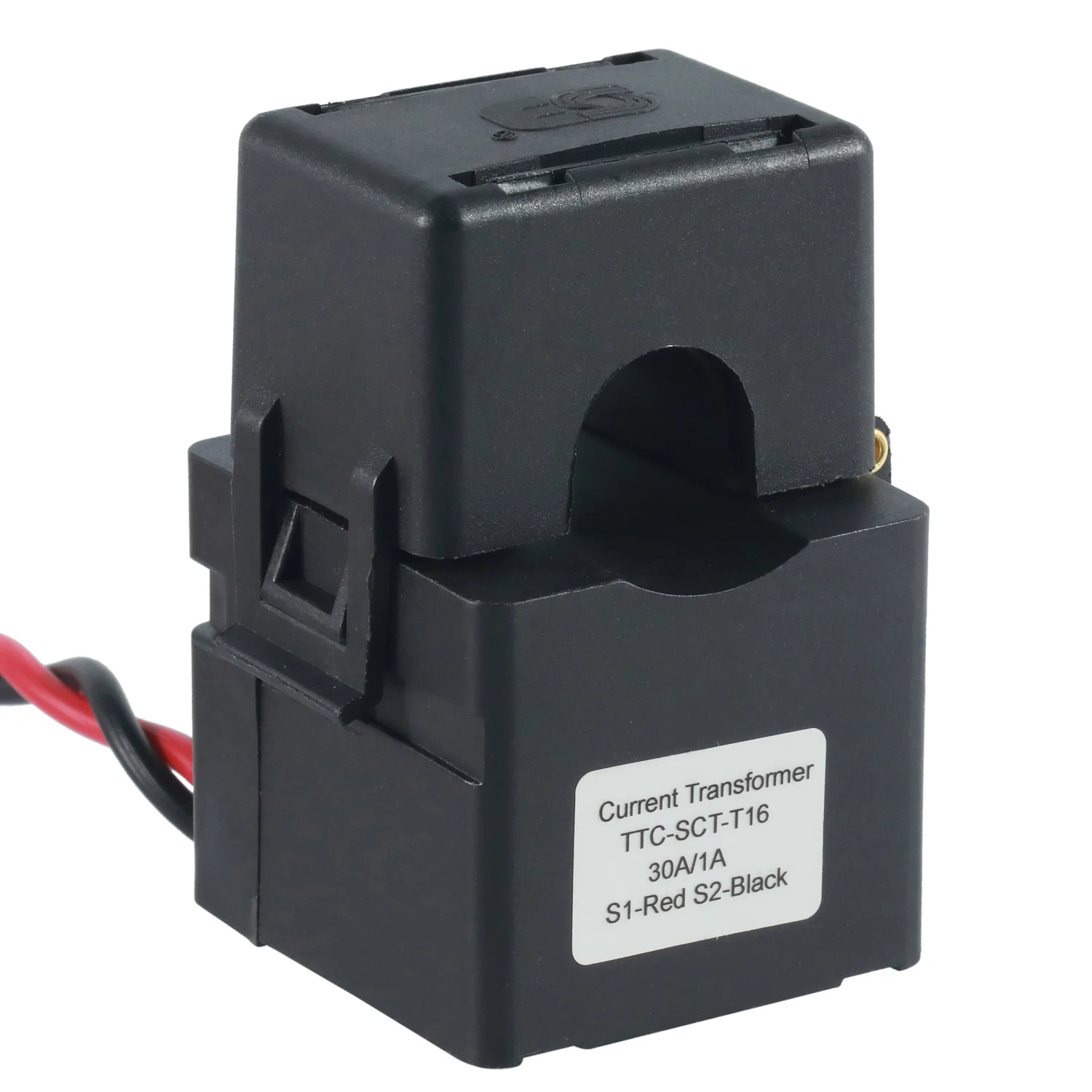

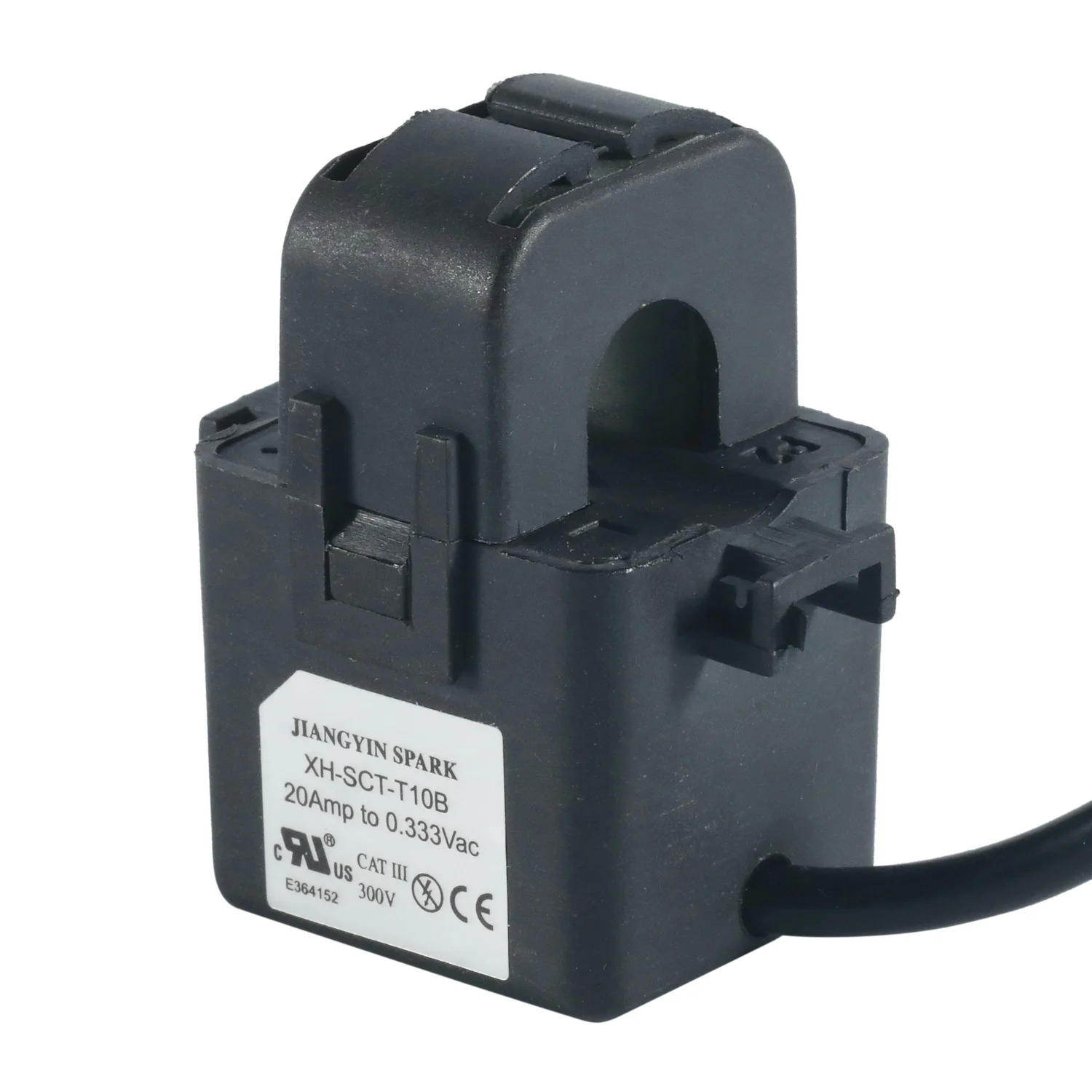

jiangyin spark Split Core Current Transformer, , 10mm Diameter , 60A Input, 333 mV Output
- Category: >>>
- Supplier: Jiangyin Spark Electronic Technology Co. Ltd.
Share on (1600410710935):
Product Overview
Description
Split core current transformer with high quality and CE UL certification
1-1000A CE Split Core Current Transformer & Ring Core Current Transformer
Description :

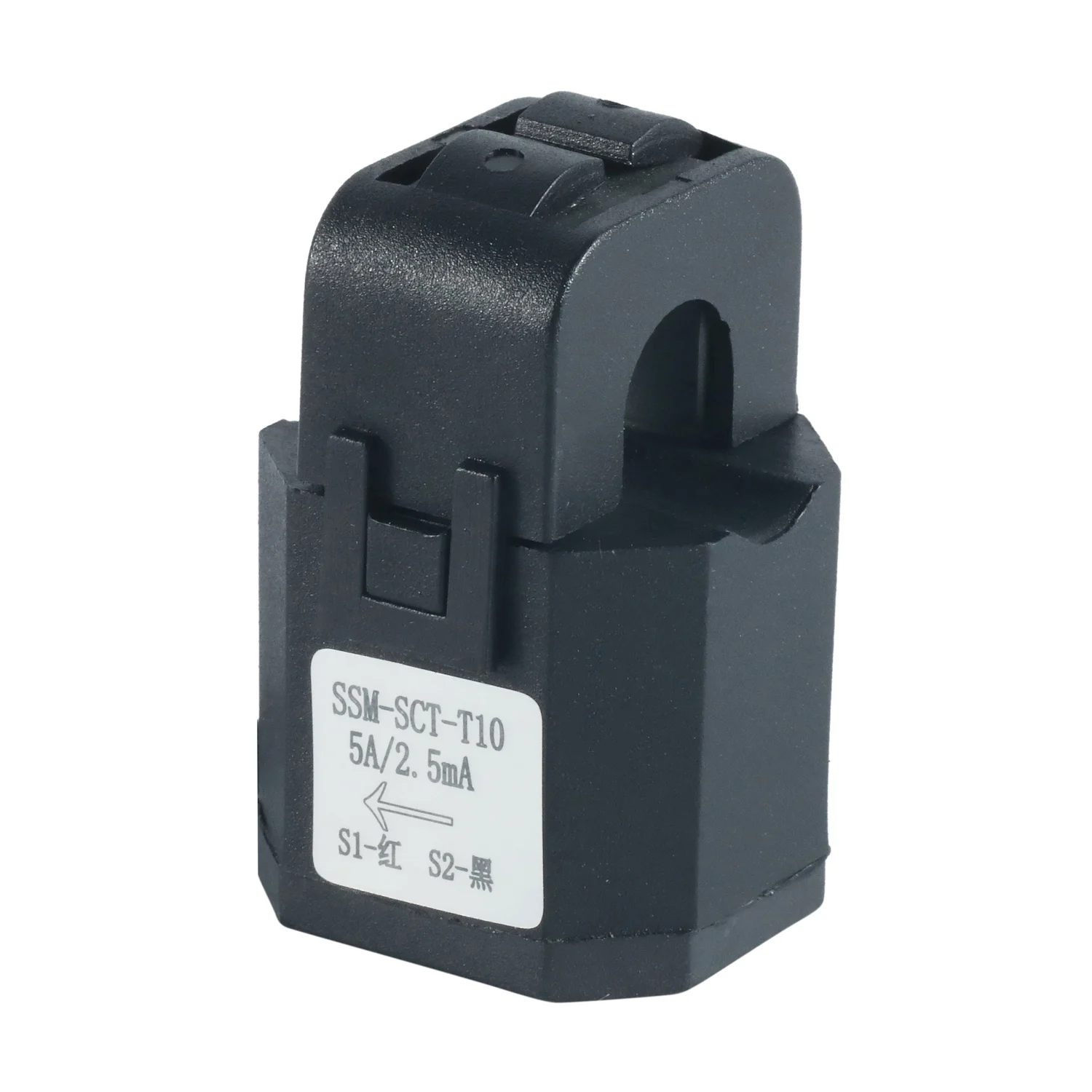

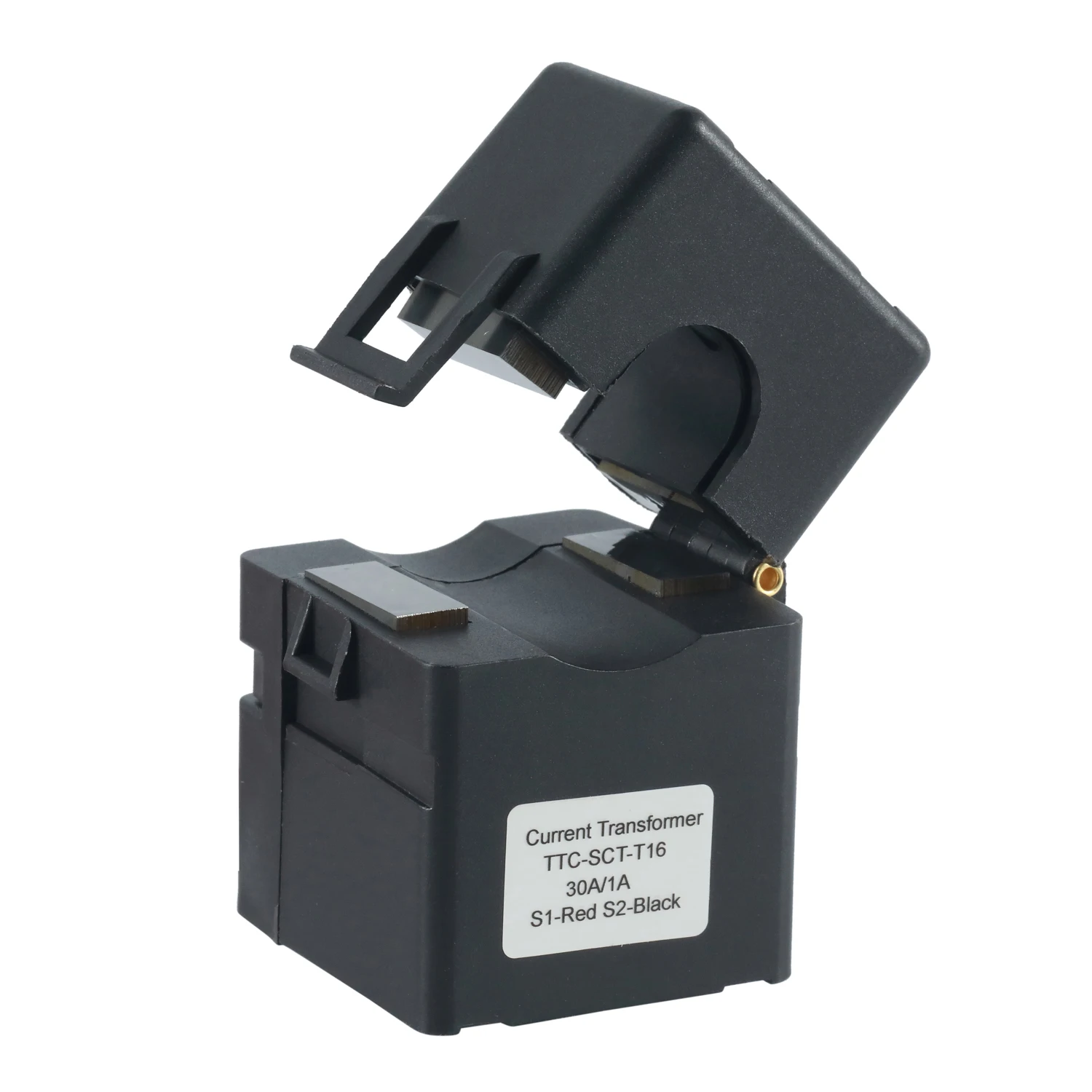

XH- SCTseries toroidal small transformer split core current transformer usd for AC current measurement,energy metering,submetering applications,which hasSmall size,easy installation,it is safer and portable than other current transformer.

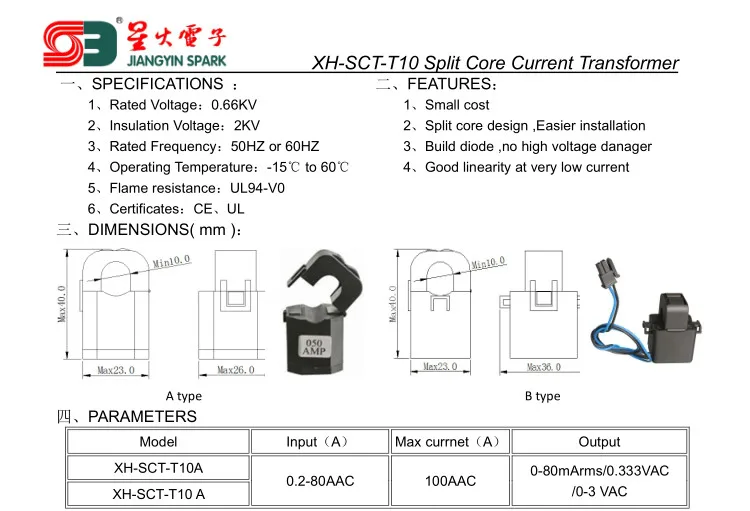

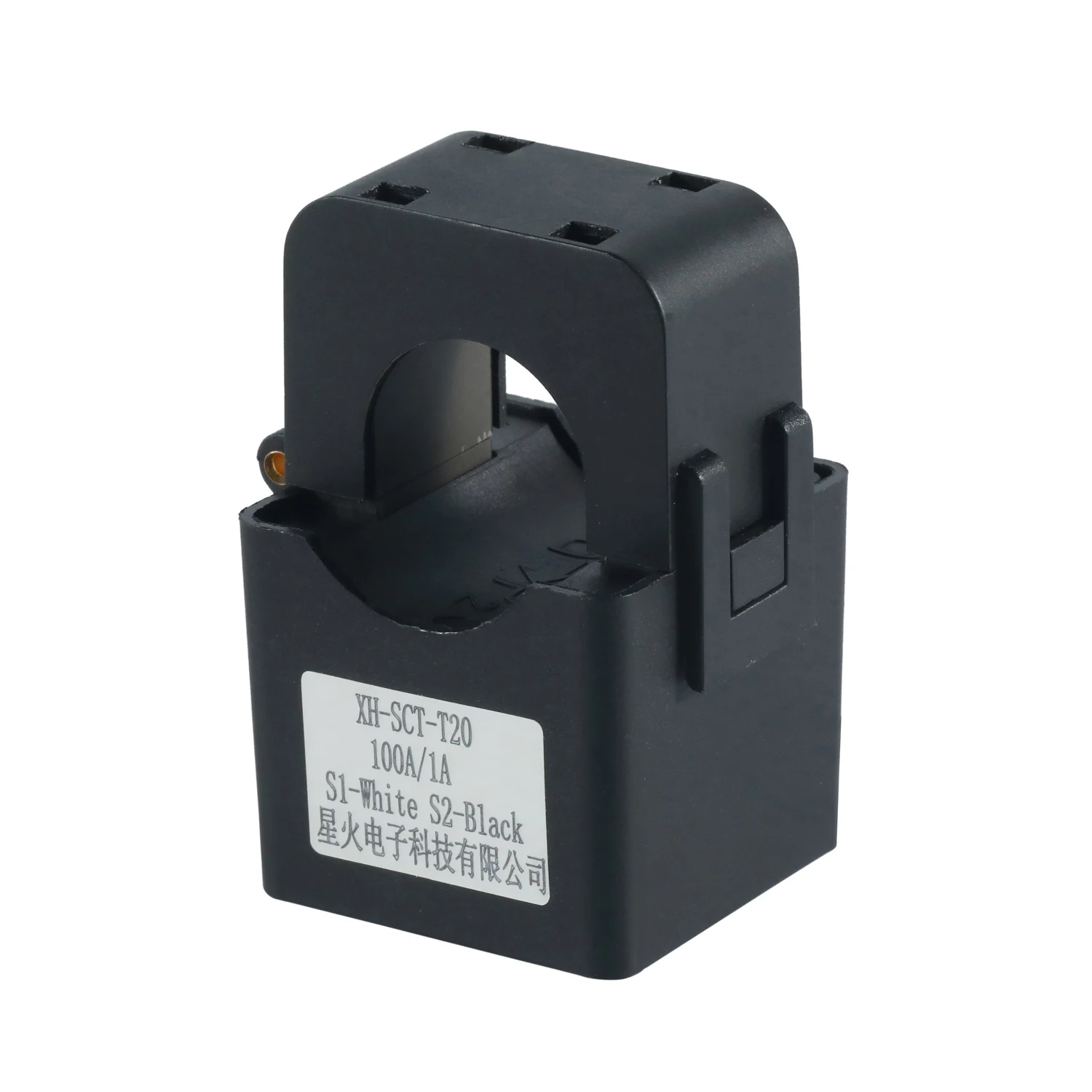

Drawing Size
Model | I.D. | Ratio | Rated Amps | Accuracy |
XH-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
XH -SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
XH -SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
XH -SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 1.0 |
XH -SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 1.0 |
XH -SCT-T50 | 50mm | 3000:1 | 400,500,600,700,800,900,1000 | 1.0 |

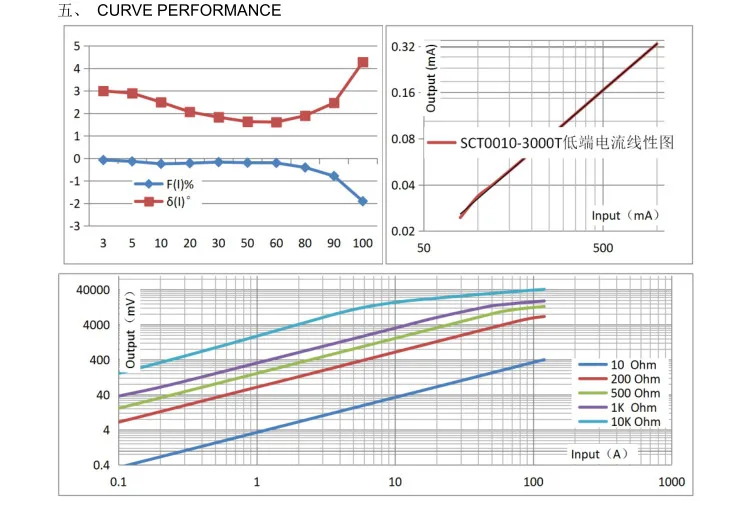

Features
Maximum continuous primary current 5A to 5000AC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
