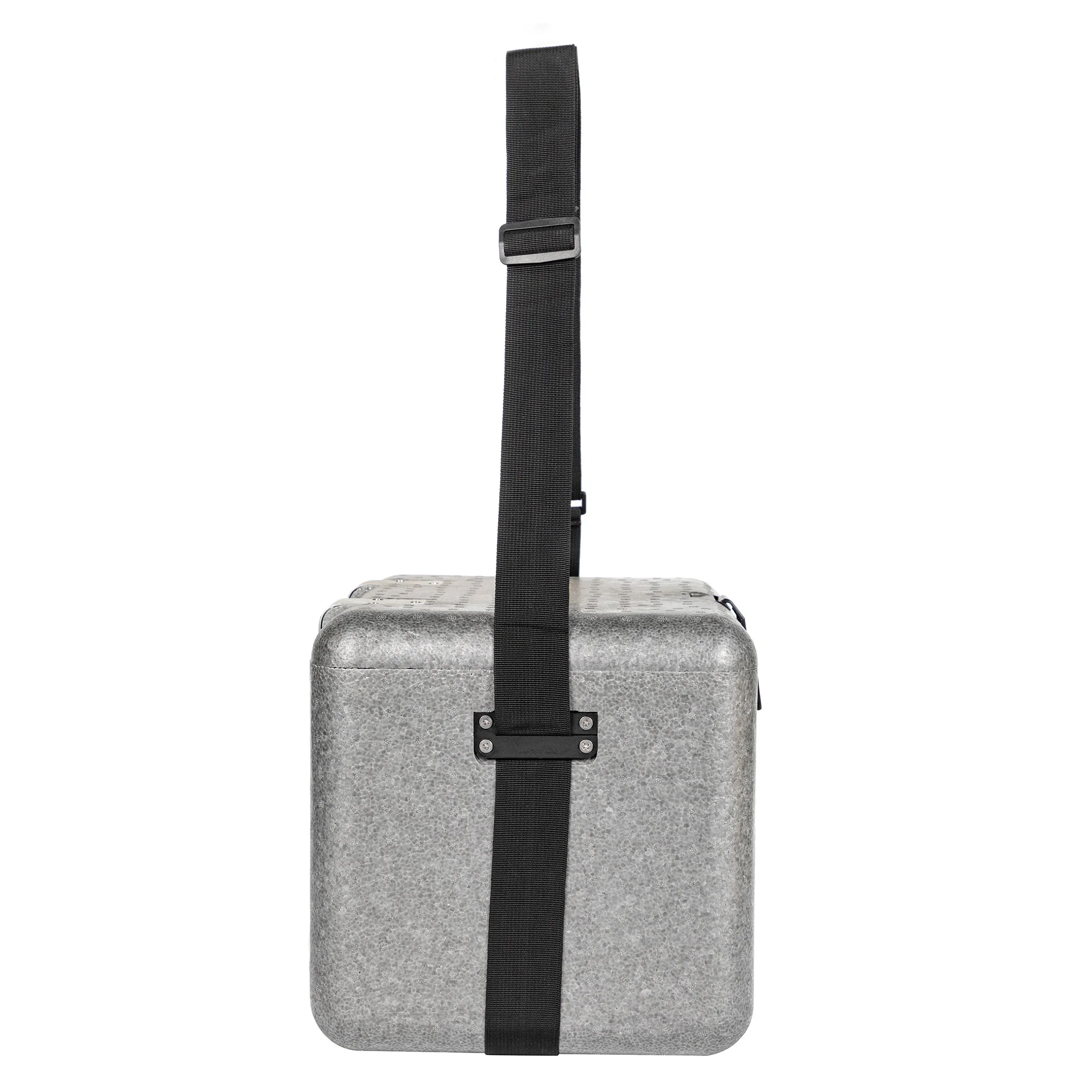

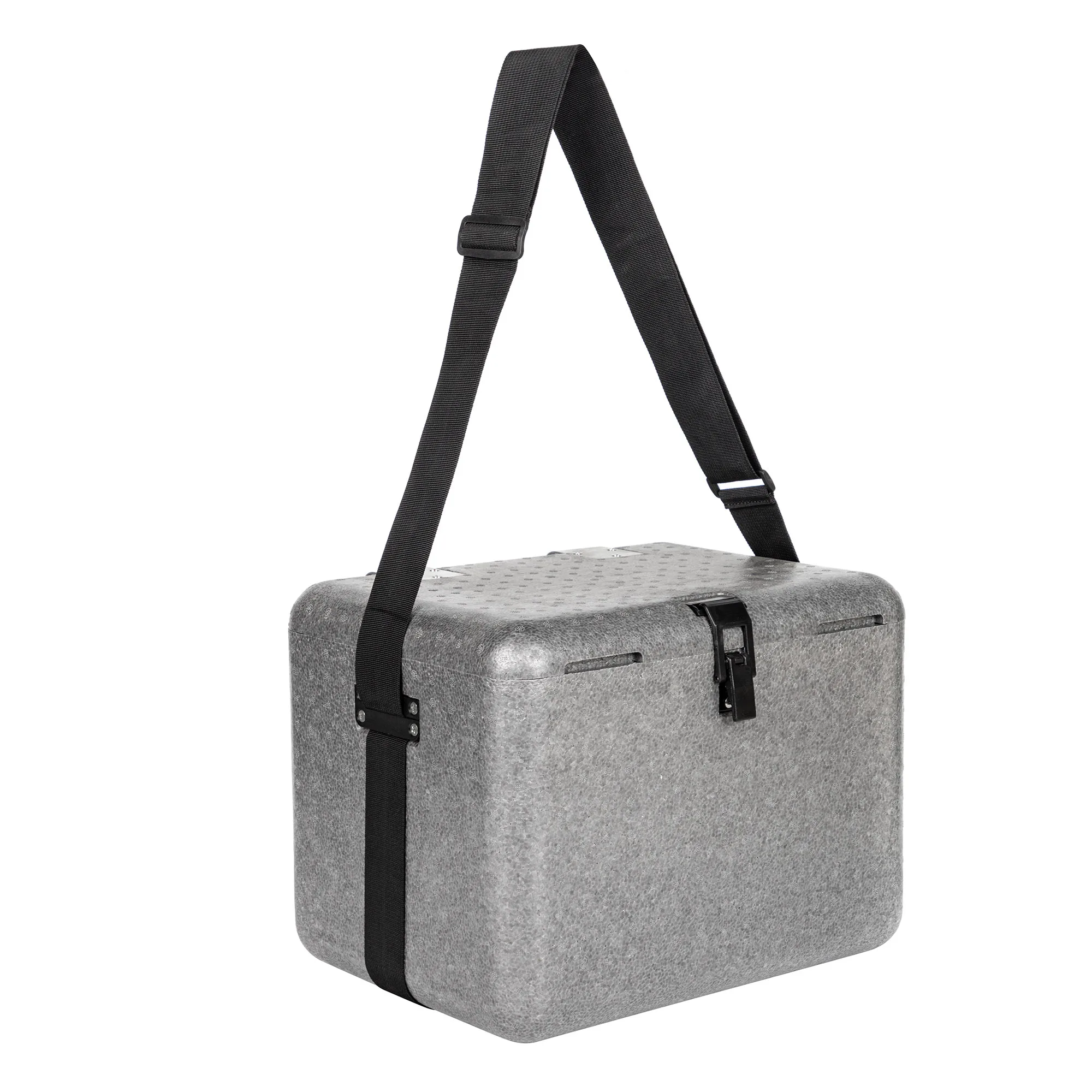

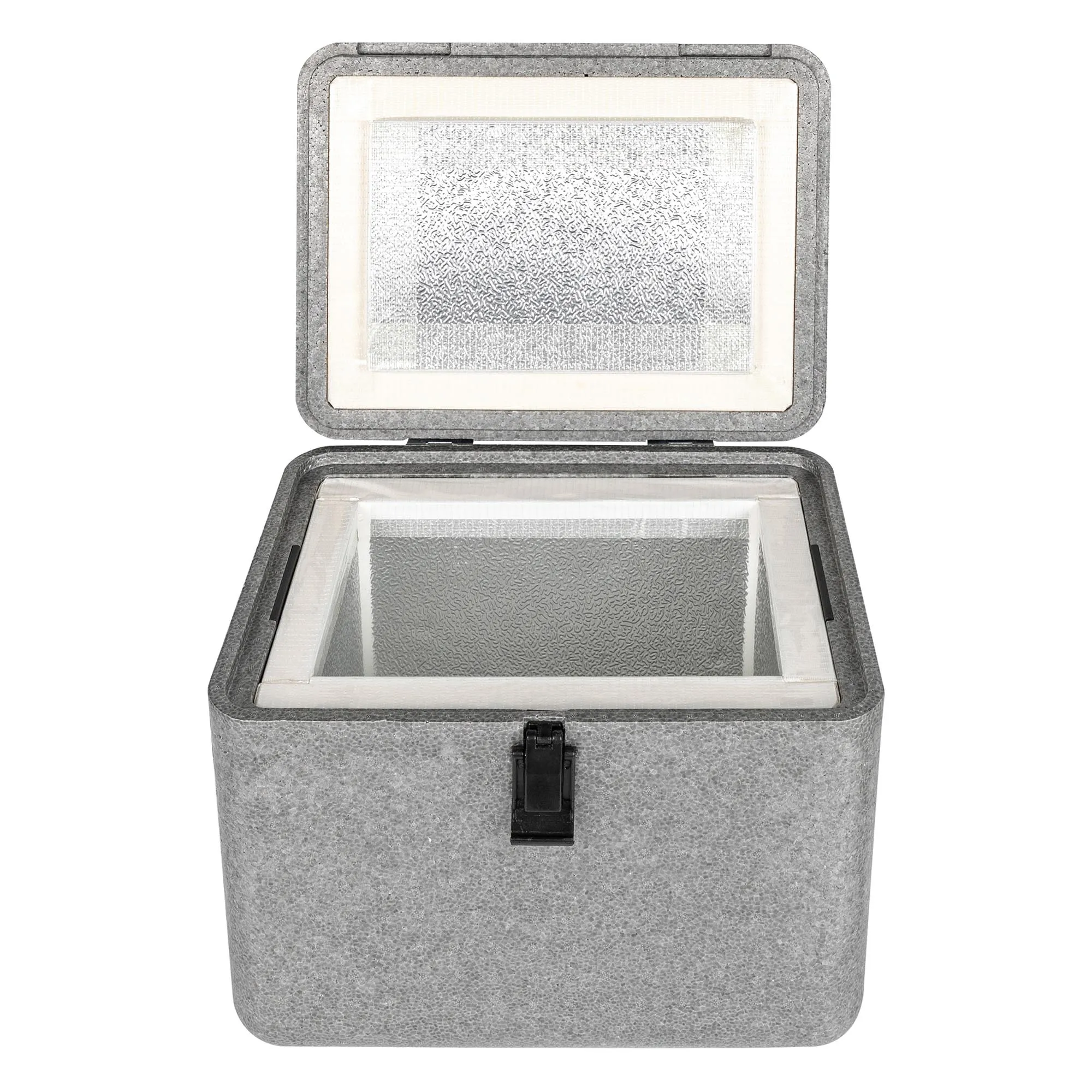

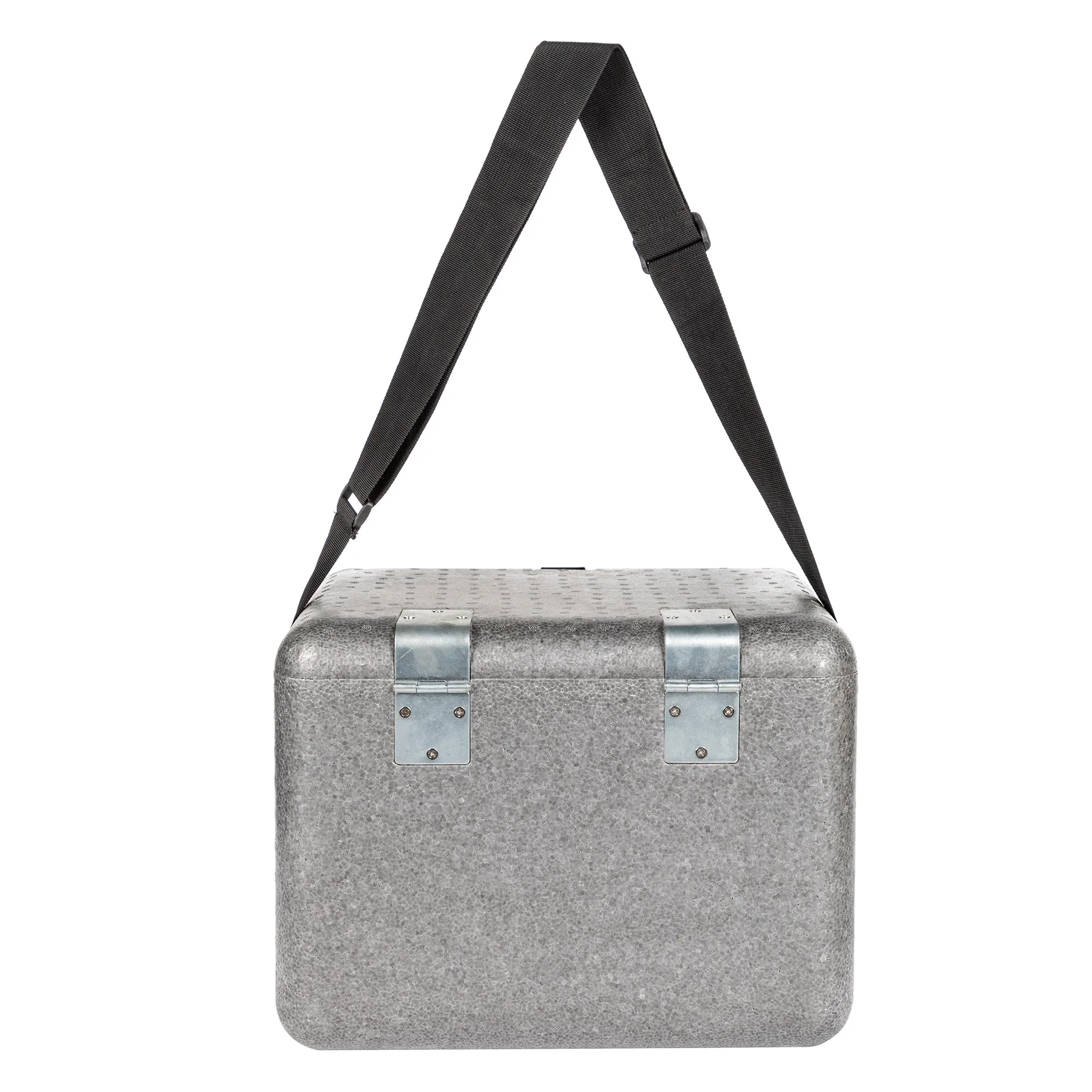

Eco Friendly EPP Vacuum Foam VIP PU Cooler Box Pharmaceutical Cold Chain Logistics Insulation Box
- Category: >>>
- Supplier: Fujian Supertech Cold Chain Technology Co. Ltd.
Share on (1600410824205):
Product Overview
Description
Production Introduction

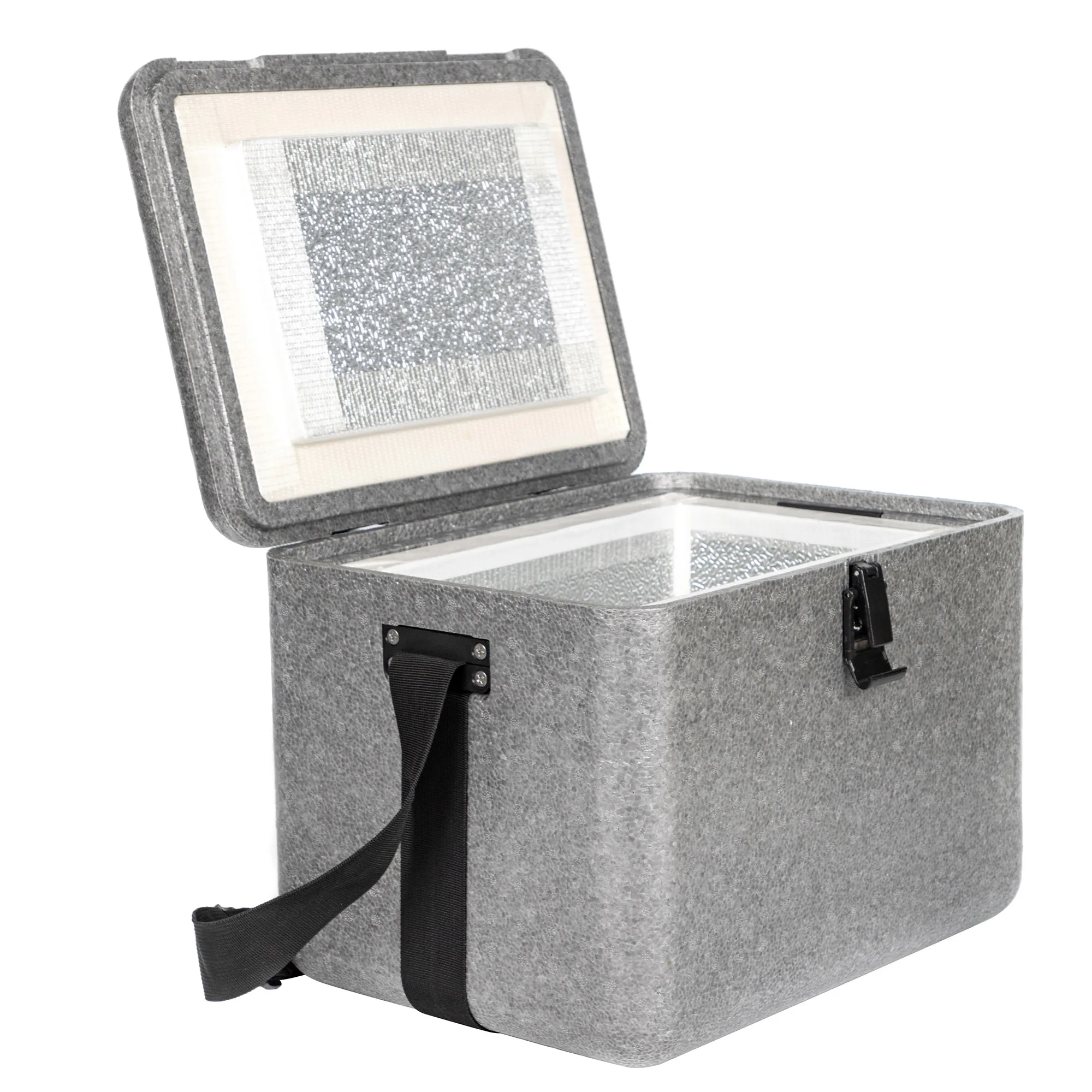

EPP-PU-VIP Insulated Box
Key Features
Good insulation performance: more than 72h duration time
Cost effective: under the same insulation requirements, the amount of coolant is less
Good insulation stability: based on high efficiency vacuum insulation panel, the attenuation is slow
Energy saving and environment protection: Repairable and recyclable, environmental protection and pollution free
Operating Environment: [-30~80℃]
Cost effective: under the same insulation requirements, the amount of coolant is less
Good insulation stability: based on high efficiency vacuum insulation panel, the attenuation is slow
Energy saving and environment protection: Repairable and recyclable, environmental protection and pollution free
Operating Environment: [-30~80℃]
Mold Custom
Application
Portable heat preservation demand for pharmaceuticals, fresh and food etc
Products Parameters
Box Type | Internal Size (mm) | External Size (mm) | Internal Volume (L) | Box Weight (kg) | Box Thickness (mm) | Insulation Time (2~8℃) | PCM Weight (kg) |
STEPP-V12 | 300*200*190 | 400*300*300 | 12 | 3.3 | 50 | 48h | 4.7 |
STEPP-V28 | 370*270*290 | 490*380*400 | 29 | 7.6 | 55 | 60h | 7.7 |
STEPP-V71 | 540*390*330 | 660*510*478 | 69 | 12.2 | 60 | 72h | 15 |
STEPP-V54a | 630*550*450 | 760*680*580 | 156 | 20 | 60 | 72h | 23.2 |
Products Details

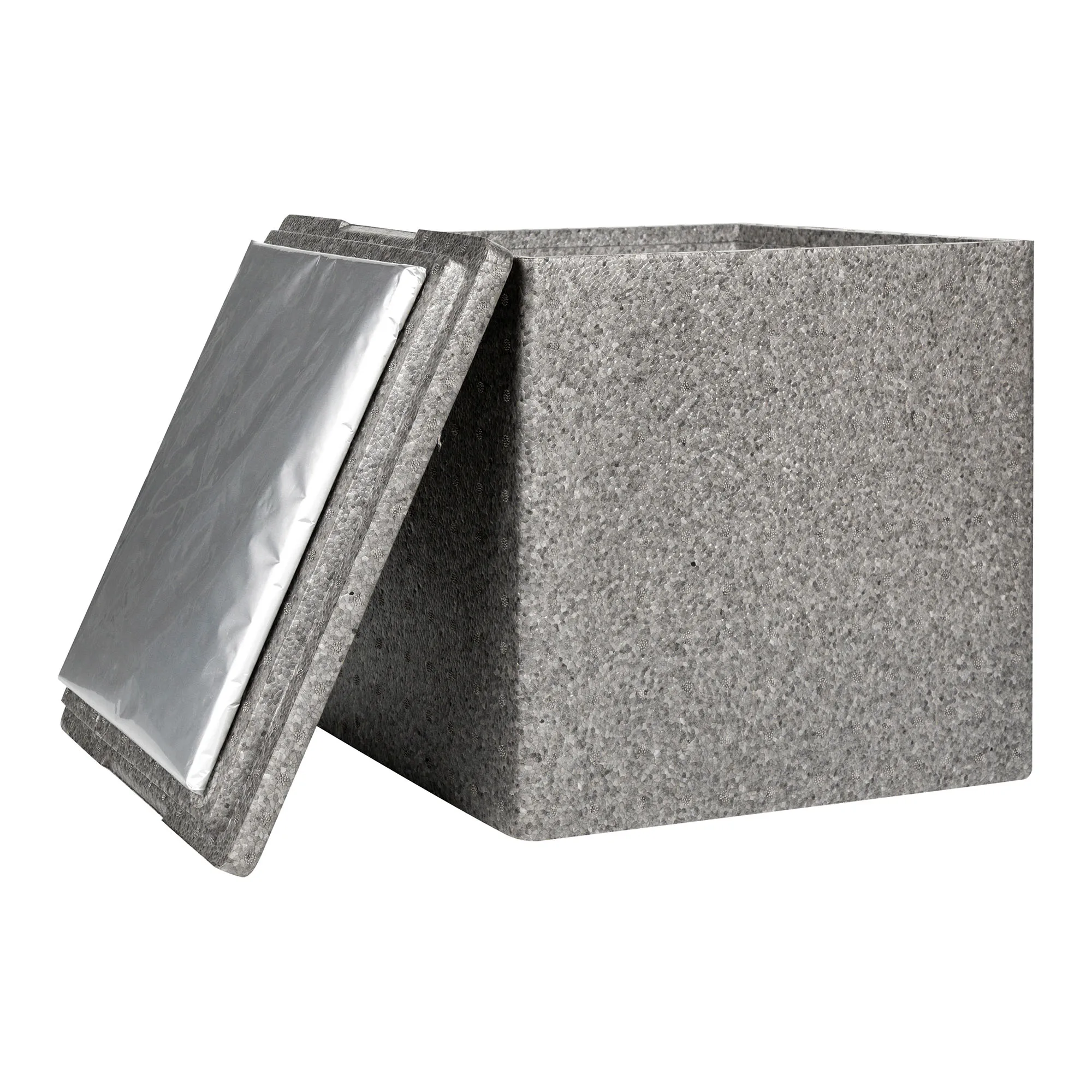

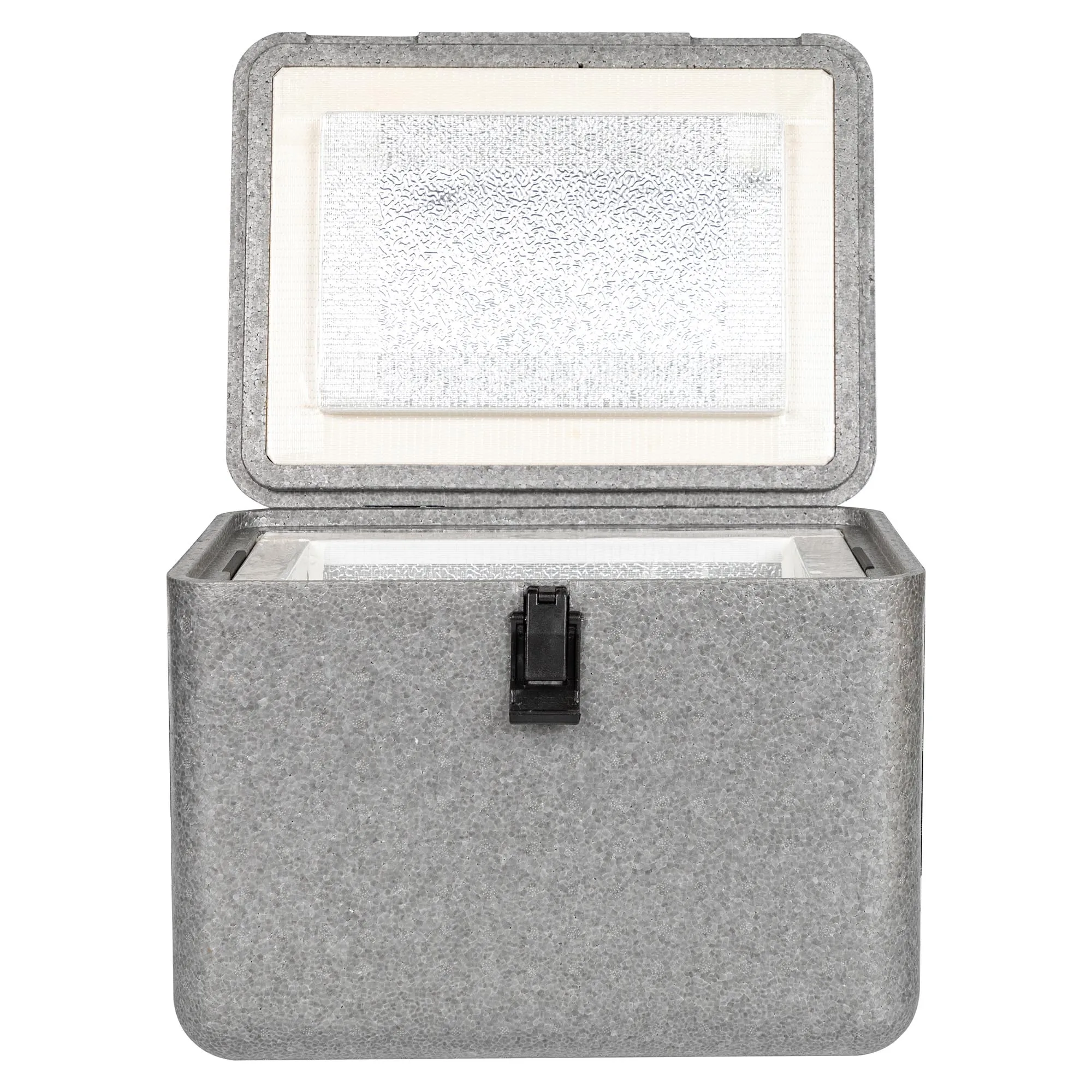

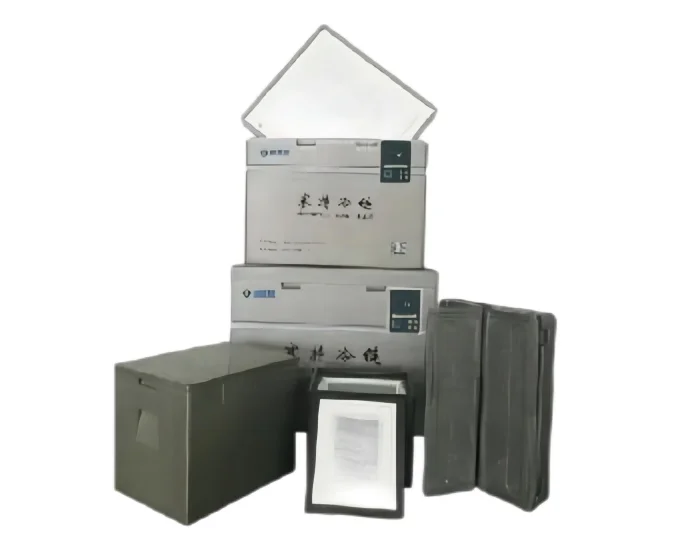

Products Pictures
Core Materials
Vacuum Insulated Panel
As a technologically advanced product that provides extremely low thermal conductivity, VIP consists of core
materials(fiberglass), Barrier/film (envelope) and getter.
Leading in the domestic VIP production, Supertech VIP's thermal conductivity can reach as low as 1.5mW/m.k in bulk.
materials(fiberglass), Barrier/film (envelope) and getter.
Leading in the domestic VIP production, Supertech VIP's thermal conductivity can reach as low as 1.5mW/m.k in bulk.
Phase Change Material
Produced by food grade raw material HDPE, it is non-toxic, tasteless and environmental protection. After roughness treatment on HDPE surface, the coolant is not easy to seep out. Sealed by ultrasound without leakage. The volume of box can reach 90% when filling with coolant and after frozen the shell is not easy to be deformed.
Application: Cold chain transportation for pharmaceuticals, fresh etc.
Insulation Test
On the condition of 48L interior volume, 40mm thickness of insulation layer, the same weight of coolant and harsh environment of 35℃, test for 2~8℃ heat preservation time can reach 76.2h compared to PU box as below.
Why Choose Us
Advanced Vacuum Insulation Technology
Originated from space vacuum technology, Supertech has experienced the field of home appliances and transportation equipment and other field of actual combat test, with advanced hot and cold bridge solving technology to overcome erious cold leakage phenomenon of the common insulated box surface. In summer mode (35℃), Supertech cold chain vacuum thermal insulated box can keep heat preservation for more than 120 hours (2 ~ 8℃multi-temperature area) with PCM phase change energy storage material, the minimum standard keeps at least 72 hours of continuous heat preservation.
Control Weight and Cost
On the condition of same volume, PU-VIP box is 3kgs heavier than PU box , however, to ensure the same insulation performance, 6 kgs coolant can be reduced when using PU-VIP box. The weight of 3 kgs is reduced in the total weight and 20% of the total cost is reduced. Moreover, it is reusable and helpful for users to save more costs and increase efficiency.
Independent Intellectual Property
SUPERTECH cold chain has independent intellectual property rights, which can effectively protect customers. It has passed the environmental management system certification and quality management system certification, meanwhile verified through Shanghai chemical air transport, sea transport, rail transport conditions identification; a series of tests such as drop, impact, pressure resistance, vibration have been verified by SGS and other third-party detection institutions.
Good Pre-sales and After-sales Service
It has the advantages of production scale and price to ensure the quality of first-hand goods, good after-sales maintenance service, irregular on-site or telephone return visits to customers, understand the use status of products, solve problems in time, and ensure the turnover rate of products to the greatest extent.

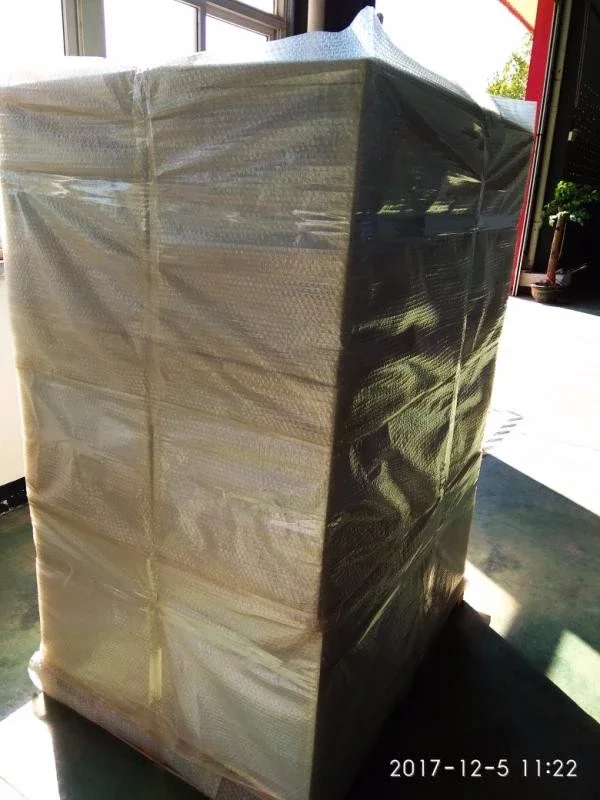

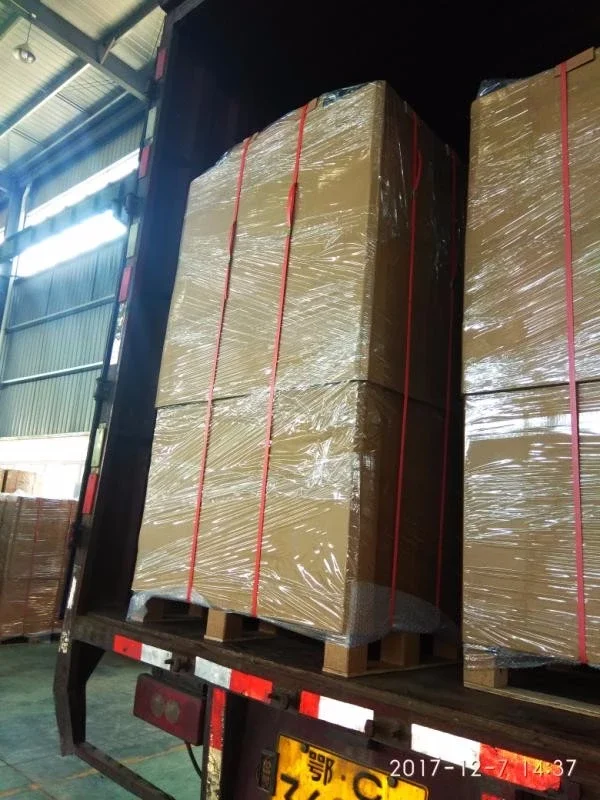

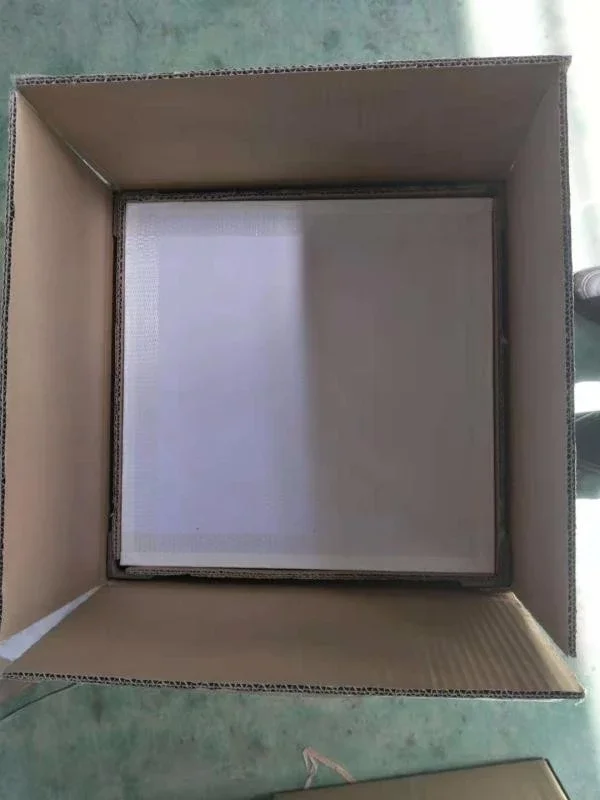

Product Packing
Company Profile
Company Introduction
Fujian Supertech Cold Chain Technology Co.,Ltd. is a wholly owned subsidiary of Fujian Supertech Advanced Material Co.,Ltd. (Stock code: 688398), who joined the industrial standard drafting of . Basing on the parent company's core technical strength in the field of vacuum insulation, Fujian Supertech Cold Chain Technology Co.,Ltd. concentrates on providing systematic and efficient energy-saving insulation solutions for pharmaceutical, fresh, food, refrigerated trucks, refrigerated containers, cold storage and other cold chain industry as well as building wall insulation.
Our company has been focusing on the diversified, personalized and fragmented demand of cold chain market, creating influence and competitiveness, gaining the trust of cold chain industry customers, and winning “The Most Popular Cold Chain Logistics Supplier”, “The Best Service Provider of Pharmaceutical Supply Logistics”.
Certificates & Honor
Our Partners
FAQ
1. Who are we?
We are based in Fujian, China, start from 2010, sell to North America(40.00%), Mid East(20.00%), Eastern Asia(20.00%), Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Vacuum insulated panel, pharma cooler box, biological cooler box, PU-VIP,vaccines cooler box
4. Why should you buy from us not from other suppliers?
Based on monther company FUJIAN SUPERTECH, who is NO.1 VIP(Vacuum insulated panel) manufacture in China, we manufacture from raw material to VIP panels, to PU-VIP panels, to completed cooler box, we can easily control the finished product quality.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: TT;
Language Spoken:English, Chinese, Japanese, Korean
We are based in Fujian, China, start from 2010, sell to North America(40.00%), Mid East(20.00%), Eastern Asia(20.00%), Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Vacuum insulated panel, pharma cooler box, biological cooler box, PU-VIP,vaccines cooler box
4. Why should you buy from us not from other suppliers?
Based on monther company FUJIAN SUPERTECH, who is NO.1 VIP(Vacuum insulated panel) manufacture in China, we manufacture from raw material to VIP panels, to PU-VIP panels, to completed cooler box, we can easily control the finished product quality.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: TT;
Language Spoken:English, Chinese, Japanese, Korean
Main Products
Rigid PU foam insulation box
Rigid PU foam series, inside use PU foam with VIP panel, surface use rigid material, such as PP, etc.
Flexible PU foam insulation box
Flexible PU foam series, PU foam with VIP panel, surface use flexible material
Large size cooler system
Cooler series, such as refrigerator container, refrigerator truck, refrigerator car.
