Deep Learning AI Computing Box Embedded Computer FCU3001 Based On Nvidia Jetson Xavier NX with USB3.0 CAN DI DO RS232 RS485 SSD
- Category: >>>
- Supplier: Baoding Forlinx Embedded Technology Co. Ltd.
Share on (1600410867964):
Product Overview
Description
Product Description
Deep Learning AI Computing Box Embedded Computer FCU3001 Based On Nvidia Jetson Xavier NX with USB3.0 CAN DI DO RS232 RS485 SSD

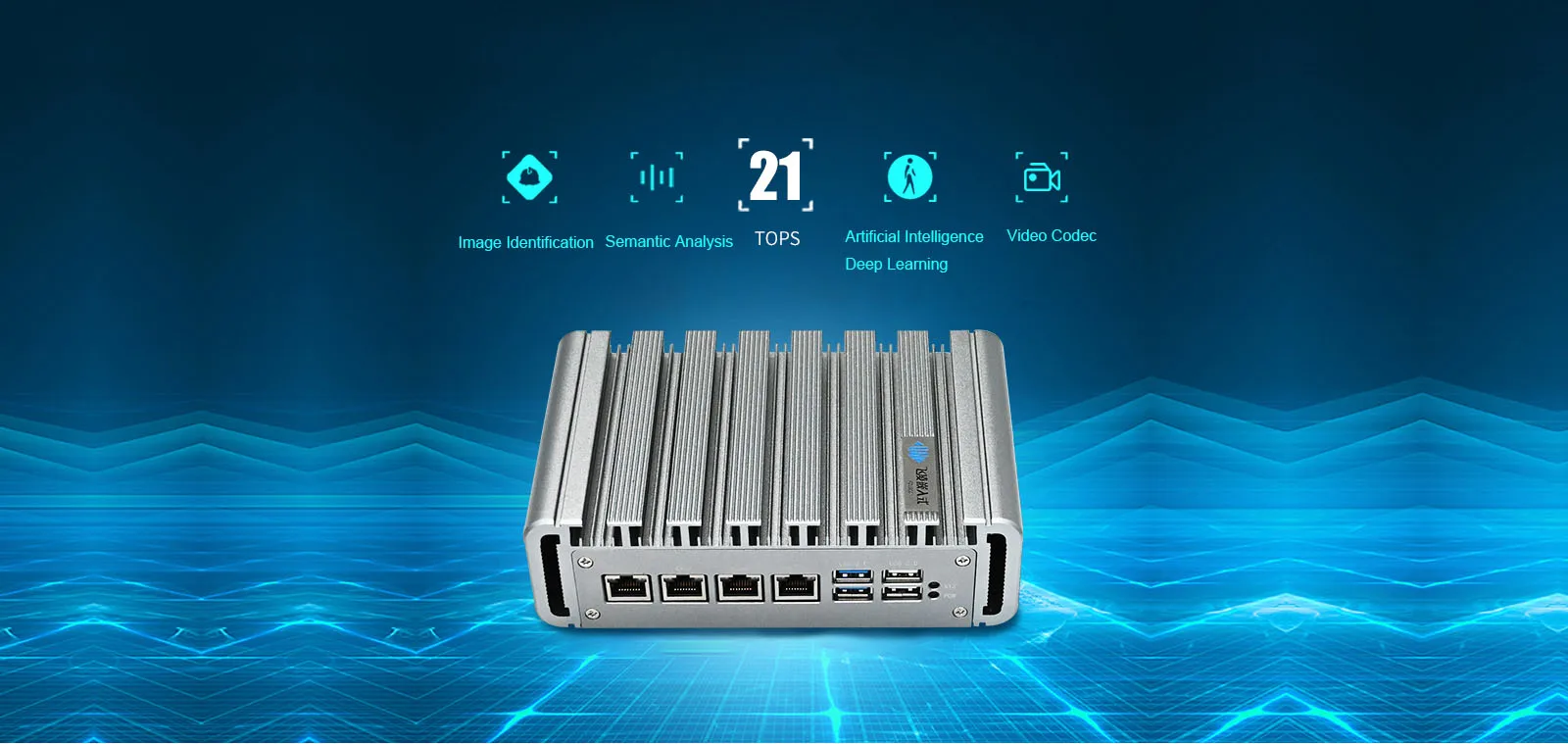

AI Edge Computing Box FCU3001 is based on the NVIDIA Jetson Xavier NX processor that delivers up to 21 TOPS computing power, making it ideal for high-performance computing and ARTIFICIAL in embedded and edge systems. FCU3001 has a variety of peripheral interfaces for easy access to cameras, displays, sensors, SSDs, etc. At the same time support 4G/5G network communication, for the "5G-AI" enabling.
AI Edge Computing Box FCU3001 is based on the NVIDIA Jetson Xavier NX processor that delivers up to 21 TOPS computing power, making it ideal for high-performance computing and ARTIFICIAL in embedded and edge systems. FCU3001 has a variety of peripheral interfaces for easy access to cameras, displays, sensors, SSDs, etc. At the same time support 4G/5G network communication, for the "5G-AI" enabling.
CUDA, cuDNN, and TensorRT assist AI to develop powerful performance

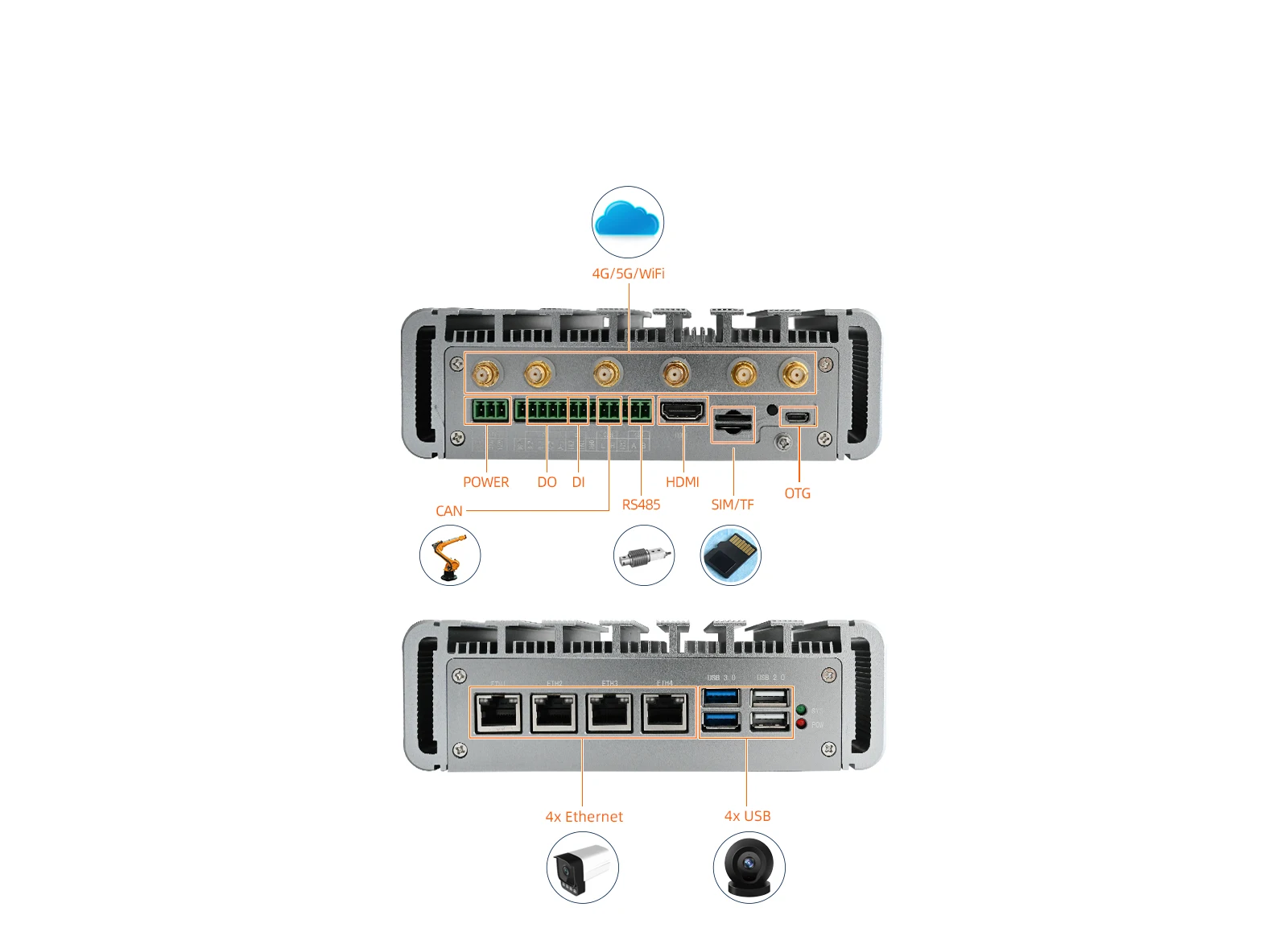

Rich functional interface, One-stop operation and control
FCU3001 supports 4 Gigabit Ethernet interfaces and 4 USB interfaces for easy access to camera equipment and image acquisition. Extended installation of TF, SSD storage devices, so that data storage is not limited. Support optional 4G/5G, dual-frequency WiFi modules, and more flexible communication with the cloud. At the same time also support RS485, CAN industrial bus, to achieve visual recognition and equipment linkage one-stop control.
Interface static protection, more stable operation

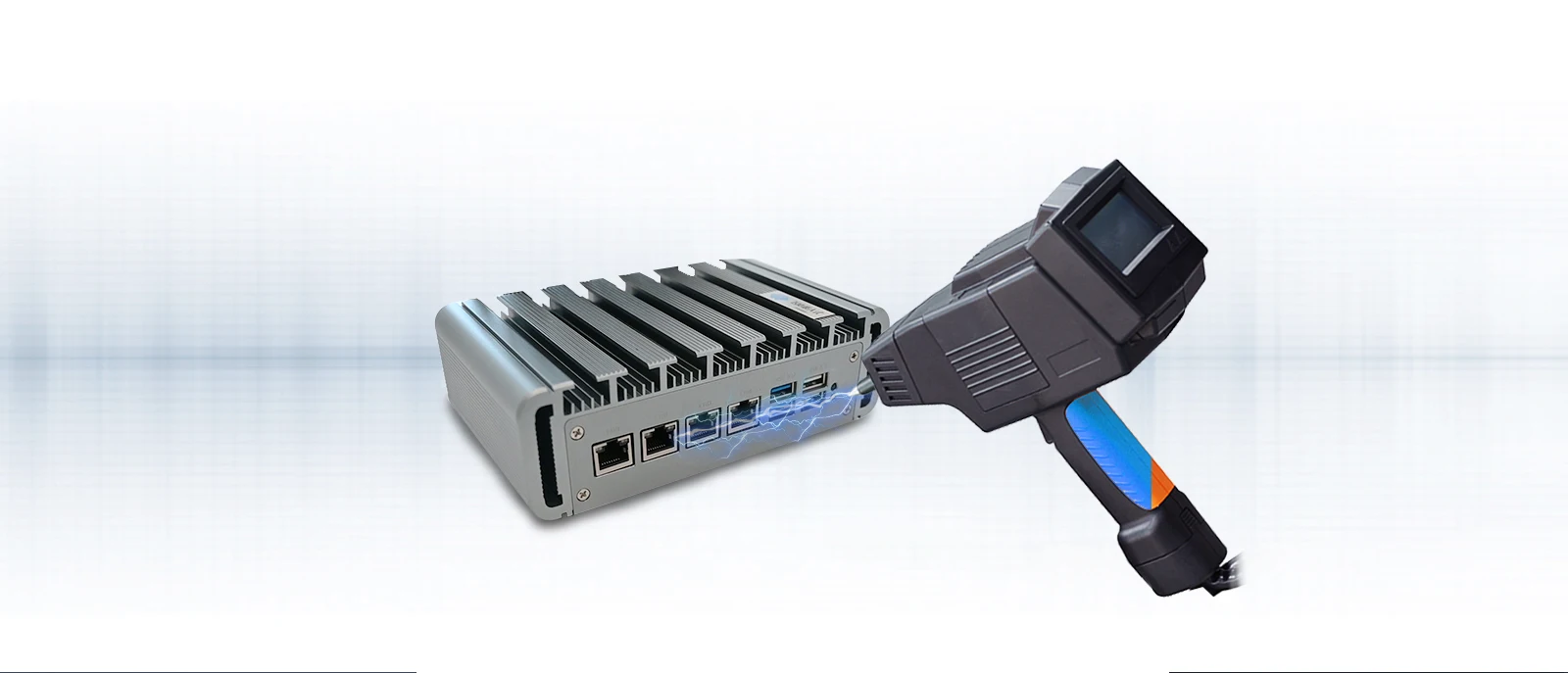

Ethernet, USB, RS485, CAN interface all have ESD 4 level protection, contact discharge ± 8KV, air discharge ± 15KV. It can meet the static protection requirements in most applications, so that the use and operation of equipment is more stable and reliable.
5G network empowred
FCU3001 not only has a strong AI calculation, but also supports access to 5G networks, so that 5G-AI for the industry!
Compact and fanless

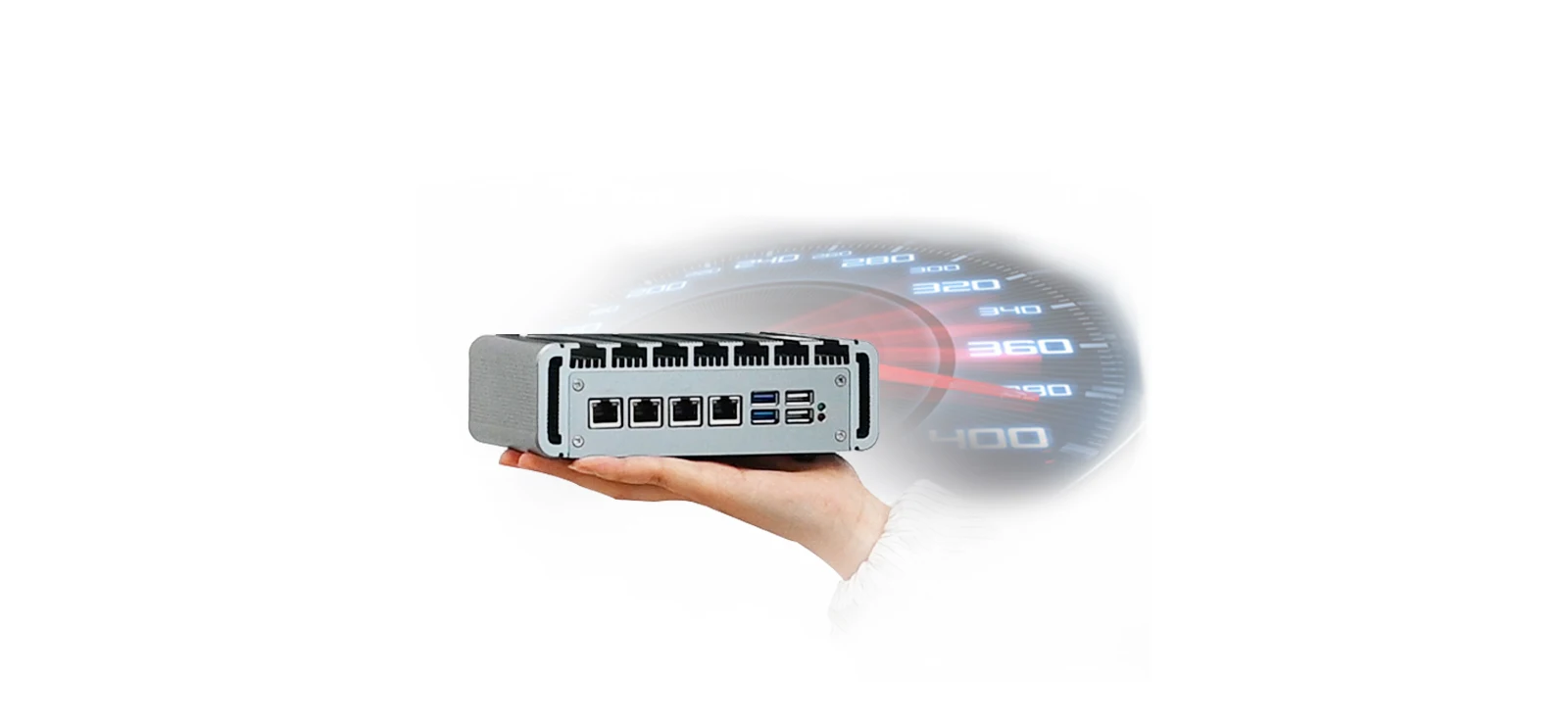

With rich functionality, the volume is compressed to an extreme size of only 178 x 110 x 55mm.
Optimized passive thermal design ,Ensures long, stable operation of the product at 21 TOPS.
Well-designing, convenient for product implementation

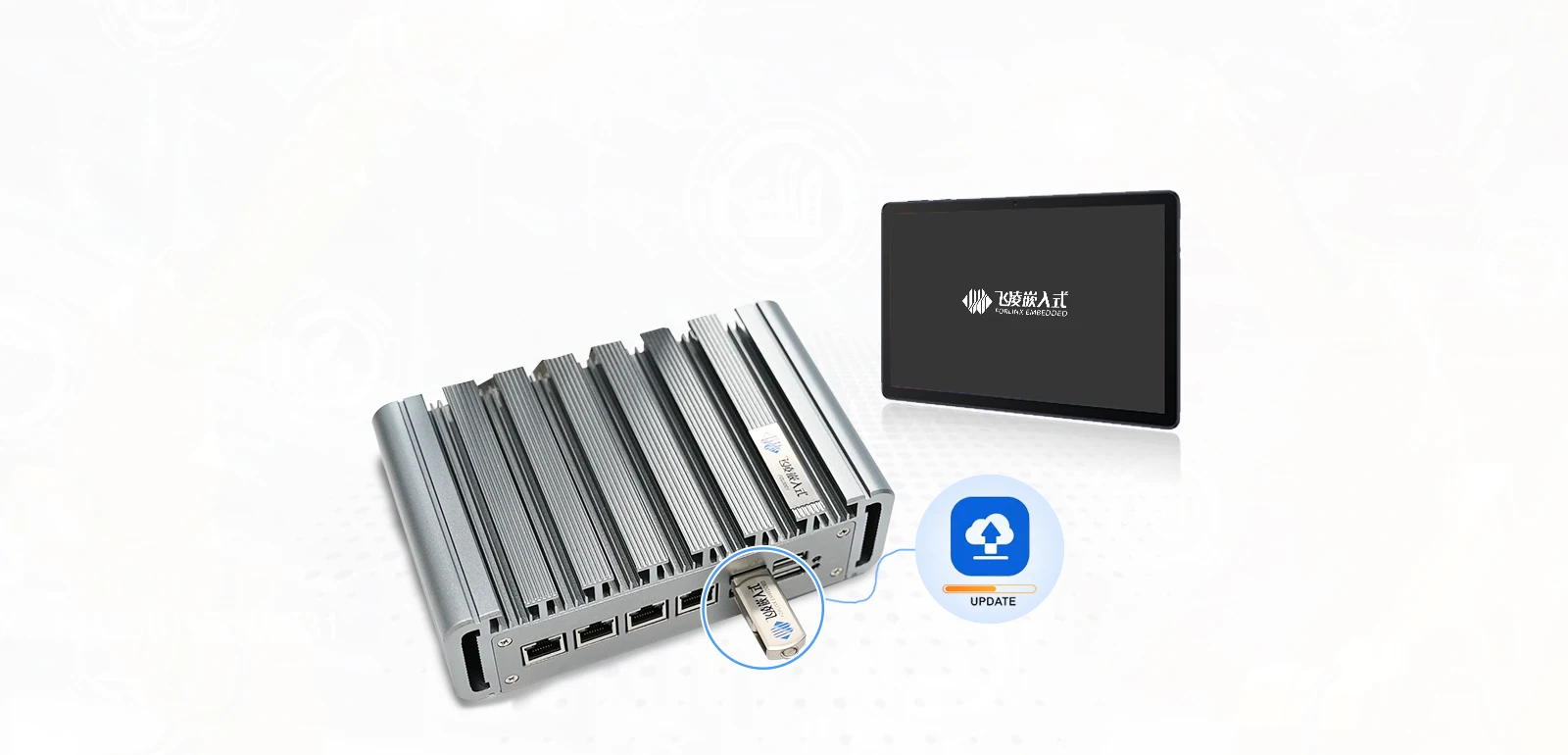

Developed based on the NVIDIA Jetson Xavier NX processor, the FCU3001 provides users with a way to update their USB drive (Windows) systems, making it easier to develop and post-sales maintenance, except updating the operating system of the original OTG (Linux PC).Meanwhile, Forlinx offers the user's LOGO modification with tools and operational guidance to meet the needs of enterprise customization.

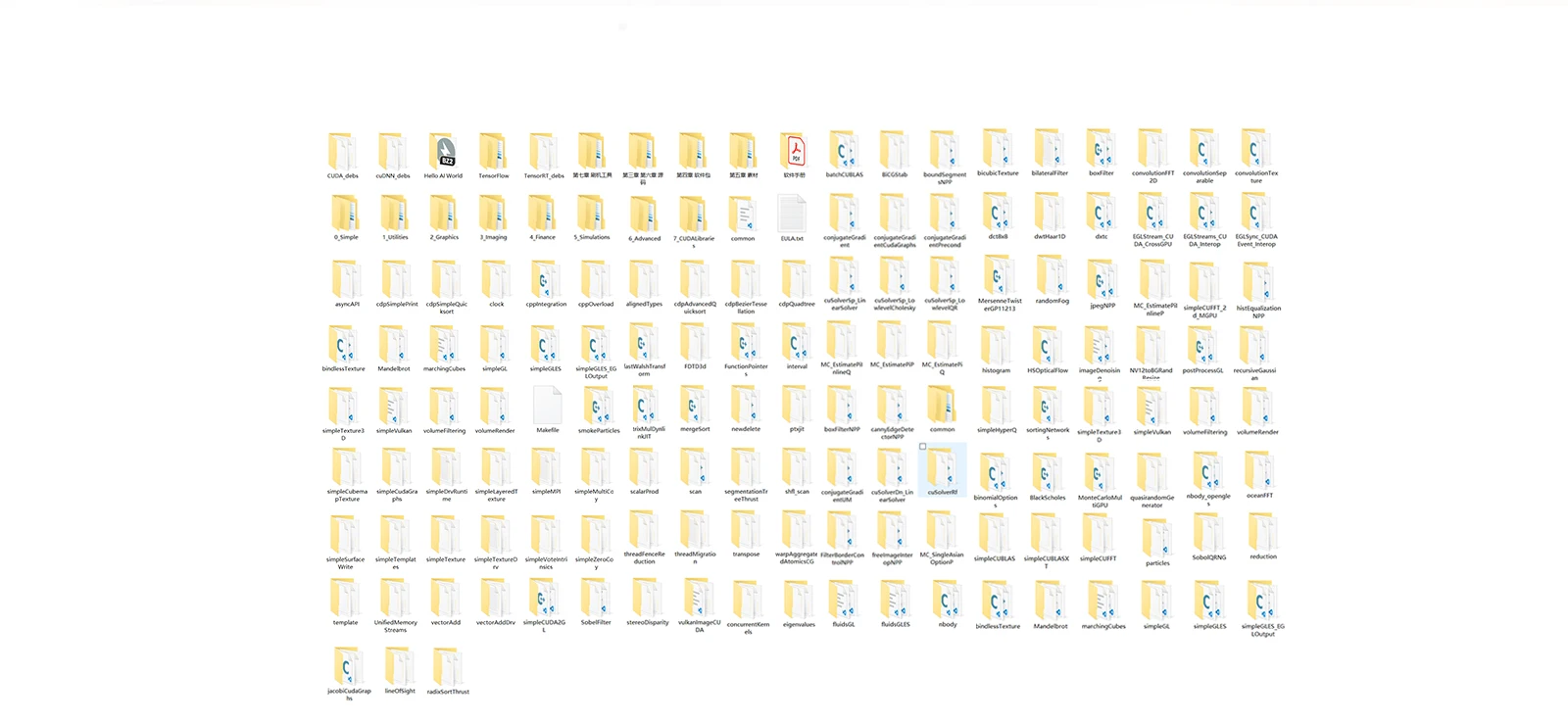

Rich reference technical files
Target applications
FCU3001 is applicable for portable medical devices, AGVs, small commercial robots, intelligent road analysis, visual inspection, smart factories and many other products and fields, while meeting the high computing needs of edge computing and artificial intelligence.
Specifications
AI Edge Computing Box FCU3001 Hardware Features | ||||||||
GPU | 384 NVIDIA® CUDA® cores, 48 Tensor cores | |||||||
CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU | |||||||
RAM | 8GB LPDDR4 | |||||||
Flash | 16GB eMMC | |||||||
Ethernet | 4* 10M/100/1000M, ESD4 | |||||||
USB | 2xUSB3.0, 2xUSB2.0, ESD 4 | |||||||
HDMI2.0 | 1 xHDMI2.0, up to 4K | |||||||
Mobile connectivity | 5G modem: Quectel RM500U/RM500Q module; 4G modem: Support Quectel EM05 module; | |||||||
WiFi | 1 x M.2 PCIex1 2230 KEY E socket | |||||||
SSD(optional) | 1x M.2 PCIex4 2280/2260/2242 KEY M socket | |||||||
TF card slot | 1, for storage expanding | |||||||
RS485 | 1, 3KV isolation, ES4 | |||||||
CAN | 1, 2.5KV isolation, ES4 | |||||||
DO | 2, relay output, contact capacity: 5A 30VDC/ 5A 250VAC | |||||||
DI | 2, opto coupler isolation | |||||||
RTC | socket for CR2032 | |||||||
Reset | 1, for system reset | |||||||
Voltage input | rated voltage 12V 5A | |||||||
Dimensions | 178* 110* 55mm | |||||||
Environment | RH: 5%~ 95%, non-condensing Working temperature: 0~+70℃ Storage: -20~+125℃ | |||||||
OS | Ubuntu18.04 | |||||||
Mounting | suspension | |||||||
Packing&Shipping
Generally a single board computer with or without LCD can be packed in one piece a box, bottom layer for accessories, and top layer for board.
Payment term: 100% in advance
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
1. Delivery: Goods will be sent out by express as requested
2. Lead time: generally, goods could be sent out within five working days for a sample order, for a bulk requirement order, please contact us to check stock status and estimated delivery time.
3. Shipping charge: buyers should bear related shipping cost.
After Sales Service
After-sale Service Policy
1. Please take a valid purchasing voucher for maintenance request when you have product failure problems.
2. We kindly provide one year of warranty to ARM board except non-warranty components(CPU, RAM and Flash/ storage chips) and three
months warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the
maintenance department. If goods seriously damaged, accessory discontinued or other uncontrollable conditions which may cause the
products can not be fixed, Forlinx will not provide maintenance service.
4. Forlinx kindly provide one month of warranty to the repaired items, payment should be done to the appointed account.
Note: this warranty is only valide to the repaired problem.
5. Please take necessary data backup before the defective item sent back to up for maintenance, all risks caused by no backup
should be born by customers.
6. Forlinx will reject items sent back without our permission.
7. To goods within warranty period, freight should be shared by both sides, otherwise, customer should bearn all maintenance
related freight and custom fees.
Non-warranty Coverage（Paid Maintenance Service）
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. Bar code or factory ID on purchasing voucher is not matched with the product itself;
6. Product failure caused by non-authorised maintenance, improper operations, misuse operations or other unexpected behaviors.
7. Product failure caused by fore majeure.
8. Other failures caused during delivery.
1. Please take a valid purchasing voucher for maintenance request when you have product failure problems.
2. We kindly provide one year of warranty to ARM board except non-warranty components(CPU, RAM and Flash/ storage chips) and three
months warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the
maintenance department. If goods seriously damaged, accessory discontinued or other uncontrollable conditions which may cause the
products can not be fixed, Forlinx will not provide maintenance service.
4. Forlinx kindly provide one month of warranty to the repaired items, payment should be done to the appointed account.
Note: this warranty is only valide to the repaired problem.
5. Please take necessary data backup before the defective item sent back to up for maintenance, all risks caused by no backup
should be born by customers.
6. Forlinx will reject items sent back without our permission.
7. To goods within warranty period, freight should be shared by both sides, otherwise, customer should bearn all maintenance
related freight and custom fees.
Non-warranty Coverage（Paid Maintenance Service）
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. Bar code or factory ID on purchasing voucher is not matched with the product itself;
6. Product failure caused by non-authorised maintenance, improper operations, misuse operations or other unexpected behaviors.
7. Product failure caused by fore majeure.
8. Other failures caused during delivery.
Company Introduction
Forlinx Embedded Technology is a well-established and constantly growing company, focused on designing, developing and manufacturing embedded systems solutions. Since 2007, Forlinx has committed to provide user-friendly, cost-efficient, stable and advanced embedded solutions which are based on ARM architecture, and offer a variety of platforms including SOMs (System-on-Module), SBCs (Single Board Computer) and industrial embedded PCs.
In more than 15 years, Forlinx accumulated extensive experience in embedded system hardware and software development. Meanwhile, Forlinx kept the strategic partnership with NXP, Allwinner, Rockchip, TI and other world leading semiconductor companies and launched a series of ARM based products qualified with CE, FCC and Rohs certificates.

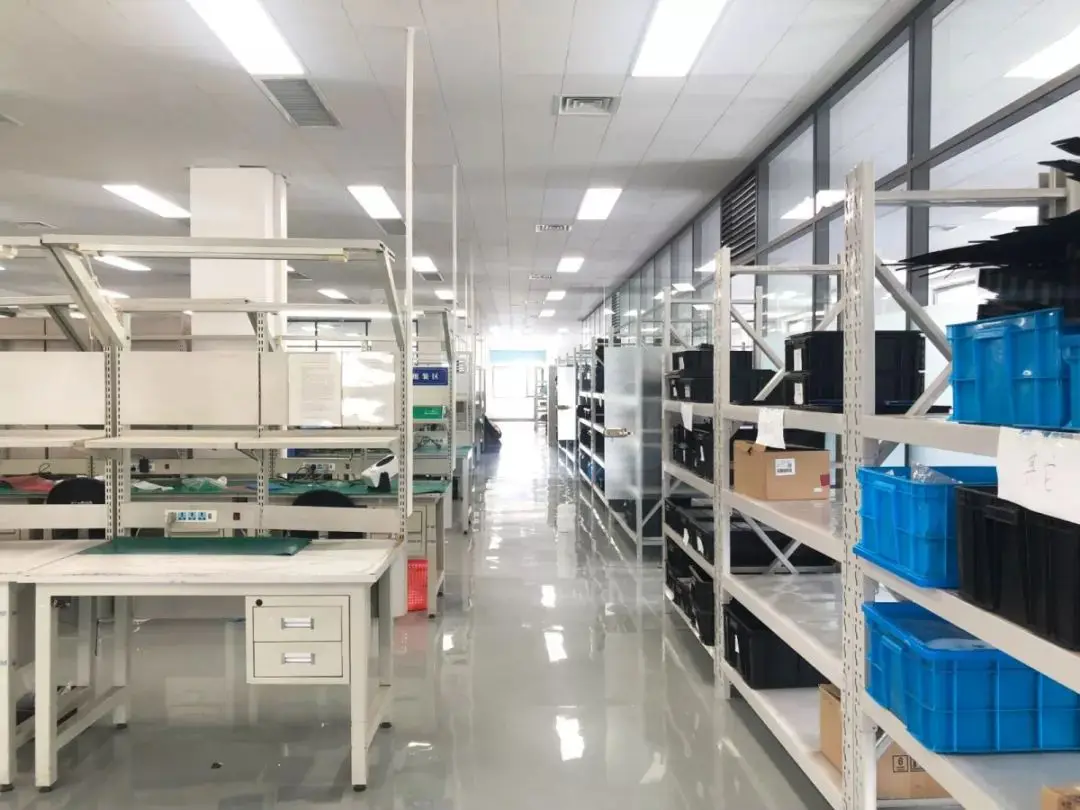

In order to bring customers the outstanding quality and highly stable performance, Forlinx established the stringent standards in each step of development, and have the high and low temperature laboratory, EMC laboratory and other specialized instruments for full functional testing.

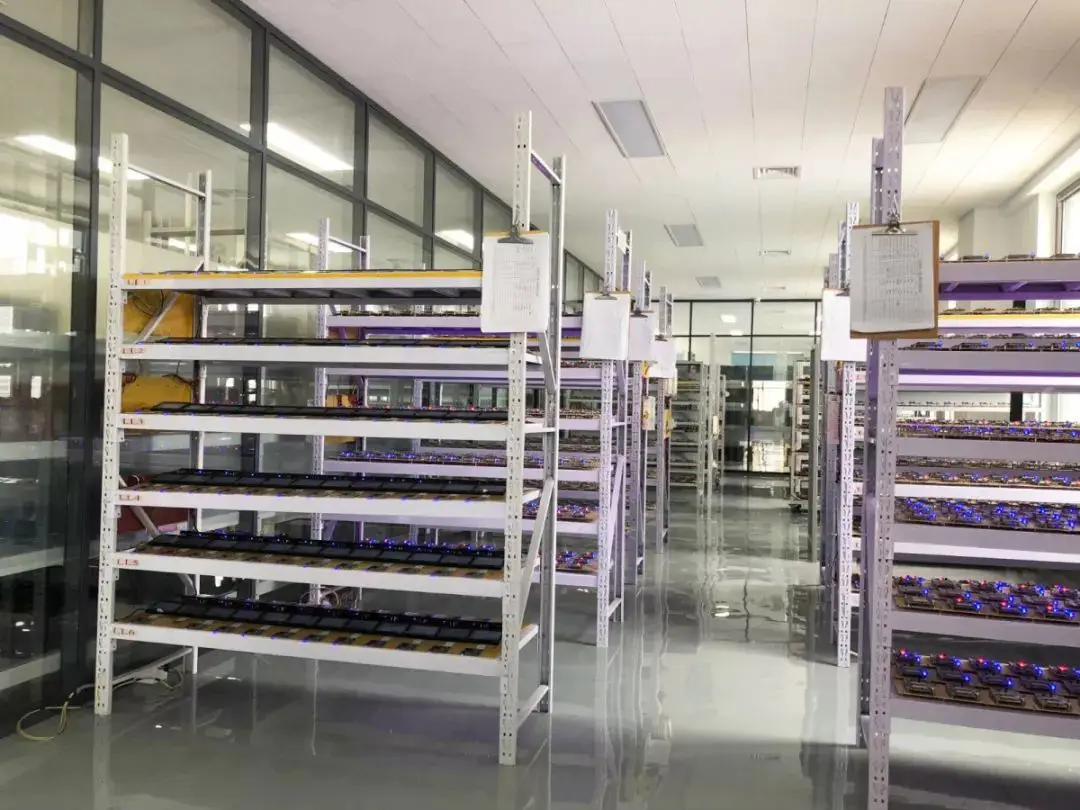

Forlinx strictly practices ISO9001 quality management standard and implements MES system to achieve high productivity and ensure responsiveness to market demand.With the advanced production technique and automatic production line, Forlinx have the ability to produce several million pieces of SoMs per year.
