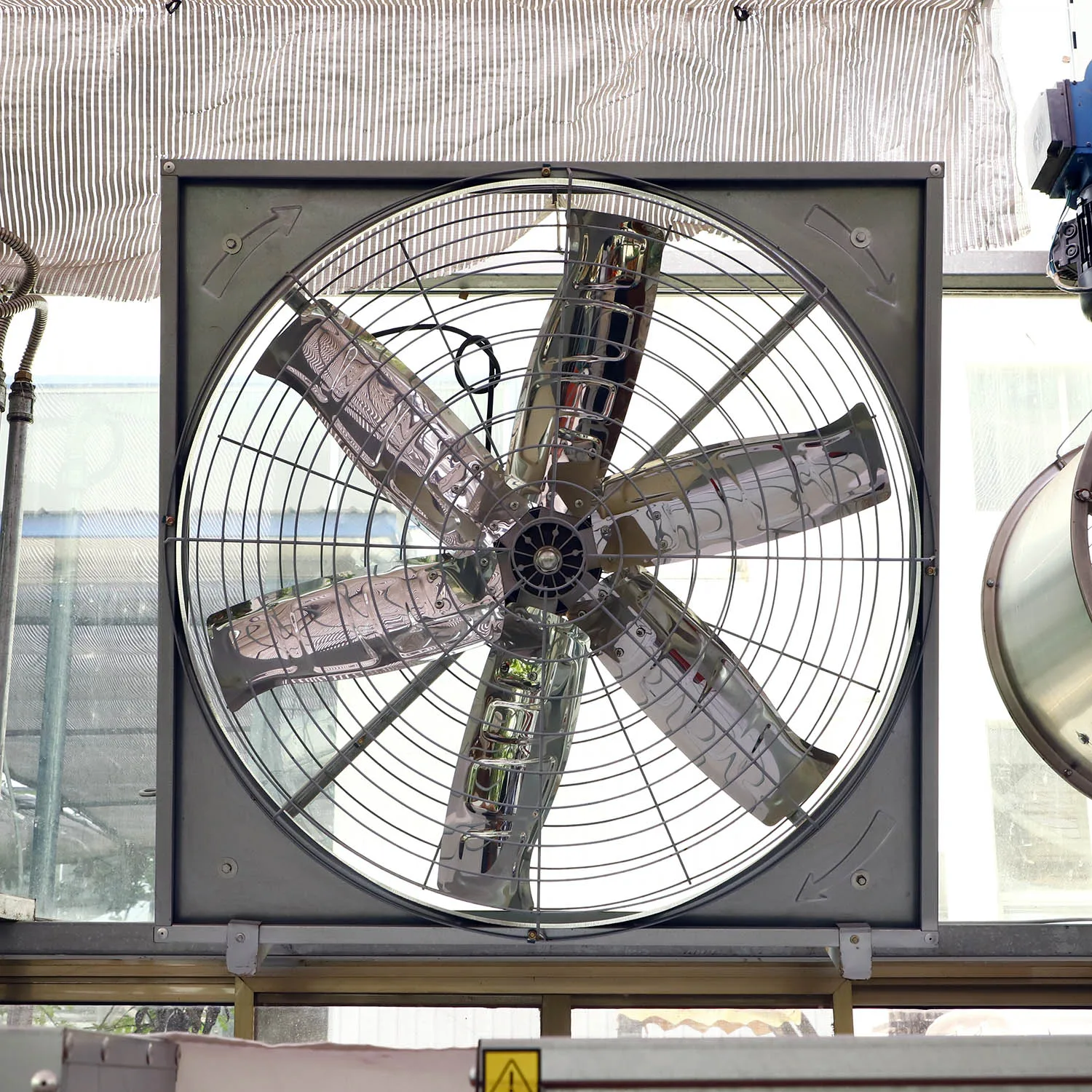

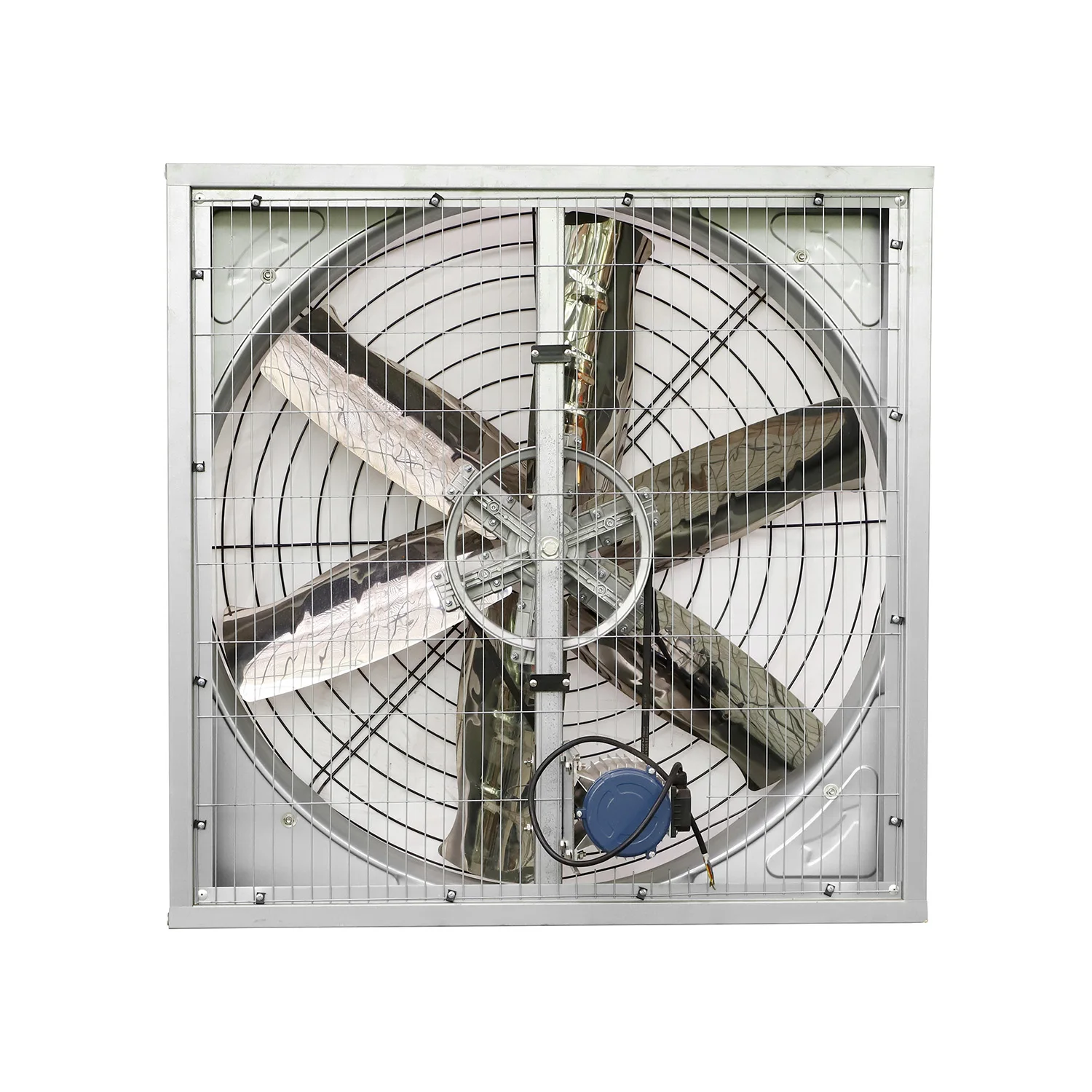

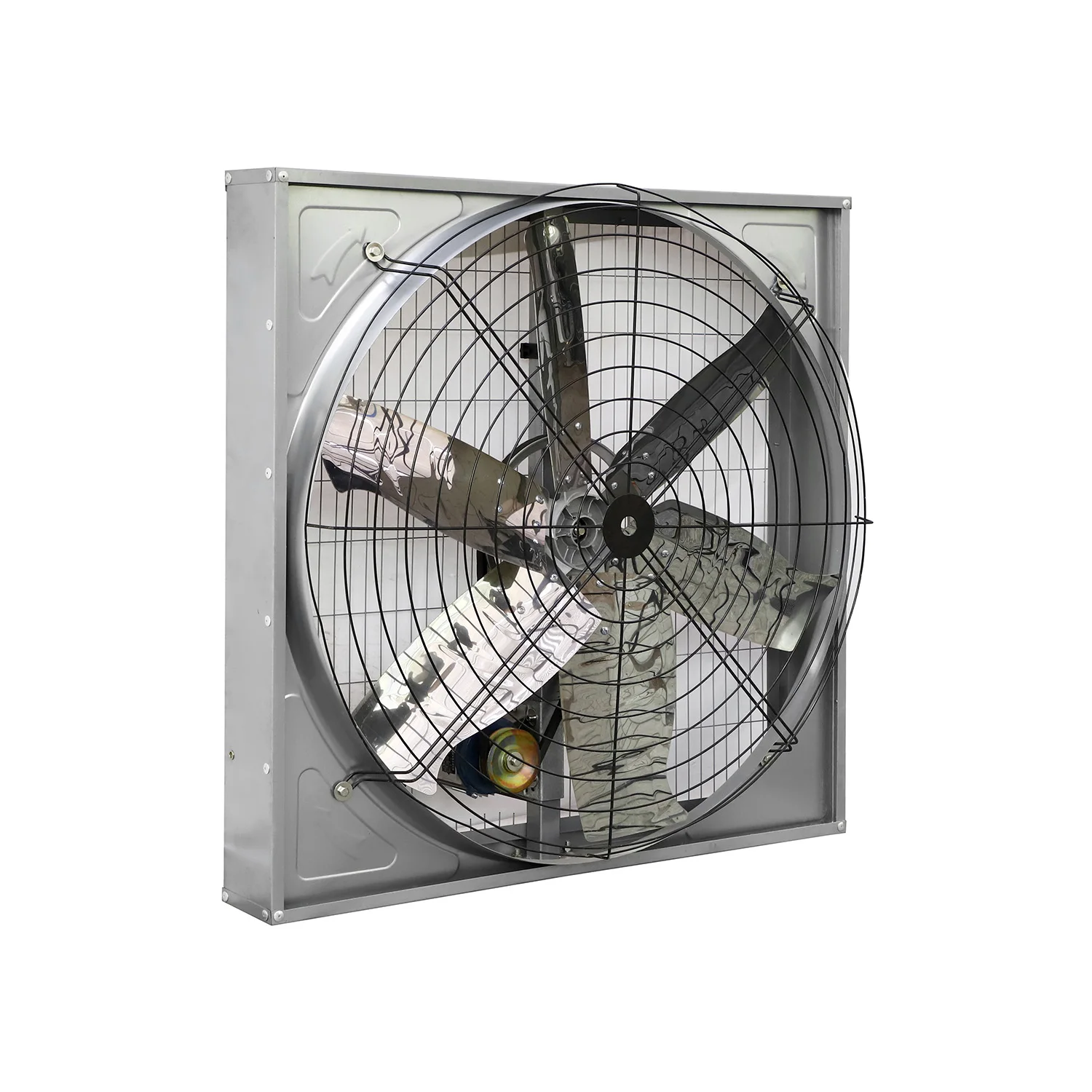

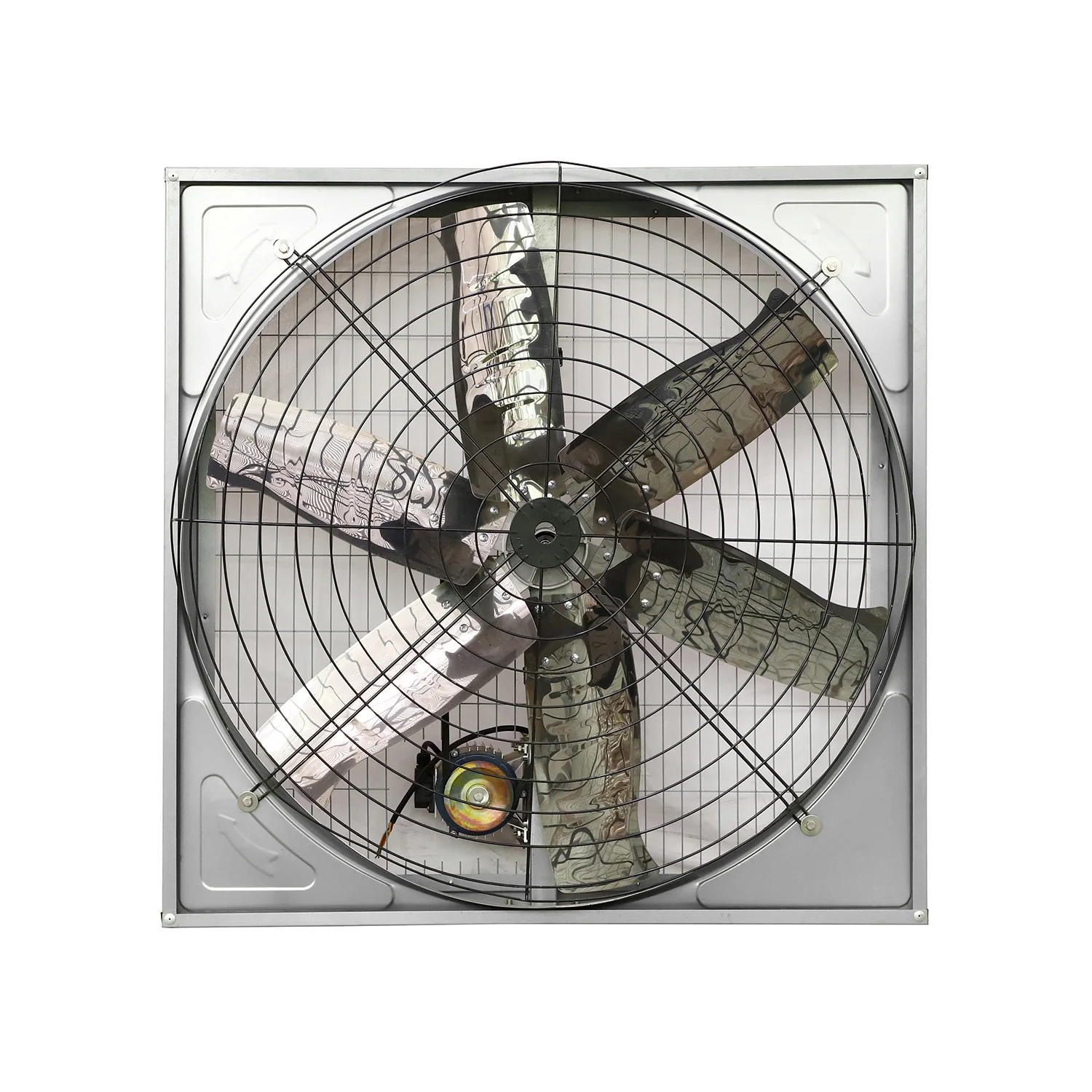

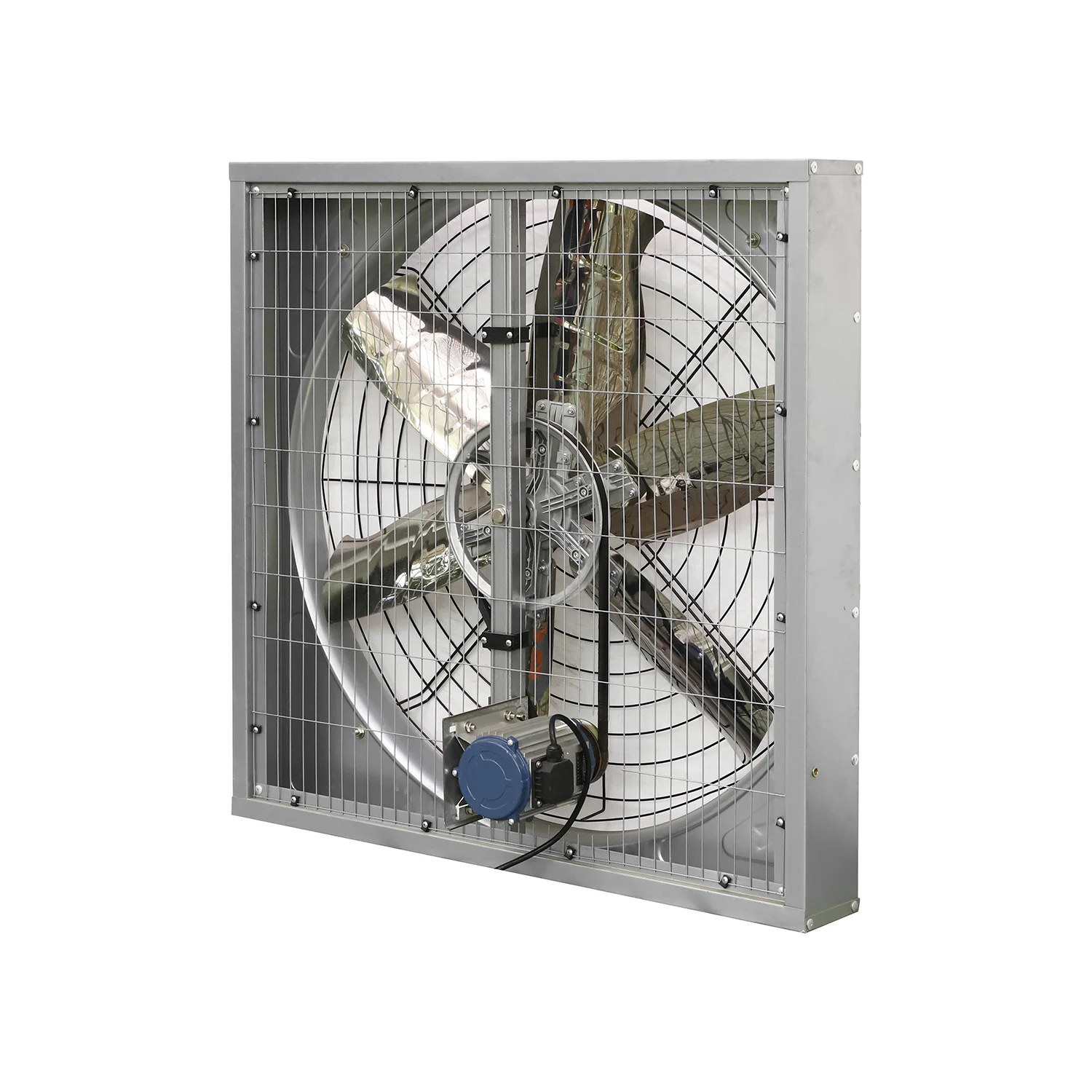

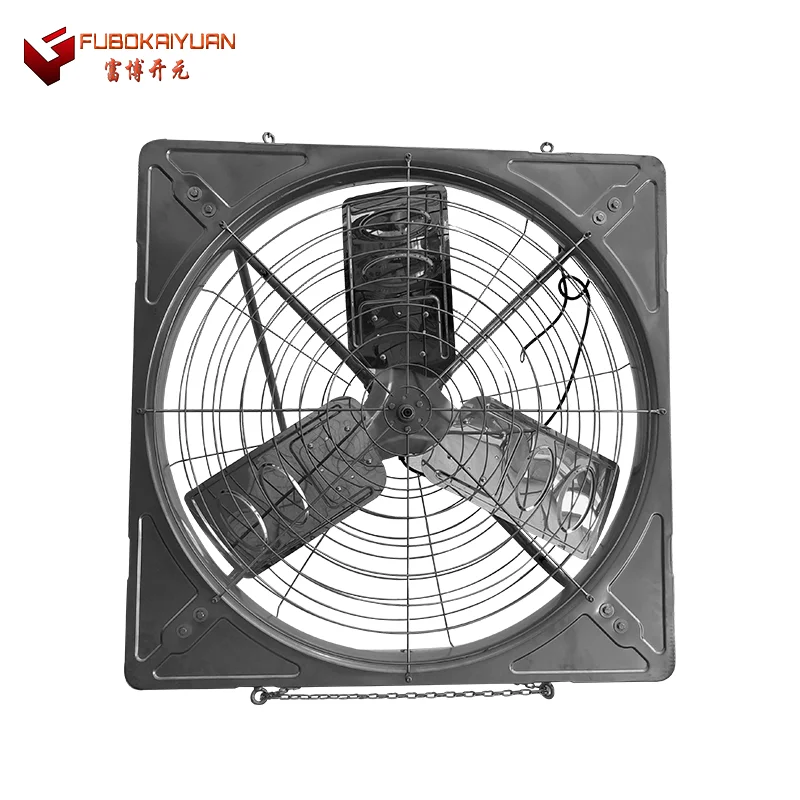

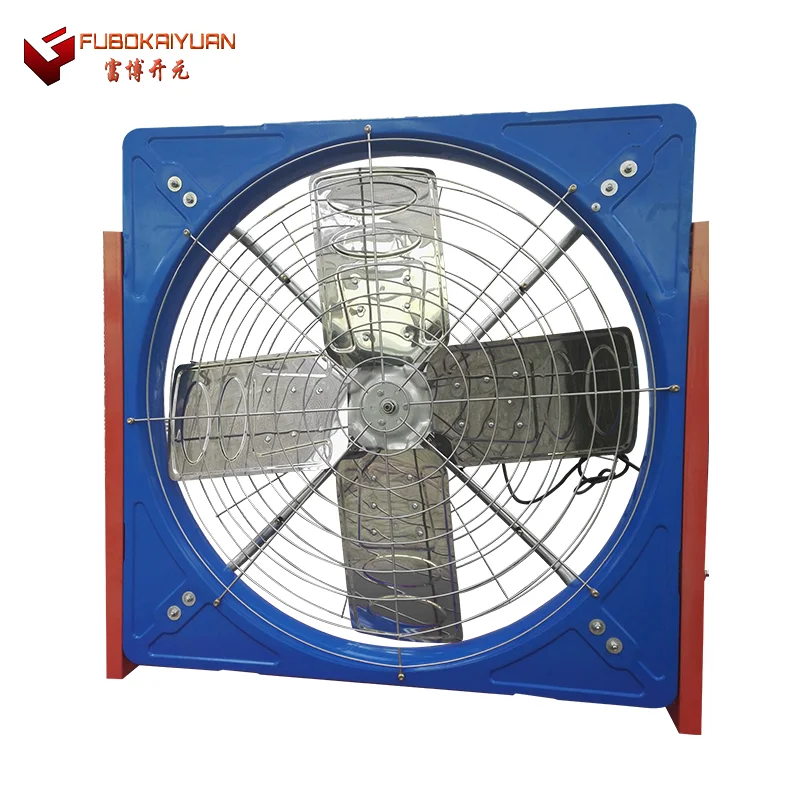

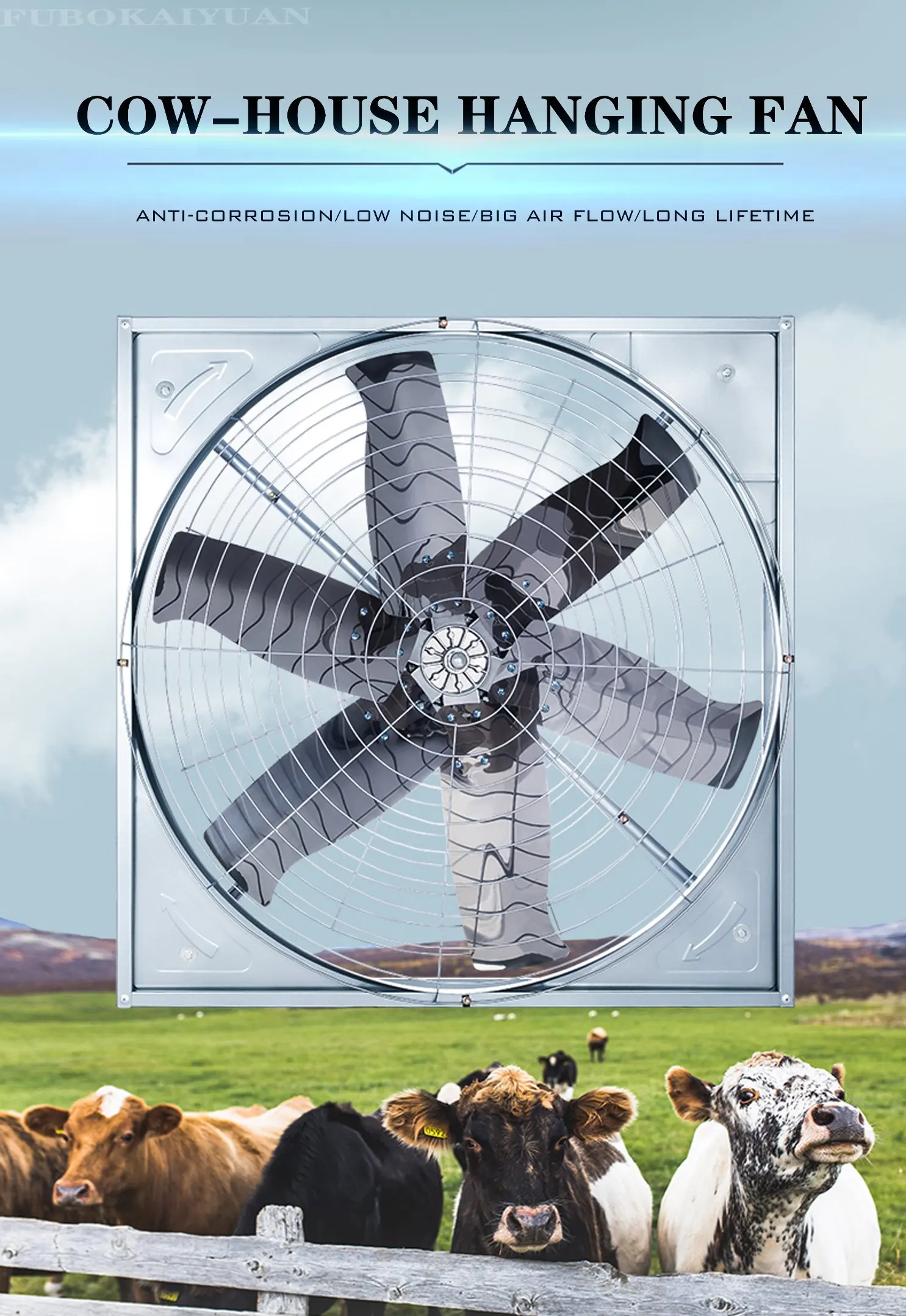

hanging dairy cow farm cow shed exhaust fan
- Category: >>>
- Supplier: Qingzhou Fubo Kaiyuan Industry Co. Ltd.
Share on (1600410902881):
Product Overview
Description
Products Description
There are 2 types of hanging fan to choose from depending on the motor type.
Direct drive and Belt drive.
Model | Drive | Blades Diameter(mm) | Total pressure(Pa) | Motor Rotational Speed (r/m) | Air Flow (m³/h) | Input power(W) | Noise(db) | Height*width*thickness(mm) (A*B*C) |
FBH-800 | belt | 710 | 60 | 550 | 22000 | 370 | <=70 | 800*800*300 |
FBH-900 | belt | 750 | 65 | 550 | 28000 | 550 | <=70 | 900*900*300 |
FBH-1000 | belt | 900 | 70 | 440 | 30000 | 750 | <=70 | 1000*1000*300 |
FBH-1100 | belt | 1000 | 70 | 550 | 32500 | 750 | <=70 | 1100*1100*300 |
FBH-1220 | belt | 1100 | 73 | 550 | 38000 | 1100 | <=70 | 1220*1220*300 |
FBH-1380 | belt | 1250 | 56 | 550 | 44000 | 1100 | <=70 | 1380*1380*300 |
FBH-1530 | belt | 1400 | 60 | 550 | 55800 | 1500 | <=70 | 1530*1530*300 |
Main Features
1) Adopt material of 275g/㎡Hot-dip galvanized plate, not rust.
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
1.Motor
Brand: Chinese famous motor, Siemens motor
Motor Protection Grade: IP55
Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Motor Protection Grade: IP55
Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
2. Round Frame
Material: Hot-dip galvanized sheet with zinc thickness of 275g/㎡
Advantage:
Extremely improves the anti-corrosion performance.
Advantage:
Extremely improves the anti-corrosion performance.
3.Fan Blades
Material : Krupp 430 stainless steel, thickness 1.2mm
Diameter: 1250mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Diameter: 1250mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
4.Belt Pulley
Material: High strength aluminum-magnesium alloy by die-casting.
Blast-sanding treatment,
eliminate internal stress to improve
its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
5.Bearing
Single-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
6.Belt
Brand: Sanlux or Mitsuboshi belt (Japanese)
Types: TypeA, Type B
Advantage:
Famous brand,Long service life, maintenance free.
7.Hanging Rings
Four hanging rings are added Advantage:
Convenient to install and adjust the angle to reach excellent performance.
Convenient to install and adjust the angle to reach excellent performance.
8.Safe Net
Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.
Advantage:
Double Protection to ensure never rust.

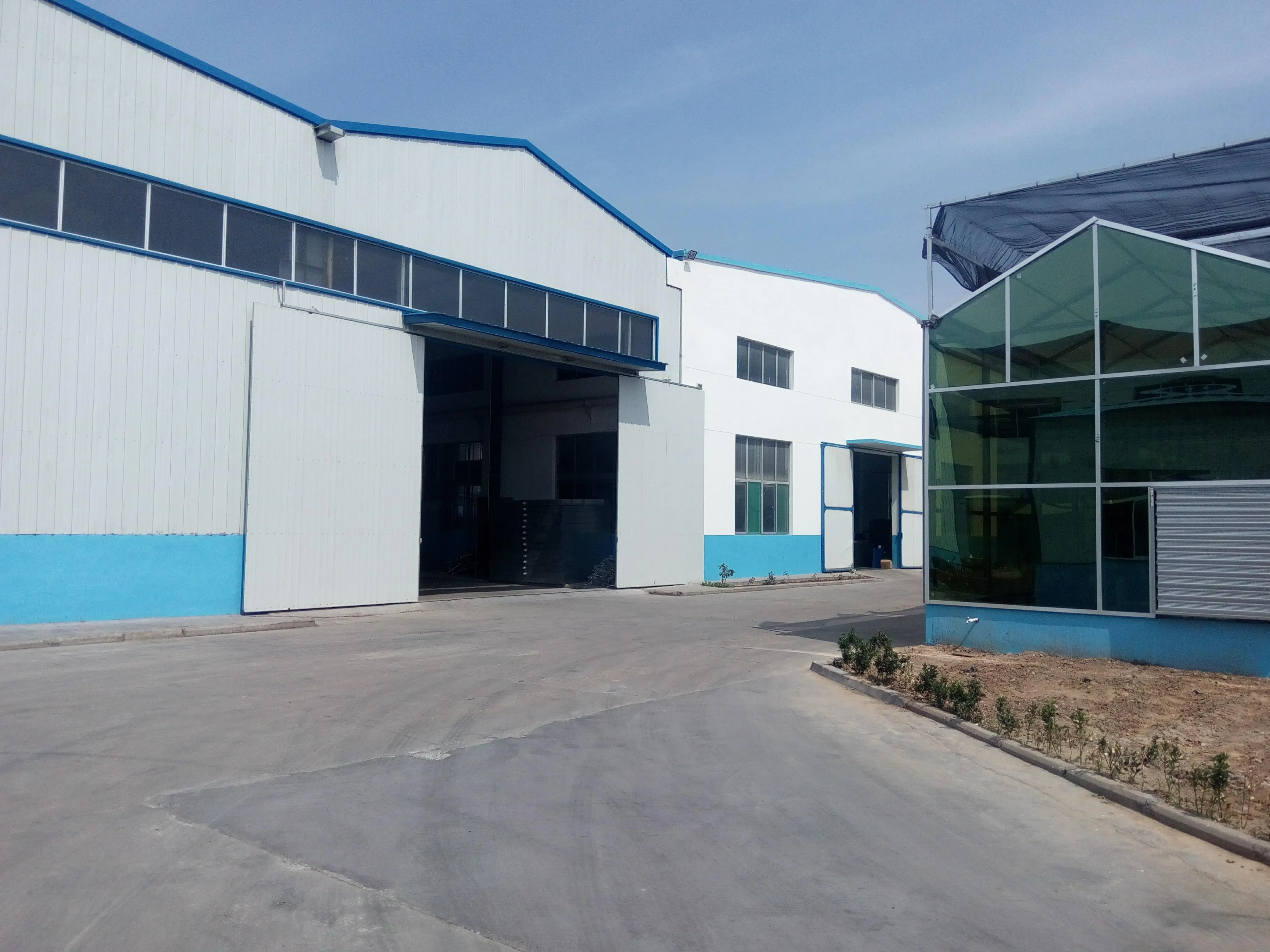

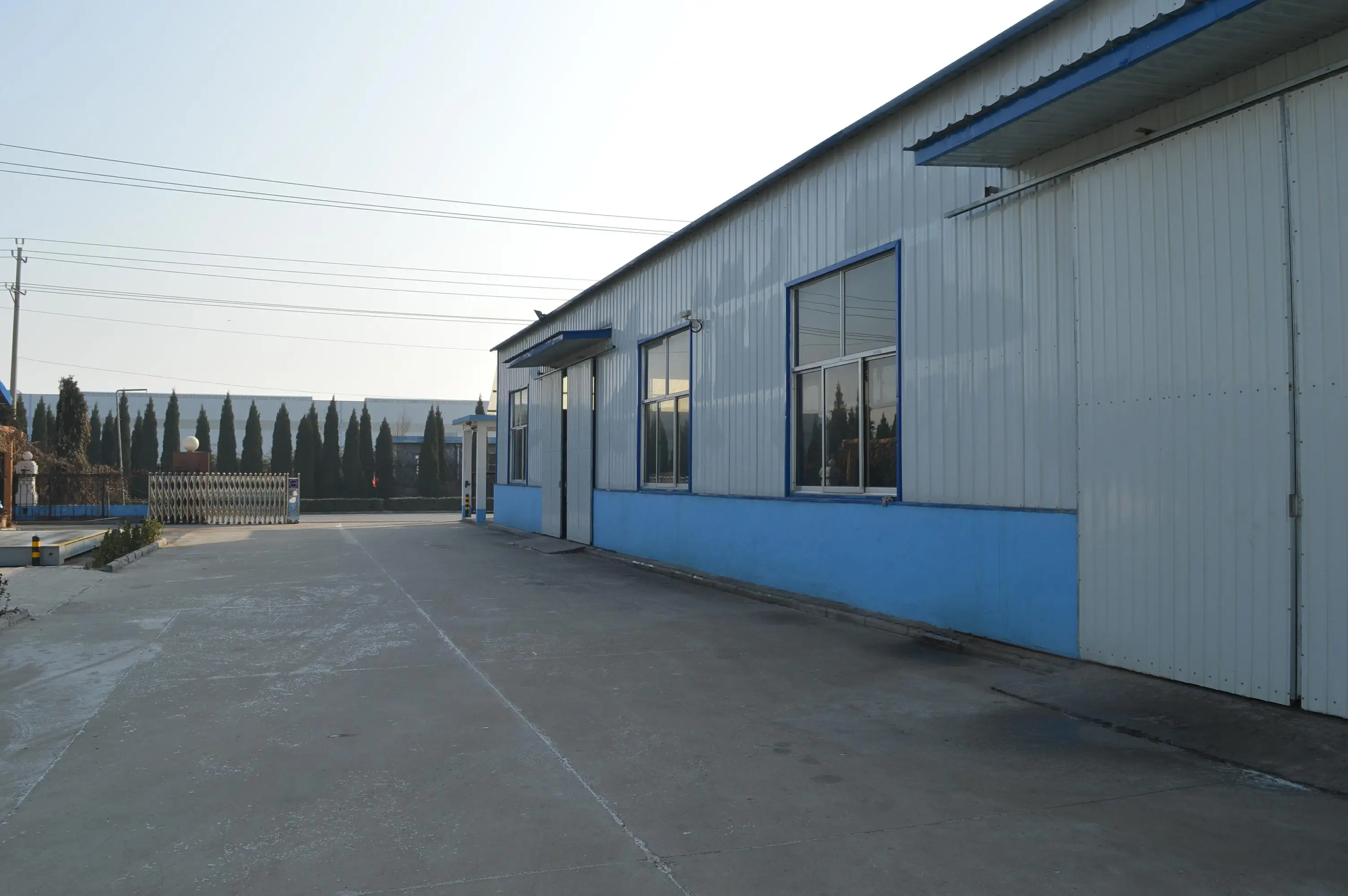

Company Profile
QINGZHOU FUBO KAIYUAN INDUSTRY CO., LTD
is a professional manufacturer of ventilation fans and poultry equipment, has more than 12 years of professional design and production experience, 6 efficient R & D teams, and more than 80 persons in the production team.
Equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
Annual sales over $ 10.6 million.Fubo Kaiyuan Products have been exported to more than 60 countries in Asia, Europe, America, Australia, etc.
Annual sales over $ 10.6 million.Fubo Kaiyuan Products have been exported to more than 60 countries in Asia, Europe, America, Australia, etc.

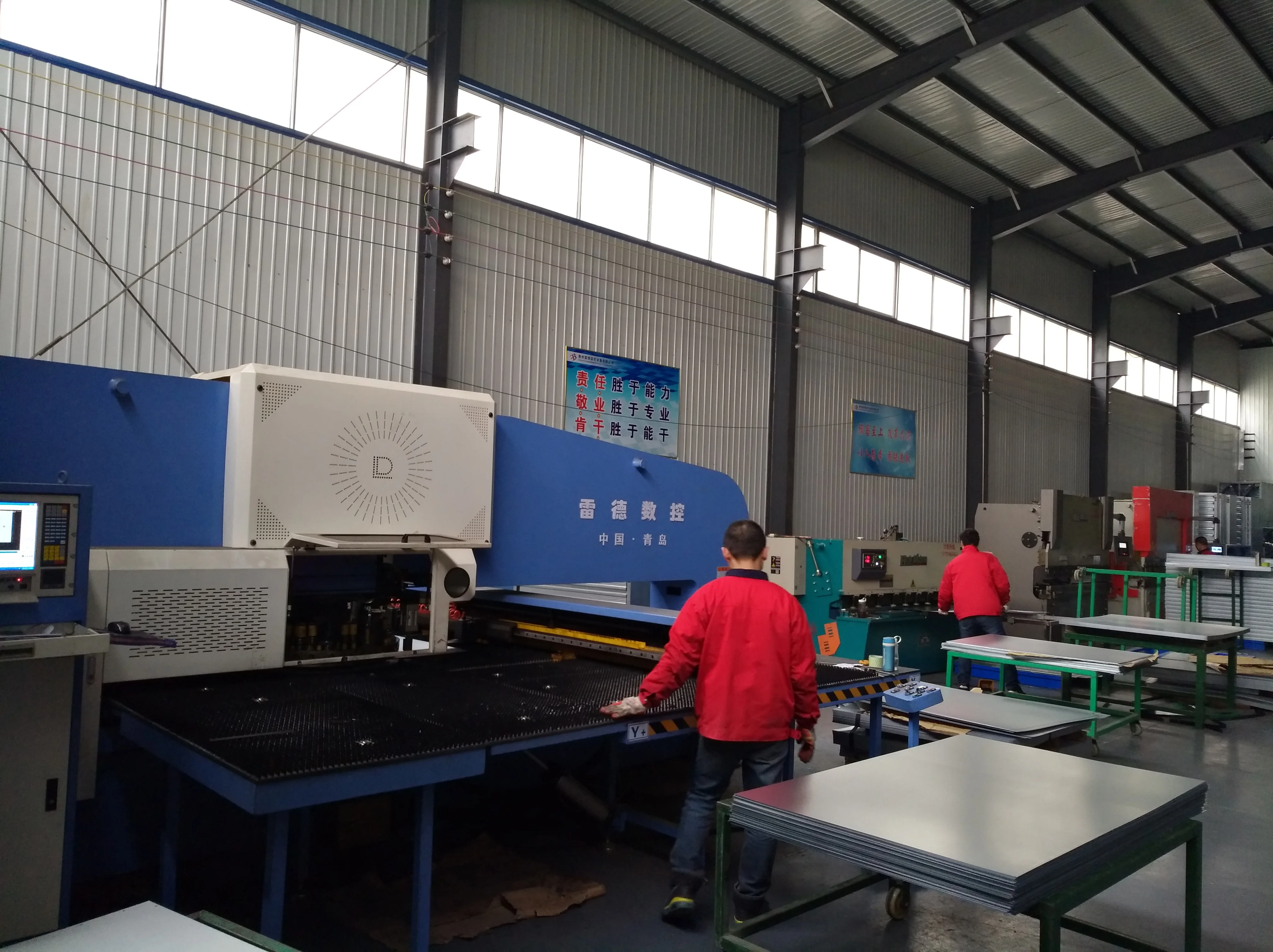

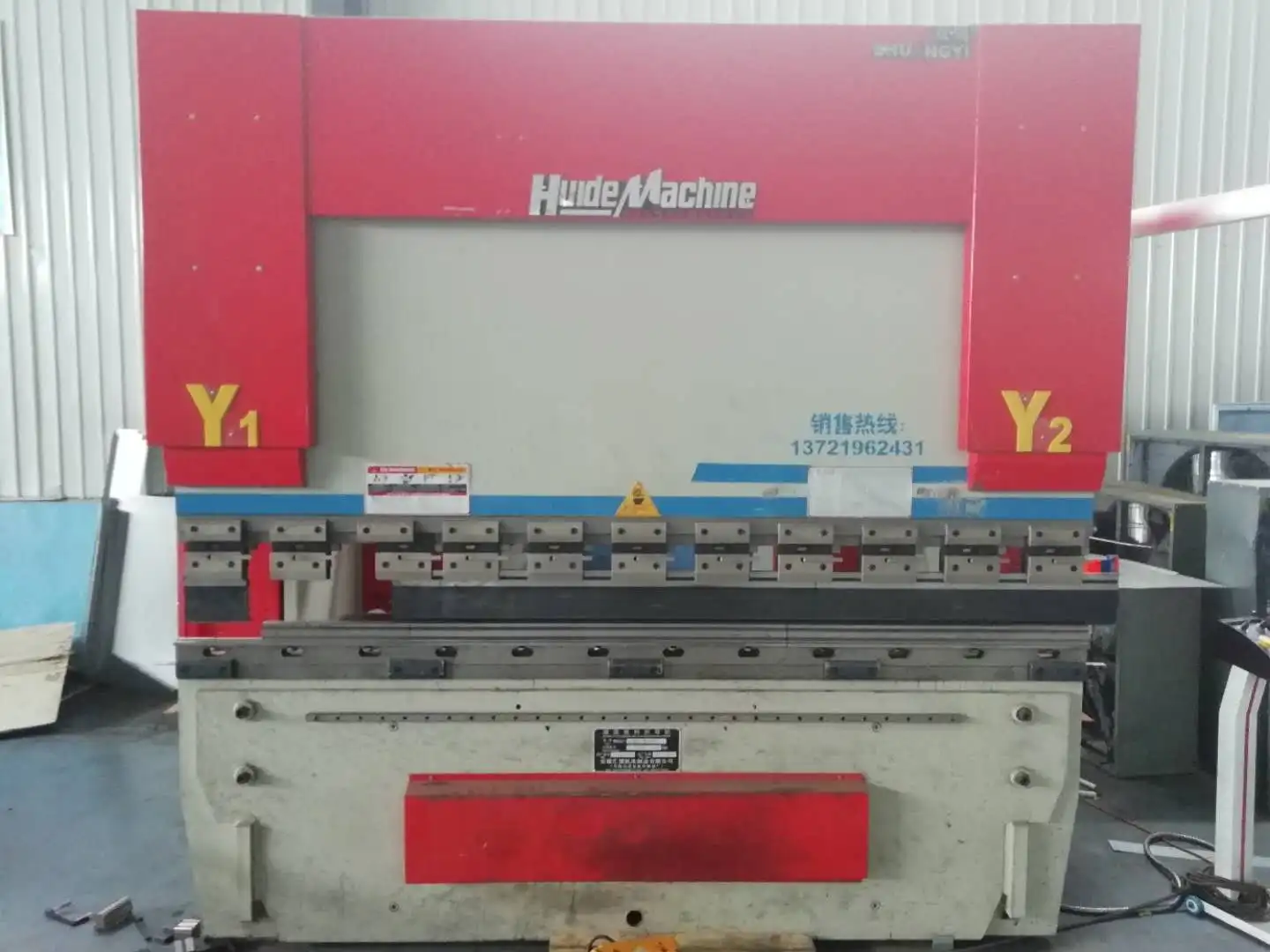

WORKSHOP SHOW
Fubo Kaiyuan equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
FUBOKAIYUAN has the advanced Complete CNC machine and Laser Cutting machine.Auto punching and bending,
the accuracy of the hole is 100%, easy to assemble.
And 85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
the accuracy of the hole is 100%, easy to assemble.
And 85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally

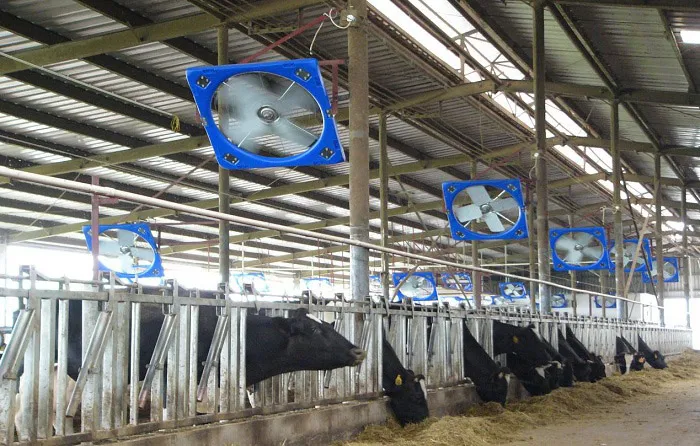

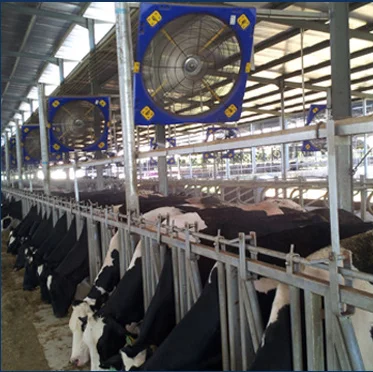

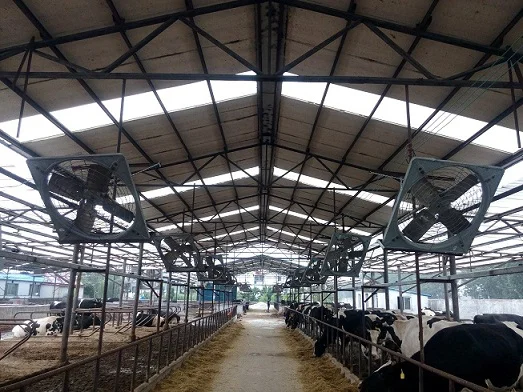

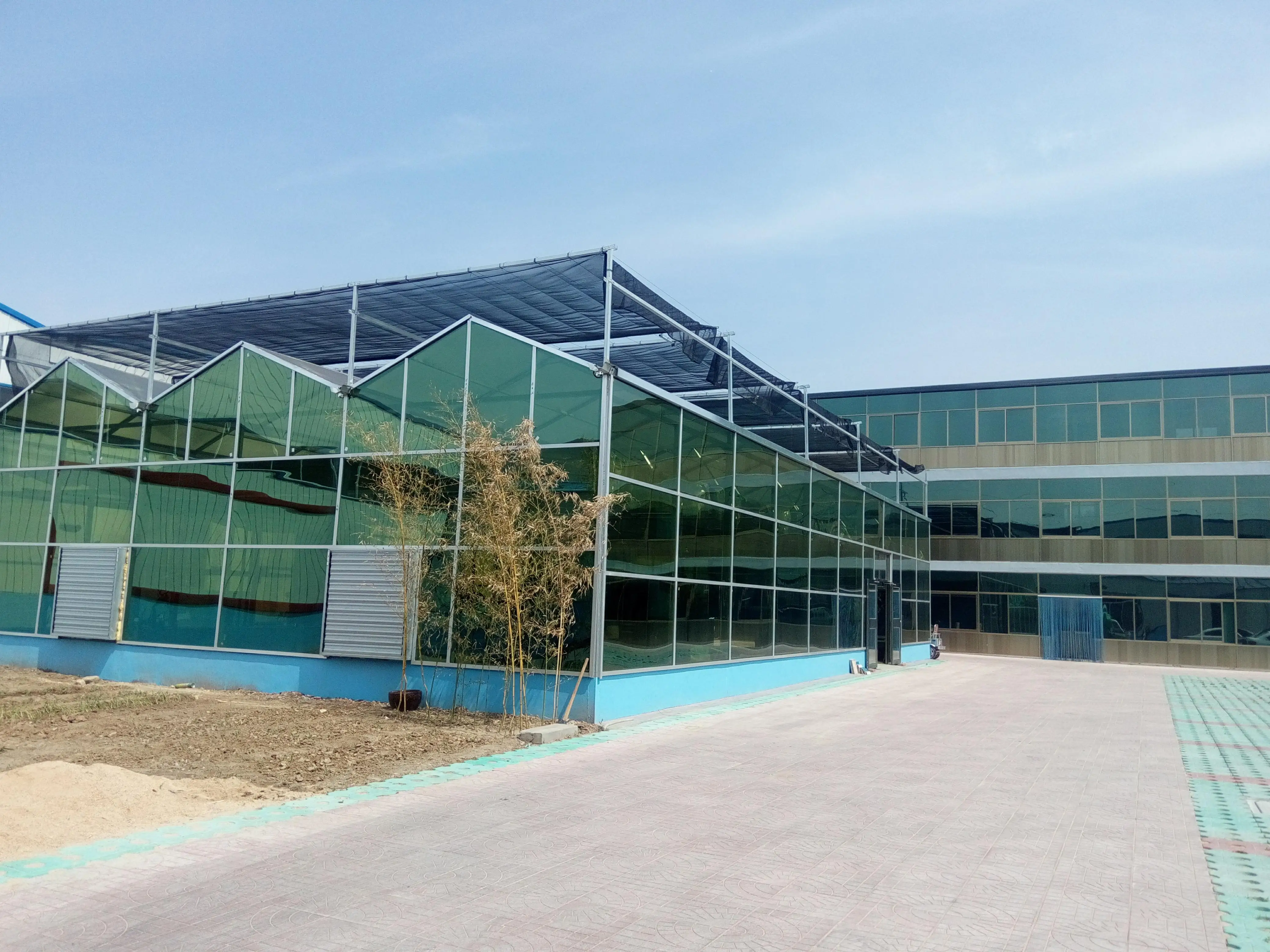

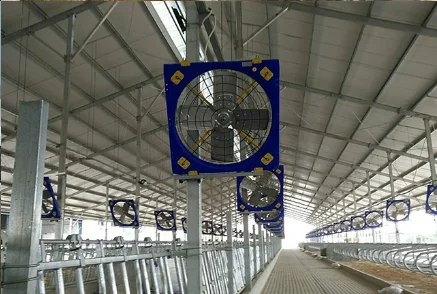

CASE DISPLAY

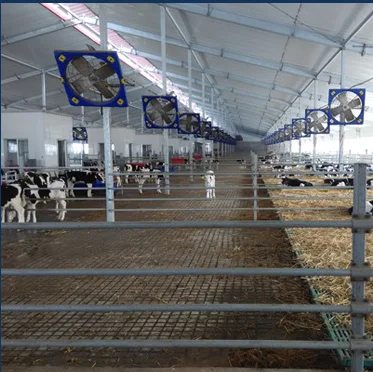

It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile ect.
Certifications
Exhibition
Fubo Kaiyuan Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers.
FAQ
1. Are you real manufacturer or ..?
-- Yes, we are 100% original manufacturer of exhaust fan. Our factory located at Weifang city , ShanDong province .
In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit.
2. Can you do make our own brand?
--Yes, we can provide the OEM &ODM service.
3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
5.What's the payment term?
A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
-- Yes, we are 100% original manufacturer of exhaust fan. Our factory located at Weifang city , ShanDong province .
In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit.
2. Can you do make our own brand?
--Yes, we can provide the OEM &ODM service.
3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
5.What's the payment term?
A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
