fireworks ignition system E08 8 channel stage fountain cold frame fireworks firing system

Product Overview

Description

fireworks ignition system E08 8 channel stage fountain cold frame fireworks firing system







Item Name	Fireworks Firing System
Item Number	E08
Content	8 pcs receiver + 8 key remote
Color	Black
Frenquency	433MHZ
Material	Plastic
Packing Size	24.5*14.2*25cm
Weight	2kg
Occasion	Christmas,New Year,All festival





Instruction Manual

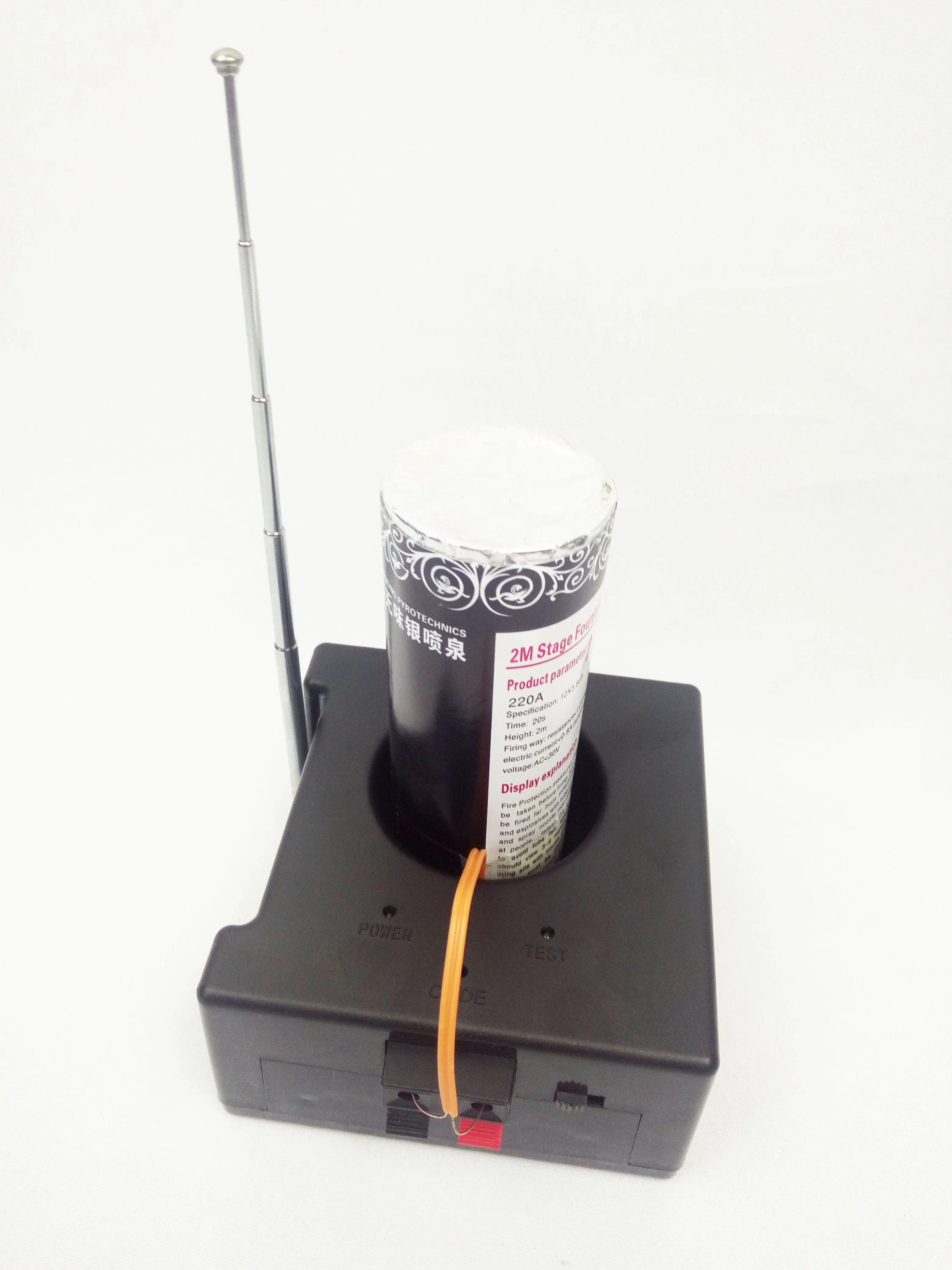

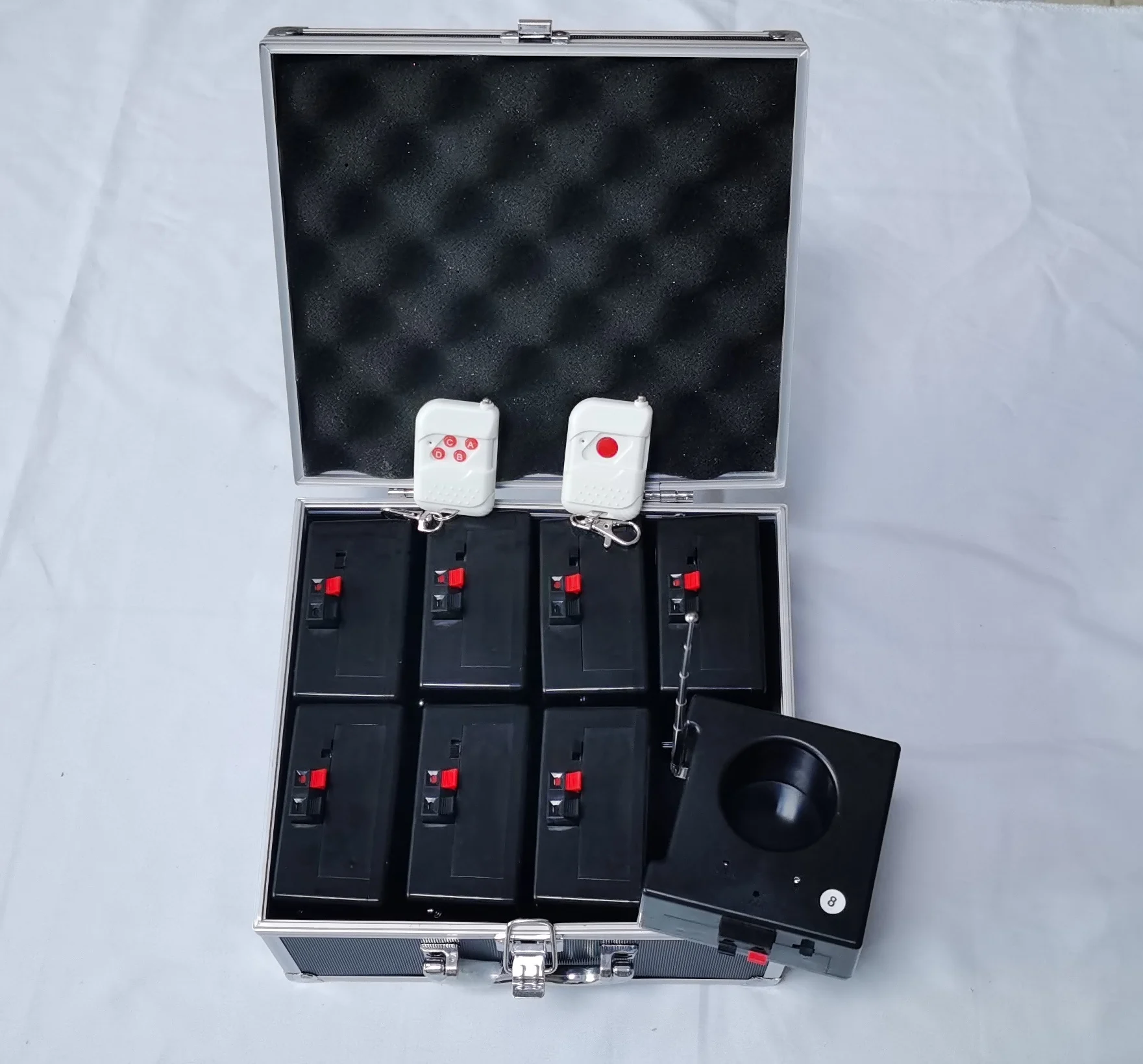

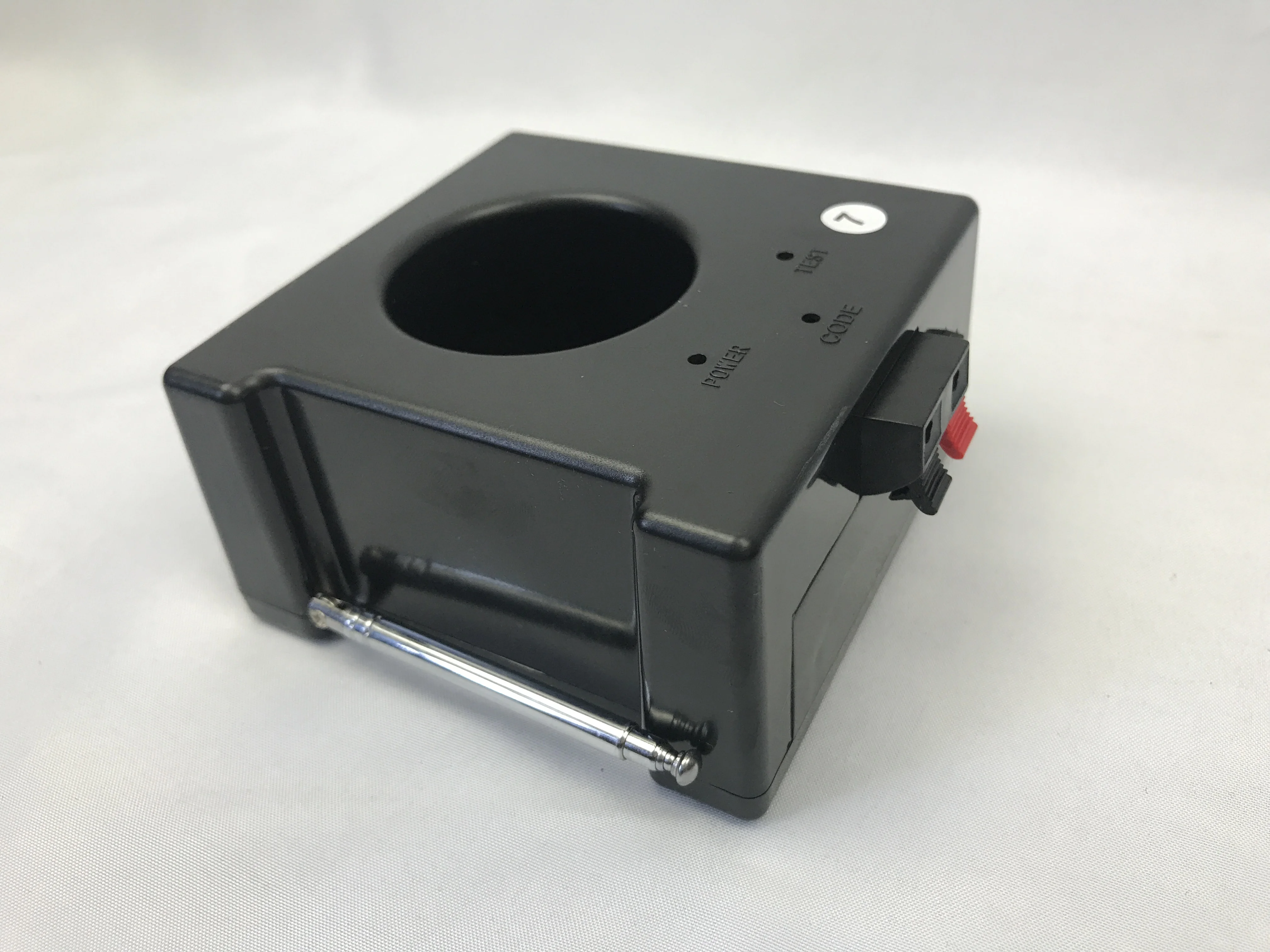

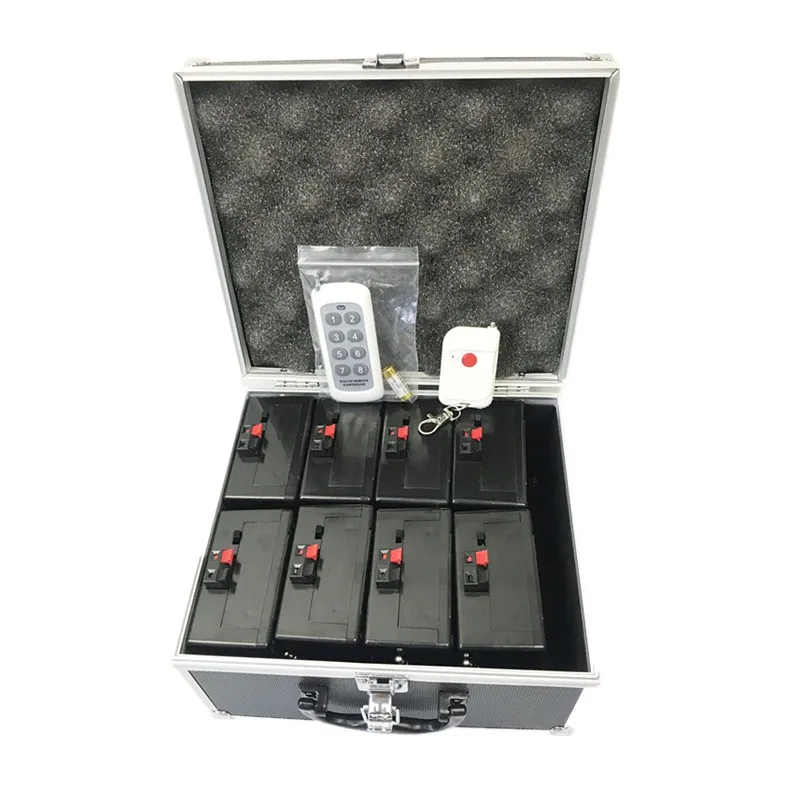

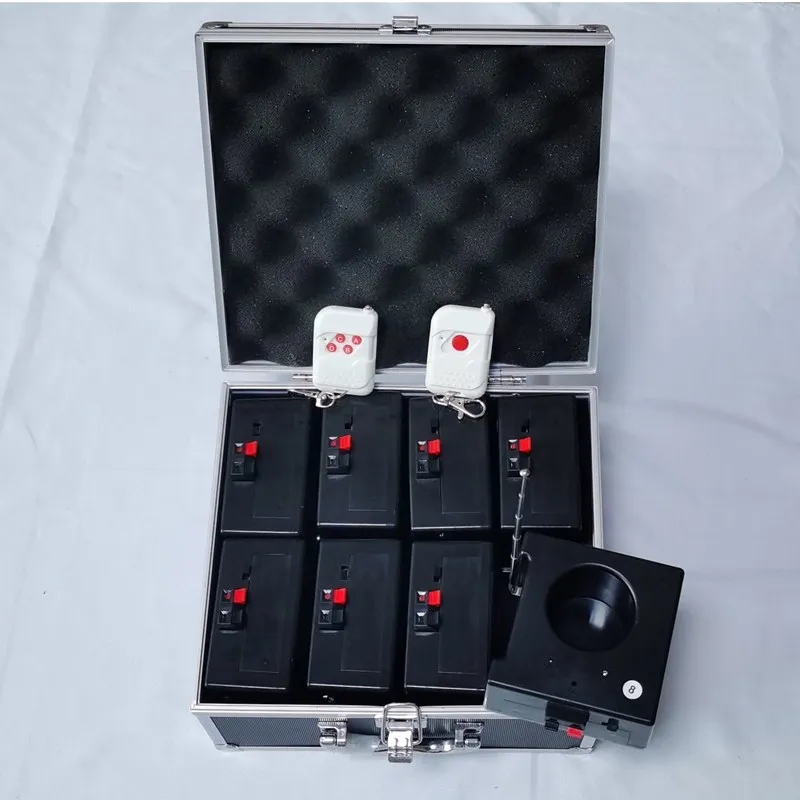

The products include two remotes (one key remote and eight keys remote) and 8 pieces receivers for cold flame. Use 9V dry battery to supply power. The biggest diameter for cold flame is 4.5cm.One key remote controls those eight receivers firing together, 8 keys remote separate controls the receivers. Remote control receiving distance is about  80-100M.



Usage Introduction

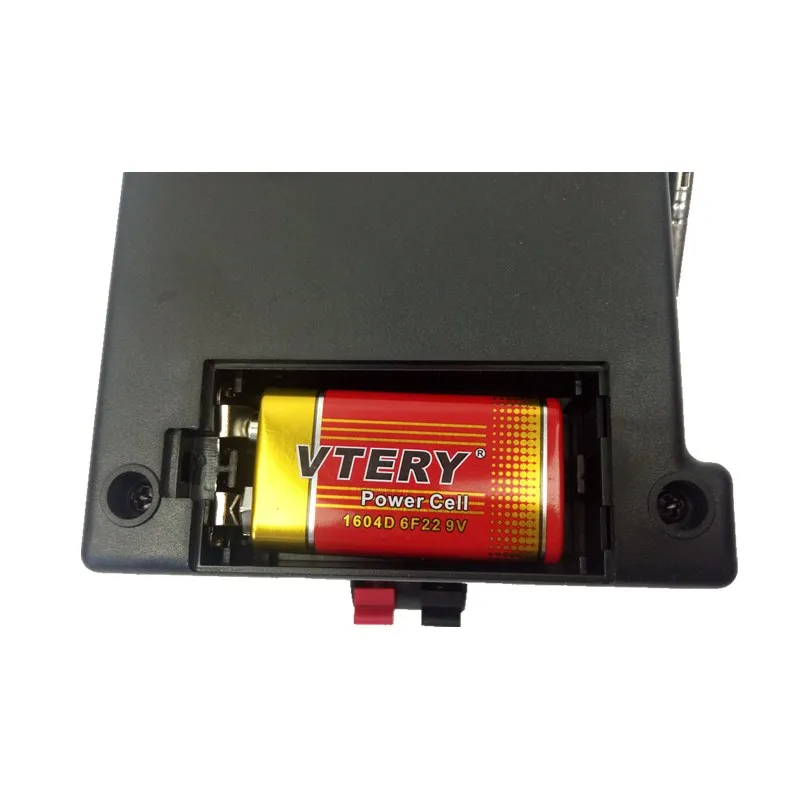

1. Put 9V dry battery into the battery box, and turn on the switch, the yellow (power) and red(test) light will be bright then press the button of the remote in different remotes, the yellow indicator lights flashing, the red indicator lights more bright, it means the receiving from the remote to the receivers is normal.

2. Put the product connect with the receiver, if the red (test) light will be extinguish, it means the connecting is normal.

3. Far away the fireworks products and use remote to fire.

4. Change the remote (do not connect the product) the products is in “study” style.

5. Find the little hole in the positive side of the receiver box, take a small stick into the hole to press it , the yellow light will be flickered , press the button of the remote, take out the stick first, and you will see the yellow light will stop flicking ,then changing the remote succeed.

Attention:

1. Please do not shake incept box violently, when no need use it .

2. When begin to connect with the fireworks products, make sure keep the remote well so that during you do not be careful time, the remote will not be pressed to damage anything.

3. The frequency is 433HZ.The remote designed by rocking code, the probability for repeat is very little, but also exist. when begin to connect the fireworks products, must far away the fire exit of the fireworks ,after connecting and testing take yourself  away the safety distance so that do not damage anything when the firing system affected by other signal

4. Please take the cell out when no use products, for prevent defile incept box.

5. Please don’t place the product in the damp , sour ,alkali and pollution environment.
