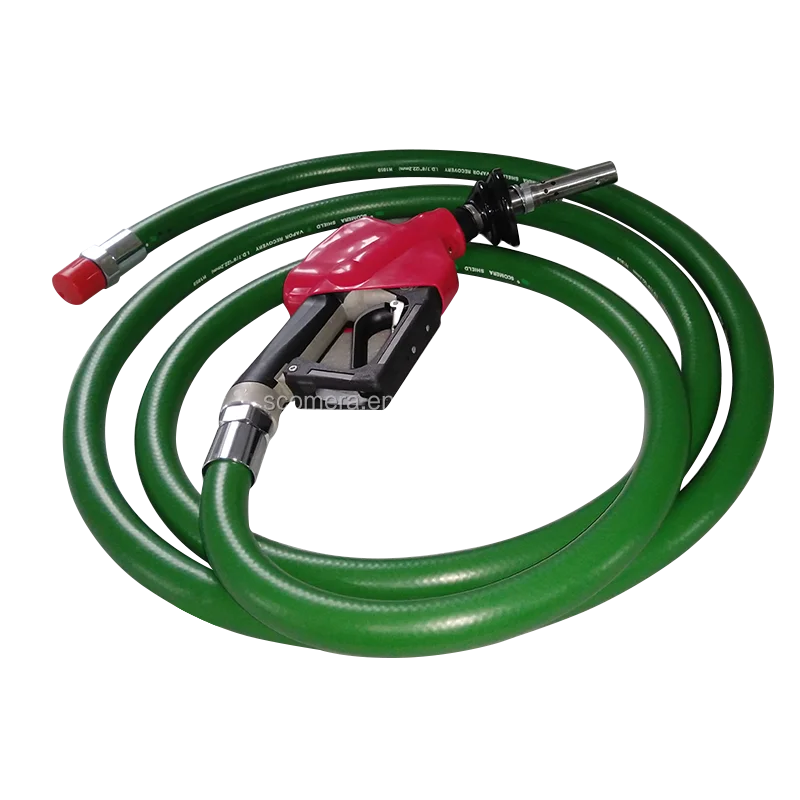

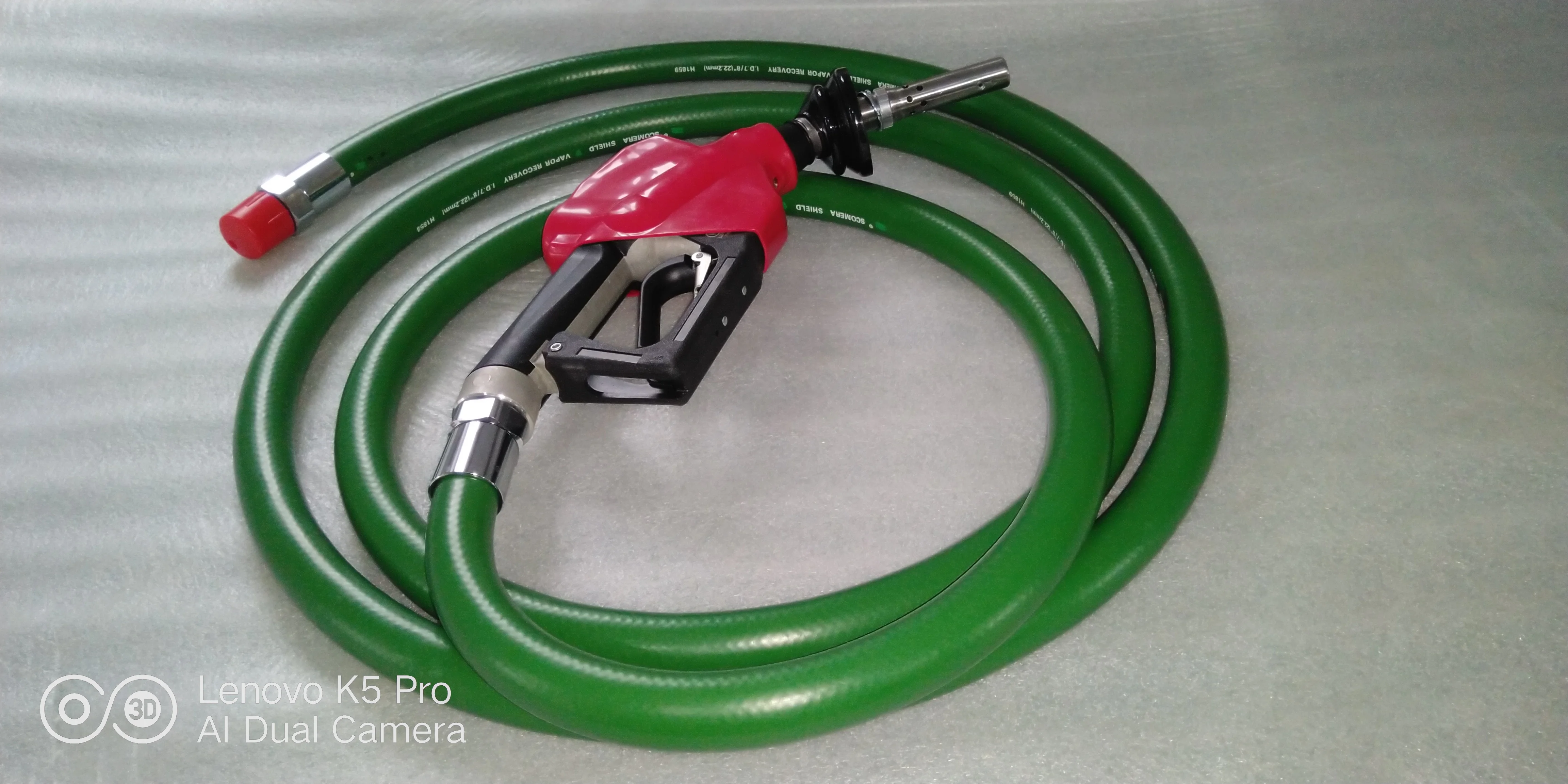

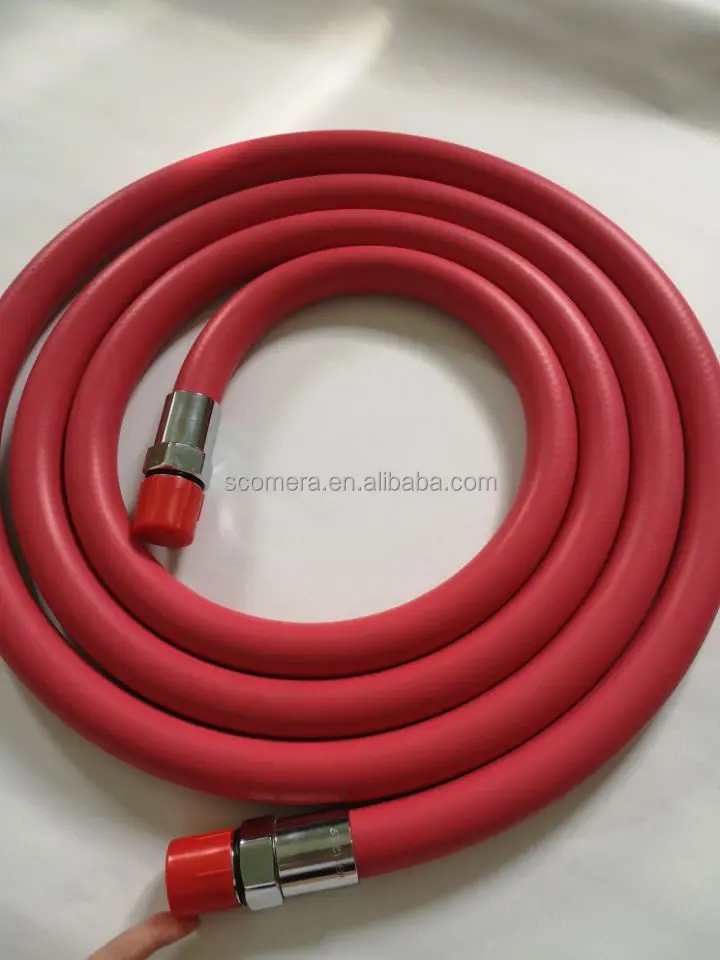

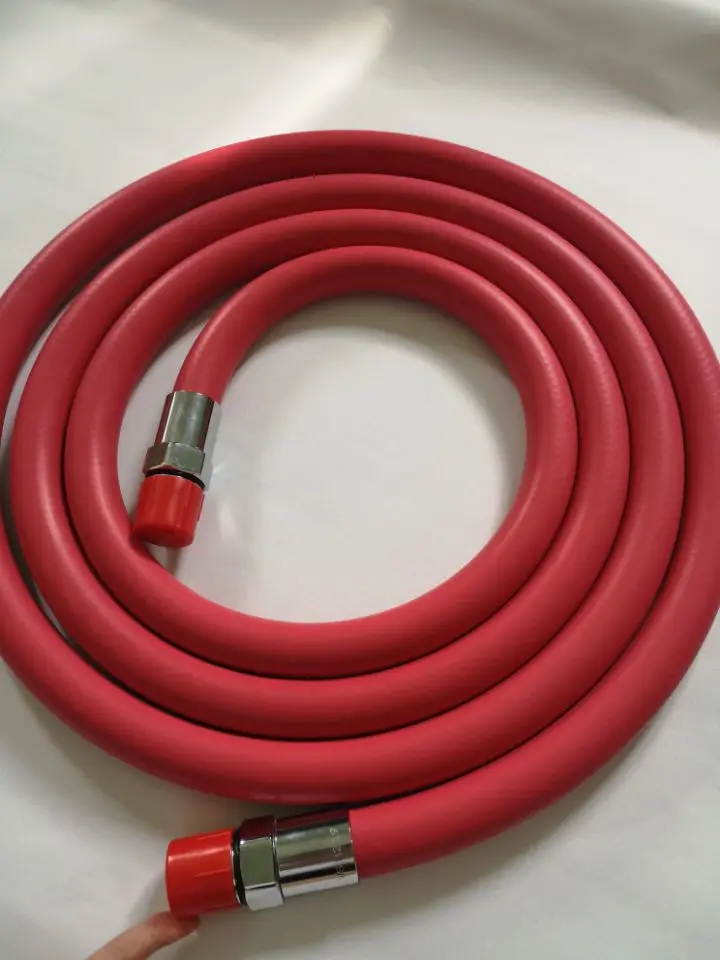

3/4 fuel dispenser hose and fittings flexible nbr oil gasoline hose
- Category: >>>
- Supplier: Scomera Mechanical Equipment(Beijing) Limited Company
Share on (1600410945939):
Product Overview
Description
Related Products
Hot Sale Products

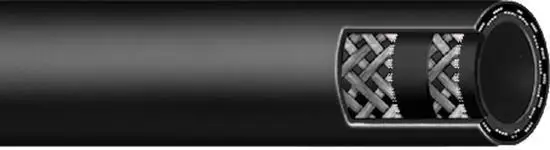

General Fuel Dispenser Hose
Inner rubber : Nitrile butadiene synthetic rubber
Outer rubber : Oil and weather resistant synthetic rubber
Reinforcement : Steel wire
Outer rubber : Oil and weather resistant synthetic rubber
Reinforcement : Steel wire

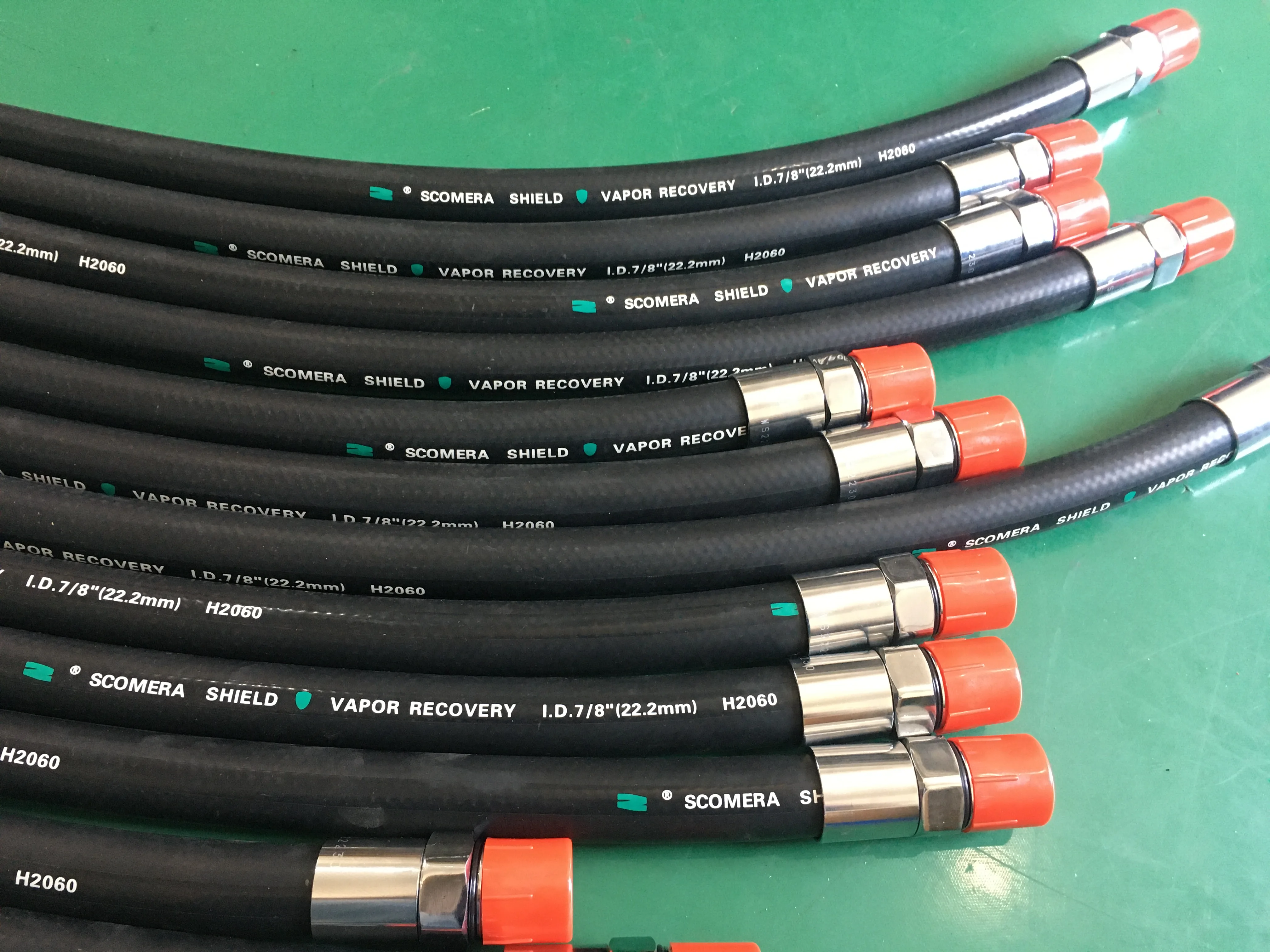

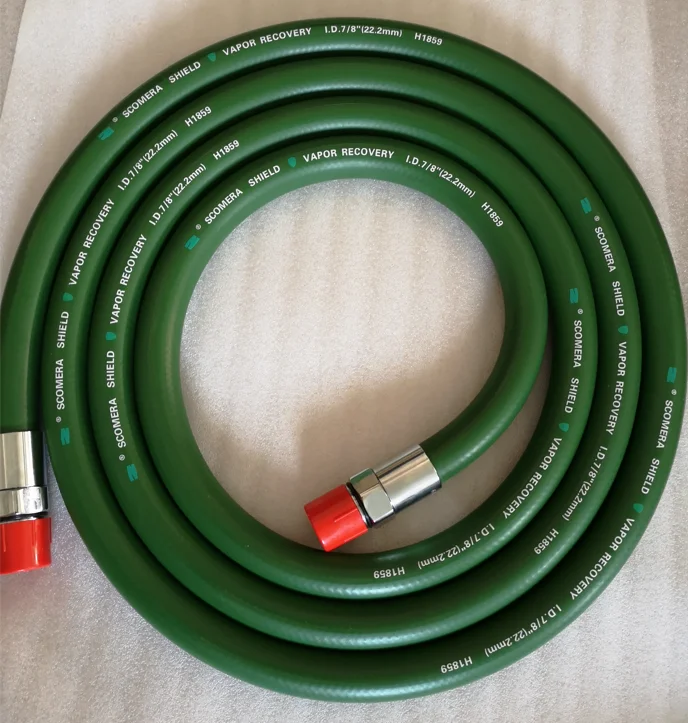

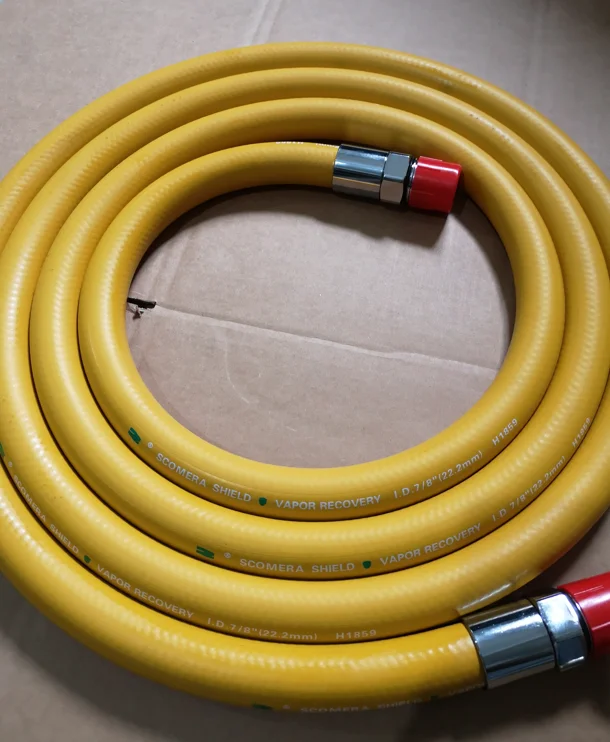

SHIELD EGF Fuel Dispenser Hose
Inner rubber : Butyl wax synthetic rubber with fluorinated thermoplastic isolation layer
Outer rubber : Excellent ozone-resistant synthetic rubber, with outstanding weather resistance, UV resistance and ozone resistance.This material is not easy to fade, age, and has a gorgeous appearance
Reinforcement : A layer of steel wire weaving
Temperature : -40℃ to 60℃
Application : SHIELD EGF is a new low-sulfur, low-permeability and high-quality fuel dispenser hose. Its outer rubber uses a unique material. It has excellent anti-cracking, anti-ozone and anti-fading properties. The fuel dispenser pipe can transport a variety of fuels and meets EN13483:2013 standard requirements. It has excellent bending resistance, low elongation change rate and long life. The bending fatigue life is more than 2 times higher than the standard. Low-sulfur and low-permeability characteristics can reduce the pollution of sulfur and oil and gas to the environment.
Outer rubber : Excellent ozone-resistant synthetic rubber, with outstanding weather resistance, UV resistance and ozone resistance.This material is not easy to fade, age, and has a gorgeous appearance
Reinforcement : A layer of steel wire weaving
Temperature : -40℃ to 60℃
Application : SHIELD EGF is a new low-sulfur, low-permeability and high-quality fuel dispenser hose. Its outer rubber uses a unique material. It has excellent anti-cracking, anti-ozone and anti-fading properties. The fuel dispenser pipe can transport a variety of fuels and meets EN13483:2013 standard requirements. It has excellent bending resistance, low elongation change rate and long life. The bending fatigue life is more than 2 times higher than the standard. Low-sulfur and low-permeability characteristics can reduce the pollution of sulfur and oil and gas to the environment.
Size (inch) | I.D (mm) | O.D (mm） | W.P.(bar) | B.P.(bar) | WT (kg/m) |
3/4" | 19.1 | 28.7 | 17 | 48 | 0.67 |
7/8" | 22.2 | 31.8 | 17 | 48 | 0.73 |

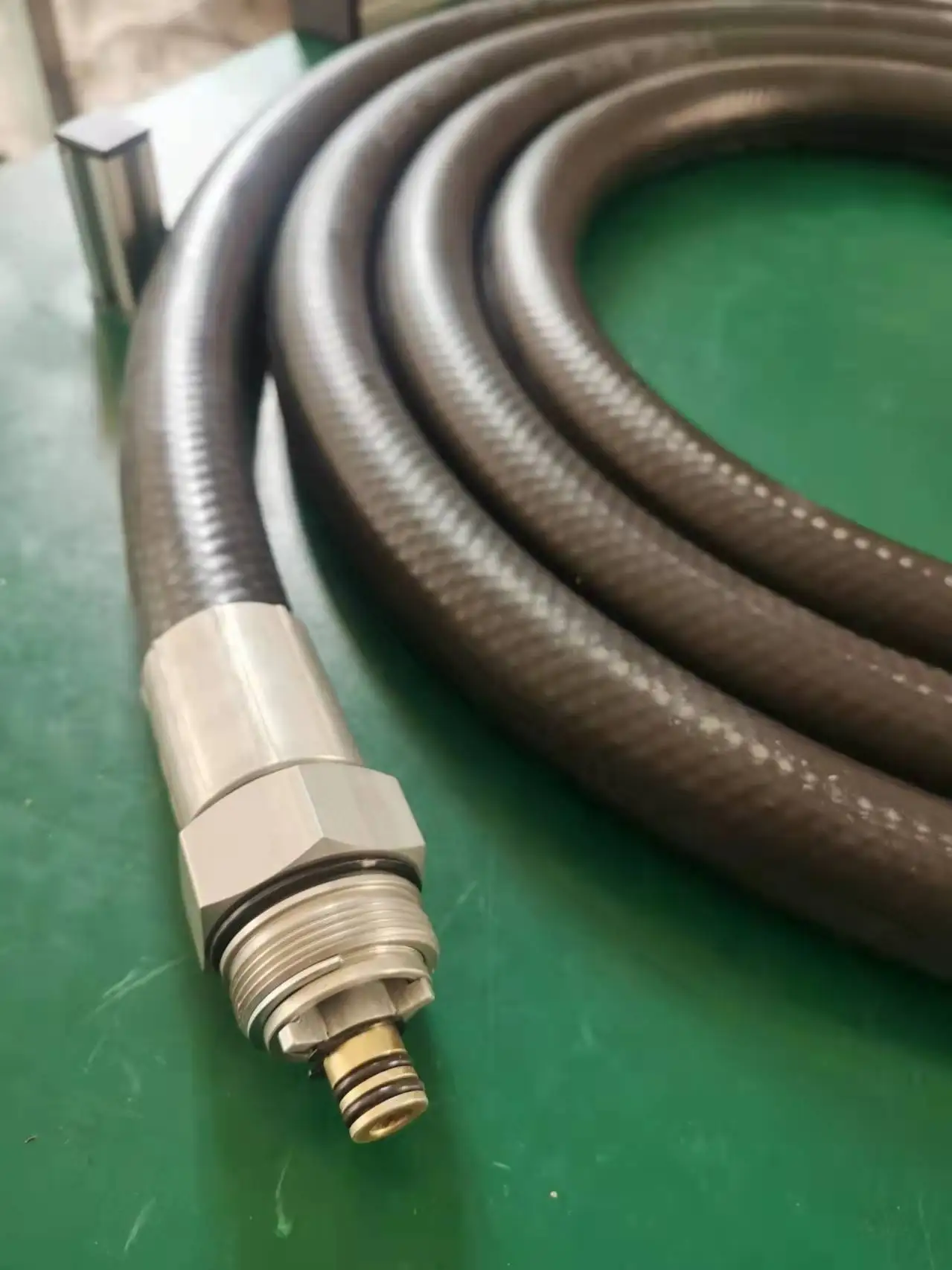

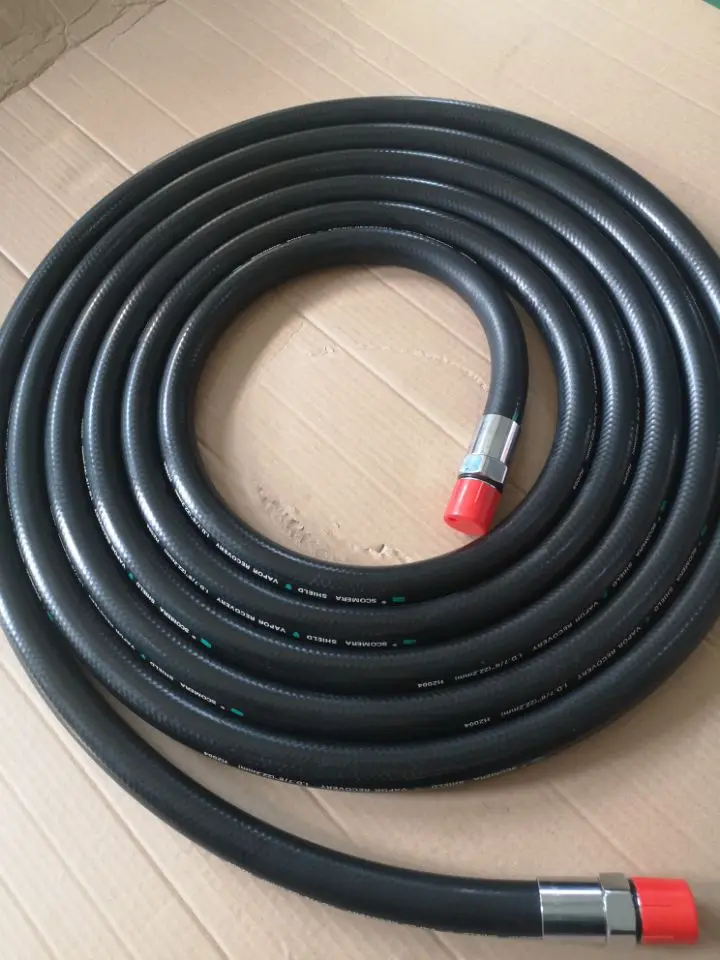

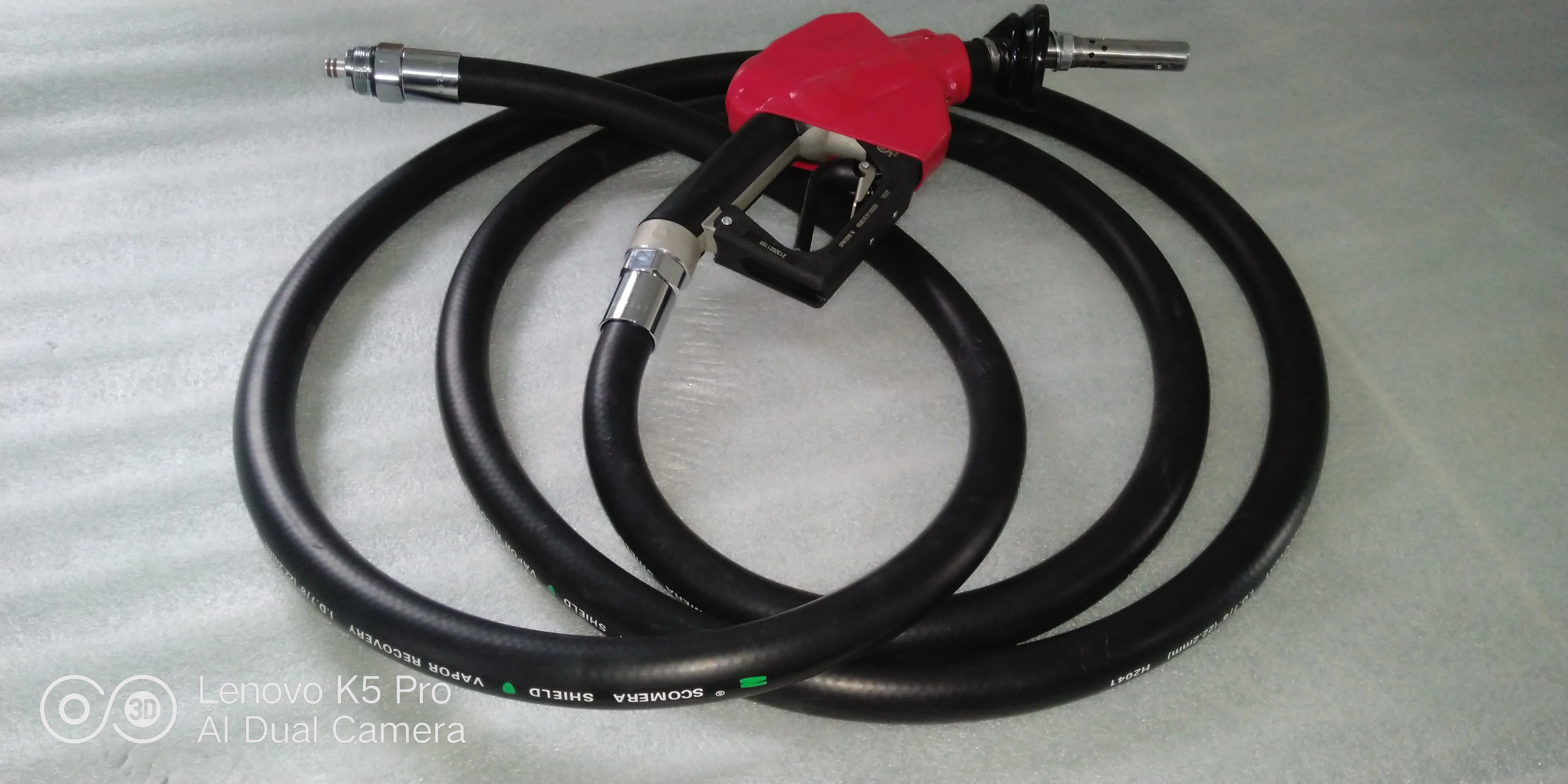

VRH- Vapor Recovery Hose
Inner rubber : Nitrile synthetic rubber
Outer rubber : Super ozone-resistant, wear-resistant synthetic rubber.
Reinforcement : high-strength steel wire braided Reinforcement
Outer rubber : Super ozone-resistant, wear-resistant synthetic rubber.
Reinforcement : high-strength steel wire braided Reinforcement
Connectable fuel gun brands: Most brands like ZVA, OPW, HUSKY, EMCO, VR, HEALY, etc. can be perfectly connected
Temperature : -40℃ to 60 ℃ (optional VRHL -65℃ to 60 ℃)
Application: Professional metering dispenser fuel hose, which can be used in stage II vacuum assisted vapor recovery system. In this system, the oil vapor is sucked back from the inner tube when refueling. The steel wire braided structure makes the hose have superior fracture resistance performance. The hose has super good oil resistance, abrasion resistance, weather resistance, low temperature resistance, and superior flexural performance, which ensures a longer service life of the hose. The special structure reduces the data error phenomenon of the computer calculator of the fuel dispenser. The hose can be used in extremely cold environment.
Temperature : -40℃ to 60 ℃ (optional VRHL -65℃ to 60 ℃)
Application: Professional metering dispenser fuel hose, which can be used in stage II vacuum assisted vapor recovery system. In this system, the oil vapor is sucked back from the inner tube when refueling. The steel wire braided structure makes the hose have superior fracture resistance performance. The hose has super good oil resistance, abrasion resistance, weather resistance, low temperature resistance, and superior flexural performance, which ensures a longer service life of the hose. The special structure reduces the data error phenomenon of the computer calculator of the fuel dispenser. The hose can be used in extremely cold environment.
inner diameter | outer diameter | Weight | ||||||
in | mm | in | mm | lb/ft. | Kg/m | |||
3/4 | 19.1 | 1.13 | 28.7 | 0.45 | 0.67 | |||
7/8 | 22.2 | 1.25 | 31.8 | 0.49 | 0.73 | |||
About us
Scomera Mechanical Equipment (Beijing) Limited Company is located in Beijing, China. Our hose and pipe products have been sold all over the world. Our product line includes various kinds of hose, pipes and relevant supporting services like assembly, safety clamps, hose protections, quick couplings, Hose fittings and adapters, etc. Scomera company can customize hose and pipe products according to the actual needs of customers in different industries. We always provide customers in various fields with safe, high-quality products and considerate services through advanced technology and innovative spirit.Now, Scomera is not only a supplier of high-end hose and pipe products, but also a trusted industry expert and partner for customers. In the future, we will continue to provide products of higher quality and service of higher efficiency to hose and pipe users around the world.
