BV CE verified Supplier frozen seafood tilapia Tuna Salmon fish fillet processing automatic vacuum Packing Machine
- Category: >>>
- Supplier: Shandong Xiaokang Machinery Co. Ltd.
Share on (1600411003881):
Product Overview
Description

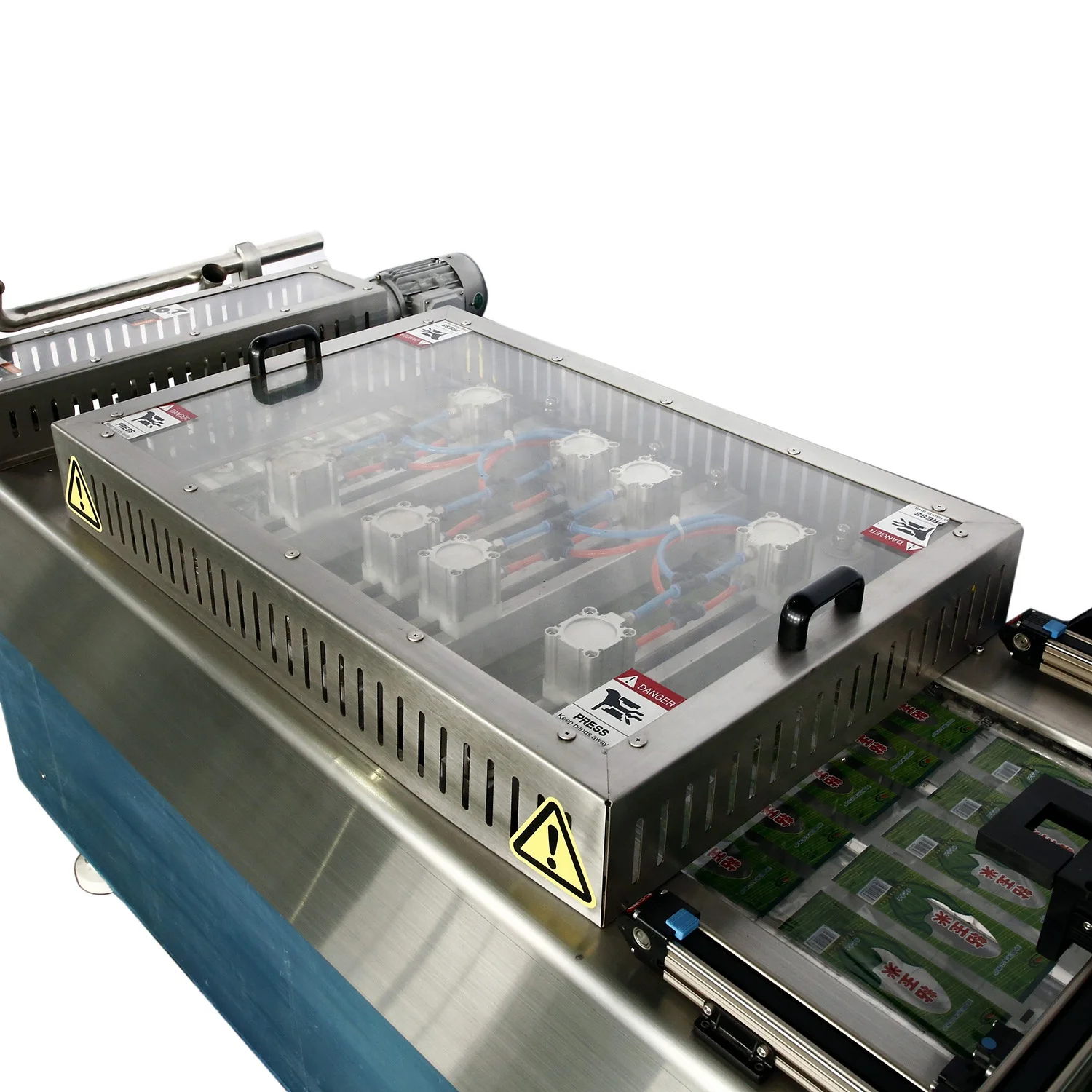

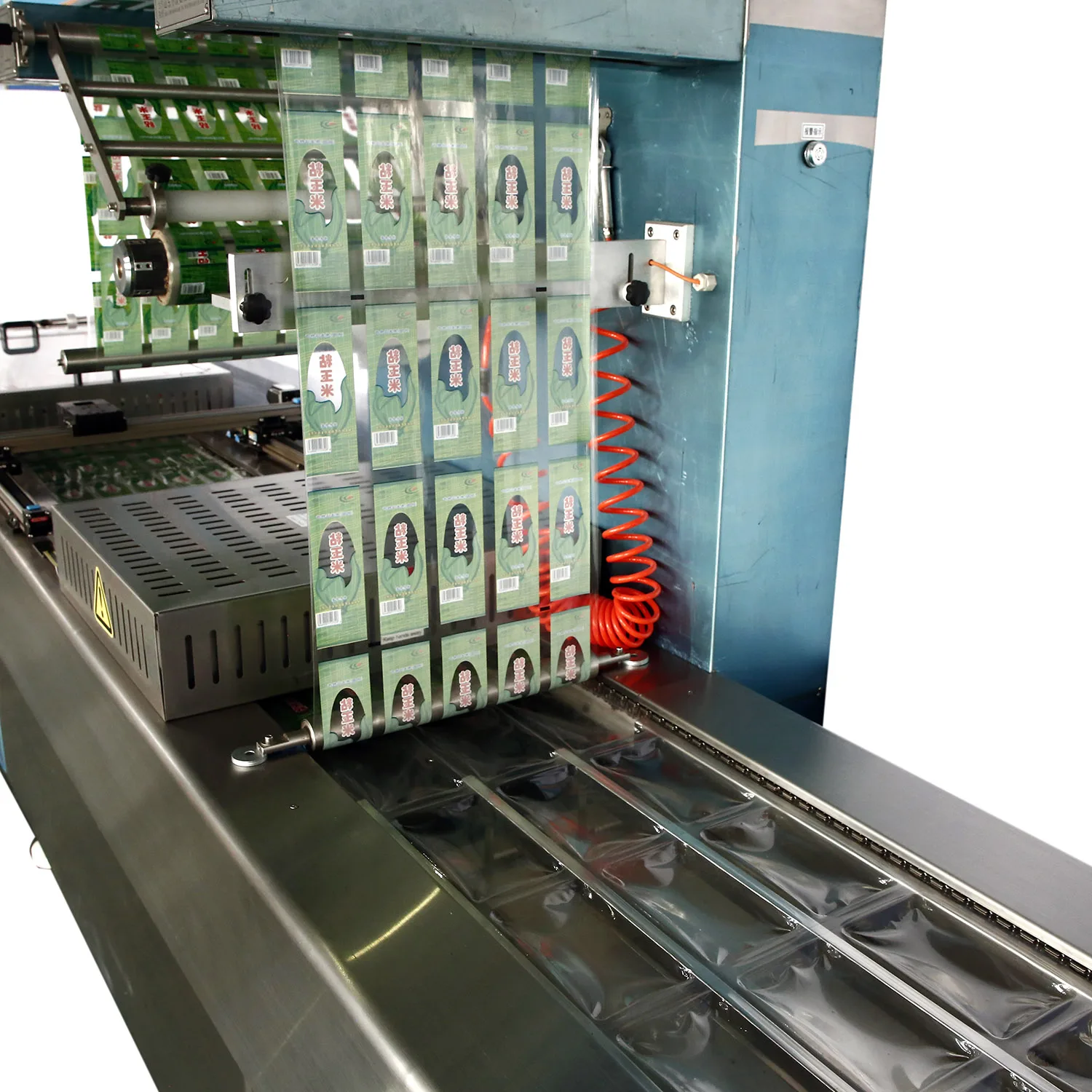

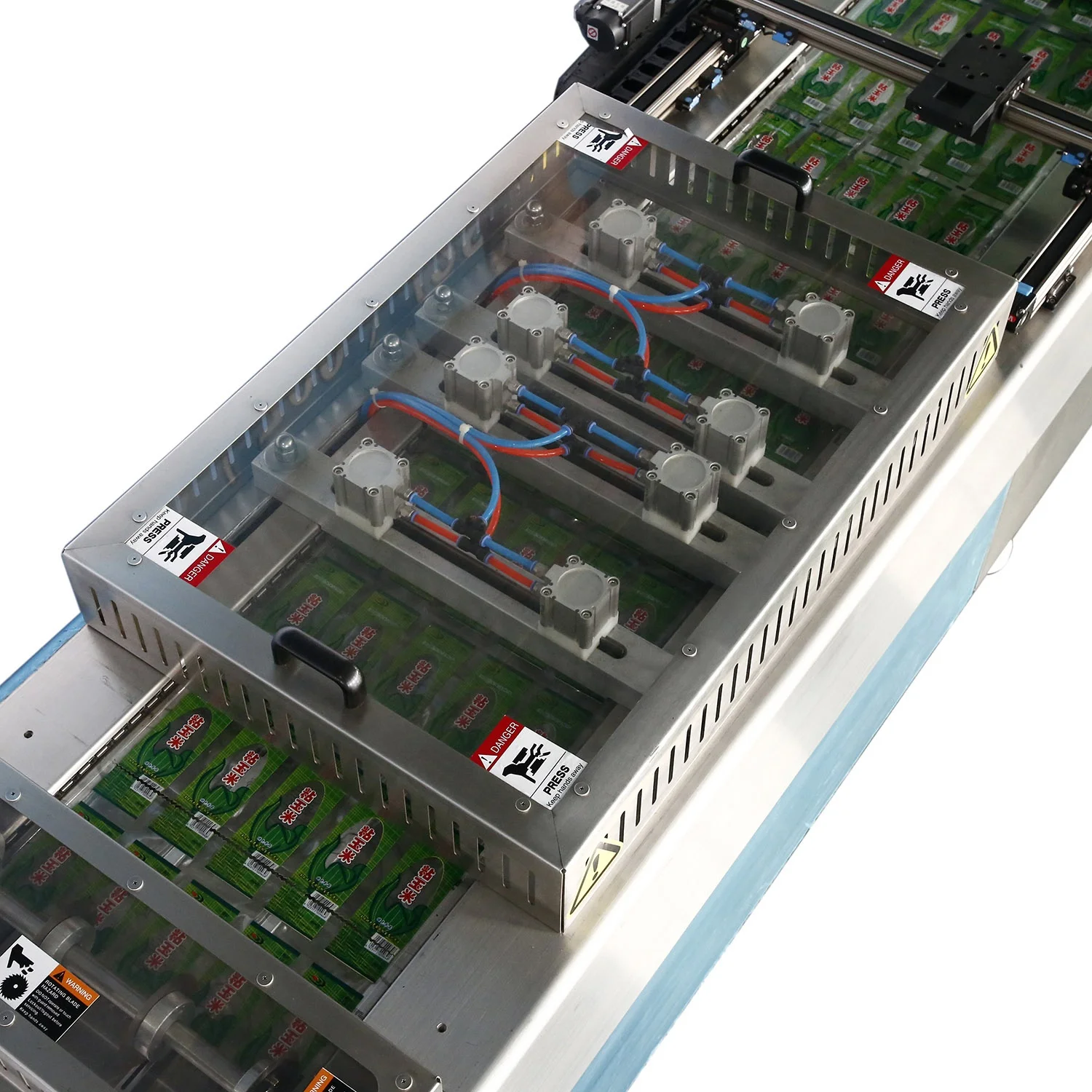

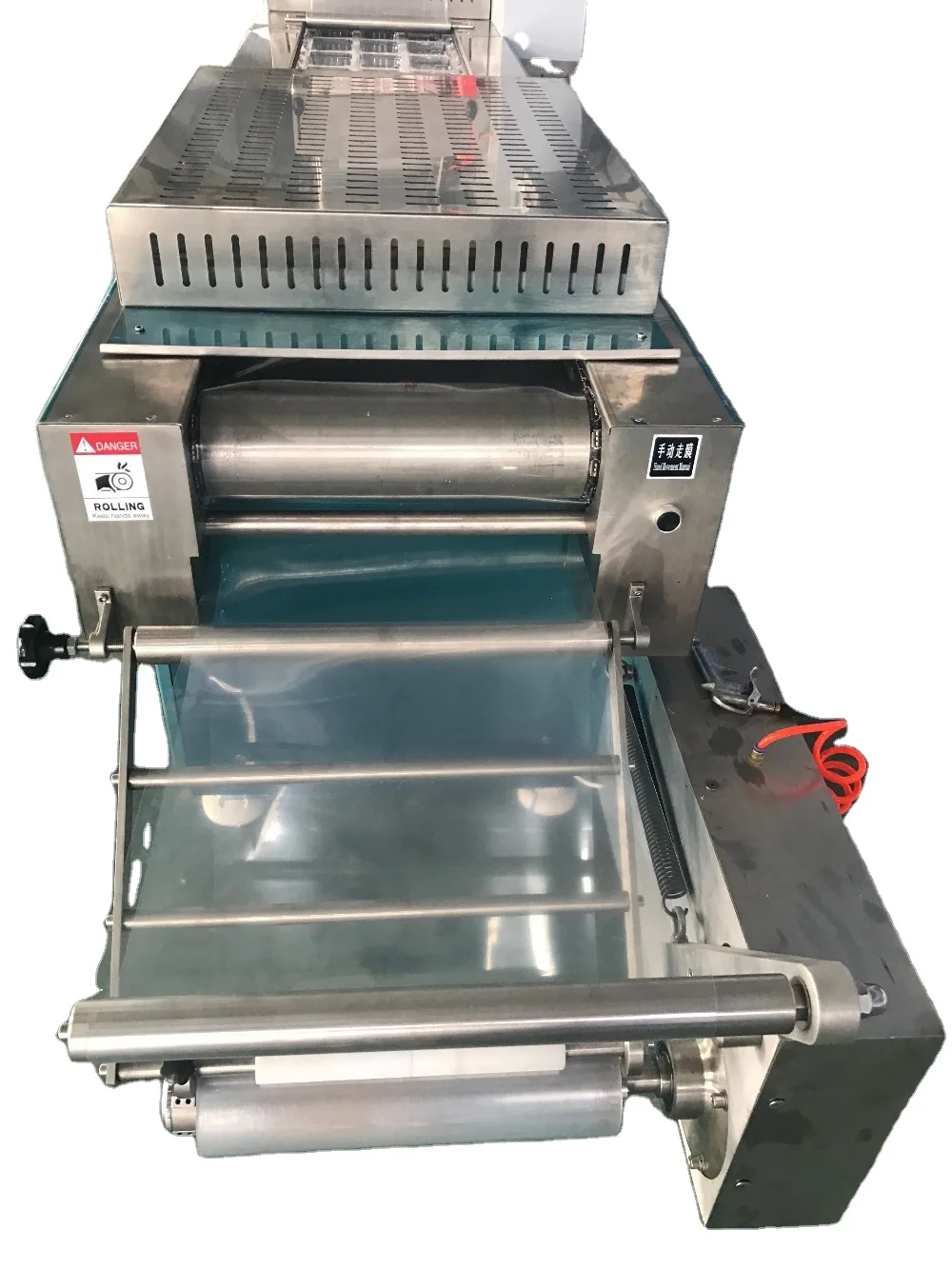

Thermforming Vacuum Packing Machine for seafood
25years' experience, Taiwan Funded
Products information
Features:

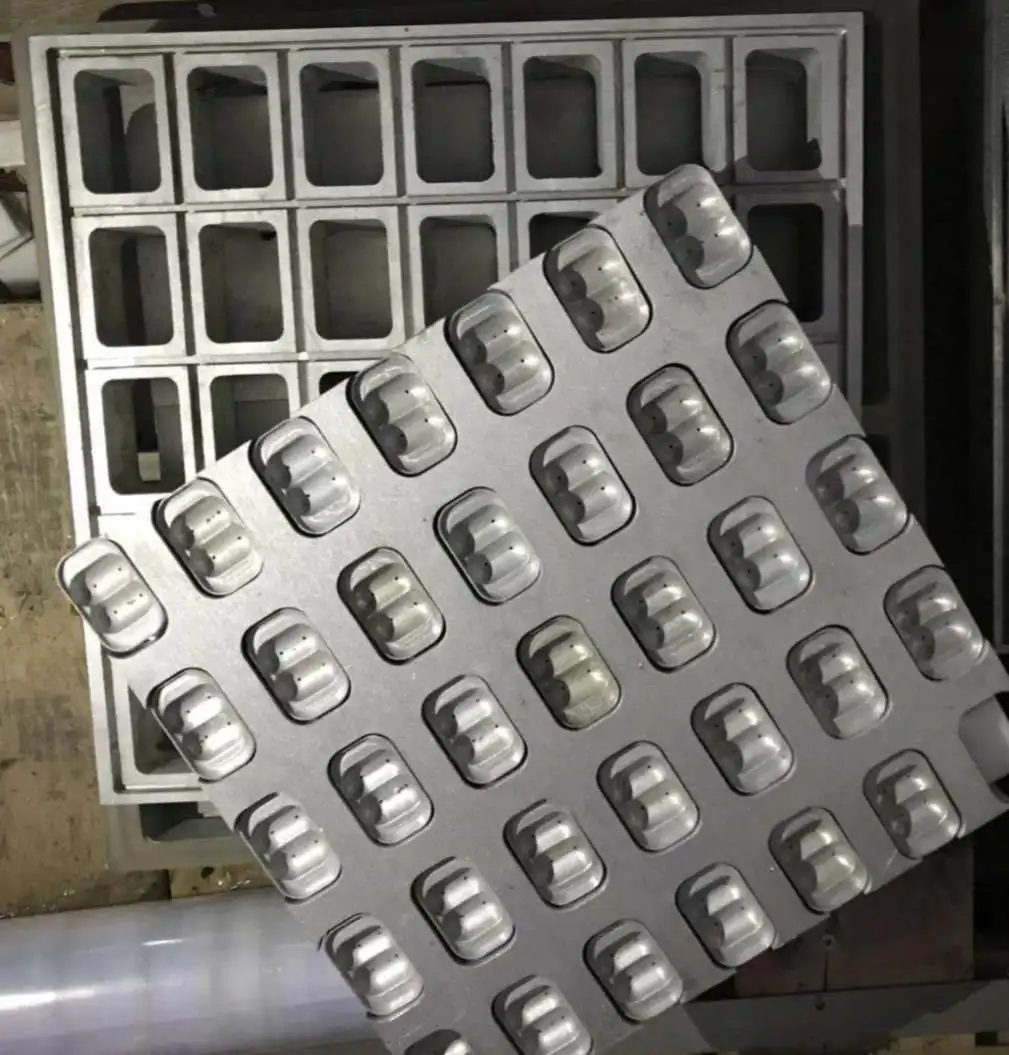

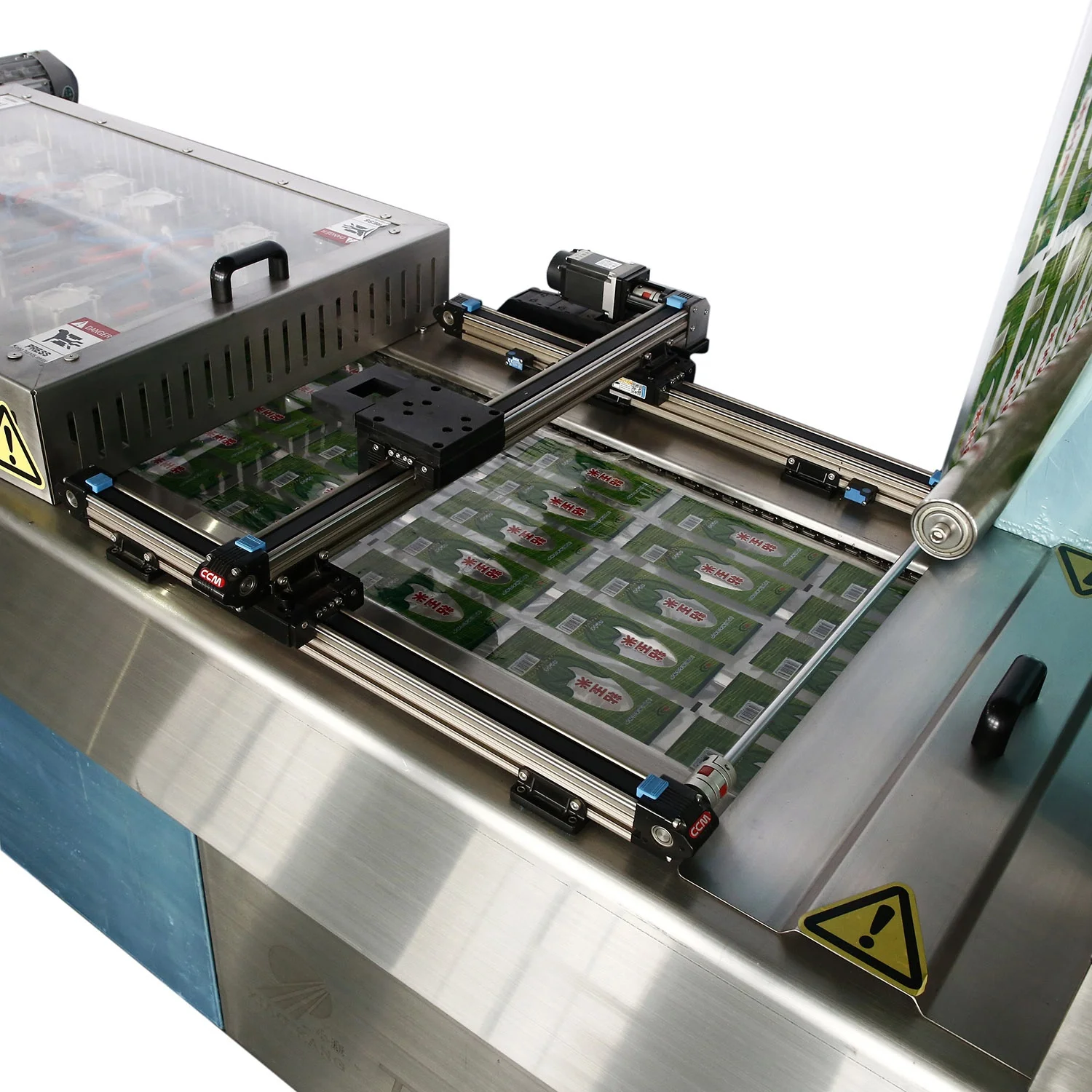

1.Photoelectric tracking device. colorful film can be used. This technology not only reduce cost but also improves the production's grade.2.Multipurpose combined moulds with cooling system, it is easy to change mould.
3.Adopt original German vacuum pump, high vacuum, high quality, high reliability.
4.Wide-angle chain is imported from Italy. It is suitable for stretching and packaging soft. semi-hard and hard film with different thickness.
5.With the leftover Material Recycle System.
6.Advance cross and horizontal cutter
7. Personalized Design
Specification
Item | DLZ-320C | DZ-420D | DZ-420E | DZ-520D | DZ-520E | ||||
Width of upper film | 293-294mm | 393-394mm | 393-394mm | 493-494mm | 493-494mm | ||||
Width of lower film | 322mm | 422mm | 422mm | 522mm | 522mm | ||||
Vacuum | ≤200Pa | ≤200Pa | ≤200Pa | ≤200Pa | ≤200Pa | ||||
Compressed air | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ||||
Cooling water | ≥0.15MPa | ≥0.15MPa | ≥0.15MPa | ≥0.15MPa | ≥0.15MPa | ||||
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||||
Power | 8KW | 12KW | 12KW | 16KW | 18KW | ||||
Dimensions | 4300*780*1760mm | 5600*950*1860mm | 6800*950*1860mm | 6000*1050*1860mm | 7200*1050*1860mm | ||||
Capacity | 4-6 cycles/min | 4-6 cycles/min | 5-6 cycles/min | 4-6 cycles/min | 5-6 cycles/min | ||||
Weight | 950KG | 2000KG | 2400KG | 2200KG | 2600KG | ||||
Warranty | 12 months after commissioning on site, exclude the consumable spare | ||||||||
Vacuum pump | Original Germany BUSCH vacuum pump | ||||||||
Language | English, Chinese, Spain, Russian etc, are optional | ||||||||
Frame | 304 stainless steel | ||||||||
Certificate | CE, ISO9001 | ||||||||
Finished product
Why Choose Us
Marketing Campaign

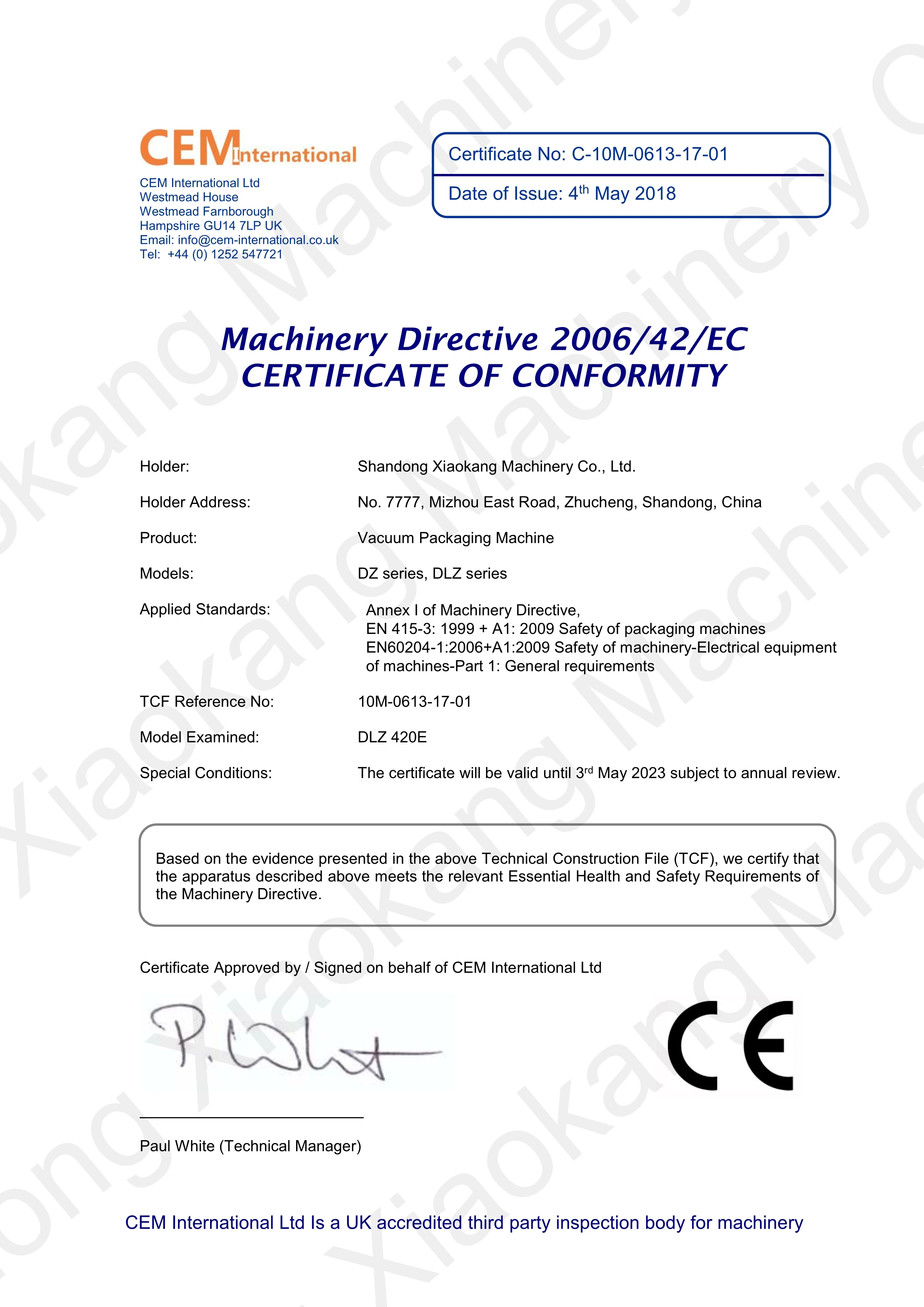

Certifications

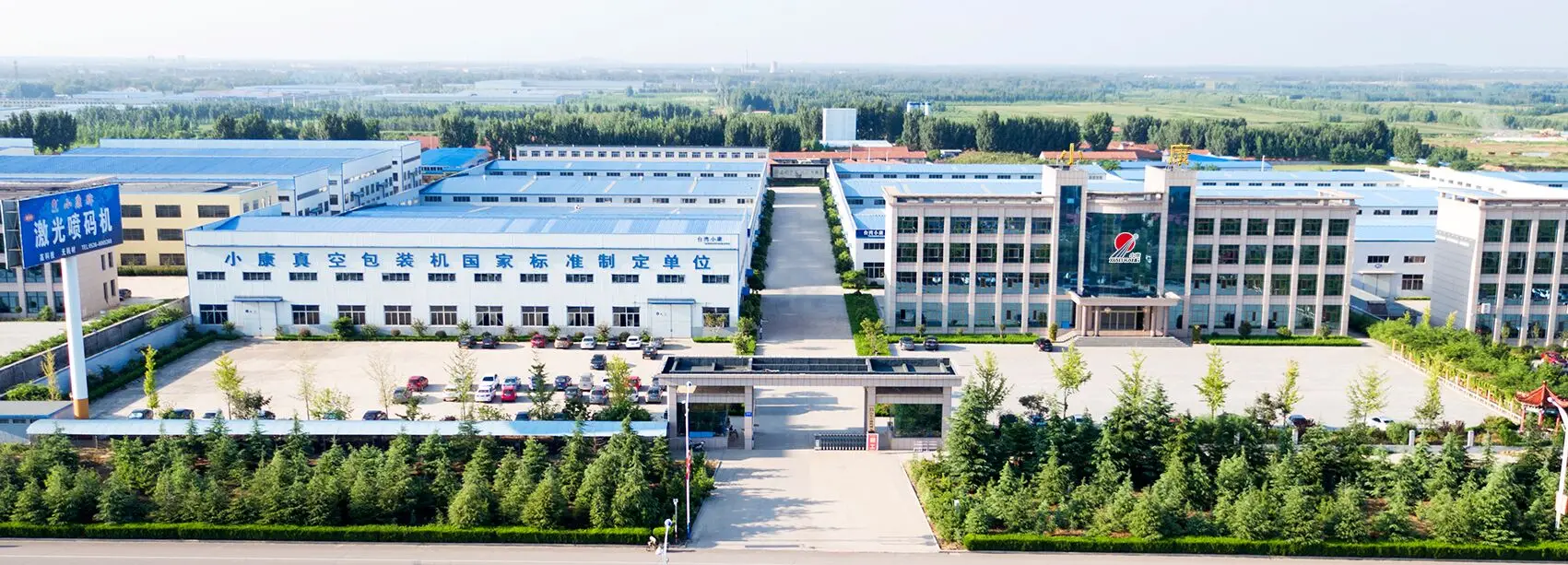

Company Profile
China Shandong Xiaokang Machinery Company
Shandong Xiaokang Machinery Company was built in 1995, having 260 staffs, 68 engineers including. The company occupies 90000 square meters, and the manufacturing room is 30000 square meters. Located in Zhucheng, Shandong, China.
Shandong Xiaokang Machinery Company is the only wholly foreign-owned enterprise which produce vacuum packaging machines in China. We are professional in designing and making vacuum packaging machines. As the drafting enterprise of China national standard in vacuum packaging machine field. We are always the most outstanding one in national technical quailty inspection for several years.
We invite you to visit our company sincerely, and cooperating with Xiaokang will be your most sensible choice!
Shandong Xiaokang Machinery Company is the only wholly foreign-owned enterprise which produce vacuum packaging machines in China. We are professional in designing and making vacuum packaging machines. As the drafting enterprise of China national standard in vacuum packaging machine field. We are always the most outstanding one in national technical quailty inspection for several years.
We invite you to visit our company sincerely, and cooperating with Xiaokang will be your most sensible choice!
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q:What about your warranty?
A:12months after commissioning on site, exclude comsuable spares
Q:What about your warranty?
A:12months after commissioning on site, exclude comsuable spares
Q: Is there any installation direction after we received the machine?
A:Yes, we provide both theoretical and practical training for the equipment operator of the client company to standardize the operation and maximize the equipment production efficiency.
Q: What is your terms of payment?
A:30% down payment by Telegraphic Transfer against Proforma Invoice. 70% balance by Telegraphic Transfer before loading.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A:Yes, we provide both theoretical and practical training for the equipment operator of the client company to standardize the operation and maximize the equipment production efficiency.
Q: What is your terms of payment?
A:30% down payment by Telegraphic Transfer against Proforma Invoice. 70% balance by Telegraphic Transfer before loading.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
