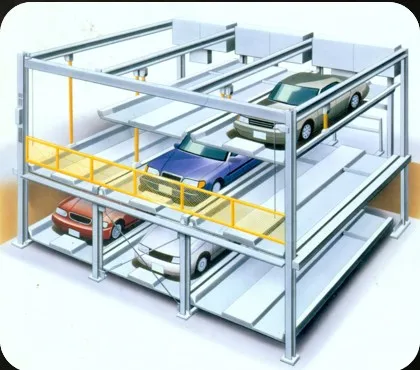

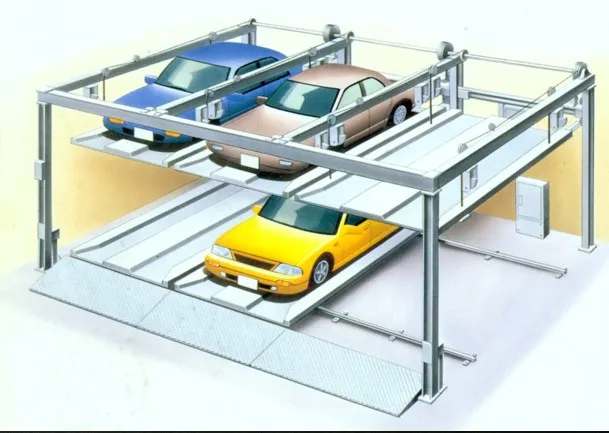

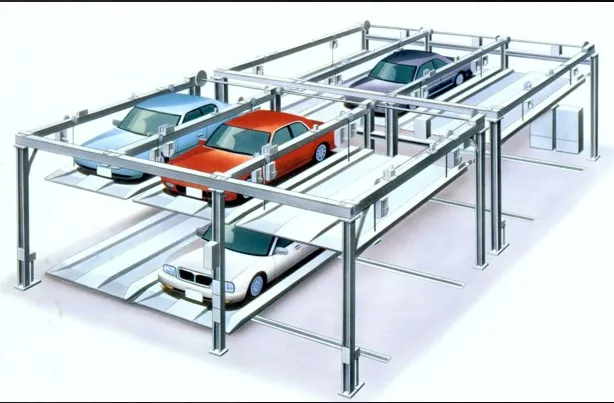

Puzzle parking system mechanical car parking equipment from experience manufacturer
- Category: >>>
- Supplier: Qingdao Wisdom Intelligent Equipment Co. Ltd.
Share on (1600411087014):
Product Overview
Description
Product Description
Main Features:
- It is easy to build and flexible to arrange.
Do not need too much civil engineering, construction is convenient, flexible arrangement.
2. Stable operation, easy to use.

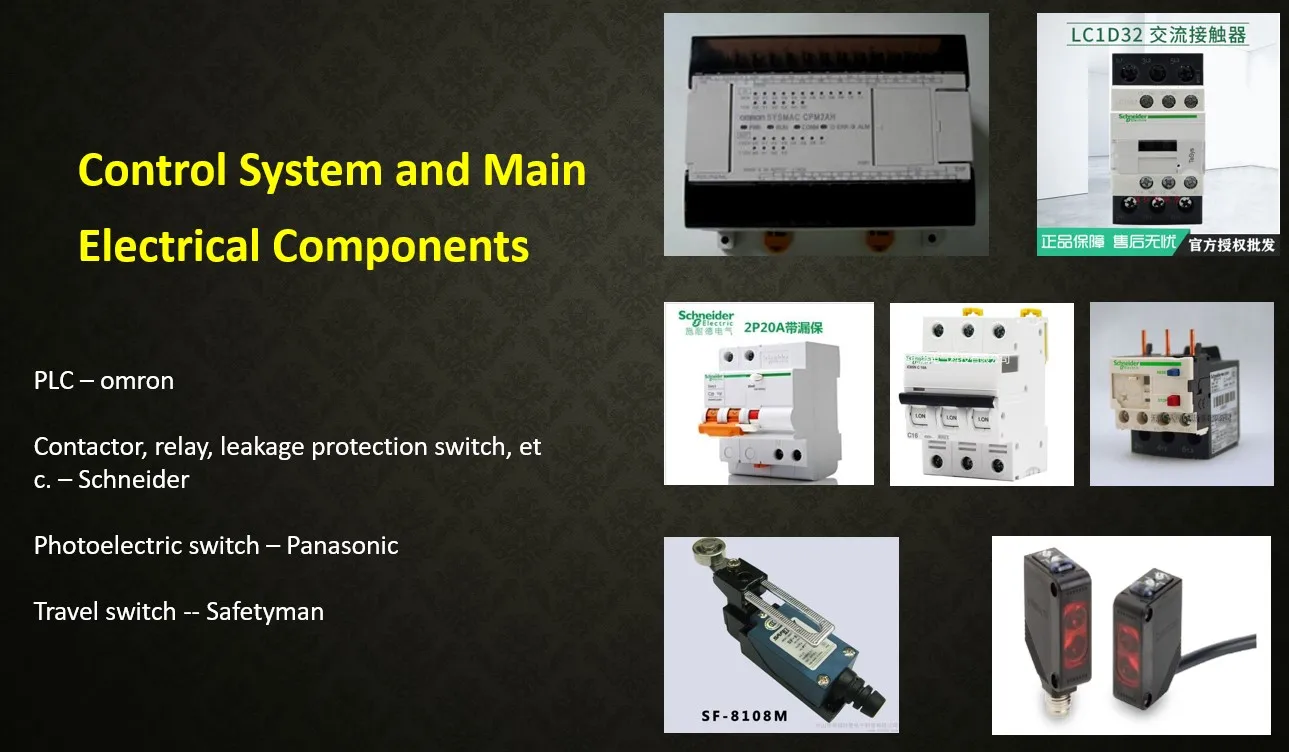

PLC control mode, smooth operation, easy operation, low noise, low cost.
3. Simple structure, easy to get in and out.

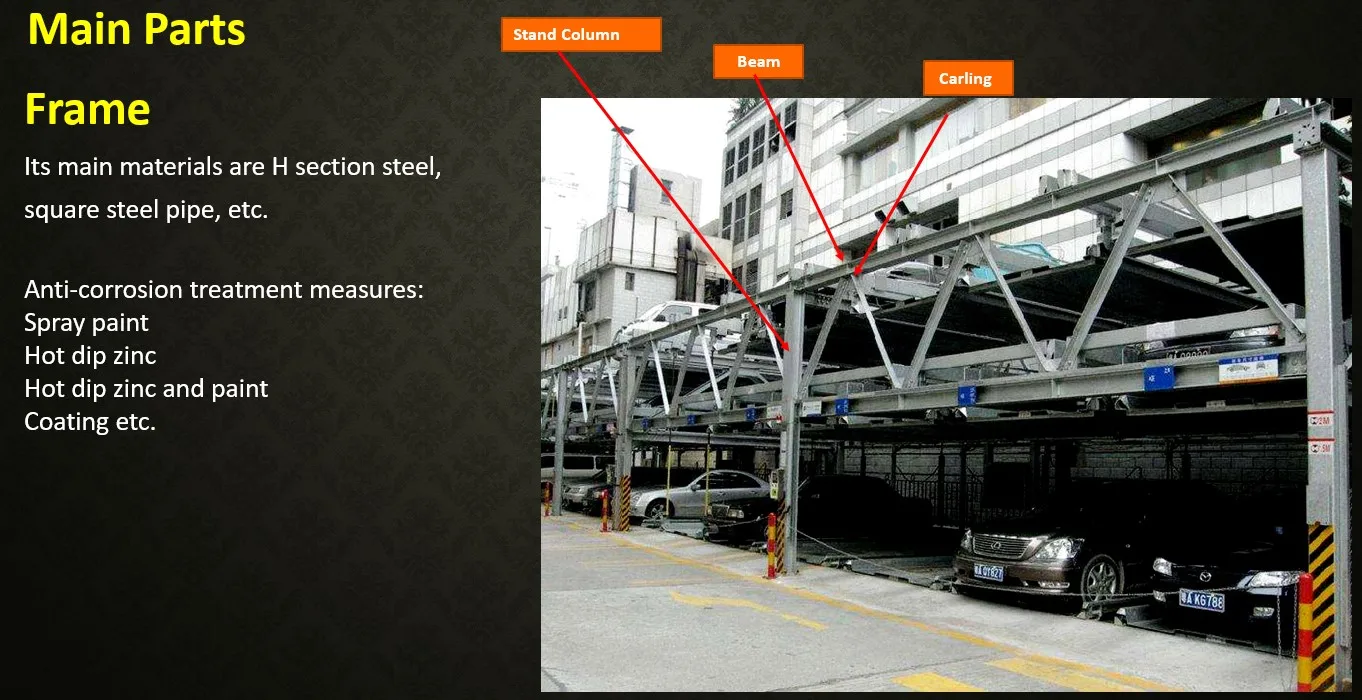

Steel frame adopts front column cross beam type to facilitate vehicle access.
Tech Parameters:
PSH2 | PSH3 | PSH4 | PSH5 | PSH6 | |
Lifting Speed | 4.4m/min | 4.4m/min | 6m/min | 6m/min | 6m/min |
Slide Speed | 7.2m/min | 7.2m/min | 7.2m/min | 7.2m/min | 7.2m/min |
Max PickupTime | 73s | 119s | 166s | 161s | 195S |
Frame Length (Outside) | 5850mm | 6420mm | 6420mm | 6830mm | 6830mm |
Frame Width (3 Columns ) | 7400mm | 7600mm | 7600mm | 8100mm | 8100mm |
Operate System | PLC | PLC | PLC | PLC | PLC |
Power | Lifting 2.2kW Slide 0.2kW | Lifting 2.2kW Slide 0.2kW | Lifting 3.7kW Slide 0.2kW | Lifting 3.7kW Slide 0.2kW | Lifting 3.7kW Slide 0.2kW |
Height calculation formula | The First Floor 1900mm+ Middle 1700mm+ Top 1680mm | ||||
Mode of Operation | Button, Touch Screen, ID Card (Option) | ||||
Fire Control Mode | Water spray | ||||

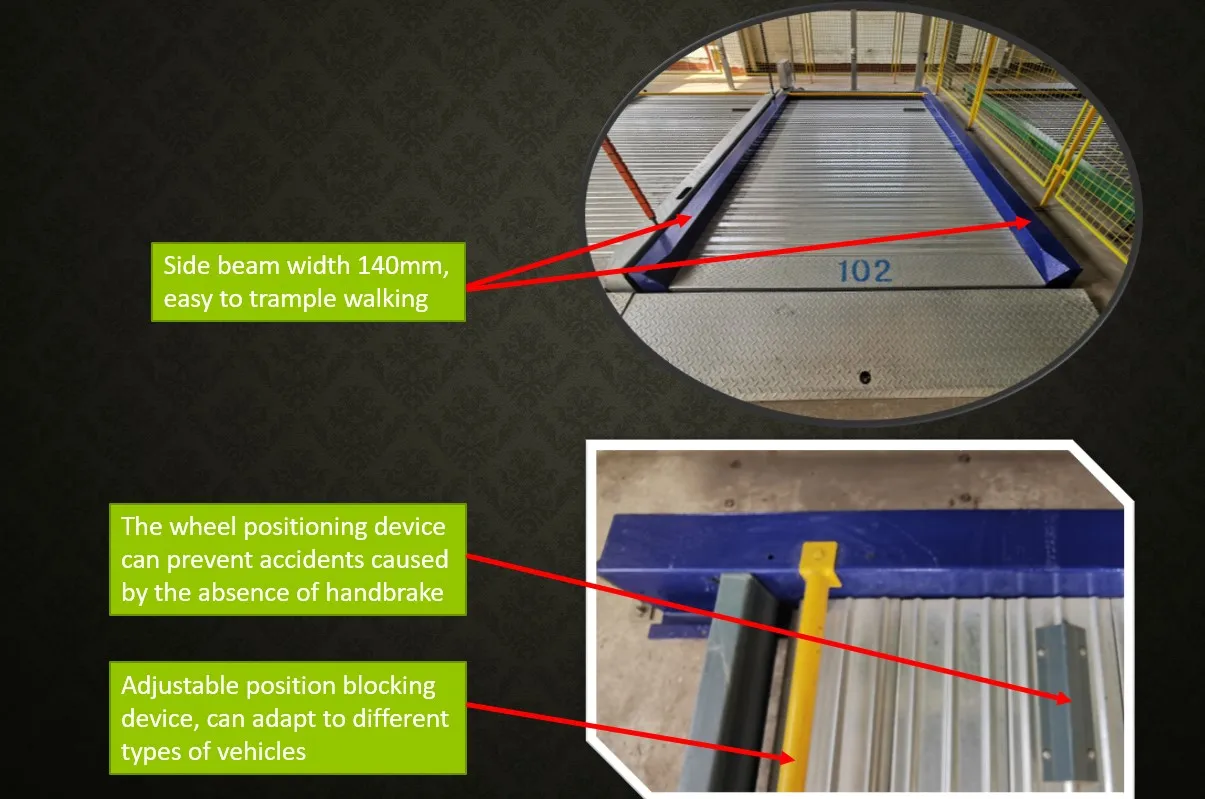

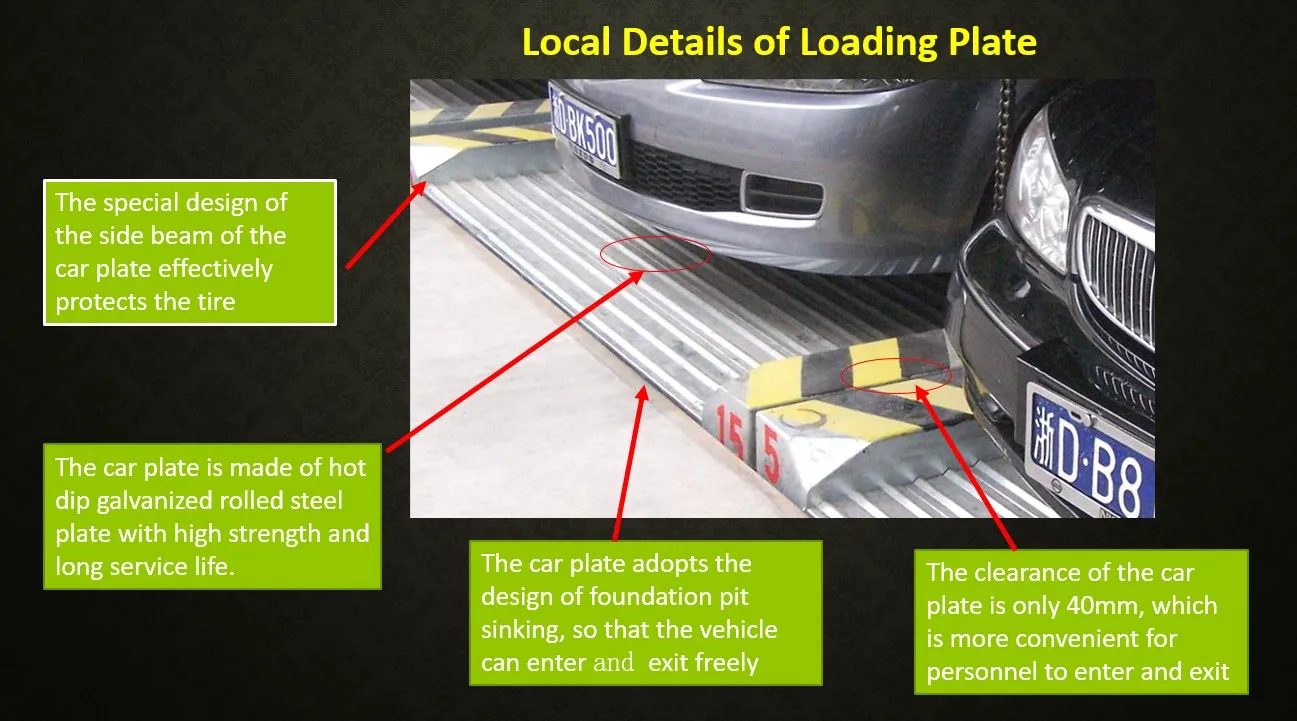

Detail Introduction:
Company Profile:
Qingdao Wisdom Intelligent Equipment Co., Ltd.,
Wisdom Intelligent Equipment Co., Ltd., is a high-tech enterprise integrating product design, R&D, production and sales with technological innovation and intelligent manufacturing. We specializes in high-power laser cutting, pipe cutting, welding, robotic production lines and smart car parking systems .
We are located in the new and old kinetic energy conversion demonstration park of Wangtai Town, West Coast of Qingdao. It covers an area of 150, 000 square meters.
We have more than 600 sets of various types of advanced equipment, including machining centers, large floor boring machines, large gantry planer machines, gantry milling machines, cylindrical grinding, CNC shears, CNC bending, CNC flame cutting, laser cutting, multi-function mill lines, column punching hole and rolling line, beam rolling mill line, beam rolling mill, electrostatic powder coating assembly line.
Since the establishment, we have always adhered to people-oriented, management-based, technological innovation as the driving force, quality for development, expansion of the market by variety, customer satisfaction to establish a brand, and continuous creation of a unique enterprise culture, innovating in work, and established a good sales service system, quality assurance system and modern scientific management system. Our goal is to strive for a world-famous brand. By high-quality products and good services, all staff will work hard and sincerely cooperate to create a better future together.
We are located in the new and old kinetic energy conversion demonstration park of Wangtai Town, West Coast of Qingdao. It covers an area of 150, 000 square meters.
We have more than 600 sets of various types of advanced equipment, including machining centers, large floor boring machines, large gantry planer machines, gantry milling machines, cylindrical grinding, CNC shears, CNC bending, CNC flame cutting, laser cutting, multi-function mill lines, column punching hole and rolling line, beam rolling mill line, beam rolling mill, electrostatic powder coating assembly line.
Since the establishment, we have always adhered to people-oriented, management-based, technological innovation as the driving force, quality for development, expansion of the market by variety, customer satisfaction to establish a brand, and continuous creation of a unique enterprise culture, innovating in work, and established a good sales service system, quality assurance system and modern scientific management system. Our goal is to strive for a world-famous brand. By high-quality products and good services, all staff will work hard and sincerely cooperate to create a better future together.
Our Services
Successful Projects:
Looking forward to your business!
