MACES4C 00 Bean to Cup Freshbrew Coffee Vending Machine with 15.6inch Capacitance screen automatic coffee machine with grinder c

Product Overview

Description

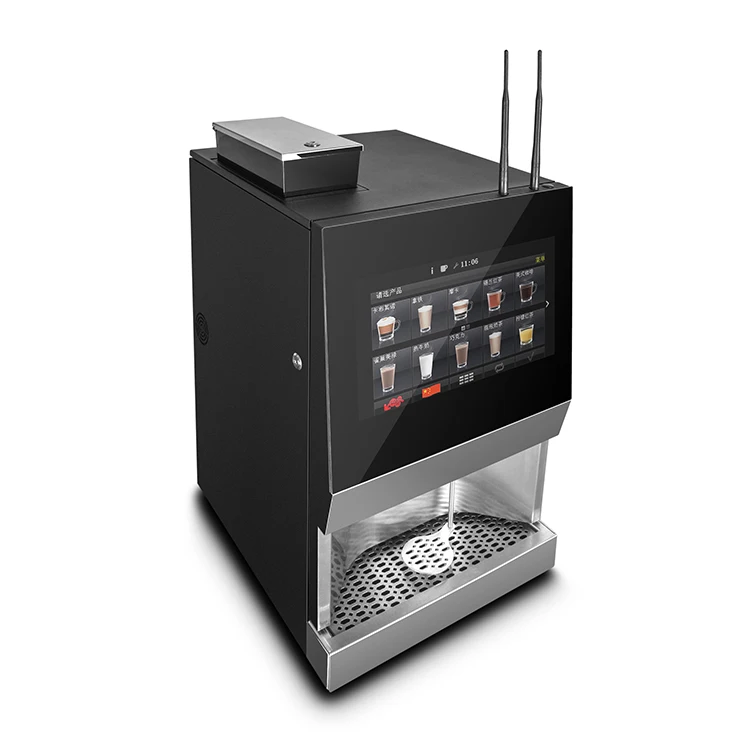

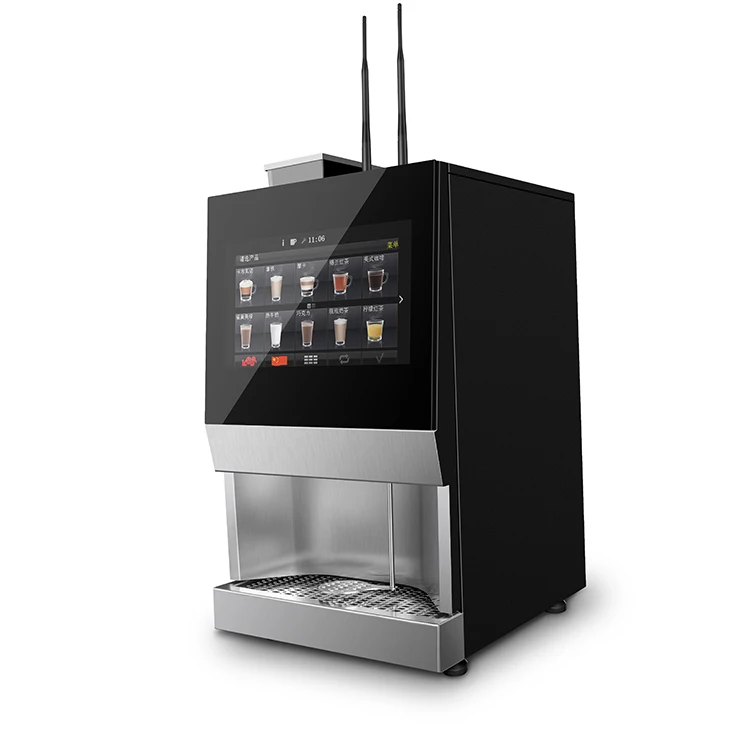

MACES4C-00 Bean to Cup Freshbrew Coffee Vending Machine with 15.6inch Capacitance screen

Model No.

MACES4C-00



Machine Dimension: H 700mm, W 420mm, D 450mm

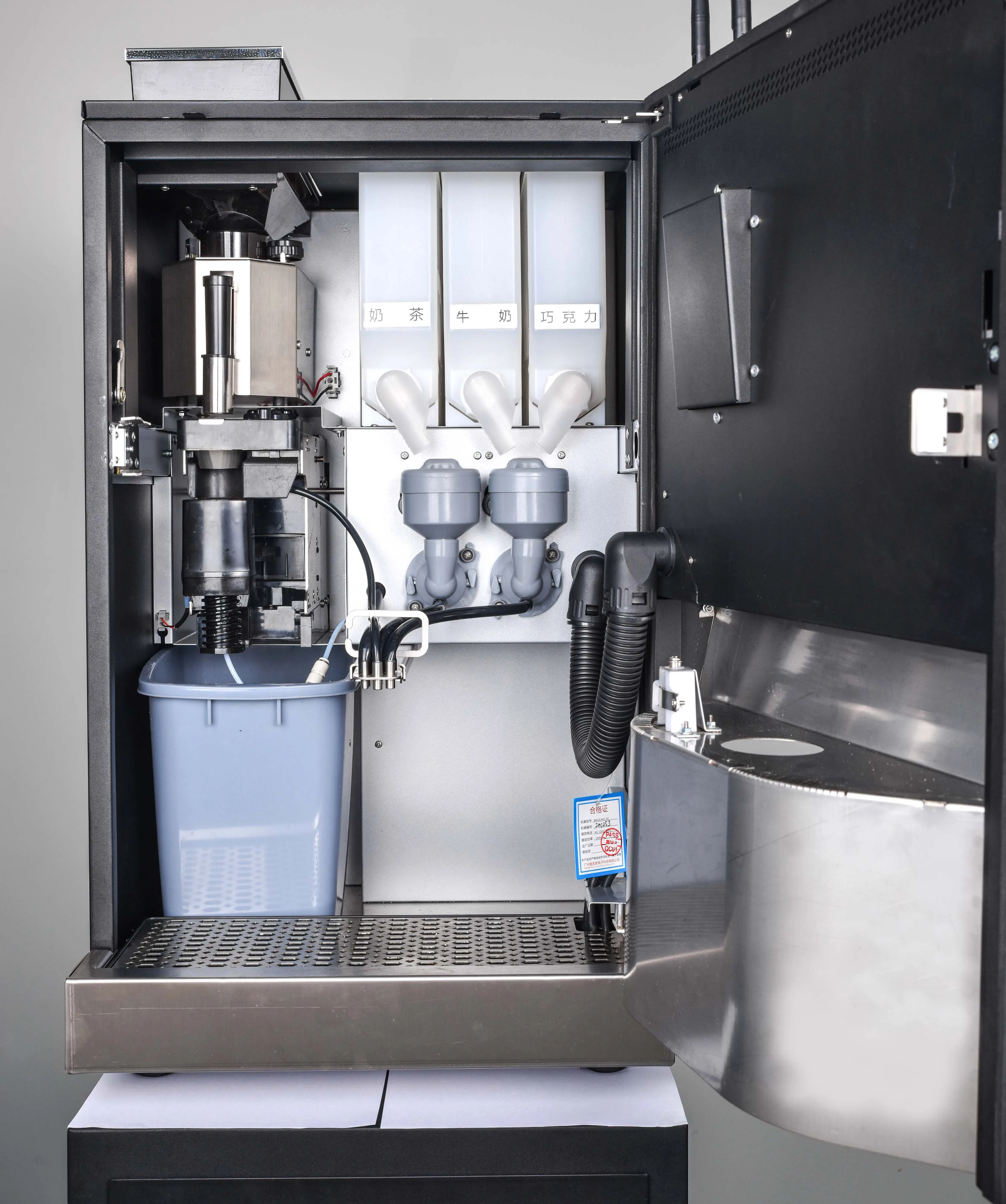

MACES4C machine is composed of the following parts:

Grinder, Brewer, coffee bean canister, 3units of instant powder canisters, 2 units of mixer, 1 unit of coffee residue bucket, 1uint of water dirp tray, hot water system, drink outlet mouth, control system(IO+ touch screen), Shell, door and other modules.



Option system ( Foam system, Fresh Milk system)

Ø Optional module

l Coin changer and boxer

l 4G router

l Remote control

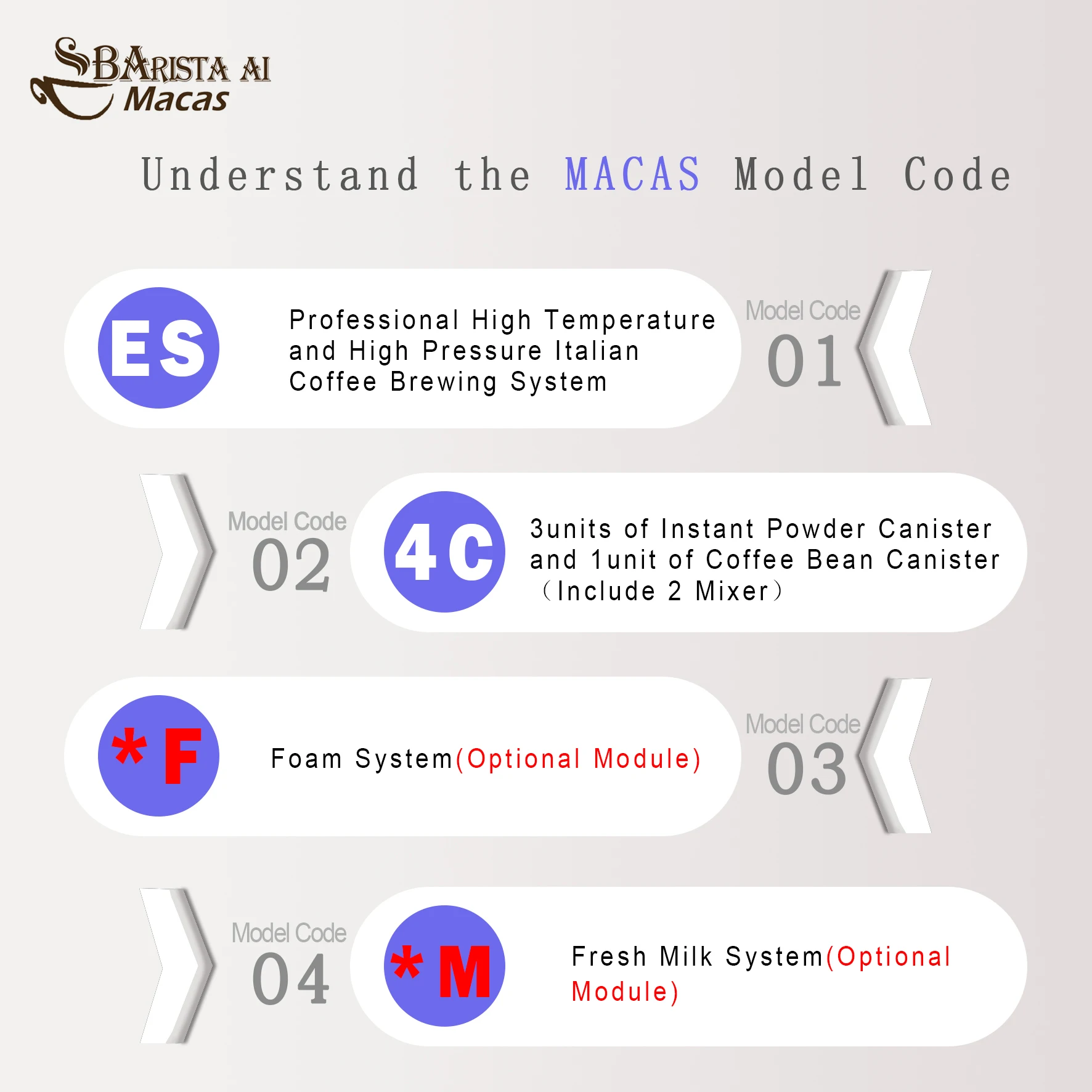

Main parts:(Include“*”means optional)

Ø ES: Professional high temperature and high pressure Italian coffee brewing system

Ø 4C: 3units instant canisters and 1unit coffee bean canister(include 2units mixer)

Ø *F: Foam system (Making high-quality cold and hot milk foam with milk powder)

Ø *M: Fresh Milk system (Making high-quality cold and hot milk foam with fresh milk)







1. Major Beverage List

MACES4C-00 machine can provide different drinks based on customer requirements. But major include: hot water, instant drinks , Italian coffee.



Ø Bevergae List(Display on touch screen):

l Italian coffee

l Americal coffee

l Cappuccino

l Caffe Latte

l Mocha

l Tea with milk

l Hot milk

l Hot chocolate

l Chocolate milk

l Hot water

Ø Sugar can be selected

Ø Other types of drinks can be configured according to customer requirments.



2. Feature:

Ø Embedded Barista AI artificial intelligence system, This system can accurately reproduce and control the process steps of professional coffee makers.

Ø 10 inch industrial display and capacitive touch system

Ø Vending system supports Multi-platform ( LINUX, ANDROID, WINDOWS )

Ø Machine Dimension:700(H) x 420(W) x 450(D)mm

Ø Mug(Height can be adjusted)

l Max cup height:110mm

l Min cup height:70mm

Ø Max height of coffee pot:180 mm

Ø Drip tray full water reaction

Ø Drip tray position reaction

Ø Canister with no bean detection

Ø All executable component can reporting status, for example: Valve,motor blocking with over current protection,disconnection detection ,status report

Ø Boot with self check, water system alarm with no water

l Communication port: USB, 4G router

Ø Payment interface: MDB ( Card reader,Coin changer can be selected )

Ø BACK-OFFICE-SYSTEM: EVA-DTS

l product price setting

l Vending data statistic

l Machine status mornitor

Ø Dose can be adjusted on background software

Ø Intelligent machine maintenance system

Ø Daily automatic cleaning

Ø Automatic descaling

Ø Automatic remove the powder in the grider

Ø Drinks configuration and machine configuration graphical tool

Ø High flexible parameter configuration adjustment tool

Ø Support Multinational languages

Ø Multimedia Video Advertisement playing during standby time



3. Key Parameter

Ø Life:125000cups,( Evaluation: design life of core modules is 5years,100cups/day,250days/year.)

Ø Failure rate: 1.5times/year

Ø Single instant drink in 20 seconds (120ml)

Ø Single Espresso coffee in 40seconds (30ml) ( brewing 35seconds)

Ø Hot water outlet speed: 20L/H

Ø Machine startup in 4mimutes,include boiler heating time.



4. Maintenance

Ø Rapaid maintenance guide card

Ø Maintenance handbook: DE/EN/FR/ES/CN ( include accessory list)

Ø Water system chart

Ø Frequency of maintenance: 100cups of fresh coffee or daily

Ø Maintenance guide card



5. Storage



Ø Storage temperature:+5°C-+50°C

Ø Humidity: 10%-90%



6. Standard



Ø Electrical safety(CE):

l LOW VOLTAGE DIRECTIVE 2006/95/EC

l HARMONIZED STANDARDS: EN 60335-1/EN 60335-2-75

Ø EMC:

l DIRECTIVE 2004/108/EC

l HARMONIZED STANDARDS: EN 61000-6-3 / EN 61000-6-1 / EN 61000-3-2 / EN 61000-3-3 / EN 55014-1 / EN 62233

Ø ROHS:

l DIRECTIVE 2002/95/EC

Ø Food safety:

l DIRECTIVE 1935/2004/EC

Ø Energy consumption :

l Idle energy:< 5W



7. Machine installation



Ø Power supply: AC230 V / 50 Hz/60HZ

Ø Installation power: 3000W

Ø Fuse: 15A

Ø Inlet water pressure: 0.5 – 7 BAR

Ø Background installation space: 60 mm

Ø The side of installation space: 0mm (suggest reserve 5mm)

Ø Inlet water hardness: 2~8ºHD (Filter in need when out of range)

Ø Operating temperature: 5-35°C, Humidity 80%

Ø Weight: 50kg



8. Volume Parameter



Ø Water bucket used for residual air:200ml

Ø Boiler:700ml 2700W AC230V

Ø Drip tray volume:1000ml

Ø Coffee residue bucket volume:100 coffee cakes(based on Espresso product of 8g coffee powder )

Ø Instant canister volume:3units,each unit of 2.5L(volume can be adjusted based on customer)

Ø Coffee bean canister volume:2.2L







Company introduction











Workshop

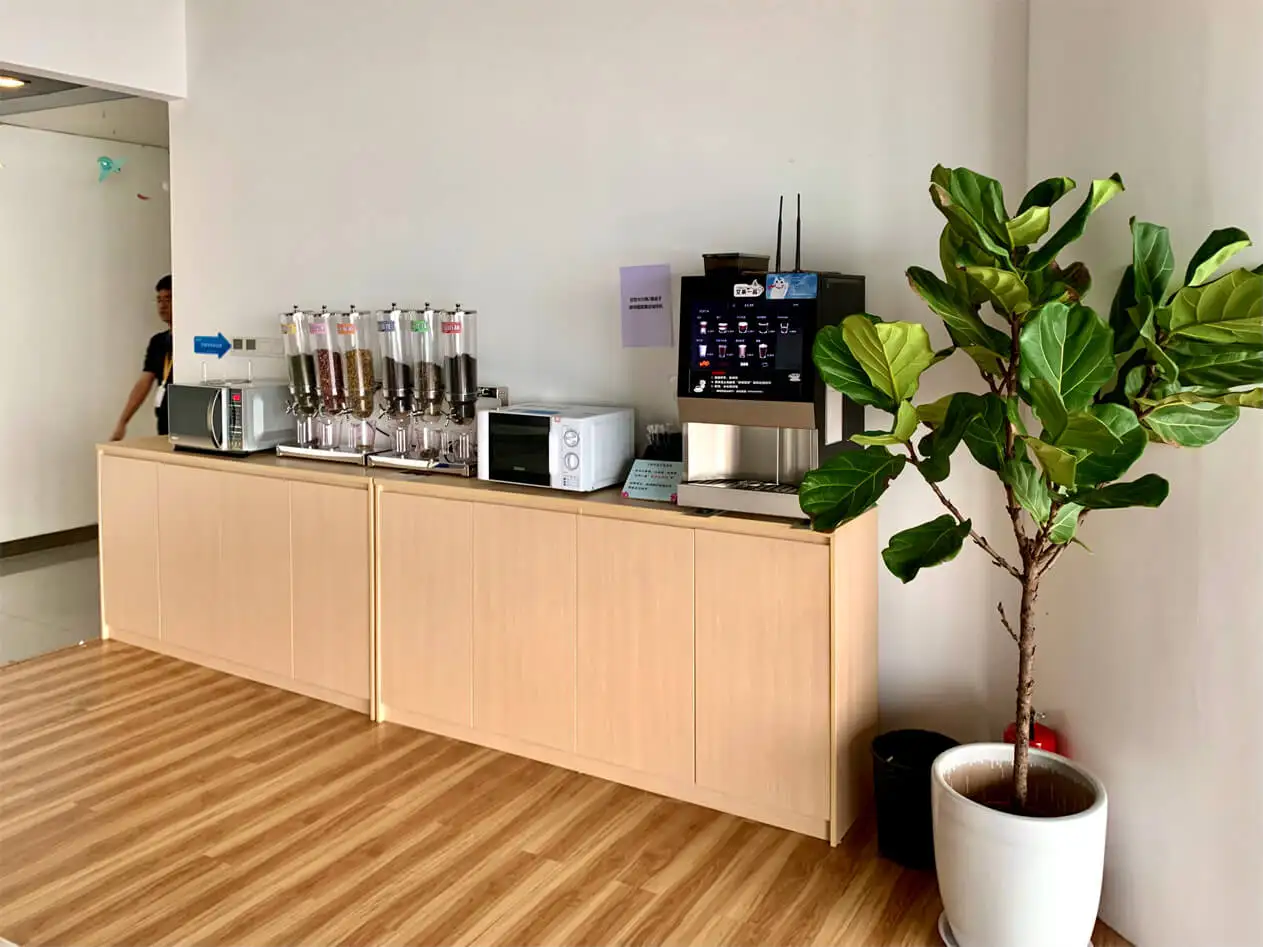

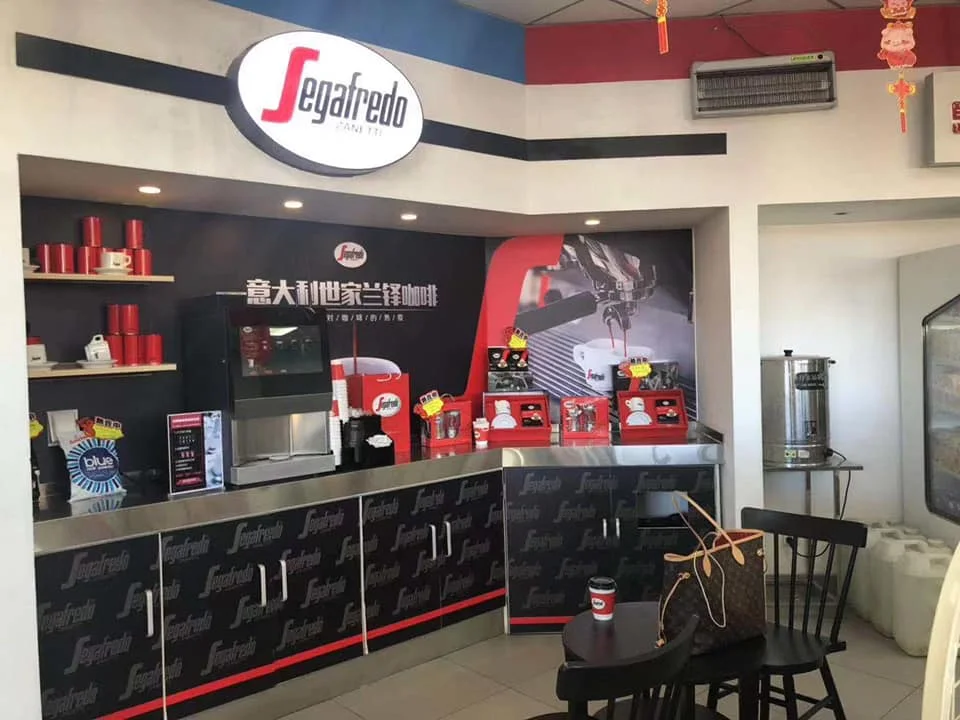

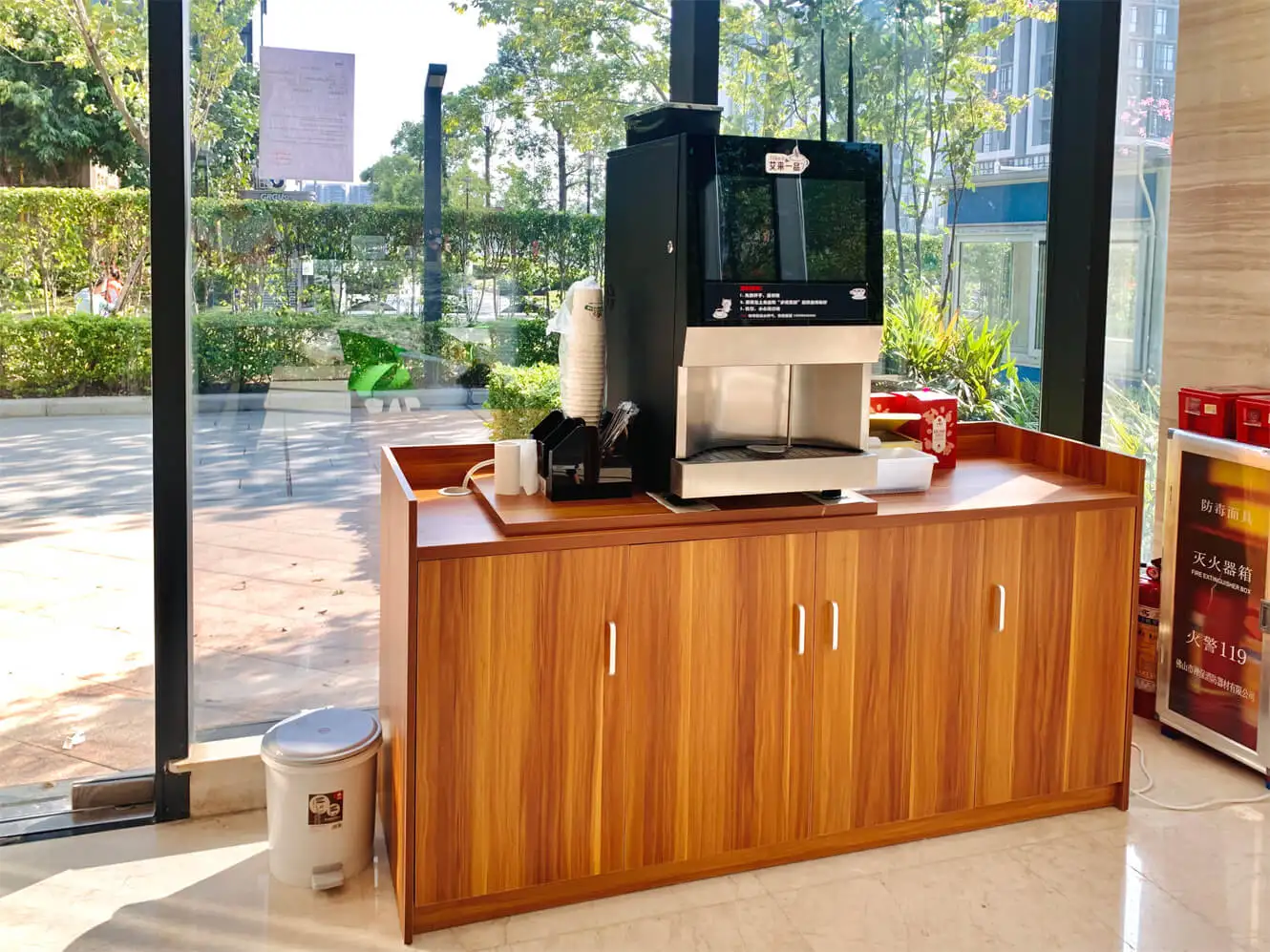

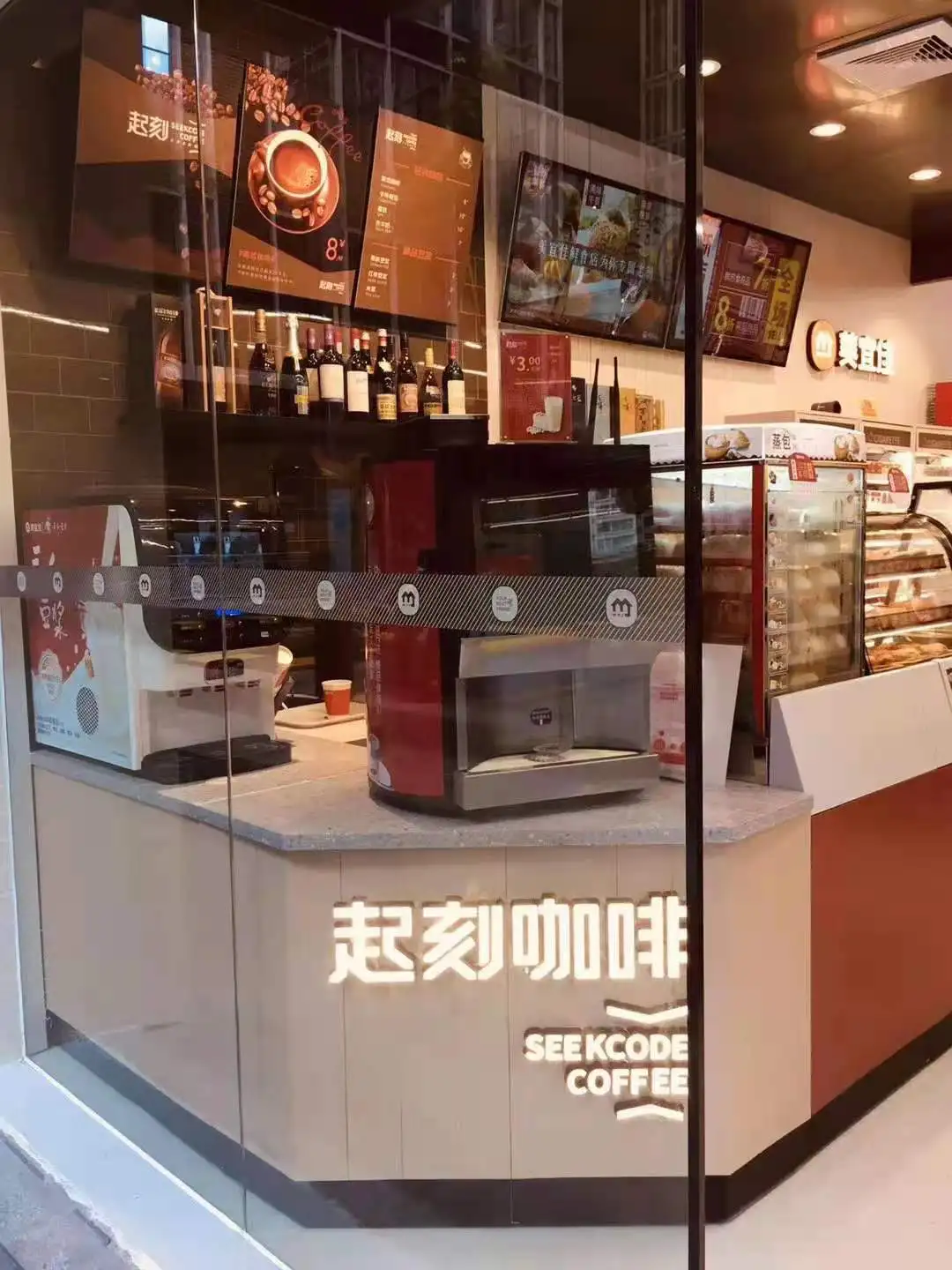

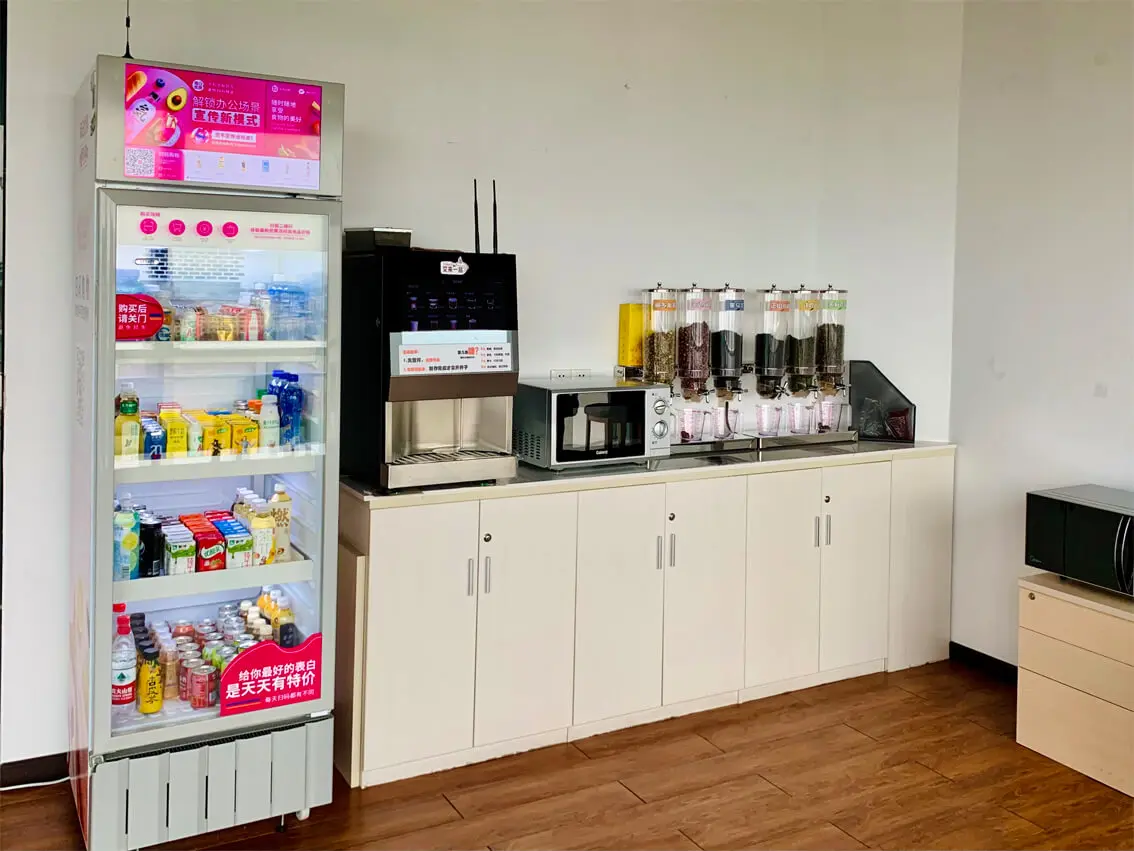

 Application
