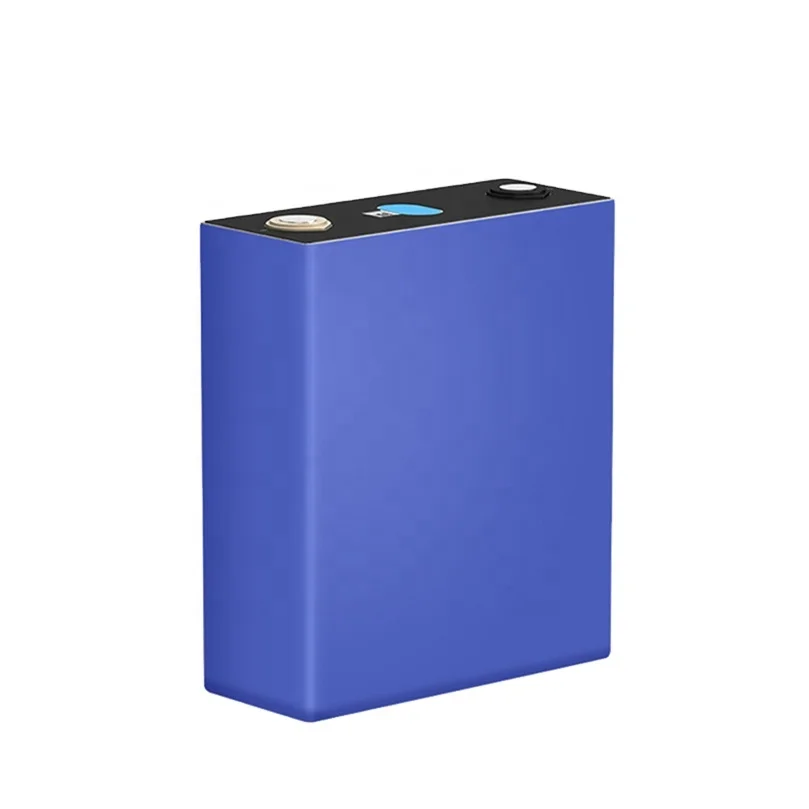

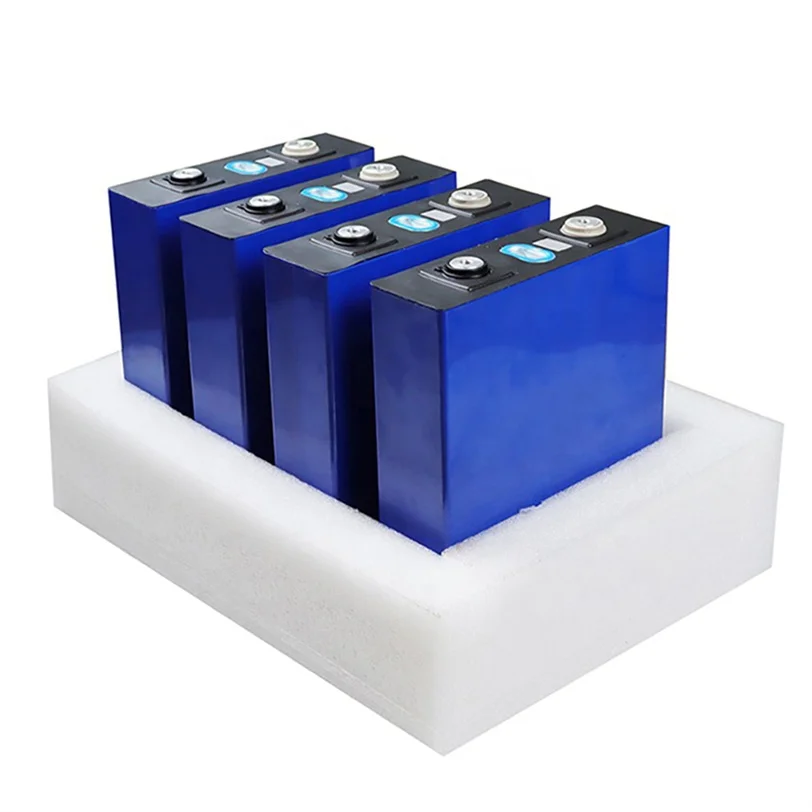

Lifepo4 320ah 3.2v In Stock Lifepo4 Battery Matched Cells Grade A Brand New Intact Qr Lifepo4 320ah Battery Cell
- Category: >>>
- Supplier: Shenzhen Good Leader Technology Co. Ltd.
Share on (1600411114497):
Product Overview
Description
Gobel Help You Build High Performance Lithium Battery
Matched LiFePO4 3.2V 320Ah Battery Cells
Credit Card Accepted
CHOOSE US
LF320
3.2V 320Ah
** Brand New **
Grade A
Intact QR
In Stock

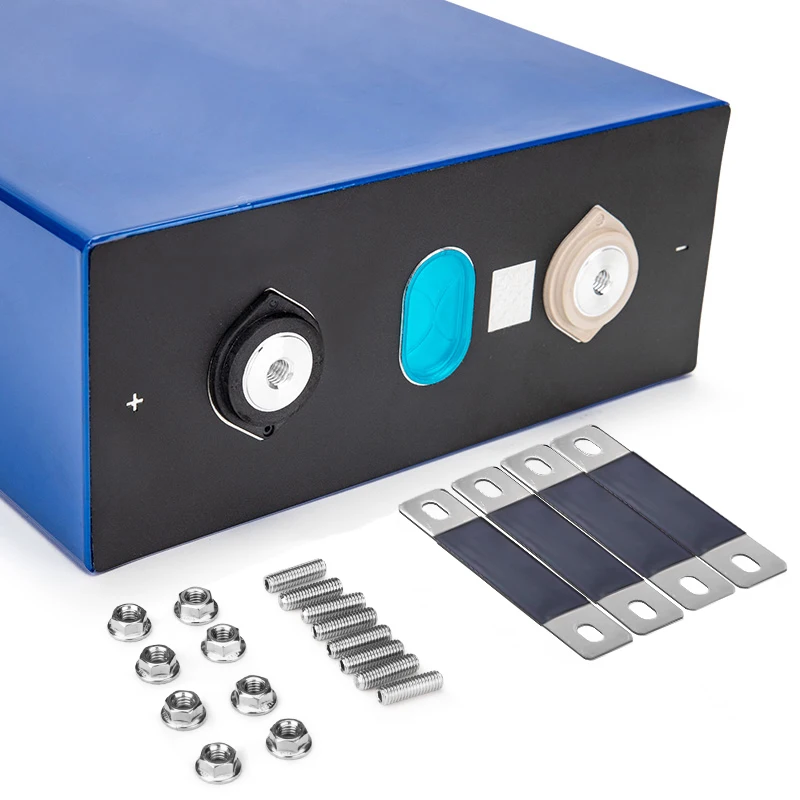

Free Bolts and Bars
Contact Us to Caculate Shipping Cost Brefore Order
Manufacture | GoodLeader |
Distributor | GoodLeader |
Country of Origin | China |
Model Name | LF304 |
Typical Voltage | 3.2V |
Typical Capacity | 300Ah~320Ah |

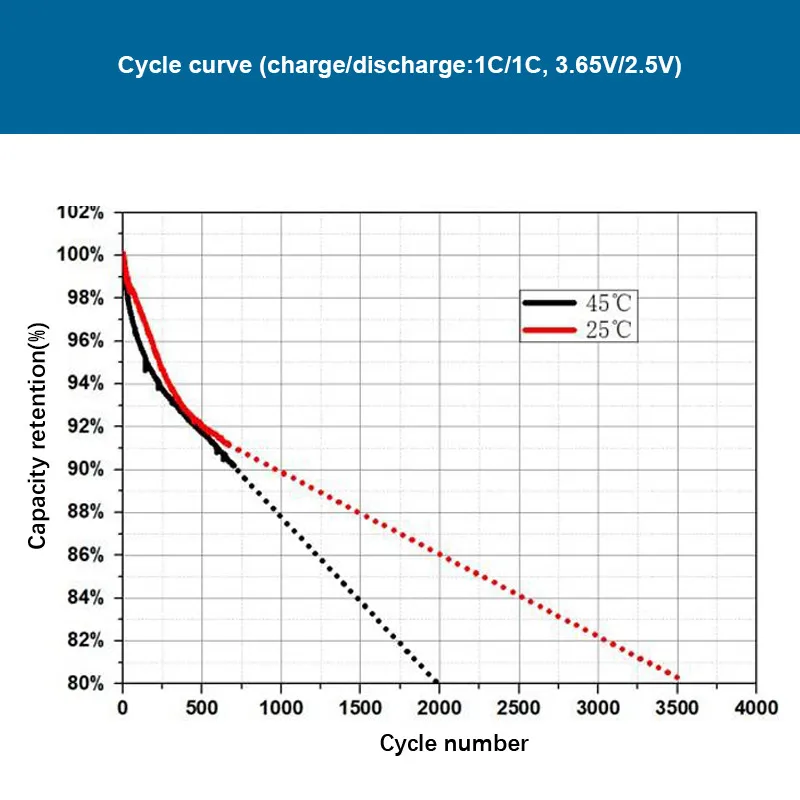

Cycle Life | 3500 |
AC Impedance Resistance | ≤0.5mΩ |
Standard Charge Current | 0.5C |
Standard Discharge Current | 0.5C |
Standard Charge Cut-off Voltage | 3.65V |
Standard Discharge Cut-off Voltage | 2.5V |
Continuous ChargeCurrent | 1C |
Continuous Discharge Current | 1C |
Pulse Charge Current（60s） | 2C |
Pulse Discharge Current（60s） | 2C |
Recommended SOC Window | 10%～90% |
Charging Working Temperature | 0℃～60℃ |
Discharging Working Temperature | -30℃～60℃ |
Short Term Storage Temperature (≤ 1 Month) | -20℃～45℃ |
Long Term Storage Temperature (≤ 1 Year) | 0℃～35℃ |
Storage Moisture | <95% |
Self Discharging Rate | ≤3% per Month |
Screw Size | M6 |
Copper Bar Size | 86*15*2mm |
Cell Dimension | 208.8*72*173.5mm |
Cell Weight | 5.49kg |
Certification | MSDS, UN38.3, CE |
Fully Tested
Each cell will be professionally tested before shipping. We make sure voltage, internal resistence and capacity consistent with offical data sheet.

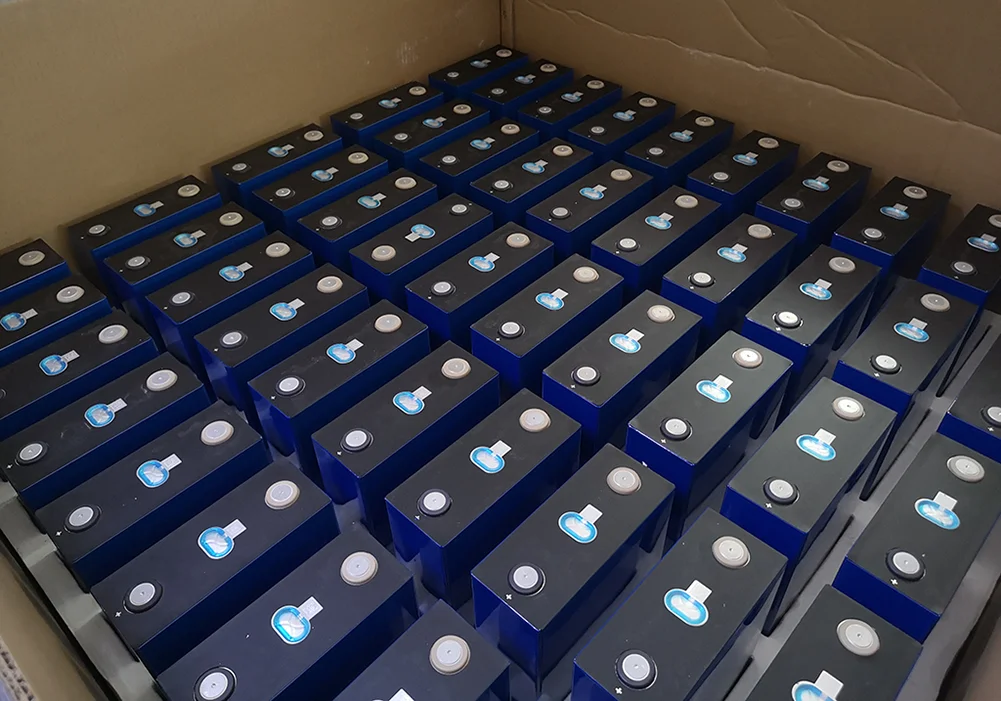

Well Packed
Cells are well protected by sponge foam. Postive and neagtive post will be isulated by tape. For large quantity, we will use wood box for transportation.
Brand New Cells Directly from Manufacturer
Each group is fully matched by manufacturer. If your order quantity is not large, we will provide you cells from same group. If your order large quantity, we will provides you groups of cells. It is not recommanded to use cells from different groups in one pack.
Shipping Terms
Sea Freight, Railway or Air Freight, Delivery to Door.
Shipping Area:
USA, Canada, Russia, UK, France, Germany, Spain, Italy, South Africa and other Europe and Asia countries. Contact us before shipping to caculate final shipping cost and estimate delivery date.
Cutoms/Duty:
Pre-Paid, you do not need to pay import tax anymore. We will take care whole shipping process, you just wait for delivery man knocking your door after order.
More Products
Product Application
Company Profile

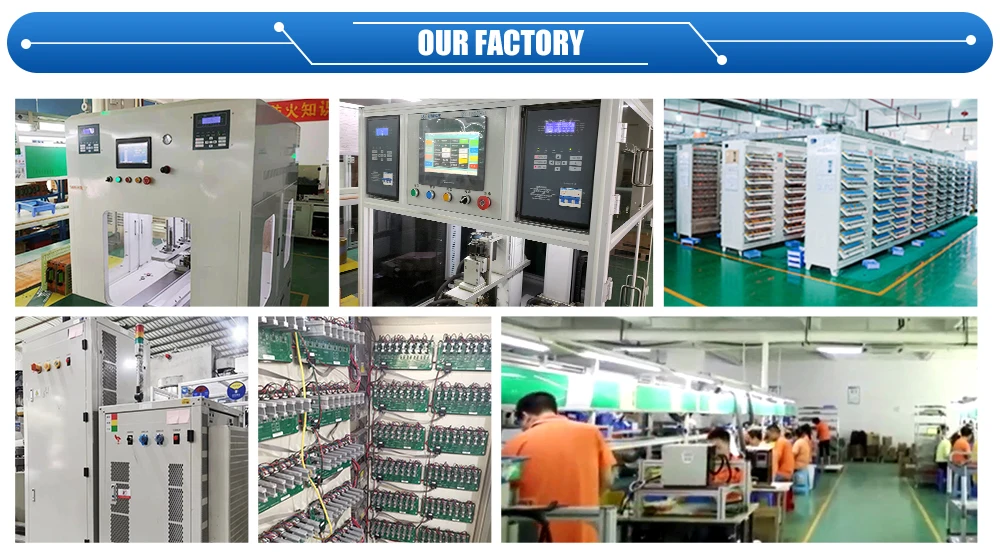

Our Factory
Certificate

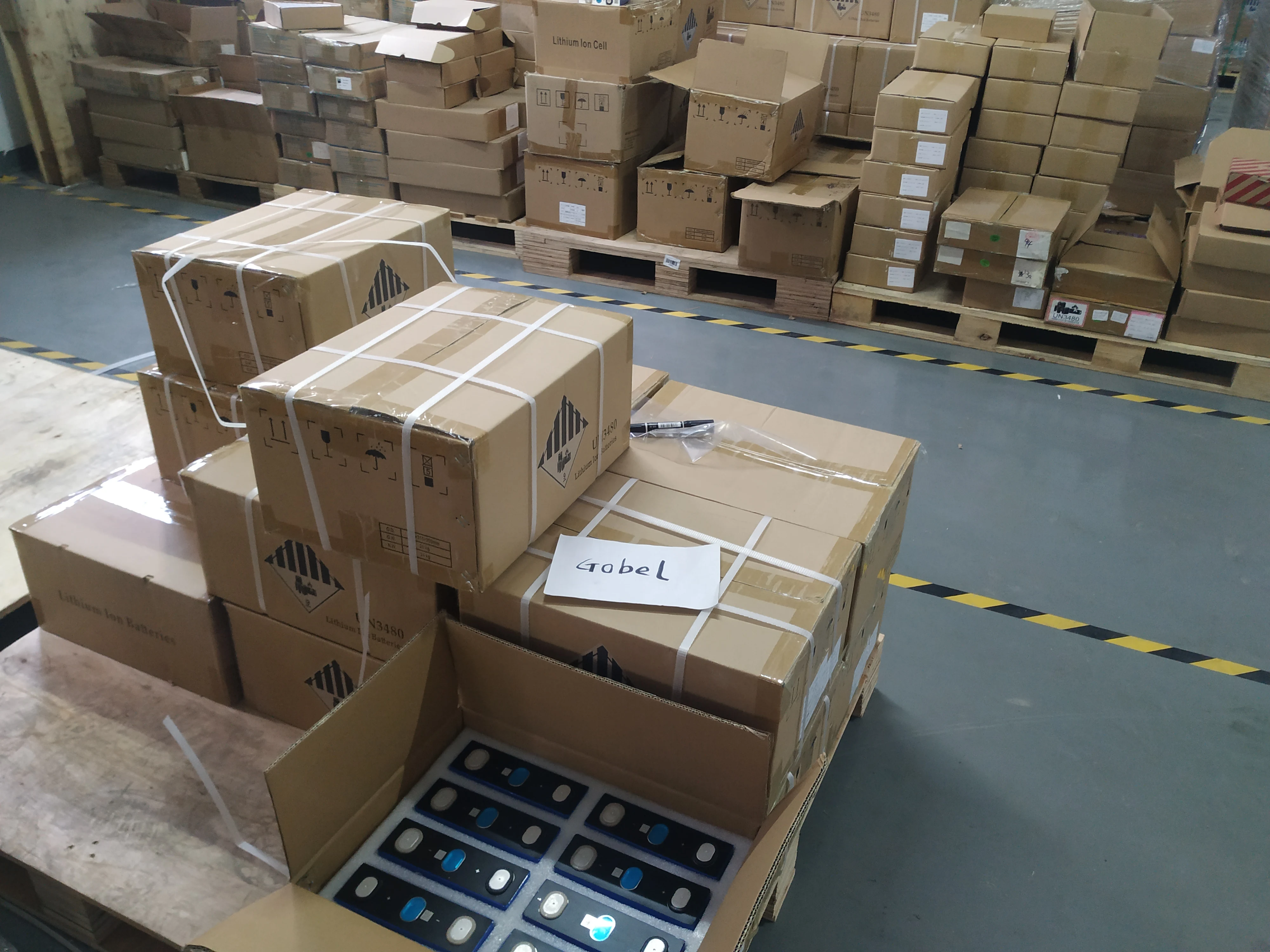

Packaging And Transportation

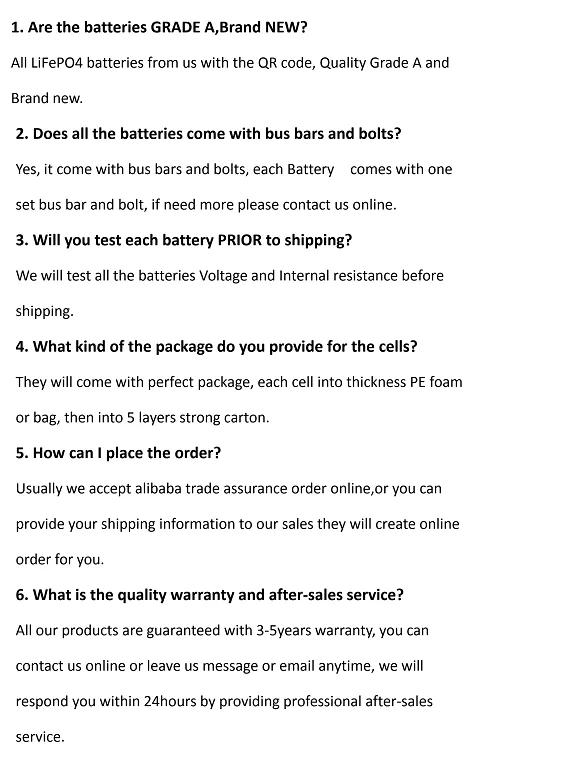

FAQ
