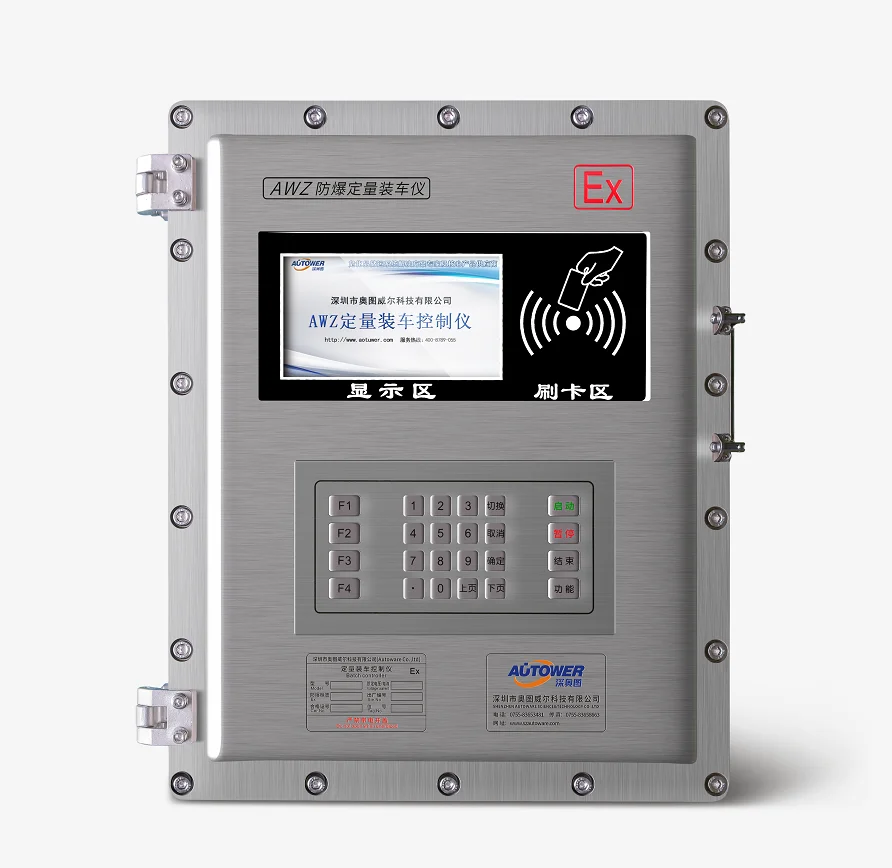

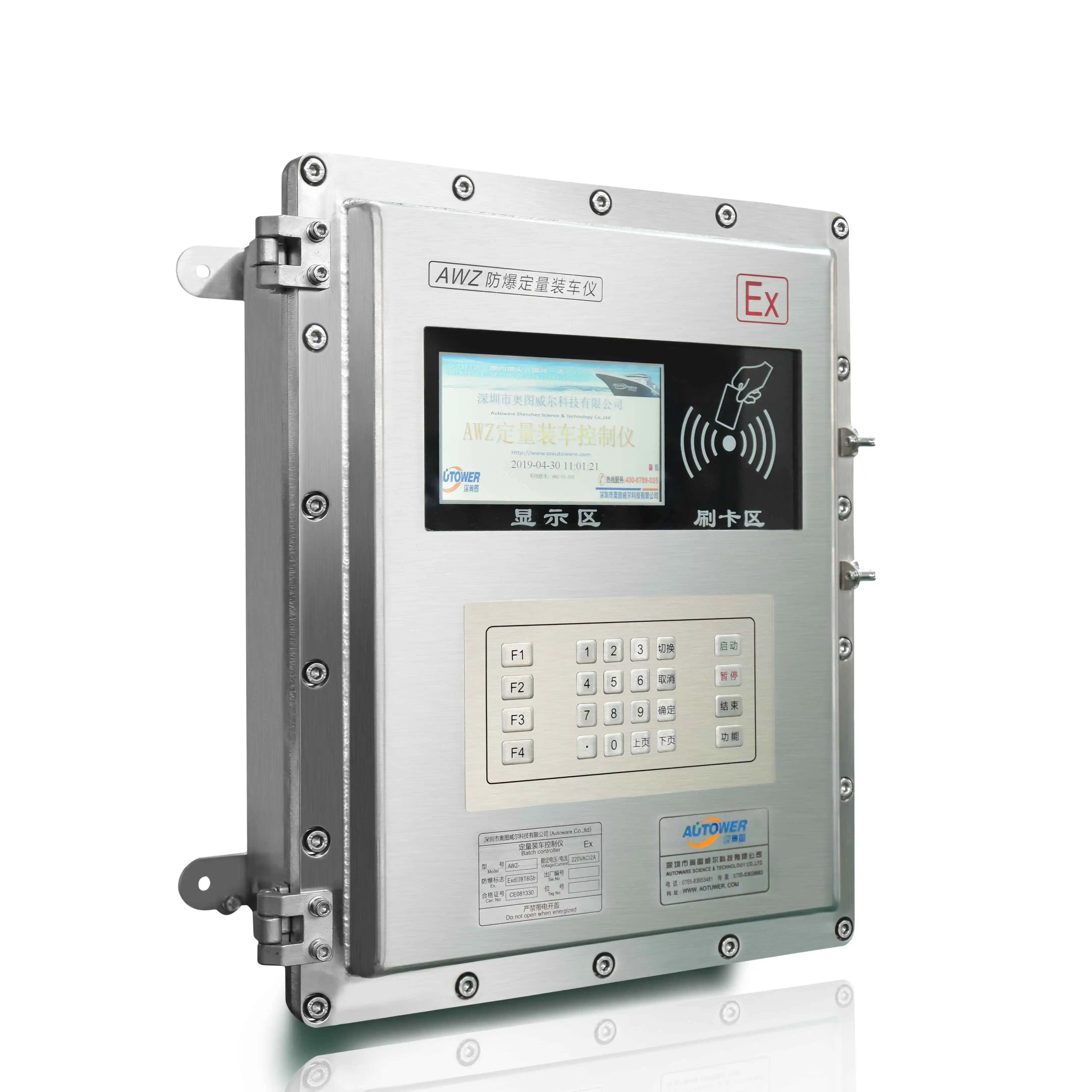

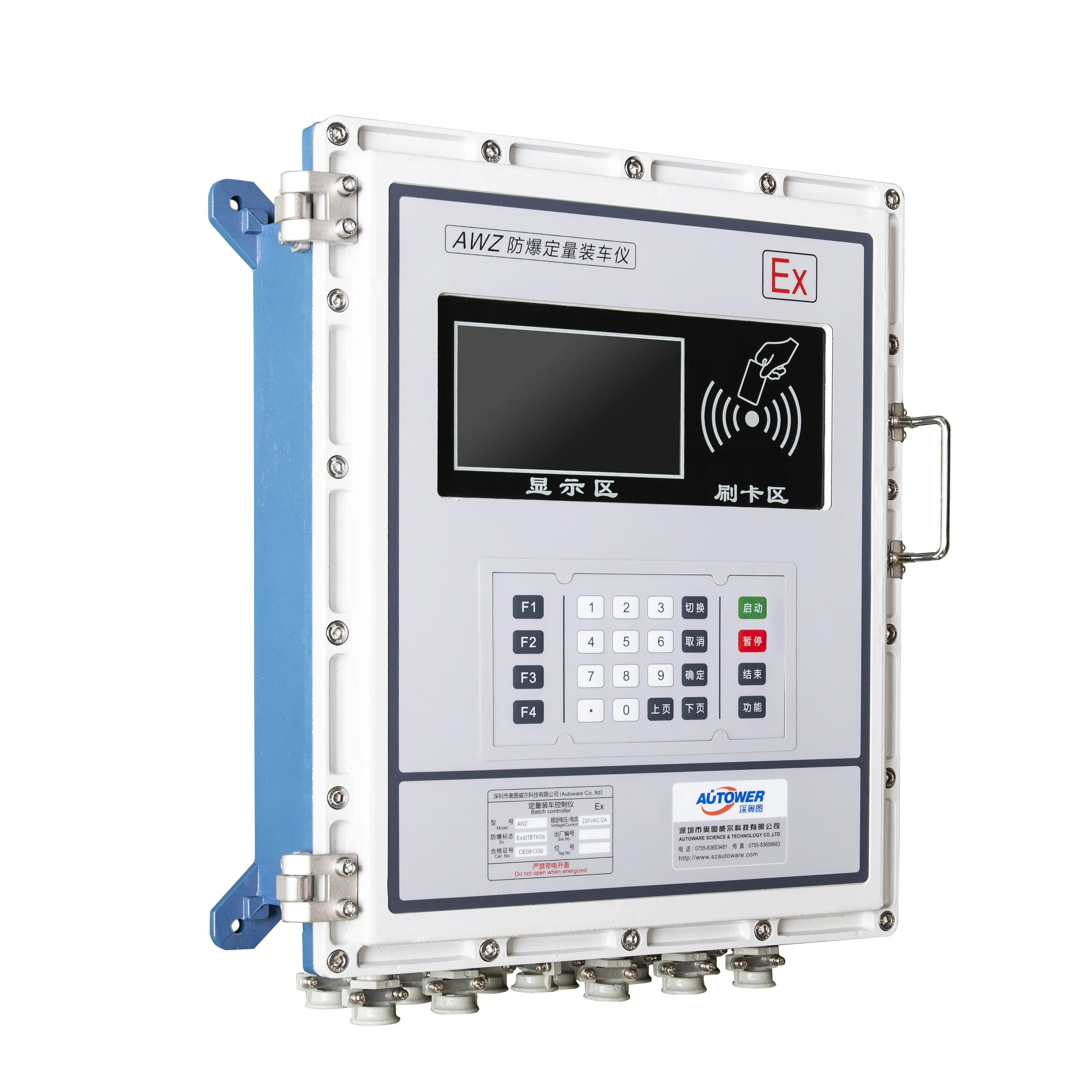

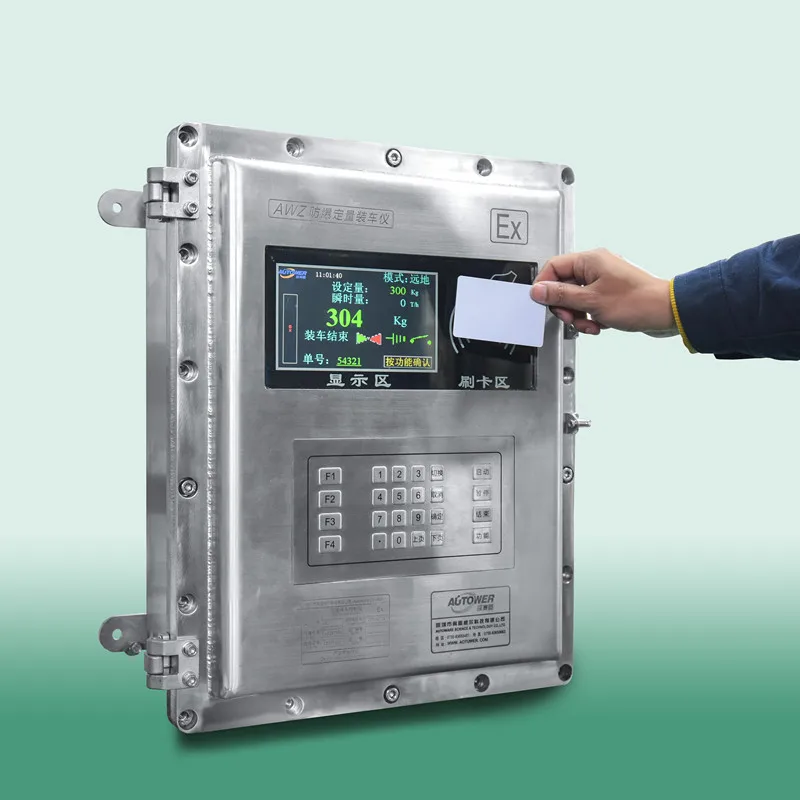

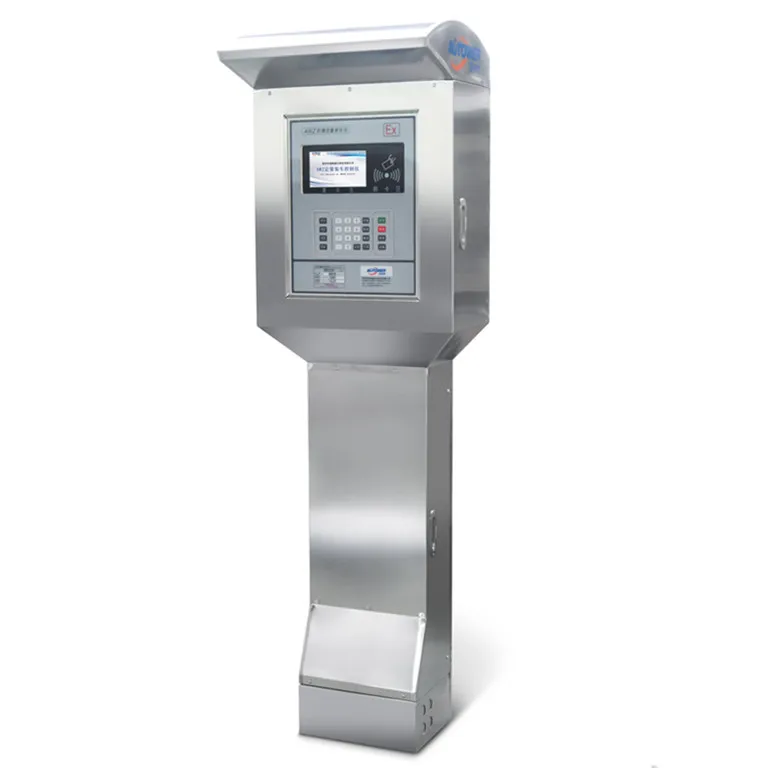

Stainless steel LCD display chemical liquid supplying quantitative controlling instrument control For Oil Storage Terminal
- Category: >>>
- Supplier: Shenzhen Autoware Science & Technology Co. Ltd.
Share on (1600411128023):
Product Overview
Description
Product Description
Truck Tank Loading Oil PLC Batch Controller For Oil Storage Terminal
Name | Batch Controller |
Control the number of loading arm | 1-4 loading arm |
Power supply | 110-240VAC,2A,50Hz |
LCD | High brightness STN liquid crystal display module |
Material | Carbon steel,stainless steel |
IC card function | With IC card operation or other language |
Keyboard input | 24keys,English menu operation or other language |
Equipment self-test | Automatically detect device operating status and remotely monitor |
Flow signal | Can be connected 4 groups of 0-10KHz pulse input or two 4-20mA analog signal |
Valve position signal | Up to 12 switch contact valve can be connected to his signal |
Relay output | AC220V,SA,can control 10 valve or pumps(expandable more) |
PID adjustment output | AO regulated output for adjustment of at least one PID loop |
Operation mode | Continuous operation 24 hours a day, can be operated locally or remotely |
Working temperature | -40℃~70℃ |
Storage temperature | -30℃~80℃ |
Relative humidity | 0-90% |
Communication interface | RS232,RS485 or RJ45 |
Communication protocol | Modbus RTU(serial port),TCP/IP(Ethernet) |
Communication rate | 10Mbps(Ethernet),600-115200 bps(serial port) |
Mean time between failures | MTBF>100000hours(11years) |
Explosion-proof sign | ExdllBT6(IP65),ATEX Certificate |
installation | Wall-mounted/cabinet type |
Dimension | 300(length)×400(height)×150(deep) |
