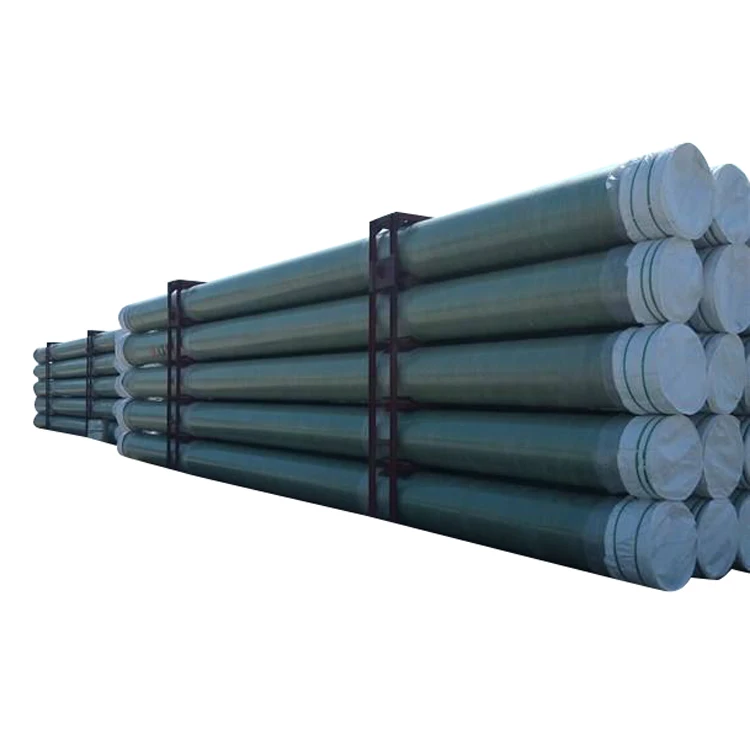

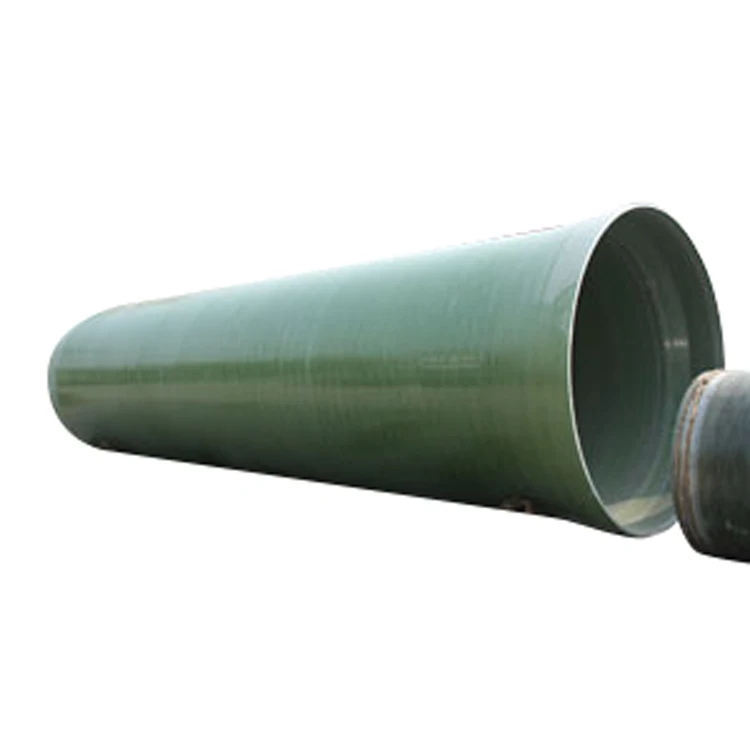

High Strength Frp Filament Wound Large Diameter Fiberglass Sand Pipe
- Category: >>>
- Supplier: Yantai Haosheng FRP Products Co. Ltd.
Share on (1600411140308):
Product Overview
Description
High Strength Frp Filament Wound Large Diameter Fiberglass Sand Pipe
Product Description

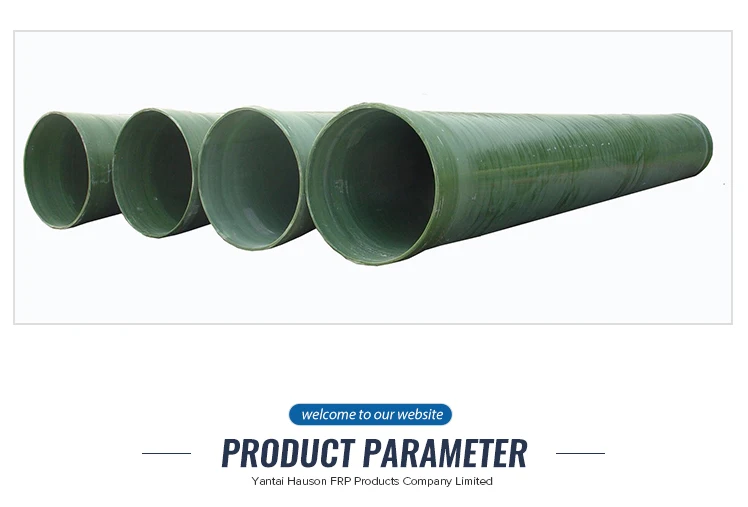

FRP Sand Pipe
The glass fiber winding sand pipe (RPM pipe) is mainly made of glass fiber and its products as reinforcing materials, and the basic materials are unsaturated polyester resin and epoxy resin with high molecular components, and inorganic nonmetals such as quartz sand and calcium carbonate. The particulate material is the filler as the main raw material.
Production Process: The standard effective length of the tube is 6m and 12m, and its production methods include fixed-length winding process, centrifugal casting process and continuous winding process.
Product Category: It can be classified according to the product process method, pressure grade PN and stiffness grade SN.

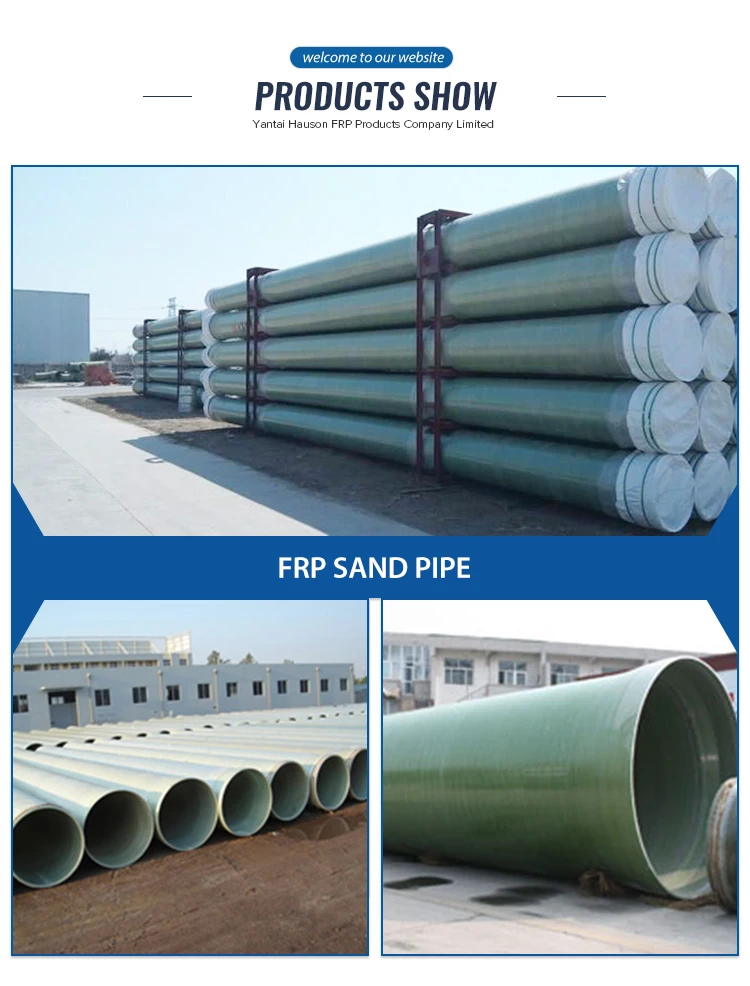

Product Show

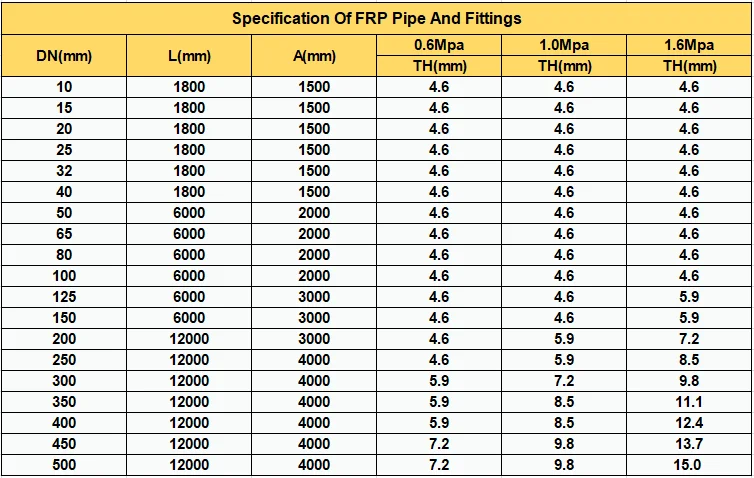

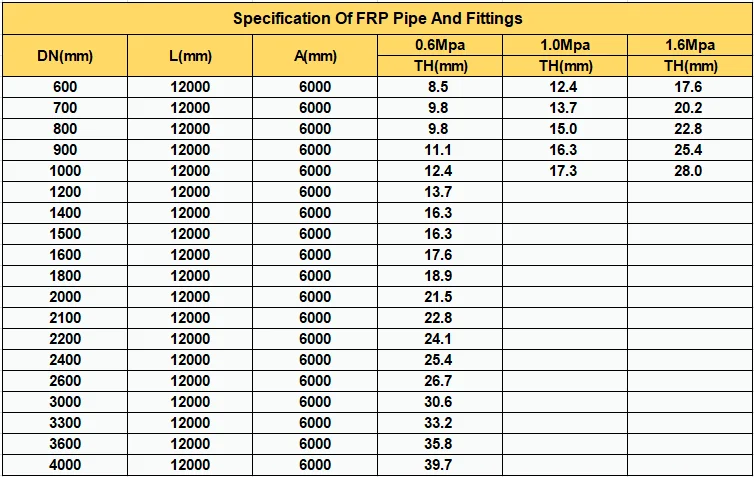

Product specifications
(1) Diameter: DN25mm-DN4000mm
(2) Pressure rating: 0.25 MPa, 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.0 MPa, 2.5MPa, according to the special requirements of users, higher pressure can reach more than 6Mpa.

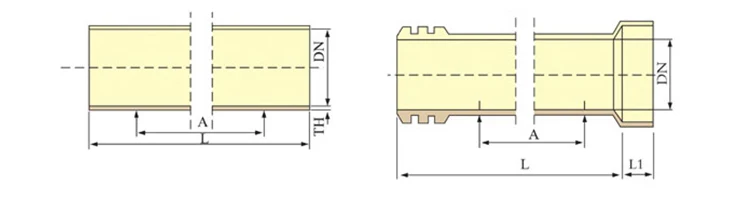

Connection method
Double "O" type sealing ring socket connection, single "O" type sealing ring socket connection, butt joint and socket bonding, flange connection, etc.

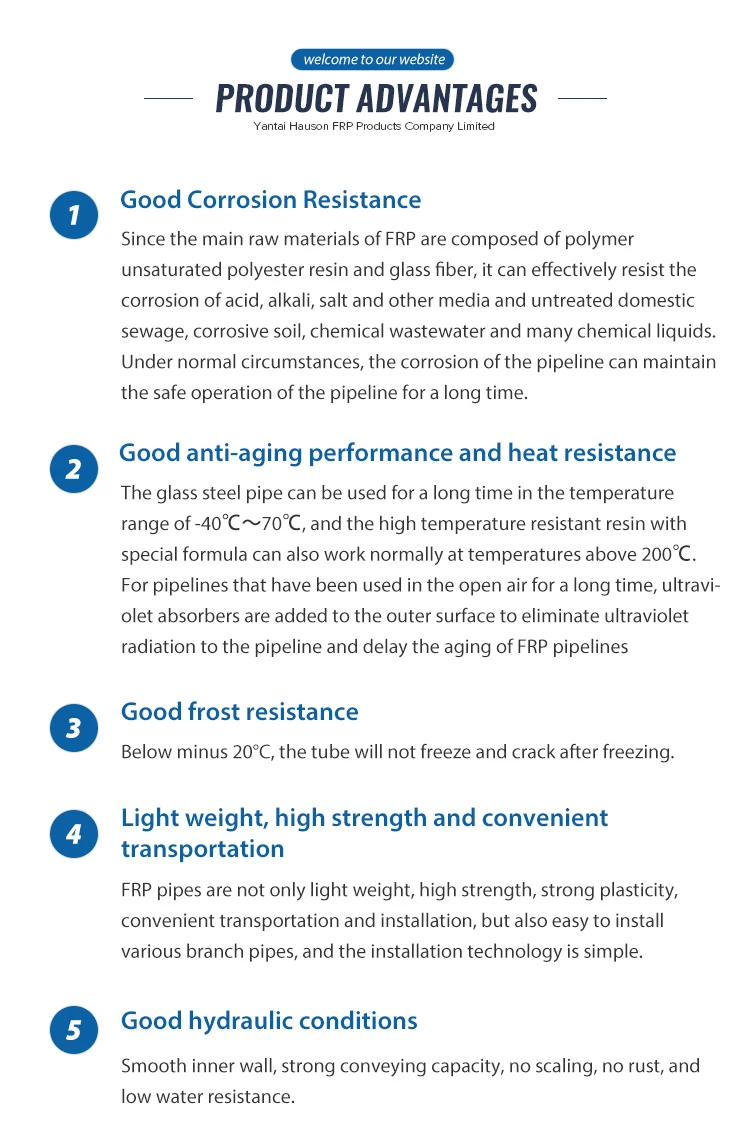

Advantages
Product Application
Related Products
Company Information
Certifications
Packaging & Shipping
Q: Are you a trading company or a manufacture factory? A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China.
Q: Can your factory customize the FRP products for clients ? A: Yes, we can.We have a senior designer, can help customers make CAD drawings.
Q: How about after-sales service ? A: 1 year free warranty, Lifetime technical service support.
Q:What's the guarantee, in case the FRP products breaks down? A: Within the guarantee period stipulated in the contract. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are caused by quality fault.
Q: How can I install the production and get a commissioning ? A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do You Arrange Shipment For The Machines? A: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
|
