IEC60335 1 21.2 Standard Scratch Resistance Test Device

Share on (1600411141382):


Price:$3,000.00 - $3,200.00

Quantity:


Product Overview

Description

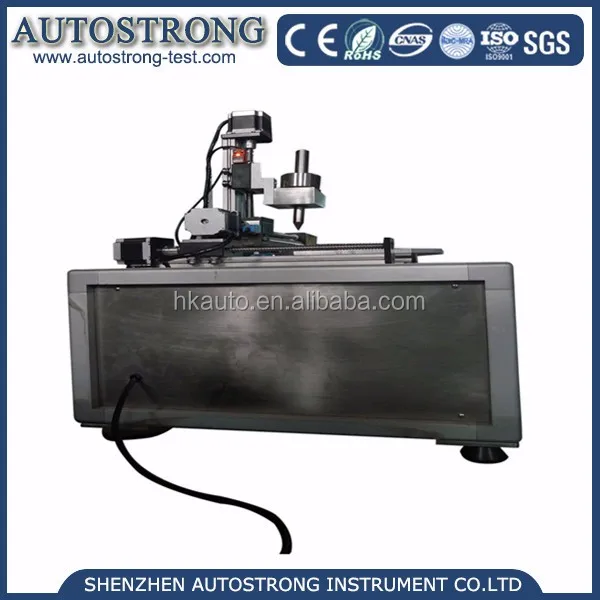

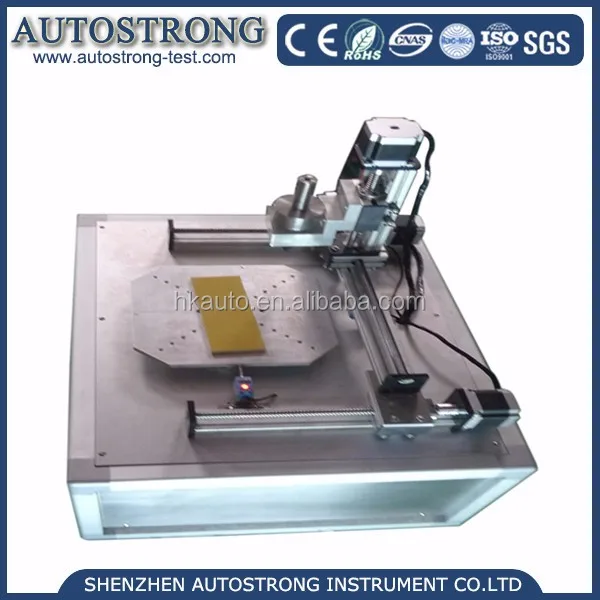

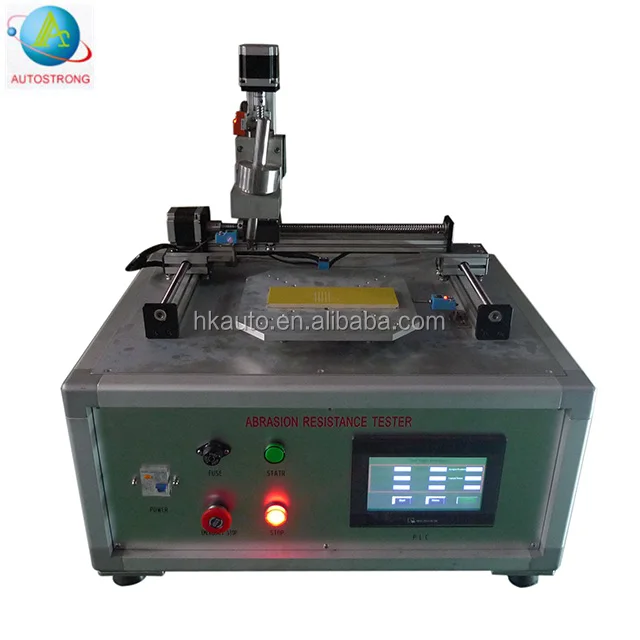

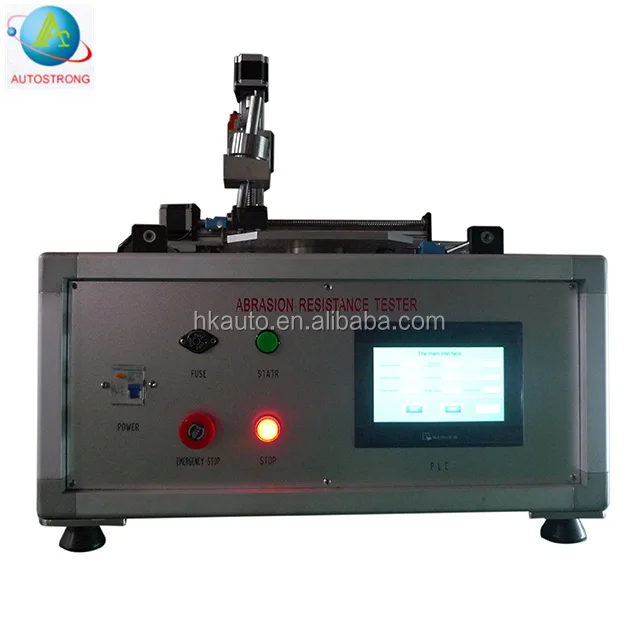

IEC60335-1-21.2 Standard Scratch Resistance Test Device

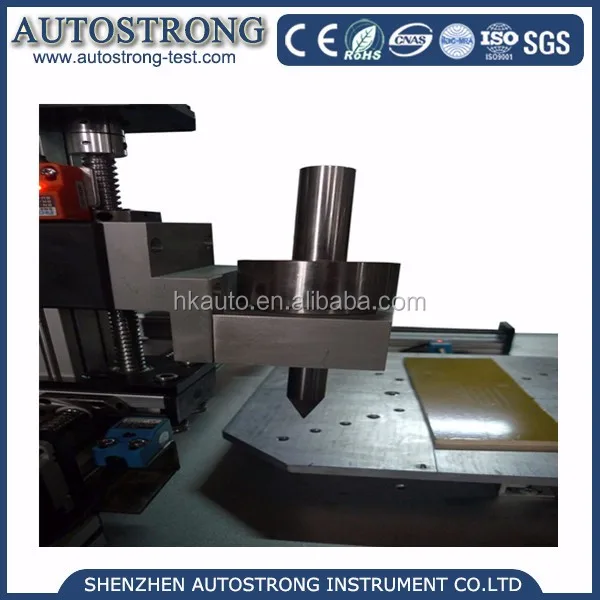

Scratch resistant coating test uses a hardened steel needle to scratch, the ends should be tapered needle, an apex angle of 40°, the tip should be rounded polished, rounded with a radius of 0.25mm ±0.02mm.







Scratch resistant coating test uses a hardened steel needle to scratch, the ends should be tapered needle, an apex angle of 40°, the tip should be rounded polished, rounded with a radius of 0.25mm ±0.02mm.

Scratches through five pairs of conductive parts, including where the interval, the middle interval should be subject to the greatest potential gradient at the site of the test. When the scratch test, maintaining 80-85° with the horizontal plane in the needle, the speed of 20mm/s ± 5mm/s were scratches.

Of the needle should be combined with the appropriate load, so that the needle along its axial direction to exert a force of 10N ± 0.5N, scratches each interval is at least 5mm, and the edges of the sample are separated by at least 5mm.Scratch Resistance devicecoating scratch resistance tester detailAutomatic coating scratch resistance testerScratch resistance TesterScratch Tester





Company Information

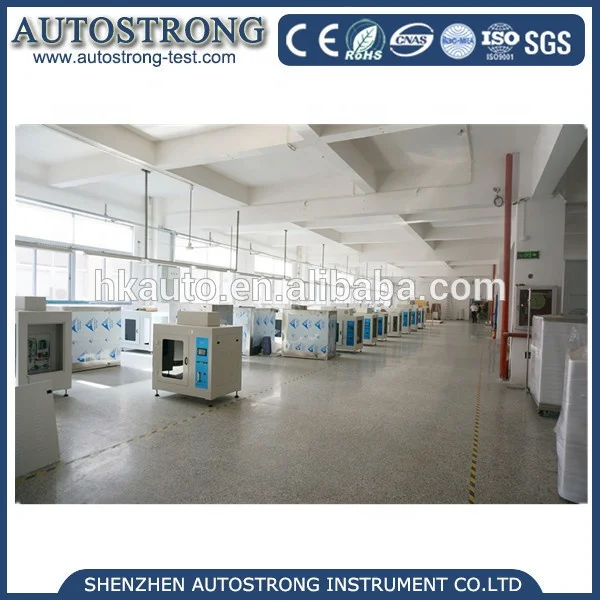

  AUTOSTRONG is a professional manufacturer of Industrial test equipments for products safety application with headquarter in Kowloon Hong Kong and branch factory in SHEN ZHEN city.SHEN ZHEN Branch factory is over 2600 area, it besides SHEN ZHEN airport with very convenient transportation.
