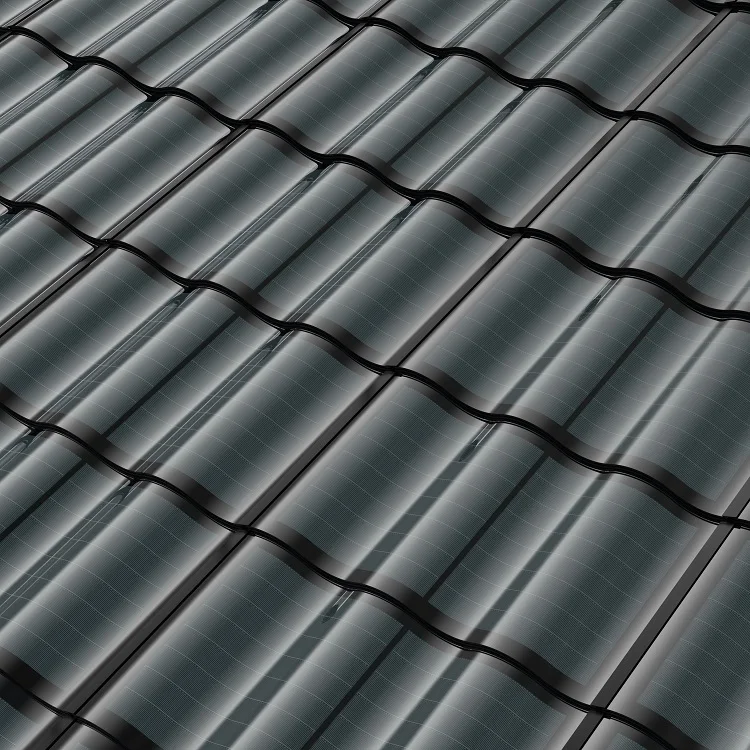

Good price Hanergy solar roof tiles 10w 20w 30W hantile CIGS thin film hantile glass to glass durable solar roof tile

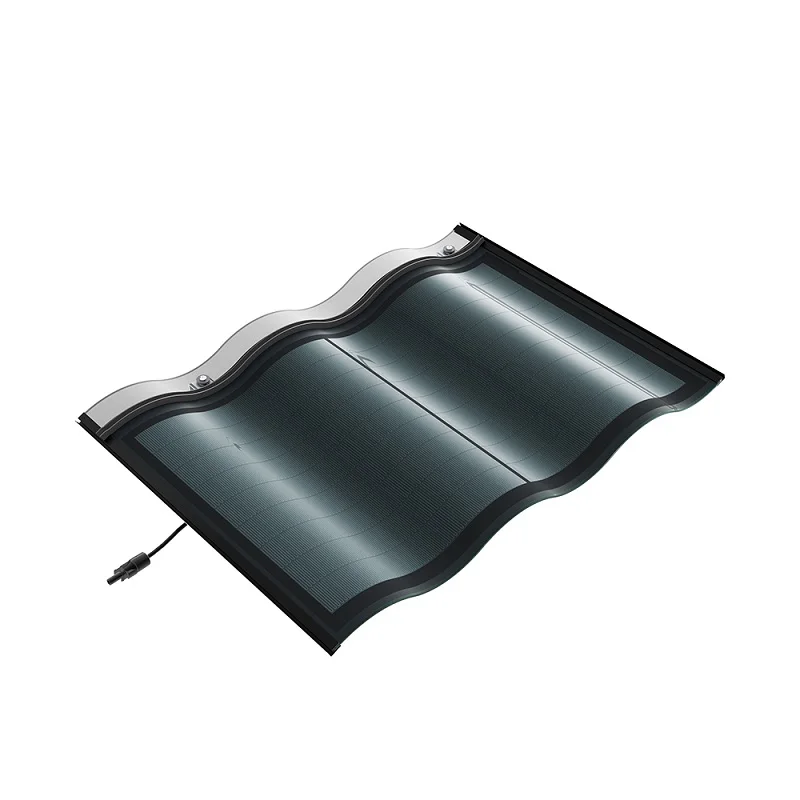

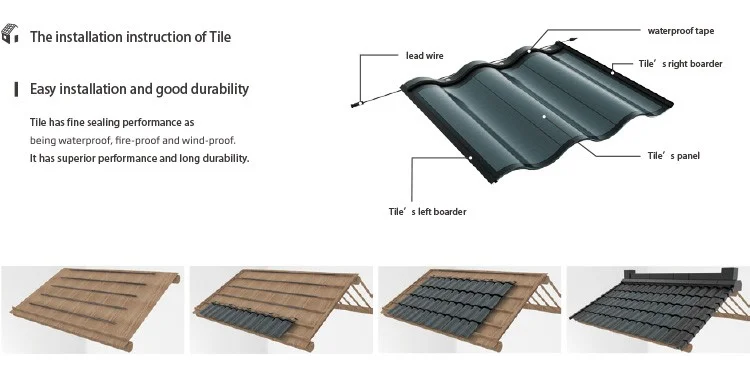

Features: three curved shapes, beautiful shapes

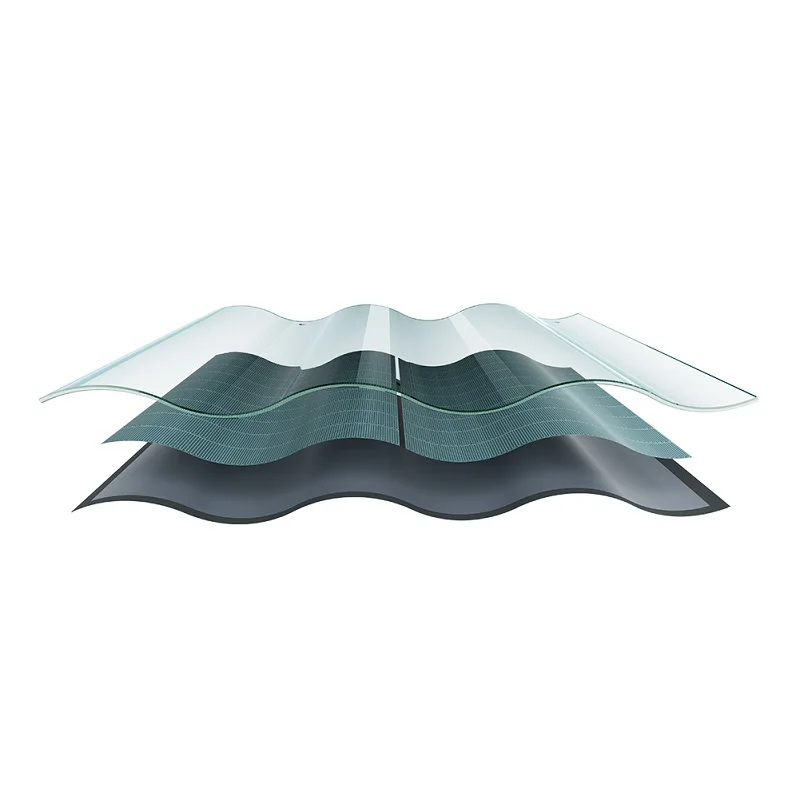

Structure: Laminated double tempered curved glass
Auxiliary materials: edge protection and EPDM tape
Size: (width) 721x (height) 500x (thickness) x8mm
Illumination surface size: (width) 707x (height) 415mm
Square meter content: 3.44 pieces/㎡
Power: 30 watts, square meter power: 103 watts
Weight: 6.5Kg, Square meter weight: 22.1Kg
Environmentally friendly building materials.The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
30W Single Glass Solar Tile not only has the functions of waterproofing and heat insulation, but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
product model: | Hantile M30 | |
length: | 700mm | |
width: | 500mm | |
arch height: | 35mm | |
weight: | 5.2KG | |
color: | black | |
junction box: | 68*68*19.7 (mm) IP67 | |
cable type: | 2.5mm solar cable 450 (+10/-0) mm | |
cable connector: | PV Connector | |
Electrical parameters | ||
chip type: | CIGS | |
power: | 30W | |
short-circuit current: | 4.45A | |
open-circuit voltage: | 10.16V | |
current at PMPP: | 3.87A | |
voltage at PMPP: | 7.79V | |
Function grade | ||
loading grade: | 2400Pa | |
waterproof grade: | IP67 | |
fire-proof grade: | B1 | |
hail-proof grade: | level 4 (ANSI FM 4473) | |
working temperature: | -40°C to +85°C | |
Details Images
Solving distributed pain points:The calculation life of solar power generation is 25years, and the life of roof tiles is generally 15 years, which brings great inconvenienceto the replacement of roof tiles.Hantile integrates waterproofing and power generation, with a service life of more than 30 years, which solves the problem ofmismatch between the roof structure and the service life of solar power.

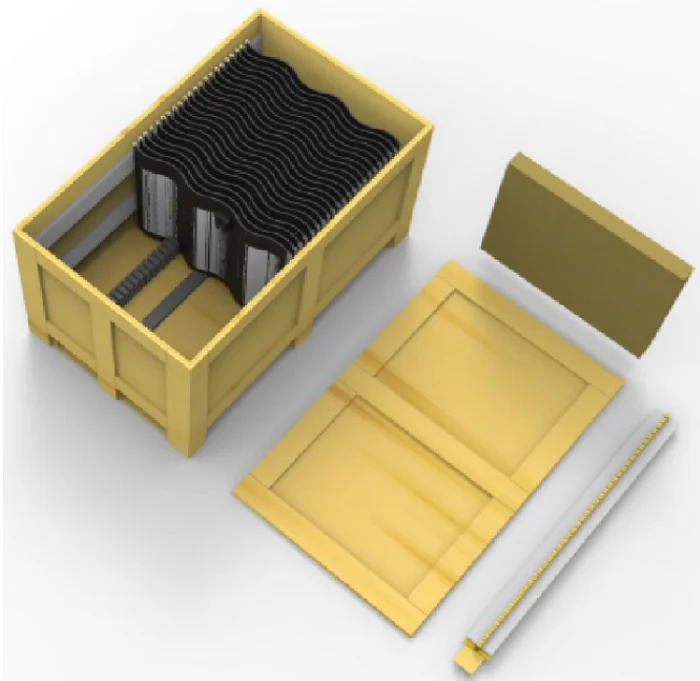

Product packaging
Product type | solar roof tile 30W Hantile |
Product size | 700*500*35mm |
Unit weight | 5.2kg |
PCS/Carton | 40pcs |
Carton size | 1260X780X690mm |
Unit weight | 210kg |
Gross weight | 265kg |
