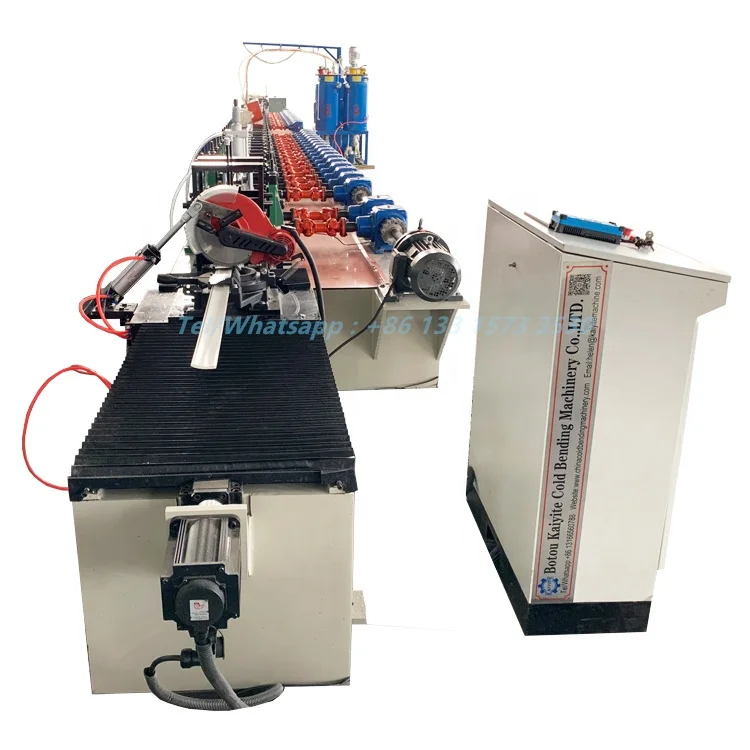

High Productivity Roller Door Aluminum Window Shutter Pu Foam Roll Forming Machine
- Category: >>>
- Supplier: Botou Kaiyite Cold Bending Machinery Co. Ltd.
Share on (1600411158301):
Product Overview
Description
PRODUCT DESCRIPTION

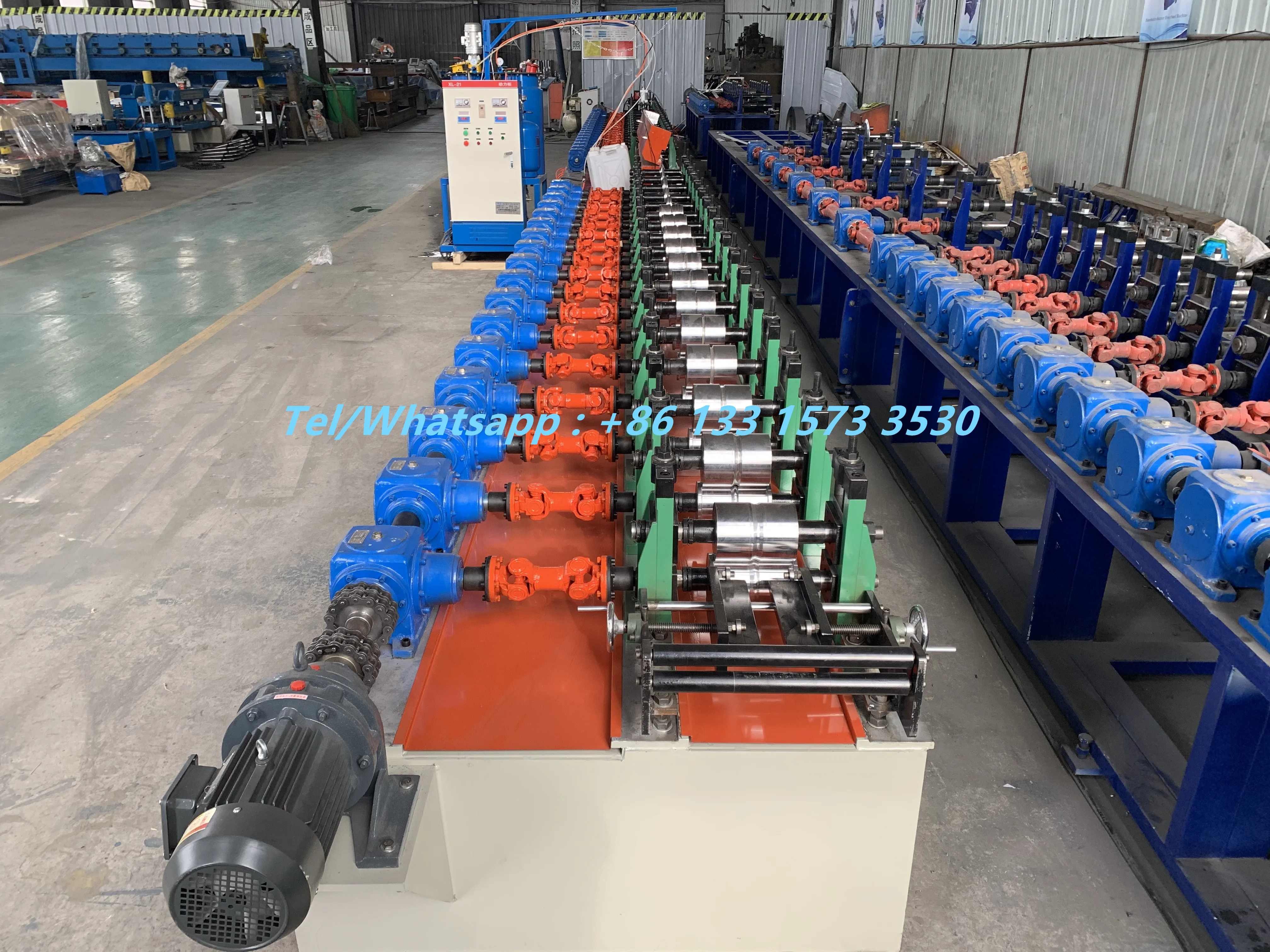

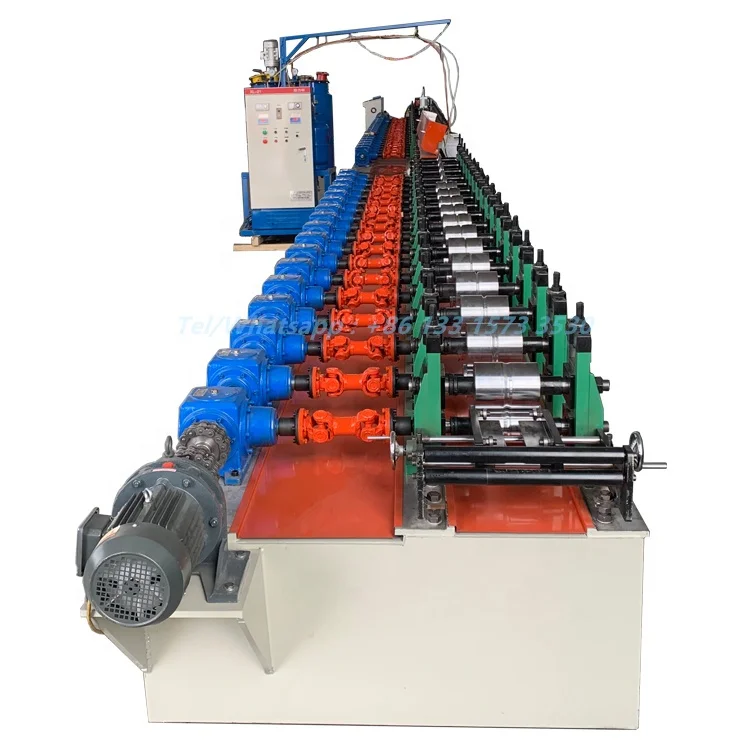

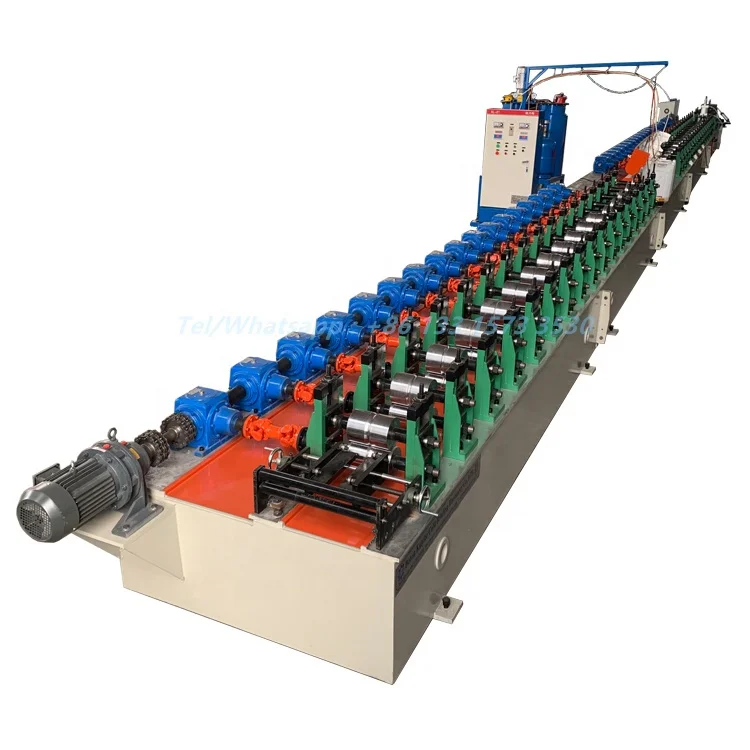

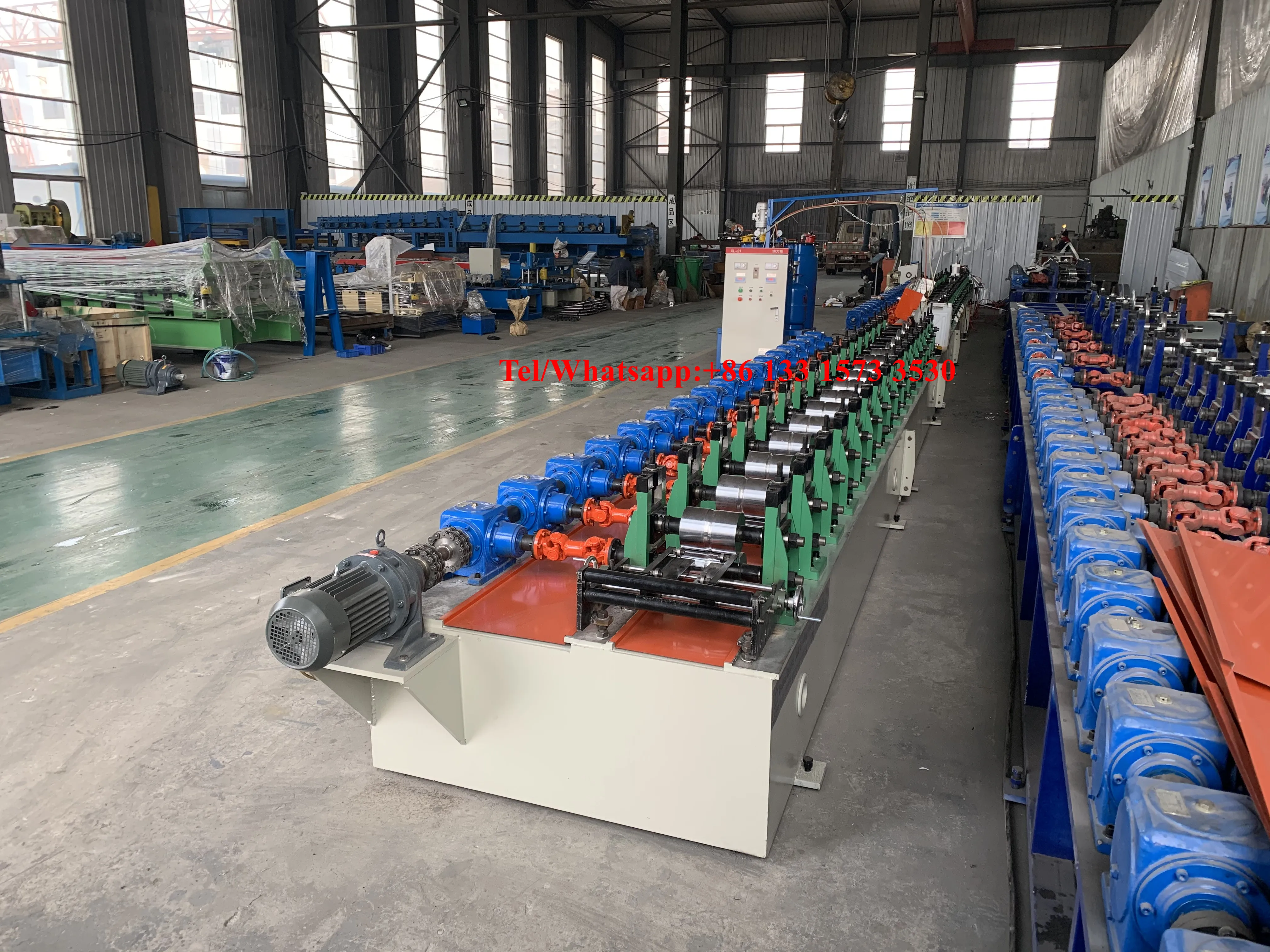

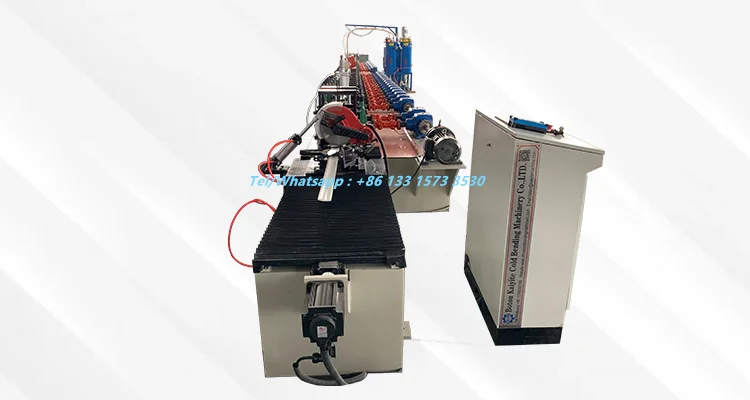

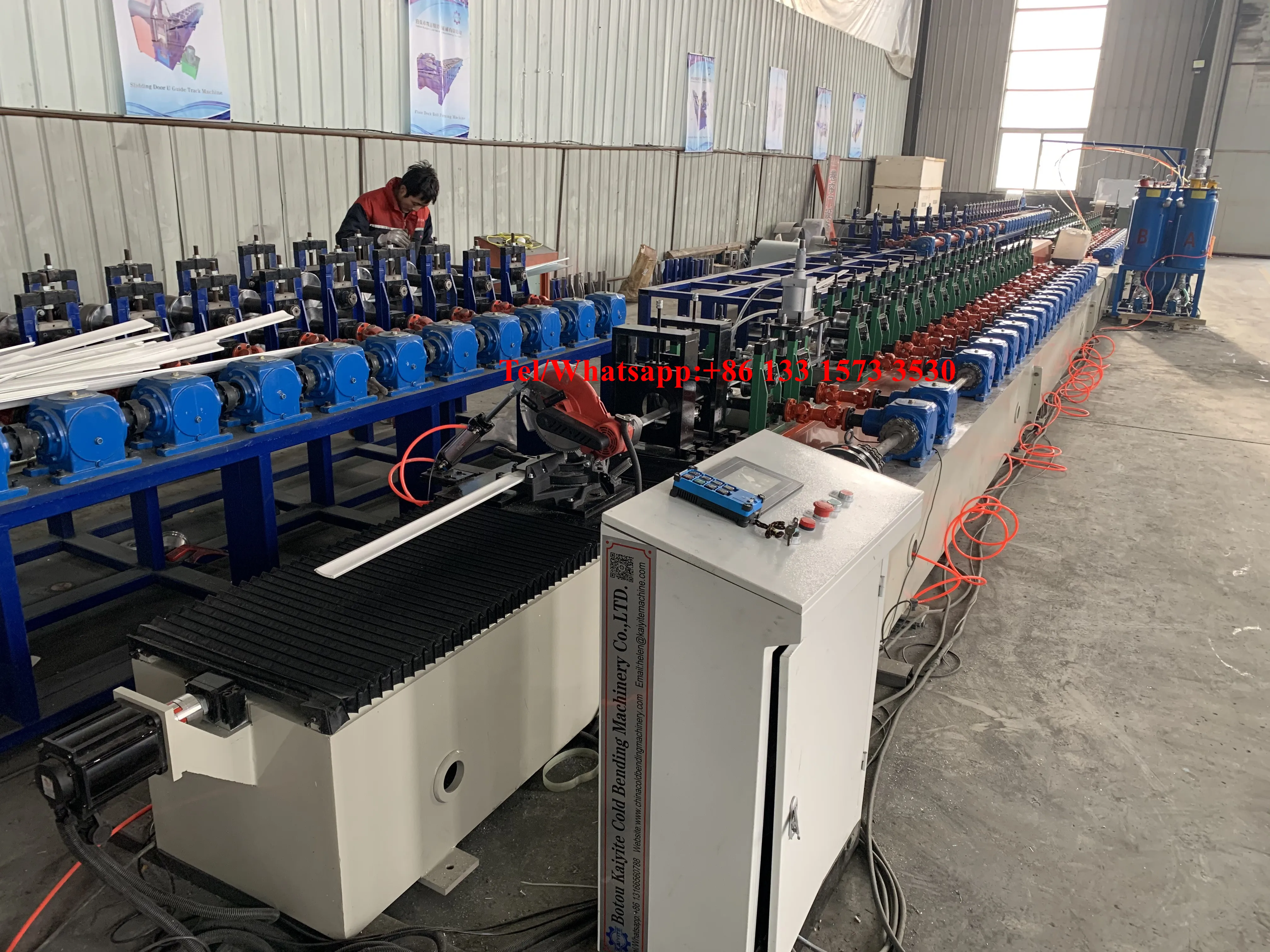

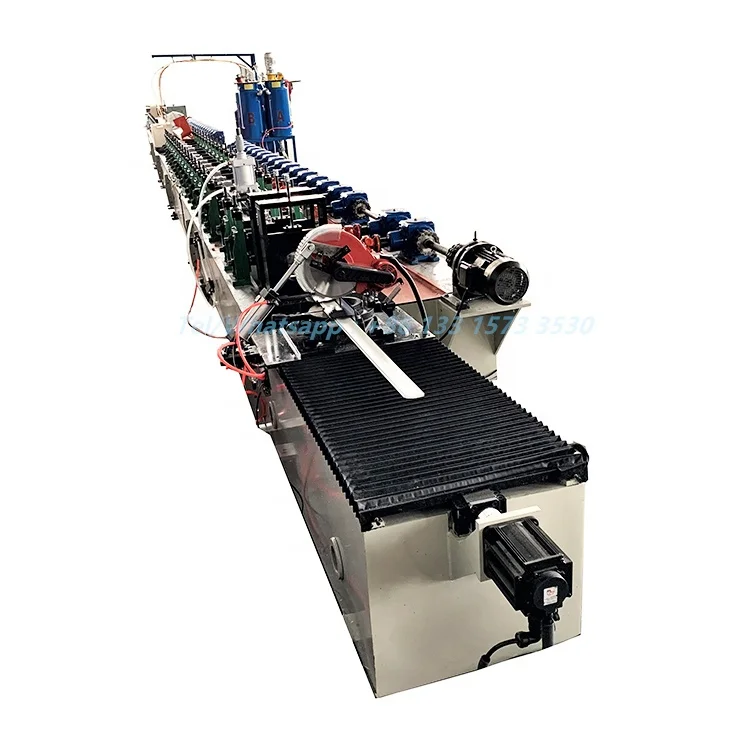

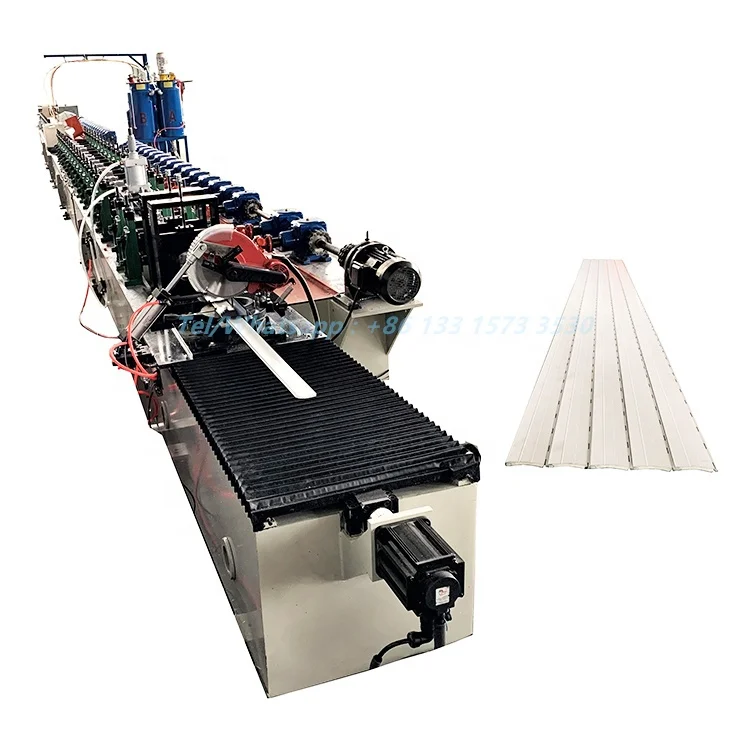

High Productivity Roller Door Aluminum Window Shutter Pu Foam Roll Forming Machine

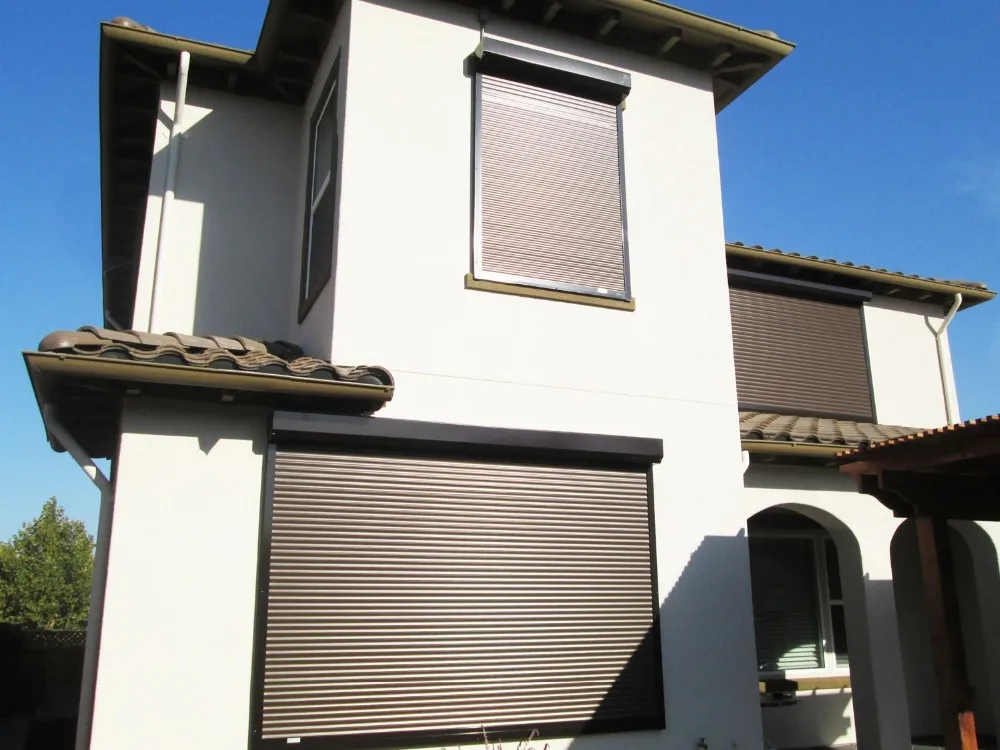

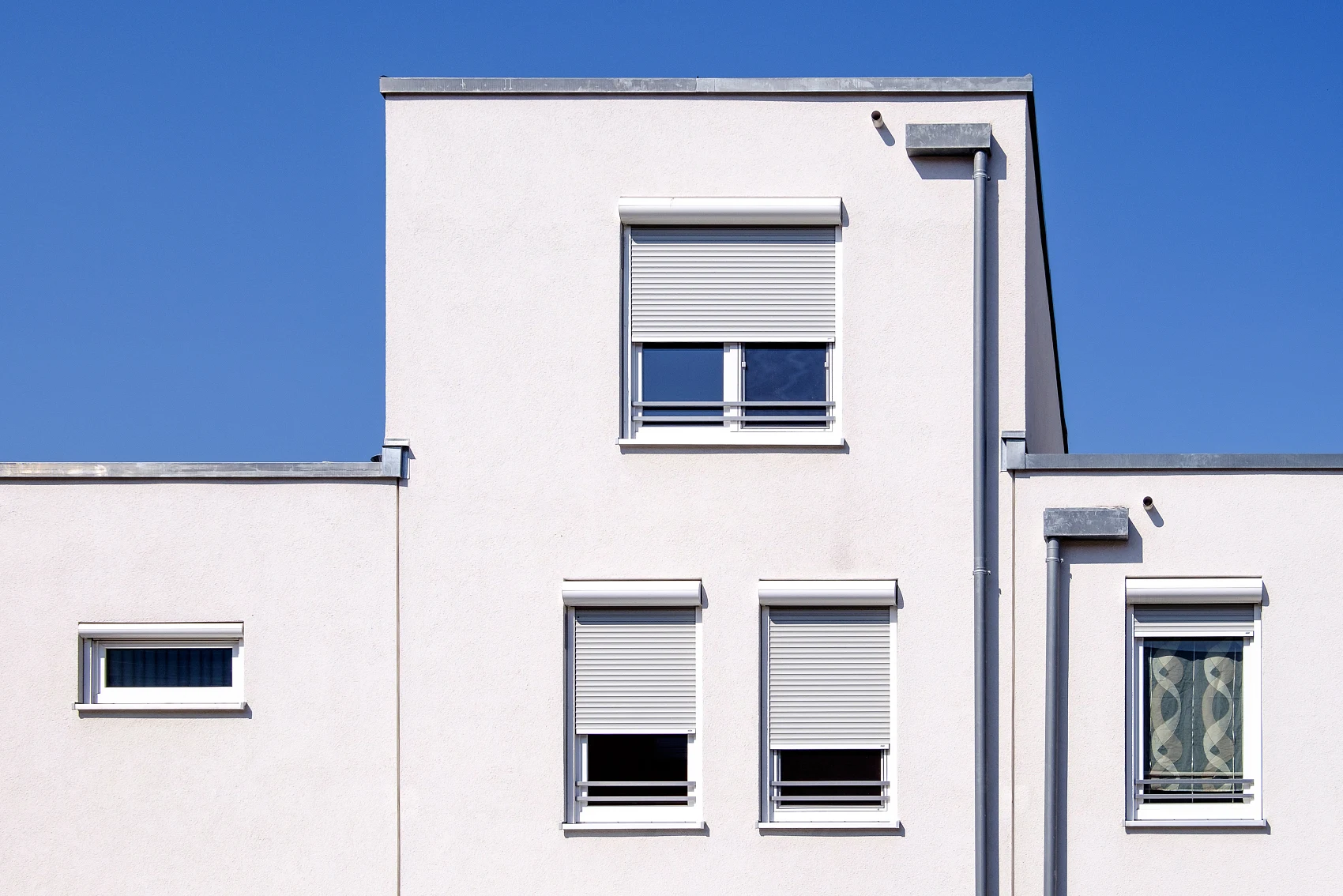

Aluminum window roller shutter is made up of aluminum steel ,smooth and horizontal embossed design, and has a layered three-dimensional sense; the door surface is treated with baking paint to make the door panel more durable; a variety of installation methods are available for selection, installation is simple, construction speed is fast, and the construction period is saved. If it was broken ,you can save costs by single curtain replacement.
SPECIFICATION
High Productivity Roller Door Aluminum Window Shutter Pu Foam Roll Forming Machine | ||
Metal material thickness | 0.27 - 0.35mm | |
Metal material width | 175mm or as client require | |

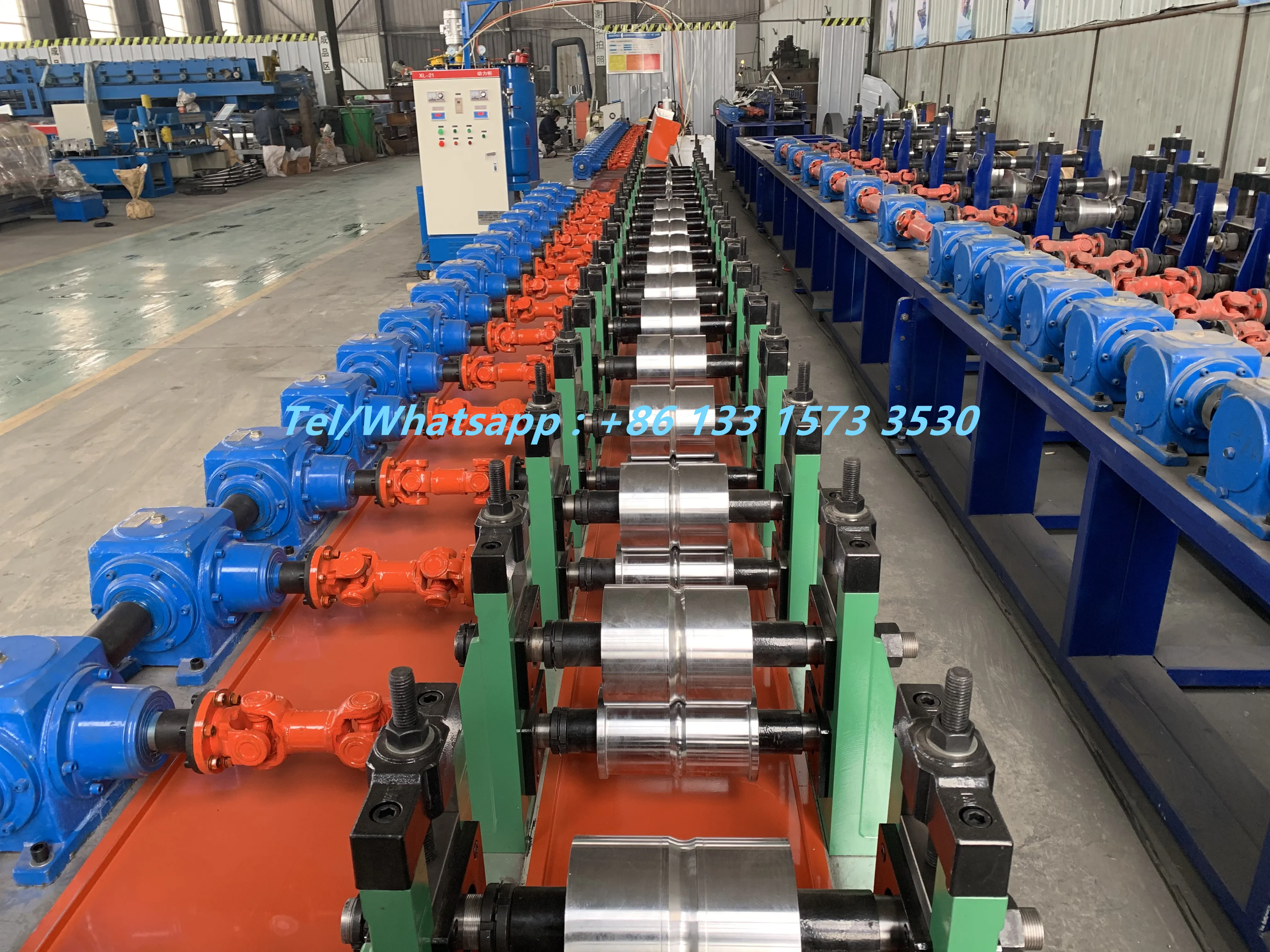

Roller Stage | 37 forming rows | |
Roller Material | Gcr15 steel with quenching | |
Diameter of shaft | Φ50mm | |
Material of cutting blade | Cr12Mov, Quenched treatment 58℃-60℃ | |
Main Structure of the Machine | Whole steel plate welding | |
Side Panel of Machine | Cast iron integrated plate | |
Cutting Type | Sawing cutting | |
Motor power | 11 kw | |
Sawing cutting power | 3 kw | |
Productivity | 20 meters per minute | |
Plc control system | Delta or as customer require | |
PRODUCT DETAILS

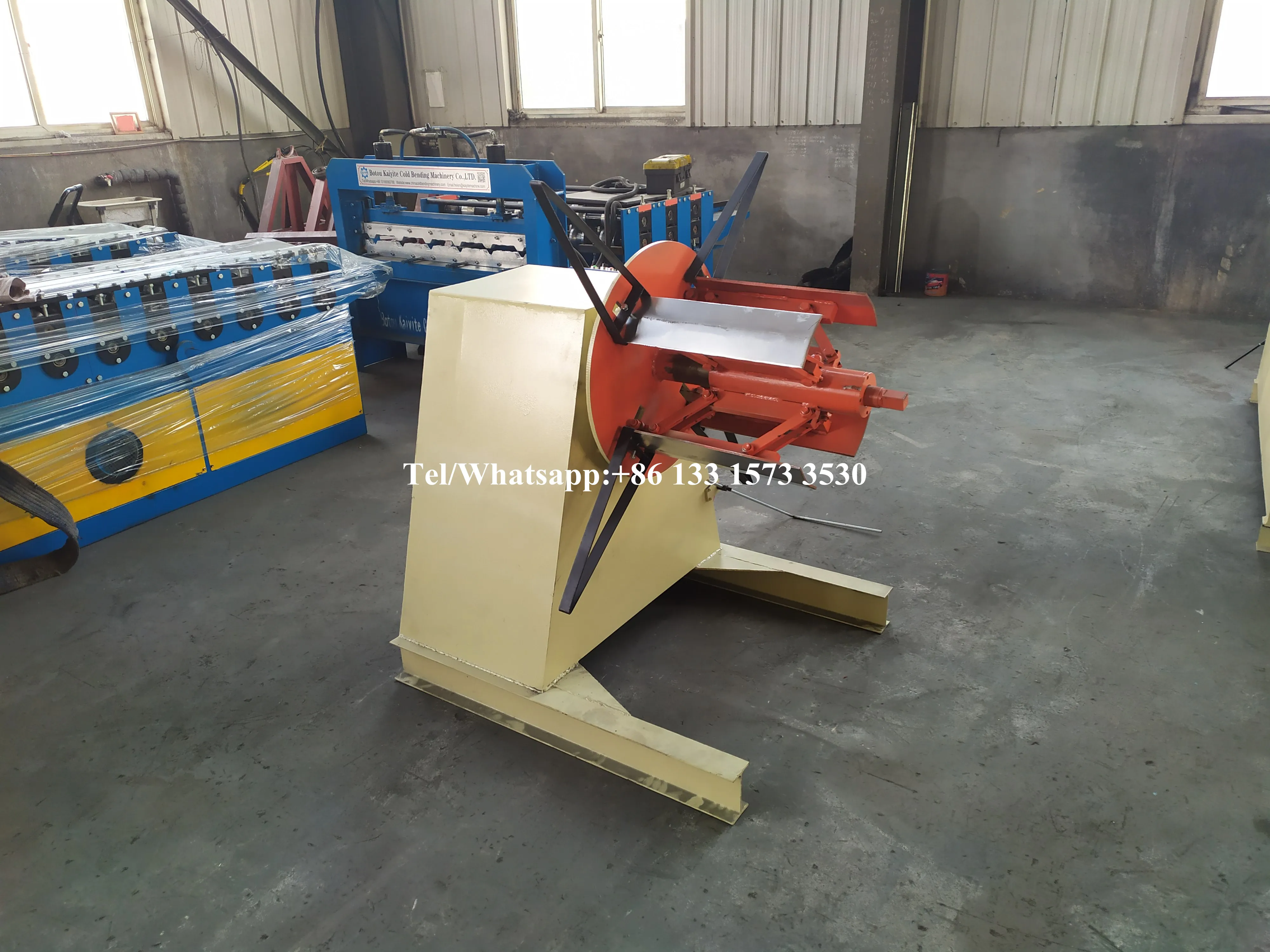

Name : Electric Decoiler
Usage: Mainly used to support steel coils, and manually uncoil and straighten the coil into the feeding table.
Steel coil width : 200 mm. (According to your actual drawing)
Loading capacity : 2T
Inner diameter : 500-508mm
Steel coil width : 200 mm. (According to your actual drawing)
Loading capacity : 2T
Inner diameter : 500-508mm
Name : Feeding Table
Usage : Applied to control the width and position of the steel sheet,which is guided into the correct position of machine to make sure the panel is neat and parallel.
Other Accessorie : The hand knife can cut the raw materials and control the length of the feed, thereby saving raw materials.
Other Accessorie : The hand knife can cut the raw materials and control the length of the feed, thereby saving raw materials.
Material : High grade 45# steel
Characteristic : After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At the same time, the roof tiles are smooth without burrs.
Characteristic : After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At the same time, the roof tiles are smooth without burrs.

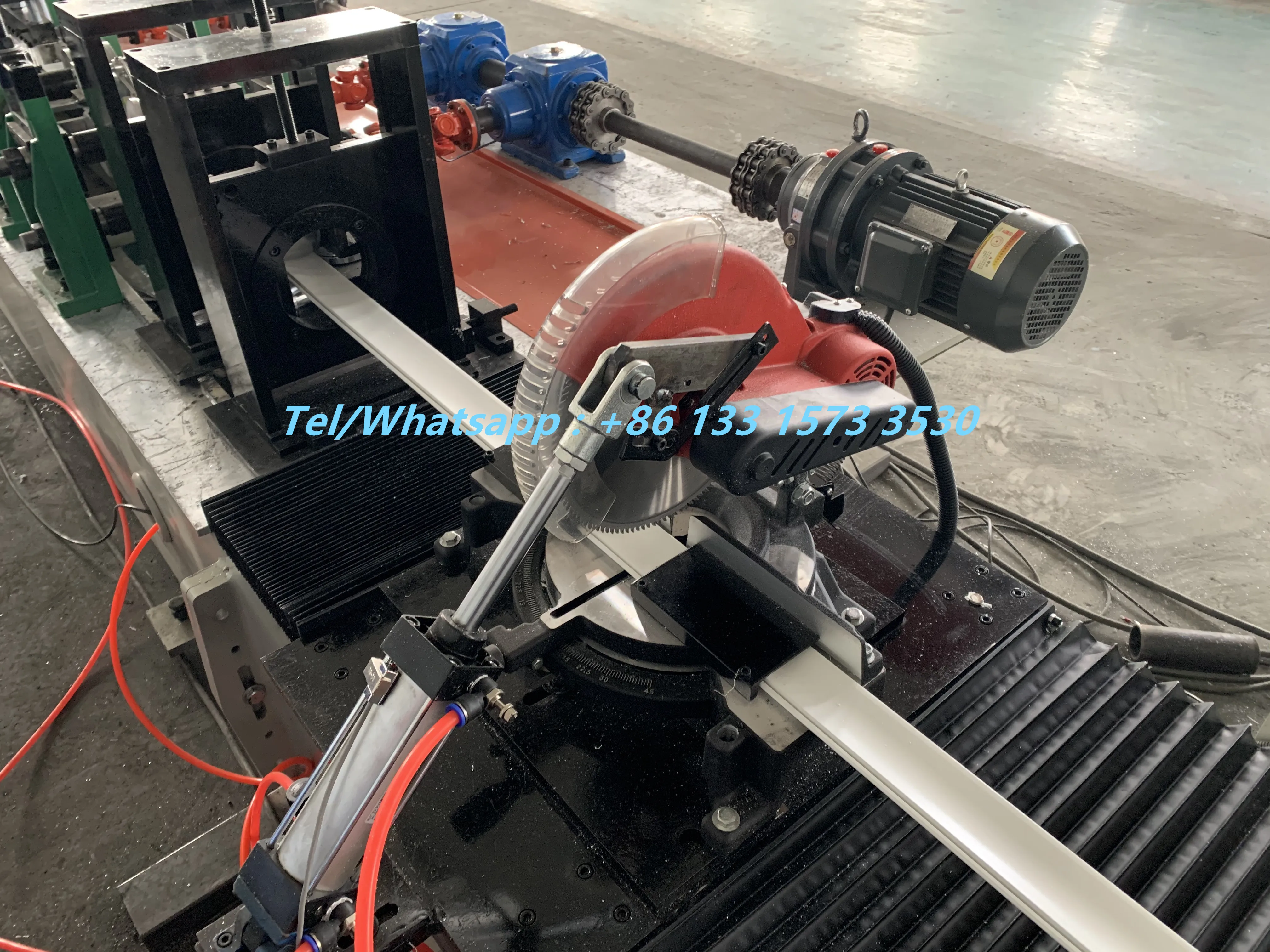

Name : Sawing Cutting
Material : Cr12mov
Characteristic : Quenching before heat treatment can ensure the smoothness and hardness of the surface.

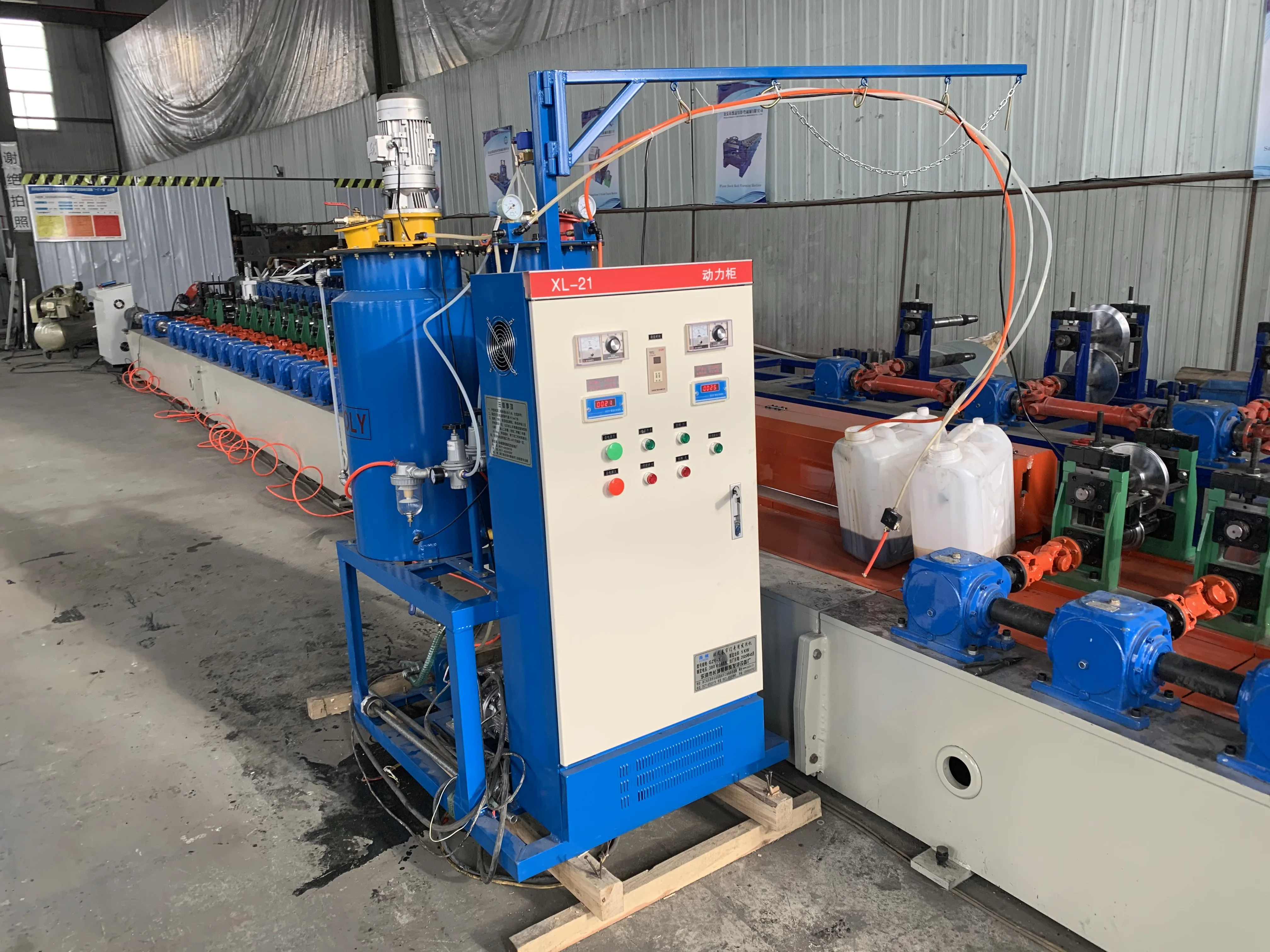

Name : Pu Spray Foam Machine
Automatic heating
Rate of flow can be adjustable
A B capacity :80 kg
A B capacity :80 kg
Weight : 370kg

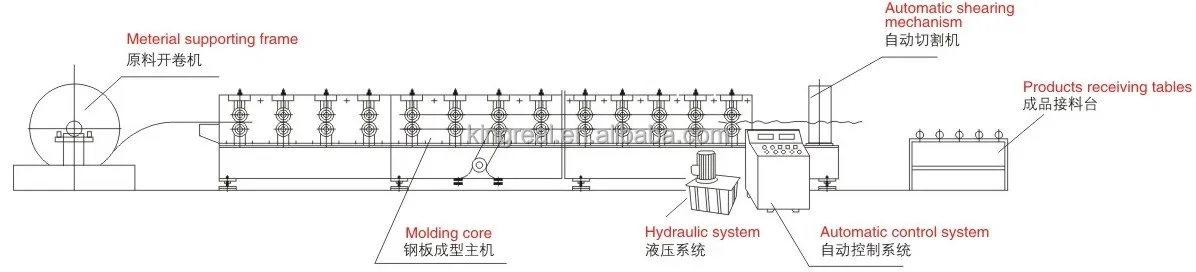

WORKING PROCESSING
RELATED PRODUCT

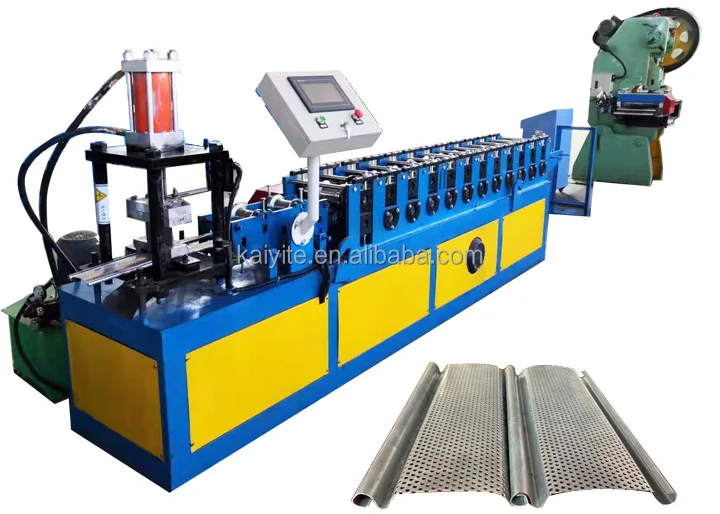

1. Fully Perforated Shutter Door Roll Forming Line
Fully perforated shutter door roll forming machine / Shutter door roll forming machine / Rolling shutter door machine

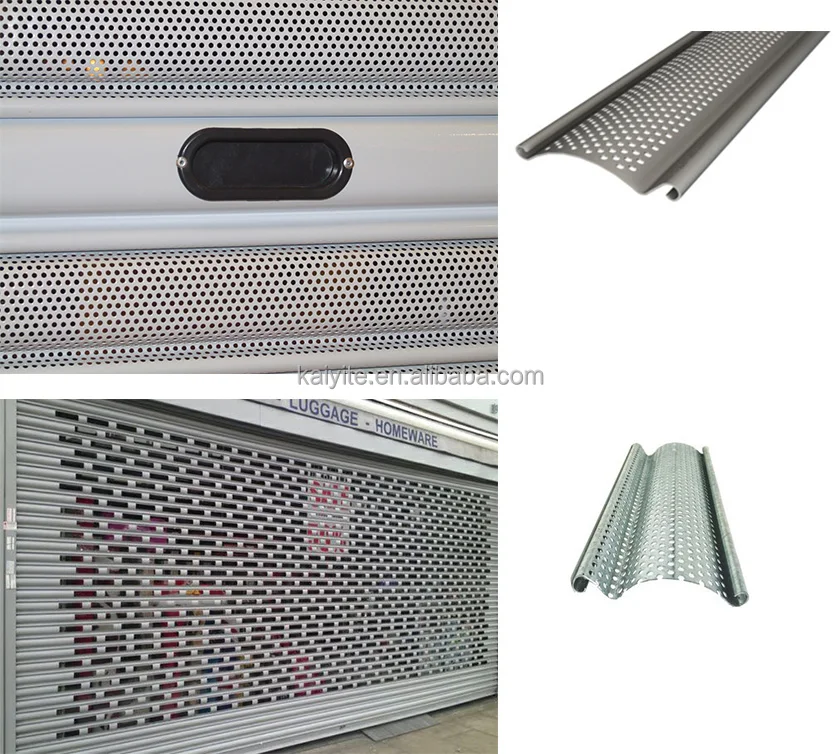

In order to keep the sunlight and air into the room, some client choose the shutter door profile with some big hole and also small hole. Just like the following pictures.

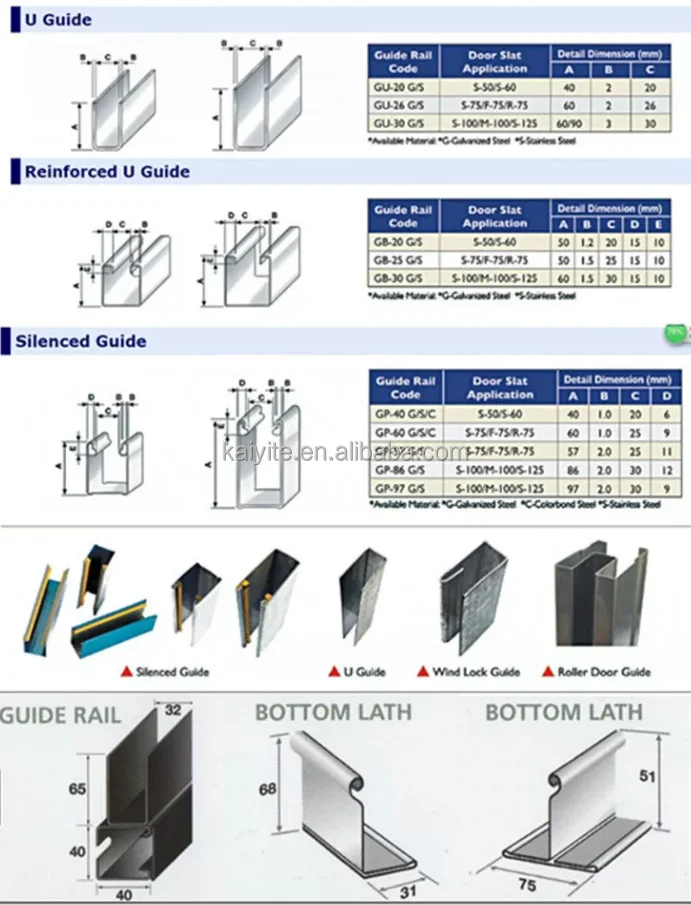

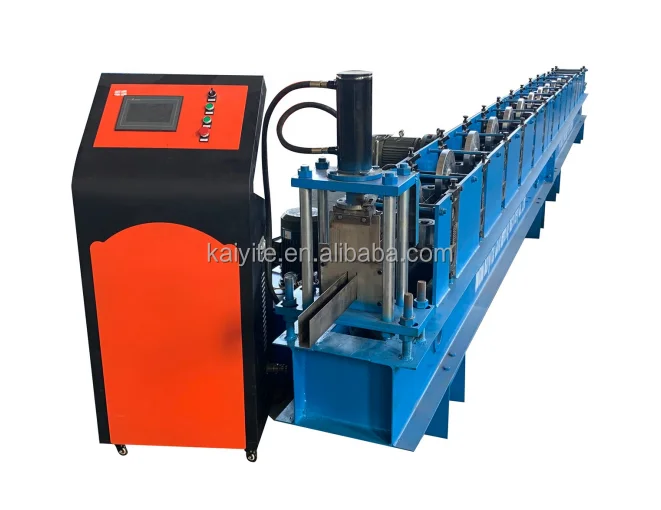

2. U guide rail shutter roll forming machine
U guide rail roll forming machine machine | slide rail forming machine | shutter door track machine
U Shape Guide Rail Roll Forming Machine can produce many types of roller shutter guide rails, usually C shape and U shape. The thickness is 0.8-2.0 mm. It is an important part in shutter door system. Usually customers who buy roller shutter slats formingcmachine will also buy this U Shape Guide Rail Roll Forming Machine .
3. Australian type shutter door roll forming machine
Australian shutter door roll forming machine / Australian type shutter panel making machine
A roller shutter door panel roll forming machine usually cooperates with a lock seaming machine; after the roller shutter door panels are roll formed, two or more panels have to be seamed together through a lock seaming machine to construct the roller shutter doors.
4. Bottom rail shutter roll forming machine
Shutter door bottom rail roll forming machine / Bottom rail making machine
Shutter doors with walls as play a role in the level of separating. The shutter door is consists of the curtain plate, base bottom shutter door plate, rail, bearing U channel, reel, box, control box, roll door, stopper, lintels, manual switch means immediate release, push button switch and 13 parts safety device, etc.. Generally the shutter door is installed in the wall separating the inconvenience of using the site. Shutter doors are widely used for commercial facade, garage, shopping malls, hospitals, industrial enterprises and other public places or homes. Especially used in large doorway case , where it is inconvenient to install floor door convenience play, fast turn on action.

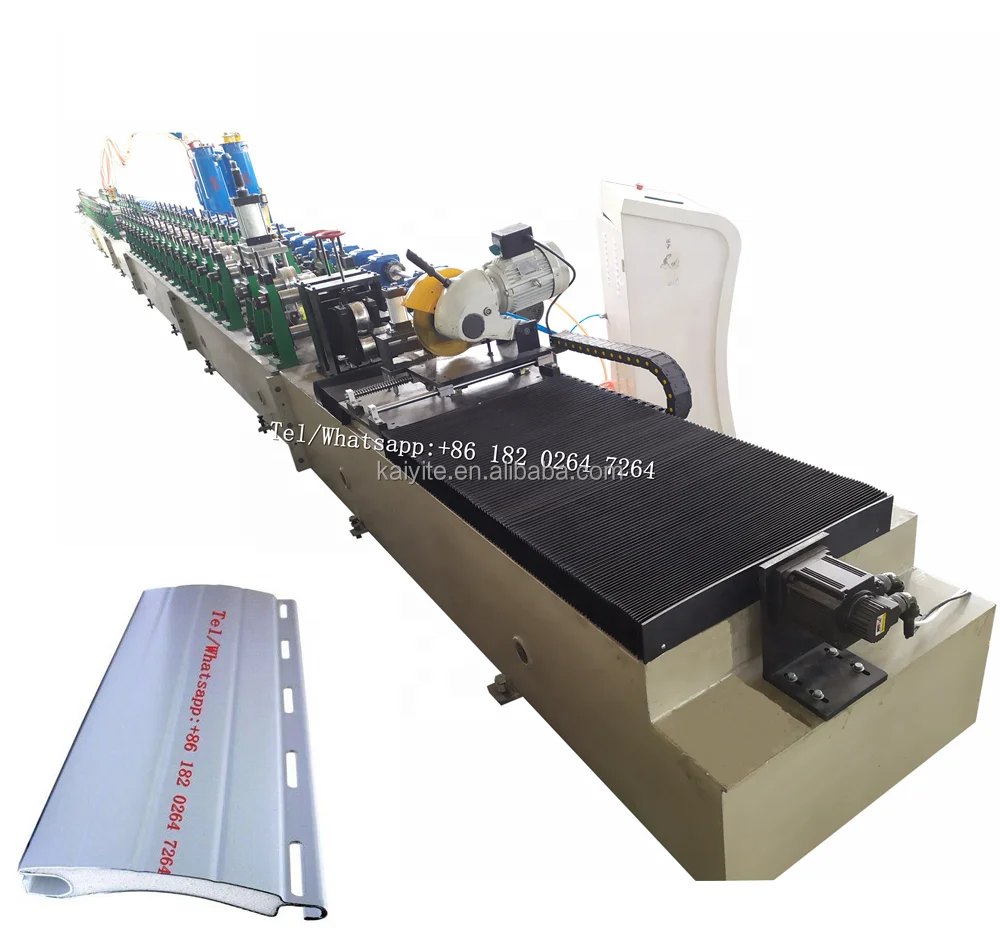

5. Pu foam shutter door roll forming machine
Pu foam shutter door machine / Pu foam shutter door line

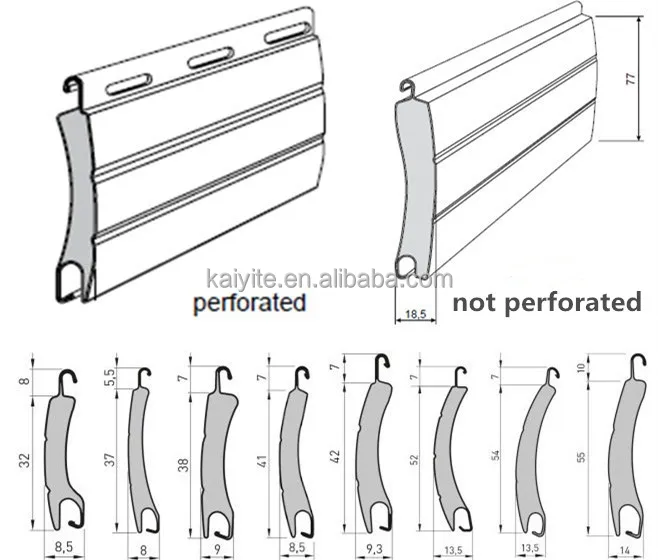

This roll forming machine is for producing aluminum shutter door & window slats with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes, inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.

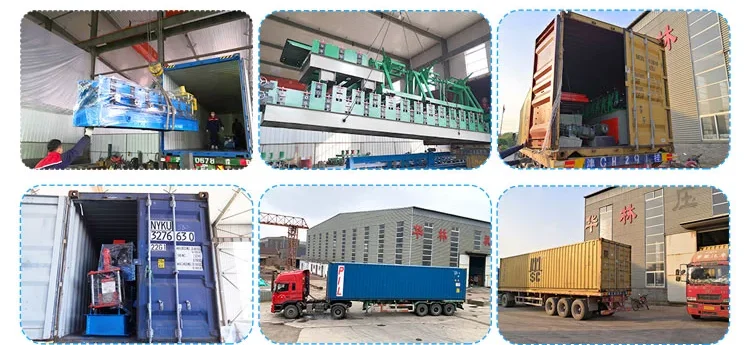

PACKING & DELIVERY
A.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. B.Rollers
and shafts are covered with anti-rust oil. C.PLC control system and motor pump are packed with waterproof paper and plastic film.
D.Spare parts in a carton box. E.Manual decoiler was nude packing. F.The output-table put into a carton box. G.If the machine is
too long, we will divide it into two parts and pack them in one package with steel wire. H.Fit for ocean shipping.
and shafts are covered with anti-rust oil. C.PLC control system and motor pump are packed with waterproof paper and plastic film.
D.Spare parts in a carton box. E.Manual decoiler was nude packing. F.The output-table put into a carton box. G.If the machine is
too long, we will divide it into two parts and pack them in one package with steel wire. H.Fit for ocean shipping.
COMPANY SHOW
