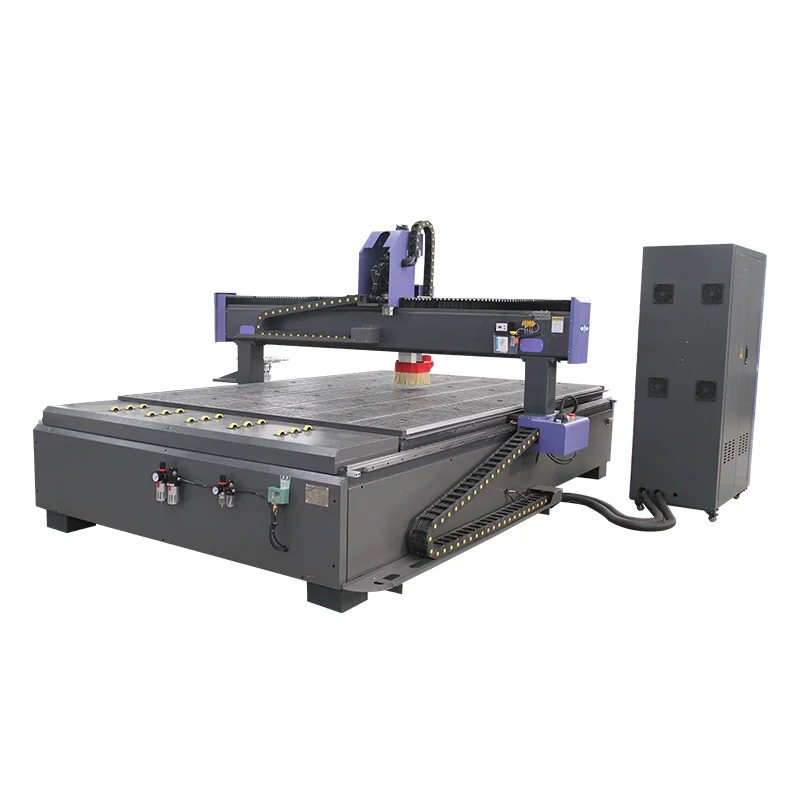

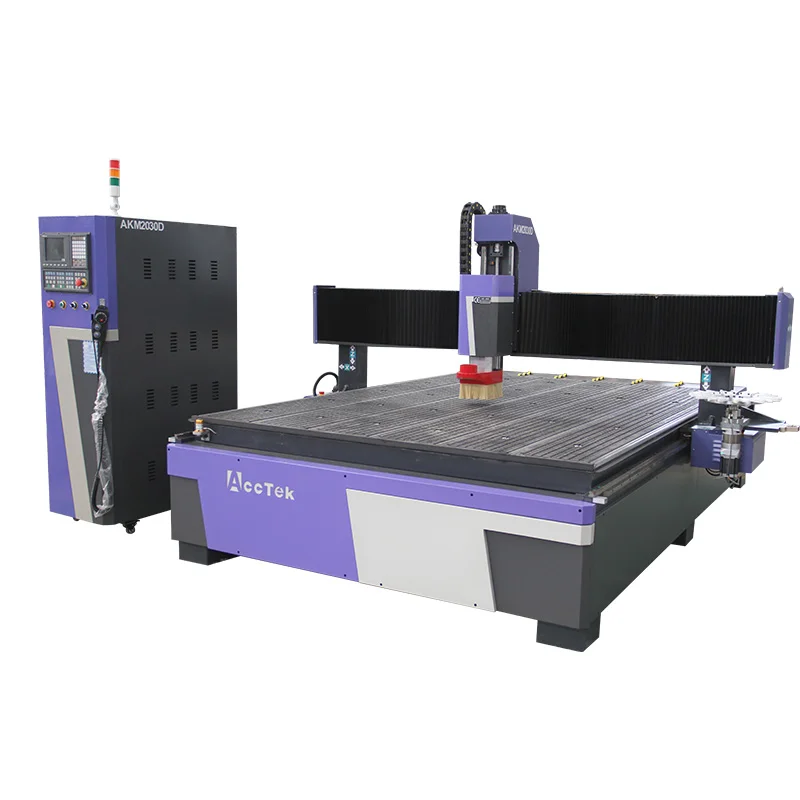

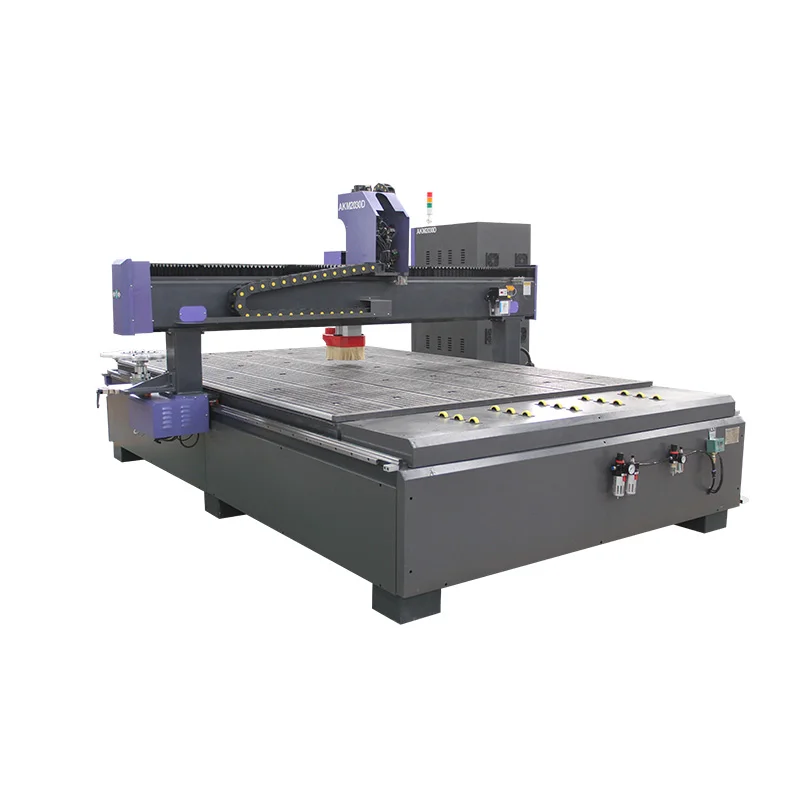

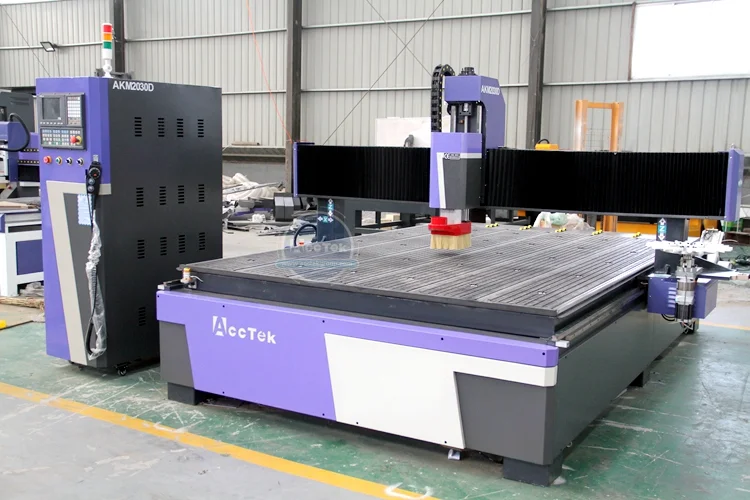

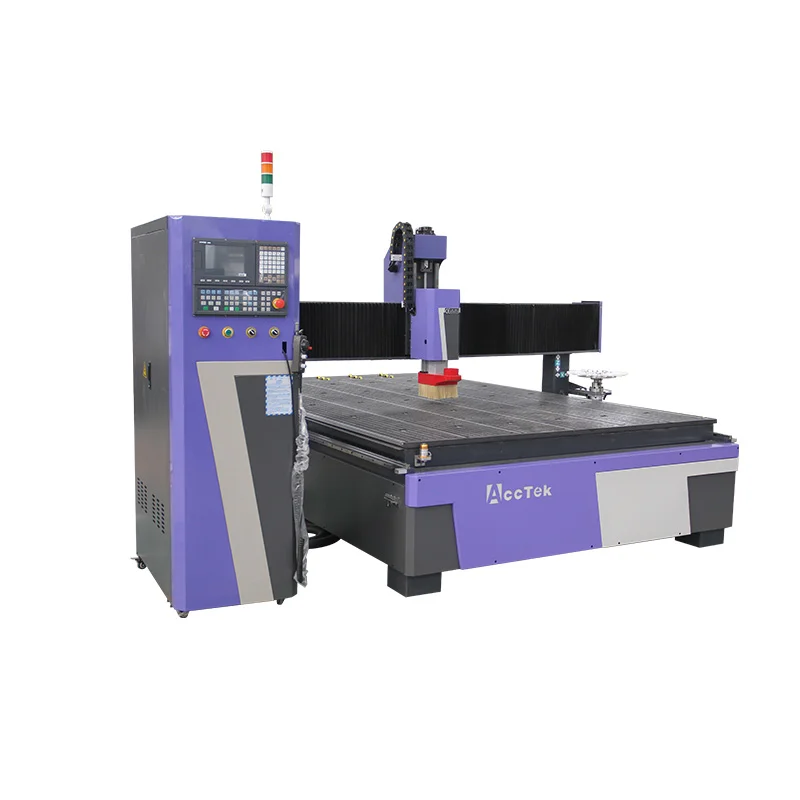

Automatic tool changer cnc router for cutting and engraving wood cnc router machine with carousel tool changer
- Category: >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600411167213):
Product Overview
Description
Product Overview

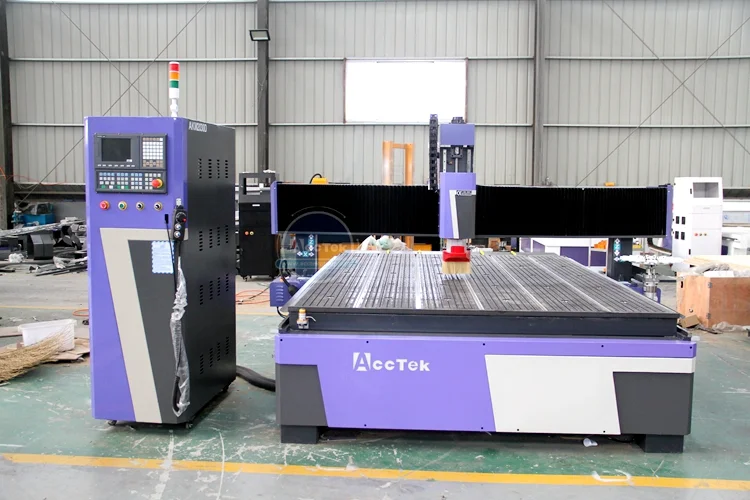

CNC Router 3D ATC Wood CNC Router Machine/Woodworking Machine Furniture Making Machine with carousel tool changer
Machine features of atc cnc router
1) Air cooling spindle: adopts China or Italy atc 9.0kw air cooling spindle. Well-known brands, long working life, low noise,strong cutting ability to ensure the long time working.
2) Taiwan Syntec 6MB controller system with handwheel: Easy operation. Support offline operation, more stable.
3) Taiwan Delta 750w servo motor and drivers: High-performance drive motor to ensure that the machines high speed and accuracy.
4) High accuracy linear rail 25mm from Taiwan: Smooth and precise transmission,low noise,and lifetime is 10 times longer than normal guide rails.
5) Vacuum & T-slot combined worktable: Can both absorb big materials by vacuum power and fix small materials by clamps.
6) XinYue Helical rack transmission: Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7)Linear type Tool changer: With 10 carousel tool holders or linear type, can save working time and will work
so convenient.
Product details show
Auto tool changer spindle
China Changsheng or HQD brand, also can use Italy HSD brand as option. Power 9.0kw, spindle rotate speed max 18000rpm or 24000rpm.
There is up down dust cover on it.
There is up down dust cover on it.
Carousel auto tool changer with motor
It has 10pcs tools magazines. It fixed on gantry, moving along with gantry, cansave change tools time, improve working efficiency.
Taiwan Syntec controller system
Includesa handwheel. The system is English version, it has multi functions, is very stableand professional for cnc.
Famous all over the world.
cnc router controller cabinet
Includes driver, controller motion card, inverter and other electrical components.
Usually use Taiwan Delta or Japan Yaskawa brand servo motor and driver for atc machine. Price is different.
Usually use Taiwan Delta or Japan Yaskawa brand servo motor and driver for atc machine. Price is different.
We install assistance wheels on back of machine table. If your wood pieces big and heavy, this will help you a lot to load very easy and fast.
This is an advantage of our machines, many other suppliers won't supply you this free of charge.
This is an advantage of our machines, many other suppliers won't supply you this free of charge.
This is auto oil lubrication device, after you pour sewing or machine oil into, just need to set parameters, then it will
lubricate automatically.
It helps guide rails and slide blocks running smoothly, so can guarantee the machine working speed and precision.
lubricate automatically.
It helps guide rails and slide blocks running smoothly, so can guarantee the machine working speed and precision.
Technicial data of atc cnc router
1 | Model Name | Carousel atc wood cnc router AKM2030D |
2 | X Y Z working area | 2000*3000*250mm |
3 | Whole structure | Heavy duty frame |
4 | Table surface | T-slot & Vacuum with vacuum pump |
5 | Movement parts | X,Y axis by gear, Z axis by Taiwan TBI Ball screw |
6 | Spindle | Changsheng / HSD 9.0KW air cooling spindle |
7 | Spindle speed | 18000 RPM |
8 | Drive Motor | Taiwan Delta 750w servo motor and drivers |
9 | Max. Rapid Travel Rate | 30000 mm/min |
10 | Max. Working speed | 10000mm/min |
11 | Control System | Taiwan Syntec 6MB with handwheel |
12 | Software | Type3, Artcam, Ucancam |
13 | Machine precision | 0.01mm |
14 | Repositioning precision | 0.03mm |
15 | Command | G code |
16 | Working Voltage | AC 220/380V, 50/60HZ |
17 | Package Size | 4160*2280*1760mm |
18 | Gross weight | 1600KG |
19 | Dust Collector | 3.0kw double bags dust collector |
20 | Inverter brand | Taiwan Delta inverter |
Product application
> Wood furniture industry
Doors, cabinets, tables, chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
> Advertising industry
Signage, logo, badges, display board, meeting sign board, billboard.
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising
materials derivatives making.
> Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,
sand, plastic sheeting, PVC pipe, and other non-metallic mold.
> Artwork and decoration
Wood crafts, gift box, jewelry box
> Others
Relief sculpture and 3D engraving and cylindrical object.
Doors, cabinets, tables, chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
> Advertising industry
Signage, logo, badges, display board, meeting sign board, billboard.
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising
materials derivatives making.
> Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,
sand, plastic sheeting, PVC pipe, and other non-metallic mold.
> Artwork and decoration
Wood crafts, gift box, jewelry box
> Others
Relief sculpture and 3D engraving and cylindrical object.
Customer feedback and our services
Guarantee | 12 months guarantee of the whole machine |
Software issue | Our technician is able to re-install or set up by remote for free |
Hardware issue | Main parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty period. |
Support online | Our technician is able to teach you online to run the machine or eliminate the fault for free |
Training in AccTek factory | We are able to train your staff after placed order in our factory for free. |
On-site training (Recommended, the most effective way） | We are able to send technician to your workshop to do the installation and training. You will need bear the related costs（flight,visa,hotel,training costs, etc) |
PACKING&DELIVERY
Payment
1. We accept Western union, Moneygram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
3. After you agree, please finish the balance.Finally.we arrange the delivery.
4. All thing is tested well,then we arrange the delivery.
Delivery
1.Outside package: Standard marine export plywood case .
2.Inner package: Stretch film and plastic film for humidity .
3.We can package according to your requests.
4. Its need about 15-20 days to produce the machine after get your deposit.
1. We accept Western union, Moneygram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
3. After you agree, please finish the balance.Finally.we arrange the delivery.
4. All thing is tested well,then we arrange the delivery.
Delivery
1.Outside package: Standard marine export plywood case .
2.Inner package: Stretch film and plastic film for humidity .
3.We can package according to your requests.
4. Its need about 15-20 days to produce the machine after get your deposit.
company introduction
Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing. Our main products are AccTek CNC Routers and Laser en-graving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop ftting, mold making, to name a few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assur-ance procedures mean that you can buy with confidence. We wel-come customers and potential business associates from around "Our business is to improve your business"
