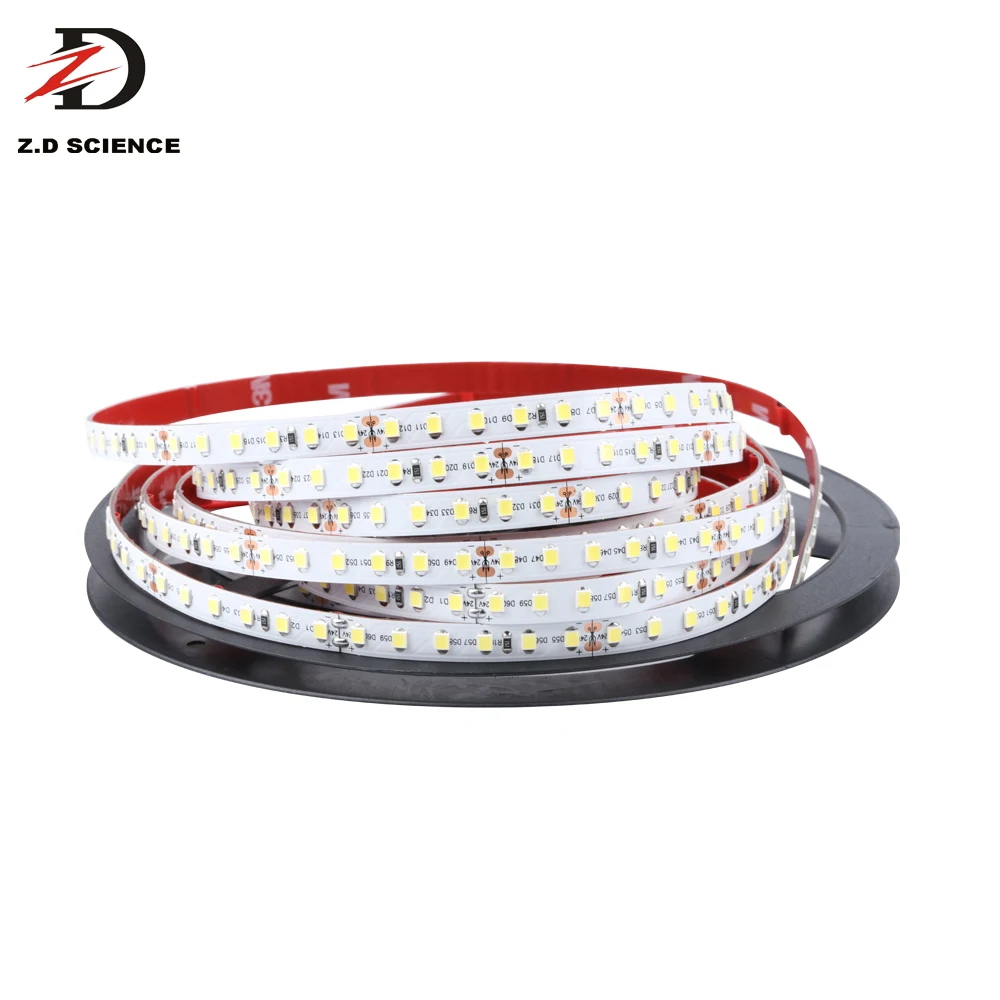

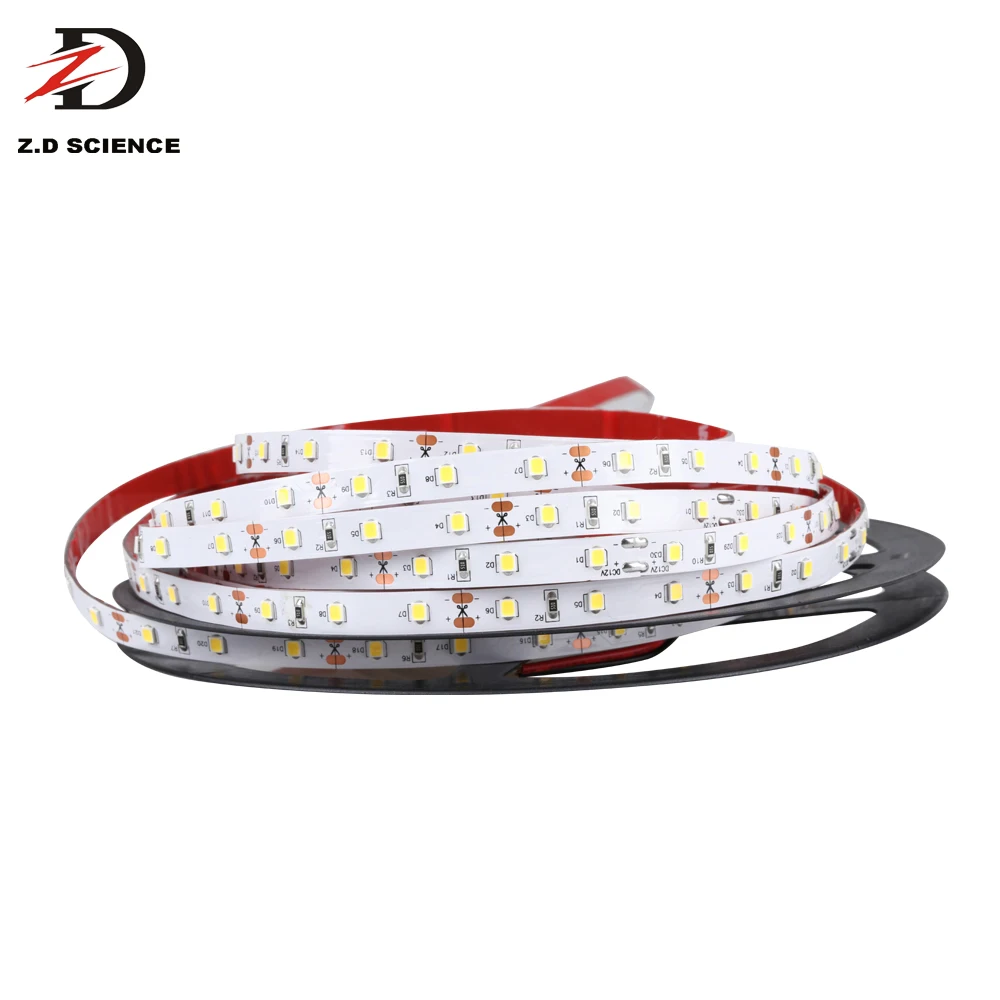

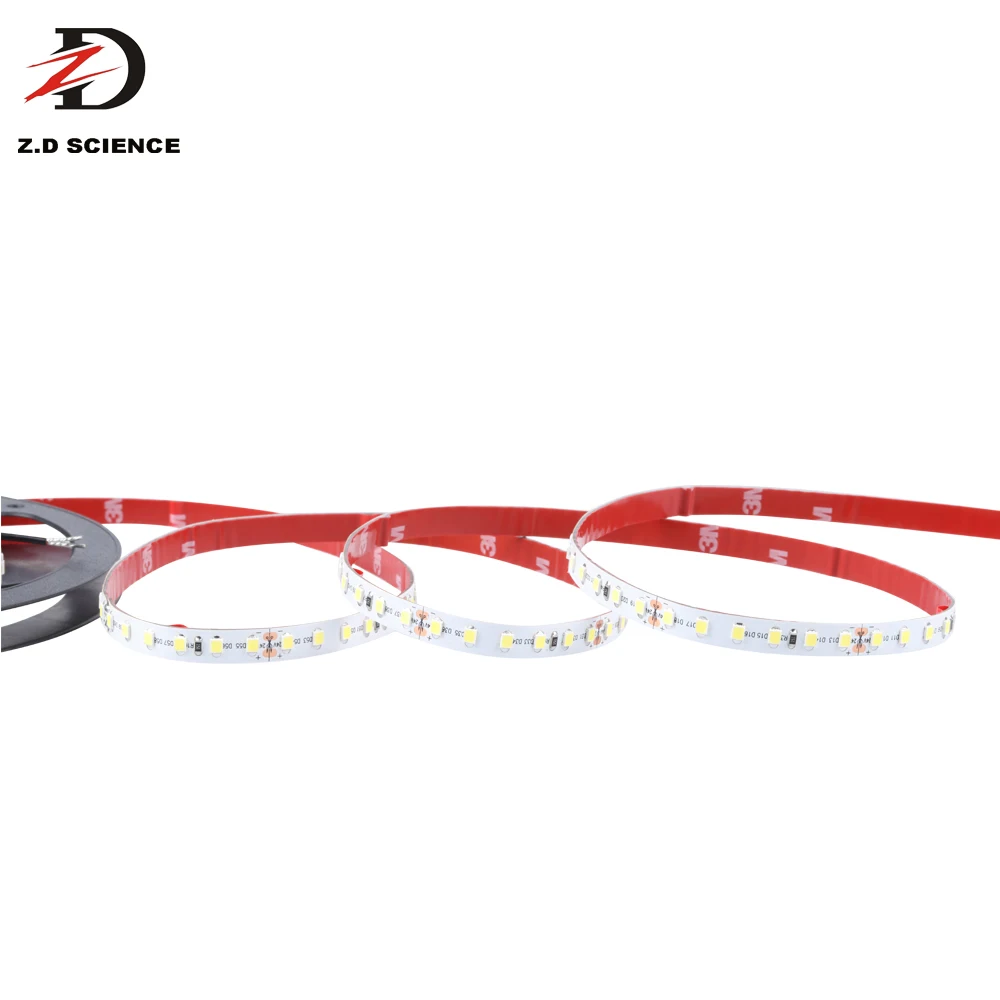

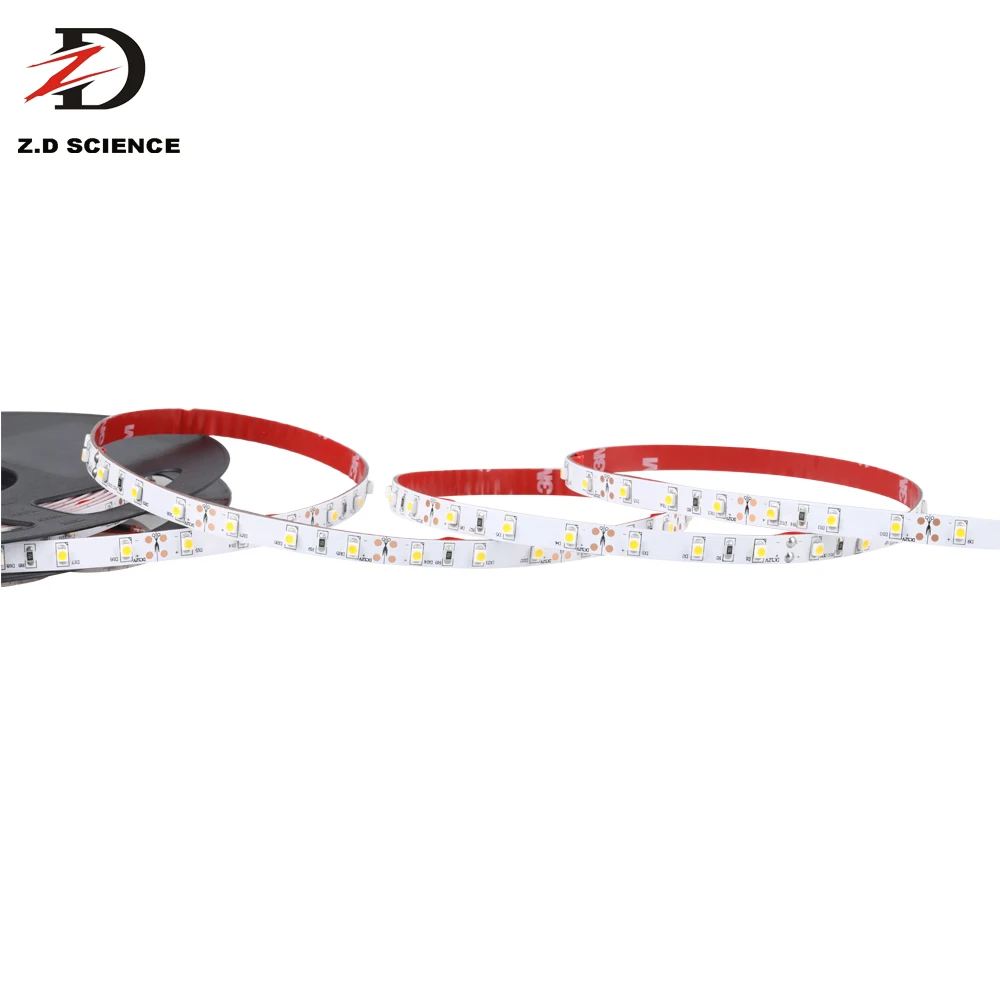

2835 60LED/m LED Light Strip Flexible 12 Volt 2700K 3000K Warm White 6000K White LED Strip

Share on (1600411179178):


Price:$1.30

Quantity:


Product Overview

Description







2835 60LED/m LED Light Strip Flexible 12 Volt 2700K 3000K Warm White 6000K White LED Strip



Specification


Technical Specification
















































































LED TypeSMD2835 Flexible strip light
LED Quantity60LEDS/M( 30leds,120leds,240leds..also available , can be customized)
IP RatingIP20 non-waterproof ( IP65 /  IP67 IP68 waterproof are also available)
VoltageDC12/24V
Wattage14.4 W/Meter for 60 leds
Lamp Luminous Flux(lm)22-24 and 24-26lum/LED available
Beam Angle120°
Color Tempterature2700-6500K
FPC ColorWhite color ( black color also available )
FPC Board width8MM
Lifespan 50000hours
CuttingEvery 3LEDs / 6LEDs cuttable along the cutting mark
DimmableYes, choose dimmer driver
Length5Meter /reel, or customized
Power supply required 12/24V LED Driver
MountingTear the high ahension 3M tape, then stick in any substrate surface
CertificateCE and Rohs Certificate avaiable
Warranty3years


What are LED Strip/Tape Lights?





Also known as LED Light Strips, Flexible LED Strips, or LED Strip Lights, LED tape is a flexible circuit board with integrated light emitting diodes (LEDs).





LED Tape lights are highly versatile in their use and applications. LED light strips can be mounted inside housings, channels, or guides called LED extrusions. The extrusion acts as the connector between the light source and the application area - maximizing the applications and uses available for LED light strips while also acting as a heatsink to prolong the life of the LED tape.





LED strips lights come in a variety of voltages, lengths, color temperatures, lumen outputs, quantities per foot, and beam angles. Some LED light strips are coated in gel, or silicone to achieve an IP 65 index rating making them suitable for outdoor use, resistant to moisture, dirt and debris.





Another important aspect of LEDs is their CRI value. The color rendering index (CRI) of a light source is a measurement of its ability to reproduce the colors of various objects faithfully in comparison with a natural light source and to show the object’s colors "realistically" or "naturally" compared to daylight.


 strip light catalouge.jpg








Detail Images


Detail Images.png

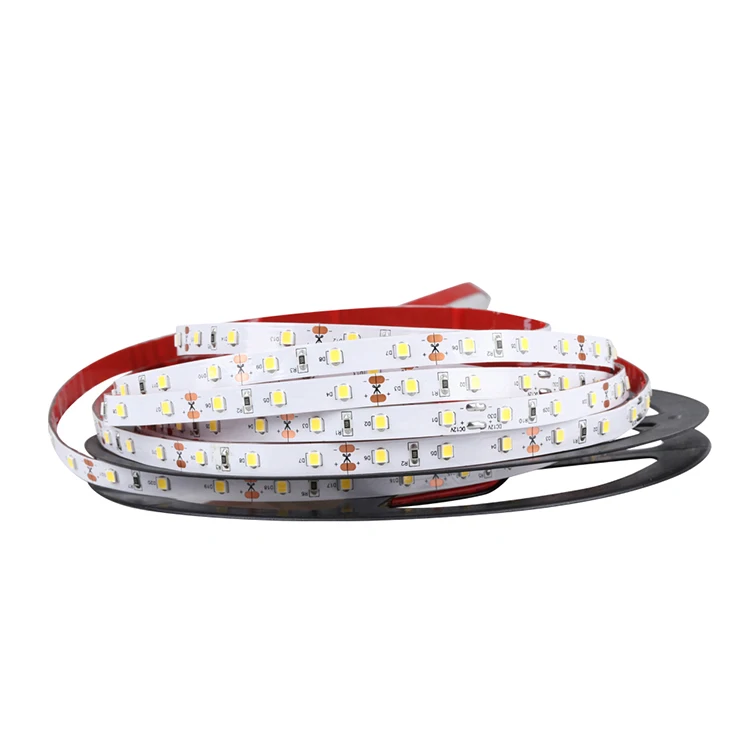

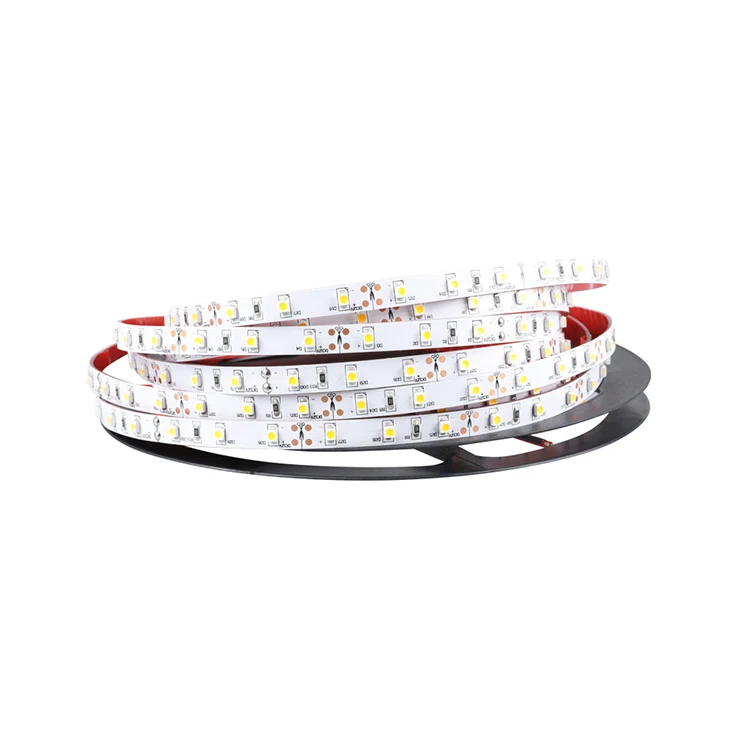

2835 strip light.jpg

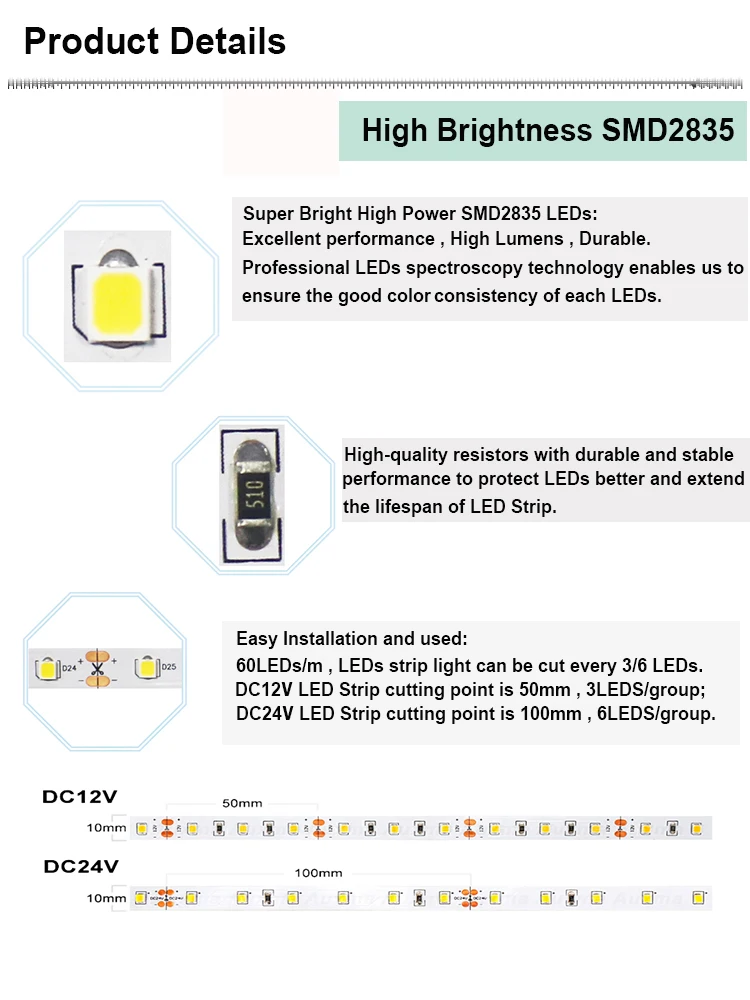

 strip light details .jpg

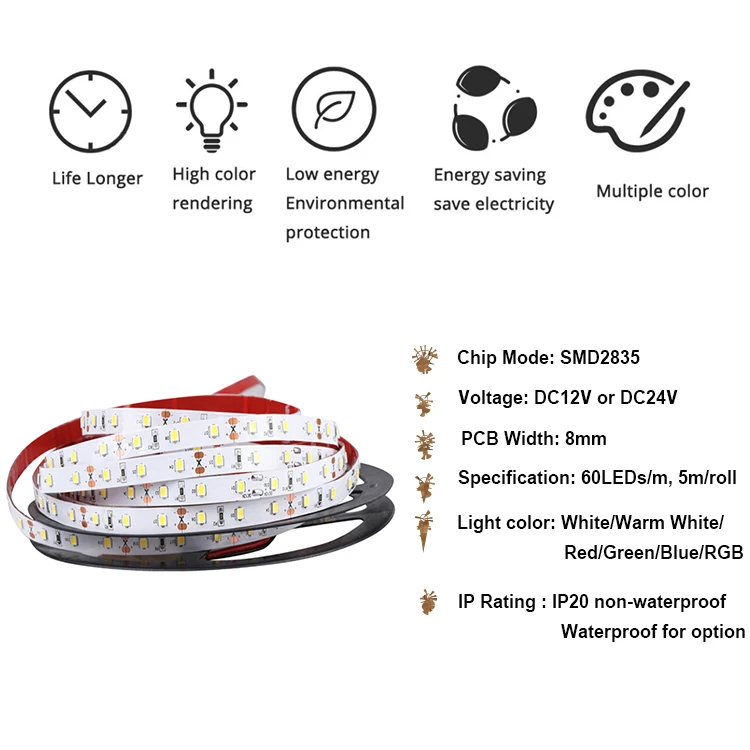

2835 specifications.jpg

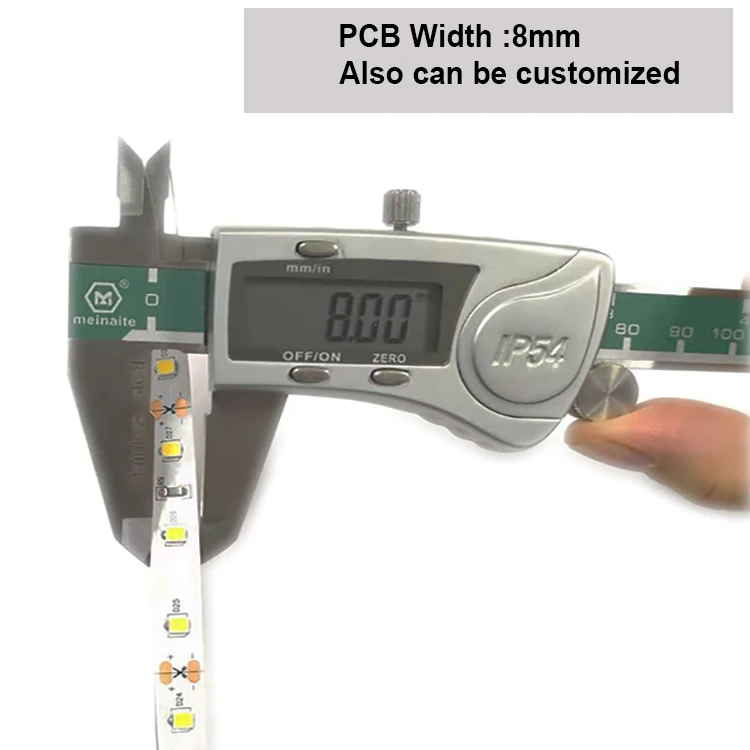

PCB Width.jpg


Features:



  • Superb right 2835 SMD LED, high intensity and reliability.

  • Long life span 50,000 hours

  • Continuous length, packed with 5 meter.

  • Flexible ribbon for curving around bends

  • Completely smooth and even light spread, solving the uneven luminous problem

  • Ultra-bright but running at low temperature

  • Low power consumption





Waterproof Rates:

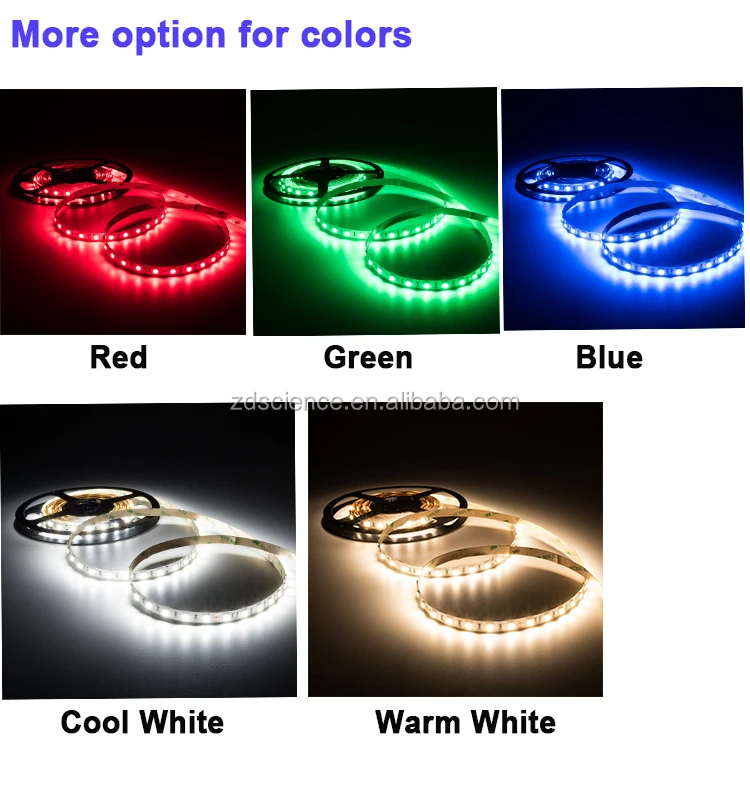

color options




LED WIRE.jpg

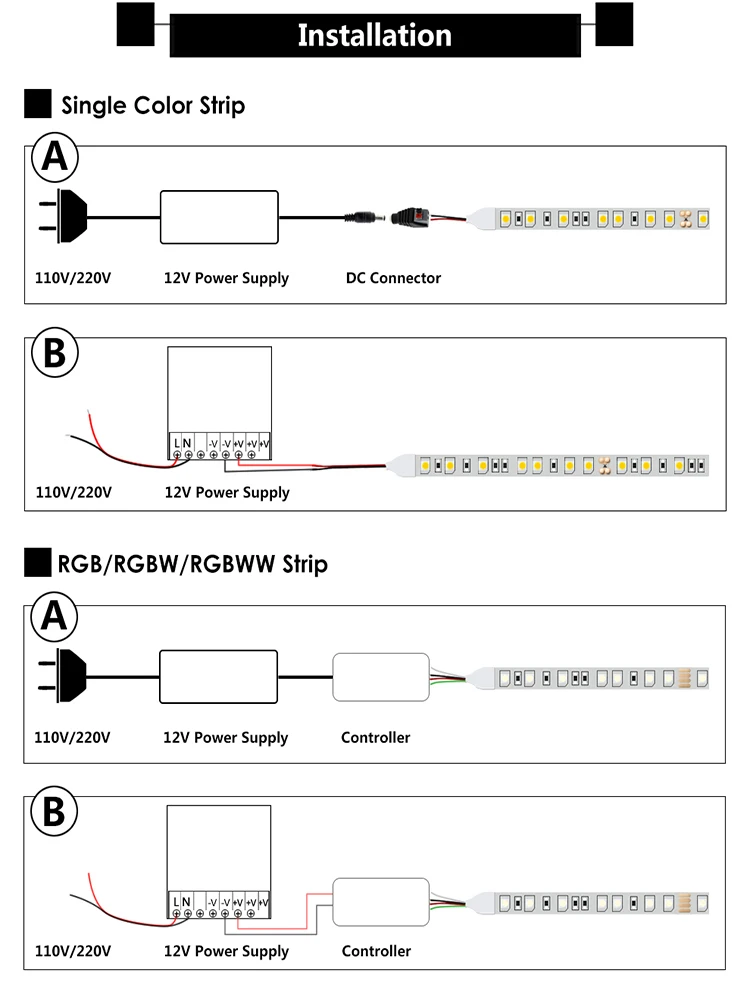

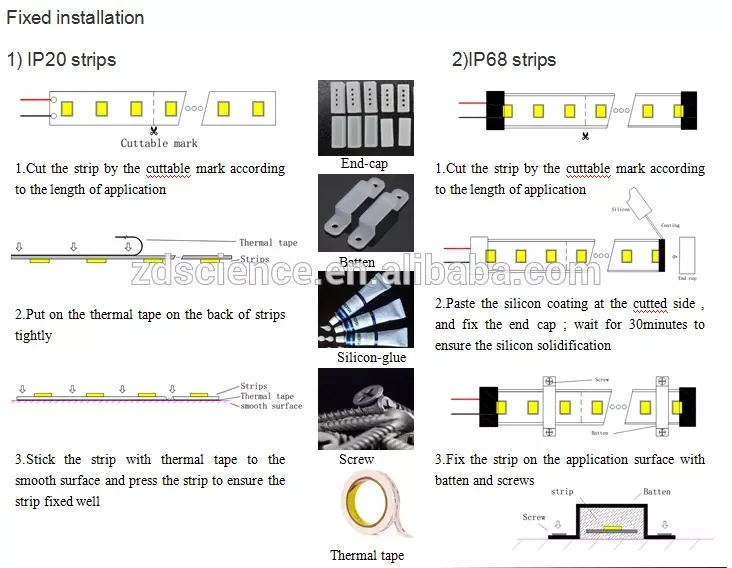

installation

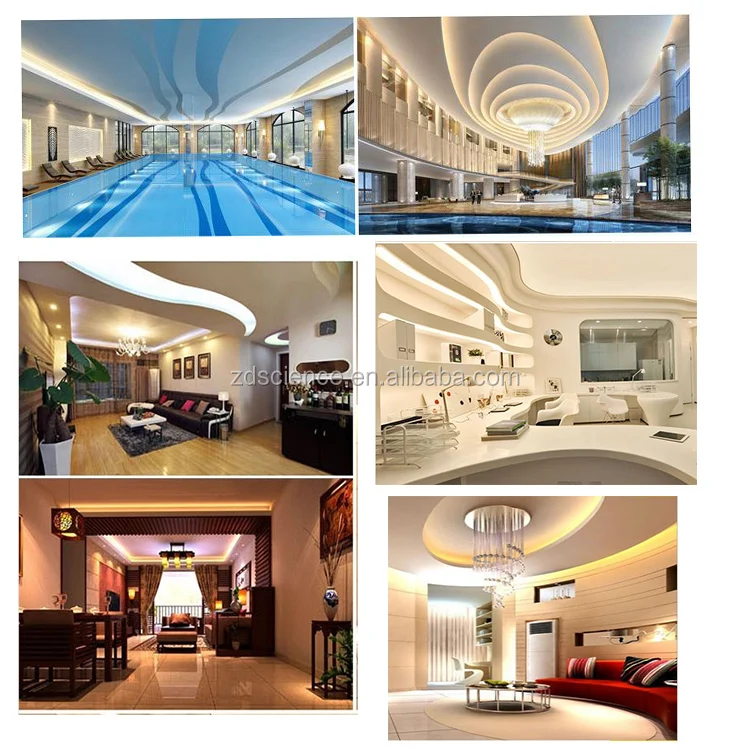

Applications:



  • Architectural lighting for canopies, corridors, archways, windows

  • Downlighting or uplighting for wall wash applications

  • Backlighting or edge lighting for signage

  • Edge-lighting for glass

  • Under-cabinet, toe-kick, in-cove moldings

  • DIY projects

  • Safety stair tread and step marking

  • Decorative lighting for holidays, tradeshows, exhibitions




Accessories:





RGB connector.jpgaluminum profile.jpg


CERTIFICATE
















FAQ










Q1:Why to choose our factory ?




A: We have more than 10-year aluminium profiles and kinds of  LED products ,we always do the best to support customer's development in order to be mutual benefit for long terms business ; PROFESSIONAL,CONSCIENTIOUS,HIGH QUALITY with competitive price and good services is the most we focus on.








Q2:Do you make customized products based on our design drawings?




A: Yes, we have an experienced engineering team to make custom products according to clients' drawings.








Q3:What is your terms of payment ?




A: 30% for deposit,balance before shipping.








Q4:How long is your deliver time?




A:In general,7-15 days for existing moulds.








Q5:What's the shipping method?




A:Most of goods were sent out by international airway express company like DHL,UPS,FedEx,TNT. Usually takes around 3-4 working days (door to door service). We also can arrange shipment via sea way .








Q6:Can you give me help if my products are very urgent?




A:Yes, we will try our best give you help. Because we have our own factory to produce. We can flexible to adjust our production schedule.
