ASTM D2061 Fabric Zipper Rotation Testing Machine
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (1600411300242):
Product Overview
Description
Product Description
Product Overviews
| Application |
To test the torsional strength of variety types of zipper pullers. Testing methods: twist off, constant angle, constant load.
| Feature |

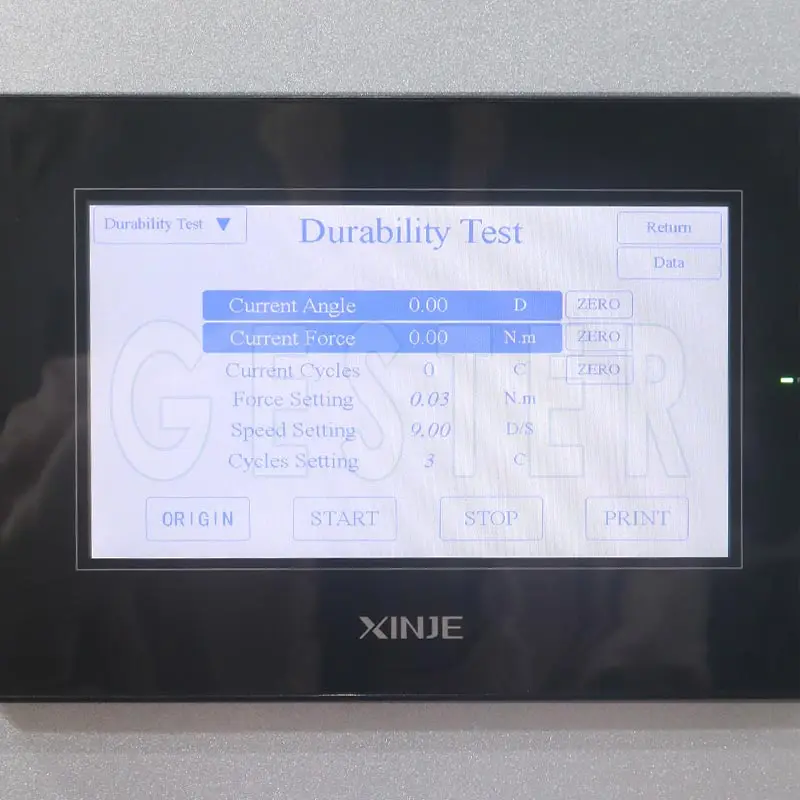

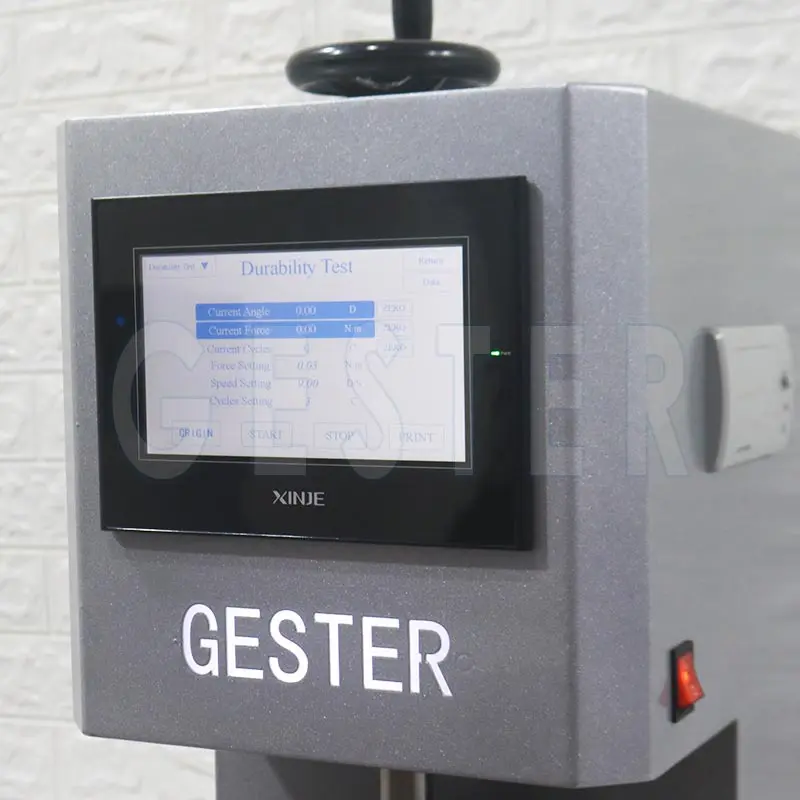

1. Use the touch screen control is easy to operate with straightforward interface.
2. Torsional fixtures are made of stainless steel with simple and generous appearance.
3. Torsion part use low-noise reducer which can run smoothly and less noise.
4. Testing methods: twist off, constant angle, constant load.
5. Unite can be switch from cN.m andN.m.
| Standards |
ASTM D2061, 16CFR 1500.51-53, EN 16732
| Key Specification |
Model | GT-C39B |
Torsion test range | 0.1~5.00N·M (500cN. M) |
Load accuracy | 0.1cN.m |
Loading method | One-way Torsion: 1. Loading Direction: clockwise; 2. Unloading Direction: anticlockwise |
Rotate angle range | ±150°(Can be set) |
Accuracy of the torsion angle | 0.1° |
Rotate speed | 9o/s (Can be set) |
Power | AC220V,50HZ/60HZ,100W |
Dimension (L×W×H) | 500×410×550mm |
Weight | 50kg |
| Product Image |
