FILLING AUTO BRAND Horizontal Heat Sealing Nitrogen Gas Filling Vacuum Automatic Continuous Band Sealer Machine
- Category: >>>
- Supplier: Boloni (Jinan) International Trade Co. Ltd.
Share on (1600411352712):
Product Overview
Description
Product Details
Product Name: Continuous Sealing Machine Model: BLN-FR900
Introduction
1.The machine, suitable for sealing various plastic and compound films, is a best sealing equipment to be widely used in such sectors as food, pharmaceutical, chemical industry, daily cosmetics, native and special local products, vegetable seeds, electronic components etc.
2.As to the sealing machine, there are horizontal type and vertical type, the horizontal type is for packing and sealing of drying goods; the vertical one is used for liquid goods.

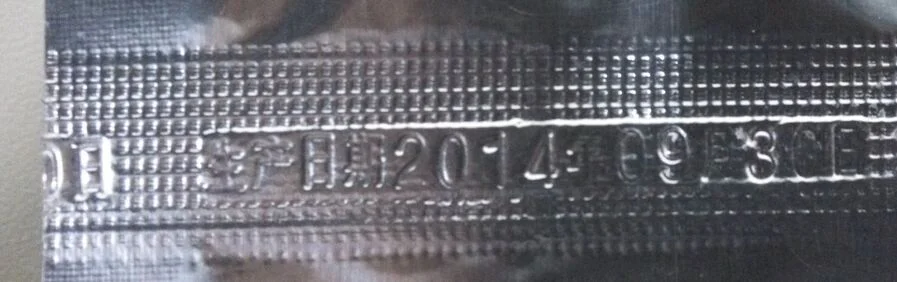

3 Its sealing part, rolled by the pattern roller, is made with stripes or netted veins.
Main specifications
Power supply: 220V,50Hz
Power: 500w
Sealing speed: 0-12m/min(adjustable)
Sealing width: 6-14mm(adjustable)
Temp range：0-300（adjustable）
Sealing length: unlimited
N. of printing words:13
Exterior dimensions:
Horizontal type:850*420*320(mm)
Vertical type: 850*320*550(mm)
Introduction
1.The machine, suitable for sealing various plastic and compound films, is a best sealing equipment to be widely used in such sectors as food, pharmaceutical, chemical industry, daily cosmetics, native and special local products, vegetable seeds, electronic components etc.
2.As to the sealing machine, there are horizontal type and vertical type, the horizontal type is for packing and sealing of drying goods; the vertical one is used for liquid goods.
3 Its sealing part, rolled by the pattern roller, is made with stripes or netted veins.
Main specifications
Power supply: 220V,50Hz
Power: 500w
Sealing speed: 0-12m/min(adjustable)
Sealing width: 6-14mm(adjustable)
Temp range：0-300（adjustable）
Sealing length: unlimited
N. of printing words:13
Exterior dimensions:
Horizontal type:850*420*320(mm)
Vertical type: 850*320*550(mm)
QUOTATION
TYPE A | TYPE B | TYPE C | TYPE D | |
Machine type | Horizontal type /Vertical type | Horizontal type /Vertical type | Horizontal type /Vertical type | Horizontal type /Vertical type |
Plastic bag thickness | 0.06-0.20mm | 0.06-0.20mm | 0.06-0.20mm | More than 0.20mm |
Plastic bag materials | Plastic, fresh keeping bag, tea bag, aluminum foil, kraft paper | Plastic, fresh keeping bag, tea bag, aluminum foil, kraft paper | Plastic, fresh keeping bag, tea bag, aluminum foil, kraft paper | Plastic, fresh keeping bag, tea bag, aluminum foil, kraft paper |
Heating time | one | one | one | two |
Sealing width | 6-14mm | 6-14mm | 6-14mm | 20mm/30mm |
Recommended continuous working hours | 4 hours | 4 hours | 12 hours | 12 hours |
Gear | Normal gear | Normal gear | High strength nylon gear imported from Holland | High strength nylon gear imported from Holland |
Heating block | One set of pure copper heating blocks | One set of pure copper heating blocks | Two sets of pure copper heating blocks | Two sets of pure copper heating blocks |
Warranty period | 1 Year | 1 Year | 2 Years | 2 Years |
Free wearing parts | Have | Have | Have | Have |
Printing function | No | Have | Have | Have |
EXW price for 1 set | 140USD | 180USD | 290USD | 400USD |
Details Images
Intelligent control panel
Visual design of window, LED display temperature control meter, double anti-leakage, let you operate with peace of mind and safety, simple and easy to use.

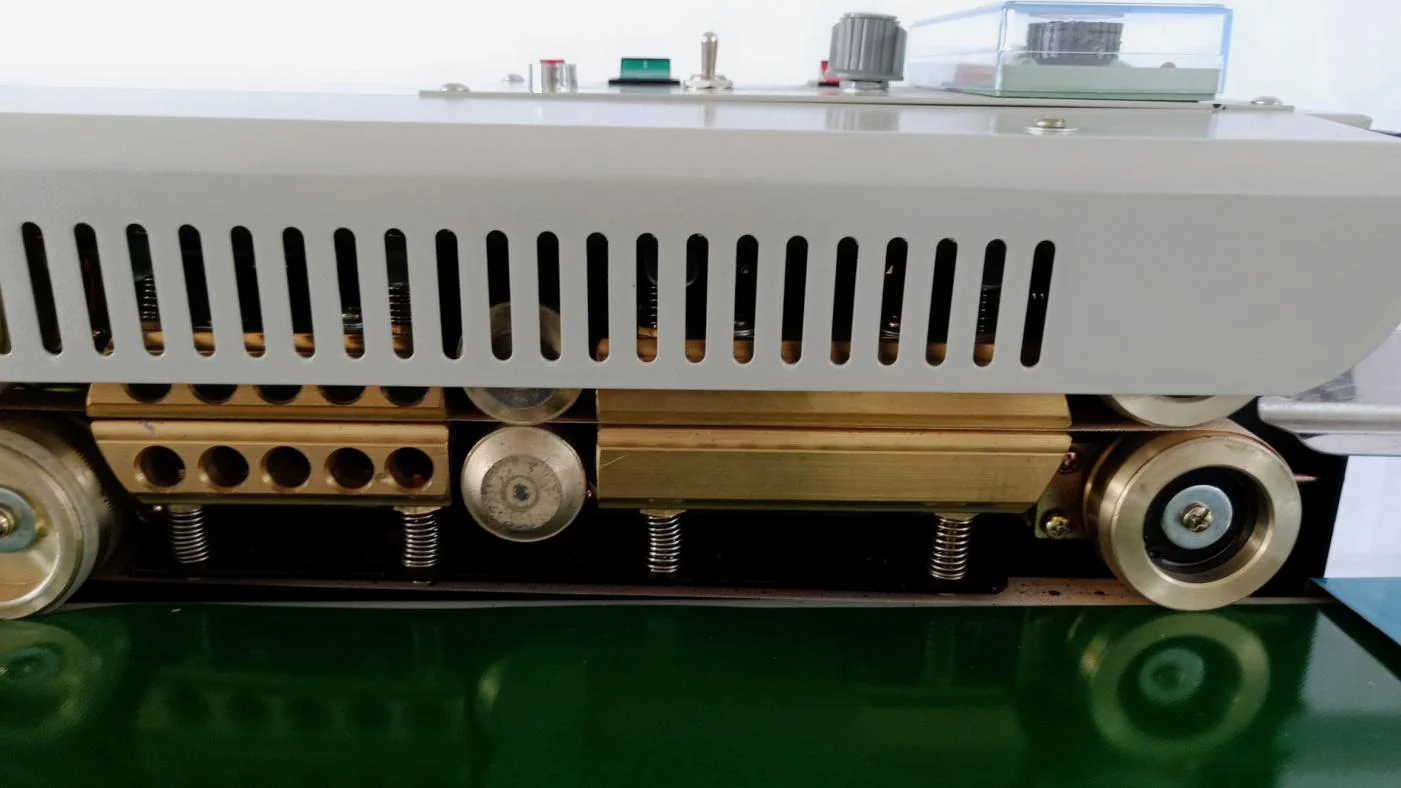

Cooling and heating block
Equipped with air-cooled heat dissipation, which can protect the machine more quickly and effectively; 100% pure copper heating block for more uniform heating and durability
Exquisite embossing wheel
The machine is equipped with a high-quality embossing roller, which is stable and does not deform, the seal is firm and beautiful, and the printing is clear.
The machine is equipped with a high-quality embossing roller, which is stable and does not deform, the seal is firm and beautiful, and the printing is clear.
6-10mm adjustable feed inlet, forged from high-quality materials, stable and durable
Using thicker wear-resistant conveyor belt, more durable than ordinary conveyor belts on the market, suitable for long-term continuous work
The distance between the top and bottom of the conveyor can be adjusted, and the parameters can be adjusted according to actual needs to improve the work efficiency

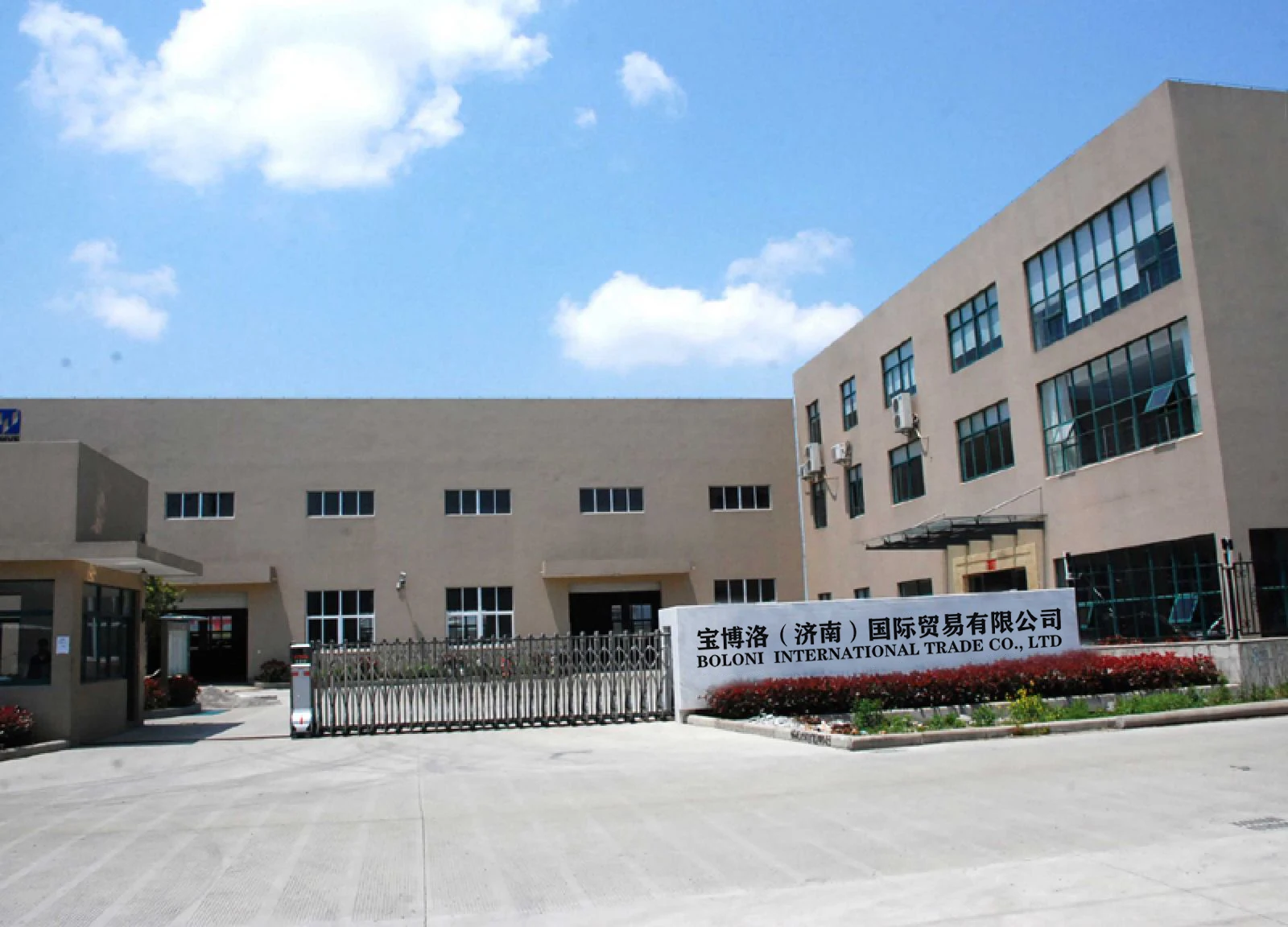

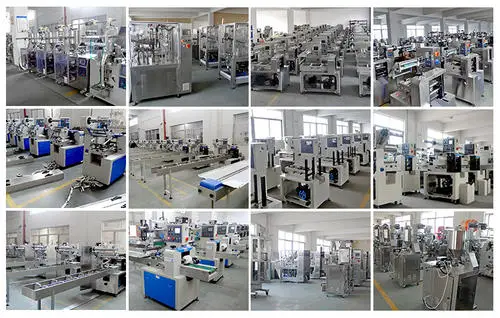

Company Profile
Certificate praise
FAQ
Q1: Are your factory or trading company?
A: We are factory trading department or factory agent.
Q2: Can you guarantee your quality?
A: Of course. We are the factory agent. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What kind of after sell service do your company have?
A: For small equipment, we have operation instructions and installation guidance video, and customers can provide video connection guidance after receiving the equipment; for large equipment, we have professional installation and debugging engineers for on-site installation and debugging and training.
Q4: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q5: How could I get the spare parts on machines?
A: We will send extra one set of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q6: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection.
Q7: What's the payment terms and trade terms for new customers?
A: Payment terms: T/T, L/C, D/P, Western Union etc.
Q8: What's the Minimum Order Quantity and warranty?
A: MOQ:1 set
Warranty:12 months, some customized products will be 18 months.
Q9: Do I need to pay for the extra cost like tax or duty?
A: It depends on the local customs.
Q10: Can you accept OEM/ODM?
A: Yes, We can.
A: We are factory trading department or factory agent.
Q2: Can you guarantee your quality?
A: Of course. We are the factory agent. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What kind of after sell service do your company have?
A: For small equipment, we have operation instructions and installation guidance video, and customers can provide video connection guidance after receiving the equipment; for large equipment, we have professional installation and debugging engineers for on-site installation and debugging and training.
Q4: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q5: How could I get the spare parts on machines?
A: We will send extra one set of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q6: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection.
Q7: What's the payment terms and trade terms for new customers?
A: Payment terms: T/T, L/C, D/P, Western Union etc.
Q8: What's the Minimum Order Quantity and warranty?
A: MOQ:1 set
Warranty:12 months, some customized products will be 18 months.
Q9: Do I need to pay for the extra cost like tax or duty?
A: It depends on the local customs.
Q10: Can you accept OEM/ODM?
A: Yes, We can.
