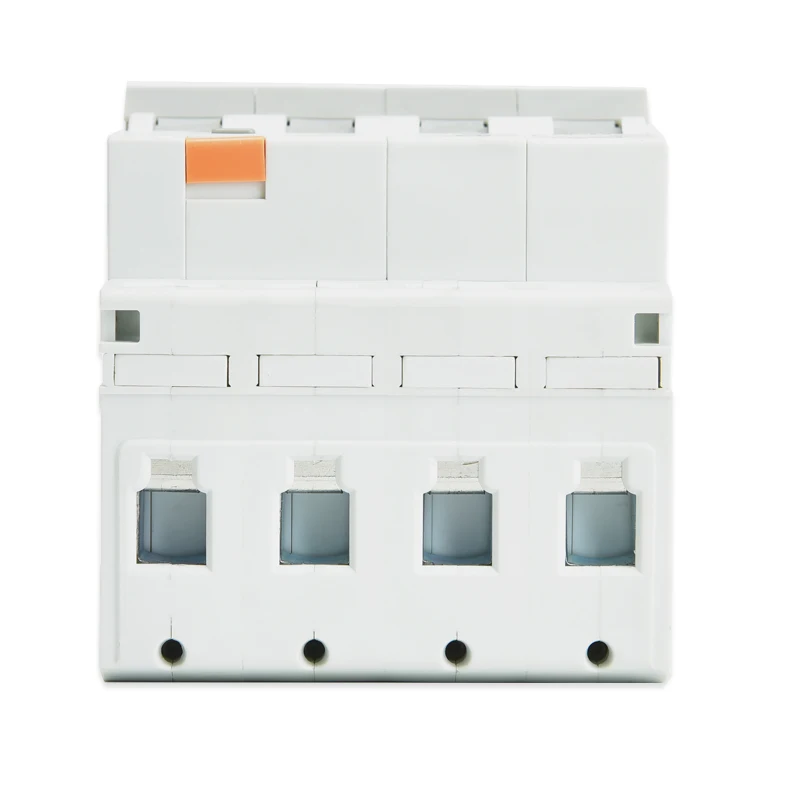

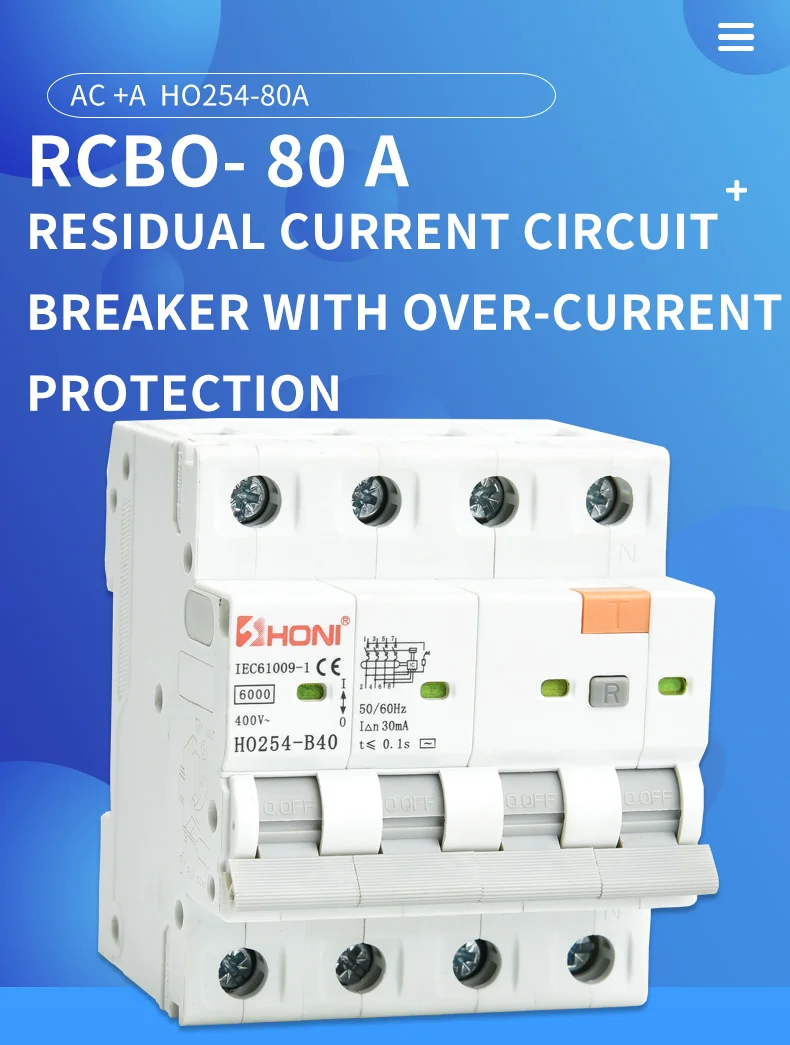

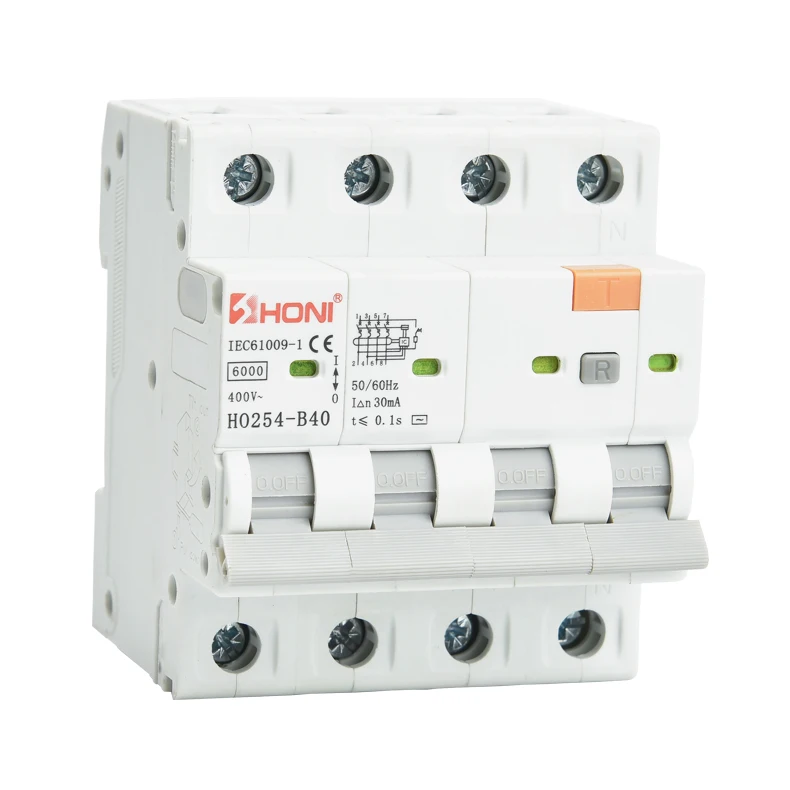

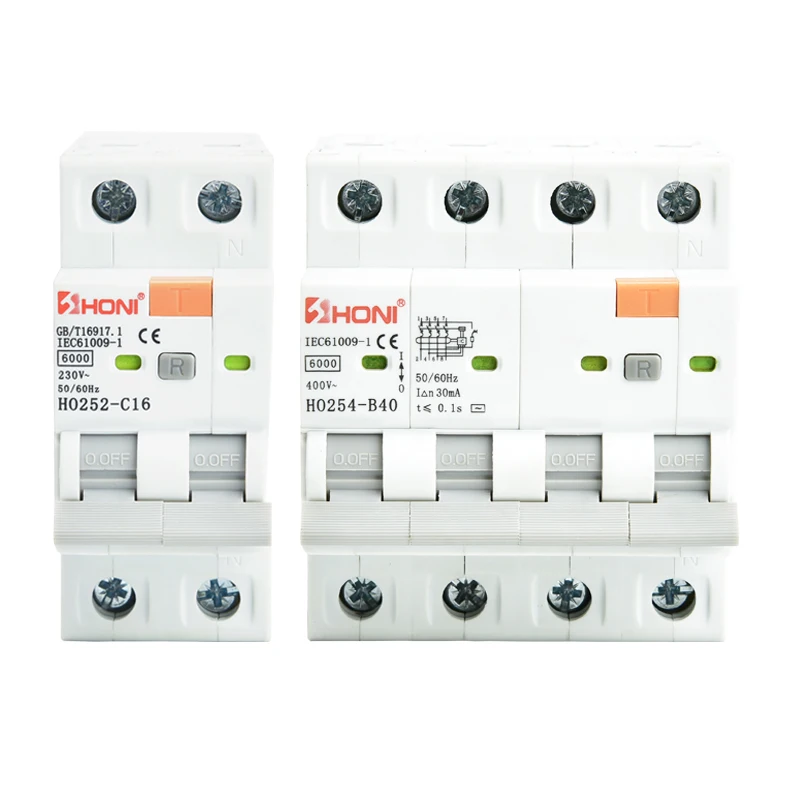

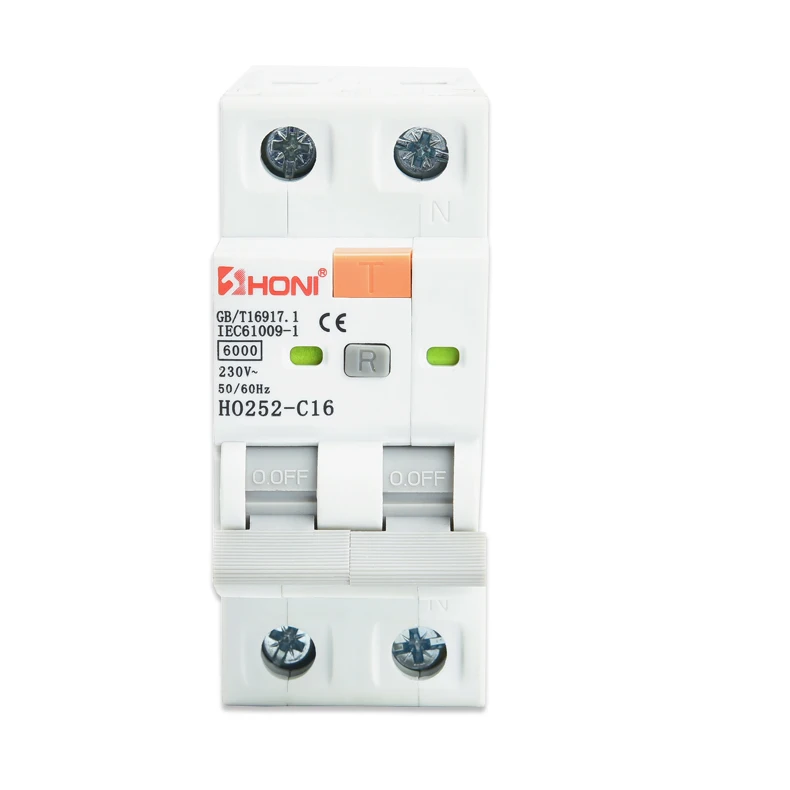

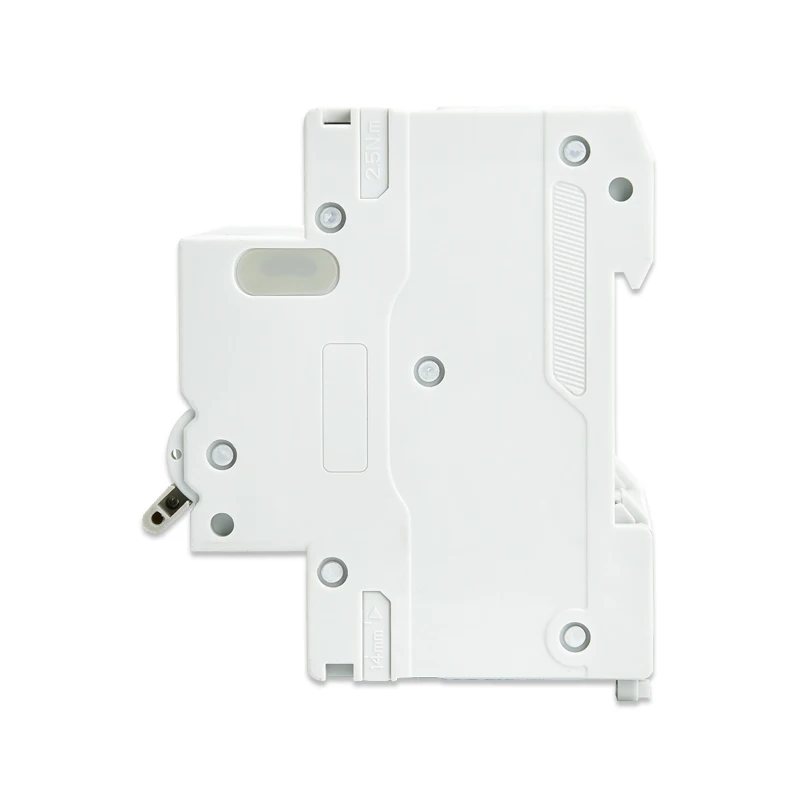

cheap price 2P 4P 10KA b 16A 32A C40A 30mA mcb 6ka rcbo electric miniature circuit breaker
- Category: Circuit Breakers >>>
- Supplier: Yueqing High Quality Electric Co. Ltd.
Share on (1600411489120):
Product Overview
Description
Product Description
Specification:
Overview
It is Electronic type in nature. The highlight here is that:
1.Type -A: Protects against special forms of residual pulsating DC which have
not been smoothed.
2.Provides protection against earth fault/leakage current, short-circuit,
overload, and function of isolation.
3.Provides complementary protection against direct contact by human body
Effectively protects electric equipment against insulating failure.
4.Provides comprehensive protection to household and commercial
distribution systems.
5.L Pole and N pole Both have the overload protection.
6.High breaking capacity up to 10KA ,more secure.
Technical Data
Pole No. | 2P,4P | |
Shelf rating current A | 80 | |
Electrical properties | ||
Rated working Voltage Ue VAC | 230V/400V | |

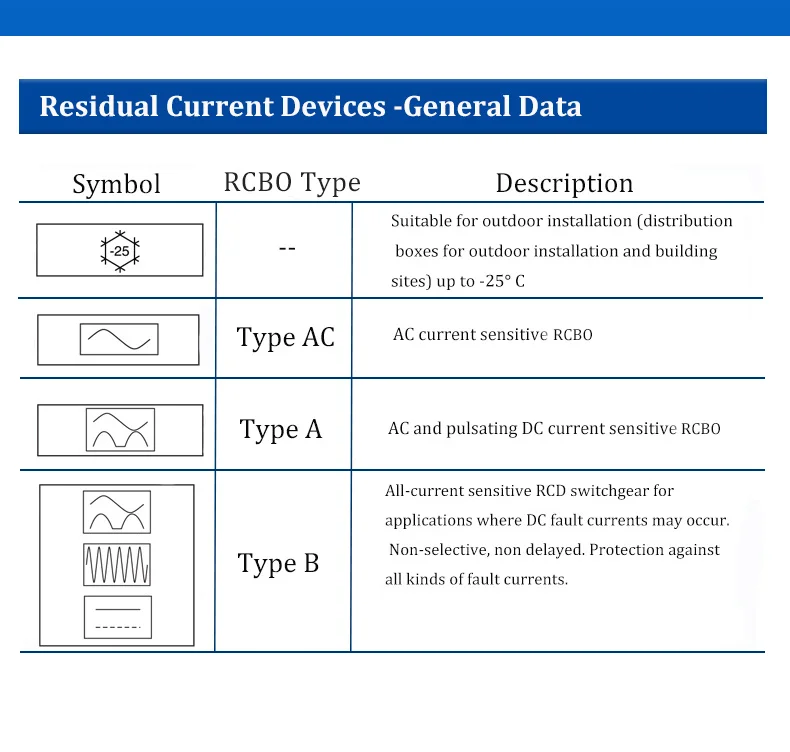

Leakage tripping type | AC, A | |
Rated current In A | 1,2,3,4,6,10,16,20,25,32,40,50,63,80 | |
Rated Insulation Voltage Ui V | 500 | |
Rated Impulse Voltage Breakdown Type limit Uimp kV | 4 | |
Split type | M H | |
Breaking capacity operating Icn kA | 6000 10000 | |
Breaking capacity Force Ics kA |
| |
Curve type | B,C,D | |
Release type | Thermomagnetic | |
Service life (O~CO) | 20000 | |
8500 | ||
10000 | ||
1500 | ||
Connection and installation | ||
Protection grade | All sides | P40 |
Connection port | IP20 | |
Handle lock | ON/OFF Position | |
Connection ability mm² | 1~35 | |
Use ambient temperature ℃ Humidity and heat resistance | -30~+70 2 | |
Altitude m | ≤ 2000 | |
Relative humidity of air | +20℃ ≤ 95%;+40℃ ≤ 50% | |
Pollution grade | 3 | |
Installation environment | Without signi cant vibration and impact | |
Installation category | Ⅲ | |
Installation mode | DIN Standard guide rail | |

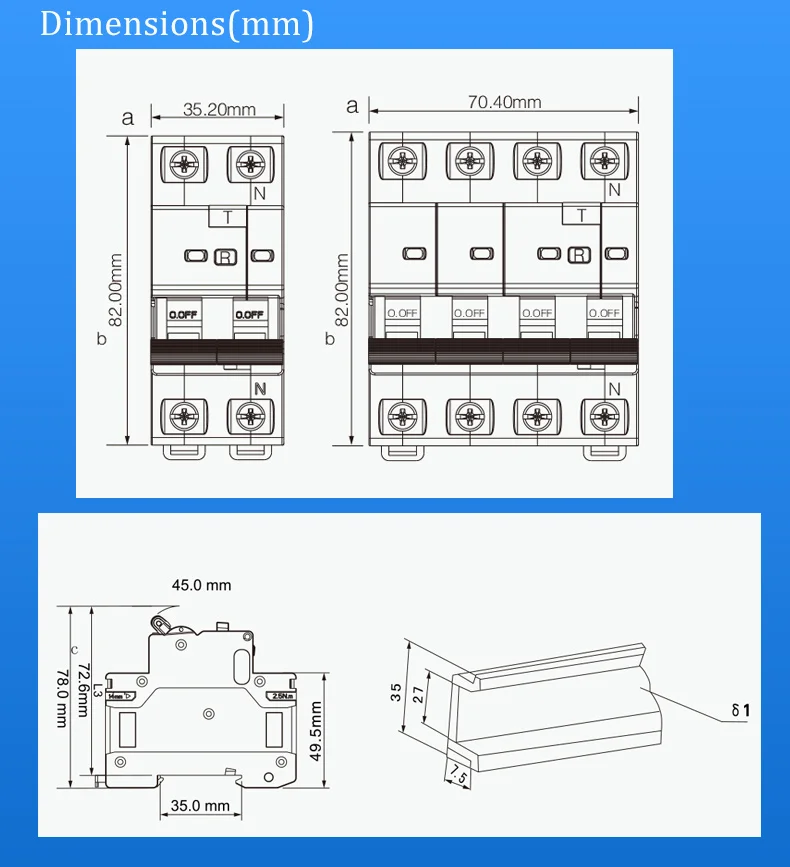

Shape dimensions(mm) Wide * High * Deep | a | 35.2 70.4 |
b | 82 82 | |
c | 72.6 72.6 | |
Weight | g | 210.5 210.5 |
