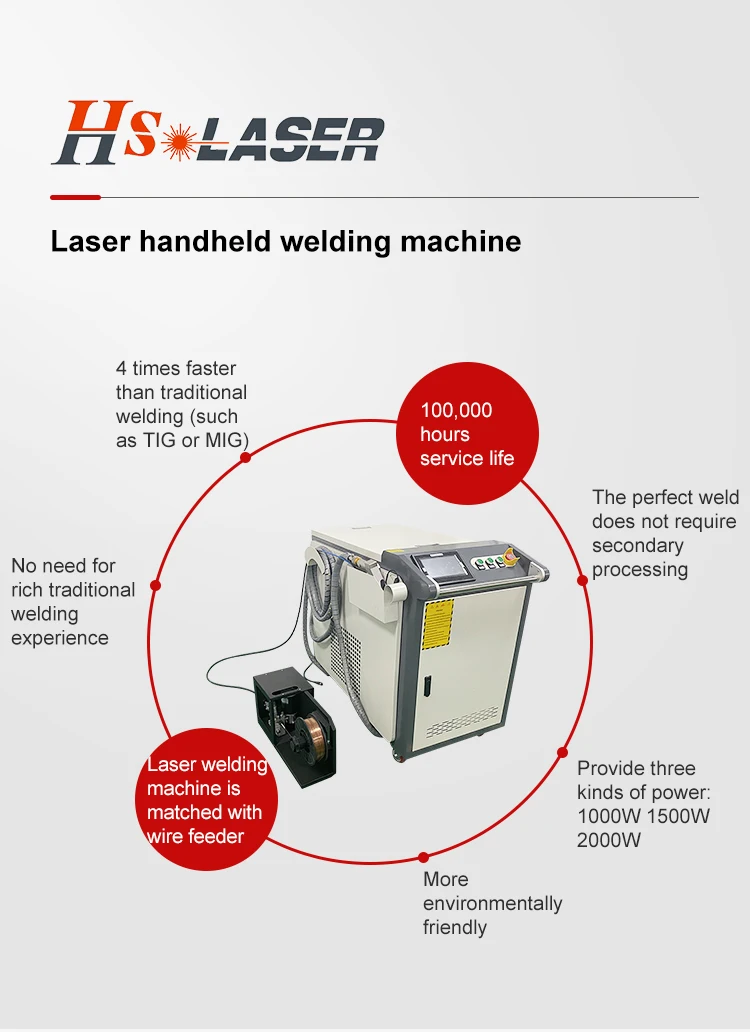

High Quality 1000w 1500w 2000w Handheld Metal Fiber Laser Welding Machine
- Category: >>>
- Supplier: Shenzhen HS Laser Technology Co. Ltd.
Share on (1600411511501):
Product Overview
Description
Product Paramenters
Laser type: fiber technology | Machine color: Red / blue /black |
Laser wavelength: 1080nm | Wire feeder: option part |
Fiber laser source: IPG / Raycus /Max/JPT | Wire feeder diameter:0.8mm 1.0mm 1.2mm 1.6mm |
Weld head: Wobble weld head | Type of gas: Argon gas |
Weld width:1 - 5mm | Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa |
Welding head weigt:0.8kg | Power required: 1000W AC 220V +10% 50/60Hz1 Pha 1500W 2000W AC 380V+10% 50/60Hz 3Pha. |
Control system:Hanwei brand | Total power:8kw/ 9kw /12 kw |
Weld mode system:CW/ PWM / Argon Arc | Warranty period: 24 months |
Weld speed: 0-120mm/s | Machine dimension: 1180x780x1460mm |
Weld method:Flat / Horizontal Nertical /Overhead | Gross Weight: 280kg |
Cooling system: Water chiller | Package dimension:1200x800x1480mm |
Language:English, Korean, Japanese, Russian, French, Spanish, Israeli | Consumable part Protection lens Brass nozzle |
Company Profile

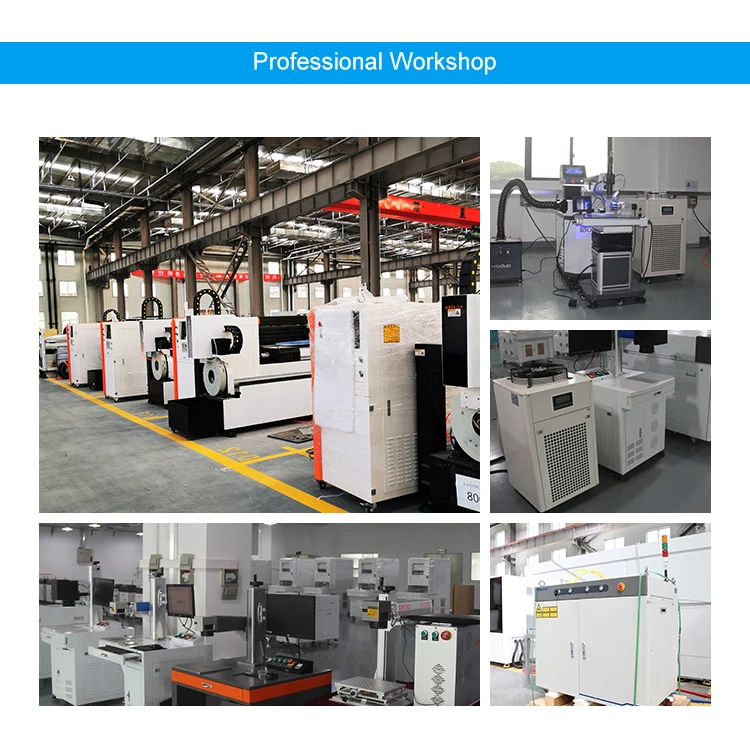

PROFESSIONAL WORKSHOP
QUALITY CERTIFICATE
OUR EXHIBITION
PACKING & DELIVERY
