OEM OPM 70dBm to 10dBm 7 Wavelength FTTH Fiber Optical Power Meter
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600411552314):
Product Overview
Description
Fiber Optical Power Meter
Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.Compared with other usual power meters, It has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with the handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Combined with the handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Products Description
Product Paramenters
Wavelength range | 800nm~1700nm | 800nm~1700nm | |

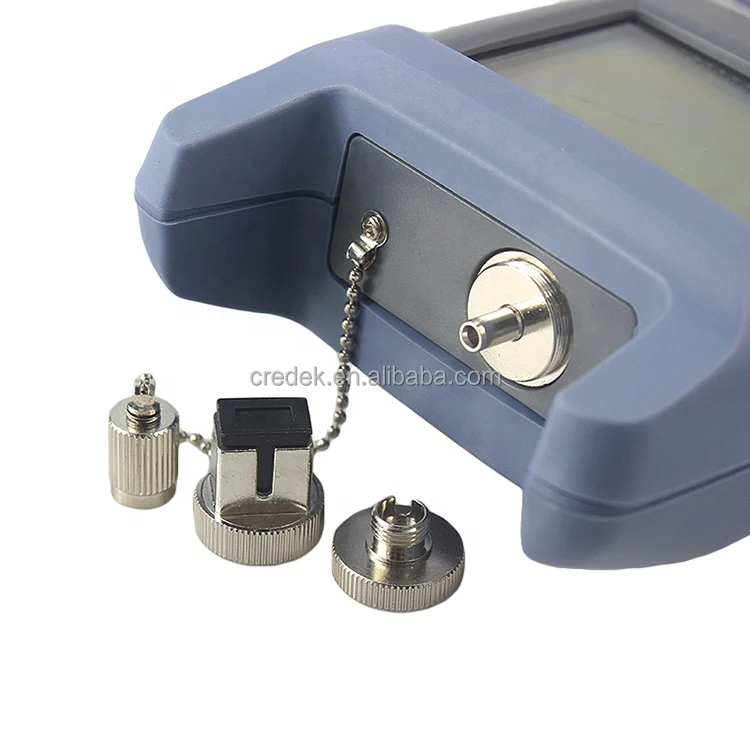

Optical Connector | FC/SC/ST | FC/SC/ST | |
Detector type | InGaAs | InGaAs | |
Measurement range | -70dBm~+10dBm | -50dBm~+26dBm | |
Accuracy | ±5% | ||

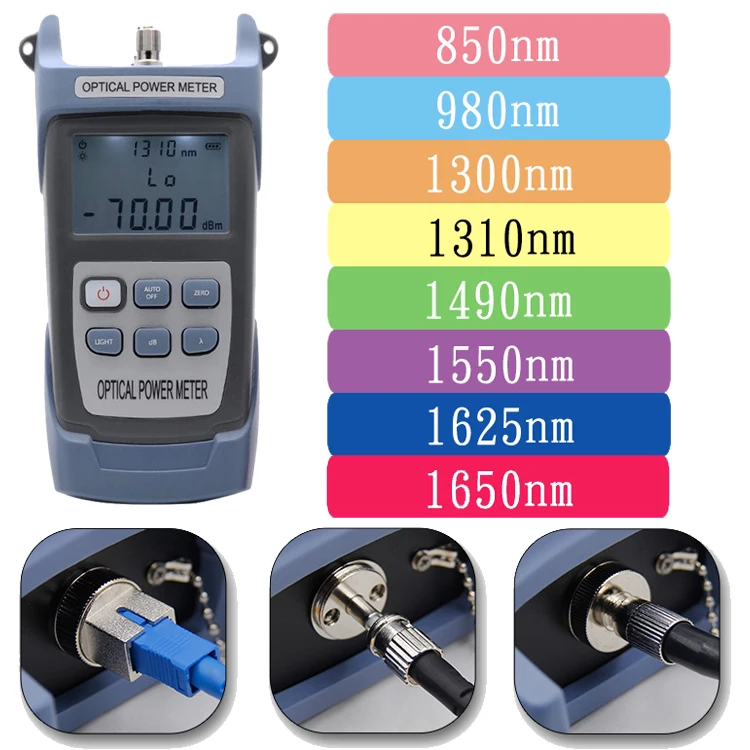

Standard wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | ||
Display resolution | mW：0.1% dBm：0.01dBm | ||
650nm VFL (optional) | 2mw/5mw/10mw/20mw/30mw/50mw | ||
Laser source (optional) | 850/1300/1310/1490/1550/1625/1650nm | ||
Laser sourcestability | 0.02dB | ||
Working temperature | -10~+60℃ | ||
Storage temperature | -30~+70℃ | ||
Auto off time | 10 min | ||
Battery continuous operating time | ≥120 h | ||
Structuresize | 186mm*100mm*50mm | ||
Power | Three section 5 batteries/Lithium battery (optional) | ||
Instrument net weight | 240g | ||
