Industrial 4 20ma fuel oil pressure sensor
- Category: >>>
- Supplier: Shandong Friend Control System Co. Ltd.
Share on (1600411800959):
Product Overview
Description
FD80A series compact pressure transmitters are widely used in aviation, aerospace, petroleum, chemical, metallurgy, power, water,conservancy and other industrial process pressure measurement and control due to their excellent reliability, wide applicability,product flexibility and diversity.

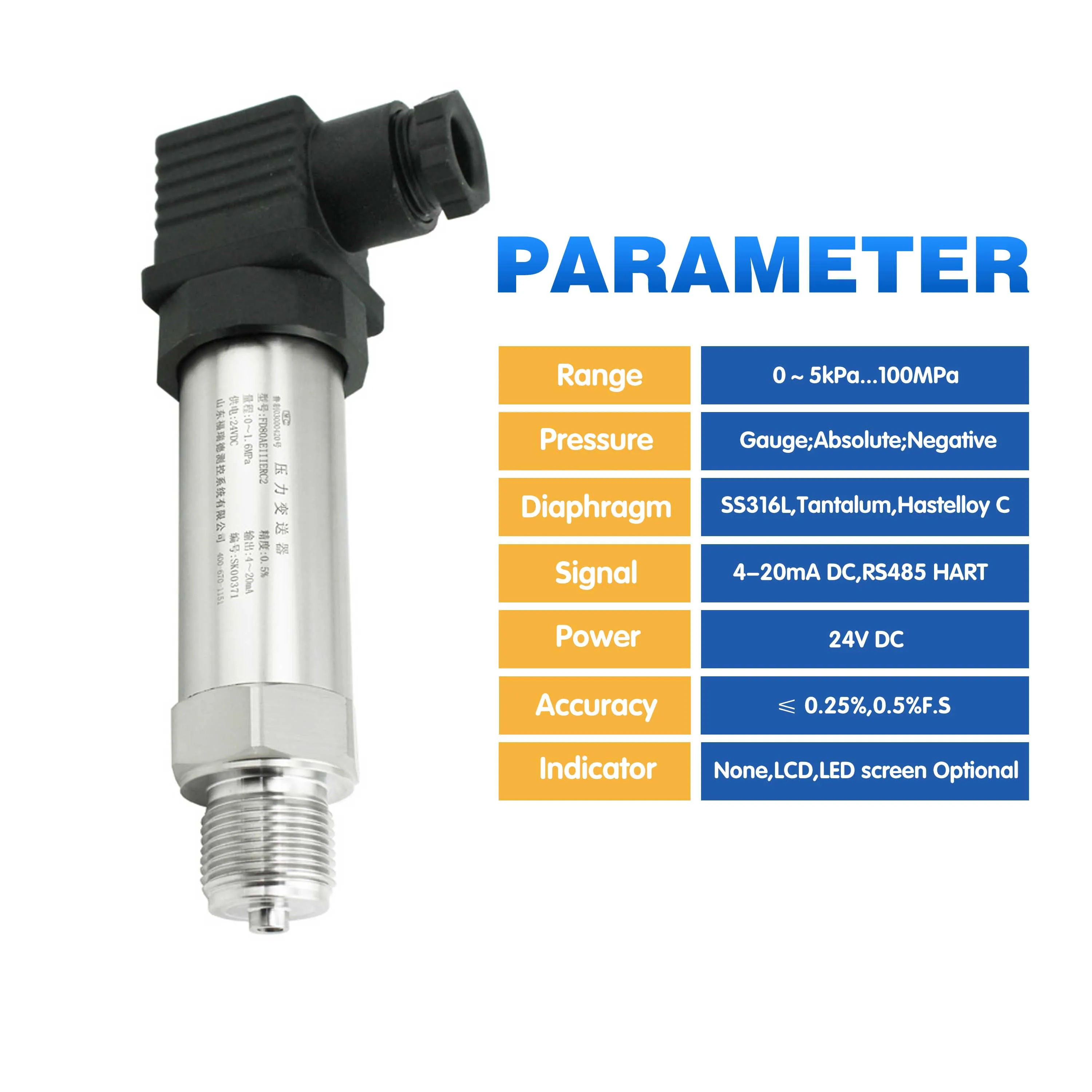

Model | FD80A Pressure Transmitter |
Pressure Range | 0-0.04Bar...0.2Bar...0.7Bar....1000Bar(optional) |
Pressure Type | Gauge;Absolute;Negative pressure |
Pressure Sensor | Diffused Silicon Pressure Sensor |
Isolating Diaphragm | 316L Stainless Steel |
Output Signal | Two Wire 4~20mA |
Output Signal | 24VDC 10~30VDC |
Accuracy | ≤ 0.25%,0.5%F.S |
Working Temperature | -20℃ ~70℃ |
Compensated Temperature | -20℃~70℃ |
Storage Temperature | -20℃ ~85℃ |
Overload pressure | 150% F.S |
Burst Pressure | 200% F.S |
Long Stability | Standard: 0.2%/year |
Standard: 0.2%/year | 0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa) |
Insulation Resistance | >100M Ω @50V |

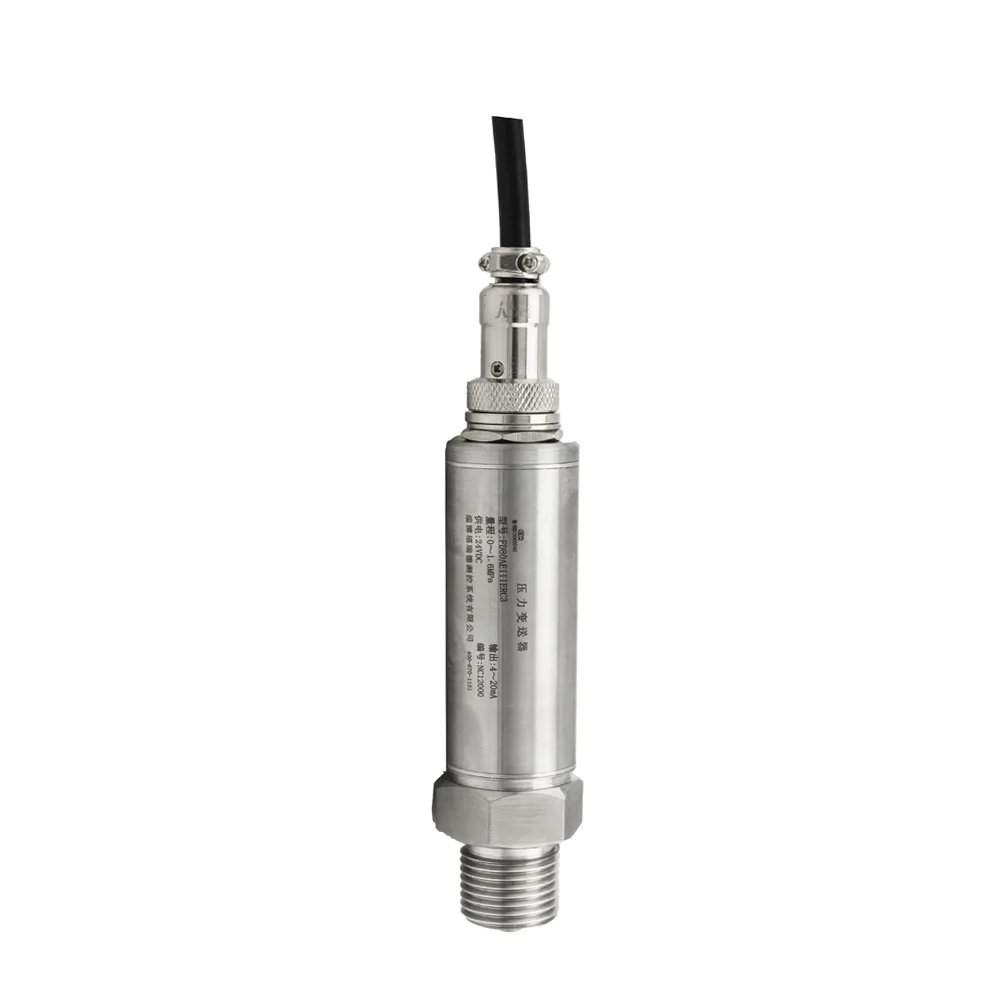

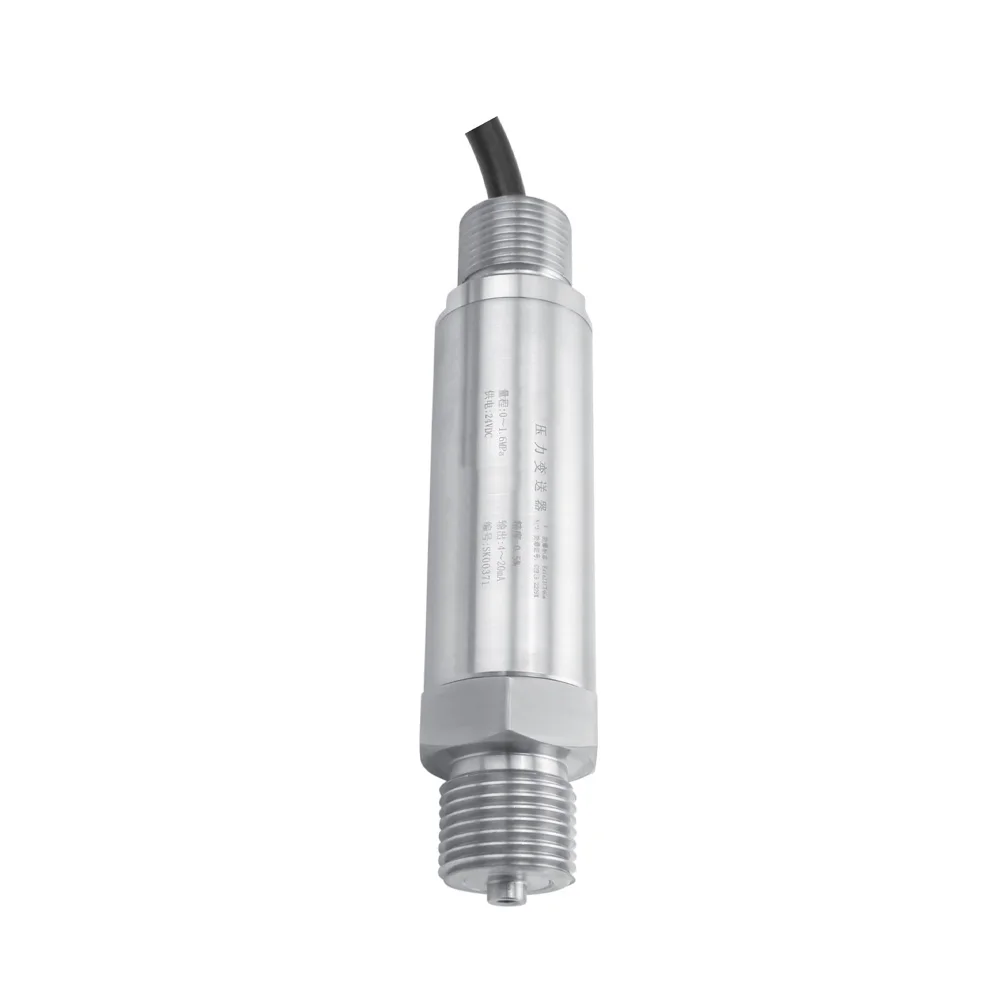

Electrical Connection | Direct lead,Hirschmann,Ex-Proof or Customization |
Process Connection | Thread M20*1.5,G1/2’’; G1/4’’, 1/4’‘NPT,1/2’‘NPT or Customization |

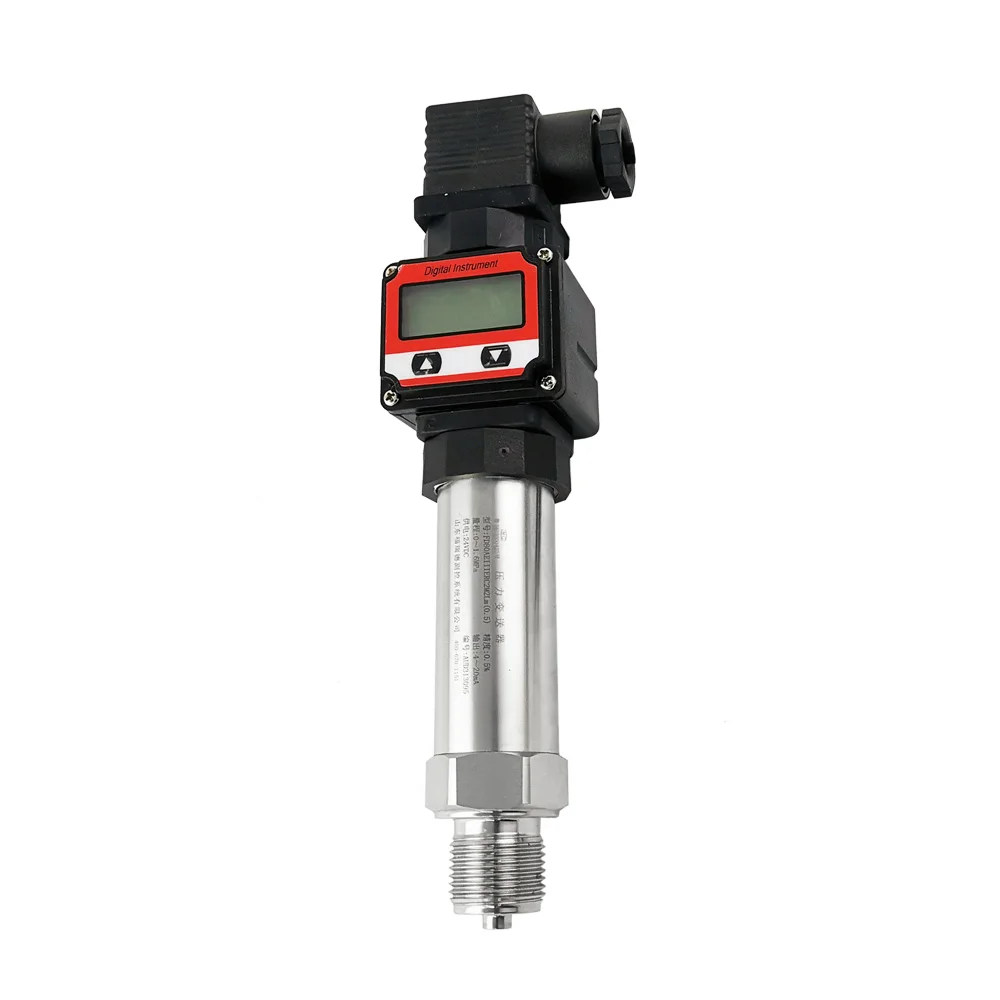

Indicator | No Display(LCD,LED screen Optional) |
Housing Material | 316 Stainless Steel or 1Cr18Ni9Ti |
Process Material | 316 Stainless Steel or 1Cr18Ni9Ti |
Response Time | ≤10ms |
Protection Level | IP65,IP67,IP68 |
Explosion Proof | NEPSI : Ex dⅡC T6 / NEPSI : Ex iaⅡC T4 |
Note | Special applications request by Customization |
