5000W 72V 12inch BLDC Electric Disc brake Hub Motor Kits for Electric Motorcycle
- Category: >>>
- Supplier: Wuxi Shenma Vehicle Parts Co. Ltd.
Share on (1600411807690):
Product Overview
Description
Product Description
The packing list for 12 inch 72V 5000W motorcycle hub motor kits

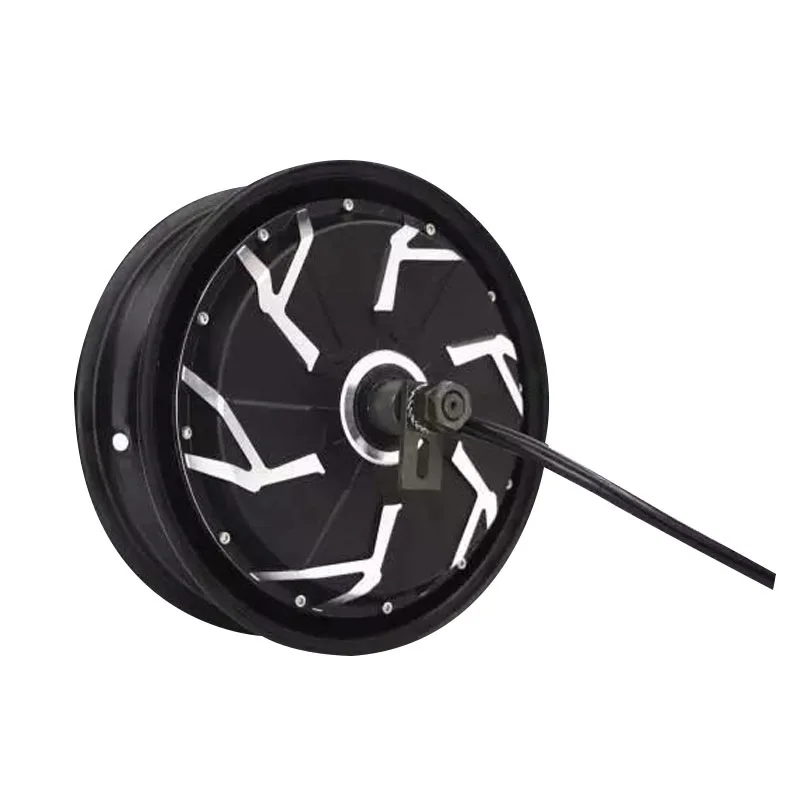

1. 1pcs X 12*3.5inch 5000W V4 BLDC E-Scooter In-Wheel Hub Motor

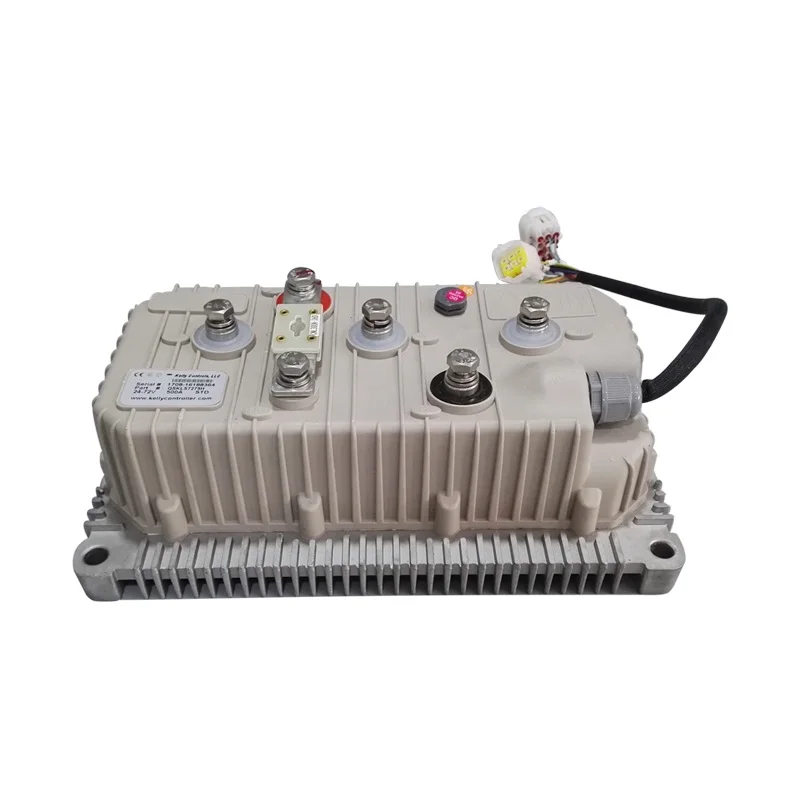

2. 1pcs X QSKLS7250H sine wave controller

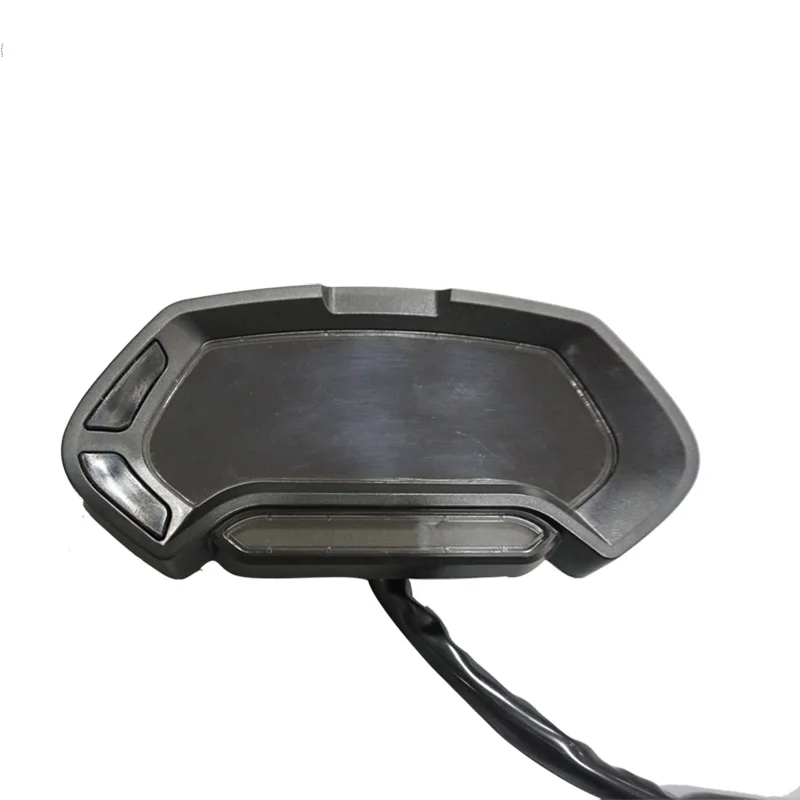

3. 1pcs X Speedometer

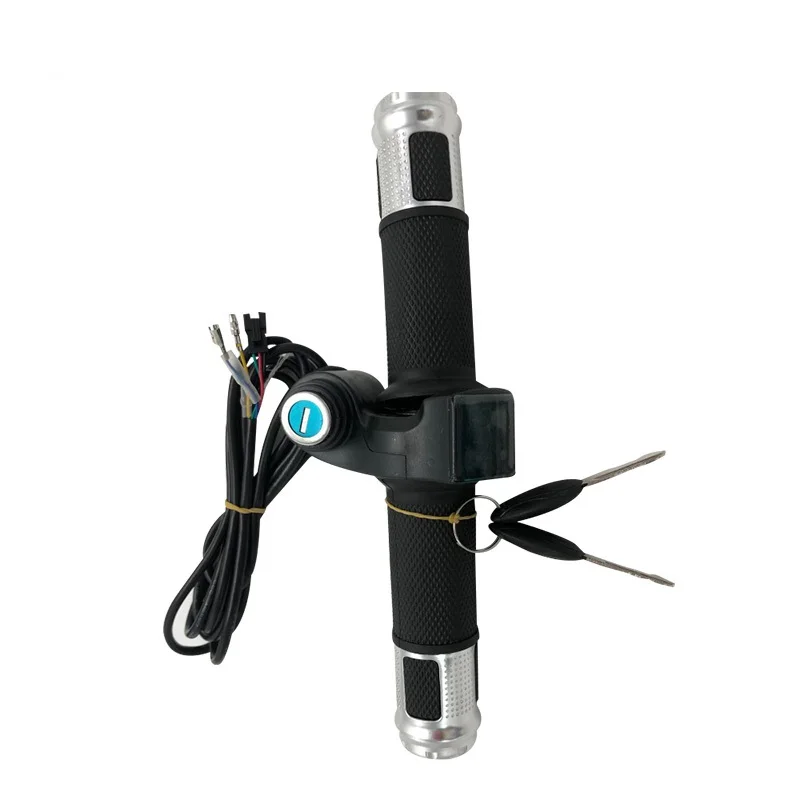

4. 1pcs X Full Twist Throttle With Voltage Display And Ignition

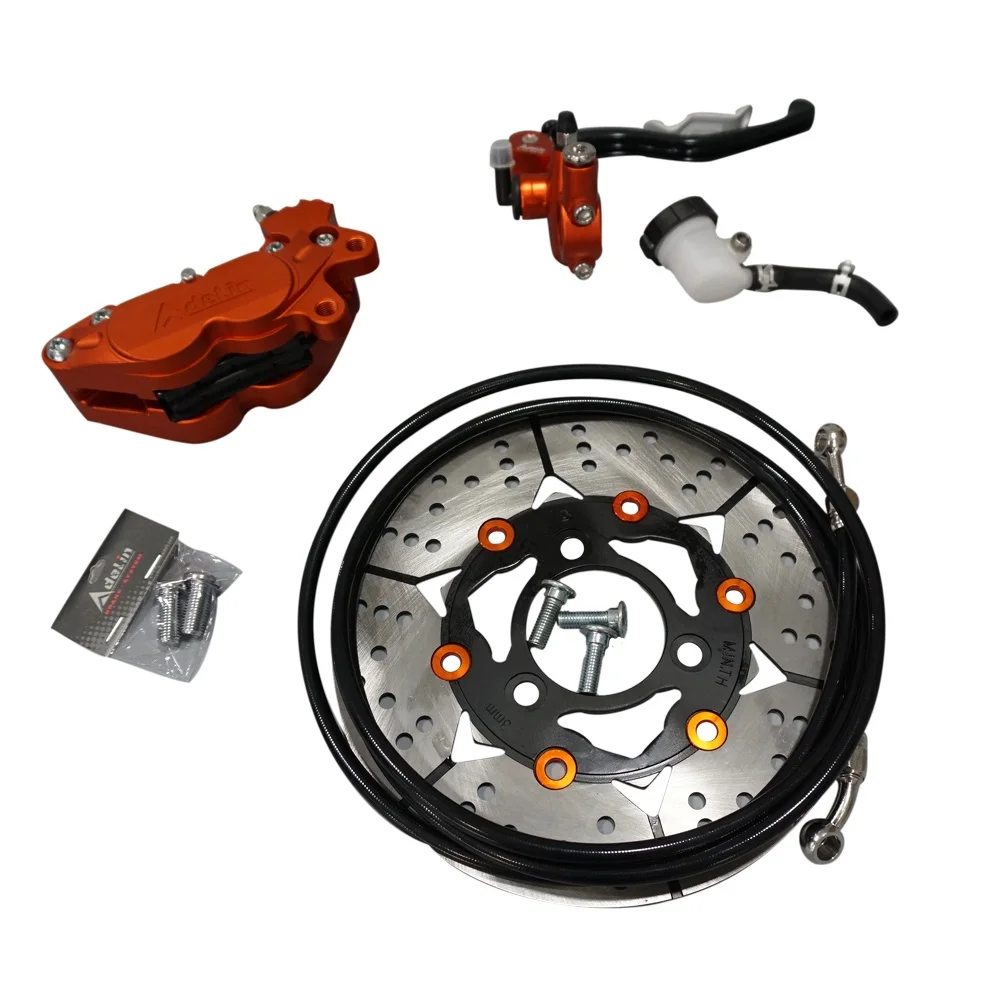

5. 1pcs X Complete disc brake system
2. 1pcs X QSKLS7250H sine wave controller
3. 1pcs X Speedometer
4. 1pcs X Full Twist Throttle With Voltage Display And Ignition
5. 1pcs X Complete disc brake system
* Motor Design: Double axle with 12inch moped rim (integrated)
* Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/70-12 etc
* Magnet Height: 45mm, 16 pole pairs
* Stator: Aluminum Core
* Rated Power: 5000W
* Speed: 72V90KPH/60V80KPH/48V65KPH as default
* Work voltage option: 72V/60V/48V
* Max Torque approx: 224.0N.m
* KV: 16.45
* Thermic Probe: KTY83-122 (as default, optional)
* Max Efficiency approx 88%
* Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
* Drop-outs: 200mm
* Dual Halls with waterproof connectos(One for spare, in case of damage)
* 16mm² Phase Wire
* Waterproof Grade: IP54
* Color: Black (As default)
* Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/70-12 etc
* Magnet Height: 45mm, 16 pole pairs
* Stator: Aluminum Core
* Rated Power: 5000W
* Speed: 72V90KPH/60V80KPH/48V65KPH as default
* Work voltage option: 72V/60V/48V
* Max Torque approx: 224.0N.m
* KV: 16.45
* Thermic Probe: KTY83-122 (as default, optional)
* Max Efficiency approx 88%
* Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
* Drop-outs: 200mm
* Dual Halls with waterproof connectos(One for spare, in case of damage)
* 16mm² Phase Wire
* Waterproof Grade: IP54
* Color: Black (As default)

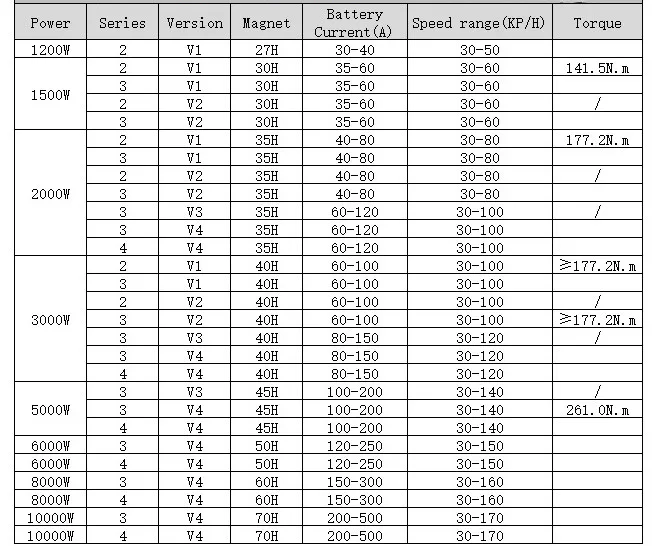

Specification
item | value |
Brand Name | SM |
Type | Brushless Motor |
Speed | 30-100KM/H |
Commutation | Brushless |
Voltage | 48-96V |
Power | 1500-5000W |
Typical Applications | Electric Motorcycle; Ebike; Scooter; |

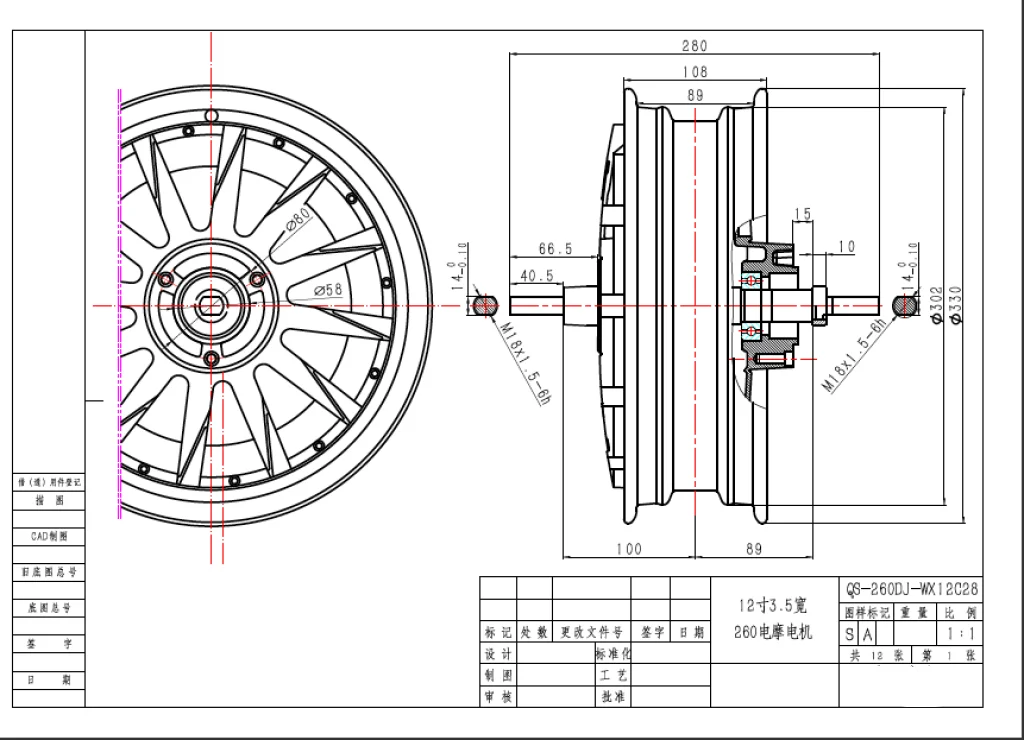

Product Drawing
Recommend Products
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Wuxi Shenma Vehicle Parts Co., Ltd are located in Wuxi city, Jiangsu province, which is the most qualified disk brake and hub motor manufacturer over 20 years in China.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and etc.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
Our main products are electric cars, motorcycle disc brake, brushless/brush dc motor, controllers, chargers, converters, lithium battery series, and etc. The main advantages of the company can be customized according to your requirements of brake switch code, tubing length, steel angle, and etc.
We always adheres to the concept of "details determine success or failure, quality wins the market", and is well received by
domestic and foreign customers.
FAQ
1. who are we?
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages: 1, according to the actual situation of electric vehicle or motorcycle customized corresponding safe and cost-effective brake system; 2, brake system accessories complete, non-standard can be customized, fast delivery;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
We are manufacturer for Brush/brushless motor, gear motor, disc brake system over 20 years in China.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Disc brake,Brake disc,Brake calipers,Brake pads,The brake lever; DC Brush Motor; Brushless Hub Motor;
4. why should you buy from us not from other suppliers?
Our company's core advantages: 1, according to the actual situation of electric vehicle or motorcycle customized corresponding safe and cost-effective brake system; 2, brake system accessories complete, non-standard can be customized, fast delivery;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Type: T/T,L/C,PayPal;
