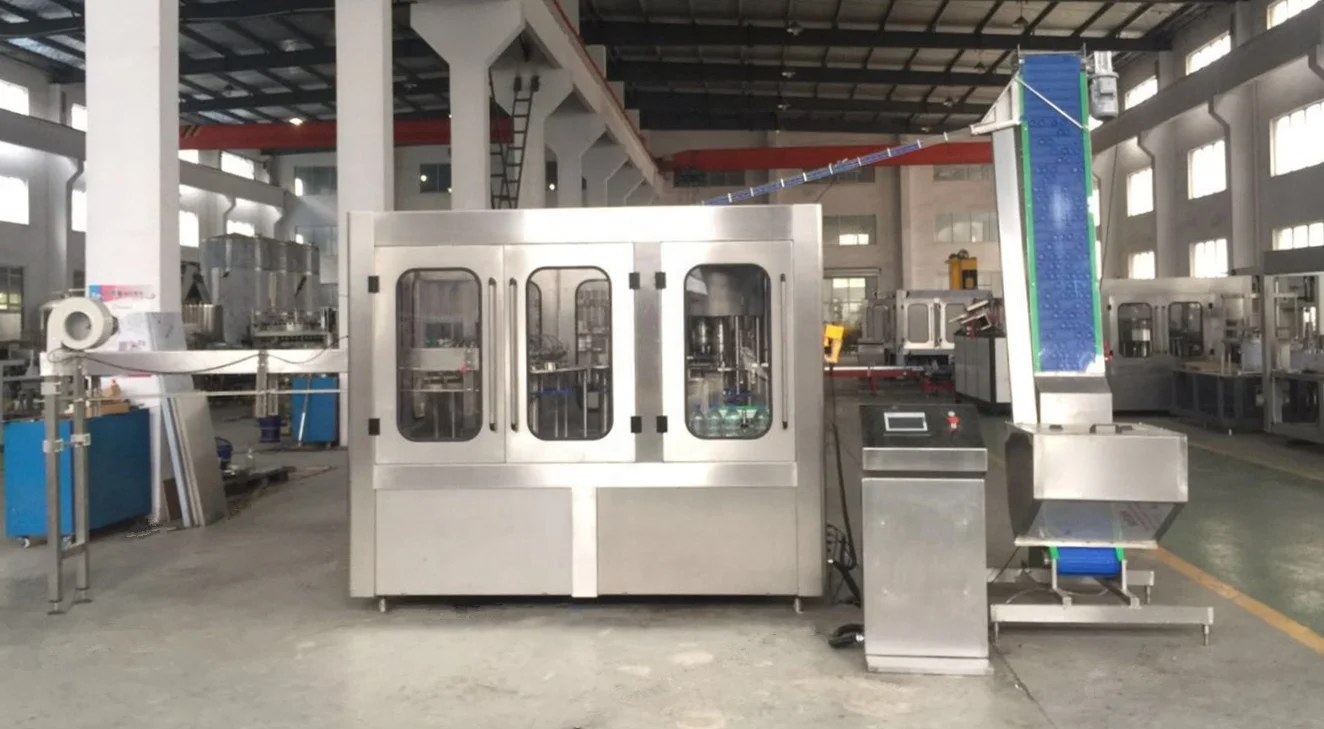

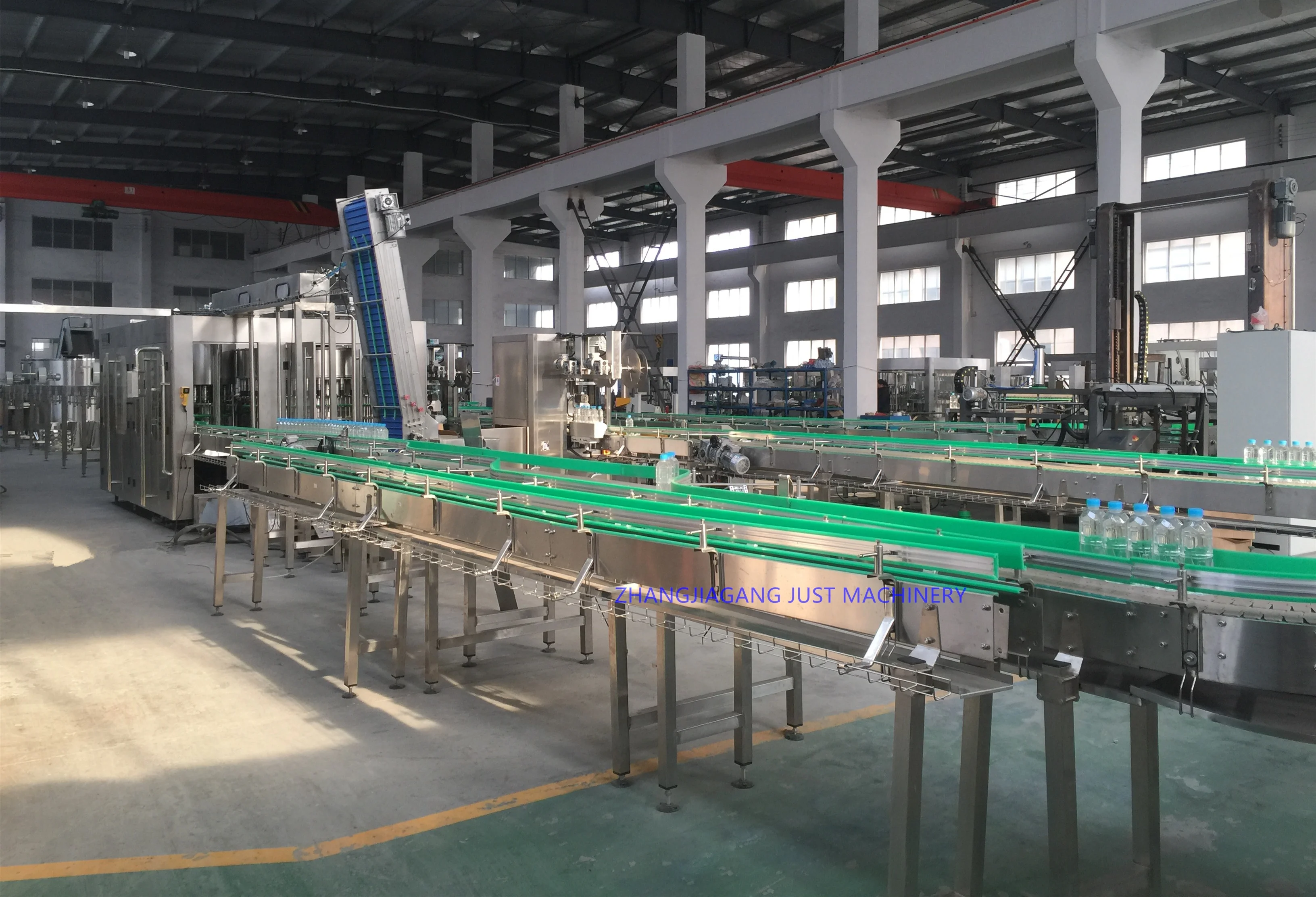

New Style 1000 20000bph complete automatic carbonated water filling machine 4 liner

Washing Part :

 <1>360 degree cleaning inside and outside of the bottle,no dead Angle.

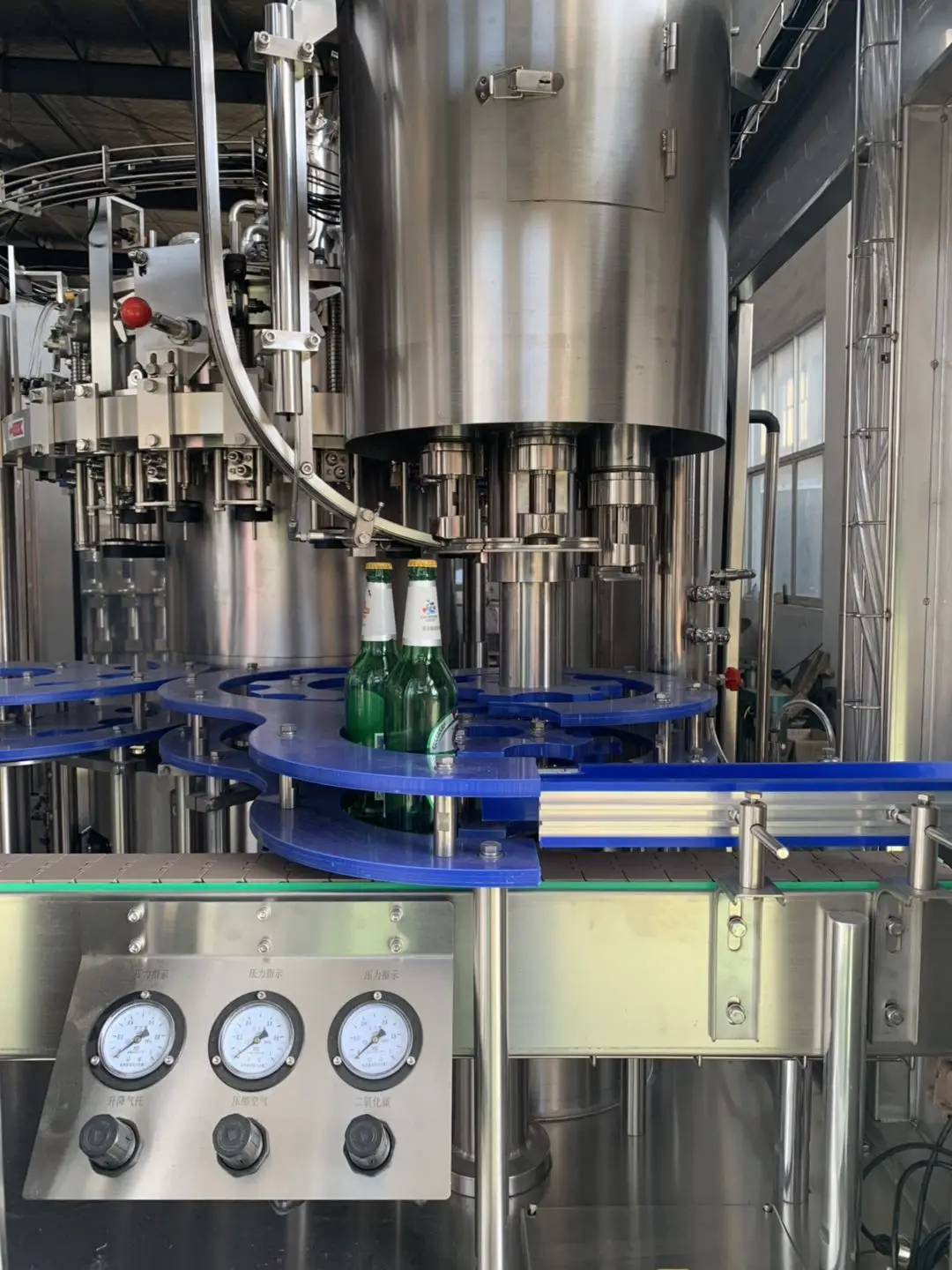

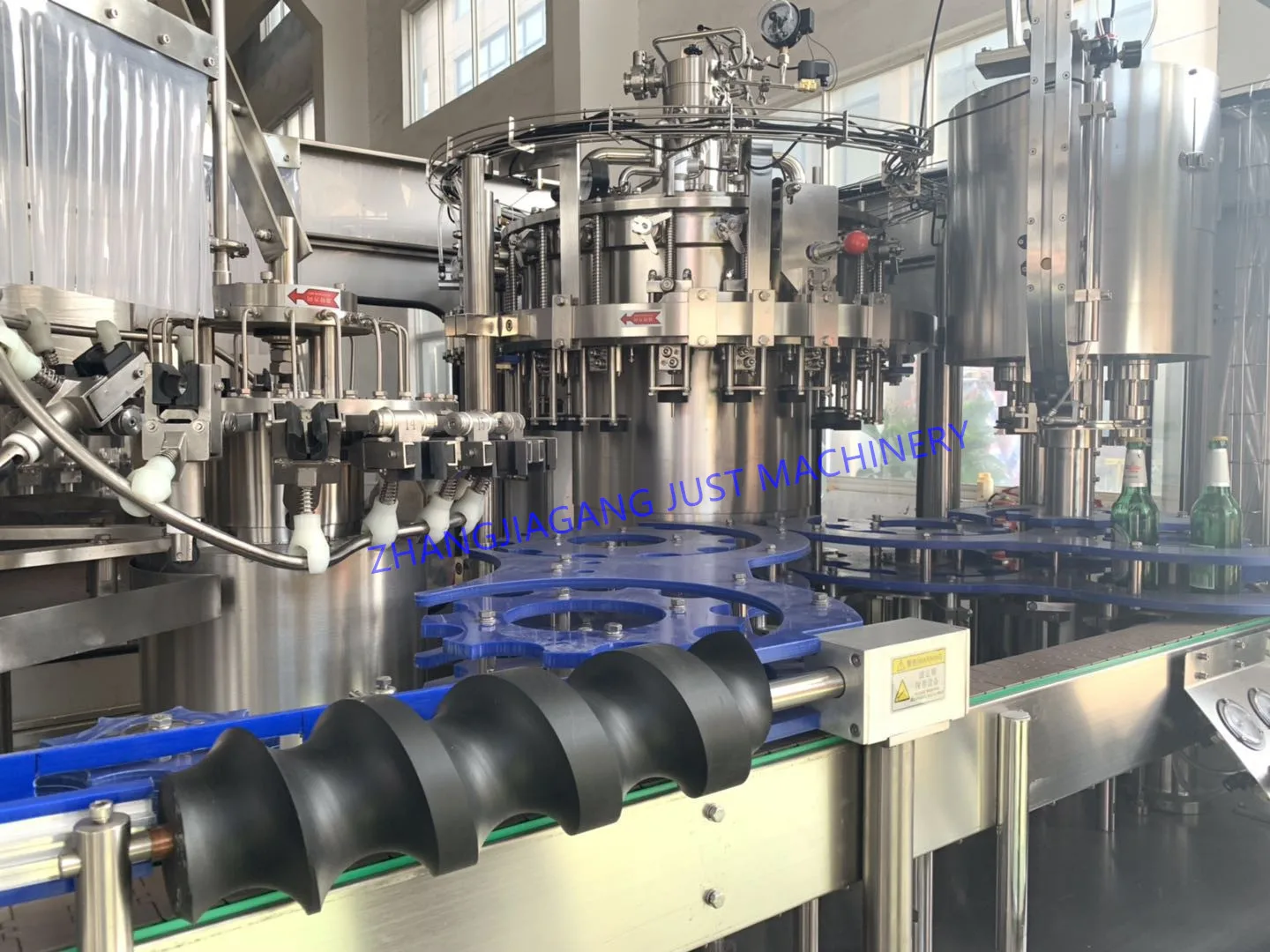

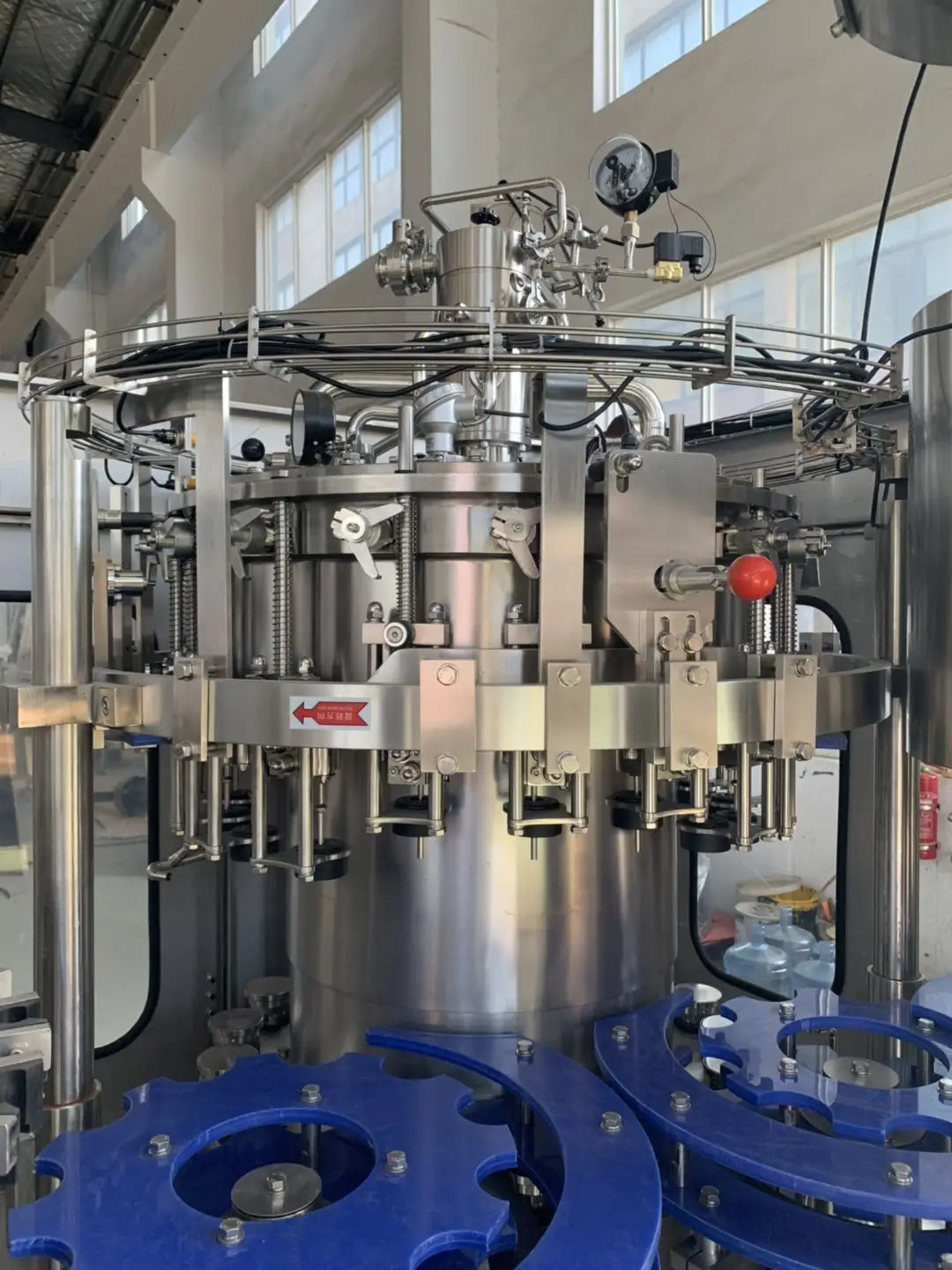

Filling heads :

<1> 304/316 Stainless steel high precision filling nozzle.
<2> Filling volume adjustable in fine rank, same liquid level after filling.
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
<4> 304/316 stainless steel filling pump.

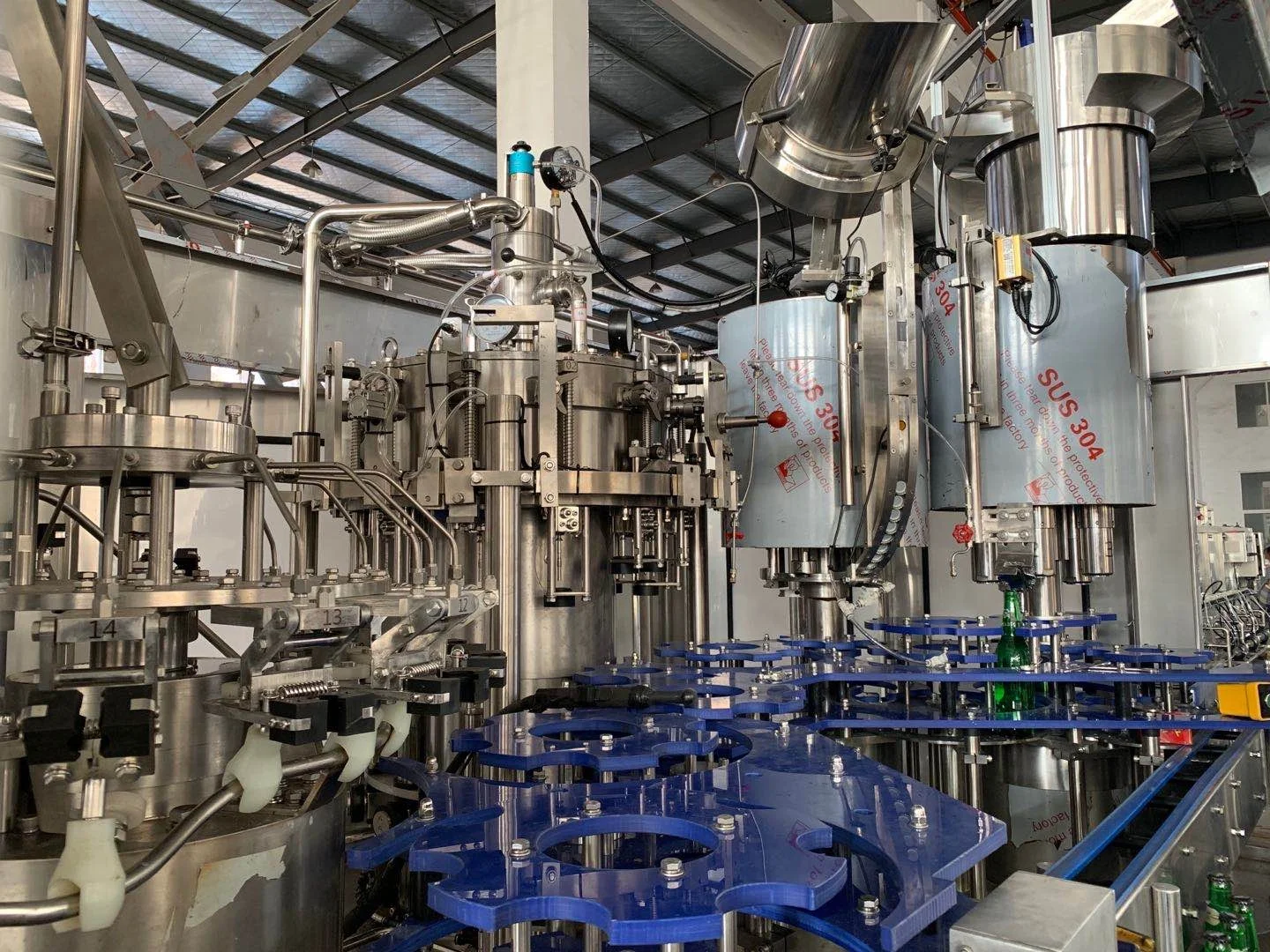

Capping heads :

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

Flat conveyor :

<1> Adapt to customer factory layout.
<2> Special lubrication system, keep products clean, health, safety,extended service life
<3> Electric eyes design keep whole line running safety and quickly,Energy saving. High efficient.
<4> Overload protection mechanism to effectively ensure the safe of the machine
<5>All Stainless steel 304 support, hygienic/firm

Air conveyor :

<1> Air conveyor is fixed on the floor, with fan installed on the top.
<2> Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
<3> All are made of stainless steel SUS 304 /316.

Blow molding system :

    Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

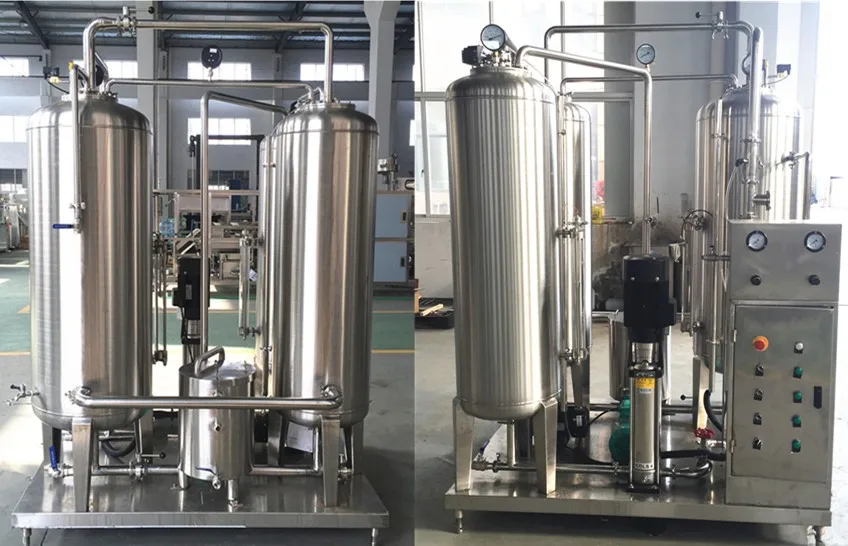

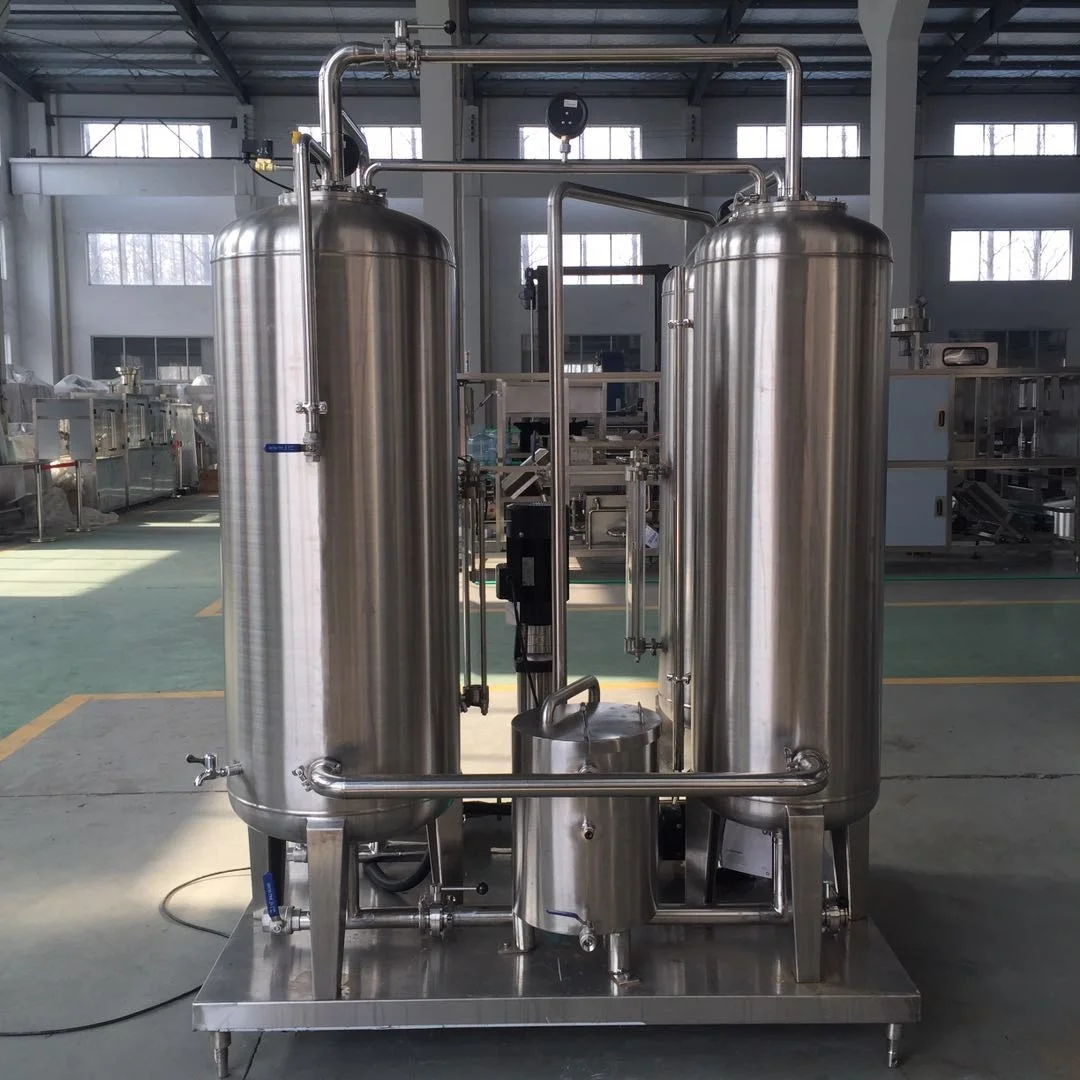

Drink mixer machine :

   This machine is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola. It is the main equipment among the complete equipment of beverage production line .

Spray Cooler Bottle Warmer:

<1> Its working process can be divided into 3 stages,circulating hot water spraying,warm water pre-cooling.
<2> Temperature and time of cooling can be regulated according to the requirements of user.
<3> It's widely used in the area of bottled,canned hot drinks cooling,and carbonated drinks warming.

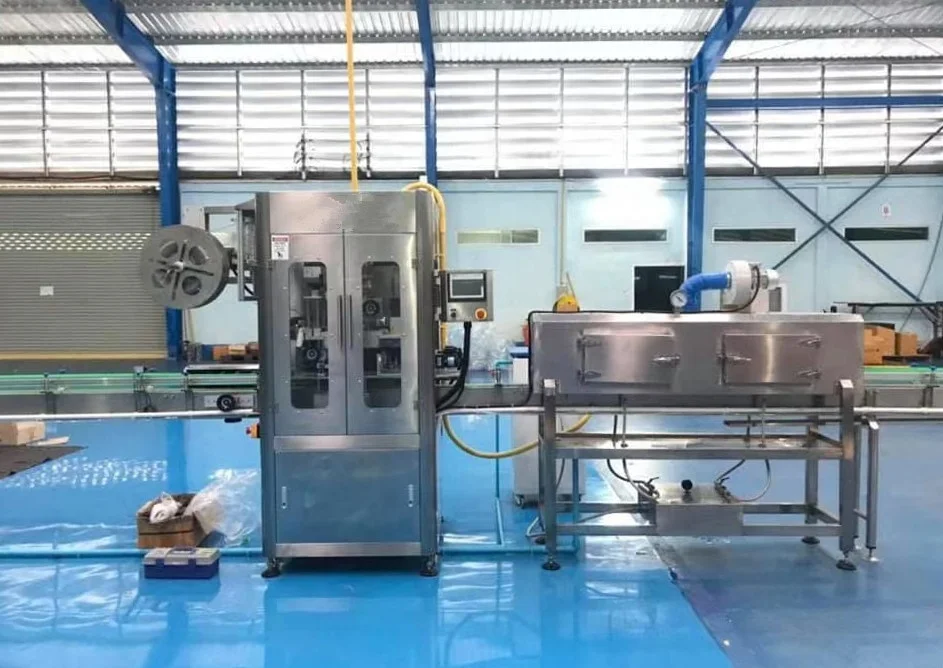

Automatic labeling machine:
<1> Heat shrink sleeve labeling machine
<2> OPP Hot melt labeling machine
<3> PVC label stick labeling machine
It adopts double driving structure ,that is four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle packaging machine:
<1> PE film/Half-tray shrink wrapping machine
<2> Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Carton palletizer :

   The high level palletizer is suitable for cartons, plastic crates, shrink wrapped packs and five gallon bottles etc palletizing.With inspection device to check the storage of cartons on conveyor and regulate the speed according to inspection data. With safety device to stop machine and alarm in emergency.
