LKAD069D D 30W 50W 60W led dali driver manufacturer led power supply
- Category: >>>
- Supplier: Guangdong Linkuan Smart Tech Co. Ltd.
Share on (1600411842913):
Product Overview
Description
Product Description
The Digitally Addressable Lighting Interface (DALI) originated in Europe and has been heavily implemented for many years in that part of the world. It is now becoming more popular in the United States as well. The DALI standard allows for digital control of individual fixtures via a low voltage communication protocol that can send information to light fixtures while also receiving information from the fixtures, making this a useful tool for building information monitoring systems and controls integration. DALI allows for addressing of individual fixtures, with up to 64 addresses possible organized into 16 different control zones. DALI communication is not polarity sensitive and a variety of connection configurations are possible with this protocol.
Product Paramenters
LKAD069D-D 30W 50W 60W led dali driver manufacturer led power supply
INPUT | Input Voltage | 100-240VAC | |
Input frequency | 50/60Hz | ||
Power Factor | 0.9 | ||
OUTPUT | .DC Voltage | 10-42V | |
Rated Current | 1200mA-1700mA | ||
Rated Power | 40W-70W | ||
SETUP Rise Time | <0.5s | ||
PROTECTION | Short circiut | Recovers automatically after fault condition is removed | |
Overload | Overload protected @110-130% above peak rating | ||
Over Temperature | Shut down o/p voltage . re-power on to recover | ||
IP Code | IP20 | ||
ENVIRONMENT | Working TEMP. | -30-+50℃ (refer to output load derating curve) | |
Storage TEMP. | -40-+80℃ | ||
Safety & EMC | Safety Standards | CE | |
EMC Test Stardands | ROHS EMC LVD | ||
DIMENSION | 185x55x32mm | ||
Product Features
DALI is very flexible and makes it possible to create different groups that can be controlled separately with easy wiring. DALI’s flexibility also brings with it that specialised knowledge is required for installing and commissioning. DALI is a bidirectional protocol which makes for easier commissioning and greater flexibility in control gear – for instance infraredpresence sensors and light sensors.
---- Open IEC standard (IEC 62386) and can be used by anyone.
---- DALI has an active organisation and DALI is constantly improved and extended.
----Full digital control – group creation or individual control of fixtures.
----Bi-directional communication makes for easier commissioning and greater flexibility in control gear.
----Polarity independent two wire control.
----BUS based protocol.
----Only 254 digital values (from 0-100%) gives low dimming resolution.

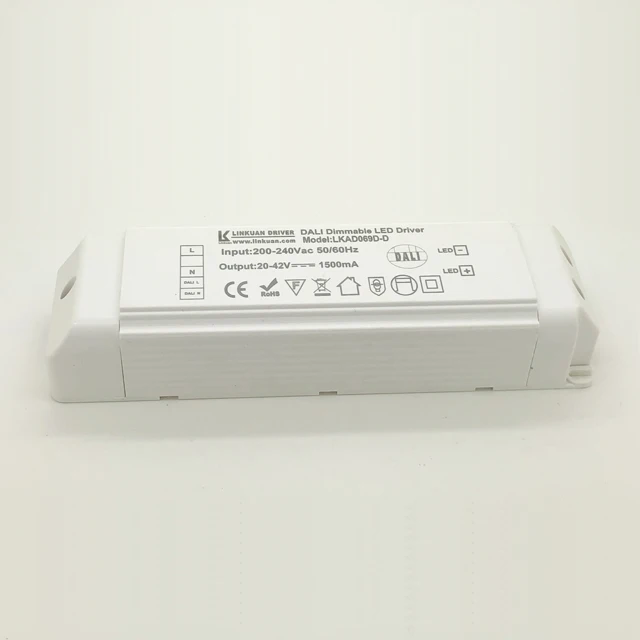

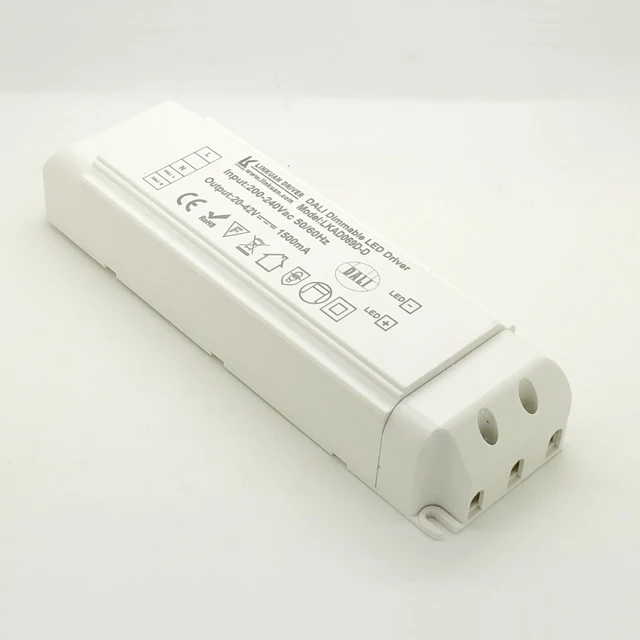

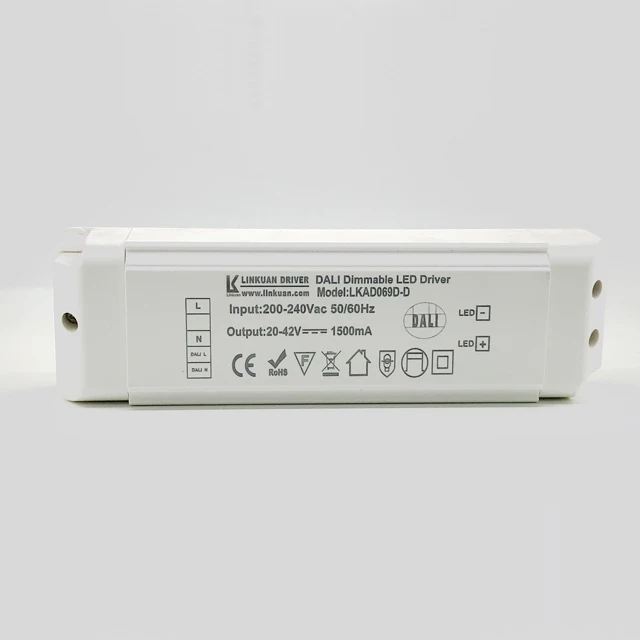

Details Images
Certifications
Our products have TUV,CE,SAA,UL,FCC,CCC certifictes.

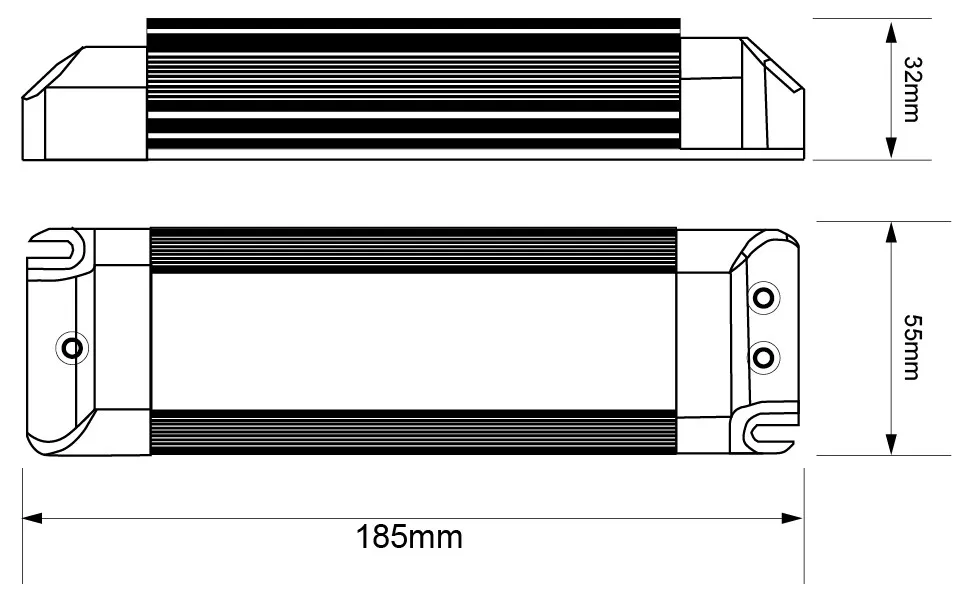

Installation Dimension

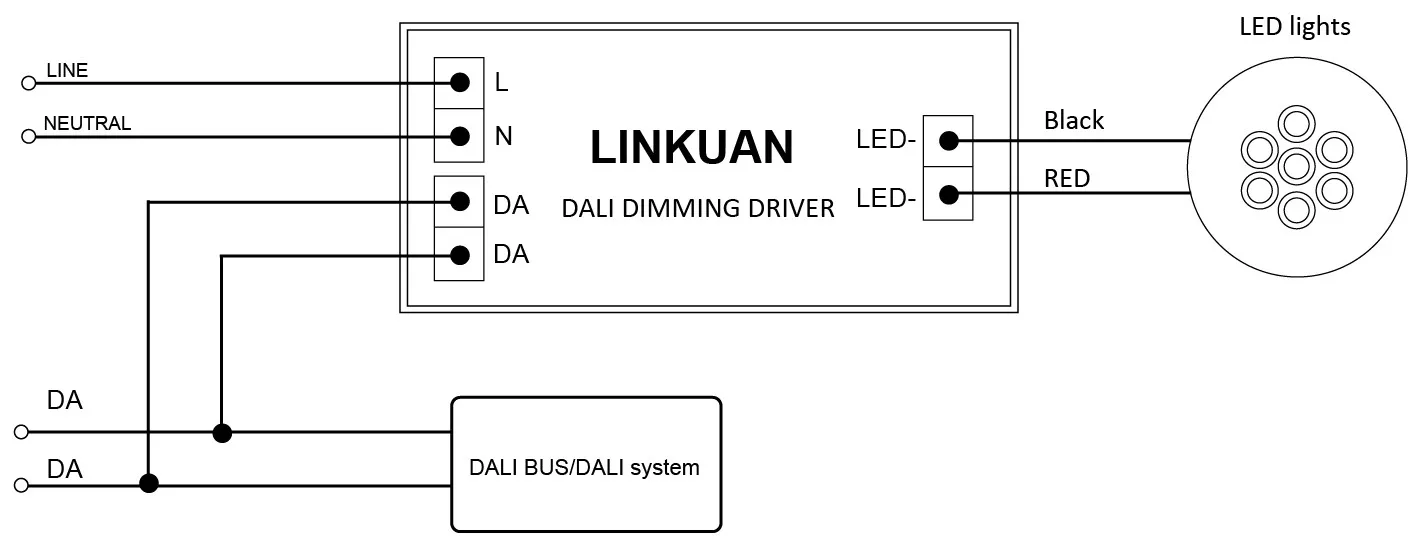

Installation Diagram
Recommend Products

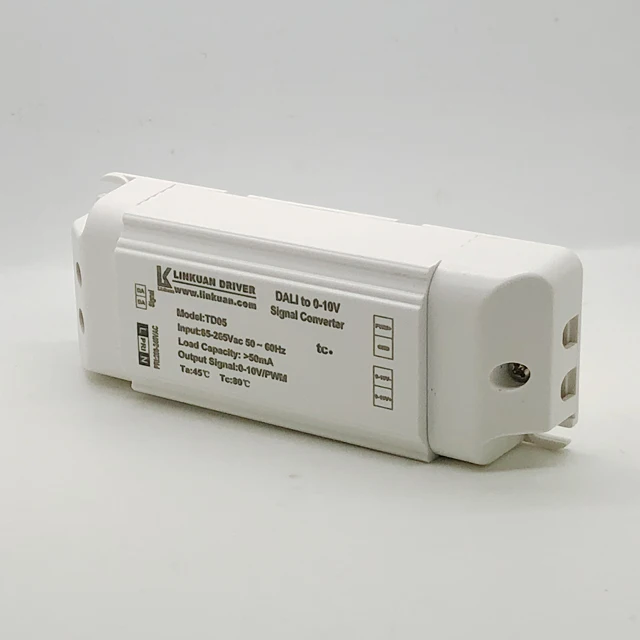

It converts the protocol DALI in a 0-10V/PWM signal, it accepts input, in addition to the DALI signal, also a normally open button. Universal input 85- 265VAC, suitable to be combined with Linkuan power supplies with DALI protocol, adjustment range from 1 at 100%, compliant with the DALI standard (IEC62386-101,102,207).
Company Profile
About Linkuan Power
Guangdong Linkuan Smat Tech Co., LTD. (hereinafter referred to as Linkuan Smart), formerly known as Dongguan Linkuan Semiconductor Lighting Co., Ltd., was founded in 2007. It is located in Dongguancity, a famous manufacturing city in China.The company plant area is about 4500 square meters, the registered capital is 10 million yuan, the staff is about 150 people, inclduing 30 management, engineering and technical persons.The company has 4 automatic production lines, 2 wave soldering machines, 5 sets of automatic constant temperature burning-test equipment, ultrasonic wave equipment and other efficient production equipment.
Factory Show
R&D Ability
Our Team
Delivery
Fast Delivery
Samples orders: 1-3 days
Less than 50pcs should be sample order to us
Less than 50pcs should be sample order to us
OEM orders: 7-10 days
Avaialbe for quantity within 1000pcs and 80W LED drivers
Avaialbe for quantity within 1000pcs and 80W LED drivers
