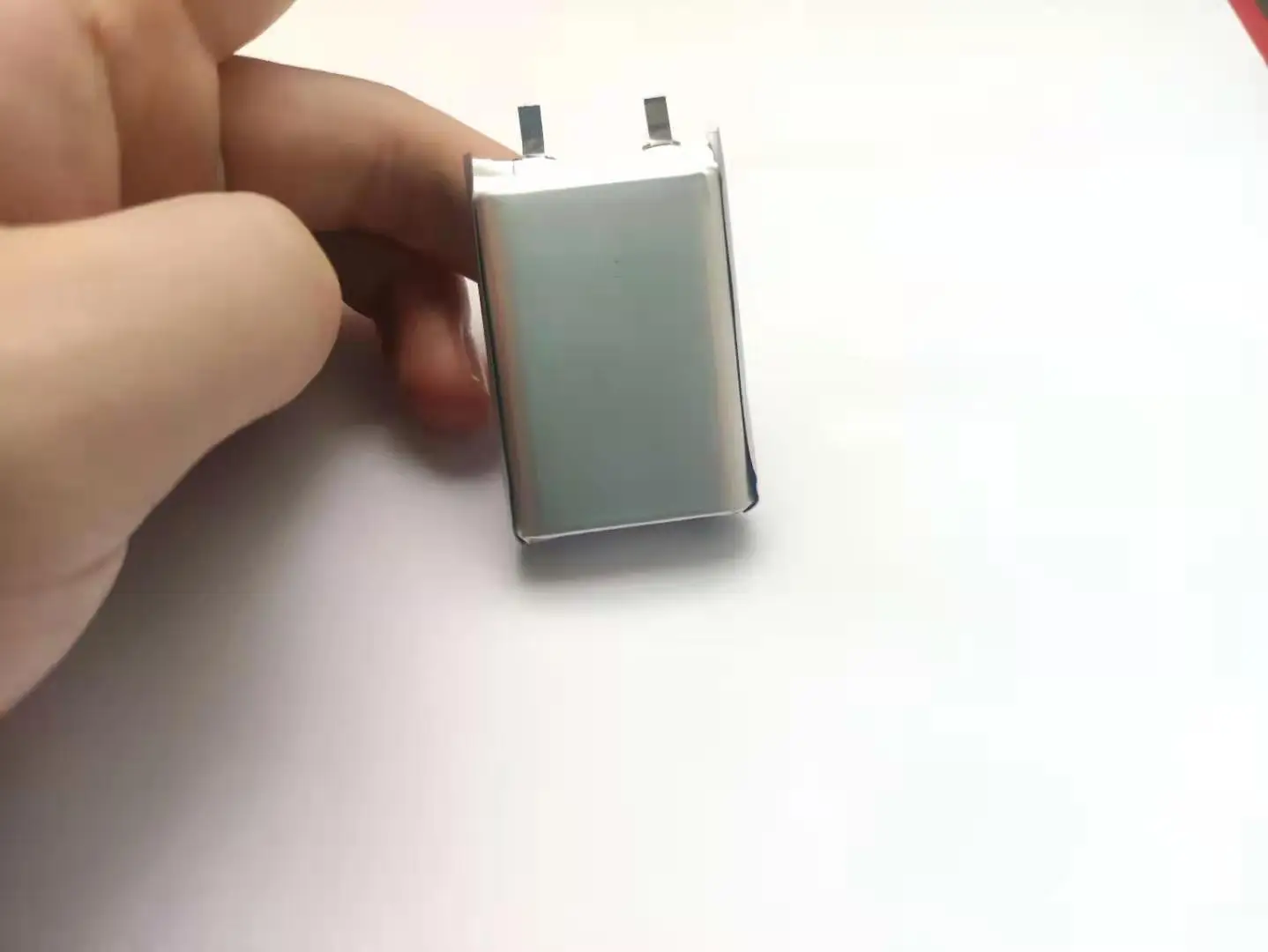

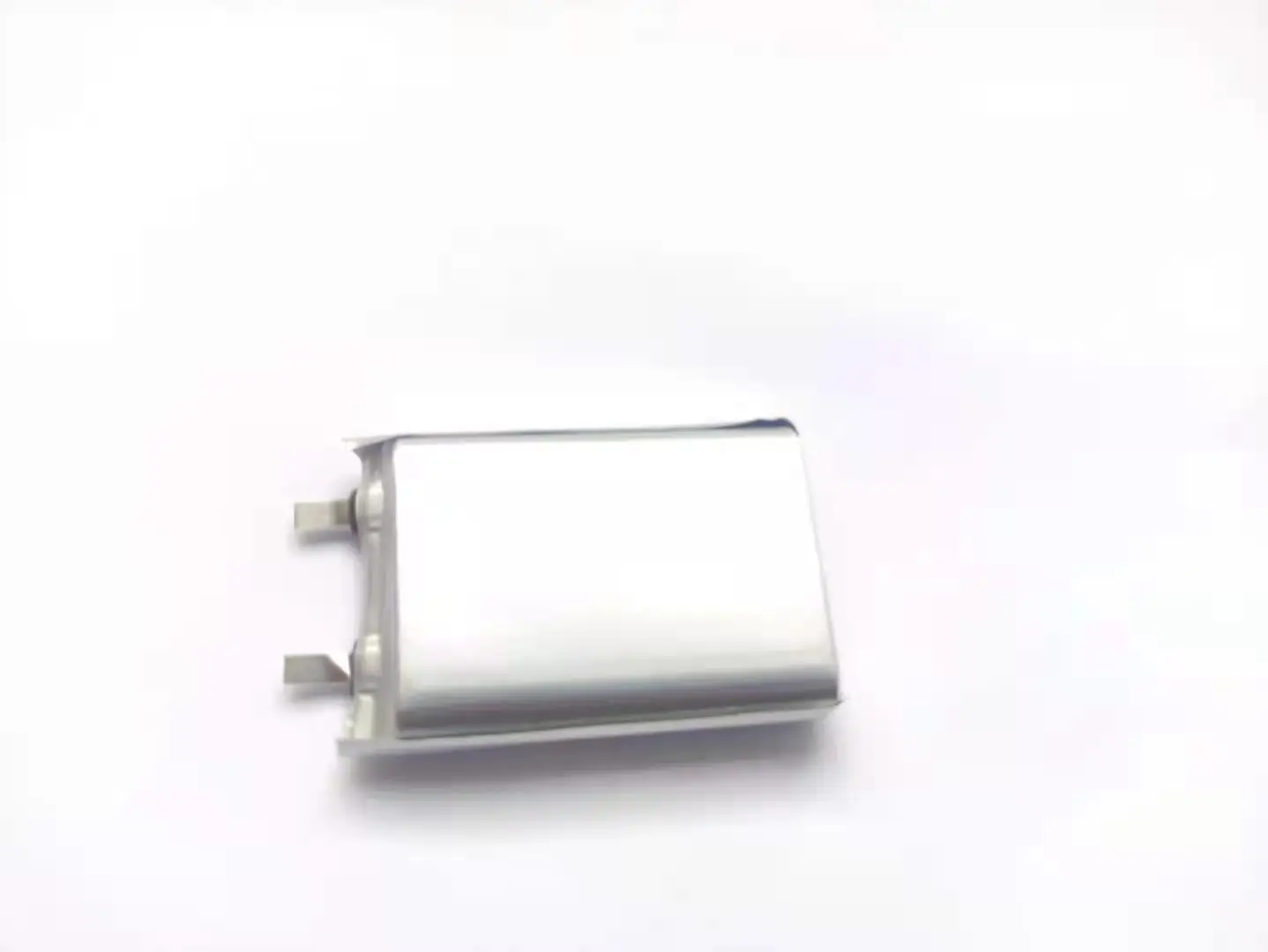

103552 2300MA large capacity soft package polymer lithium battery toy application lithium battery multi function application
- Category: >>>
- Supplier: Zhuhai Sihaipower Technology Co. Ltd
Share on (1600411924151):
Product Overview
Description
| The battery specification | |
| The name of the | Lithium polymer battery |
| model number | 103552 |
| Capacity(mAh) | Nominal capacity:2300 |
| The biggest:2280 | |
| Nominal voltage(V) | 3.7 |
| Charging cutoff voltage(V) | 4.2 |
| Discharge cut-off voltage | 3 |
| Max discharge current(C) | 1 |
| Operating temperature | charge: 0℃~45℃, 60±25%R.H. |
| discharge:-20℃~60℃, 60±25%R.H. | |
| Store the voltage | 3.7-3.85 |
| Storage temperatur | -5℃~35℃ |
| Cycle Life | Constant current 0.5C charge to 4.2V, then constant voltage charge to current declines to 0.01C, rest 10min,constant current 0.2C discharge to 3.0V,rest 10min. Repeat above steps till continuously discharging capacity Higher than 80% of the Initial Capacities of the Cells.≥500 times |
