Industrial SSDs slc nand flash Embedded Flash Storage dom industrial dom flash ide slc dom 44 pin Industrial Ssd
- Category: Hard Drives >>>
- Supplier: Agrade,Storage,(Shenzhen),Co.,Ltd
Share on:
Product Overview
Description
Specification
Product Name | Industrial iDiskOnModule(DOM) |
Series | Reliable Series |
Model Name | DH35 |
Capacity | SLC：128MB~16GB |
Feature | * High reliability, low power consumption |
* Comply with PATA&IDE (ATA) interface specification | |
* P/E：SLC(60000) | |
* Master / Slave Switch | |
* Advanced Wear Leveling and Error Checking and Correction | |
Shock / Vibration | 1500/20 |
MTBF(h) | 2,000,000 |
Operating Voltage | 3.3V /5V ± 5% |
Operating Temperature | NT :Normal temperature 0℃-70℃ WT :Wide temperature -40℃-85℃ |
Storage Temperature | -55℃ ~95℃ |
Sequential R/W Performance(Max) | Read：112.3 MB/S Write： 62.7 MB/S |
Dimension(LxWxH) | 48.4mm(L)X27.3mm(W)x5.8mm(H) |
Products Description

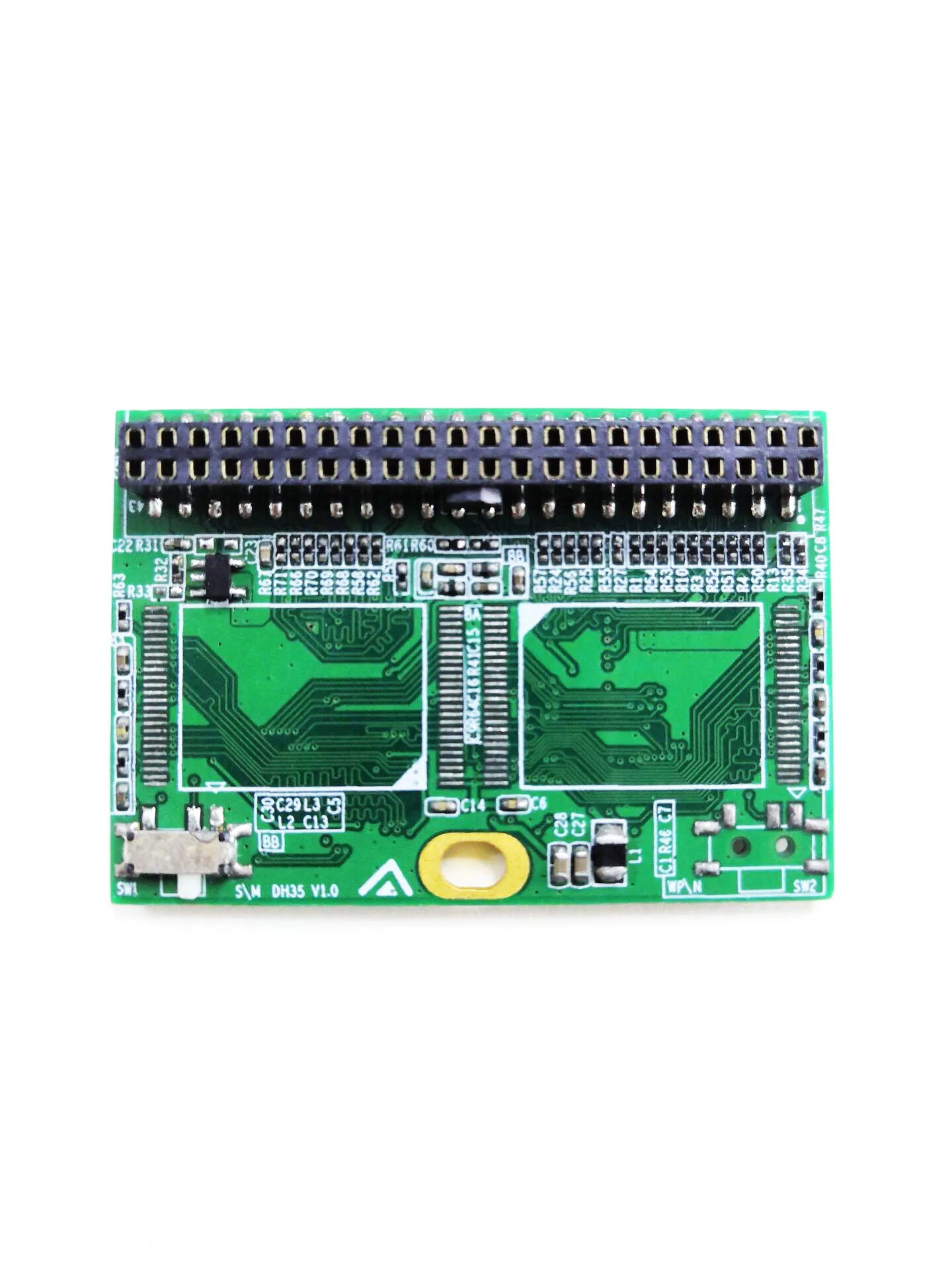

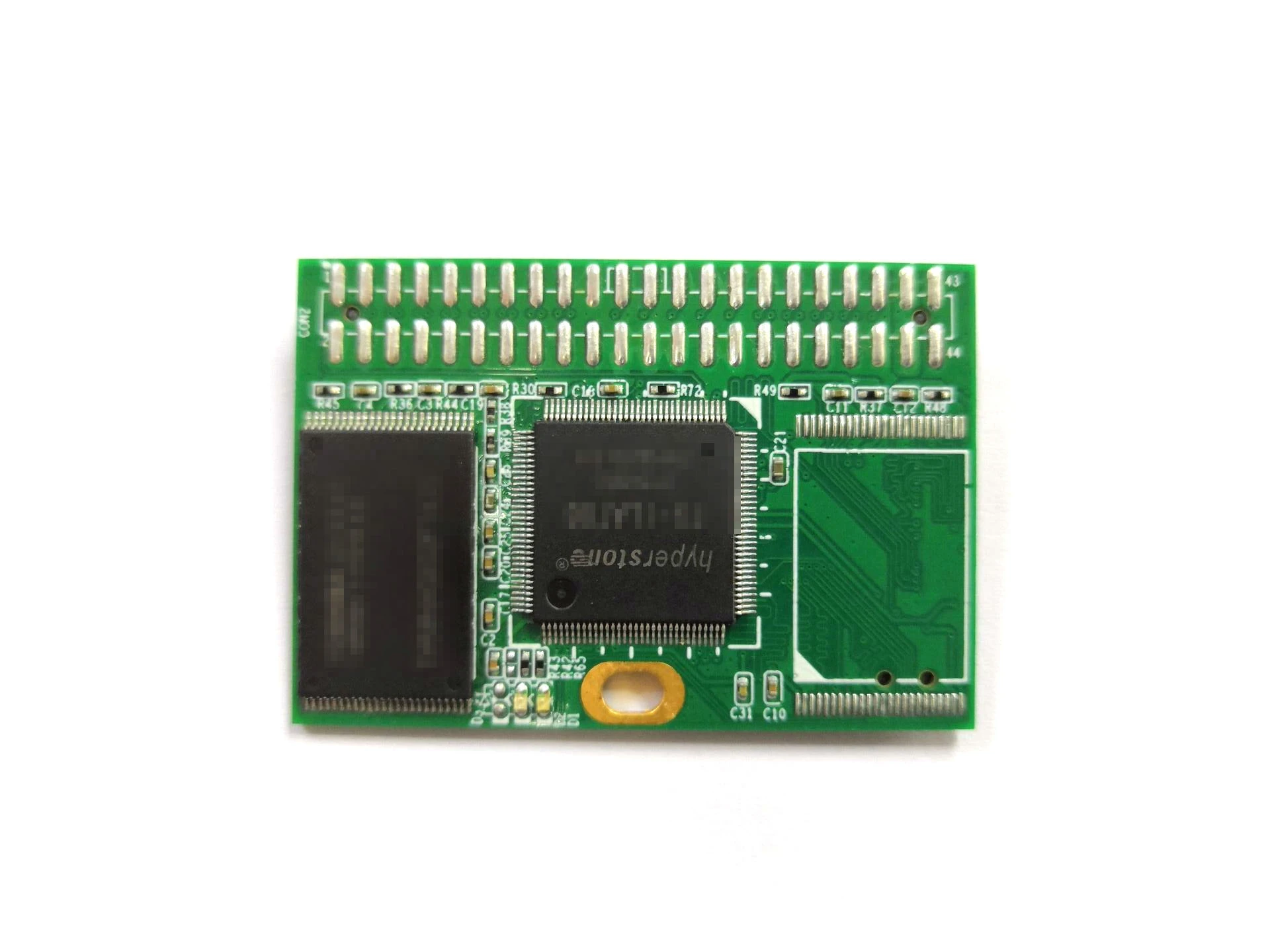

Agrade IDE DOM

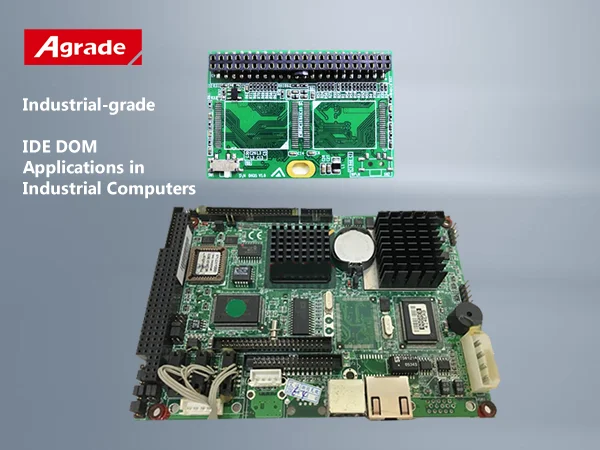

This product complies with 44 PIN IDE (ATA) standard interface and is suitable for data storage media, code storage device, or
boot disk for embedded systems.
boot disk for embedded systems.
By using iDOM, it is possible to operate good performance for the systems, which have IDE interface.
Recommend Products
Company Profile
Recommend Products

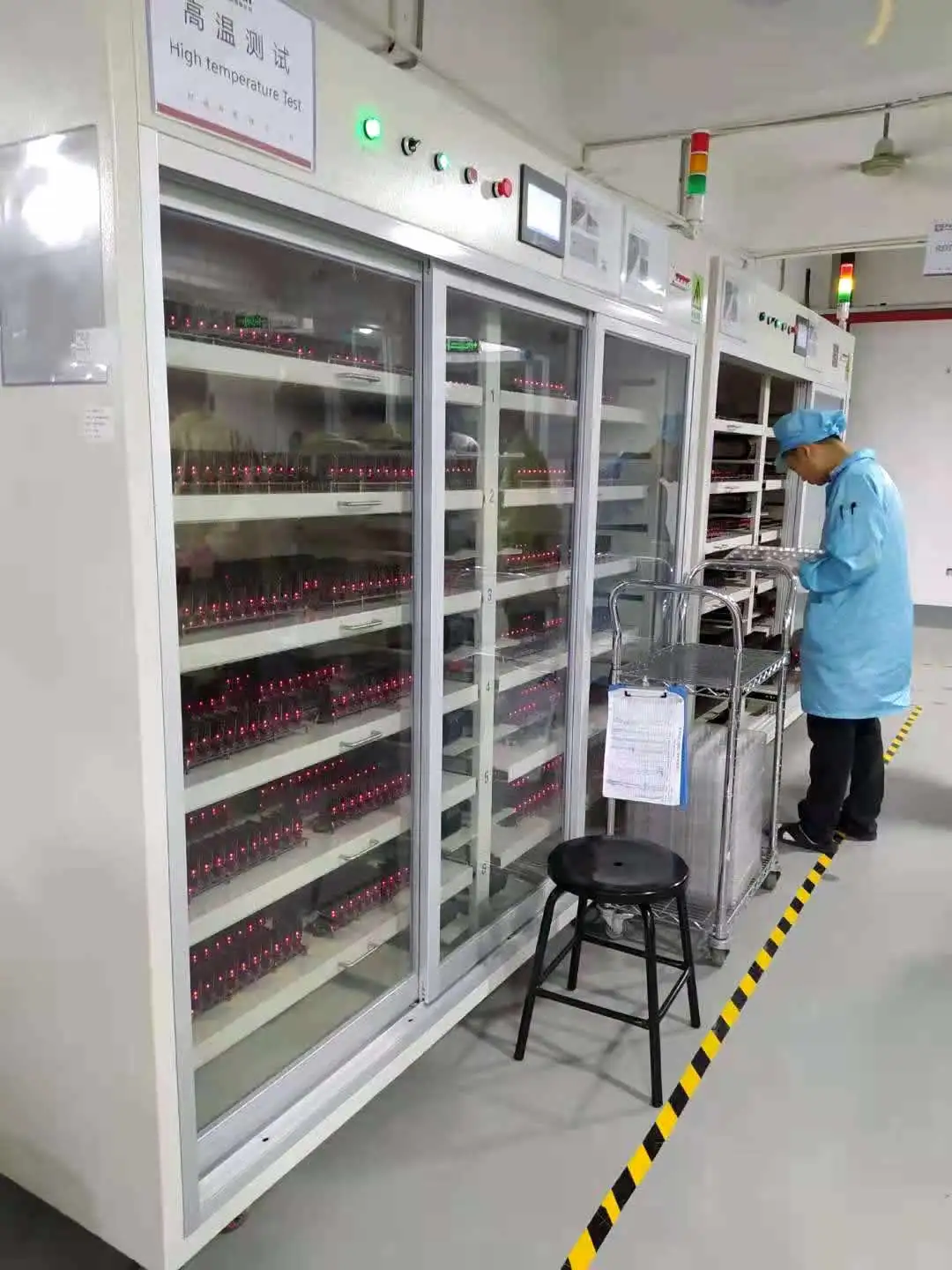

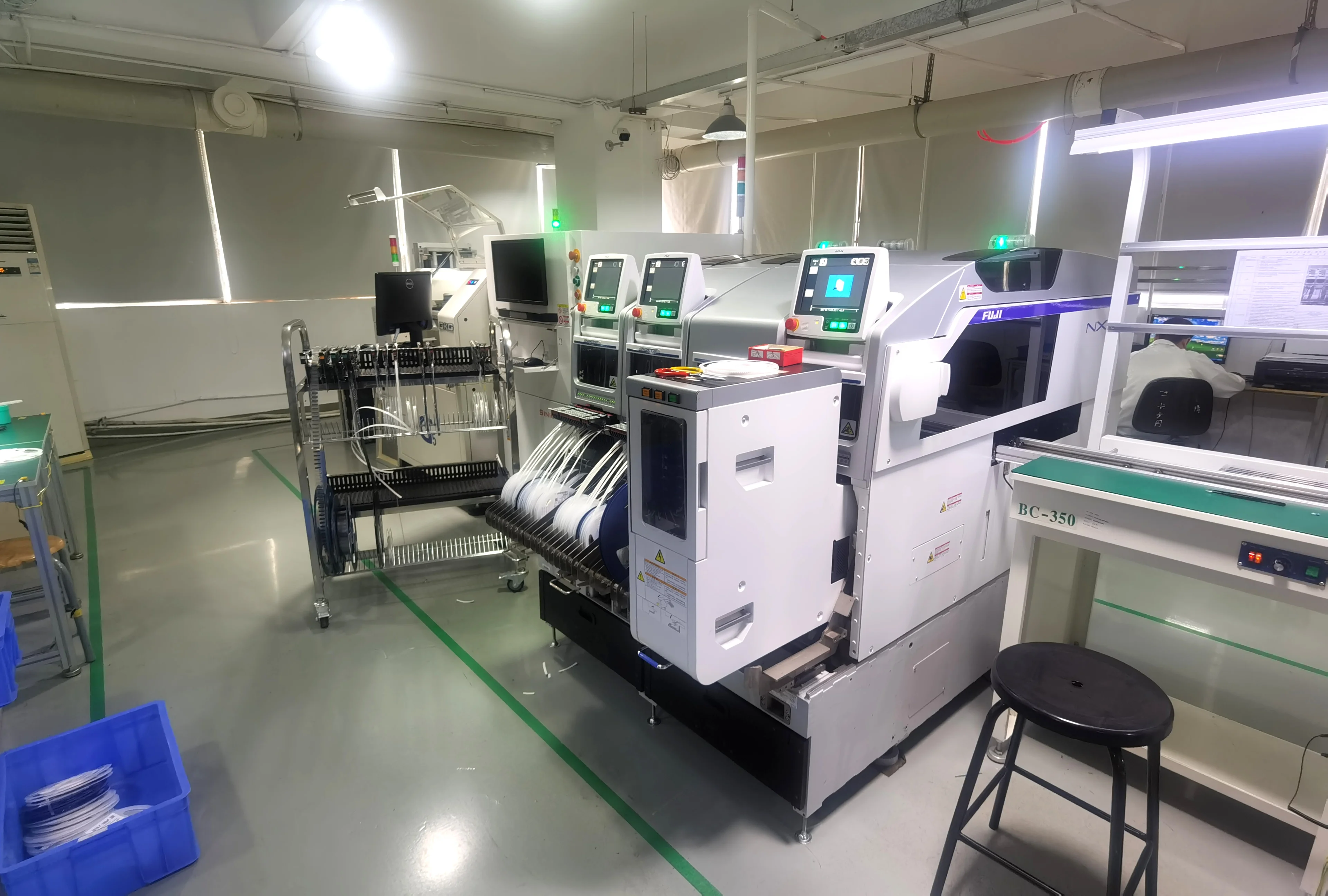

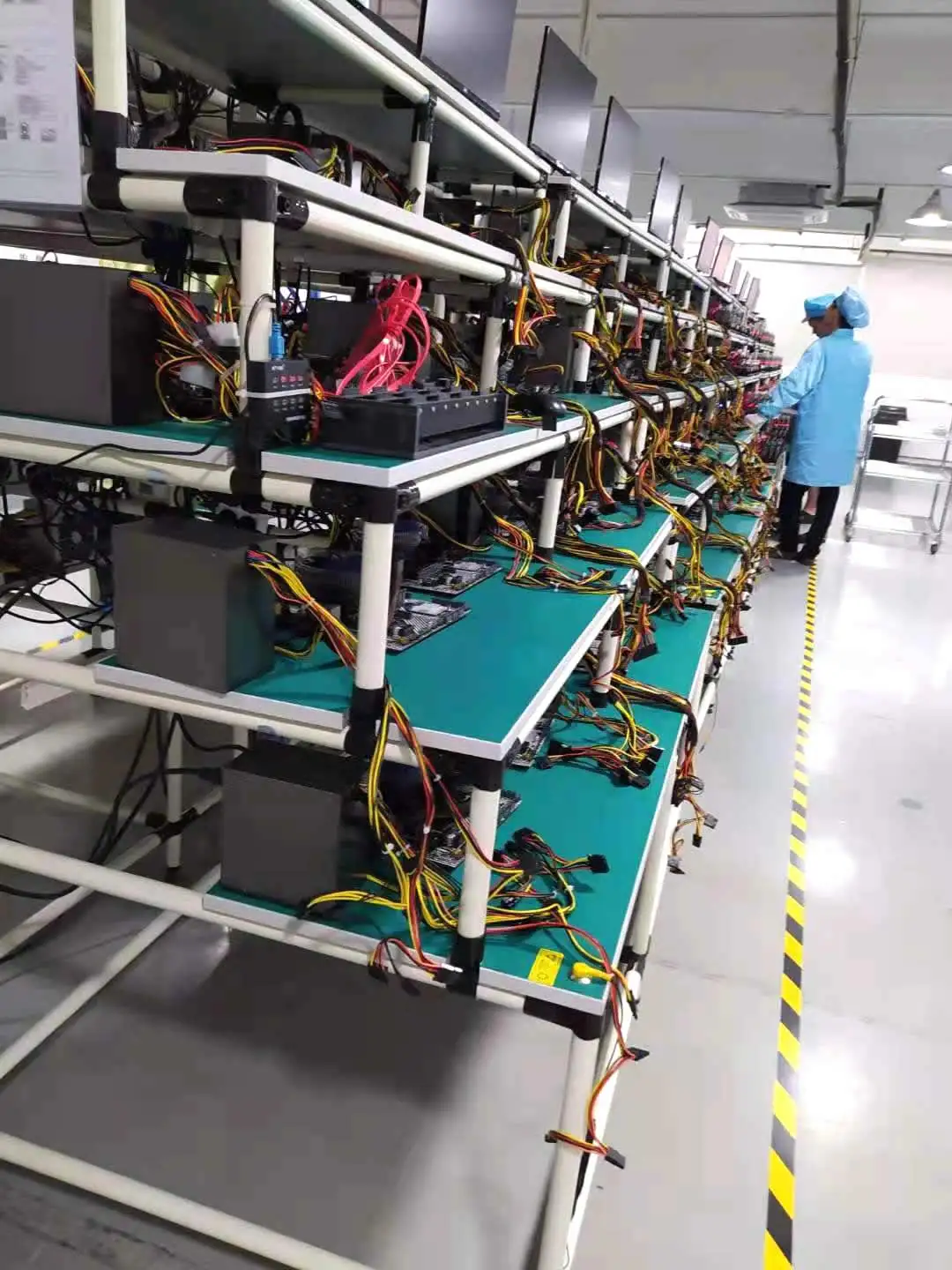

Manufacturing Technique

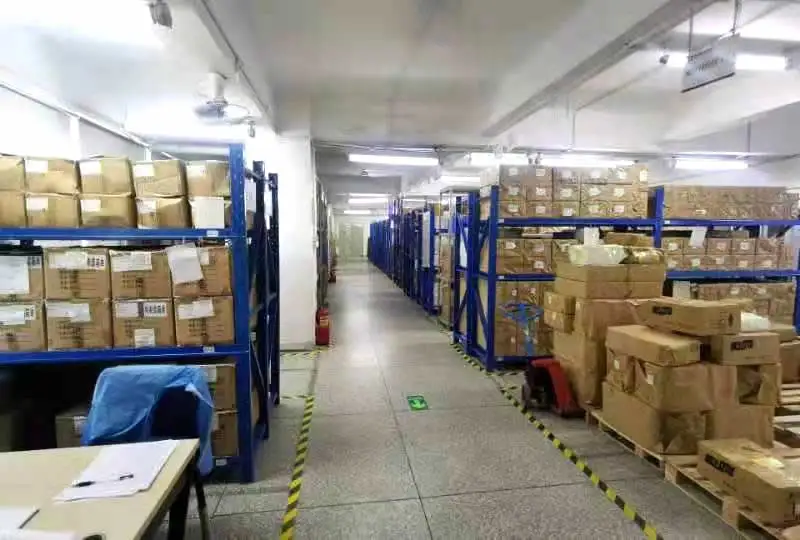

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.

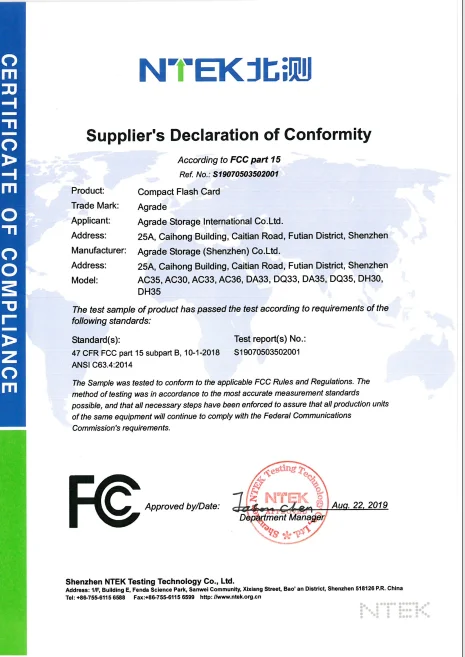

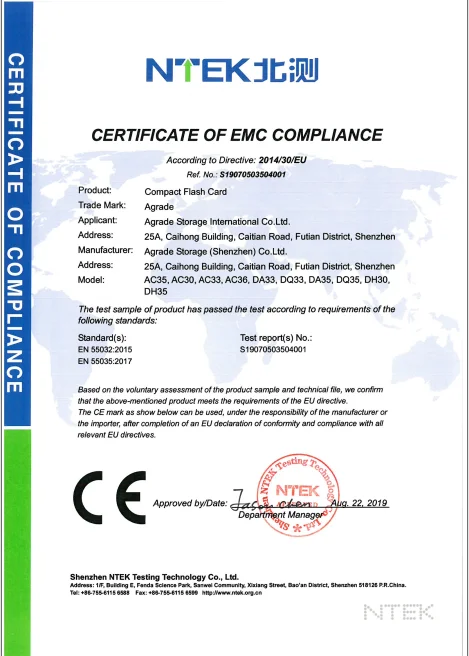

Certifications
