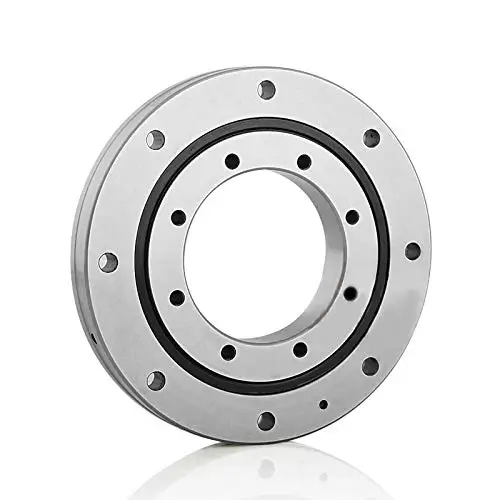

Cross Roller Bearings XRU1008/2012/2512/3515/5515 UUCC0P5 Rotary Bearing Turntable slewing ring bearing
- Category: >>>
- Supplier: Wanyi International Trade (shanghai) Co. Ltd.
Share on (1600411985165):
Product Overview
Description
Product Description
Precision Slewing Bearing：
·We are specialized in providing all kinds of precision bearings, such as precision cross cylindrical roller bearings, precision cross taper roller bearings, precision slewing bearings, robot/harmonic reducer special bearings, YRT rotary table bearings, ZKLDF thrust angular contact series and so on.
Specification
Product name | Precision Crossed Slewing Bearing |
Material | Slewing rolling body: GCr15/GCr15SiMn etc. Slewing ring: Surface hardened steel/50Mn steel/42CrMo、5CrMnMo etc. Bearing cage：20 steel or ZL102 cast aluminum alloy/Polyamide 1010 resin, ZL102 cast aluminum alloy/Nylon GRPA66.25 etc. Sealing ring: Oil resistant butadiene rubber (Materials can be customized to your needs) |
Precision grade | P0,P6,P5,P4,P2 |
Size | ID 250 OD 310 W 25mm （You can contact us for the model/size you want to purchase) |
Certification | ISO9001:2008 CE |
Used | All kinds of cranes, excavators, filling machines, as well as CT standing wave therapy devices, navigators, radar antenna stands, missile launchers, tanks, robots and rotating restaurants etc. |
Part of slewing bearing type display：
XRB Series Cross cylindrical roller bearing
XRA Thin Series Cross cylindrical roller bearing

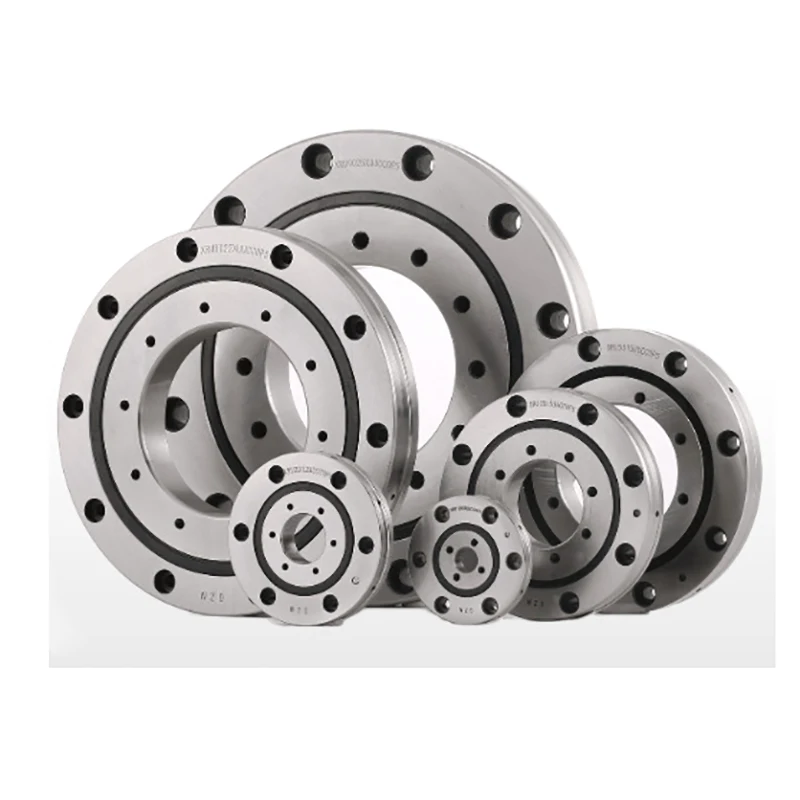

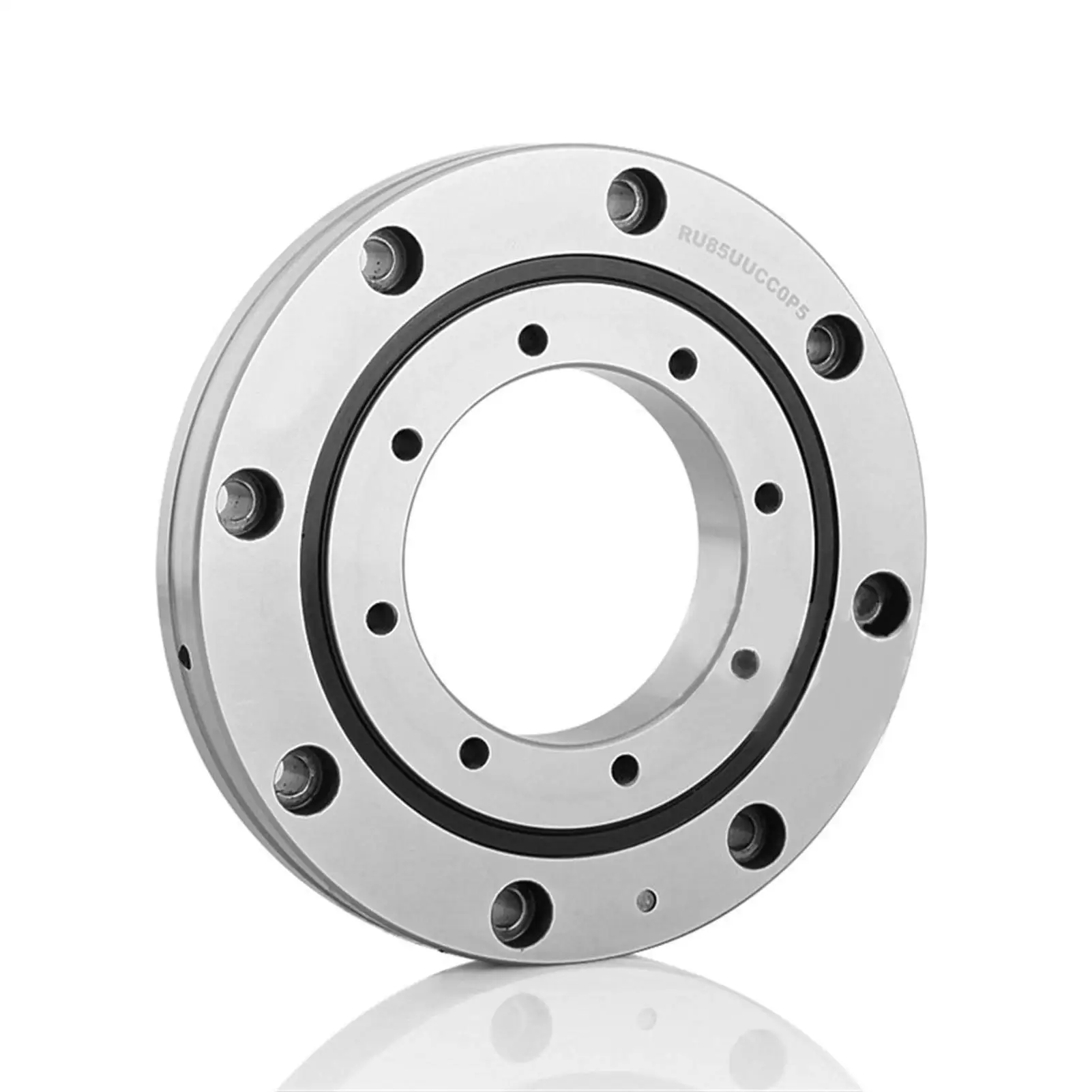

XRU Series Cross cylindrical roller bearing
XRE Series Cross cylindrical roller bearing
XRT Series Cross taper roller bearing

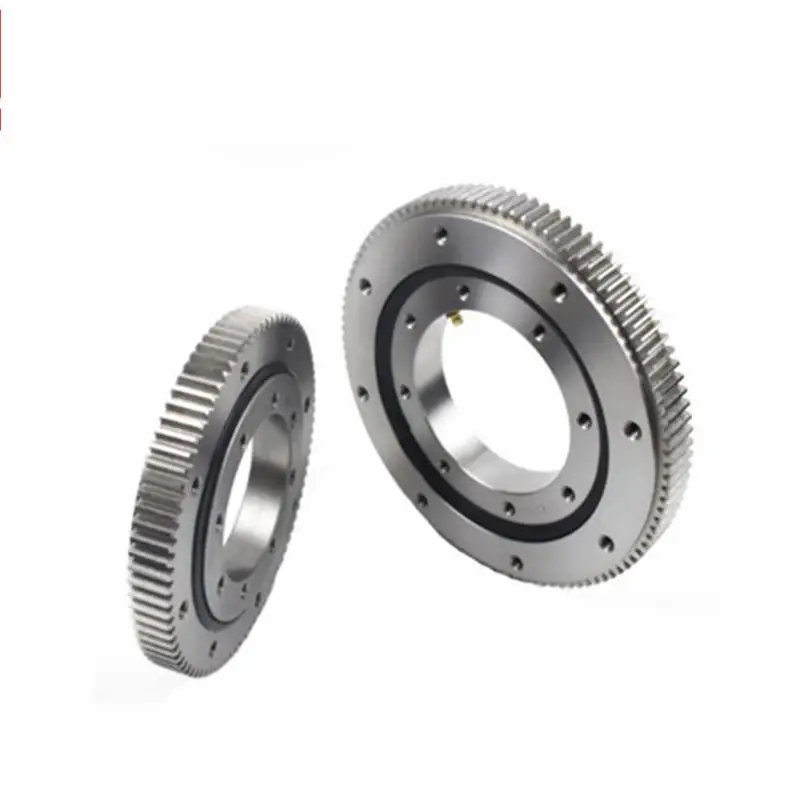

High Precision Slewing Bearing
High Precision Slewing Bearing
YRT Series turntable
ZKLDF Thrust Angle contact ball
Cross cylindrical roller bearings for robots
（XRB/XRU/XRD/PRS Series ）
Special cross roller bearing for harmonic reducer
（XRB/XRU/XRD Series ）
Model number | Main dimension | Shoulder height | weight | ||||||||||||
inner ring d | outer ring D | Roller pitch circle diameter dp | width B | Greasing hole d1 | r | ds | Dh | kg | |||||||
RU42 | 20 | 70 | 41.5 | 12 | 3.1 | 0.6 | 37 | 47 | 0.62 | ||||||
RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 0.62 | ||||||
RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 1 | ||||||
RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 2.6 | ||||||
RU124X | |||||||||||||||
RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 4.9 | ||||||
RU148(X) | |||||||||||||||
RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 6.8 | ||||||
RU178(G) | |||||||||||||||
RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 11.4 | ||||||
RU228(X) | |||||||||||||||
RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 21.3 | ||||||
RU297(X) | |||||||||||||||
RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 35.4 | ||||||
Nominal model | d*D*B(mm) | weight(kg) | Corresponding model | |||
XRA 5008 | 50*66*8 | 0.08 | RA5008 | |||
XRA 6008 | 60*76*8 | 0.09 | RA6008 | |||
XRA 7008 | 70*86*8 | 0.1 | RA7008 | |||
XRB 2008 | 20*36*8 | 0.04 | RB2008 | |||
XRB 2508 | 25*41*8 | 0.05 | RB2508 | |||
XRB 3010 | 30*55*10 | 0.12 | RB3010 | |||
XRB 10020 | 100*150*20 | 1.45 | RB10020/CRB10020/NRXT10020 | |||
XRB 12025 | 120*180*25 | 2.62 | RB12025/CRB12025/NRXT12025 | |||
XRB 20025 | 200*260*25 | 4 | RB20025/CRB20025 | |||
XRC 7010 | 70*90*10 | 0.3 | SX011814 | |||
XRC 9013 | 90*115*13 | 0.4 | SX011818 | |||
XRU 1008 | 10*52*8 | 0.12 | CRBF108AT | |||
XRU 2012 | 20*70*12 | 0.29 | RU42/CRBF2012AT | |||
XRU 8022 | 80*165*22 | 2.6 | RU66 | |||
XRU 9025 | 90*210*25 | 4.9 | RU148 | |||
XRT060-NT | 150*230*30 | 4.9 | / | |||
XRT063-NT | 160*240*30 | 5.15 | / | |||
XRT080-W | 230.2*279.4*31.75 | 5.59 | / | |||
XRB14-55-CSF | 11*55*13.5 | 0.15 | Corresponding to the deceleration model： CSG/CSF-14 | |||
XRU14-70-SHF | 38*70*13.7 | 0.11 | Corresponding to the deceleration model: SHF/SHG-14 | |||
XRD14-55-CSD | 12*55*13.9 | 0.24 | Corresponding to the deceleration model: CSD-14-2UH | |||
PRS-R14 | 25.07*33.9*6.35 | - | - | |||
XRSU14.414 | - | 28 | XSU140414 | |||
XRSI14.414 | - | 31 | XSI140414N | |||
XRSA14.544 | - | 44 | XSA140544N | |||
XRU16.0220 | - | 16 | XU160220 | |||
PU20.0220 | - | 16 | VU200220 | |||
PLU20.414 | - | 24 | - | |||
