10/100/1000M Ethernet to Fiber Converter with SFP Slot Gigabit 1000M SFP Media Converter
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600411996264):
Product Overview
Description
Product Description

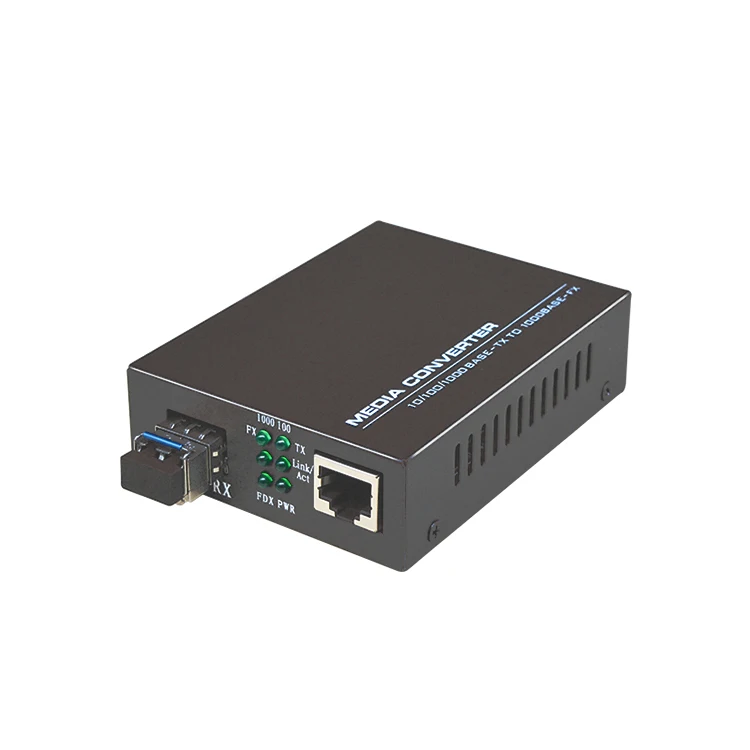

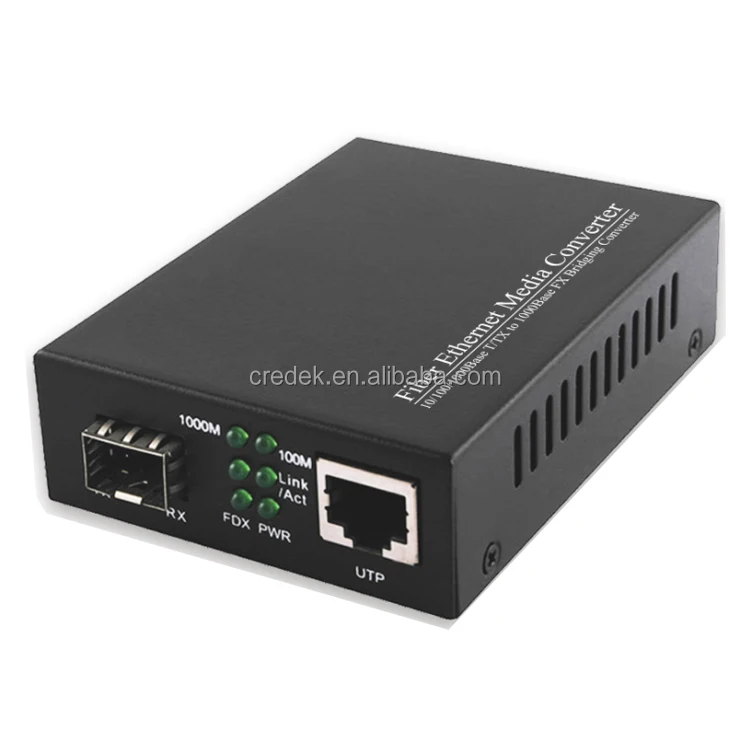

10/100/1000M SFP Fiber Optic Media Converter

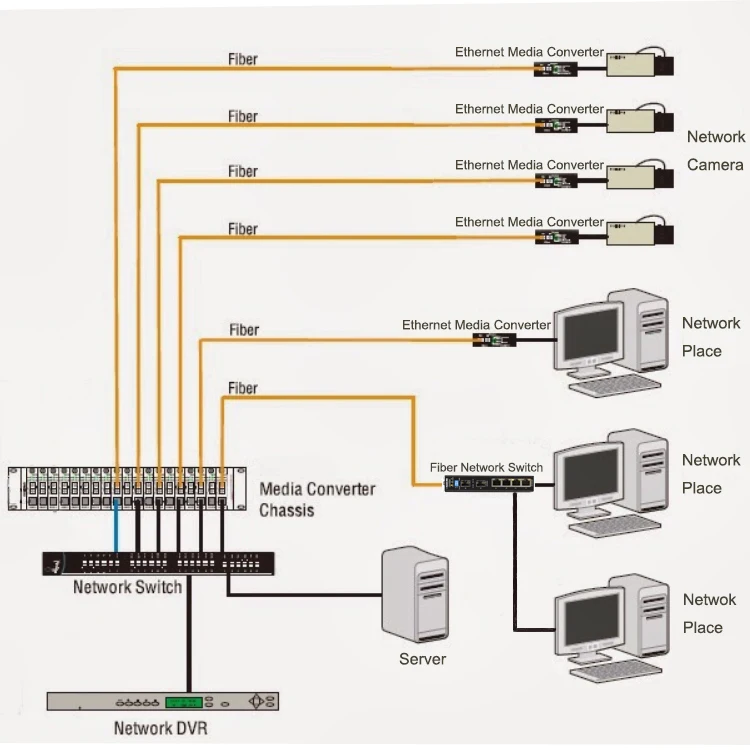

CREDEK Gigabit Ethernet Media Converter extends the transmission distance of network from 100m via copper cable to 100km via fiber optical cables
Specification
Access mode | 10/100/1000Mbps SFP Media Converter |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
Port | SFP Port |
Transmission distance | multi-mode Dual-fiber: 0.55km(850nm), 2KM(1310nm) |
single mode Dual-fiber: 20/40/60/80 Km | |
Single mode Single fiber: 20/40/60/80 Km | |
Category-5 twisted pairs: 100m | |
Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
Optical port: | Multi-mode Dual-fiber: SC/LC/ST(SFP) (50, 62.5/125μm) |
Single mode Dual-fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
Single mode Single fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
Conversion means | Media conversion |
BER | <10-9 |
MTBF | 100,000 hours |
LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
Power supply | AC90V-260V( internal power ) |
DC-48V,DC24V,DC12V,DC5V（external power） | |
Power consumption | 5W |
Operating temperature | -10~55ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Dimensions | 71mm (W) * 94mm (D)*26 mm (H) (external power supply, ) |
