rebar coupler Steel bar connecting sleeve , rebar splicing coupler for construction
- Category: >>>
- Supplier: Ningbo Bozon Machinery Co. Ltd.
Share on (1600412058833):
Product Overview
Description
Introduction:

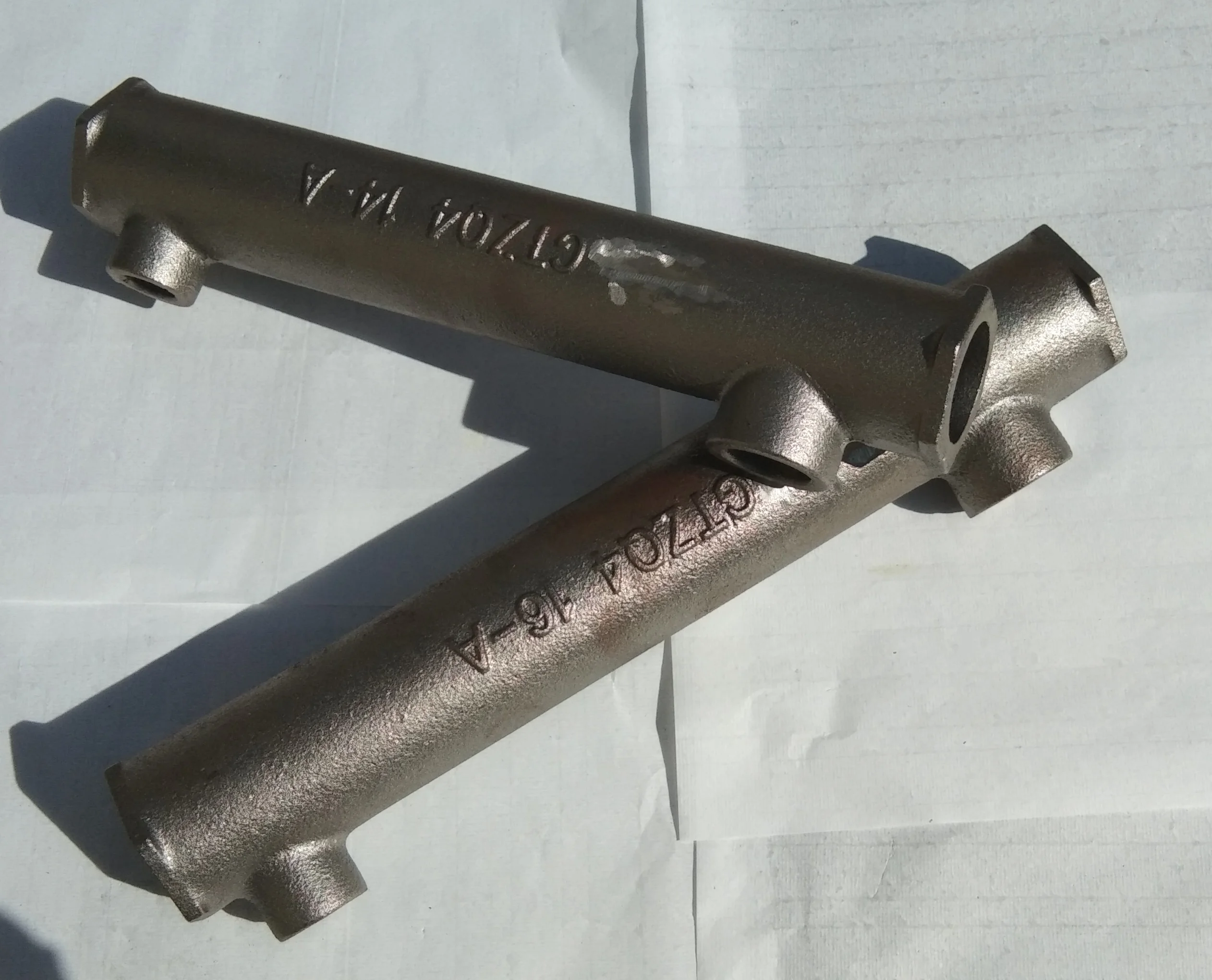

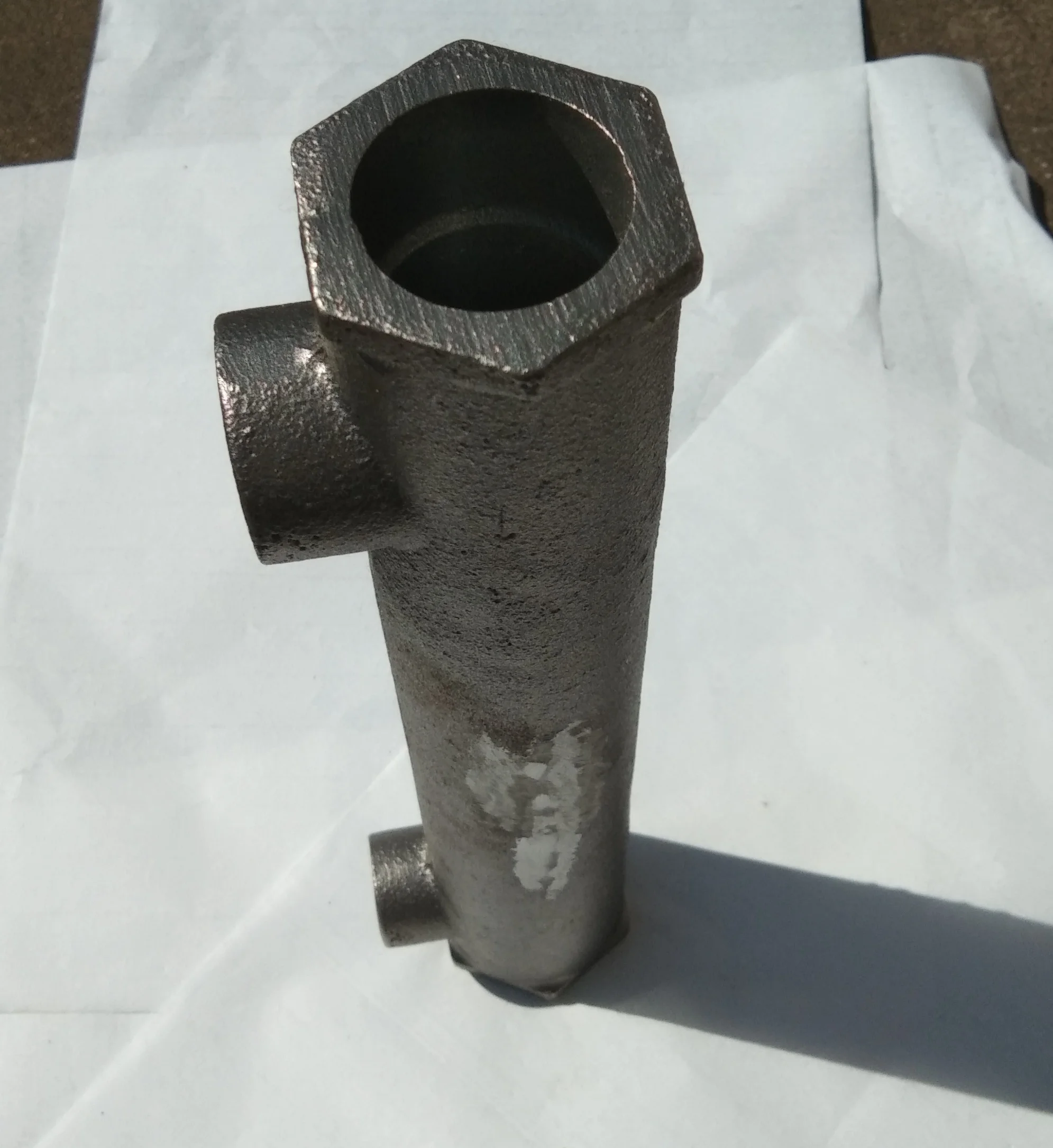

Grout Sleeve is a mechanical splicing designed for the connection of precast elements.Each Grout sleeve features a threaded end (used for the connection to reinforcement at the precast factory) and a wide cavity to perform a grout connection at site.At the construction site, connection is made in a few seconds by injecting/pouring non-shrink grout into the cavity.
Grout Sleeves offer a precast panel on panel splicing solution. Unlike conventional lapping utilising drossbach system, It relys on significantly shorter embedment depths, and therefore reducing onsite hazard caused by long protruding starter bars.
Performance:
- Upper bound breaking strength
- Mechanical Anchorage
- Low Cycle (large strains) fatigue performance
- Brittle Fracture resistance
- Upper bound breaking strength
- Mechanical Anchorage
- Low Cycle (large strains) fatigue performance
- Brittle Fracture resistance
-Wide size range:12/14/16/18/20/22/25/28/32/40
-Flexible design and sizes for OEM support.
-Quality assurance:Product inspection for chemical composition, yield strength, tensile strength,elongation characteristics,spheroidization rate and hardness.
| Product name: | Grout Sleeve | ||||||||||||||||||
| Rebar size (mm): | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 40 | |||||||||
Model of sleeve/ mm (OEM): | 12-B | 12-A | 14-B | 14-A | 16-B | 16-A | 18-B | 18-A | 20-B | 20-A | 22-B | 22-A | 25-B | 25-A | 28-B | 28-A | 32-B | 32-A | 40-A |
| Unit weight/KG: | 0.52 | 1.29 | 0.58 | 1.41 | 0.7 | 1.65 | 0.98 | 1.73 | 1.42 | 2.1 | 1.54 | 2.54 | 1.83 | 3.46 | 2.68 | 4.39 | 3.27 | 5.65 | 17.5 |
| (A)Max Internal Embedment: | 96 | 80 | 112 | 80 | 128 | 98 | 144 | 100 | 160 | 120 | 176 | 130 | 200 | 135 | 224 | 175 | 256 | 190 | |
| (B)Body ID(mm): | φ37 | φ36.4 | φ39 | φ38 | φ41 | φ40 | φ44 | φ42 | φ48 | φ46 | φ50 | φ47 | φ53 | φ48 | φ63 | φ55 | φ67 | φ61 | |
| (C)Internal Grout Hole Diam(mm): | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | φ12 | |
| (D)Tube Length(mm): | 140 | 130 | 156 | 140 | 174 | 150 | 193 | 160 | 211 | 170 | 230 | 180 | 256 | 190 | 292 | 245 | 330 | 265 | |
| Material: | QT550-5 | ||||||||||||||||||
| Certificate: | IATF-16949,SGS | ||||||||||||||||||
| Packaging: | Carton &wooden boxes, nylon bags and as customer’s special requests | ||||||||||||||||||
| Application: | Grout sleeves are used in precast column or precast wall,shear wall,precast concrete frame column,precast concrete frame beam | ||||||||||||||||||
Company Information
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally sample and mould need 15-20 days and after sample approved, the mass production need 20-30 days.
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Mould cost need 100% prepaid and mass production need 30% deposite, and the balance before the shipment.
