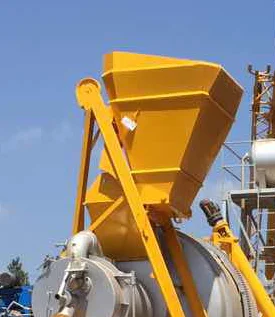

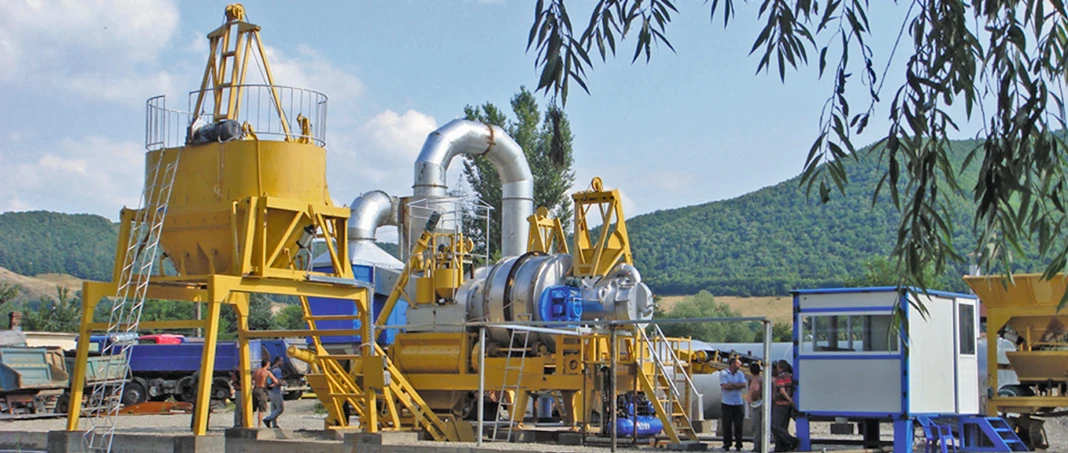

80T/H Hot mix bitumen plant asphalt mixing plant for sale
1.Asphalt Mixing Plant for Sale Road Construction 80t/h used in road construction.
Our company producing capacity: 40t/h,60t/h,80t/h,120t/h,160t/h,240t/h,320t/h,400t/h asphalt mixing plant.
Our asphalt mixing plant is container typed asphalt mixing plant, it's convenient for shipping and installation in the construction site.
2.Asphalt Mixing Plant for Sale Road Construction 60t/h Consist of

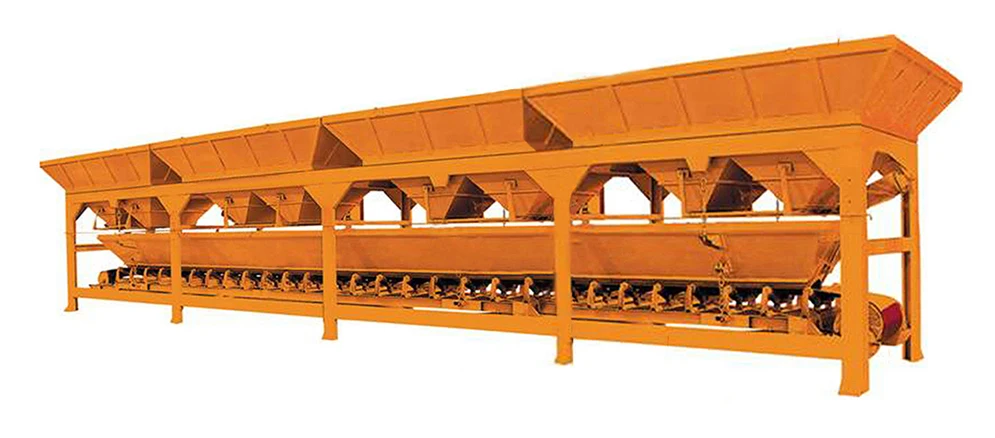

1. PZ50 Cold feed system

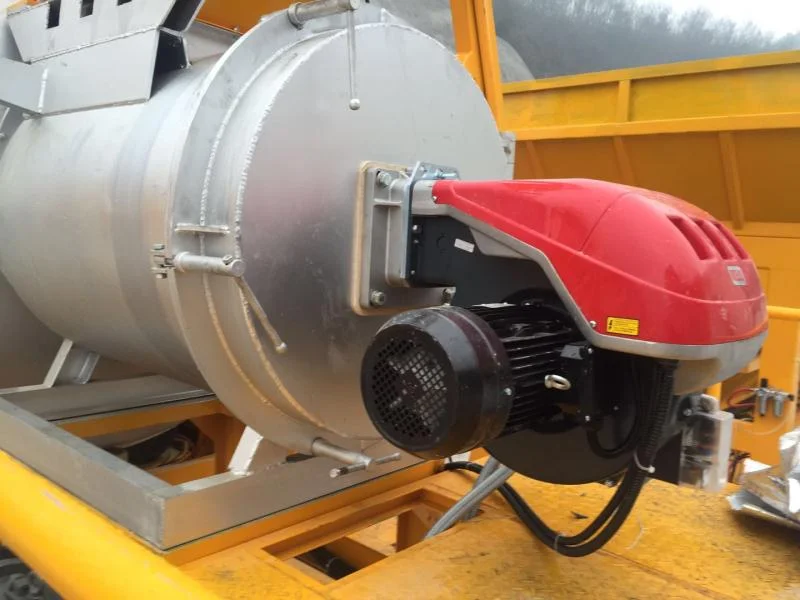

2. Diesel burner
3.Dryer drum

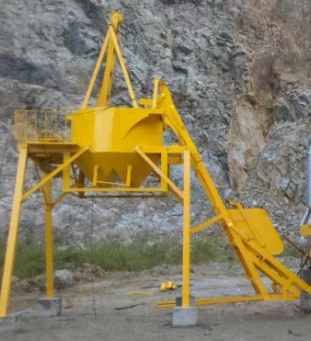

4.Feeder system
5. Fillier conveys and measurement system
6.Mixer

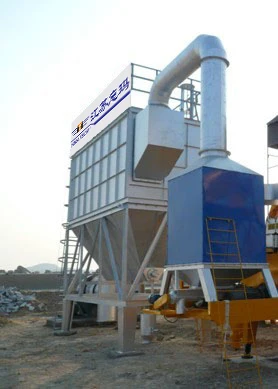

7.Dust removal system
8.Beam
9.Pneumatic system
10.Electronic control system
11.Finished storage system

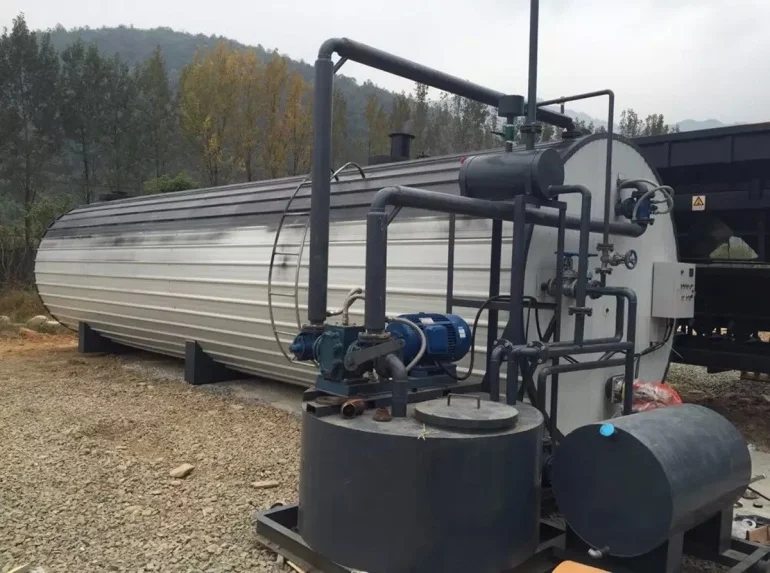

12.RY-30 bitumen tank
3. Feature
1. Easy to ship and install in the construction cite.
2. Removable, can remove to other place after one road project is finished.
3. Environmental protection. No environmental harm after dust removal system.
3.Specification
| Aggregate Specification | |
| Agg. temp of discharge end of drying drum | 120-170ºC |
| Nomal atmospheric pressure | 760 mmHg |
| Ambient temperature | 20ºC |
| Specific gravity of aggregate | 1650 kg/m3 |
| Aggregates moisture content | ≤5% |
| Aggregates specific heat | 0.21 Kcal/kgºC |
| Filler content | 5% |
| Fuel calorific value | |
| Diesel | 10,500 Kcal/kg |
| Fuel calorific value | 5% |
| Electrical Design | |
| Single phase | 220v |
| Three phase | 380v |
| Frequency | 50HZ |
CSM-60 Technical parameters list
| No. | Item name | Technical parameter | |
| 1 | rated capacity | 80t/h(working standard) | |
| 2 | charge-in capacity | 1m3 ×2 | |
| 3 | charge-in weighting | 1.8t/hodful×2 | |
| 4 | out-put temp | 120-170ºC(Adjustable) | |
| 5 | applicability | Bitumen, asphalt dinas, asphalt sand | |
| 6 | fuel consumption | fuel oil:5.5-7.5kg/t, mixture | |
| 7 | drying drum rotate speed | 20.2Turn/min | |
| 8 | assort total power | 196kW(include water dust filter) 193kW(include Bag dust removal) | |
| mixer power | 22 kw ×2 | ||
| drum-drive power | 18.5 kw×2(Variable frequecy starting) | ||
| burner power | 7kw×2 | ||
| Dust catcher power | water dust filter(37kW) | ||
| bag dust removal (45 kW) | |||
| Egg elevate power | 7.5kWx2 | ||
| Filler screw conveyor power | 3kW | ||
| coarse ash power | 5.5 kw | ||
| Air compressor power | 11kw | ||
| Submersible pump | 5.5 kwx2 | ||
| 9 | Control-driven way | PLC programmable electrical control | |
| 10 | Dynamic measuring precision | aggregate | ±2.5% |
| filler | ±2.5% | ||
| bitumen | ±2% | ||
| 11 | Power | voltage | A.C 380V |
| frequency | 50Hz | ||
Company Information
Packaging & Shipping
Our product directly load on the boat . Will save the transport cost for about 50%.
FAQ
1. Who are we?
We are based in Jiangsu, China. We are factory that producing Asphalt mixing plant.
2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC
3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.
4. How about your delivery time?
A: Generally, it will take 30-40 days after receiving your advanced payment.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
