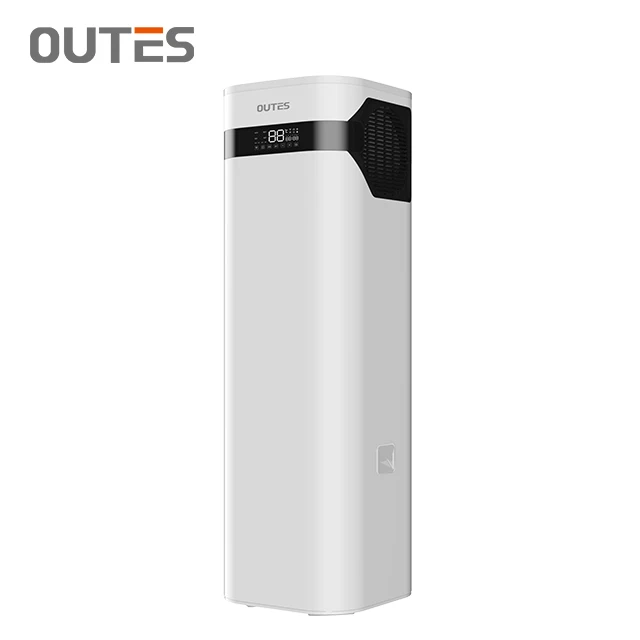

OUTES chinese heat pump Ac 120L all in one air source domestic water heat pump Hot water heat pump
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd. Ningbo Branch
Share on (1600412067719):
Product Overview
Description
Video Description
Product Family
Product Overview
Modes: AUTO/ECO/FAST/MULT
R134a, A+
Sideward Air Outlet
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material
Electronic Expansion Valve for high efficiency
2KW Auxiliary Tubular Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
Intelligent Fault Testing
Intelligent Defrosting
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Child Lock
High/Low Pressure Protection

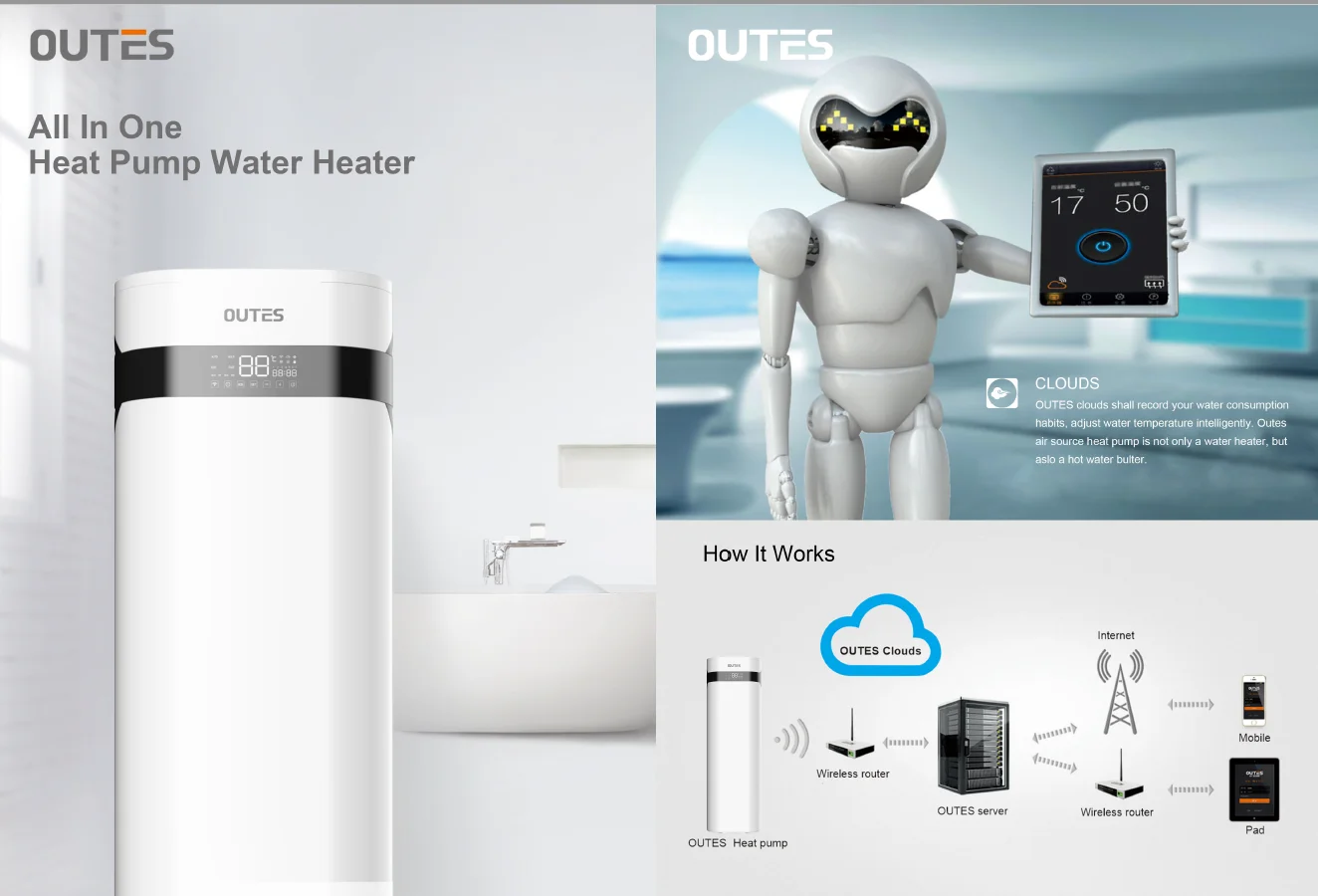

WIFI
R134a, A+
Sideward Air Outlet
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material
Electronic Expansion Valve for high efficiency
2KW Auxiliary Tubular Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
Intelligent Fault Testing
Intelligent Defrosting
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Child Lock
High/Low Pressure Protection
WIFI
Product Specification
Factory Model | / | KD40/E120CE1 | KD40/E160CE1 | KD40/E180CE1 |
Model | / | AAc17R1/120E | AAc17R1/160E | AAc17R1/180E |
Water Tank Volume | L | 120 | 160 | 180 |
Power Supply | / | 220~240V/50Hz | 220~240V/50Hz | 220~240V/50Hz |
Heating Capacity | W | 1700 | 1700 | 1700 |
Rated Input Power | W | 410 | 410 | 410 |
Max. Input Power | W | 2750 | 2750 | 2750 |
COP | W/W | 4.15 | 4.15 | 4.15 |
Electrical Heat Power | W | 2000 | 2000 | 2000 |
Rated Water Output | L/h | 36.5 | 36.5 | 36.5 |
Heating Hours | h | 3.3 | 4.4 | 4.9 |
Rated Water Temp/Max Temp | ℃ | 75 | 75 | 75 |
Noise Power Level | dB(A) | ≤48 | ≤48 | ≤48 |
Refrigerant | / | R134A | R134A | R134A |
Working Condition | °C | -7~46 | -7~46 | -7~46 |
Electric Shock Proof Grade | / | CLASS I | CLASS I | CLASS I |
Protection Grade | / | IPX4 | IPX4 | IPX4 |
Tapping Cycle | L | / | / | / |
COPDHW | W/W | / | / | / |
ErP Class | / | / | / | / |
Net Weight | Kg | 74 | 97 | 102 |
Gross Weight | Kg | 84 | 107 | 112 |
Net Dimension | mm | 520x520x1421 | 520x520x1670 | 520x520x1786 |
Packing Dimension | mm | 626x626x1510 | 626x626x1760 | 626x626x1850 |
Loading Quantity（20Feet） | Sets | 40 | 40 | 40 |
Loading Quantity（40HFeet） | Sets | 80 | 80 | 80 |
Details Images

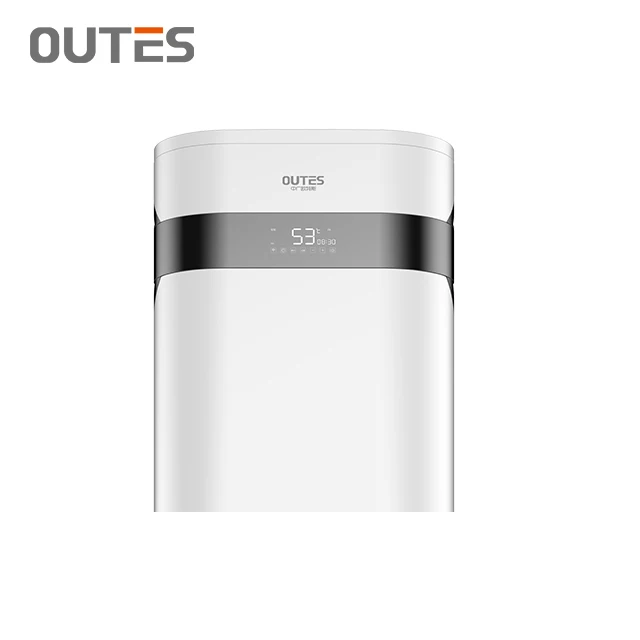

Front view
Back view
Inner view

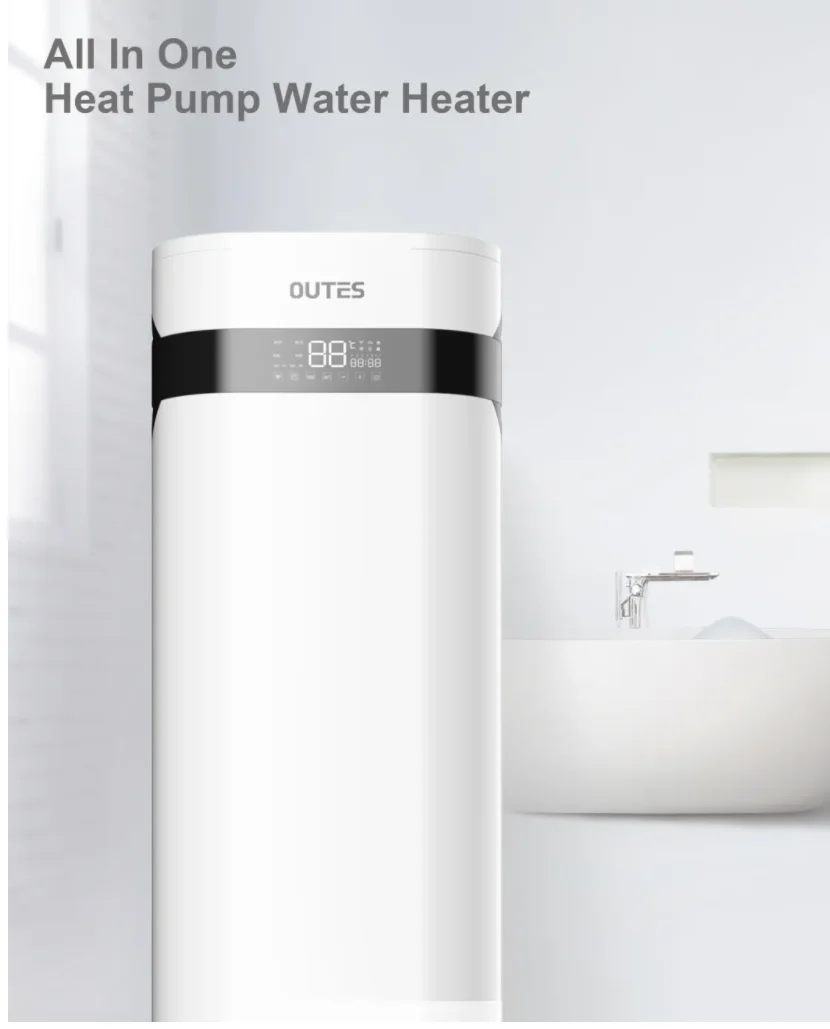

Application
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
