Manufacturer wholesale injection molding machine plastic injection molding machine
- Category: >>>
- Supplier: Dongguan Jincheng Precision Mould Co. Ltd.
Share on (1600412092633):
Product Overview
Description

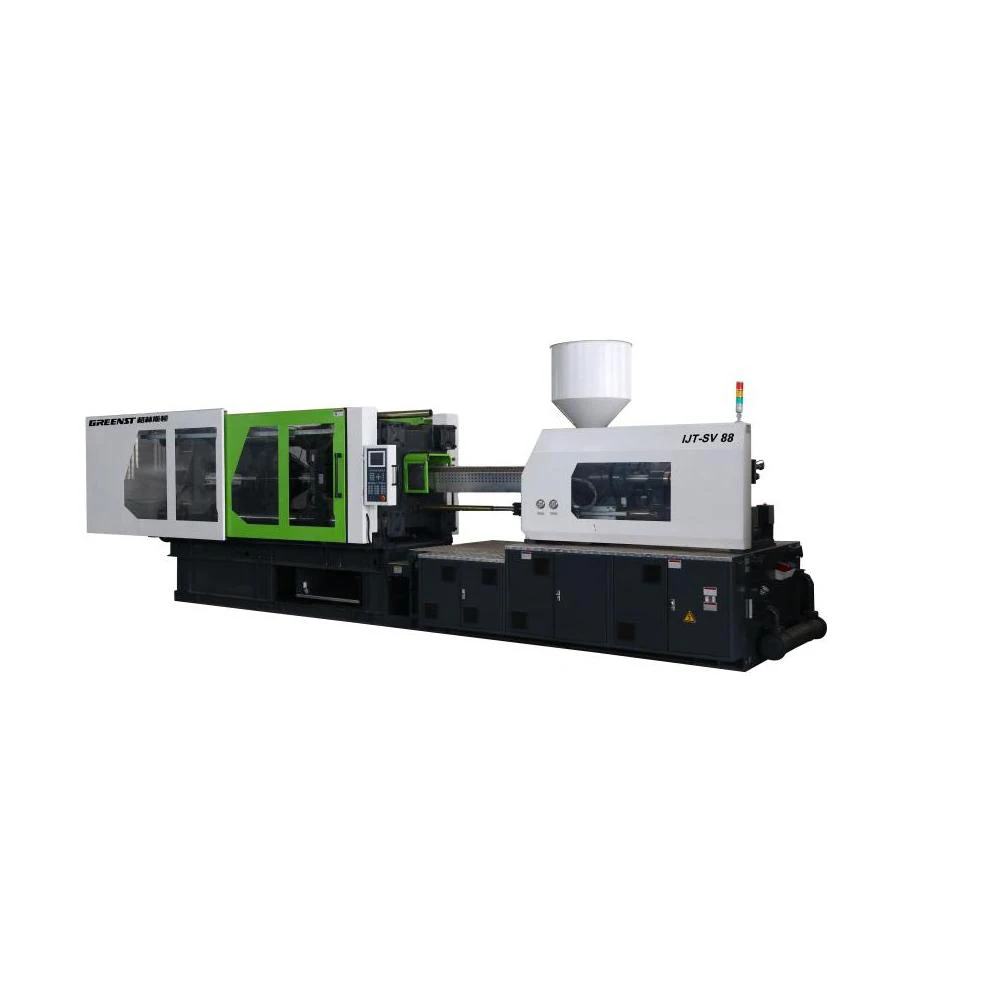

Greenst servo power saving injection moulding machine IJT-SV88SD36
Specification
INJECT Servo power injection machine
Technical Data
| IJT-SV3 | |||

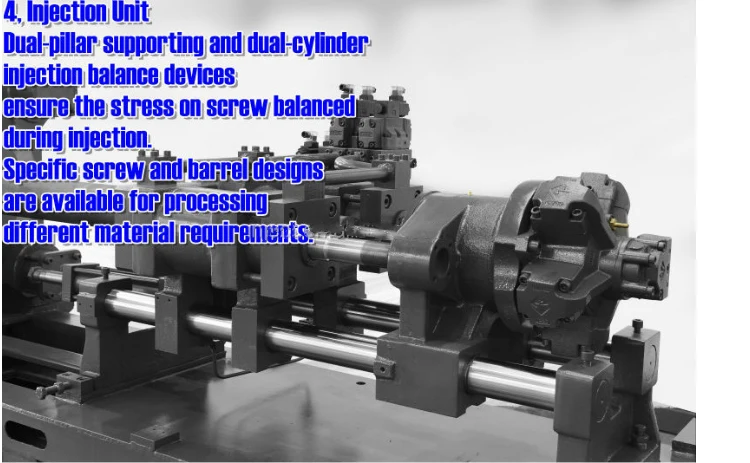

Injection Unit | ||||
Screw Diameter | mm | 34 | 36 | 38 |
Screw L/D Ratio | L/D | 22.2 | 21 | 19.9 |
Shot Volume | cm³ | 124 | 139 | 155 |
Injection Weight(PS) | g | 113 | 126 | 141 |
Injection Pressure | Mpa | 157 | 140 | 126 |
Injection Rate | cm³/s | 96.3 | 108 | 120.3 |
Plasticizing Capacity | g/s | 11.7 | 14.2 | 16.9 |
Screw Speed | rpm | 0-220 | ||

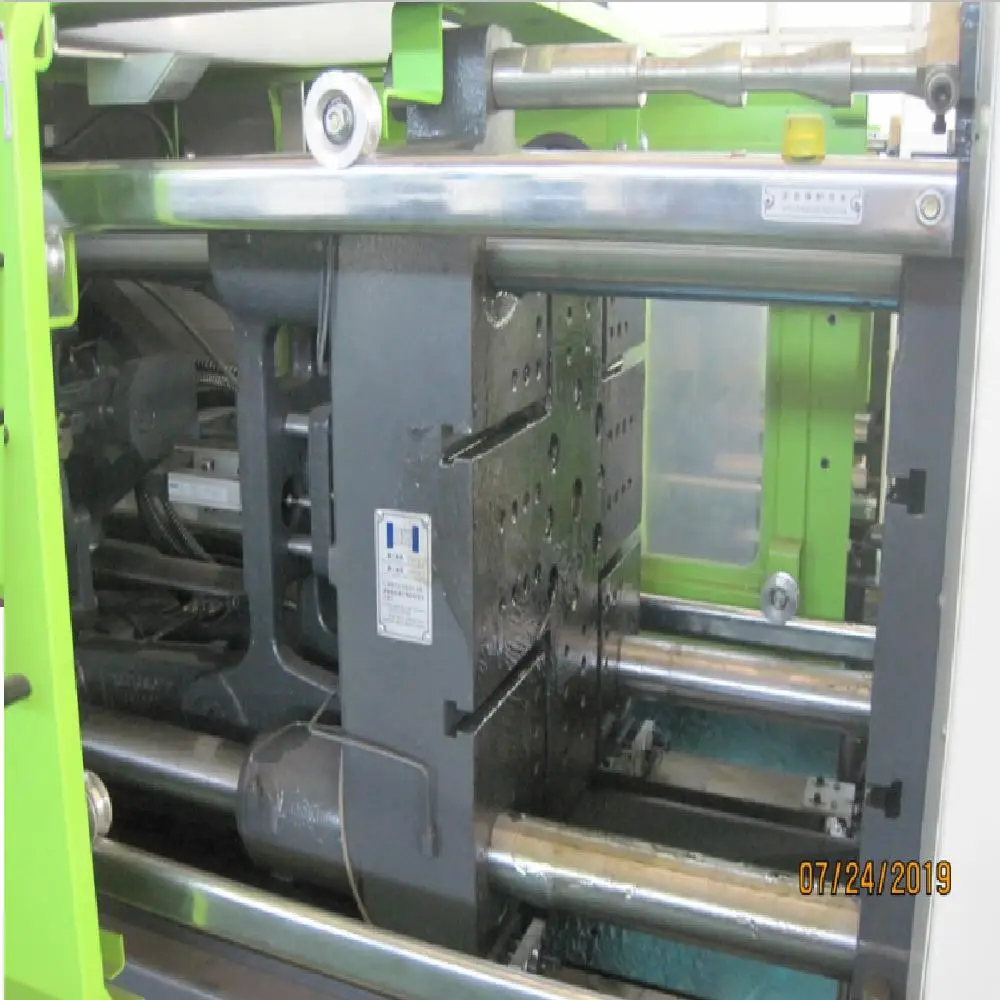

Clamping Unit | ||||
Clamping Tonnage | KN | 880 | ||
Toggle Stroke | mm | 295 | ||
Space Between Tie-bars | mm | 355x315 | ||
Max. Mold Height | mm | 370 | ||
Min. Mold Height | mm | 150 | ||
Ejector Stroke | mm | 70 | ||
Ejector Tonnage | KN | 27 | ||
Ejector Number | Piece | 1 | ||
Others |
| |||
Max. Pump Pressure | Mpa | 14 | ||
Motor Power | KW | 11 | ||
Heater Power | KW | 5.3 | ||
Machine Dimension | m | 3.72x1.17x1.8 | ||
Machine Weight | ton | 2.7 | ||
Oil Tank Capacity | L | 200 | ||
Company Information
thanks for visit
cosmetic plastic box injection moulding machine from GREENST
INJECT Exihibition:
Saudi 4P from 17 - 20 February 2014 welcome to visit ictures
INJECT target:
Striving for Excellence, Creating international Brand!
INJECT /Your best partner:
Agent wanted.thanks

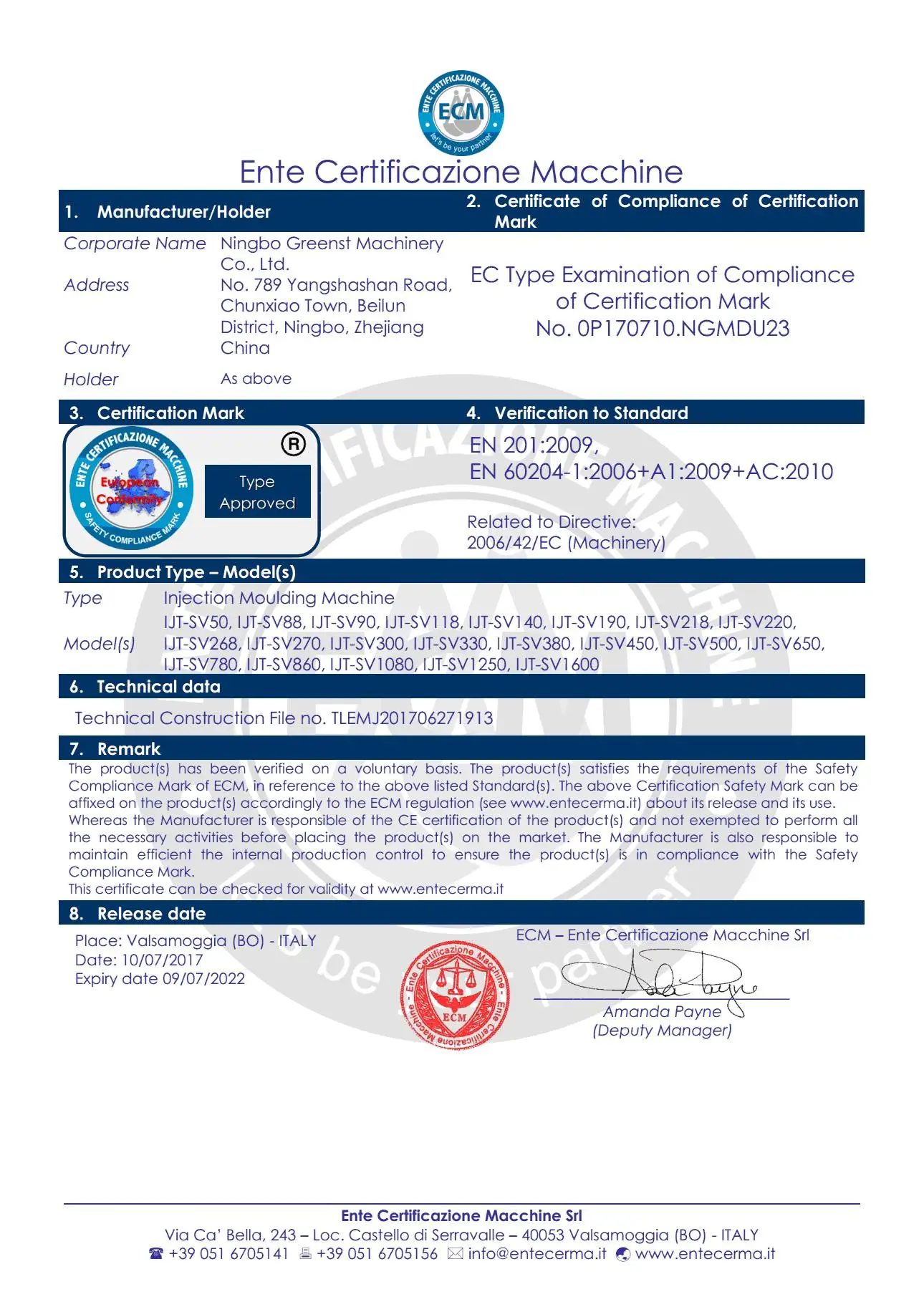

Certificates
FAQ
Q: Where have you exported your machines?
A: We have already exported to more than 30 countries in Asia,Middle east ,Africa, South Kerea and Etc.
Q:Can you arrange the visit to your machine user?
A: Yes.
Q:Can you customize the machine according to our requirement ?
A: Yes.
Q:How about your after-sales service?
A:We will reply you within 24 hours by email or phone . If we have local agent ,we will ask them to your site asap to fix problems .
Q:How about staff training ?
A:Usually ,we will train your staff during the machine installation on your site . you are also welcomed to send your staff trained in our factory .
