Price:$440.00

Quantity:


Product Overview

Description

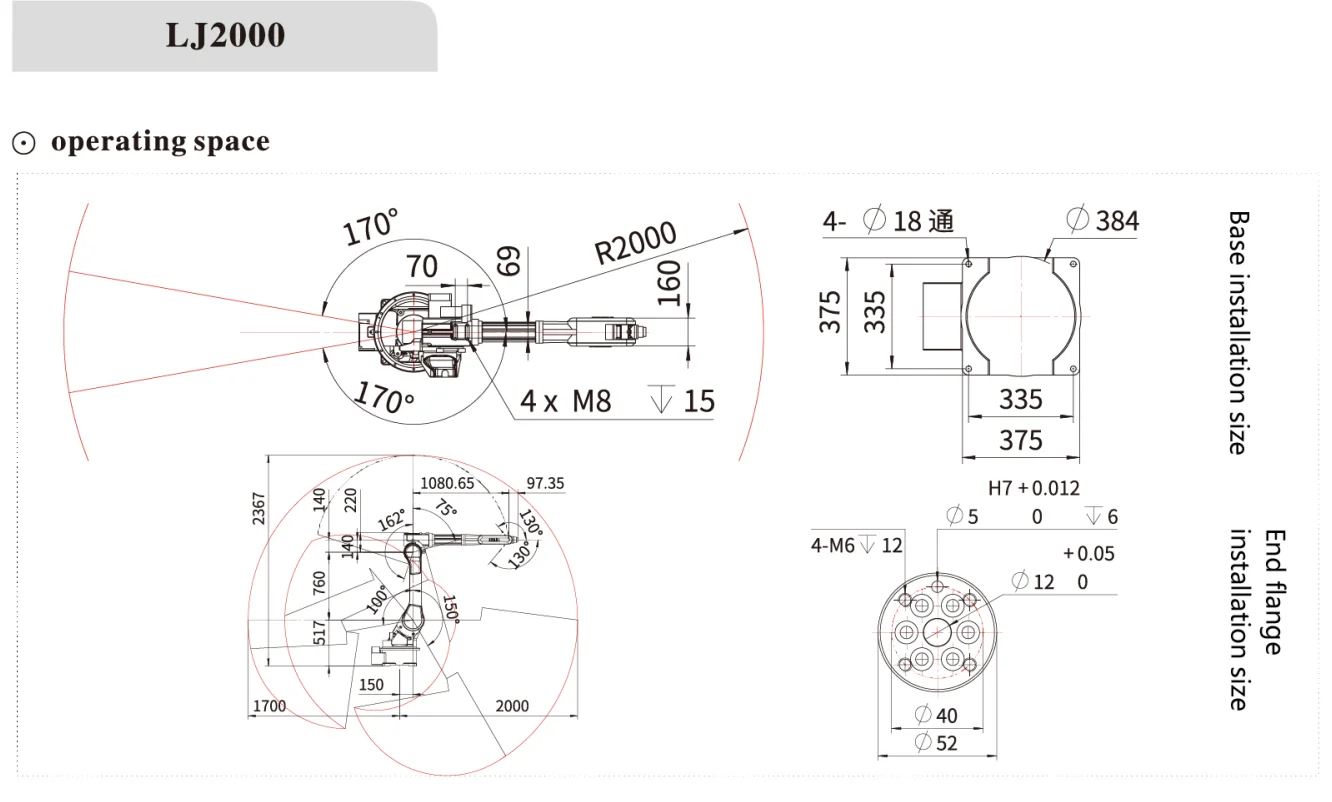

CH1600




Specification:




Model No
LJ2000
No of control axes
6
1468Load capacity(KG)
8
Working radius(mm)
2000
Repeatability(mm)
±0.08
Motion range(。)
J1 axis
±170
J2 axis
+80～-90
J3 axis
+85～-90
J4 axis
±180
J5 axis
±130
J6 axis
±350
Max. speed(。/s)
J1 axis
148
J2 axis
110
220J3 axis
140
J4 axis
200
J5 axis
150
J6 axis
320
Power
Rated voltage
Single phase 200-230V 50/60HZ
Permissible voltage range
-15%～-10%
Frequency variation range
±5%
Control cabinet
A1 or A2 model
Weight(kg)
270
Overloaded cable from robot to control cabinet
5m
Installation method
Ground, reversal, side-mounted


Performance

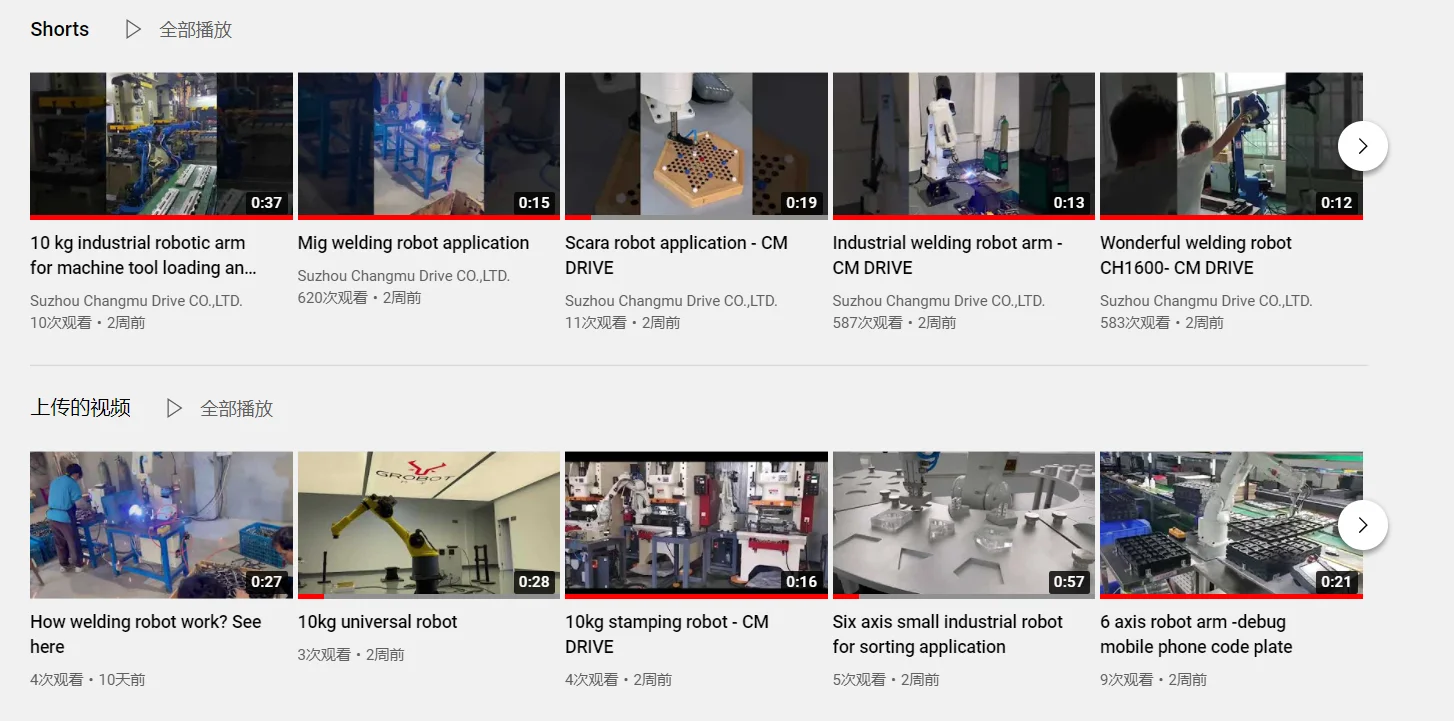

More performance about our industrial robot, kindly view our youtube.
https://www.youtube.com/channel/UCR_fmNU8gI8shgfpDhHM-VQ
