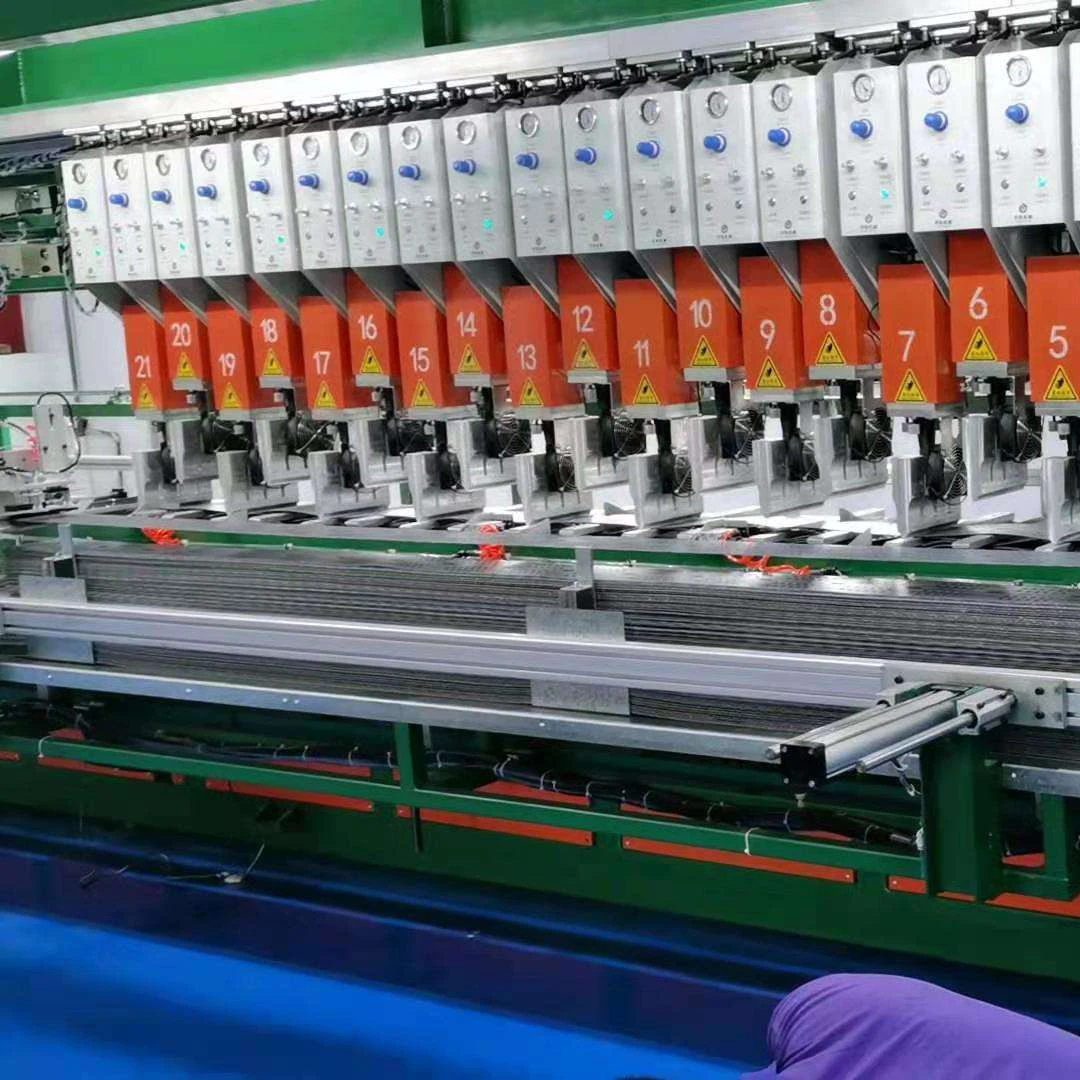

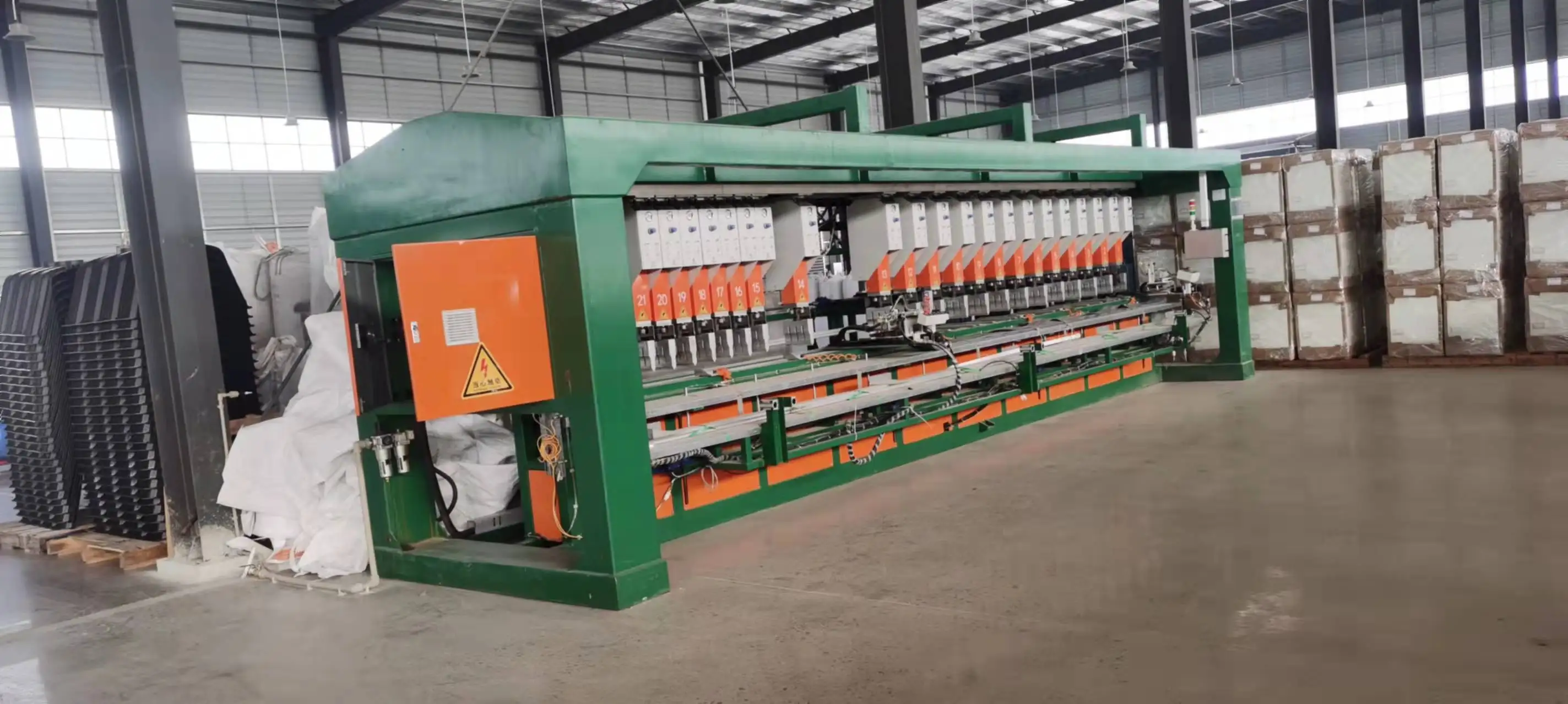

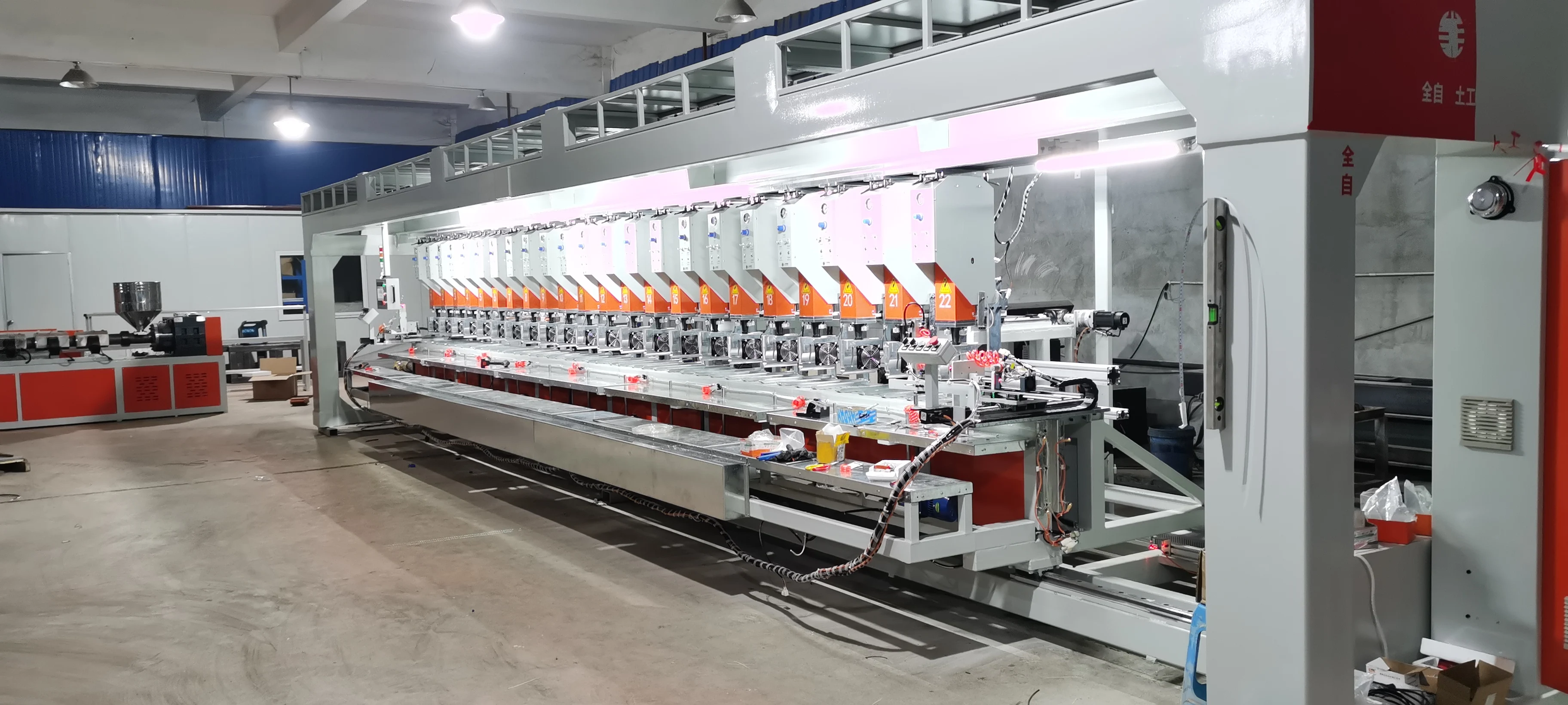

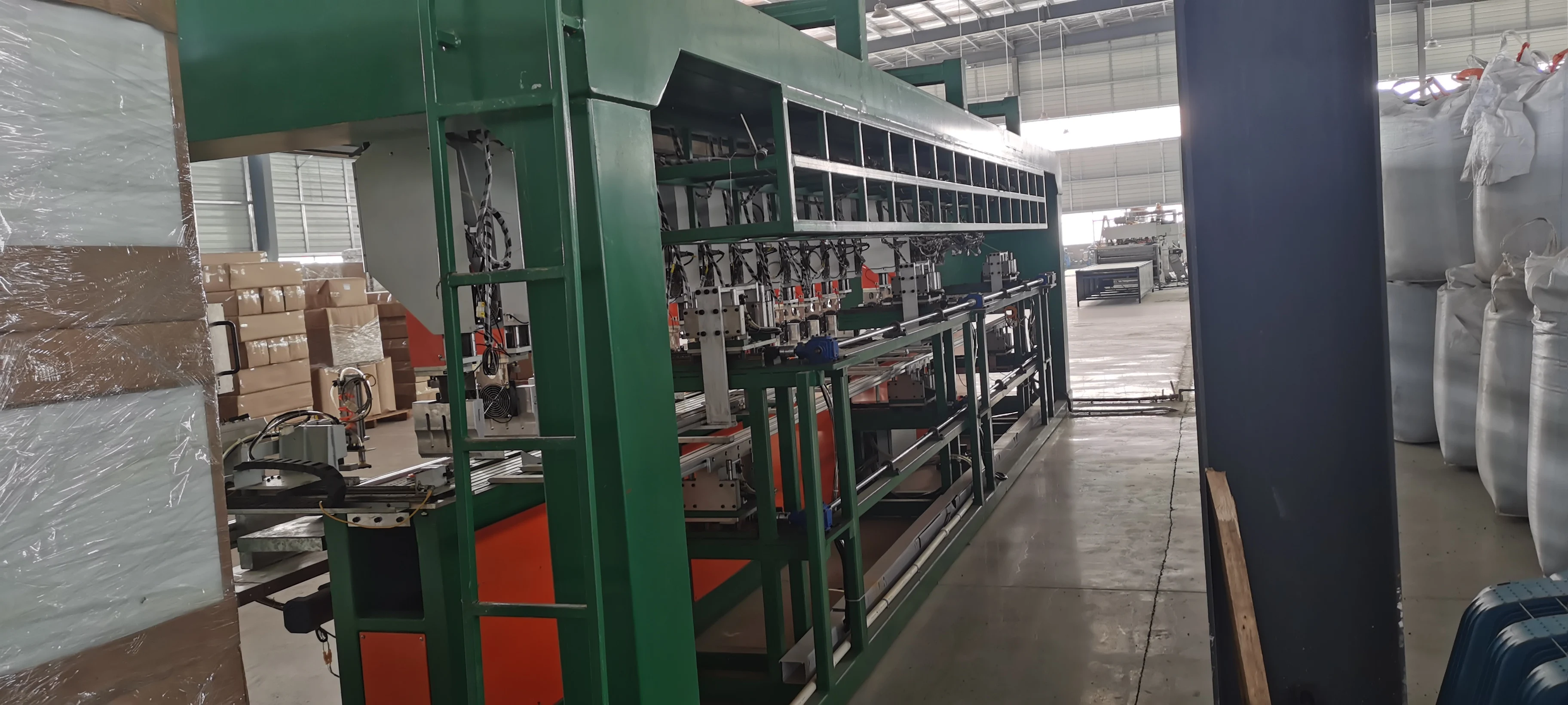

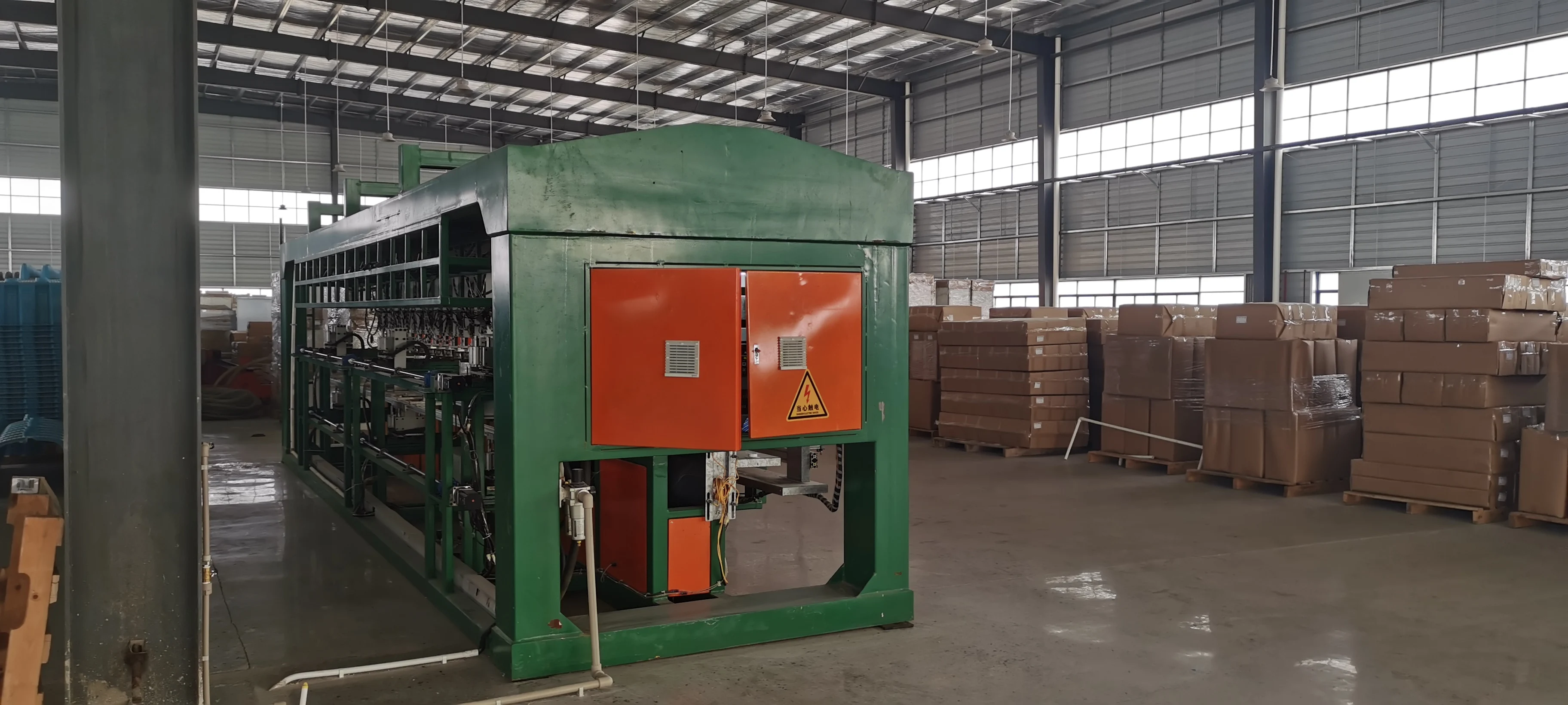

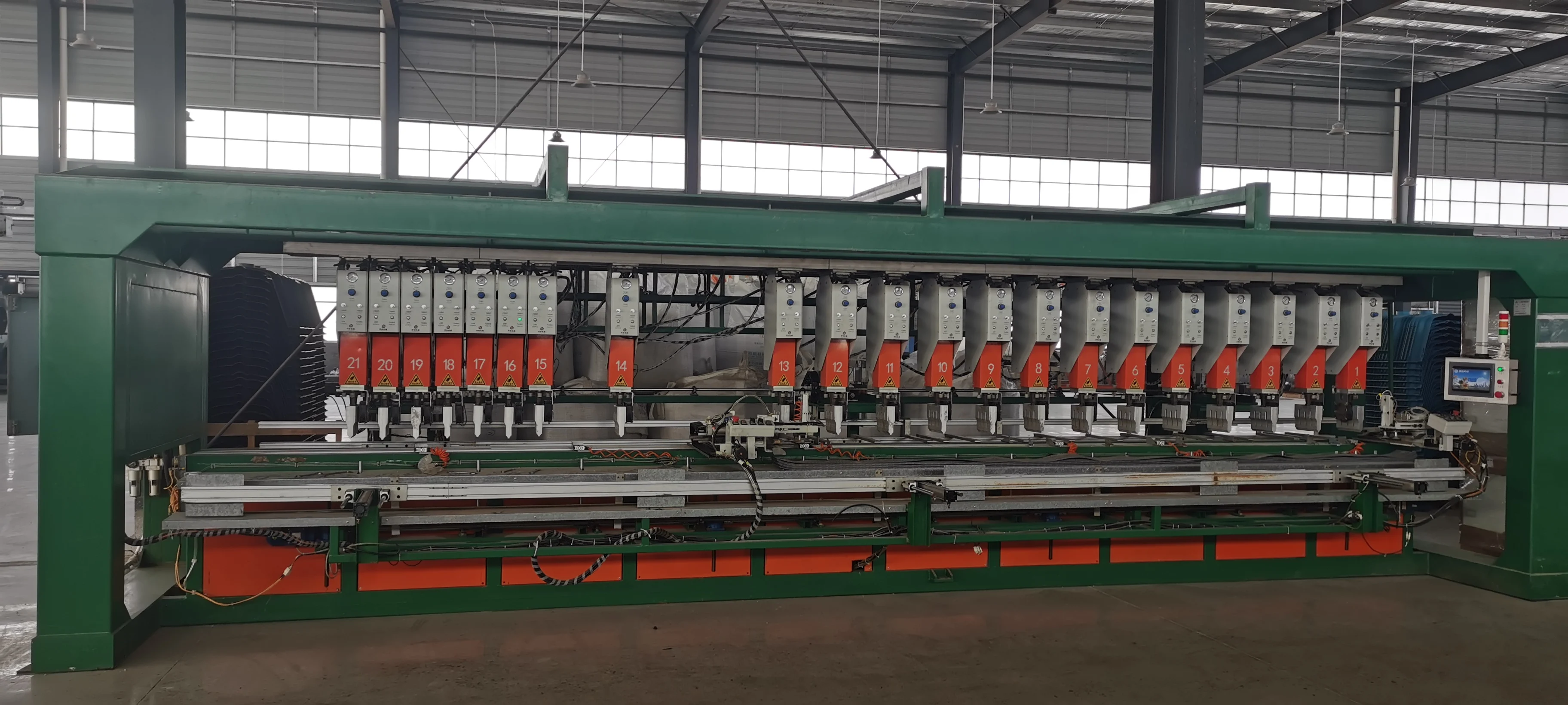

hdpe welding geocell price Geocell Plastic Welding Machine

Product Overview

Description

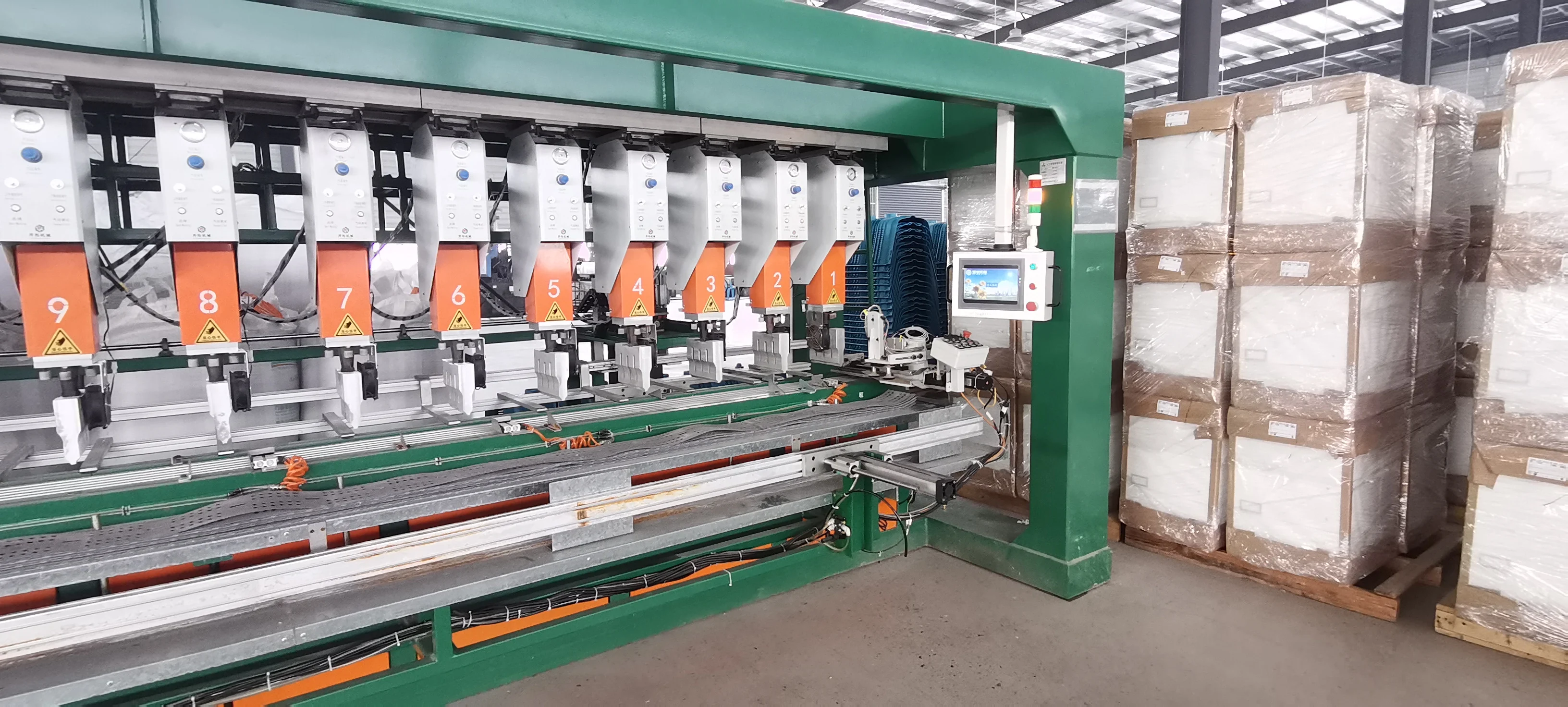

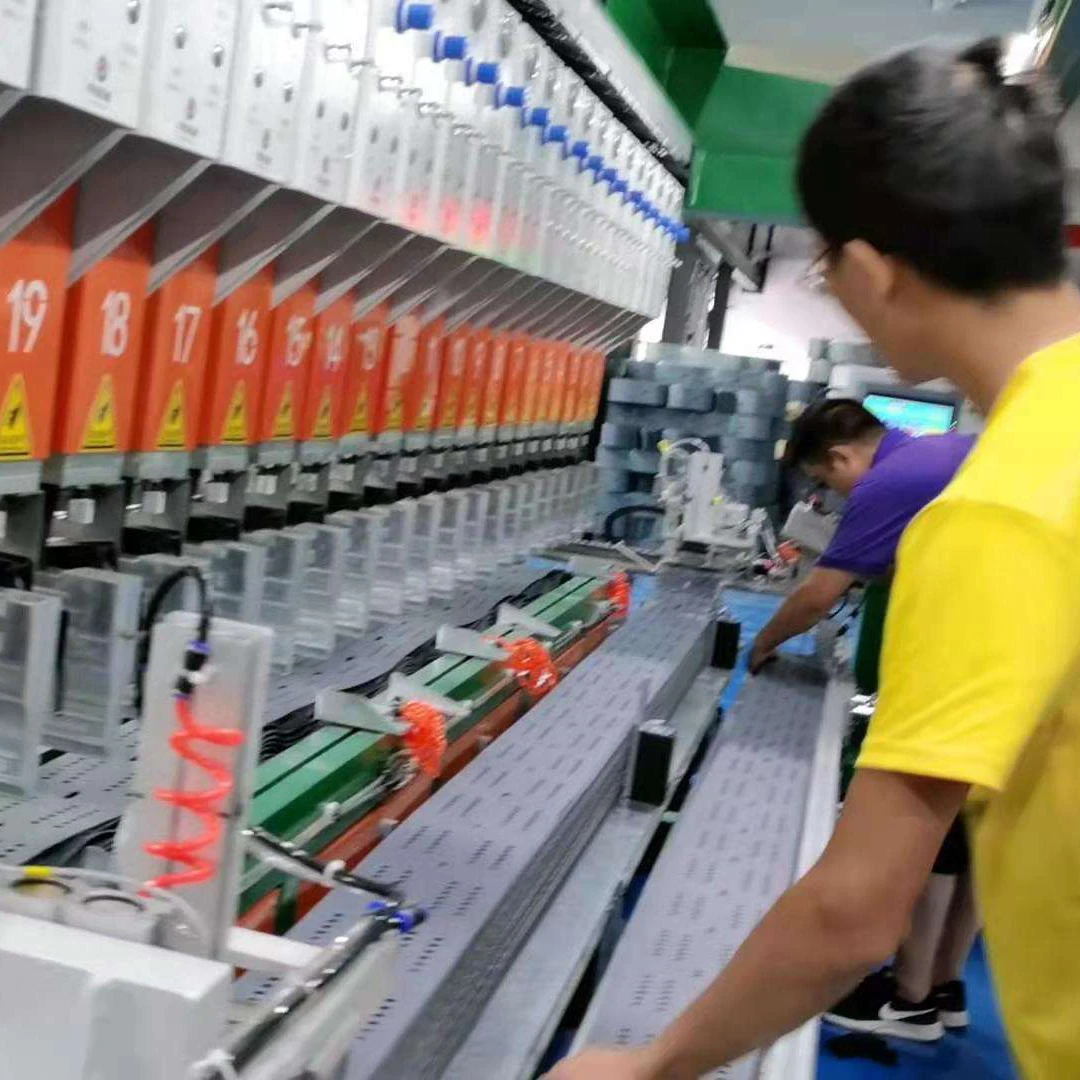

 1.hdpe welding geocell geoweb price :



product name	geocell welding machine
Power output	45kW
welding way	automatic /Maual
strips putting way	automatic /Manual
Welded material	HDPE
Geocell height	50-320mm
Overall dimensions (L × W × H)	1100 × 2000 × 2450mm
Weight	6.5T
Working width	9M
Compressed air	0.6 ~ 0.9 MPa
Strips thickness	1.0-3.0mm
distance between the seams	300 mm, 800 mm

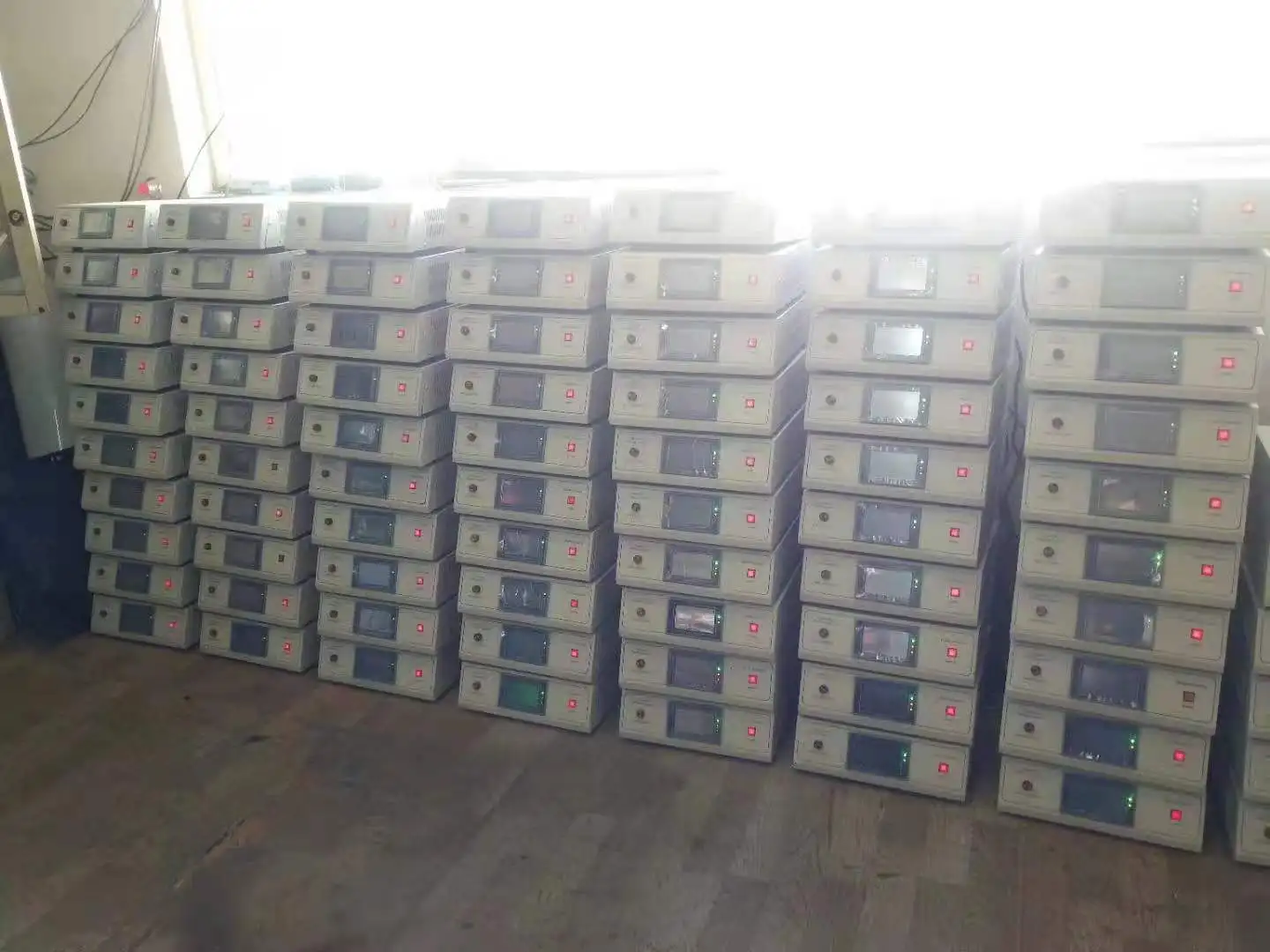

2. Ultrasonic generator for hdpe welding geocell geoweb price :
Ultrasonic generator using German advanced automatic frequency tracking, high power output,

each point of welding time (a trip): 0.8~3.5 seconds

size :L360*W380*H125MM

weight:6kg

15khz 2800w

Qty :14 pcs

automatic frequency control generator which can match the welding horn automatically to extended the horn service life

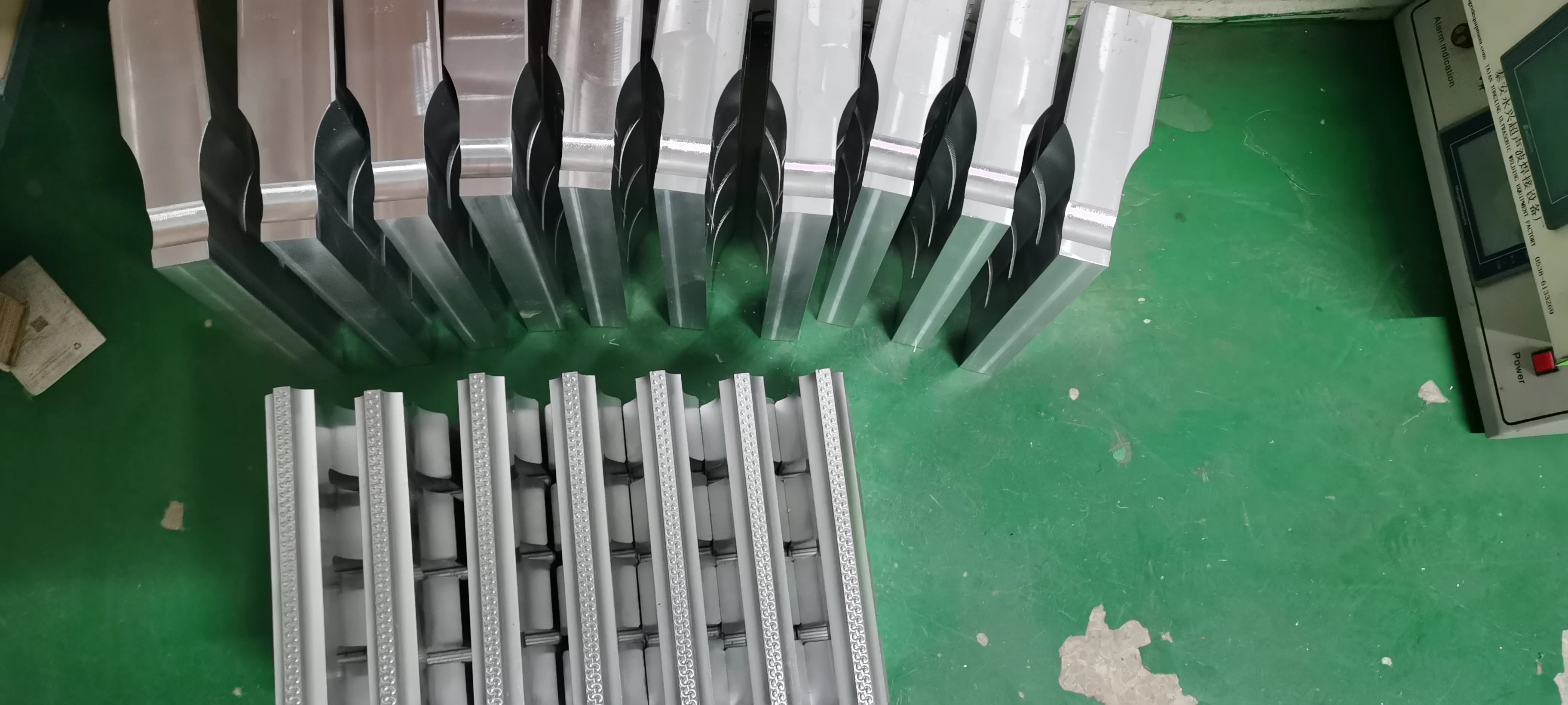

4.High Quality Aluminium Welding Horn for hdpe welding geocell geoweb price



  Horn material is high quality aluminium 7075

Width of welding horn: 220 mm

Geocell height :50-200mm

the distance between the seams: 300 mm, 800 mm, height adjustable bottom die

welding spot design according to customer's requirement

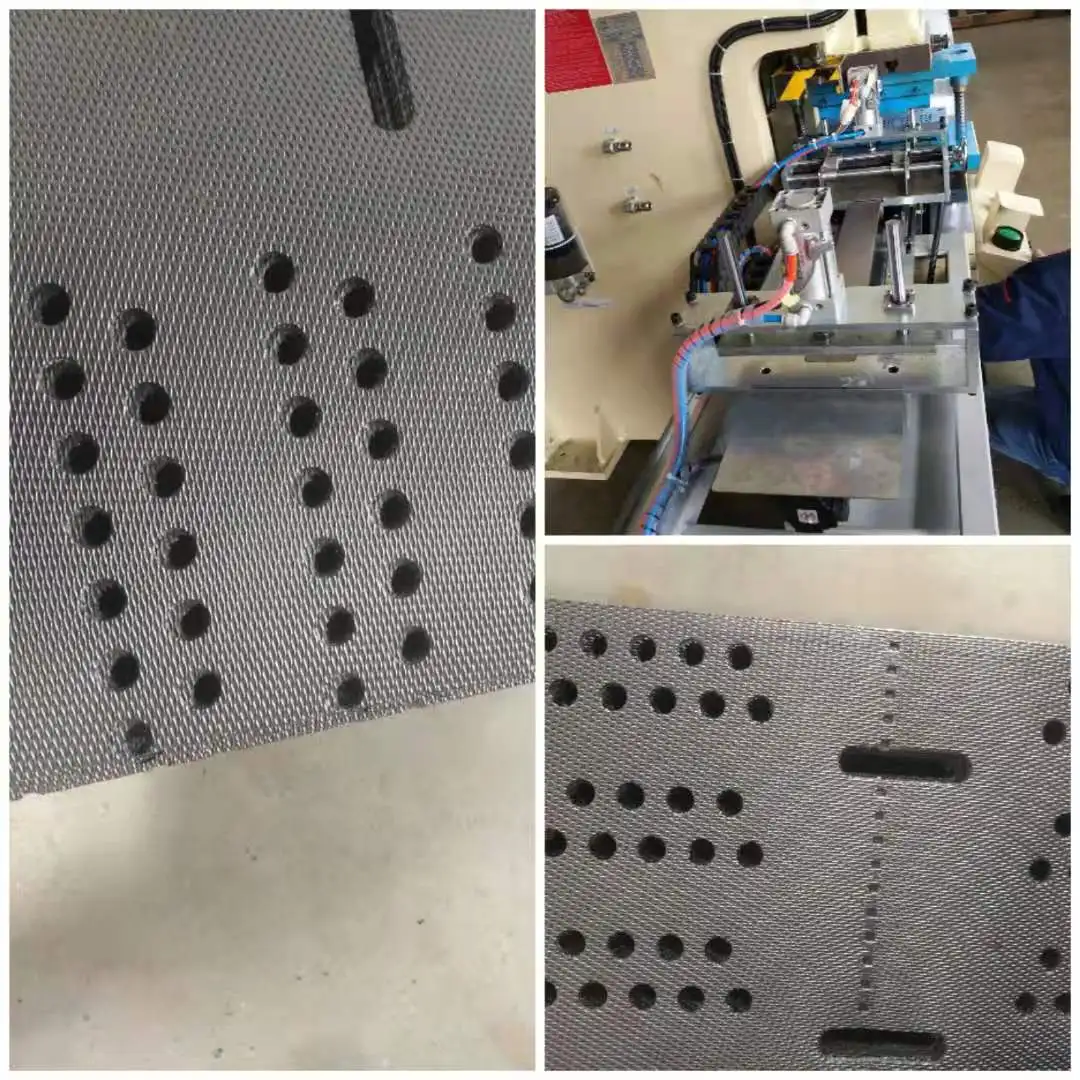

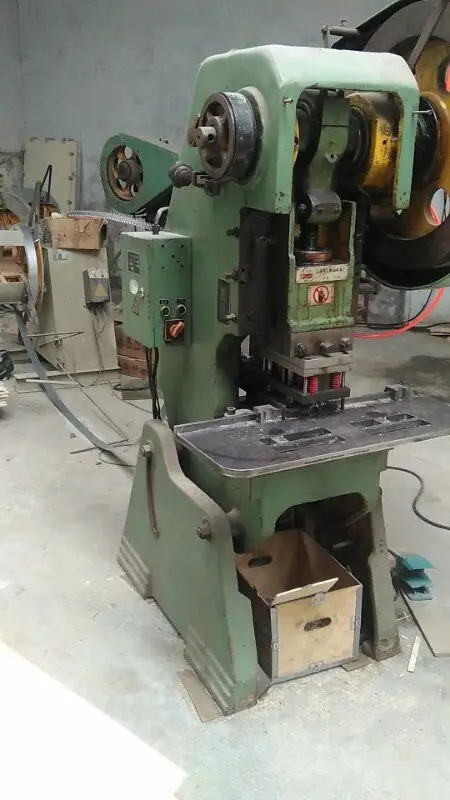

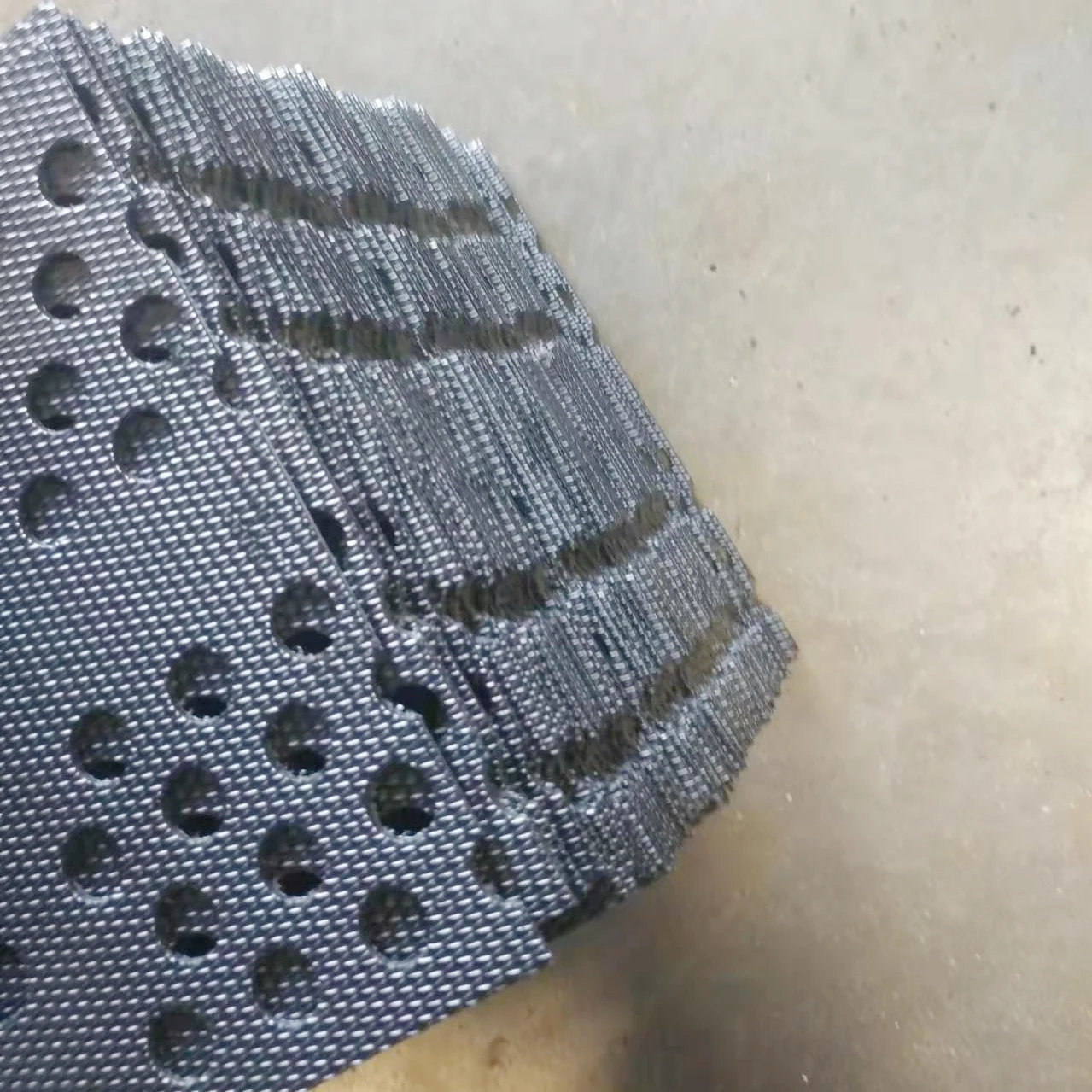

5.punching machine for geocell ground grid paver production line

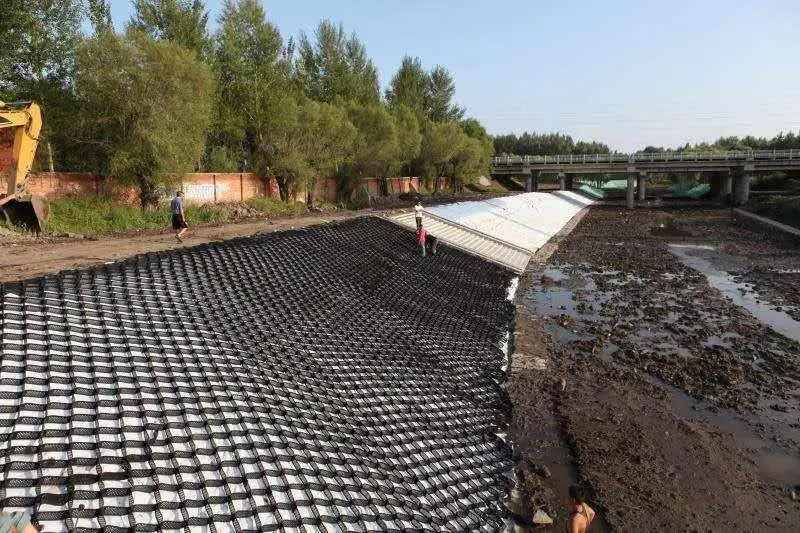

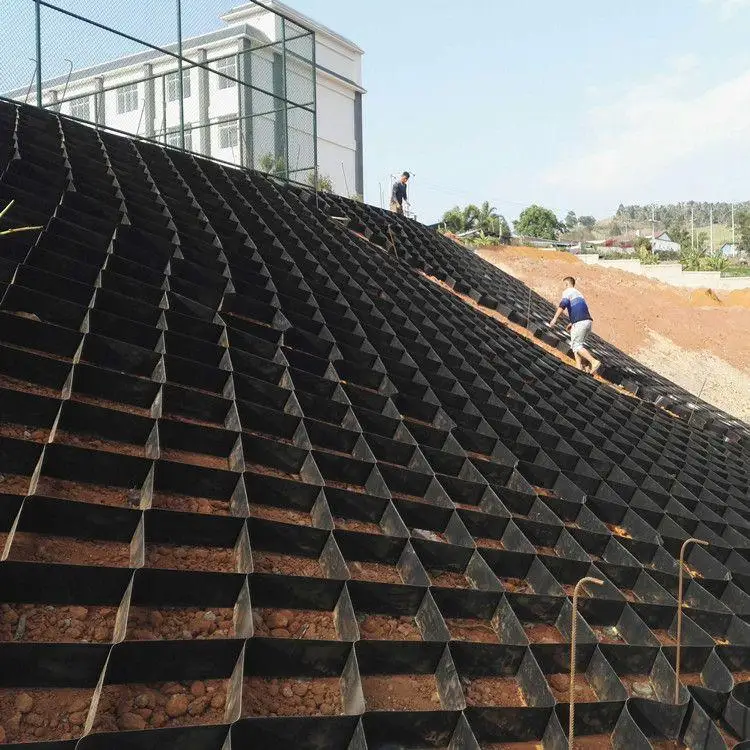

6.geocell product application

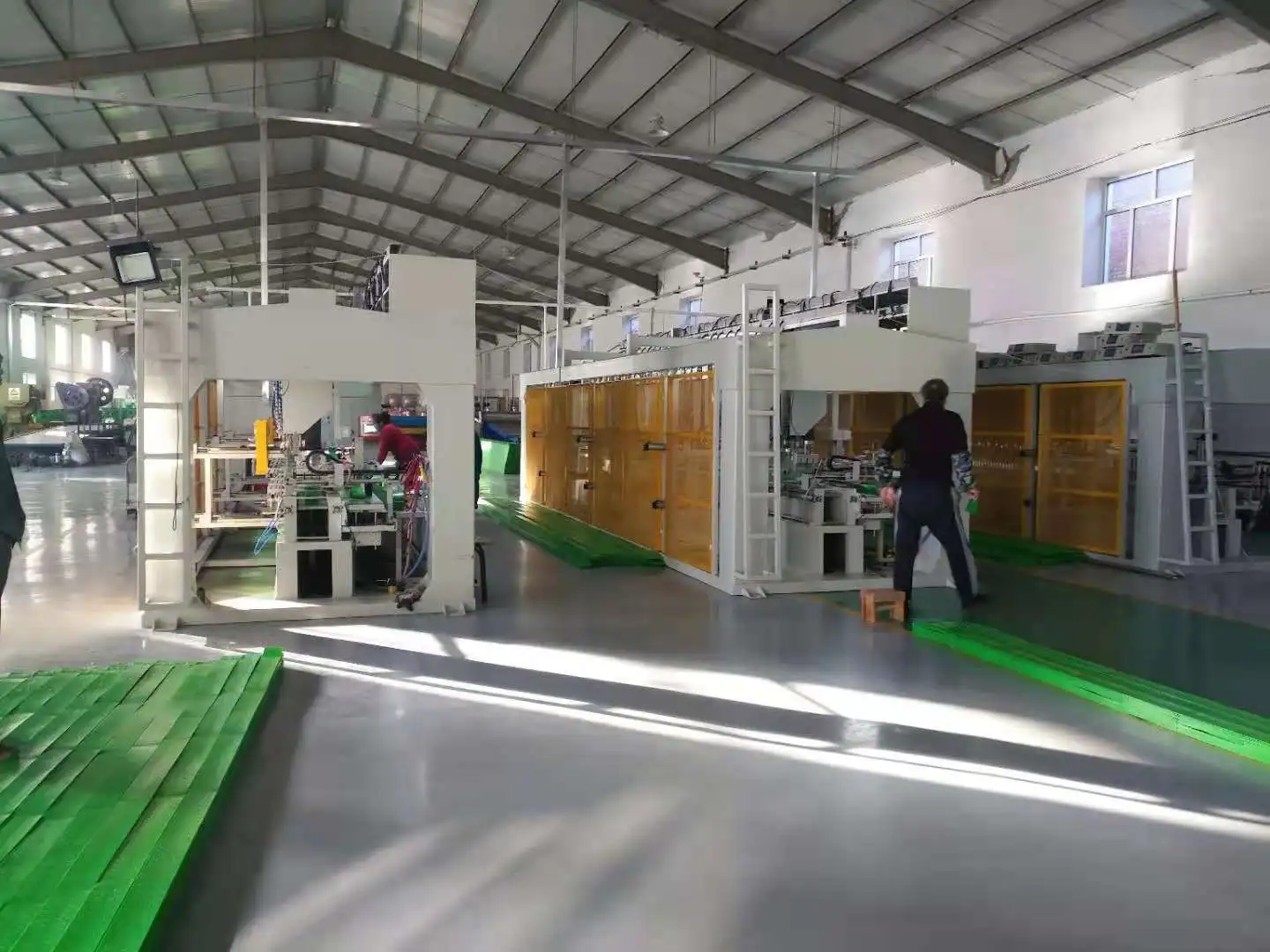

7. welcome to visit our factory in shanghai
